MITSUBISHI ENDEAVOR 2004 Service Repair Manual

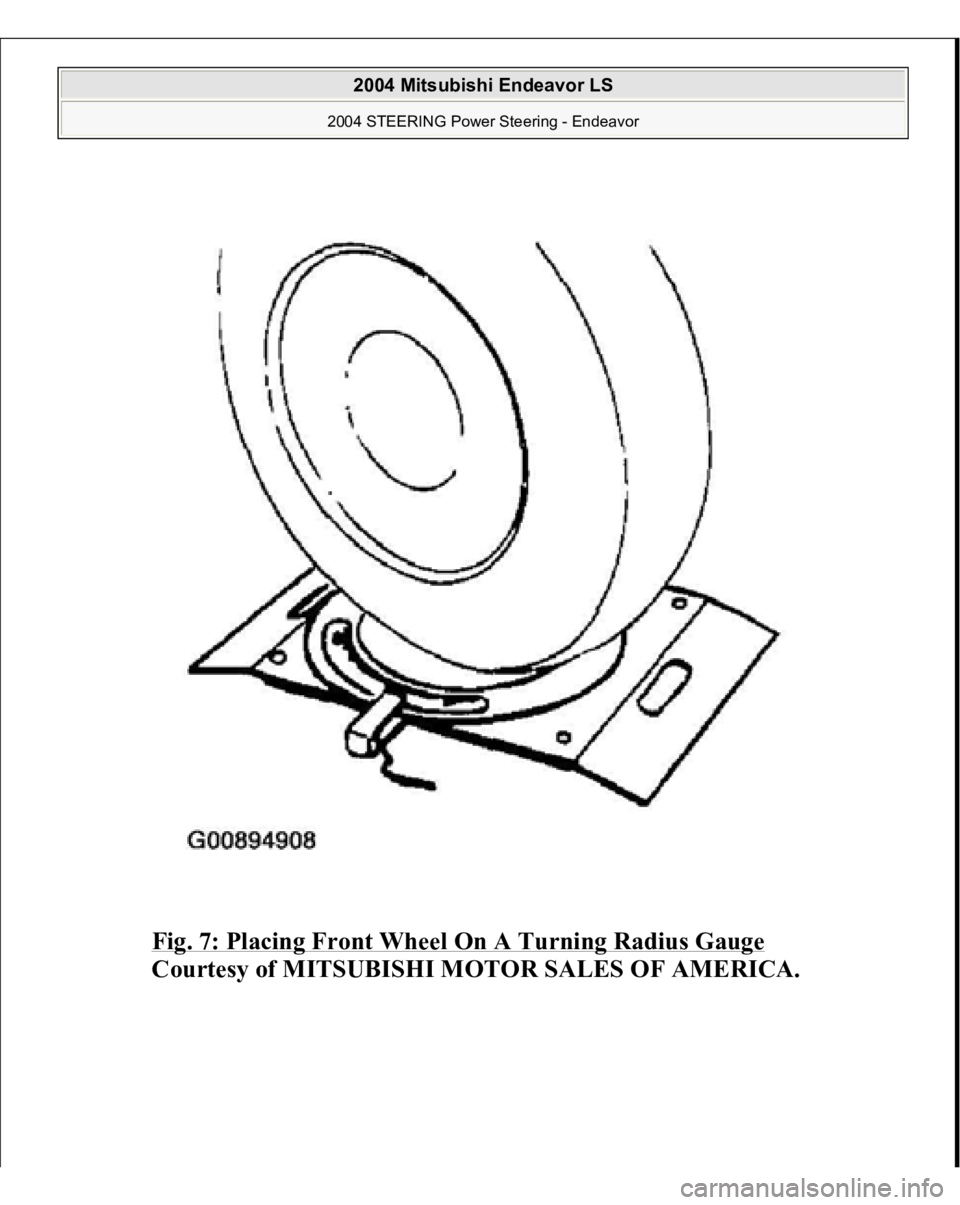

Fig. 7: Placing Front Wheel On A Turning Radius Gauge

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

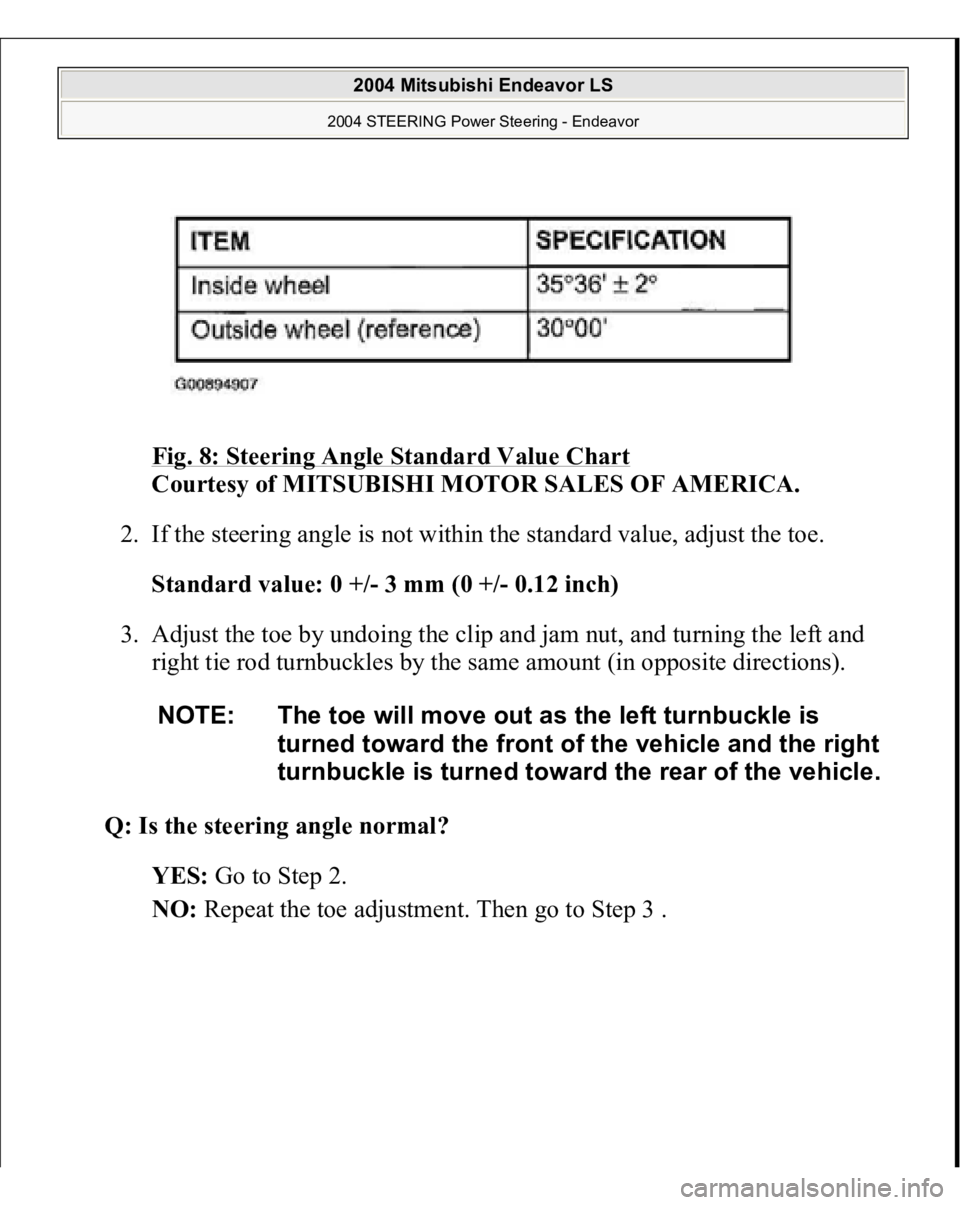

Fig. 8: Steering Angle Standard Value Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. If the steering angle is not within the standard value, adjust the toe.
Standard value: 0 +/- 3 mm (0 +/- 0.12 inch)
3. Adjust the toe by undoing the clip and jam nut, and turning the left and
right tie rod turnbuckles by the same amount (in opposite directions).
Q: Is the steering angle normal?
YES: Go to Step 2.
NO: Repeat the toe adjustment. Then go to Step 3.
NOTE: The toe will move out as the left turnbuckle is
turned toward the front of the vehicle and the right
turnbuckle is turned toward the rear of the vehicle.

2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

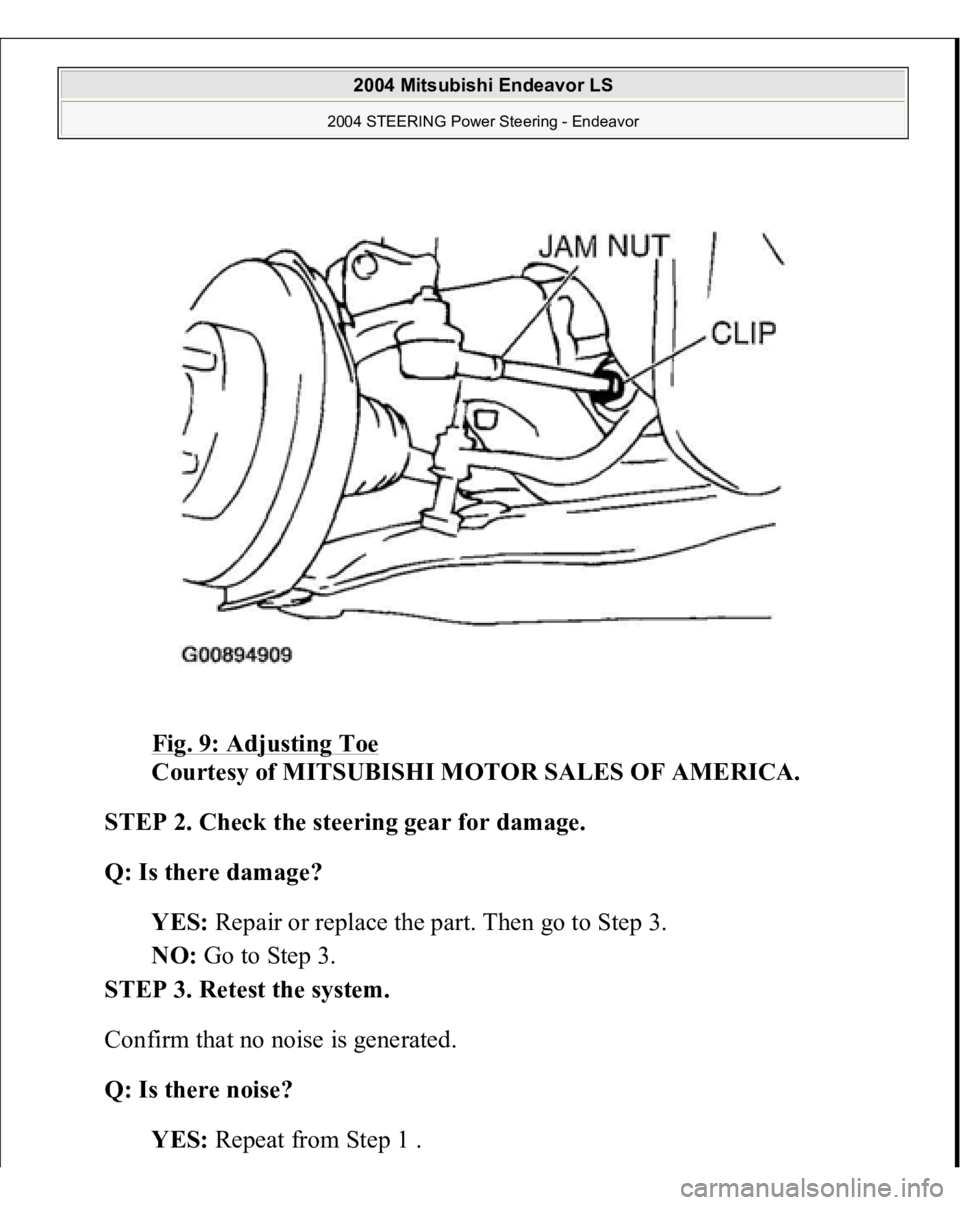

Fig. 9: Adjusting Toe

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
STEP 2. Check the steering gear for damage.
Q: Is there damage?
YES: Repair or replace the part. Then go to Step 3.
NO: Go to Step 3.
STEP 3. Retest the system.
Confirm that no noise is generated.
Q: Is there noise?
YES: Repeat from Step 1 .

2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

NO: The procedure is complete.

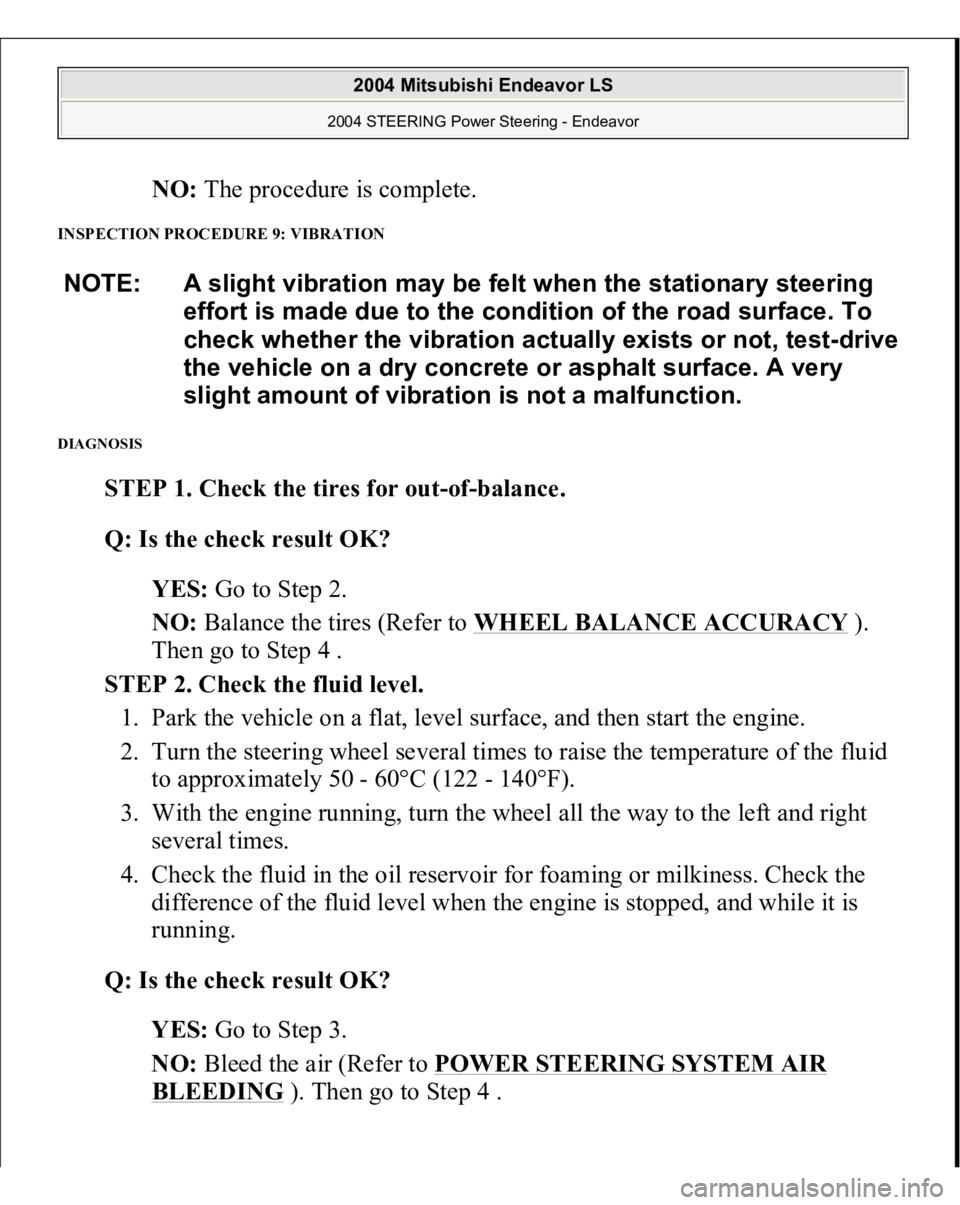

INSPECTION PROCEDURE 9: VIBRATION DIAGNOSIS
STEP 1. Check the tires for out-of-balance.
Q: Is the check result OK?
YES: Go to Step 2.
NO: Balance the tires (Refer to WHEEL BALANCE ACCURACY
).
Then go to Step 4 .
STEP 2. Check the fluid level.
1. Park the vehicle on a flat, level surface, and then start the engine.
2. Turn the steering wheel several times to raise the temperature of the fluid
to approximately 50 - 60°C (122 - 140°F).
3. With the engine running, turn the wheel all the way to the left and right
several times.
4. Check the fluid in the oil reservoir for foaming or milkiness. Check the
difference of the fluid level when the engine is stopped, and while it is
running.
Q: Is the check result OK?
YES: Go to Step 3.
NO: Bleed the air (Refer to POWER STEERING SYSTEM AIR
BLEEDING
). Then go to Step 4 .
NOTE: A slight vibration may be felt when the stationary steering
effort is made due to the condition of the road surface. To
check whether the vibration actually exists or not, test-drive
the vehicle on a dry concrete or asphalt surface. A very
slight amount of vibration is not a malfunction.
2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

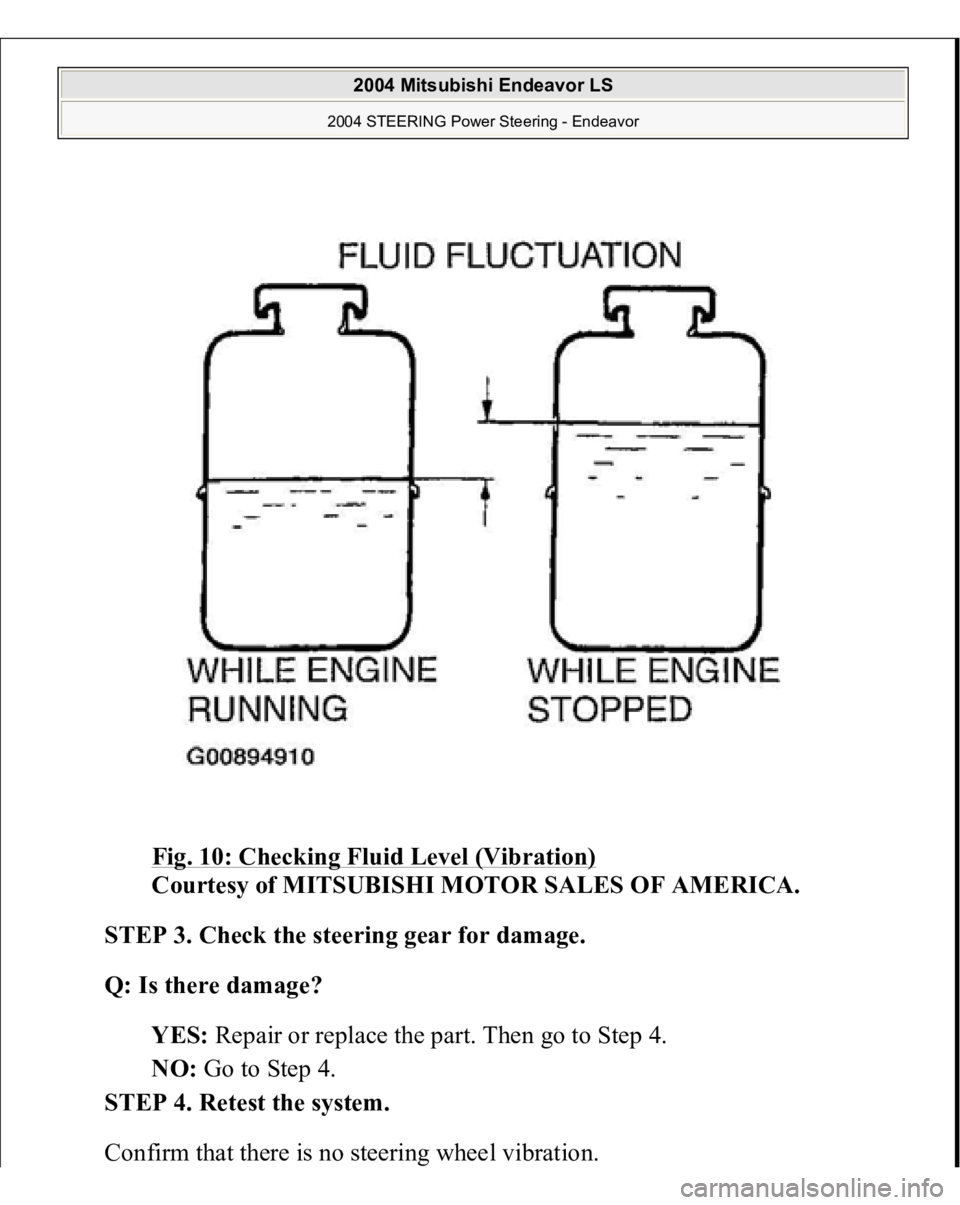

Fig. 10: Checking Fluid Level (Vibration)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
STEP 3. Check the steering gear for damage.
Q: Is there damage?
YES: Repair or replace the part. Then go to Step 4.
NO: Go to Step 4.
STEP 4. Retest the system.
Confirm that there is no steering wheel vibration.

2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

Q: Is there vibration?
YES: Repeat from Step 1 .
NO: The procedure is complete.

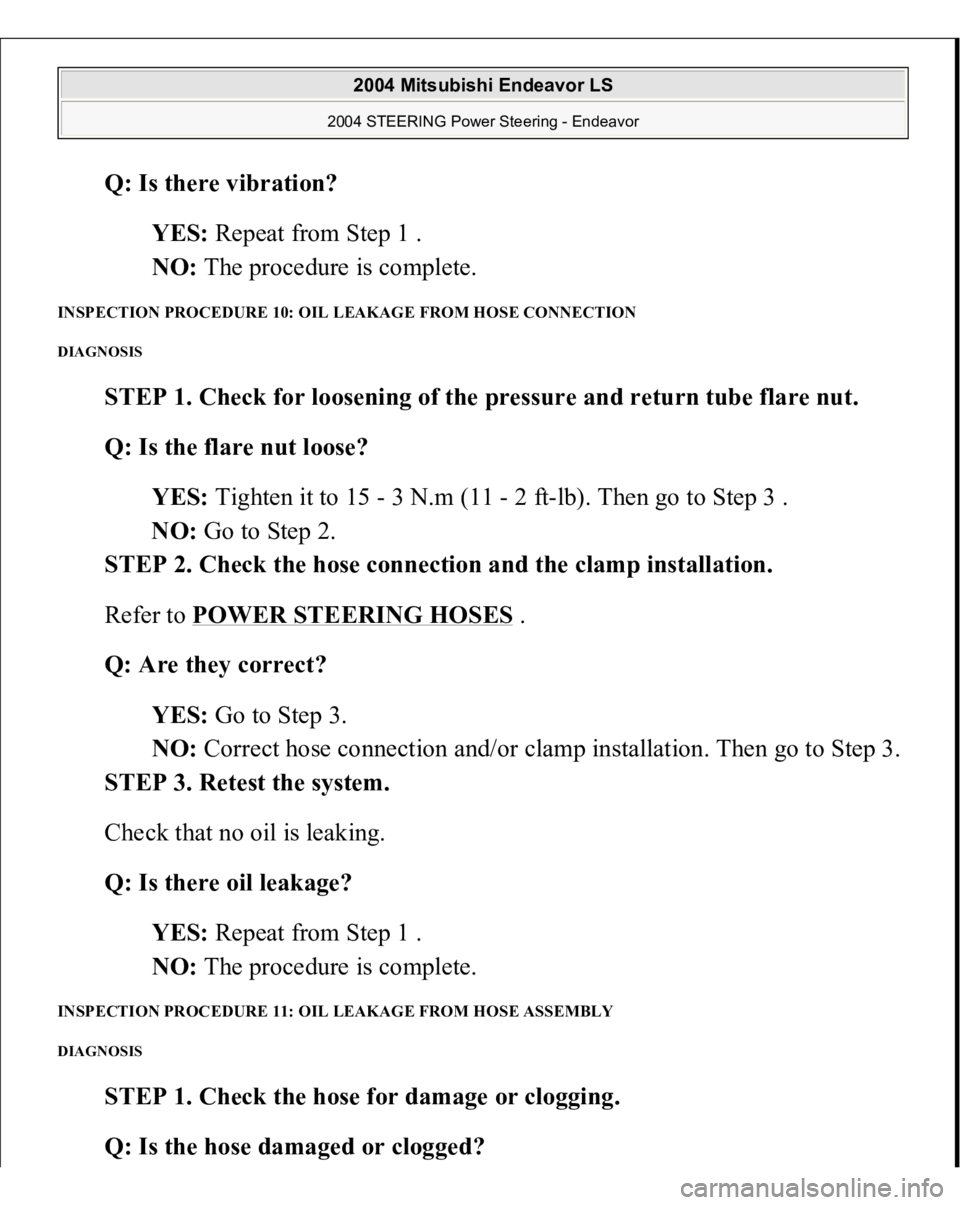

INSPECTION PROCEDURE 10: OIL LEAKAGE FROM HOSE CONNECTION DIAGNOSIS
STEP 1. Check for loosening of the pressure and return tube flare nut.
Q: Is the flare nut loose?
YES: Tighten it to 15 - 3 N.m (11 - 2 ft-lb). Then go to Step 3 .
NO: Go to Step 2.
STEP 2. Check the hose connection and the clamp installation.
Refer to POWER STEERING HOSES
.
Q: Are they correct?
YES: Go to Step 3.
NO: Correct hose connection and/or clamp installation. Then go to Step 3.
STEP 3. Retest the system.
Check that no oil is leaking.
Q: Is there oil leakage?
YES: Repeat from Step 1 .
NO: The procedure is complete.
INSPECTION PROCEDURE 11: OIL LEAKAGE FROM HOSE ASSEMBLY DIAGNOSIS
STEP 1. Check the hose for damage or clogging.
Q: Is the hose damaged or clogged?

2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

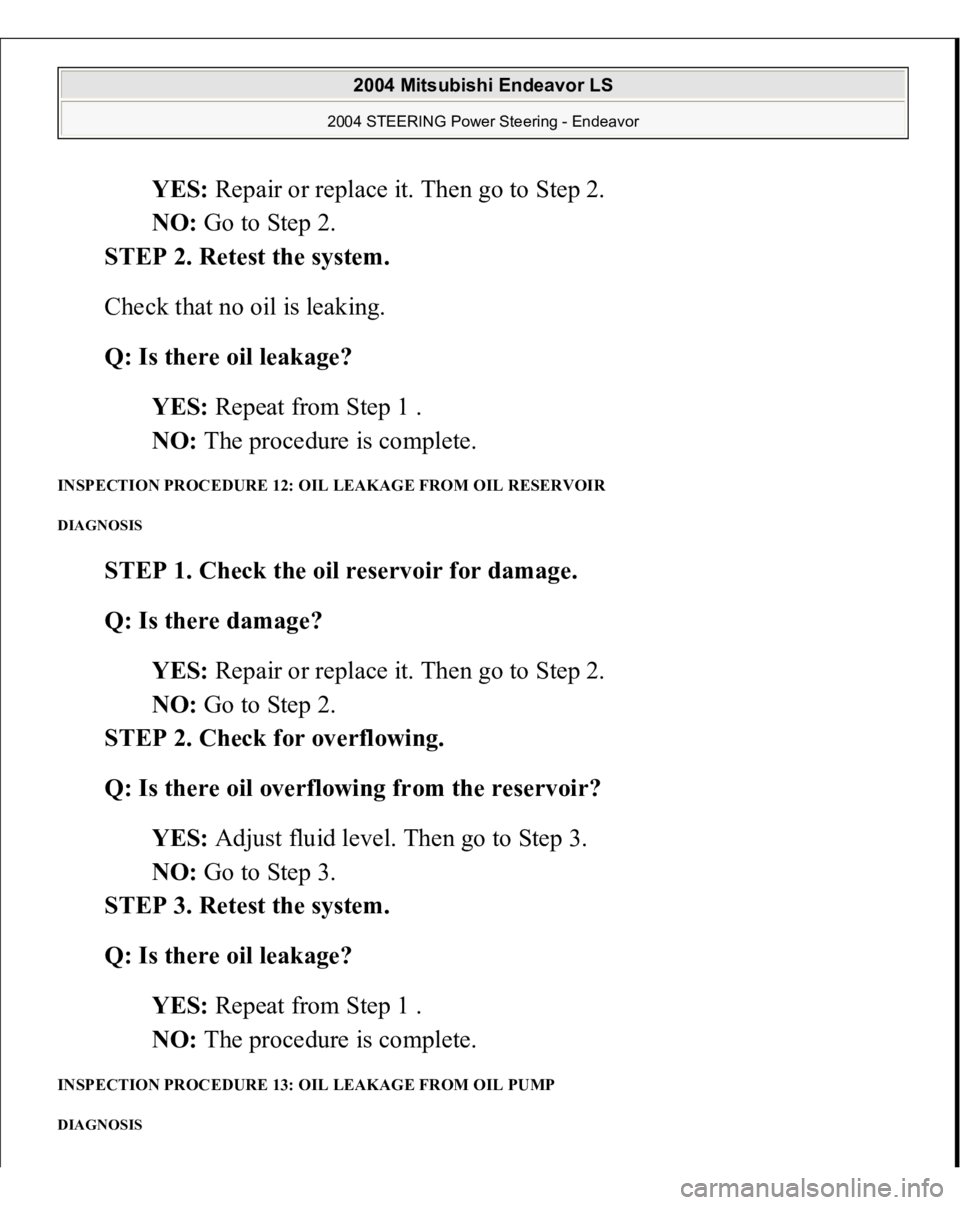

YES: Repair or replace it. Then go to Step 2.
NO: Go to Step 2.
STEP 2. Retest the system.
Check that no oil is leaking.
Q: Is there oil leakage?
YES: Repeat from Step 1 .
NO: The procedure is complete.
INSPECTION PROCEDURE 12: OIL LEAKAGE FROM OIL RESERVOIR DIAGNOSIS
STEP 1. Check the oil reservoir for damage.
Q: Is there damage?
YES: Repair or replace it. Then go to Step 2.
NO: Go to Step 2.
STEP 2. Check for overflowing.
Q: Is there oil overflowing from the reservoir?
YES: Adjust fluid level. Then go to Step 3.
NO: Go to Step 3.
STEP 3. Retest the system.
Q: Is there oil leakage?
YES: Repeat from Step 1 .
NO: The procedure is complete.
INSPECTION PROCEDURE 13: OIL LEAKAGE FROM OIL PUMP DIAGNOSIS
2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

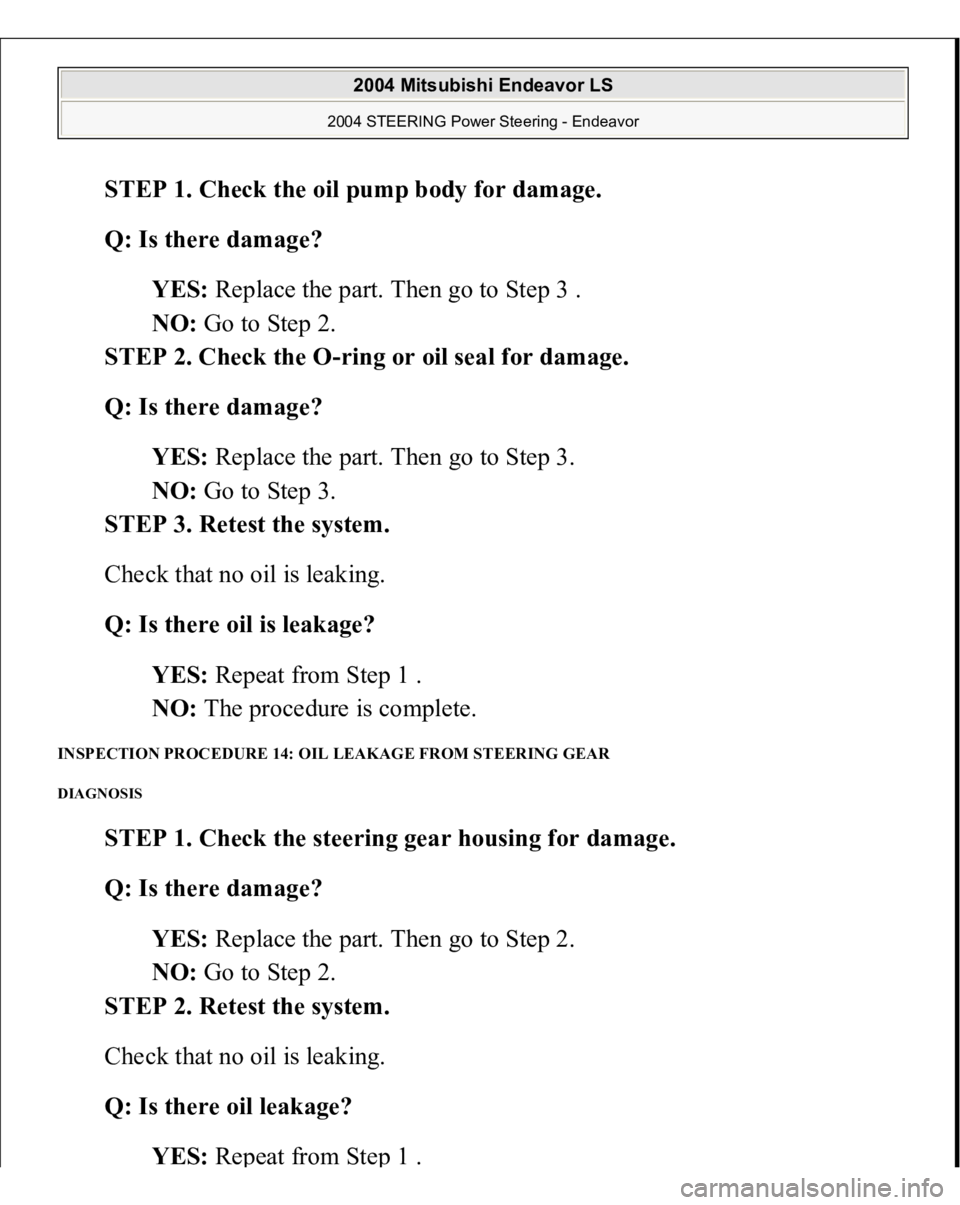

STEP 1. Check the oil pump body for damage.
Q: Is there damage?
YES: Replace the part. Then go to Step 3 .
NO: Go to Step 2.
STEP 2. Check the O-ring or oil seal for damage.
Q: Is there damage?
YES: Replace the part. Then go to Step 3.
NO: Go to Step 3.
STEP 3. Retest the system.
Check that no oil is leaking.
Q: Is there oil is leakage?
YES: Repeat from Step 1 .
NO: The procedure is complete.
INSPECTION PROCEDURE 14: OIL LEAKAGE FROM STEERING GEAR DIAGNOSIS
STEP 1. Check the steering gear housing for damage.
Q: Is there damage?
YES: Replace the part. Then go to Step 2.
NO: Go to Step 2.
STEP 2. Retest the system.
Check that no oil is leaking.
Q: Is there oil leakage?
YES: Re
peat from Ste
p 1 .

2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

NO: The procedure is complete.
SPECIAL TOOLS Fig. 11: Identifying Special Tools (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 STEERING Power Steering - Endeavor

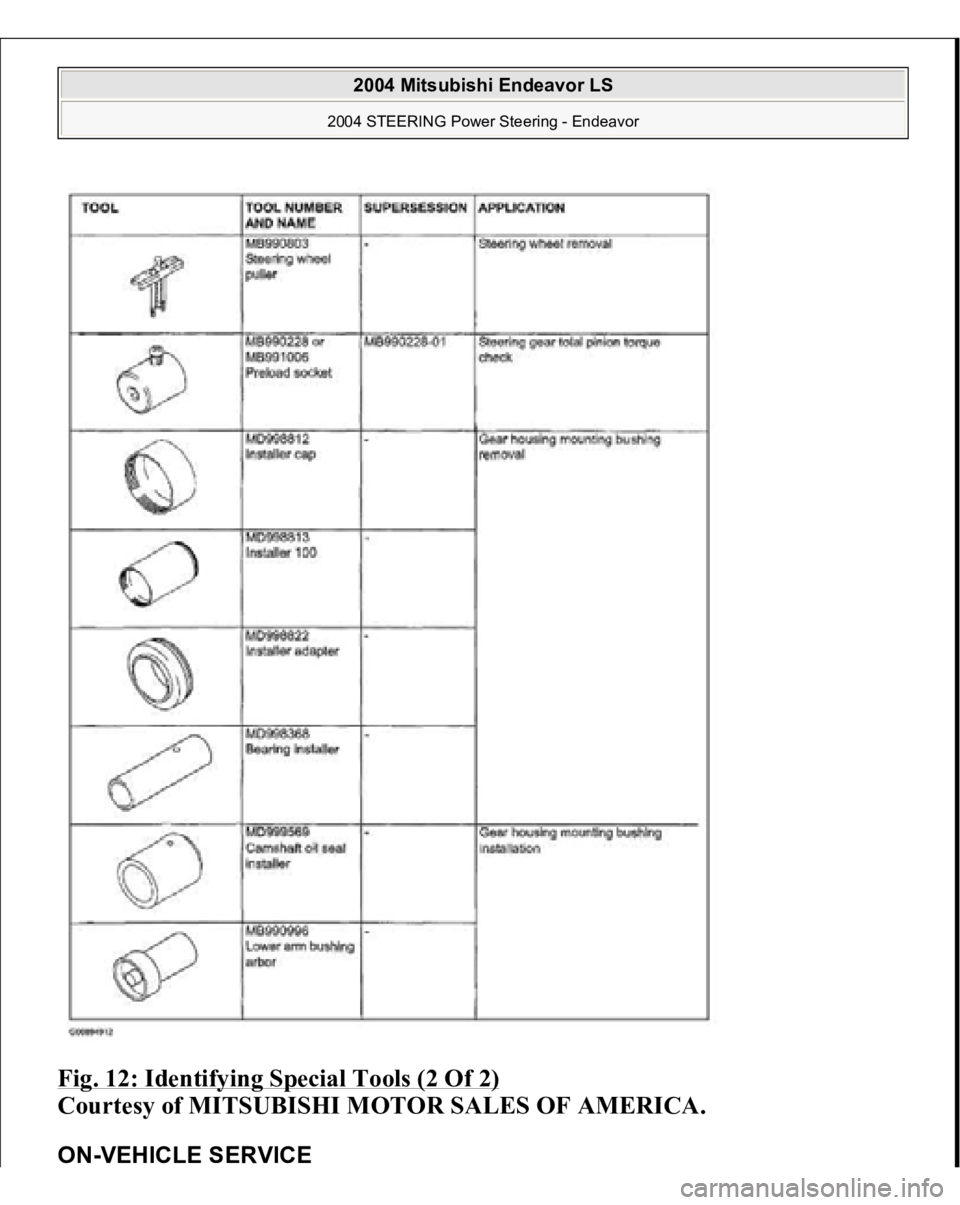

Fig. 12: Identifying Special Tools (2 Of 2)
