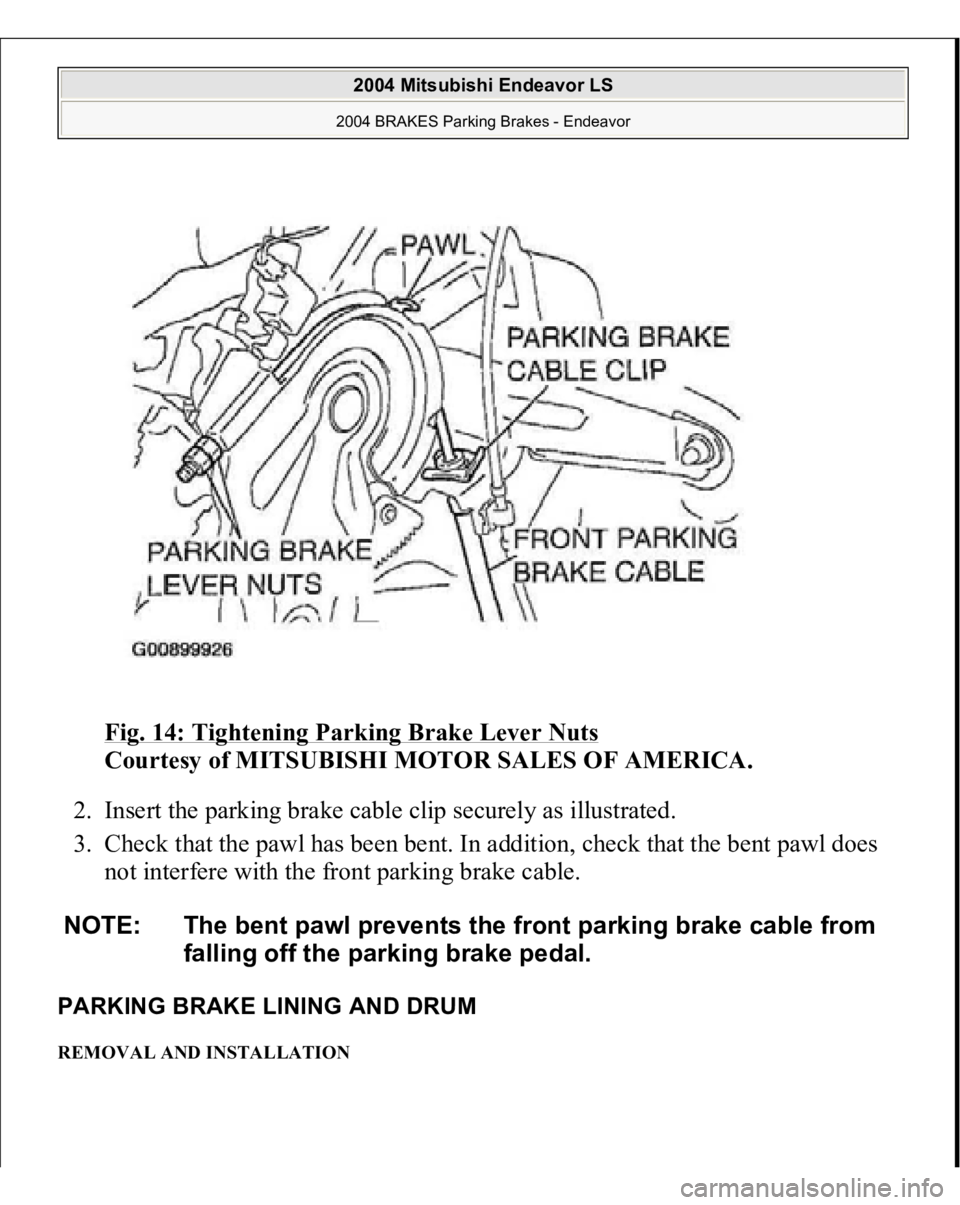

Fig. 14: Tightening Parking Brake Lever Nuts

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Insert the parking brake cable clip securely as illustrated.
3. Check that the pawl has been bent. In addition, check that the bent pawl does
not interfere with the front parking brake cable.
PARKING BRAKE LINING AND DRUM REMOVAL AND INSTALLATIONNOTE: The bent pawl prevents the front parking brake cable from
falling off the parking brake pedal.
2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor

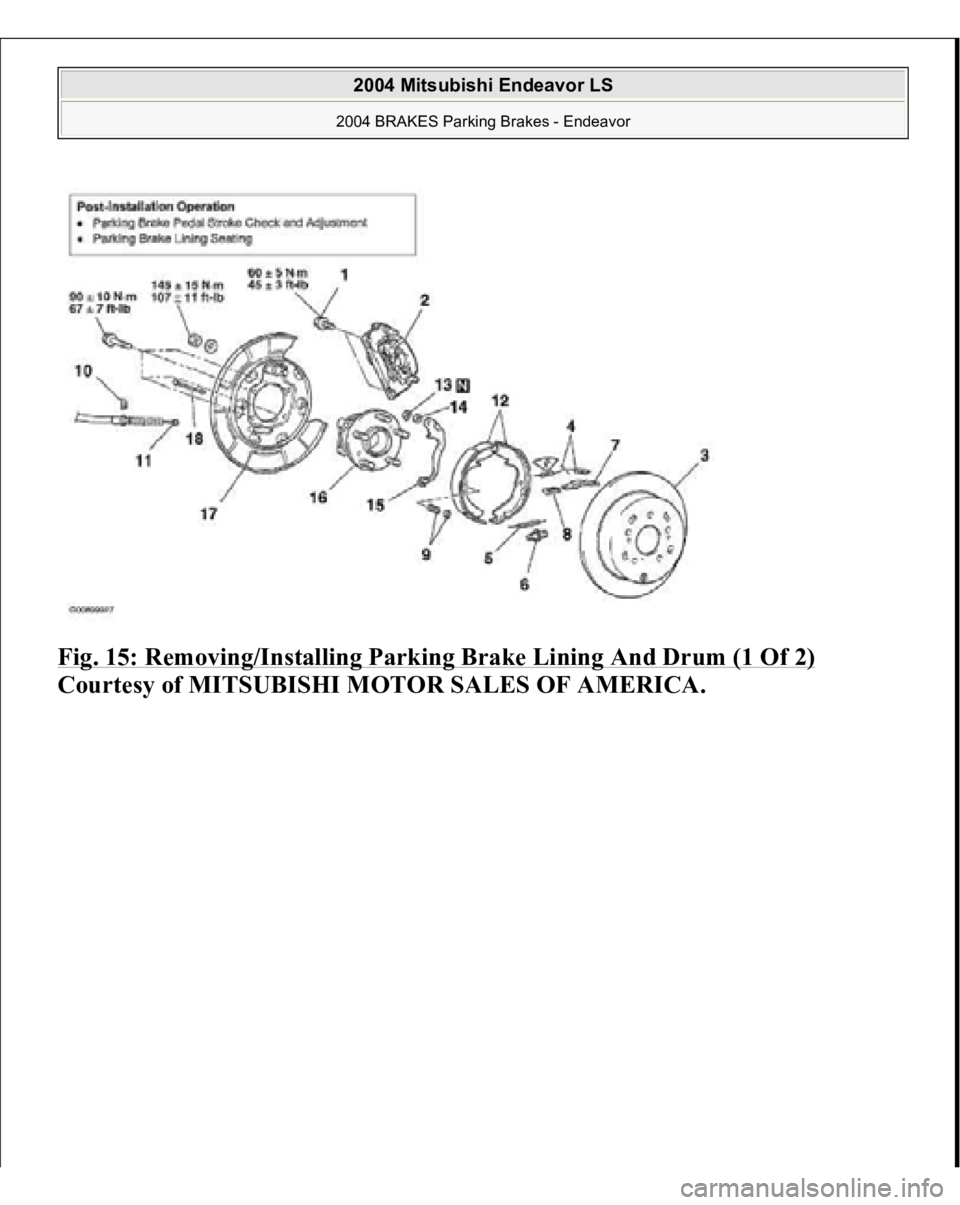

Fig. 15: Removing/Installing Parking Brake Lining And Drum (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor

Fig. 16: Removing/Installing Parking Brake Lining And Drum (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL SERVICE POINTS << A>> REAR BRAKE BOLT/REAR BRAKE CALIPER ASSEMBLY REMOVAL Remove the rear brake caliper assembly and support it with wire or something
similar.
2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor

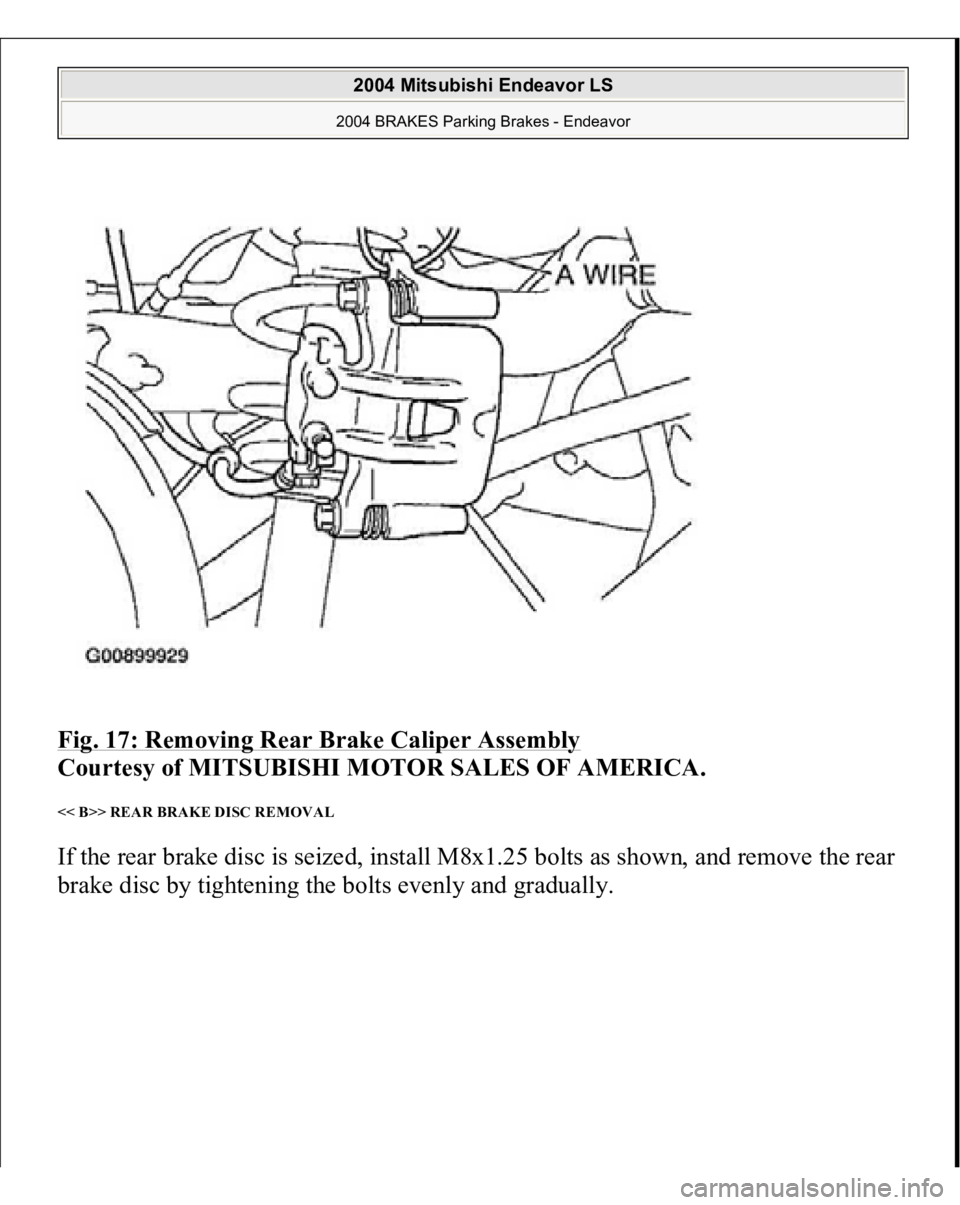

Fig. 17: Removing Rear Brake Caliper Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
<< B>> REAR BRAKE DISC REMOVAL If the rear brake disc is seized, install M8x1.25 bolts as shown, and remove the rear brake disc b
y tightenin
g the bolts evenl
y and
graduall
y.

2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor

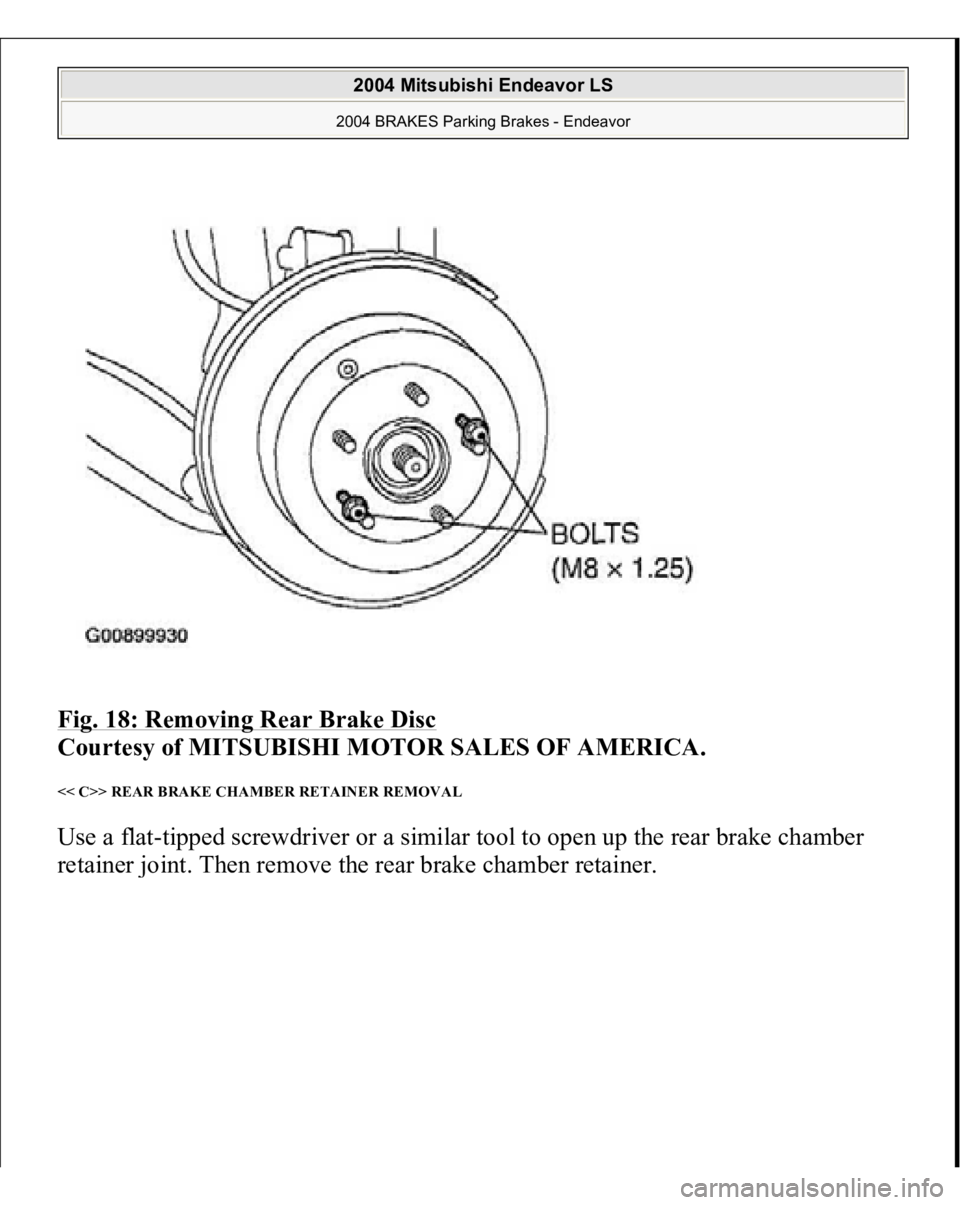

Fig. 18: Removing Rear Brake Disc

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
<< C>> REAR BRAKE CHAMBER RETAINER REMOVAL Use a flat-tipped screwdriver or a similar tool to open up the rear brake chamber
retainer
joint. Then remove the rear brake chamber retainer.

2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor

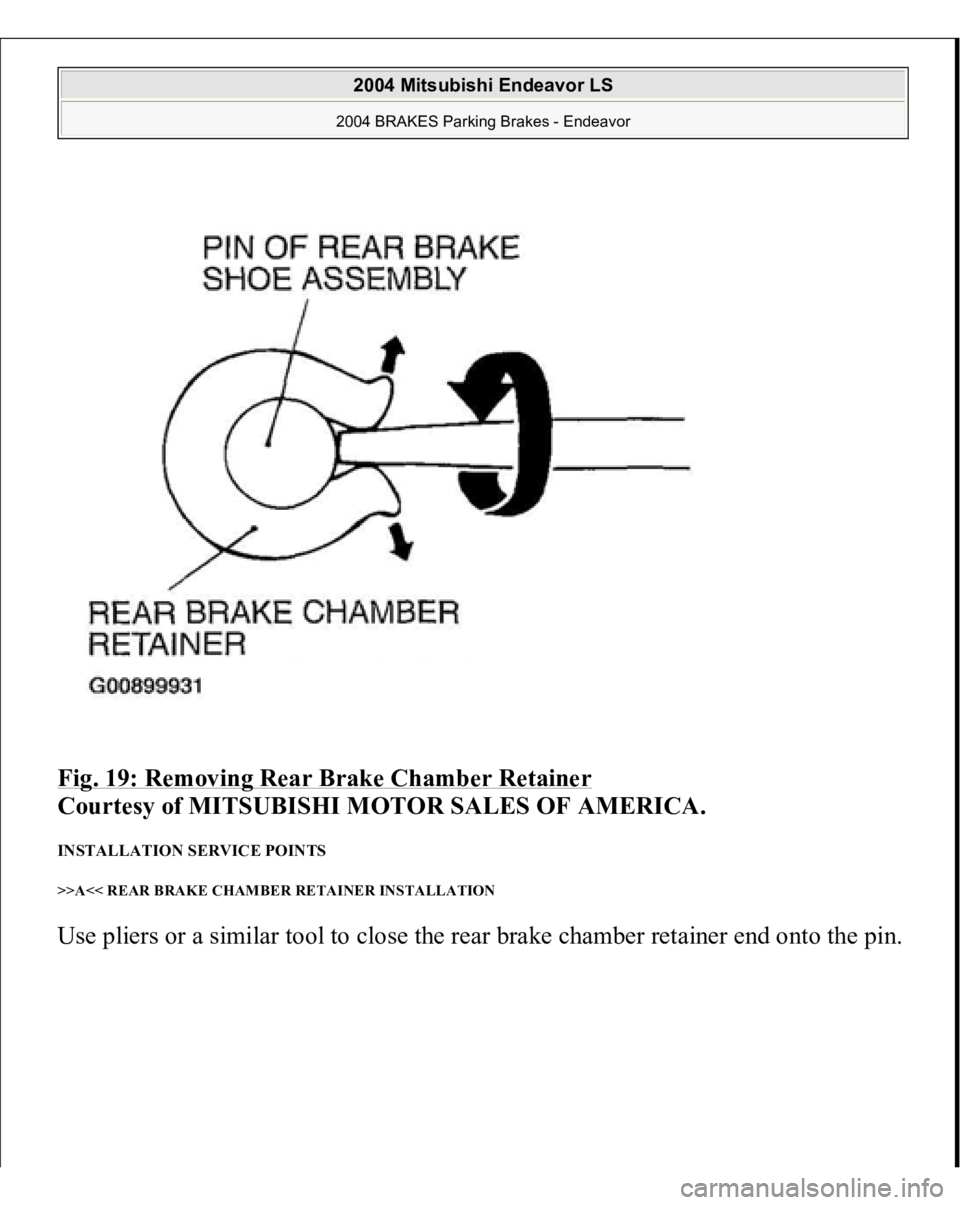

Fig. 19: Removing Rear Brake Chamber Retainer

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINTS >>A<< REAR BRAKE CHAMBER RETAINER INSTALLATION Use
pliers or a similar tool to close the rear brake chamber retainer end onto the
pin.

2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor

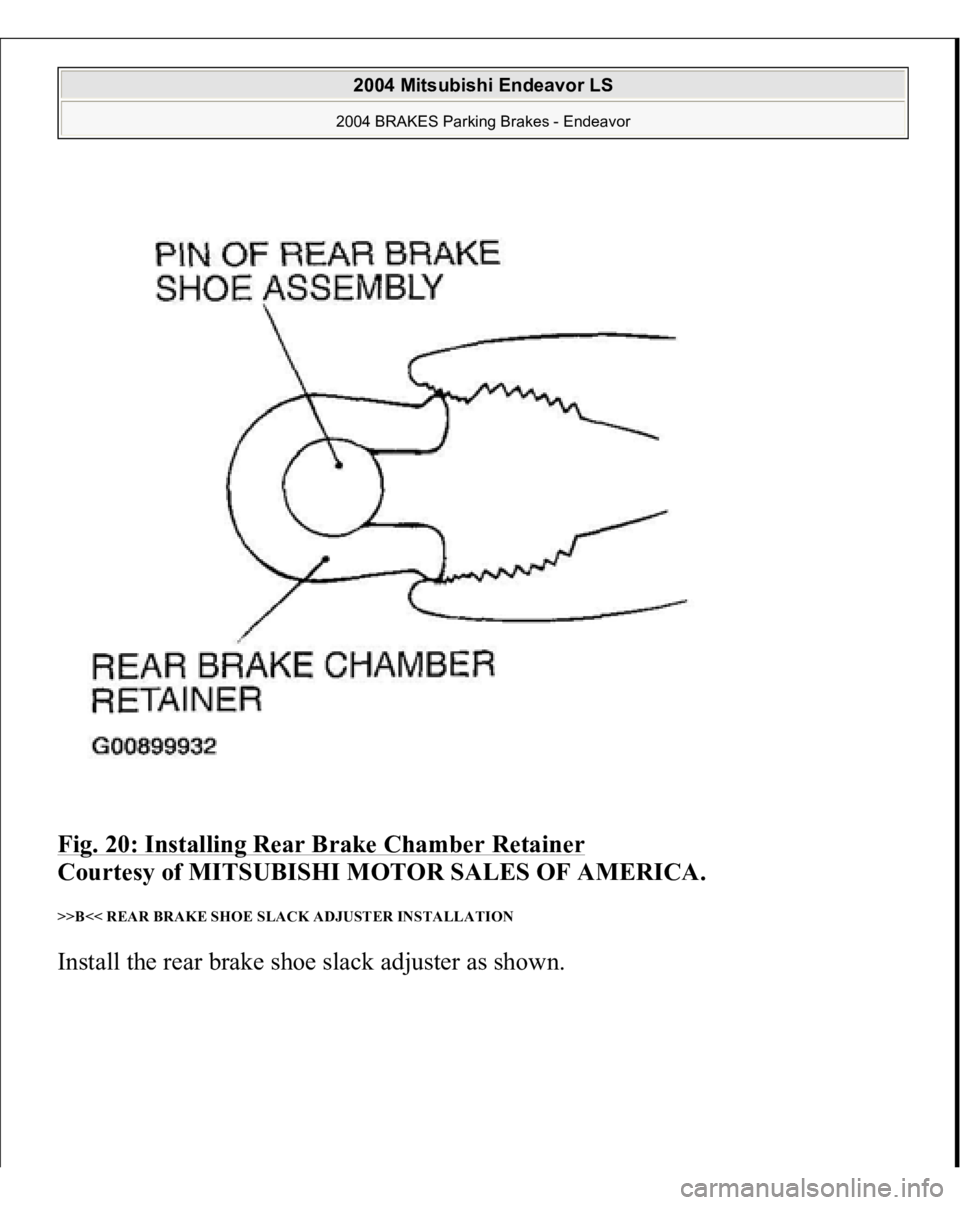

Fig. 20: Installing Rear Brake Chamber Retainer

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>B<< REAR BRAKE SHOE SLACK ADJUSTER INSTALLATION Install the rear brake shoe slack ad
juster as shown.

2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor

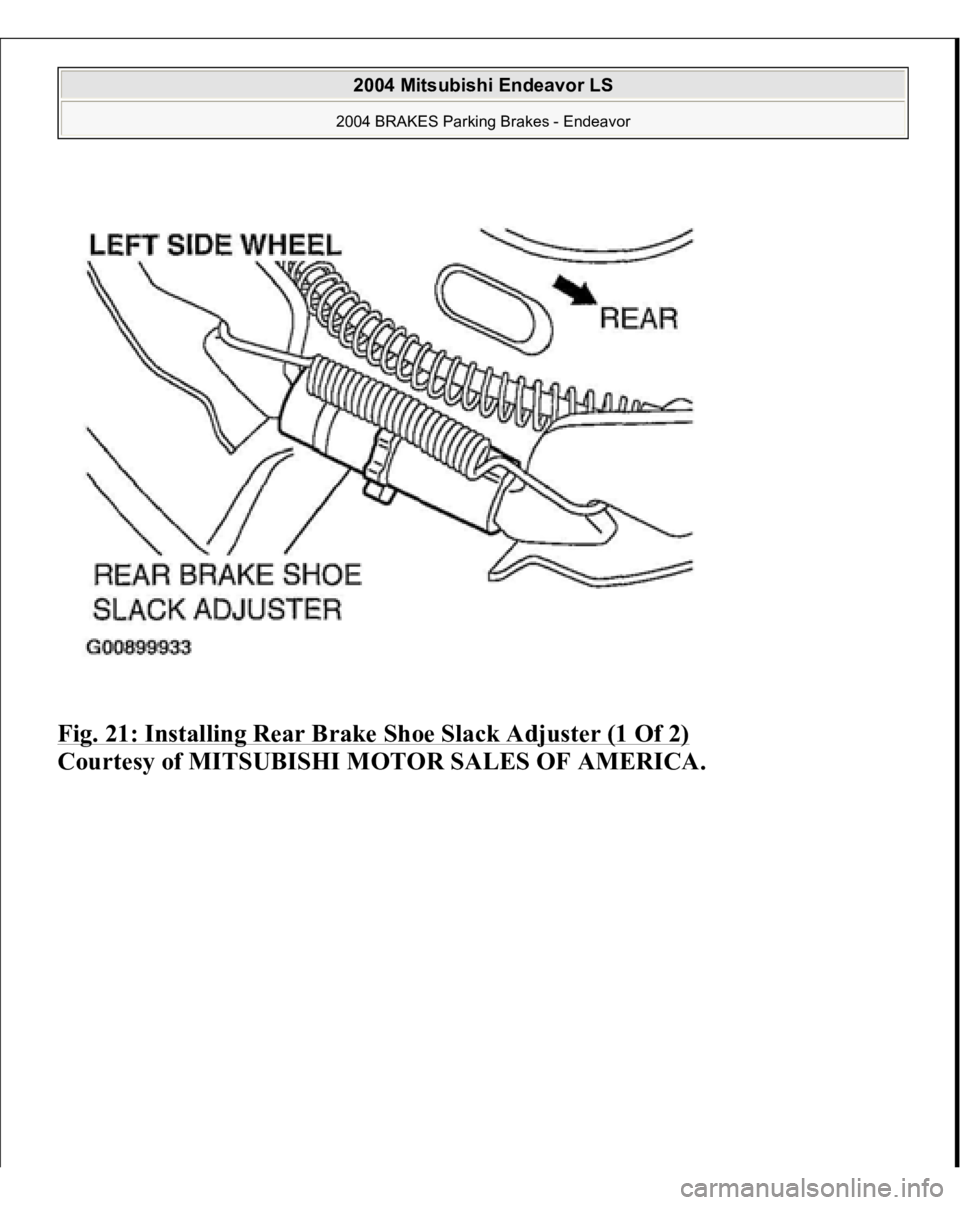

Fig. 21: Installing Rear Brake Shoe Slack Adjuster (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor

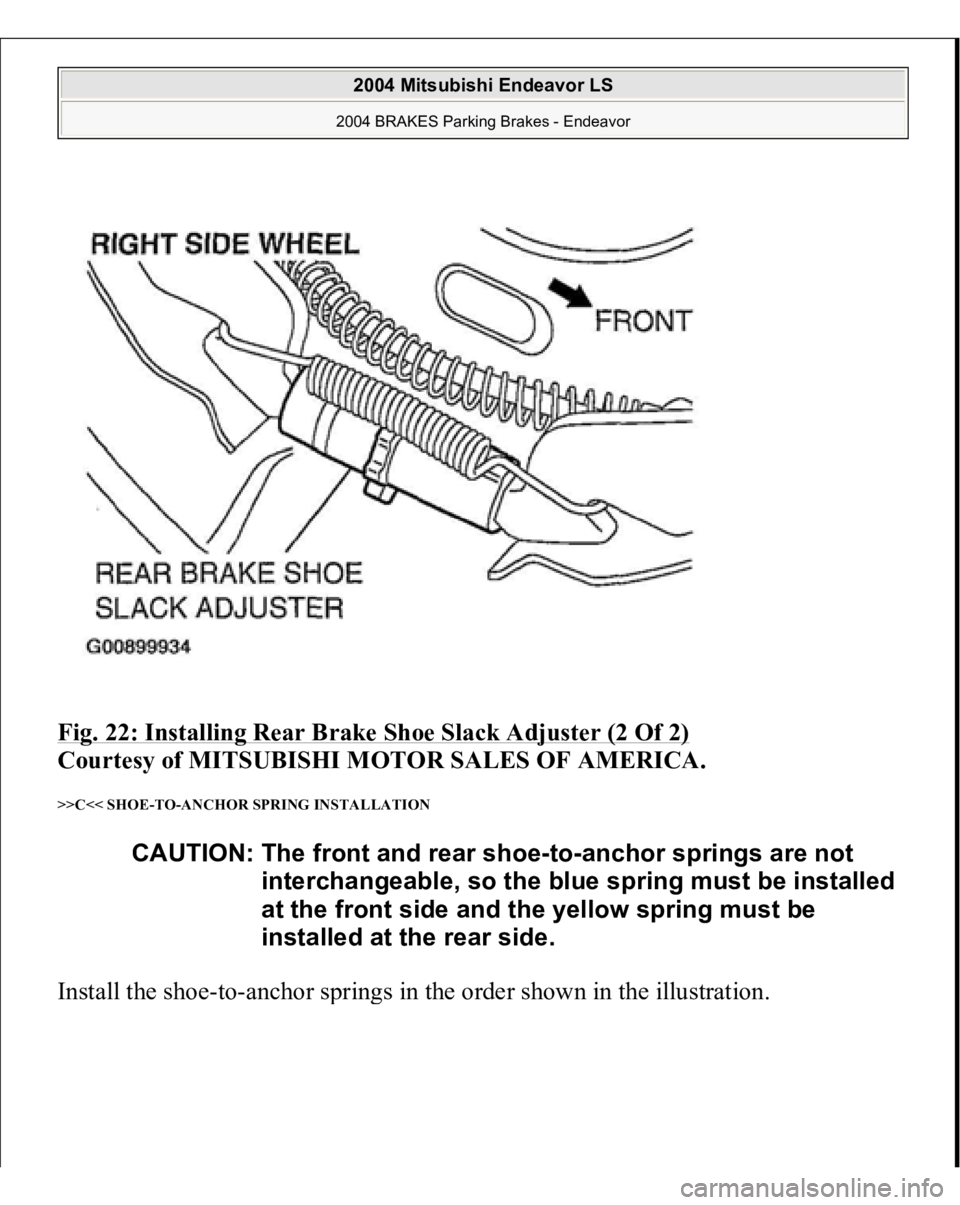

Fig. 22: Installing Rear Brake Shoe Slack Adjuster (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>C<< SHOE-TO-ANCHOR SPRING INSTALLATION Install the sho
e-to-anchor s
prin
gs in the order shown in the illustration.
CAUTION: The front and rear shoe-to-anchor springs are not
interchangeable, so the blue spring must be installed
at the front side and the yellow spring must be
installed at the rear side.

2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor

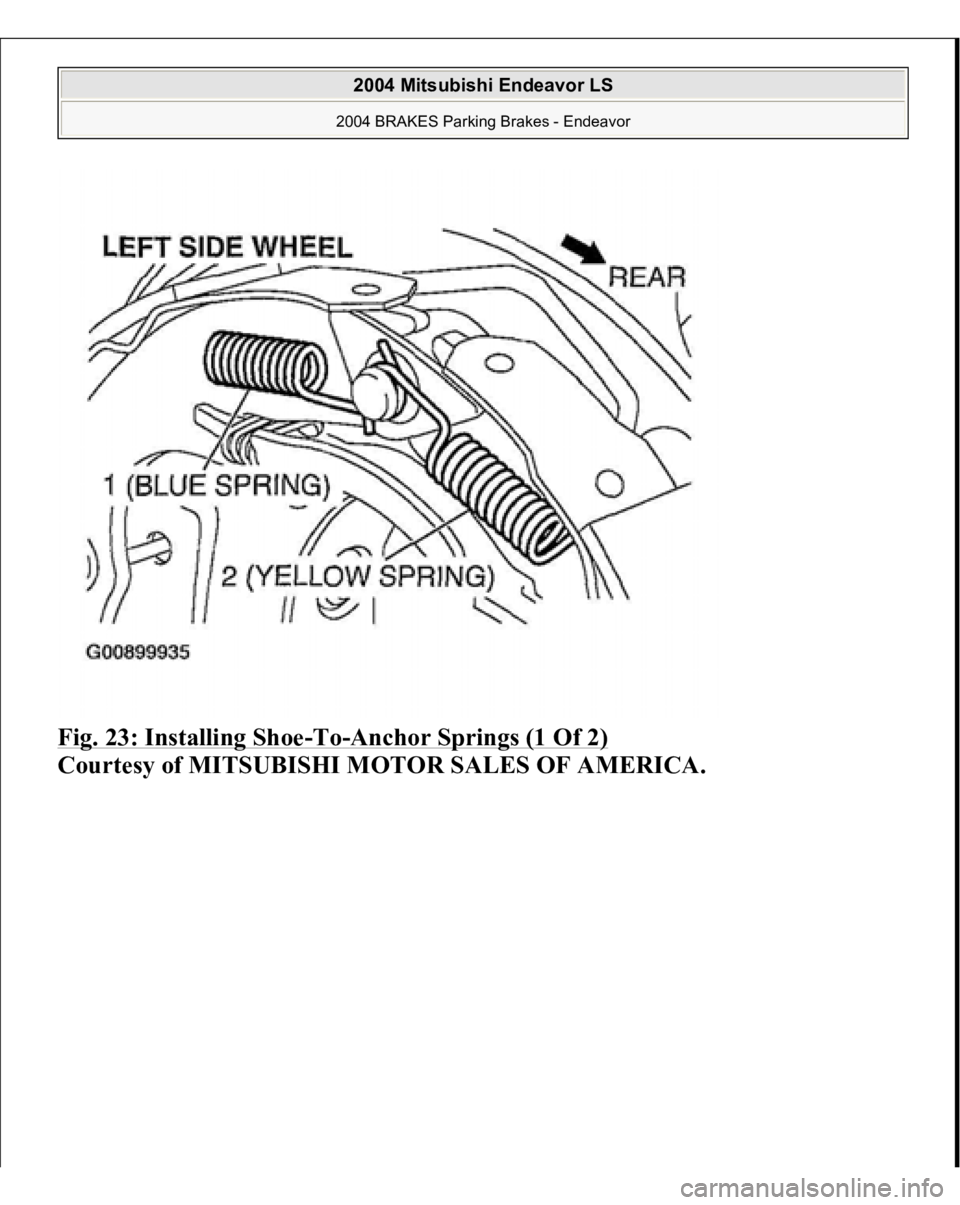

Fig. 23: Installing Shoe
-To
-Anchor Springs (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
