MITSUBISHI ENDEAVOR 2004 Service Repair Manual

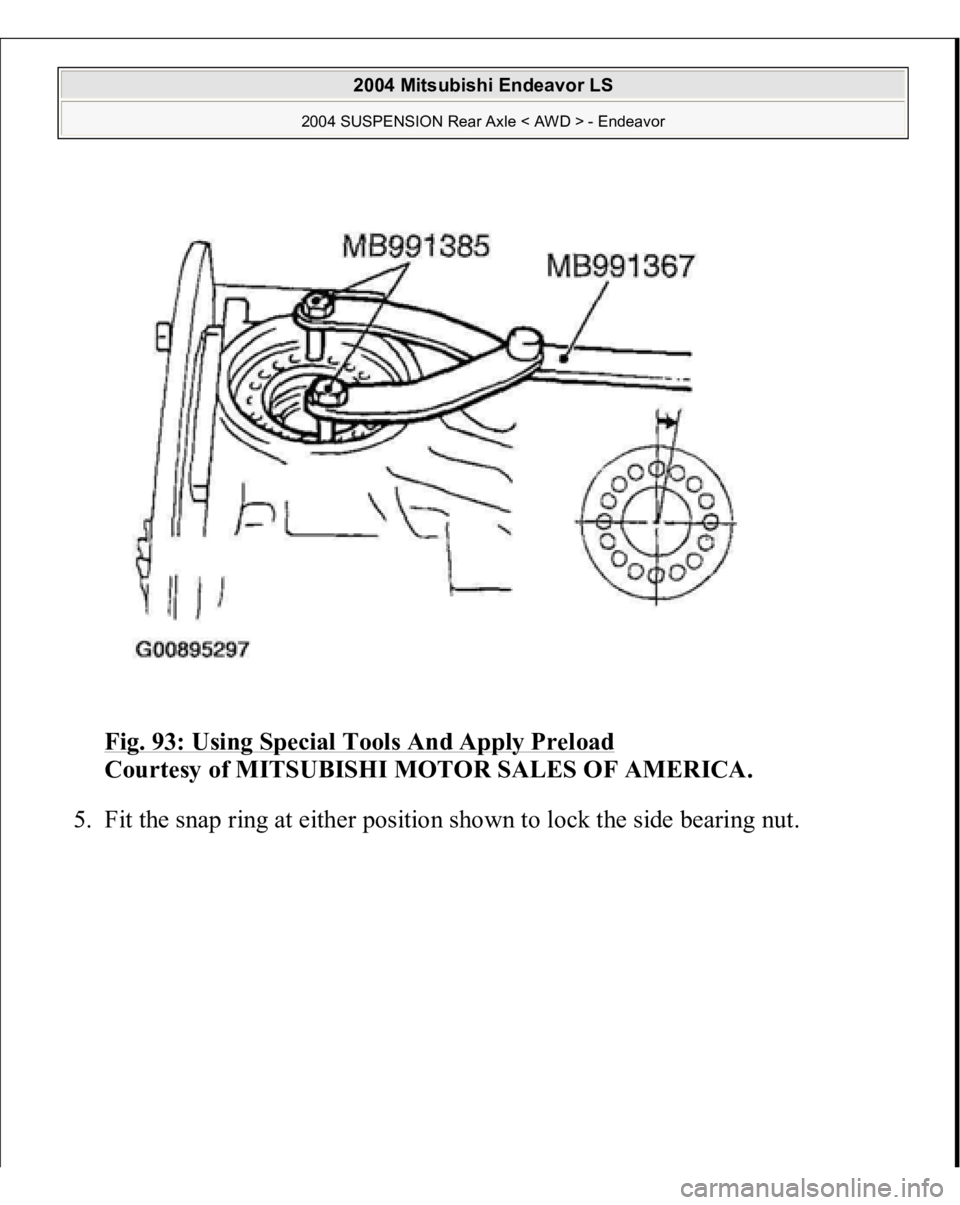

Fig. 93: Using Special Tools And Apply Preload

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Fit the sna
p rin
g at either
position shown to lock the side bearin
g nut.

2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor

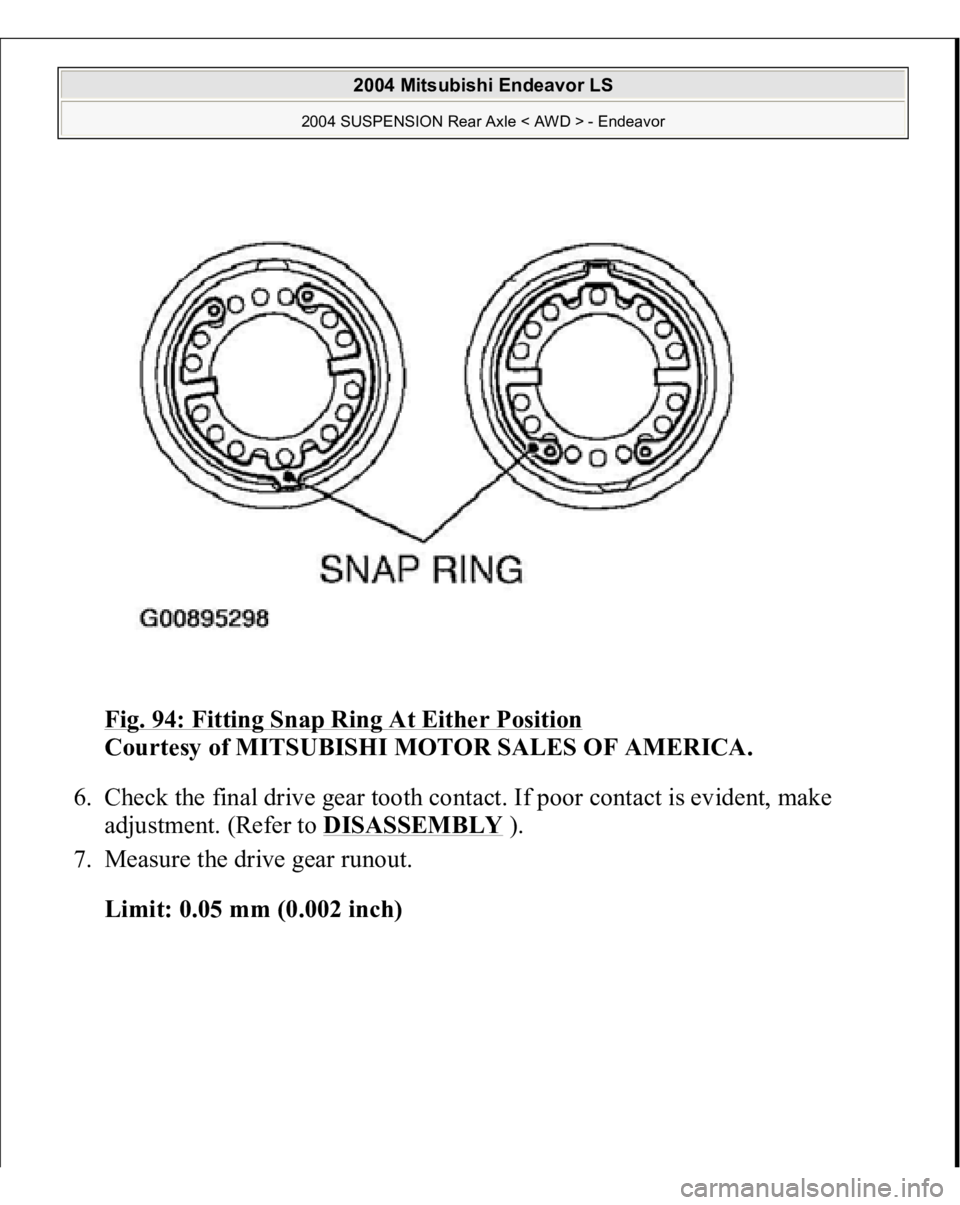

Fig. 94: Fitting Snap Ring At Either Position

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. Check the final drive gear tooth contact. If poor contact is evident, make
adjustment. (Refer to DISASSEMBLY
).
7. Measure the drive gear runout.
Limit: 0.05 mm (0.002 inch)

2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor

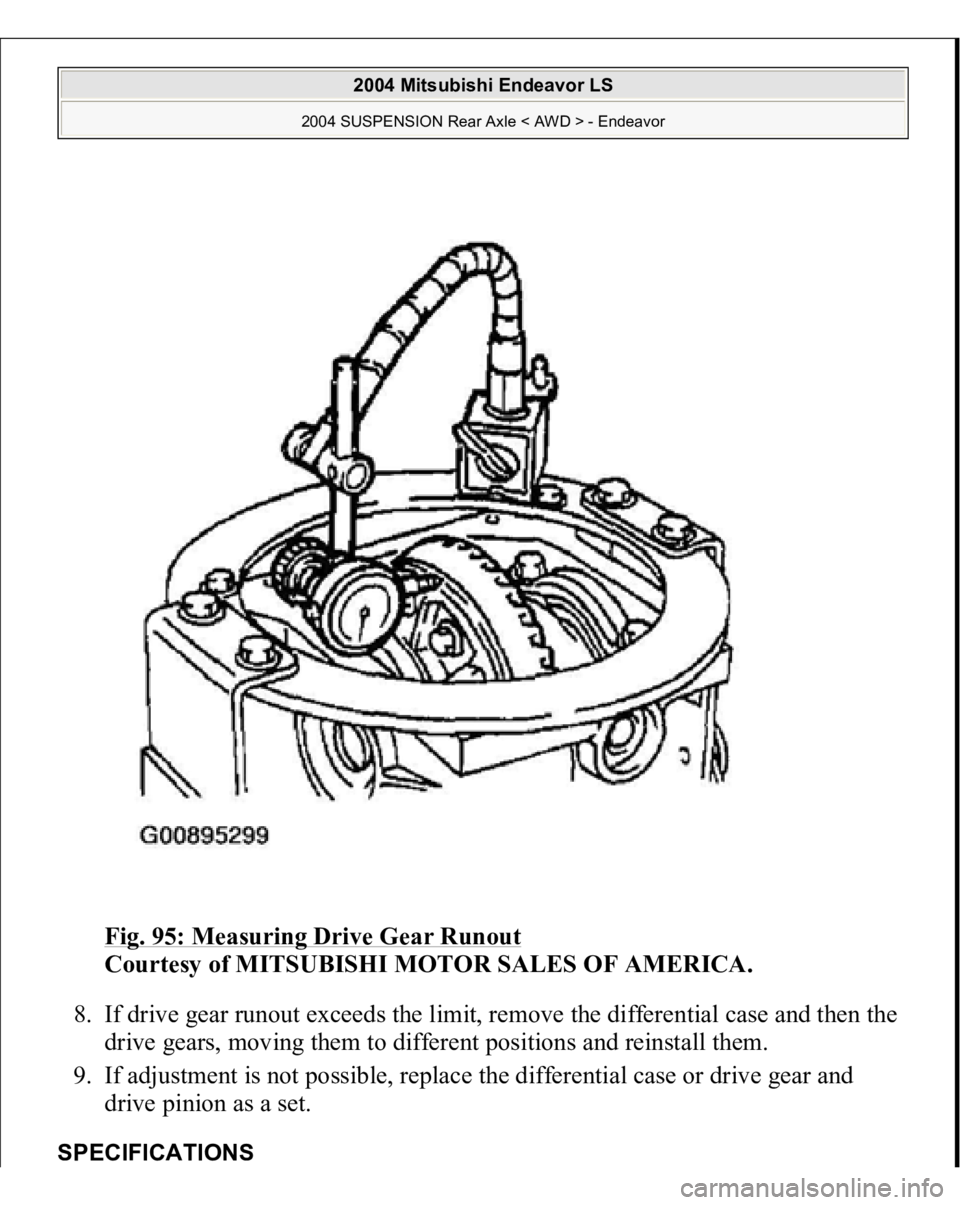

Fig. 95: Measuring Drive Gear Runout

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
8. If drive gear runout exceeds the limit, remove the differential case and then the
drive gears, moving them to different positions and reinstall them.
9. If adjustment is not possible, replace the differential case or drive gear and
drive pinion as a set.
SPECIFICATIONS
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor

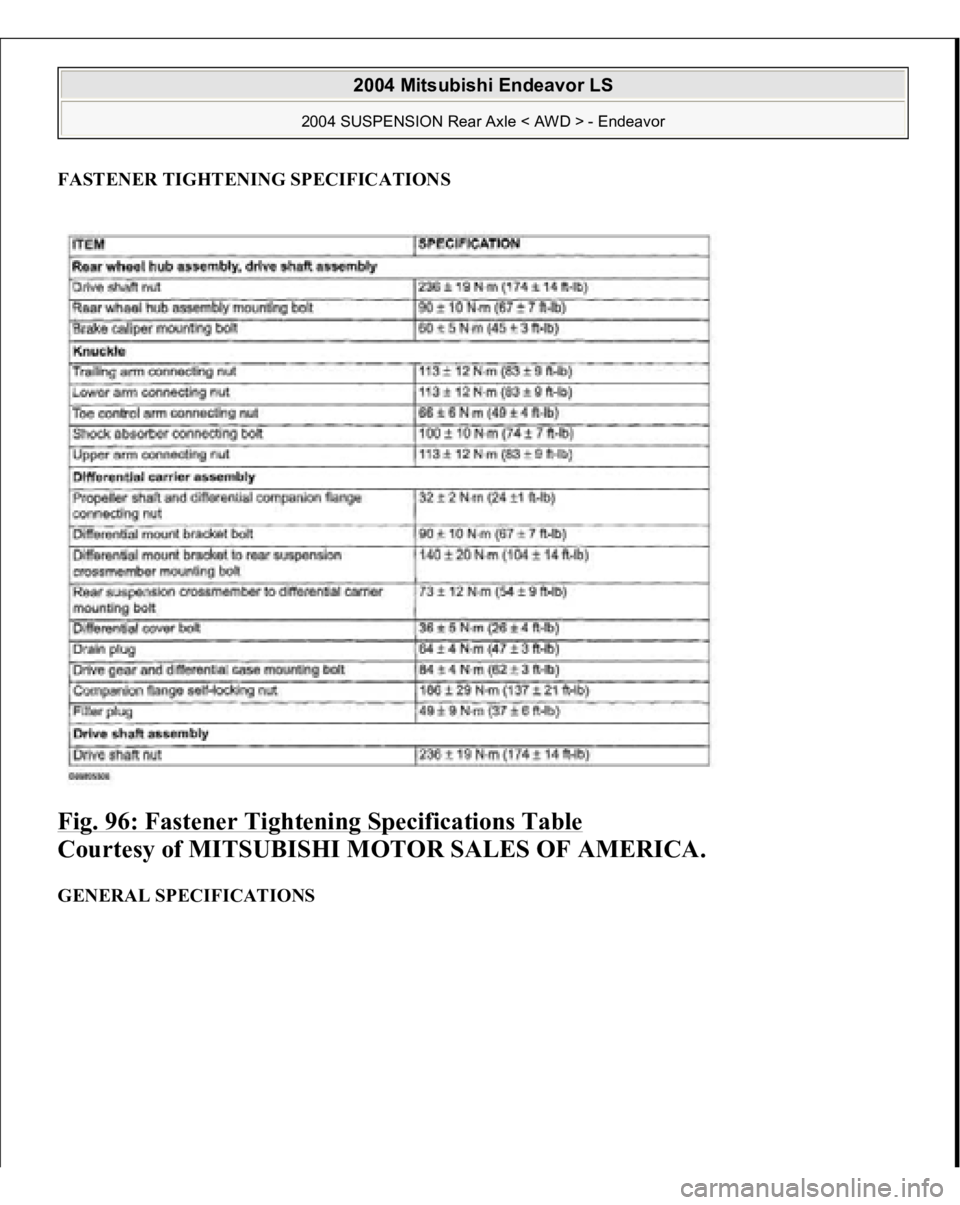

FASTENER TIGHTENING SPECIFICATIONSFig. 96: Fastener Tightening Specifications Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
GENERAL SPECIFICATIONS
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor

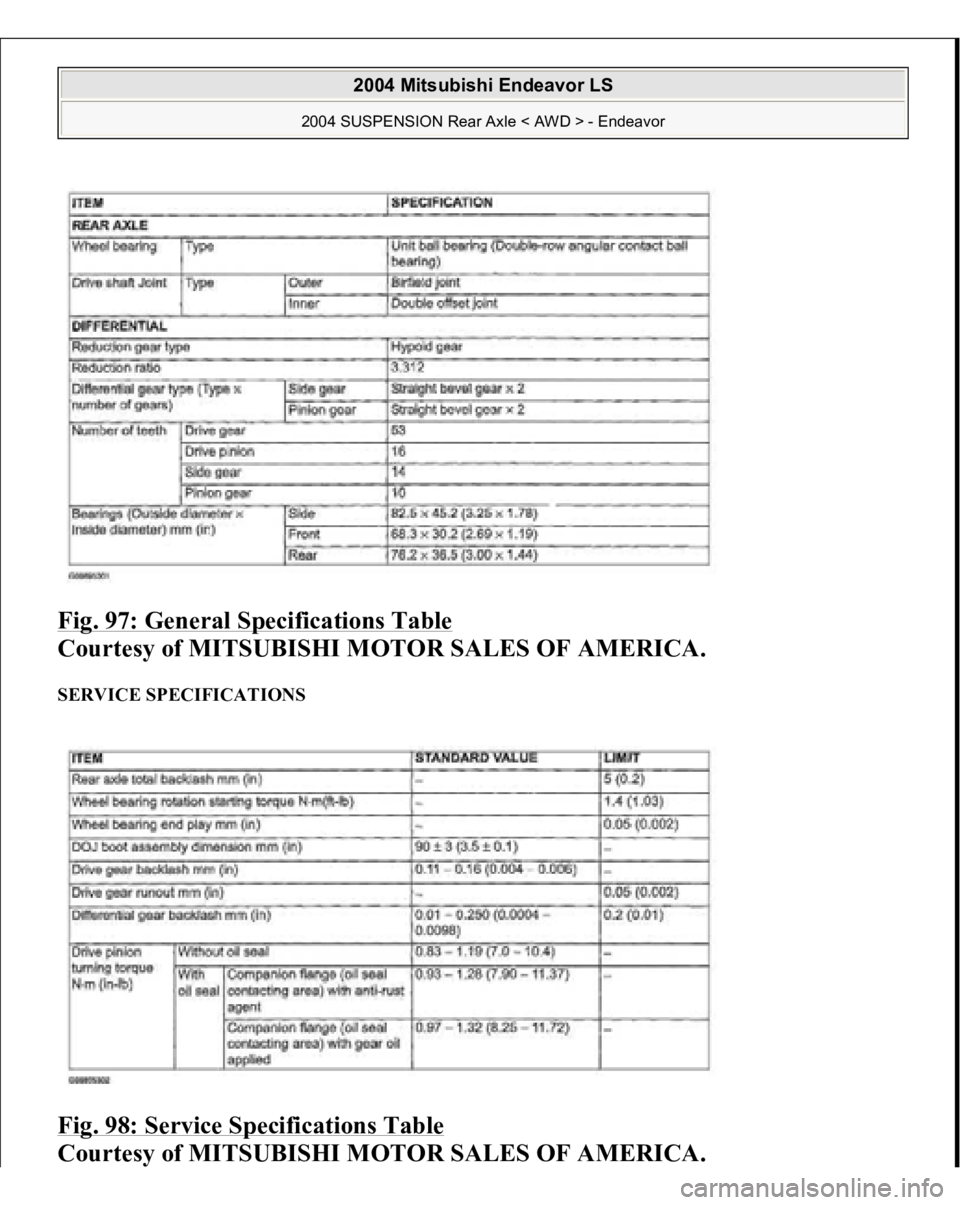

Fig. 97: General Specifications Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SERVICE SPECIFICATIONS Fig. 98: Service Specifications Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor

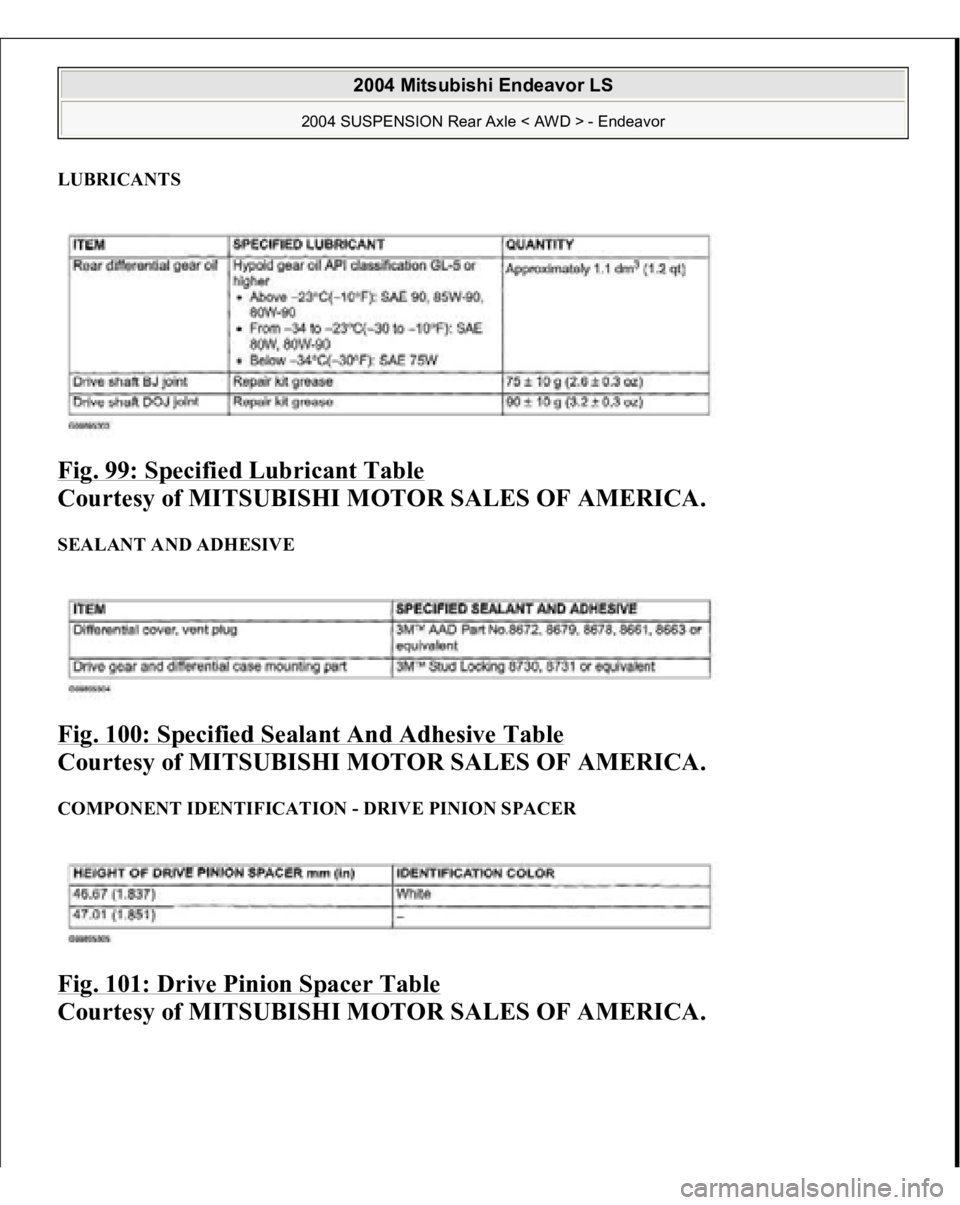

LUBRICANTS Fig. 99: Specified Lubricant Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SEALANT AND ADHESIVE Fig. 100: Specified Sealant And Adhesive Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
COMPONENT IDENTIFICATION - DRIVE PINION SPACER Fig. 101: Drive Pinion Spacer Table

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor

2004 SUSPENSION
Rear - Endeavor

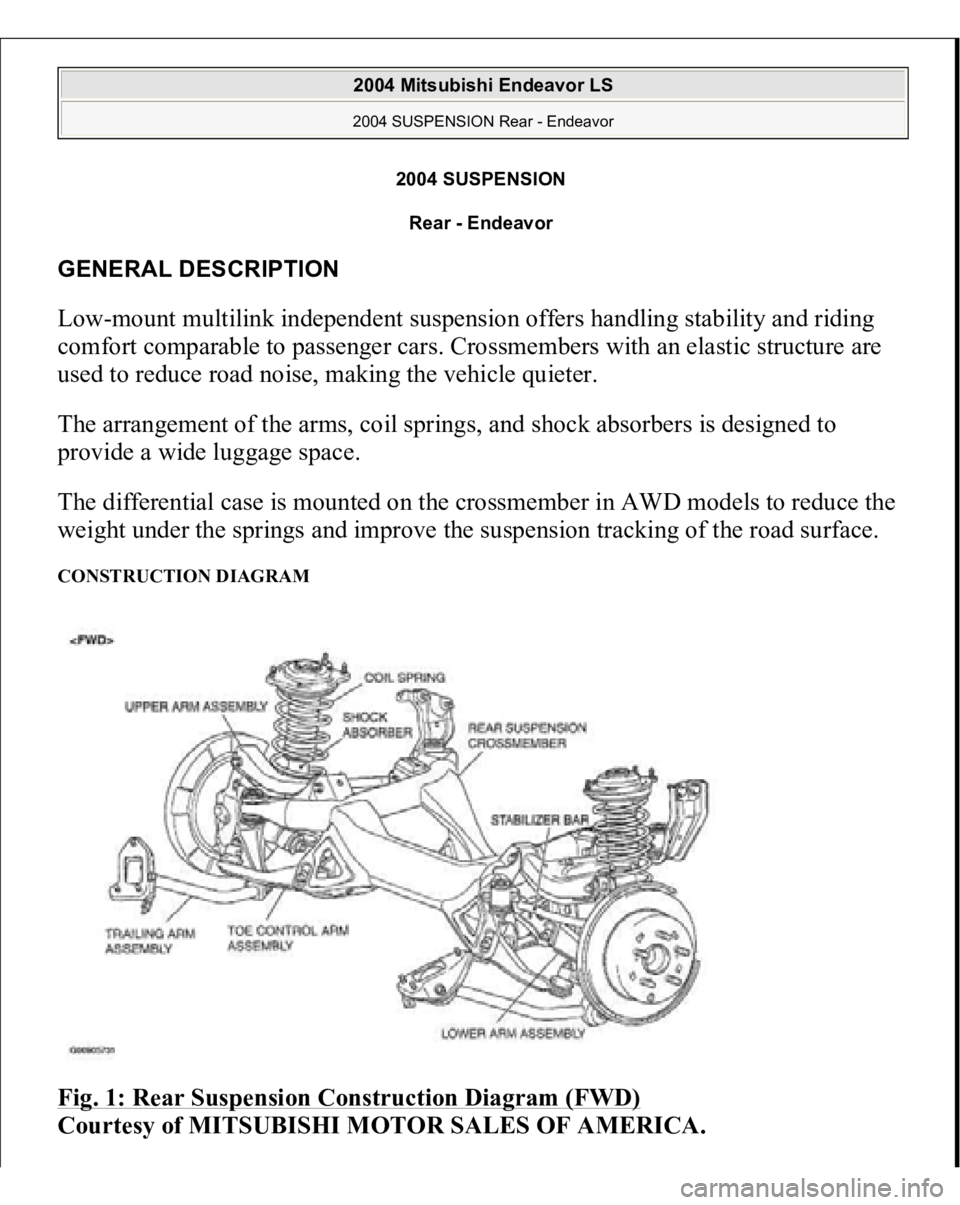

GENERAL DESCRIPTION Low-mount multilink independent suspension offers handling stability and riding
comfort comparable to passenger cars. Crossmembers with an elastic structure are
used to reduce road noise, making the vehicle quieter.
The arrangement of the arms, coil springs, and shock absorbers is designed to
provide a wide luggage space.
The differential case is mounted on the crossmember in AWD models to reduce the
weight under the springs and improve the suspension tracking of the road surface. CONSTRUCTION DIAGRAM Fig. 1: Rear Suspension Construction Diagram (FWD)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor


2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

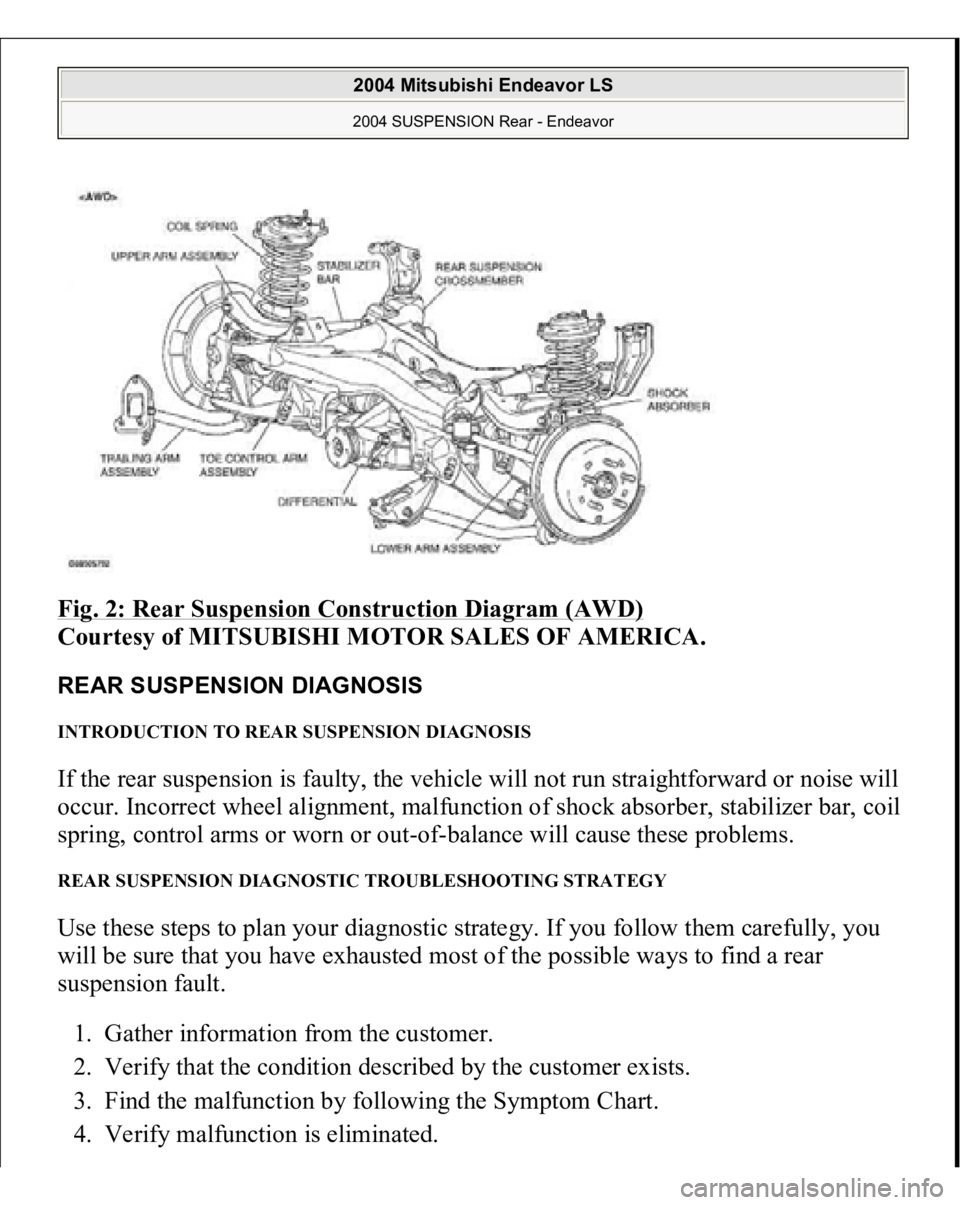

Fig. 2: Rear Suspension Construction Diagram (AWD)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REAR SUSPENSION DIAGNOSIS INTRODUCTION TO REAR SUSPENSION DIAGNOSIS If the rear suspension is faulty, the vehicle will not run straightforward or noise will
occur. Incorrect wheel alignment, malfunction of shock absorber, stabilizer bar, coil
spring, control arms or worn or out-of-balance will cause these problems. REAR SUSPENSION DIAGNOSTIC TROUBLESHOOTING STRATEGY Use these steps to plan your diagnostic strategy. If you follow them carefully, you
will be sure that you have exhausted most of the possible ways to find a rear
suspension fault.
1. Gather information from the customer.
2. Verify that the condition described by the customer exists.
3. Find the malfunction by following the Symptom Chart.
4. Verif
y malfunction is eliminated.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

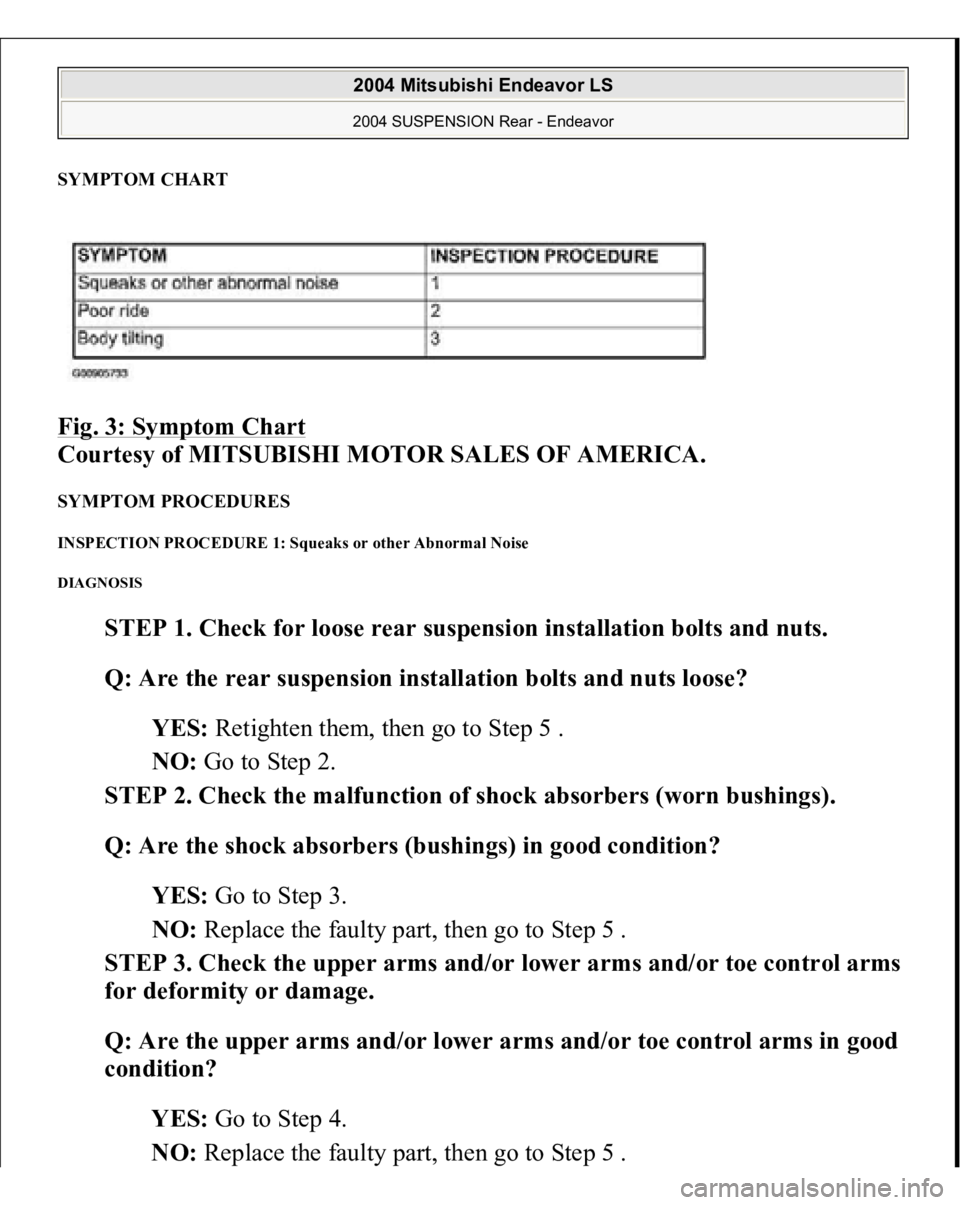

SYMPTOM CHART Fig. 3: Symptom Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SYMPTOM PROCEDURES INSPECTION PROCEDURE 1: Squeaks or other Abnormal Noise DIAGNOSIS
STEP 1. Check for loose rear suspension installation bolts and nuts.
Q: Are the rear suspension installation bolts and nuts loose?
YES: Retighten them, then go to Step 5 .
NO: Go to Step 2.
STEP 2. Check the malfunction of shock absorbers (worn bushings).
Q: Are the shock absorbers (bushings) in good condition?
YES: Go to Step 3.
NO: Replace the faulty part, then go to Step 5 .
STEP 3. Check the upper arms and/or lower arms and/or toe control arms
for deformity or damage.
Q: Are the u
pp
er arms and/or lower arms and/or toe control arms in
good
condition?
YES: Go to Step 4.
NO: Re
place the fault
y part, then
go to Ste
p 5 .

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

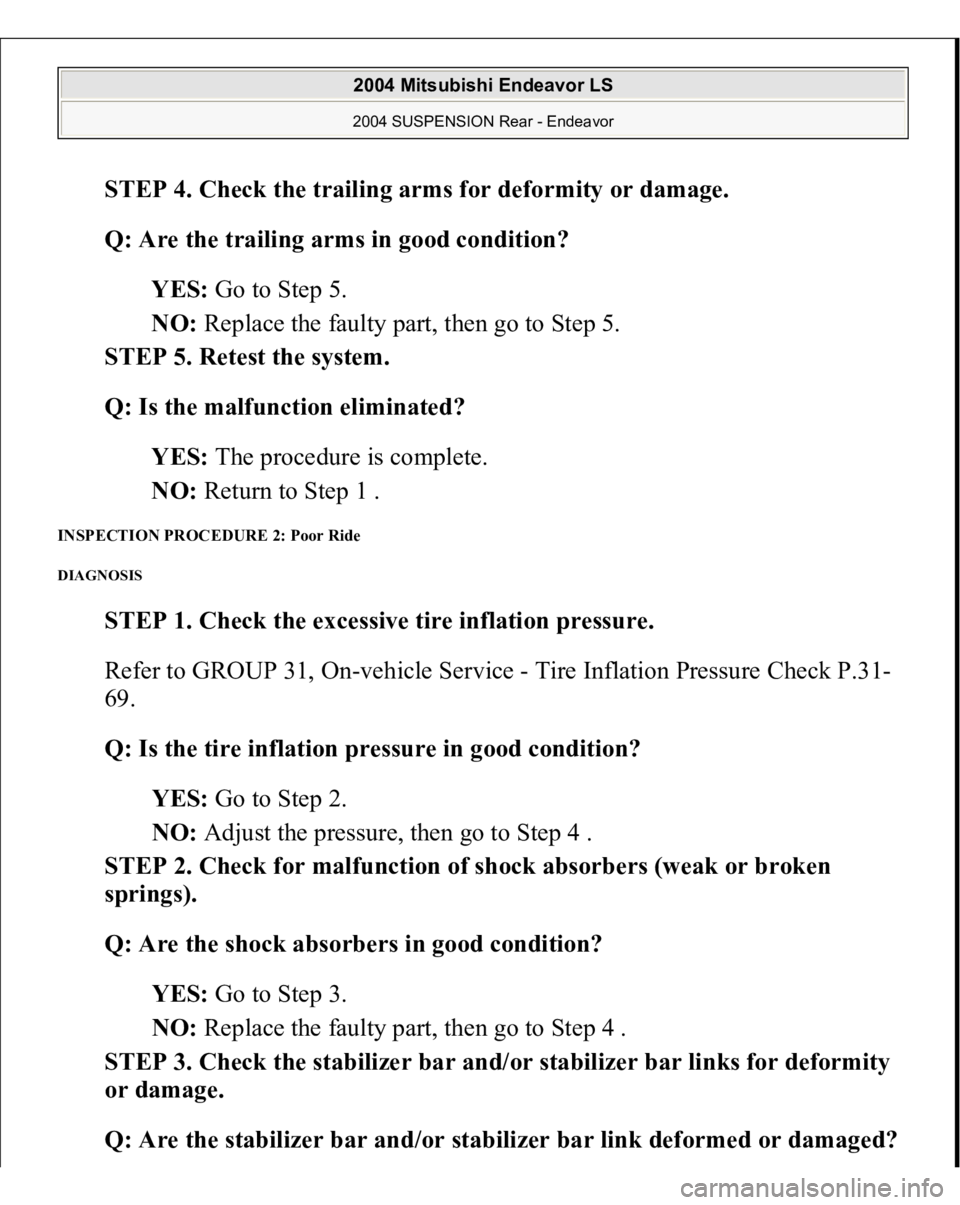

STEP 4. Check the trailing arms for deformity or damage.
Q: Are the trailing arms in good condition?
YES: Go to Step 5.
NO: Replace the faulty part, then go to Step 5.
STEP 5. Retest the system.
Q: Is the malfunction eliminated?
YES: The procedure is complete.
NO: Return to Step 1 .
INSPECTION PROCEDURE 2: Poor Ride DIAGNOSIS
STEP 1. Check the excessive tire inflation pressure.
Refer to GROUP 31, On-vehicle Service - Tire Inflation Pressure Check P.31-
69.
Q: Is the tire inflation pressure in good condition?
YES: Go to Step 2.
NO: Adjust the pressure, then go to Step 4 .
STEP 2. Check for malfunction of shock absorbers (weak or broken
springs).
Q: Are the shock absorbers in good condition?
YES: Go to Step 3.
NO: Replace the faulty part, then go to Step 4 .
STEP 3. Check the stabilizer bar and/or stabilizer bar links for deformity
or damage.
Q: Are the stabilizer bar and/or stabilizer bar link deformed or damaged?

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor
