MITSUBISHI ENDEAVOR 2004 Service Repair Manual

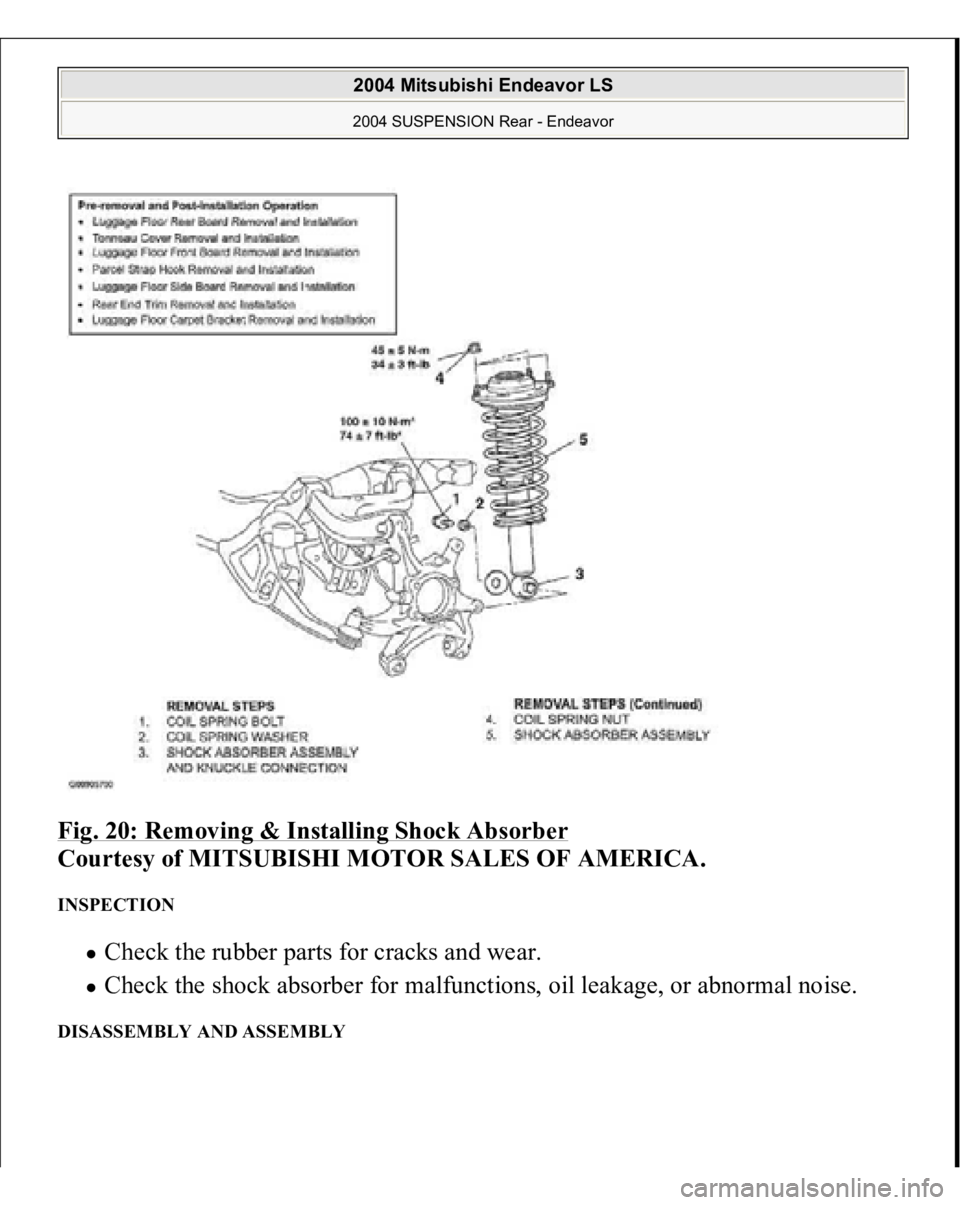

Fig. 20: Removing & Installing Shock Absorber

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION
Check the rubber parts for cracks and wear. Check the shock absorber for malfunctions, oil leakage, or abnormal noise.
DISASSEMBLY AND ASSEMBLY
2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

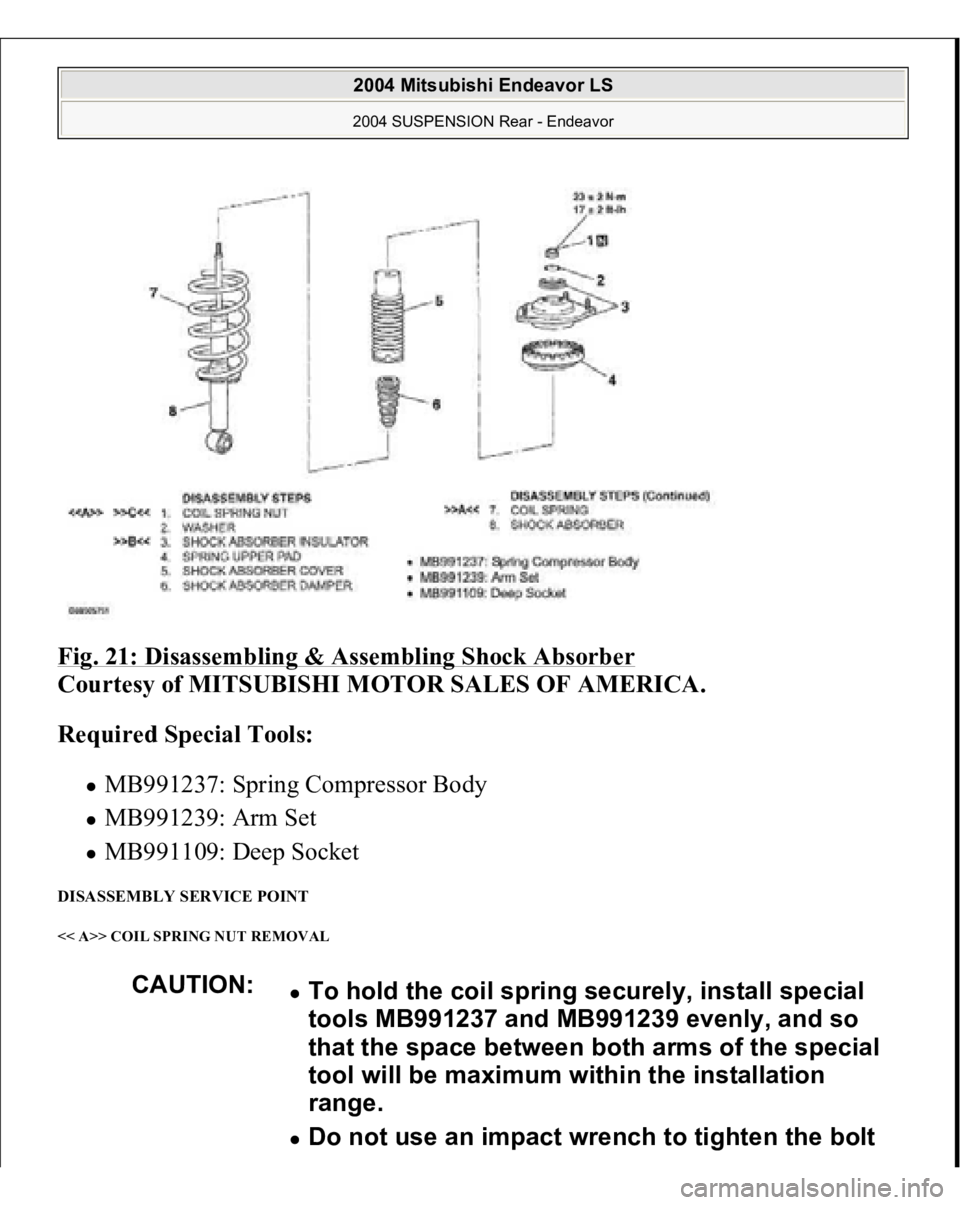

Fig. 21: Disassembling & Assembling Shock Absorber

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tools:
MB991237: Spring Compressor Body MB991239: Arm Set MB991109: Deep Socket
DISASSEMBLY SERVICE POINT << A>> COIL SPRING NUT REMOVAL
CAUTION:
To hold the coil spring securely, install special
tools MB991237 and MB991239 evenly, and so
that the space between both arms of the special
tool will be maximum within the installation
range. Do not use an impact wrench to tighten the bolt

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

1. Use special tools MB991237 and MB991239 to compress the coil spring.

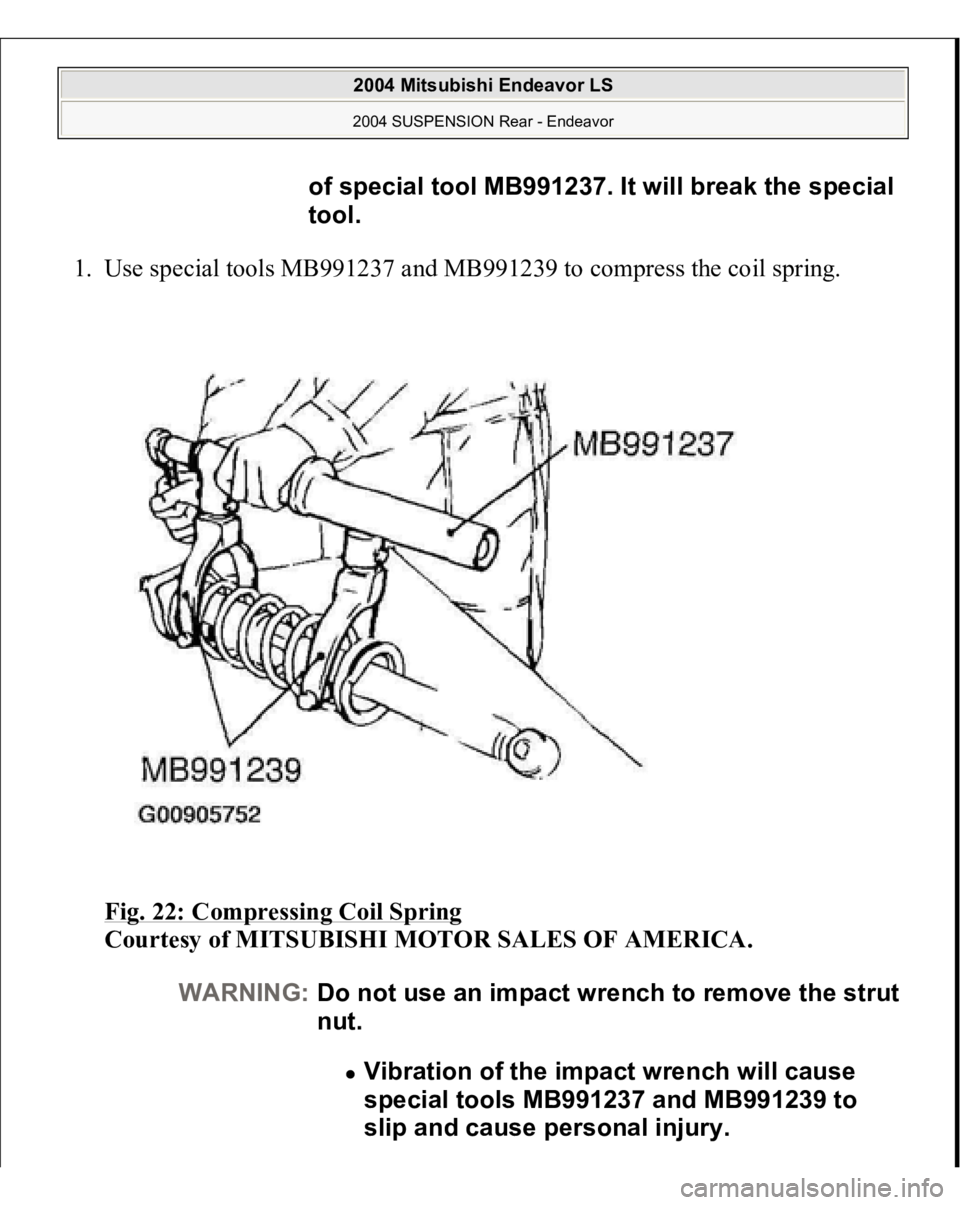

Fig. 22: Compressing Coil Spring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
of special tool MB991237. It will break the special
tool.
WARNING:Do not use an impact wrench to remove the strut
nut.
Vibration of the impact wrench will cause
special tools MB991237 and MB991239 to
slip and cause personal injury.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

2. Use an Allen wrench to counterhold the piston rod end, and use special tool
MB991109 to loosen the coil spring nut.

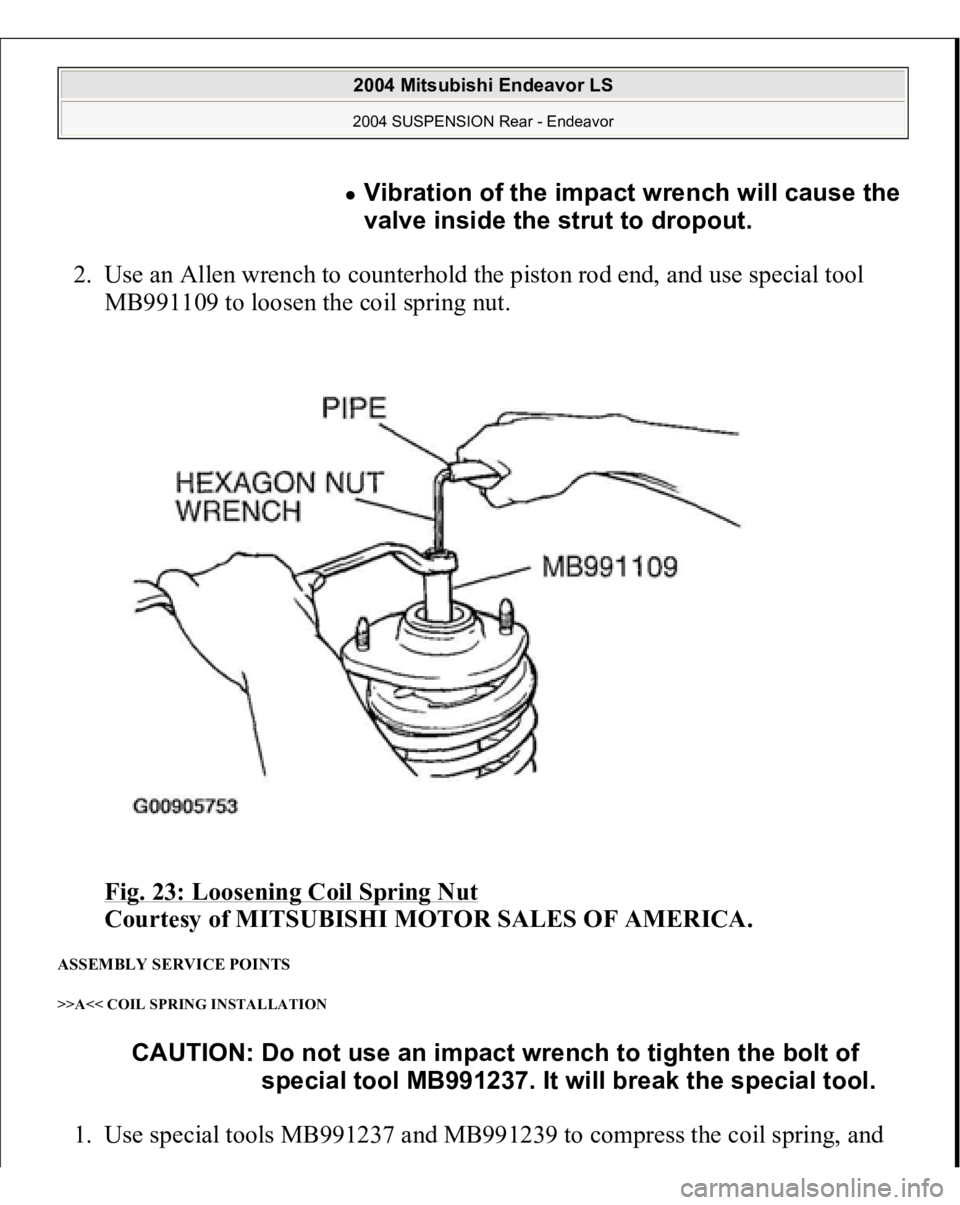

Fig. 23: Loosening Coil Spring Nut

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ASSEMBLY SERVICE POINTS >>A<< COIL SPRING INSTALLATION 1. Use special tools MB991237 and MB991239 to compress the coil spring, and
Vibration of the impact wrench will cause the
valve inside the strut to dropout.
CAUTION: Do not use an impact wrench to tighten the bolt of
special tool MB991237. It will break the special tool.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

install it to the spring seat of the shock absorber.
2. Align the end of the coil spring with the stepped section of the spring seat of
the shock absorber.

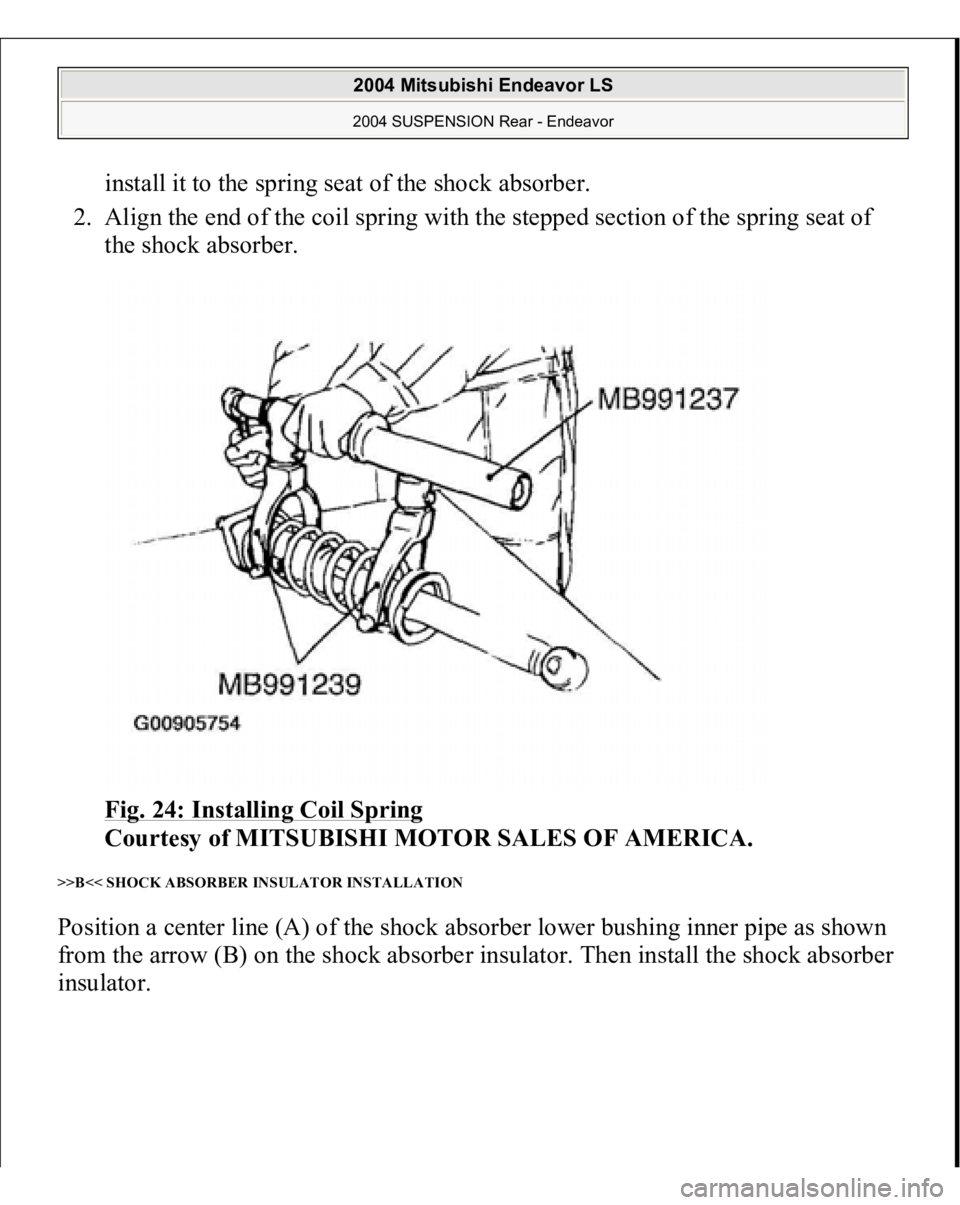

Fig. 24: Installing Coil Spring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>B<< SHOCK ABSORBER INSULATOR INSTALLATION Position a center line (A) of the shock absorber lower bushing inner pipe as shown
from the arrow (B) on the shock absorber insulator. Then install the shock absorber
insulator.
2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

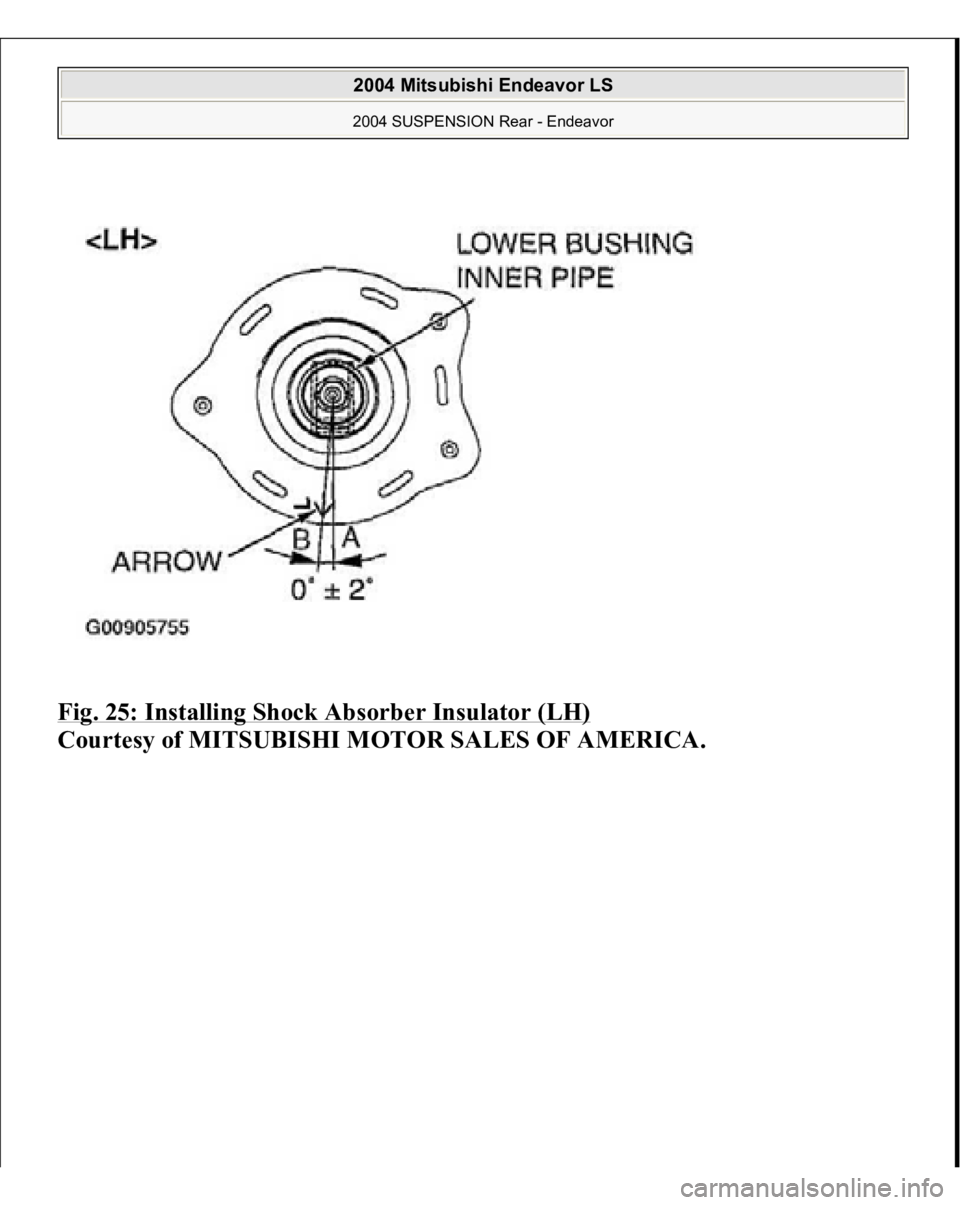

Fig. 25: Installing Shock Absorber Insulator (LH)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

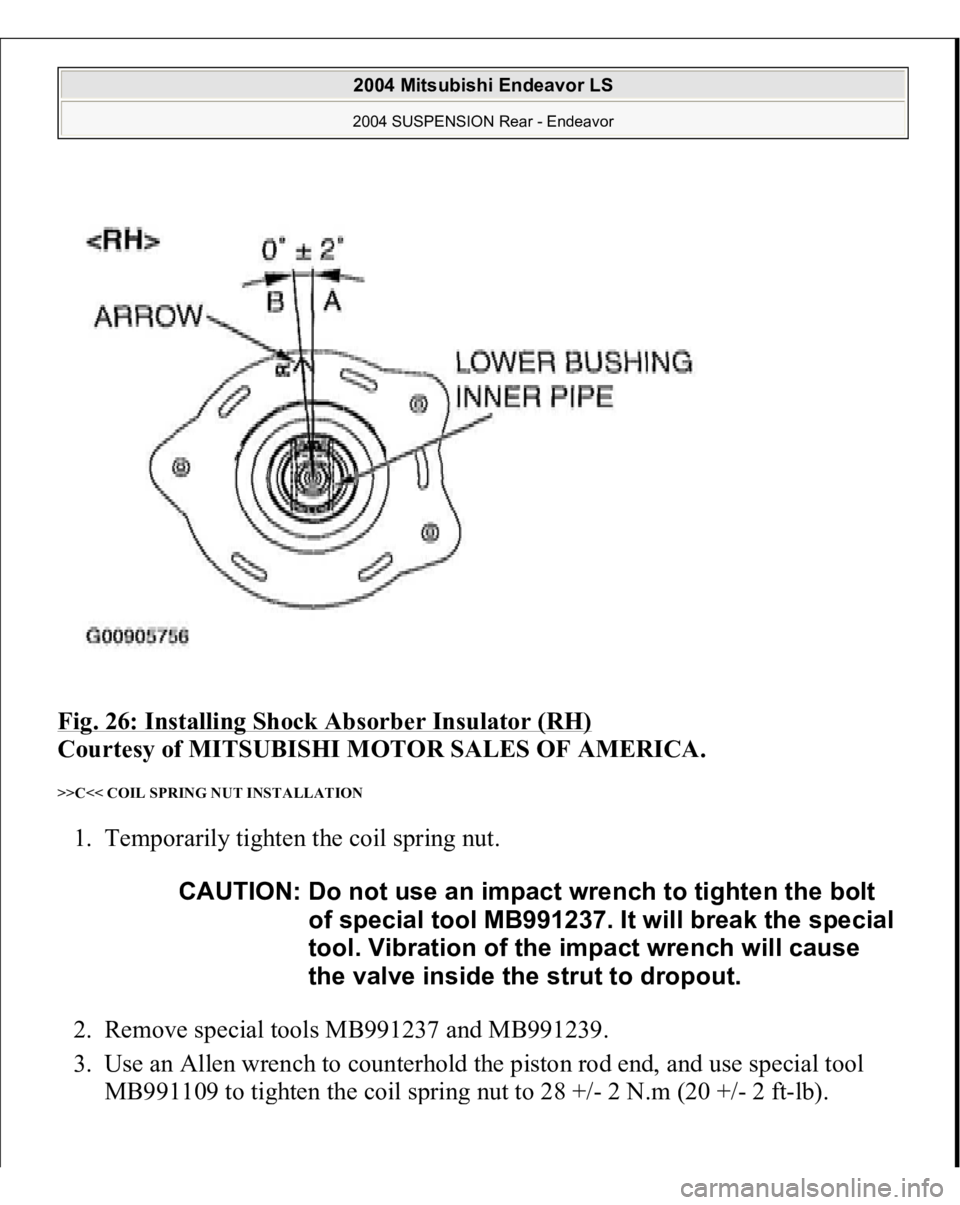

Fig. 26: Installing Shock Absorber Insulator (RH)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>C<< COIL SPRING NUT INSTALLATION 1. Temporarily tighten the coil spring nut.
2. Remove special tools MB991237 and MB991239.
3. Use an Allen wrench to counterhold the piston rod end, and use special tool
MB991109 to ti
ghten the coil s
prin
g nut to 28 +
/- 2 N.m
(20 +
/-2 f
t-lb
).
CAUTION: Do not use an impact wrench to tighten the bolt
of special tool MB991237. It will break the special
tool. Vibration of the impact wrench will cause
the valve inside the strut to dropout.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

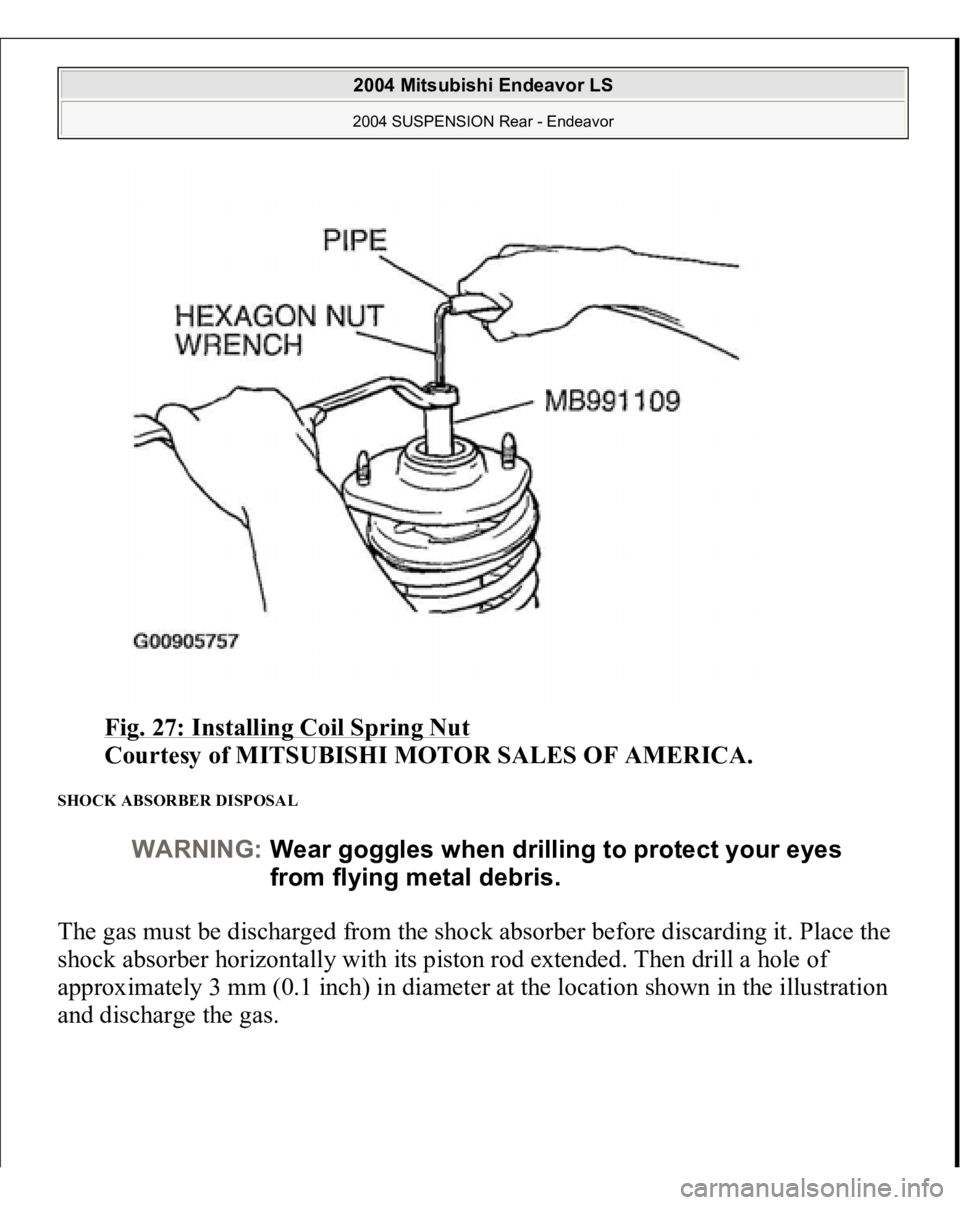

Fig. 27: Installing Coil Spring Nut

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SHOCK ABSORBER DISPOSAL The gas must be discharged from the shock absorber before discarding it. Place the
shock absorber horizontally with its piston rod extended. Then drill a hole of
approximately 3 mm (0.1 inch) in diameter at the location shown in the illustration
and discharge the gas.
WARNING:Wear goggles when drilling to protect your eyes
from flying metal debris.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

Fig. 28: Drilling Hole In Shock

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
STABILIZER BAR REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

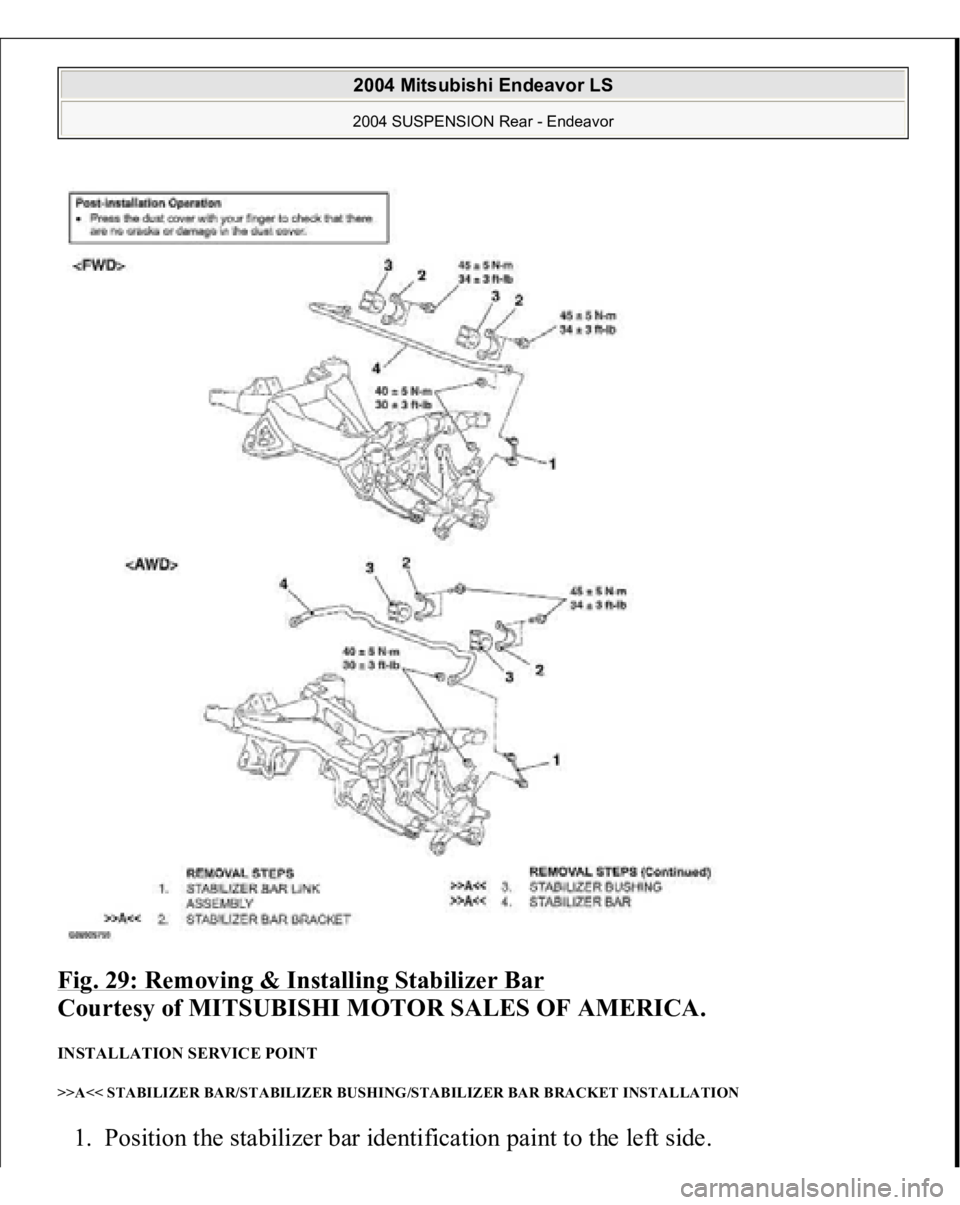

Fig. 29: Removing & Installing Stabilizer Bar

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINT >>A<< STABILIZER BAR/STABILIZER BUSHING/STABILIZER BAR BRACKET INSTALLATION 1. Position the stabilizer bar identification
paint to the left side.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor
