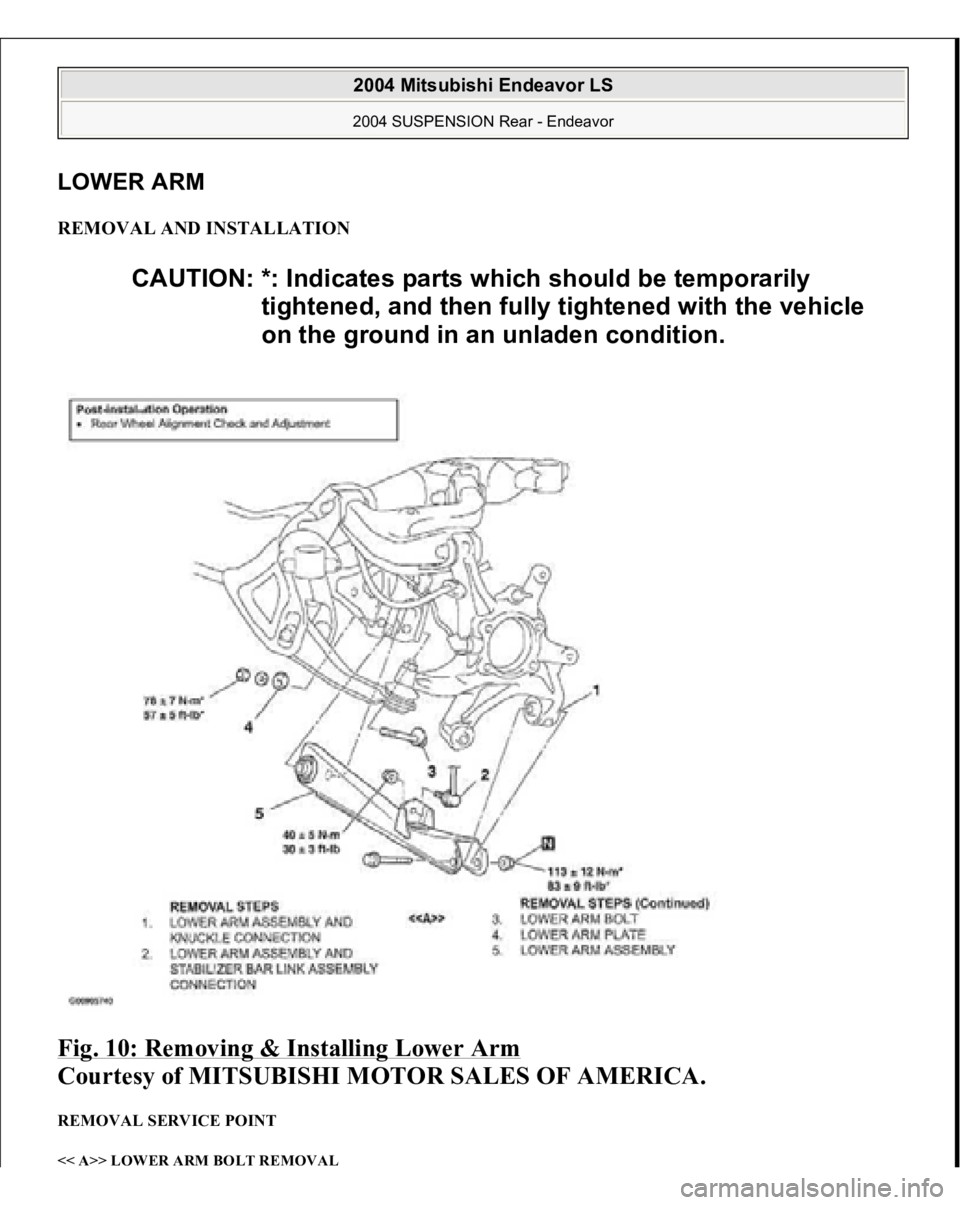

LOWER ARM REMOVAL AND INSTALLATION Fig. 10: Removing & Installing Lower Arm

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL SERVICE POINT << A>> LOWER ARM BOLT REMOVAL
CAUTION: *: Indicates parts which should be temporarily
tightened, and then fully tightened with the vehicle
on the ground in an unladen condition.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

Place mating marks on the crossmember and the plate before removing the lower
arm bolt.

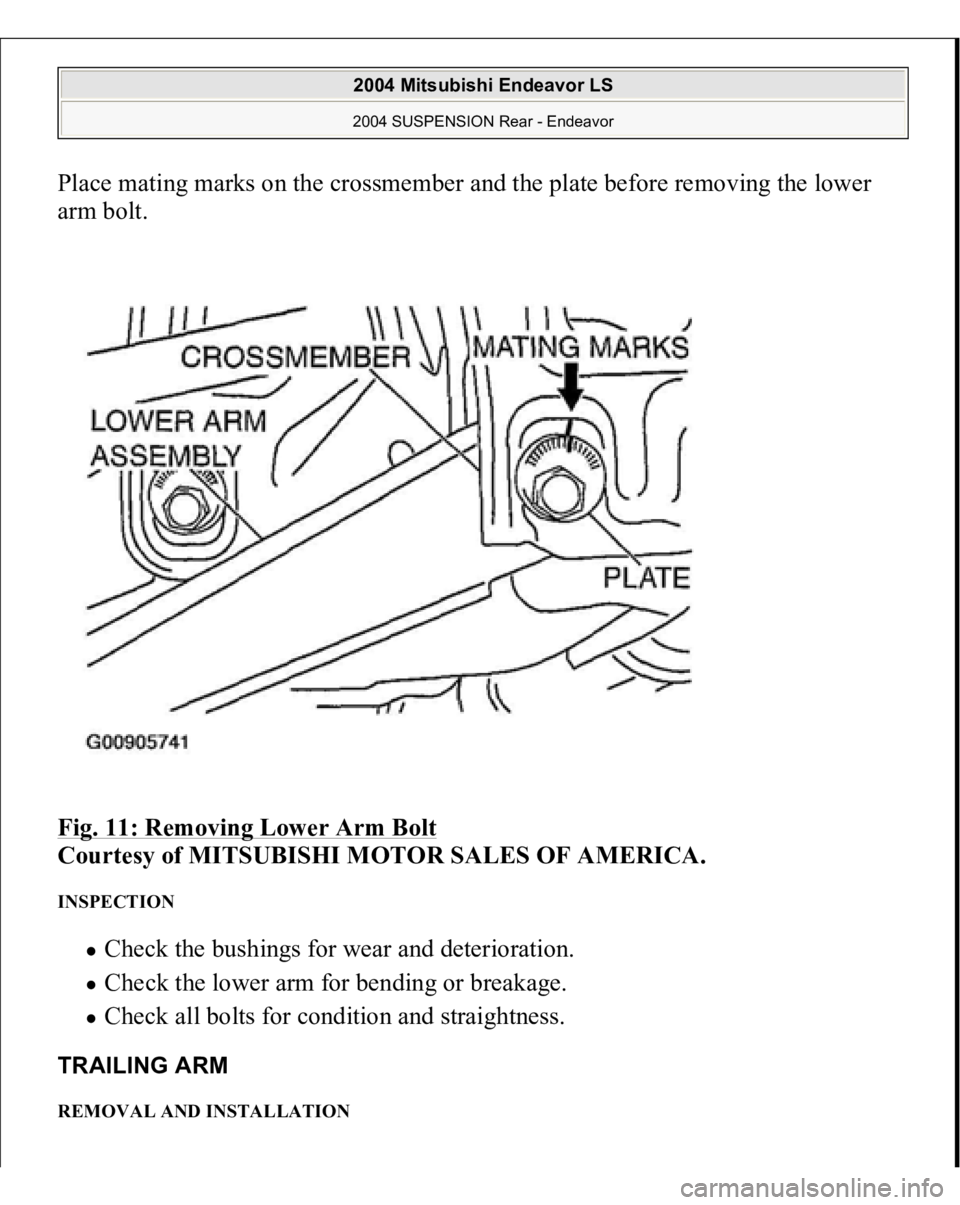

Fig. 11: Removing Lower Arm Bolt

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION
Check the bushings for wear and deterioration. Check the lower arm for bending or breakage. Check all bolts for condition and straightness.
TRAILING ARM REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

Fig. 12: Removing & Installing Trailing Arm

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION
Check the bushings for wear and deterioration. Check the trailing arm for bending or breakage. Check all bolts for condition and straightness.
TOE CONTROL ARM
CAUTION: *: Indicates parts which should be temporarily
tightened, and then fully tightened with the vehicle
on the ground in an unladen condition.
NOTE: Bolts A and B are interchangeable
2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

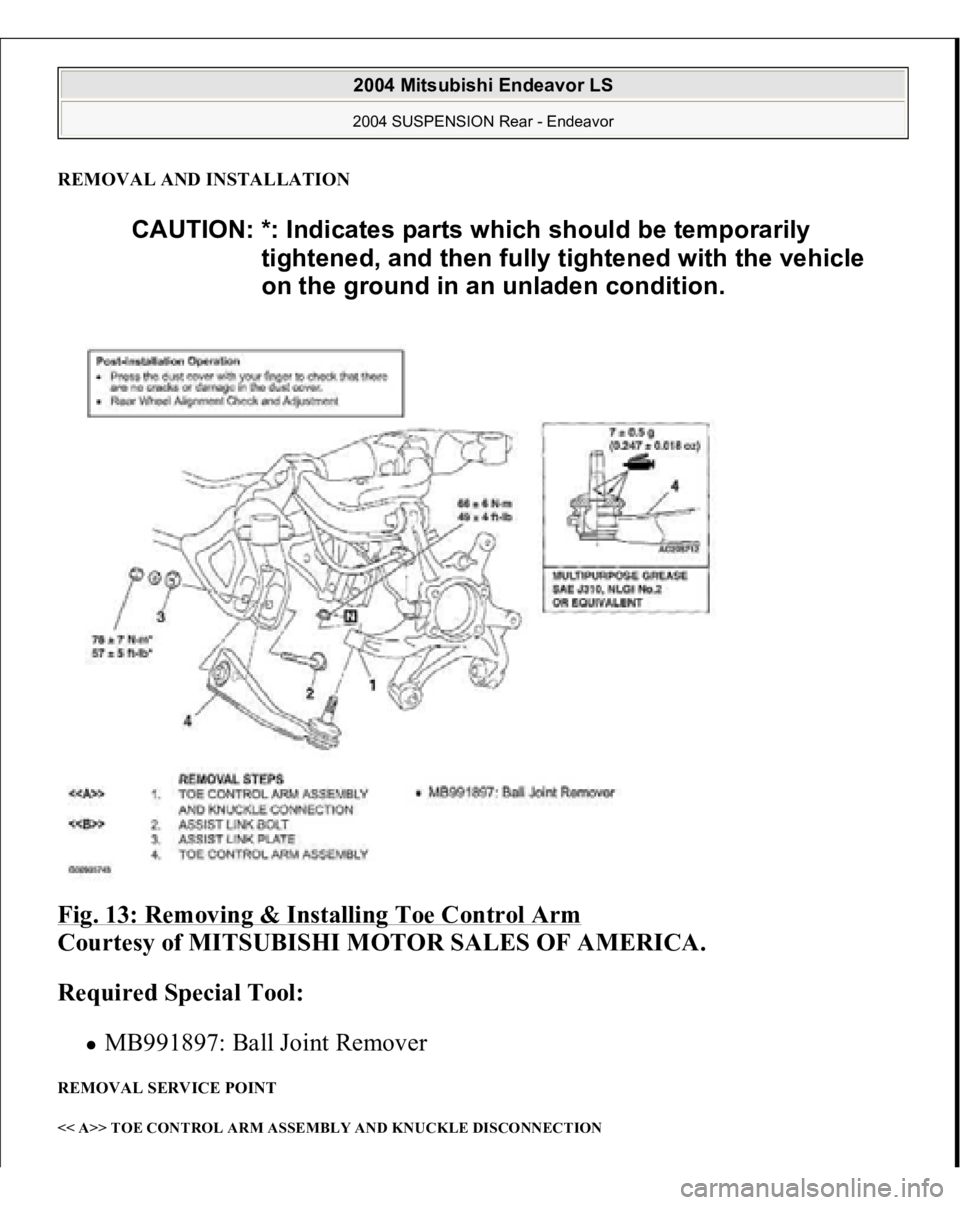

REMOVAL AND INSTALLATIONFig. 13: Removing & Installing Toe Control Arm

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tool:
MB991897: Ball Joint Remover
REMOVAL SERVICE POINT << A>> TOE CONTROL ARM ASSEMBLY AND KNUCKLE DISCONNECTION
CAUTION: *: Indicates parts which should be temporarily
tightened, and then fully tightened with the vehicle
on the ground in an unladen condition.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

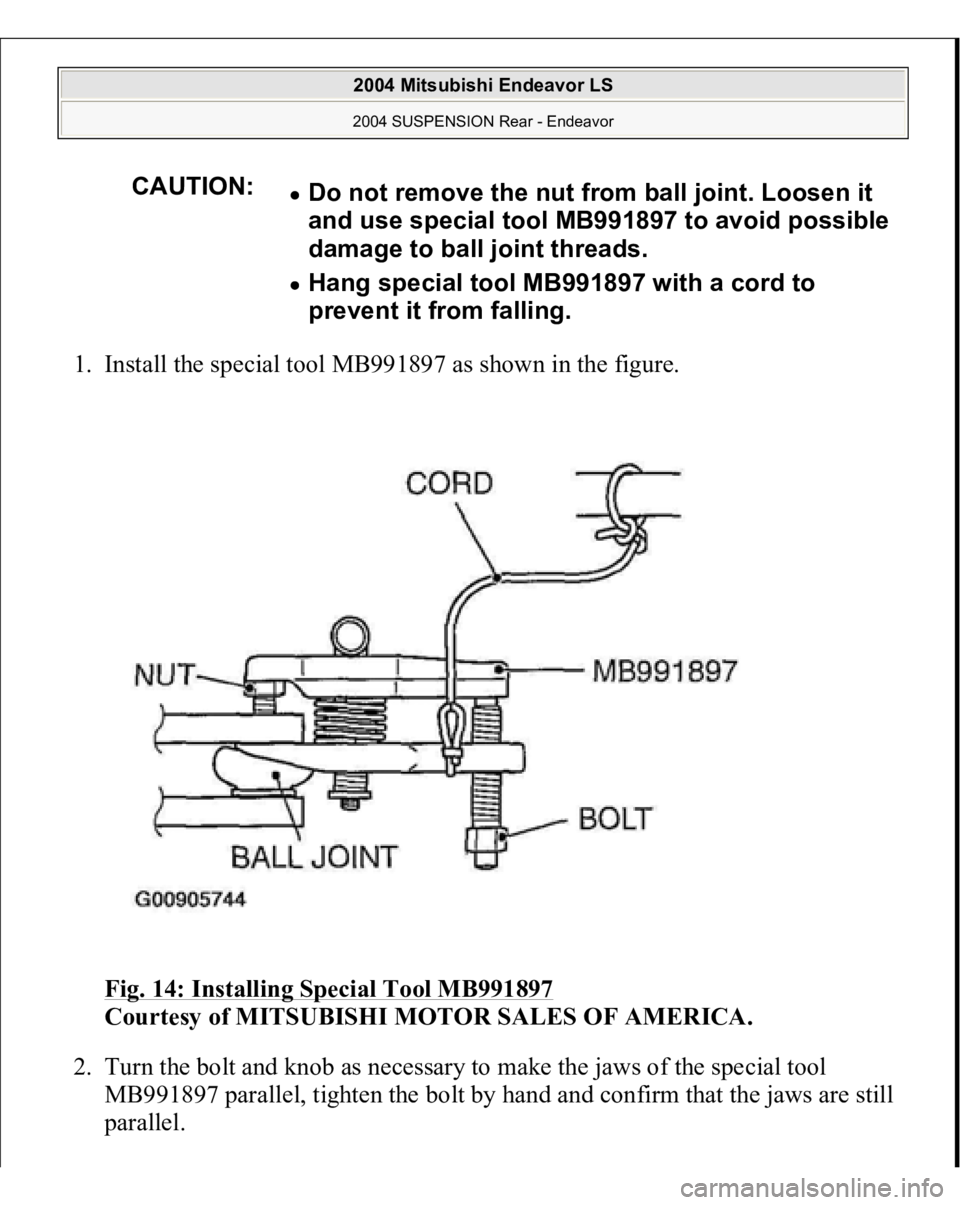

1. Install the special tool MB991897 as shown in the figure.
Fig. 14: Installing Special Tool MB991897

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Turn the bolt and knob as necessary to make the jaws of the special tool
MB991897 parallel, tighten the bolt by hand and confirm that the jaws are still
parallel.
CAUTION:
Do not remove the nut from ball joint. Loosen it
and use special tool MB991897 to avoid possible
damage to ball joint threads. Hang special tool MB991897 with a cord to
prevent it from falling.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

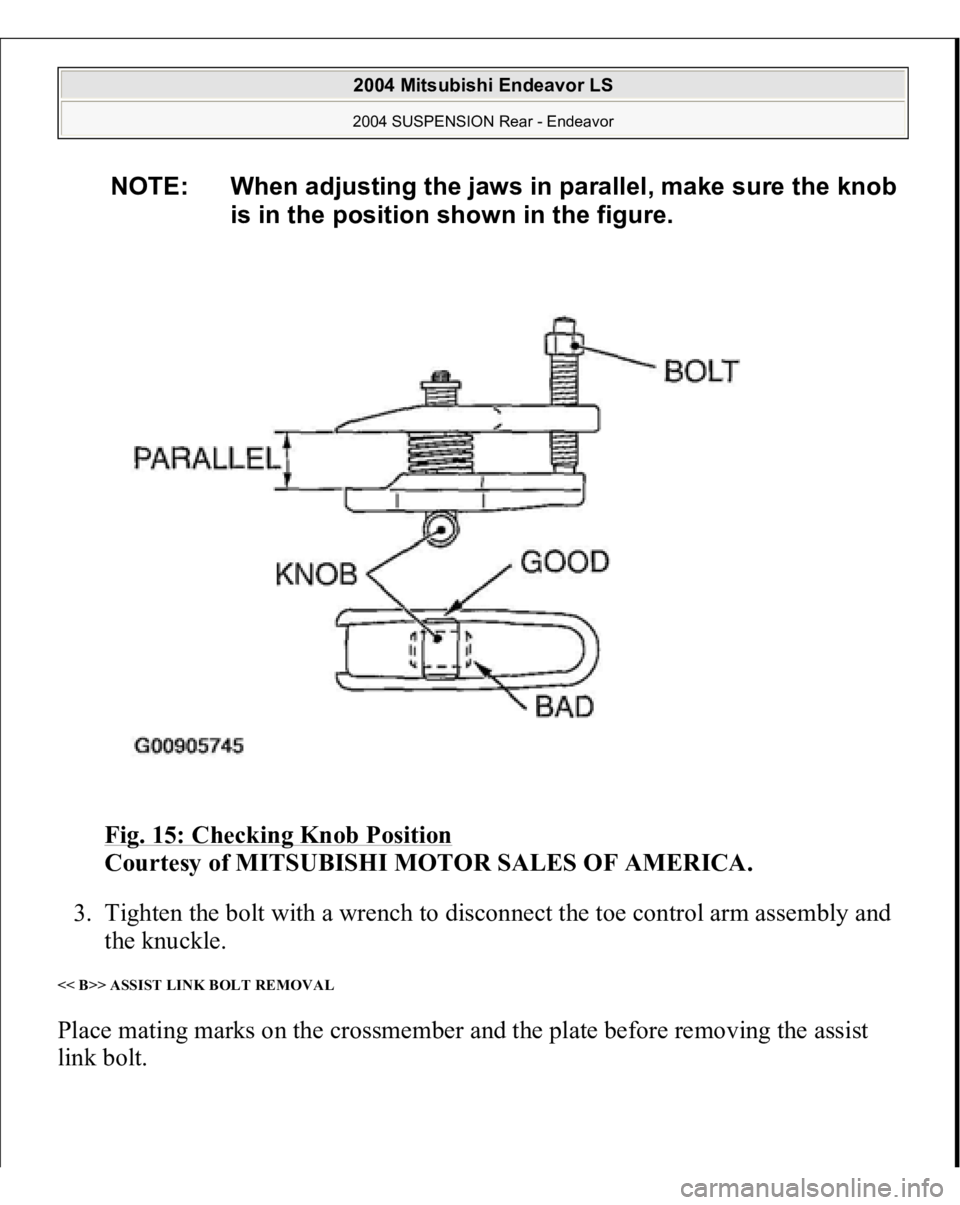

Fig. 15: Checking Knob Position

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Tighten the bolt with a wrench to disconnect the toe control arm assembly and
the knuckle.
<< B>> ASSIST LINK BOLT REMOVAL Place mating marks on the crossmember and the plate before removing the assist
link bolt.
NOTE: When adjusting the jaws in parallel, make sure the knob
is in the position shown in the figure.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

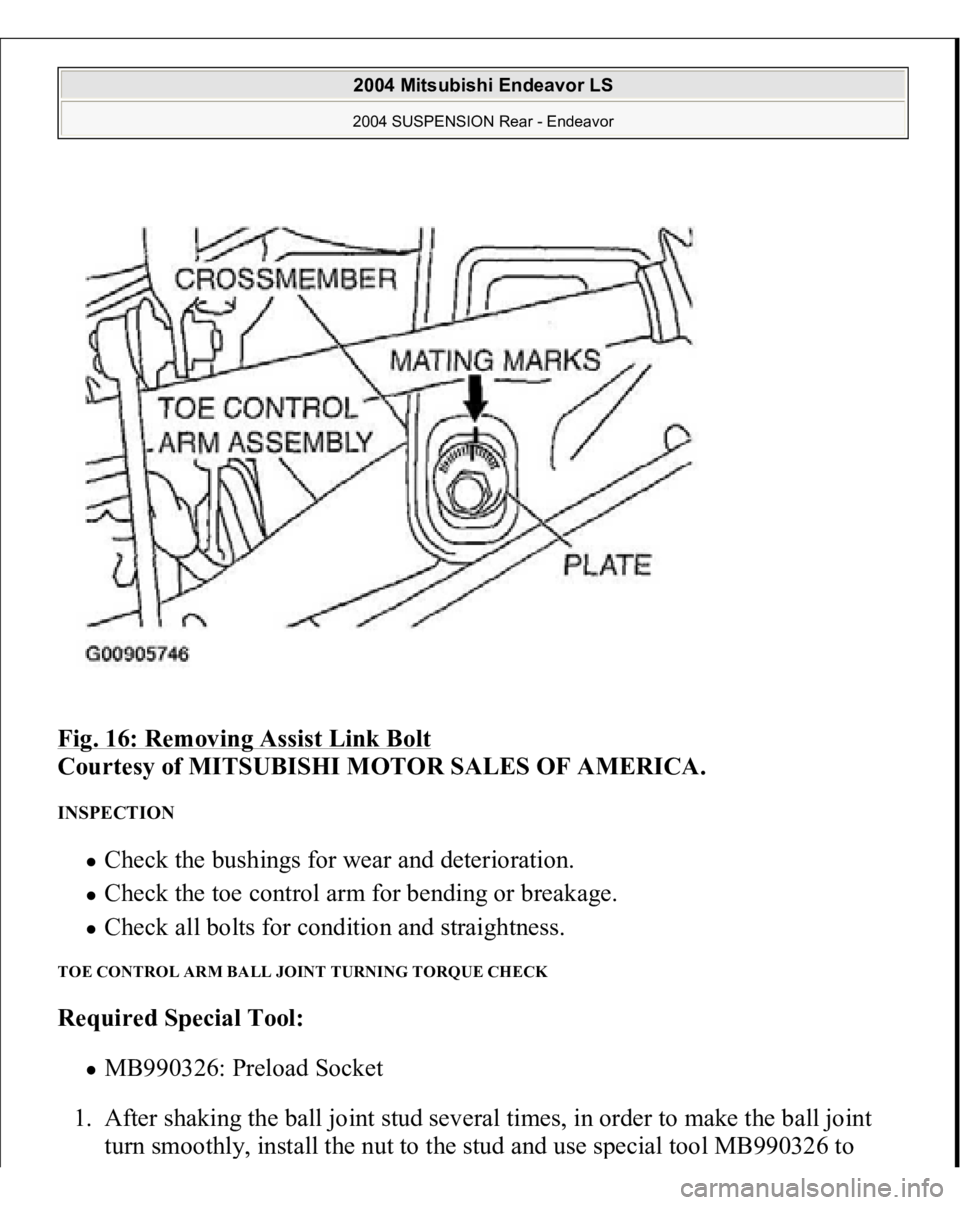

Fig. 16: Removing Assist Link Bolt

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION
Check the bushings for wear and deterioration. Check the toe control arm for bending or breakage. Check all bolts for condition and straightness.
TOE CONTROL ARM BALL JOINT TURNING TORQUE CHECK Required Special Tool:
MB990326: Preload Socket
1. After shaking the ball joint stud several times, in order to make the ball joint
turn smoothl
y, install the nut to the stud and use s
pecial tool MB990326 to

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

measure the turning torque of the ball joint.
Standard value: 1.0 - 2.6 N.m (8.9 - 23 in-lb)
2. If the measured value exceeds the standard value, replace the toe control arm
assembly.
3. If the measured value is lower than the standard value, check that the ball joint
turns smoothly without excessive play. If so, it is possible to re-use that ball
joint.

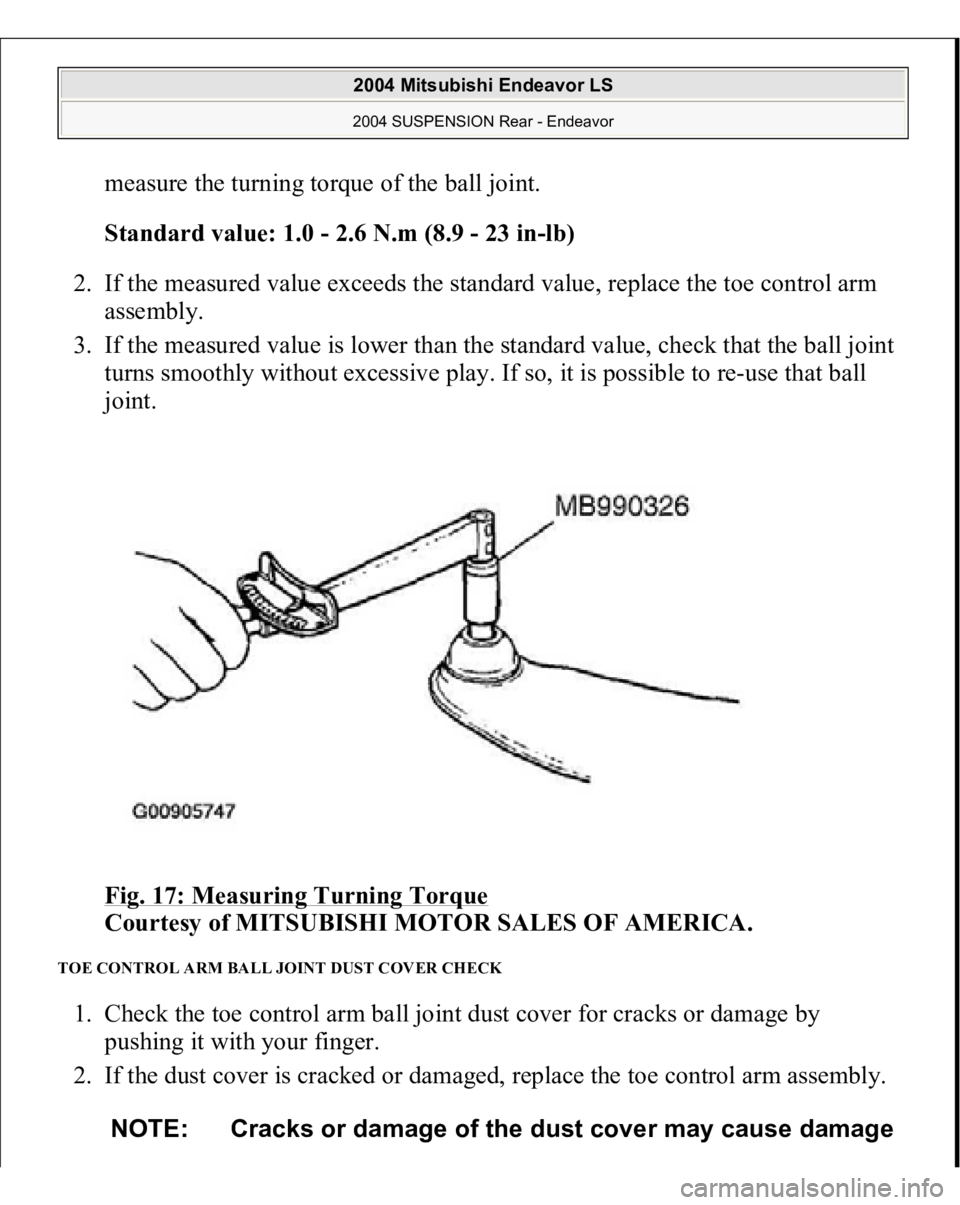

Fig. 17: Measuring Turning Torque

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
TOE CONTROL ARM BALL JOINT DUST COVER CHECK 1. Check the toe control arm ball joint dust cover for cracks or damage by
pushing it with your finger.
2. If the dust cover is cracked or damaged, replace the toe control arm assembly.
NOTE: Cracks or damage of the dust cover may cause damage

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

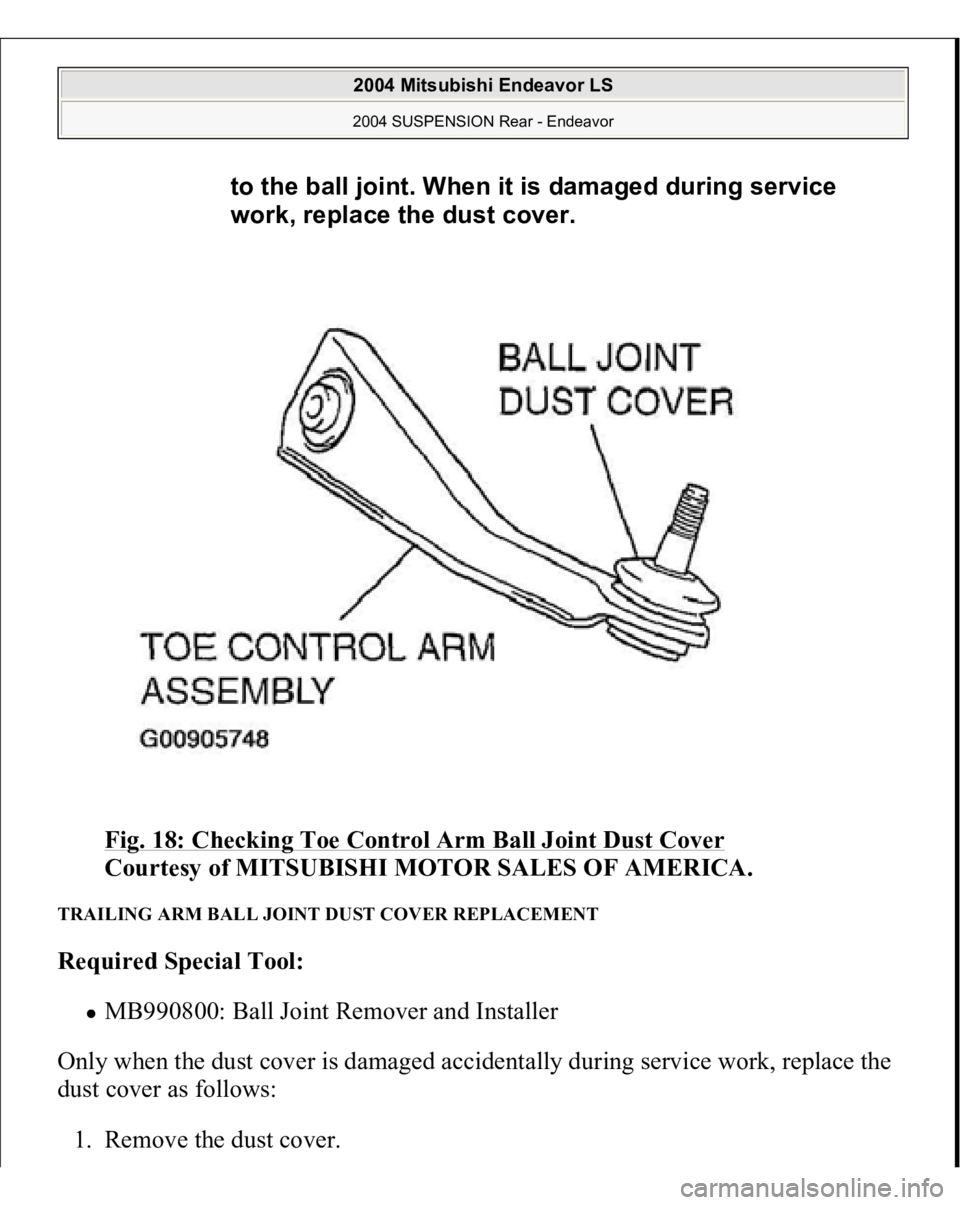

Fig. 18: Checking Toe Control Arm Ball Joint Dust Cover

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
TRAILING ARM BALL JOINT DUST COVER REPLACEMENT Required Special Tool:
MB990800: Ball Joint Remover and Installer
Only when the dust cover is damaged accidentally during service work, replace the
dust cover as follows:
1. Remove the dust cover.
to the ball joint. When it is damaged during service
work, replace the dust cover.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

2. Fill the multipurpose grease in the dust cover and lubricate the lip [Amount of
filling grease in the dust cover: approximately 7g (0.247 ounce)].
3. Using special tool MB990800, punch the dust cover until it contacts the snap
ring.
4. Press the dust cover with your finger to check that there are no cracks or
damage in the dust cover.

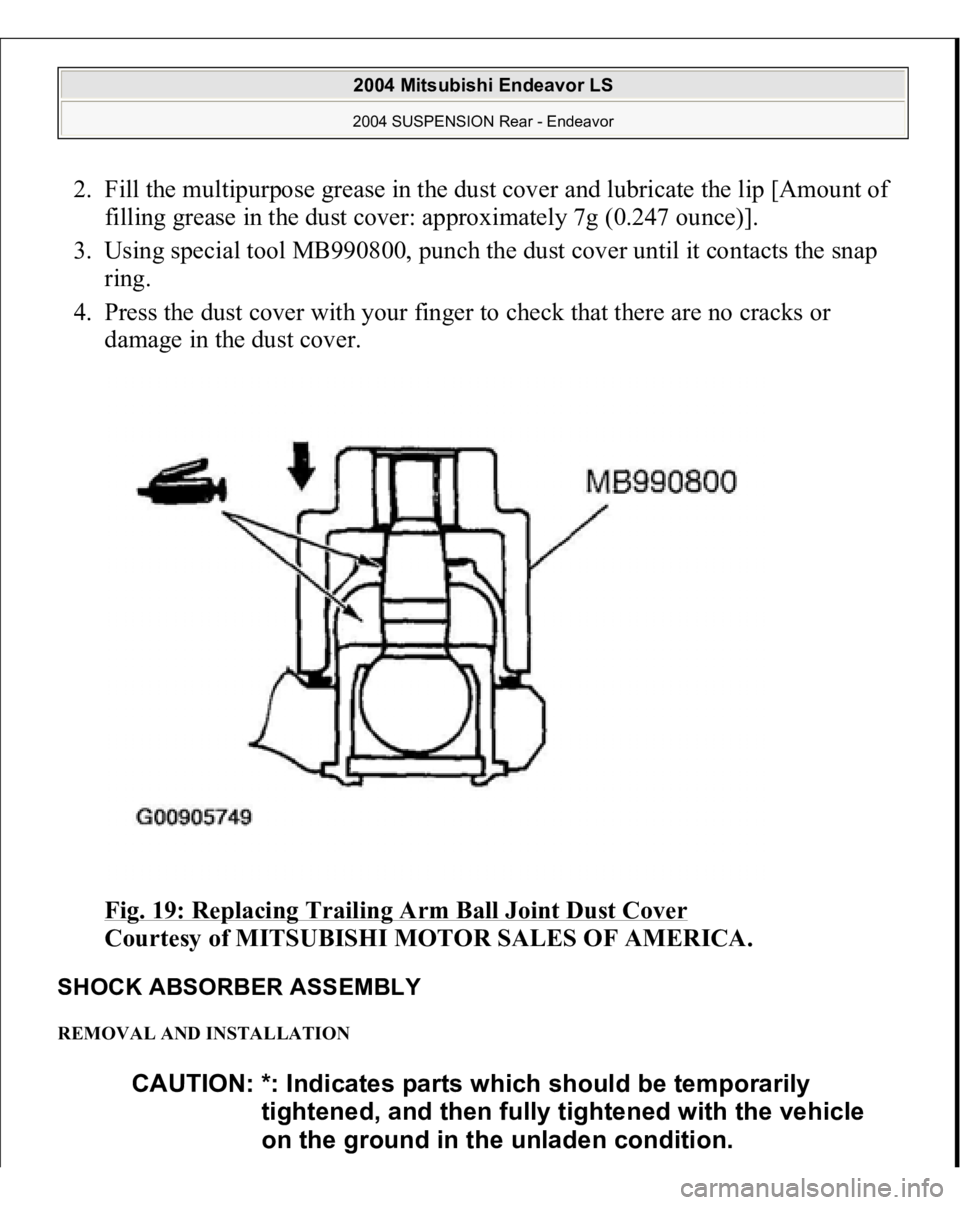

Fig. 19: Replacing Trailing Arm Ball Joint Dust Cover

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SHOCK ABSORBER ASSEMBLY REMOVAL AND INSTALLATION
CAUTION: *: Indicates parts which should be temporarily
tightened, and then fully tightened with the vehicle
on the ground in the unladen condition.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor
