MITSUBISHI ENDEAVOR 2004 Service Repair Manual

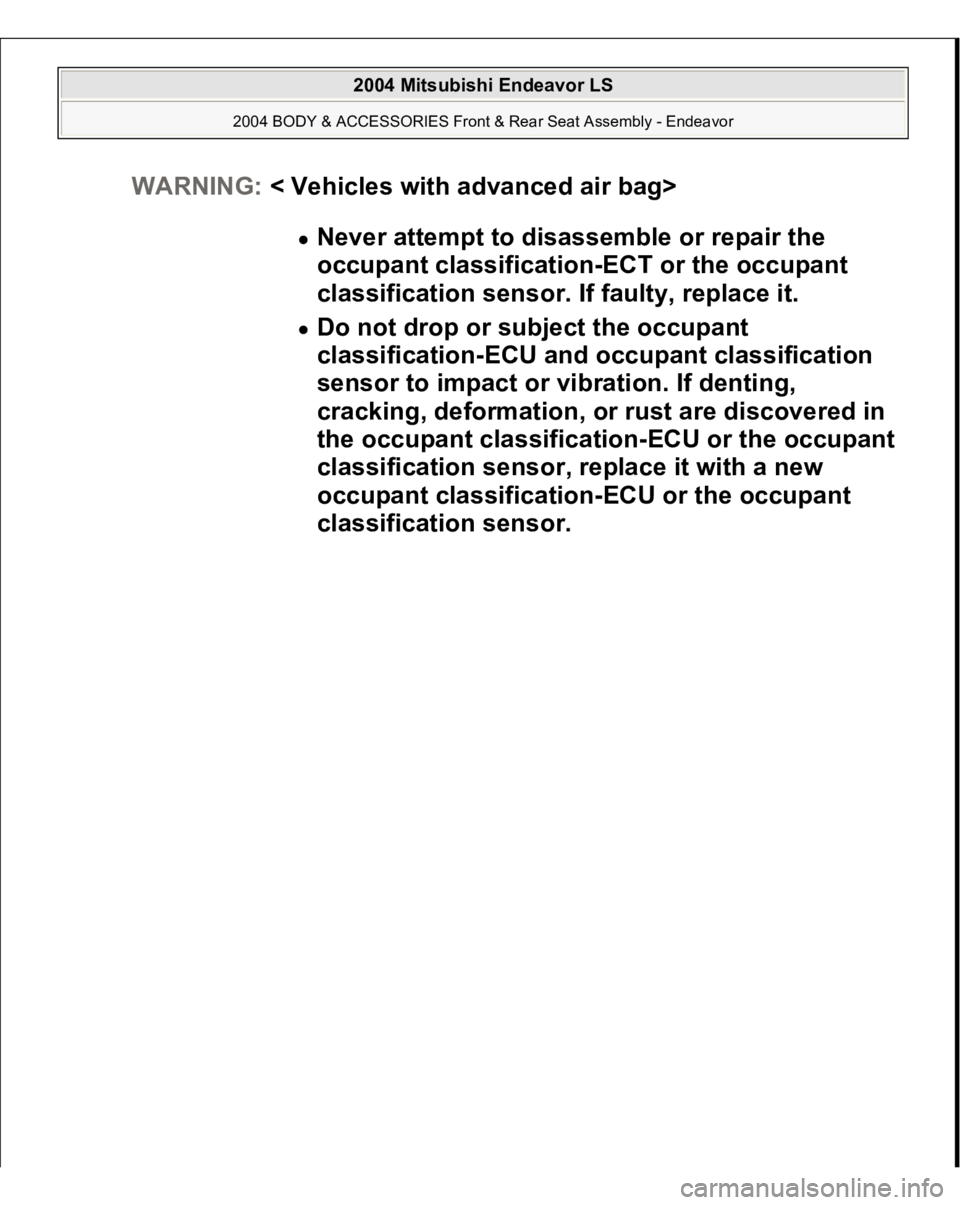

WARNING:< Vehicles with advanced air bag>
Never attempt to disassemble or repair the
occupant classification-ECT or the occupant
classification sensor. If faulty, replace it. Do not drop or subject the occupant
classification-ECU and occupant classification
sensor to impact or vibration. If denting,
cracking, deformation, or rust are discovered in
the occupant classification-ECU or the occupant
classification sensor, replace it with a new
occupant classification-ECU or the occupant
classification sensor.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

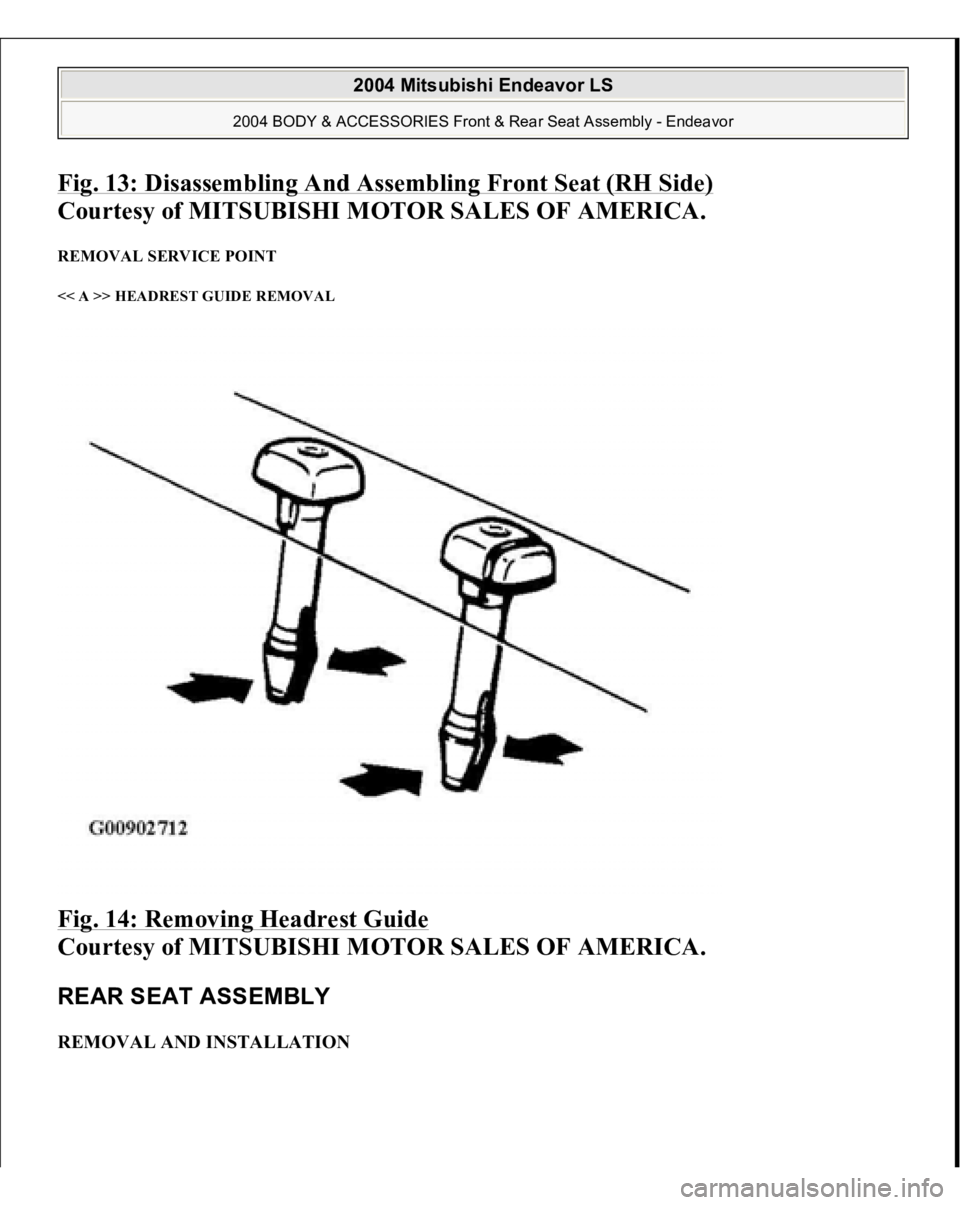

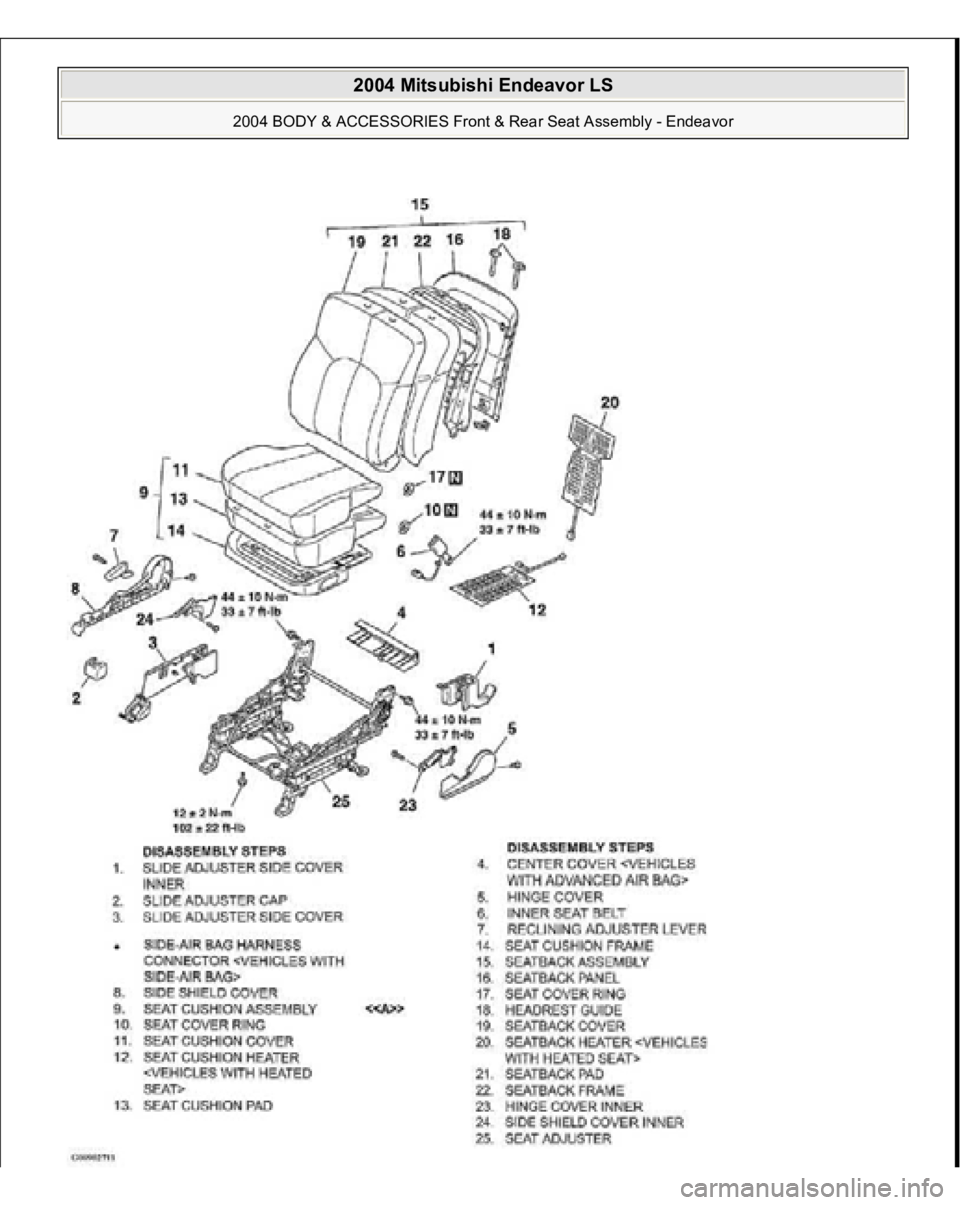

Fig. 13: Disassembling And Assembling Front Seat (RH Side)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL SERVICE POINT << A >> HEADREST GUIDE REMOVAL Fig. 14: Removing Headrest Guide

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REAR SEAT ASSEMBLY REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

Fig. 15: Removing/Installing Rear Seat Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
DISASSEMBLY AND ASSEMBLY < LH SIDE >
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

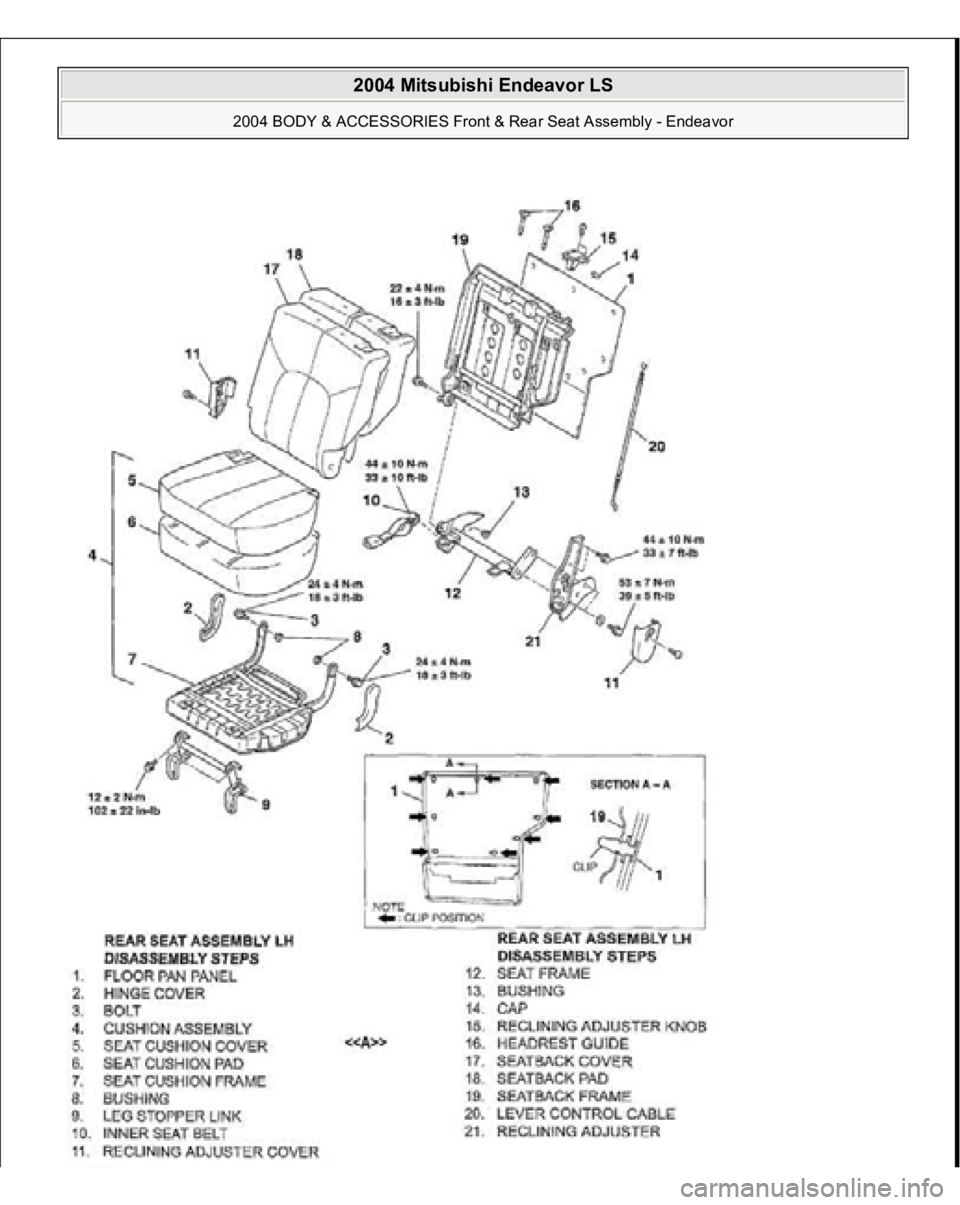

Fig. 16: Disassembling LH Rear Seat Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< RH SIDE >
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

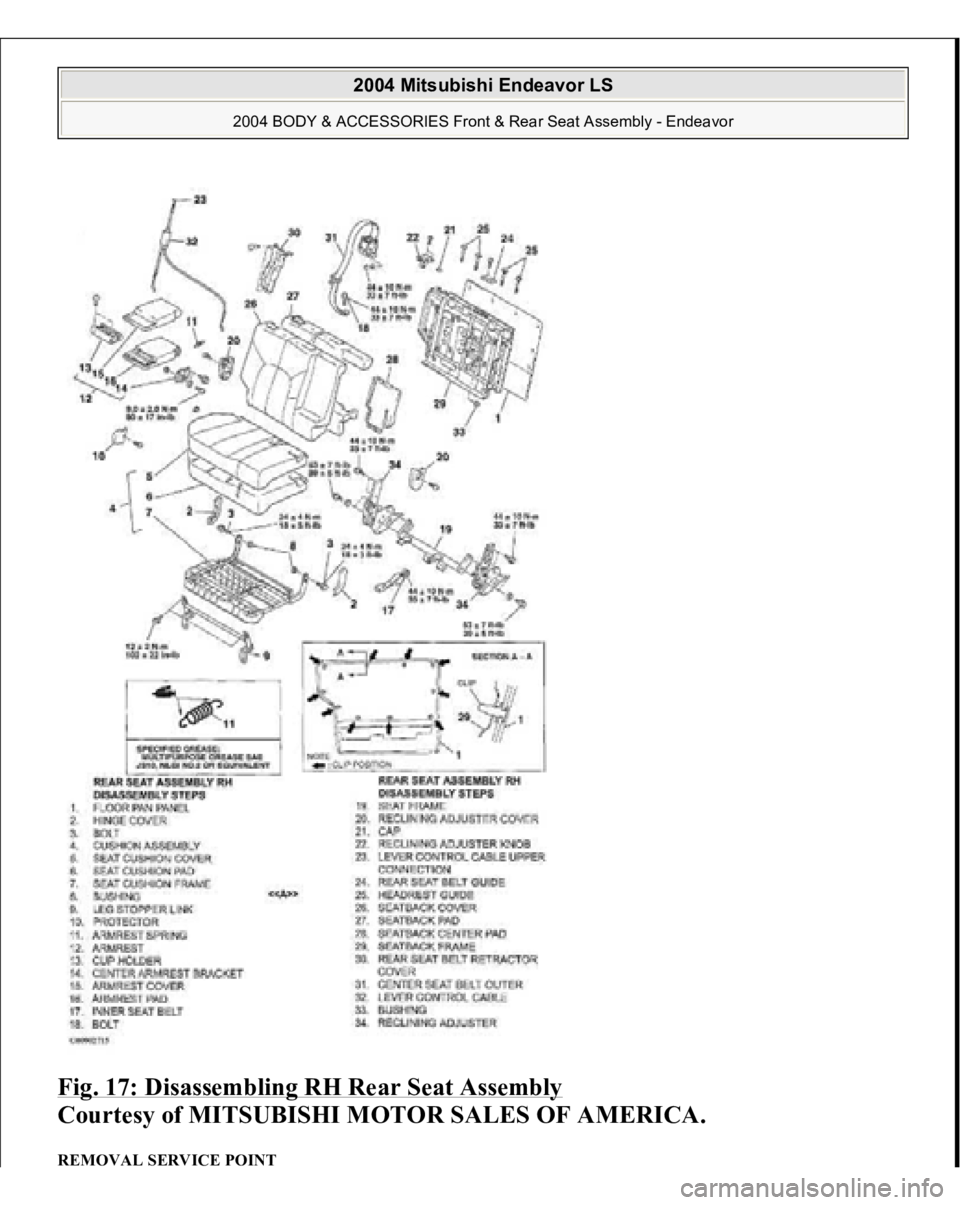

Fig. 17: Disassembling RH Rear Seat Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL SERVICE POINT
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

<< A >> HEADREST GUIDE REMOVA
L

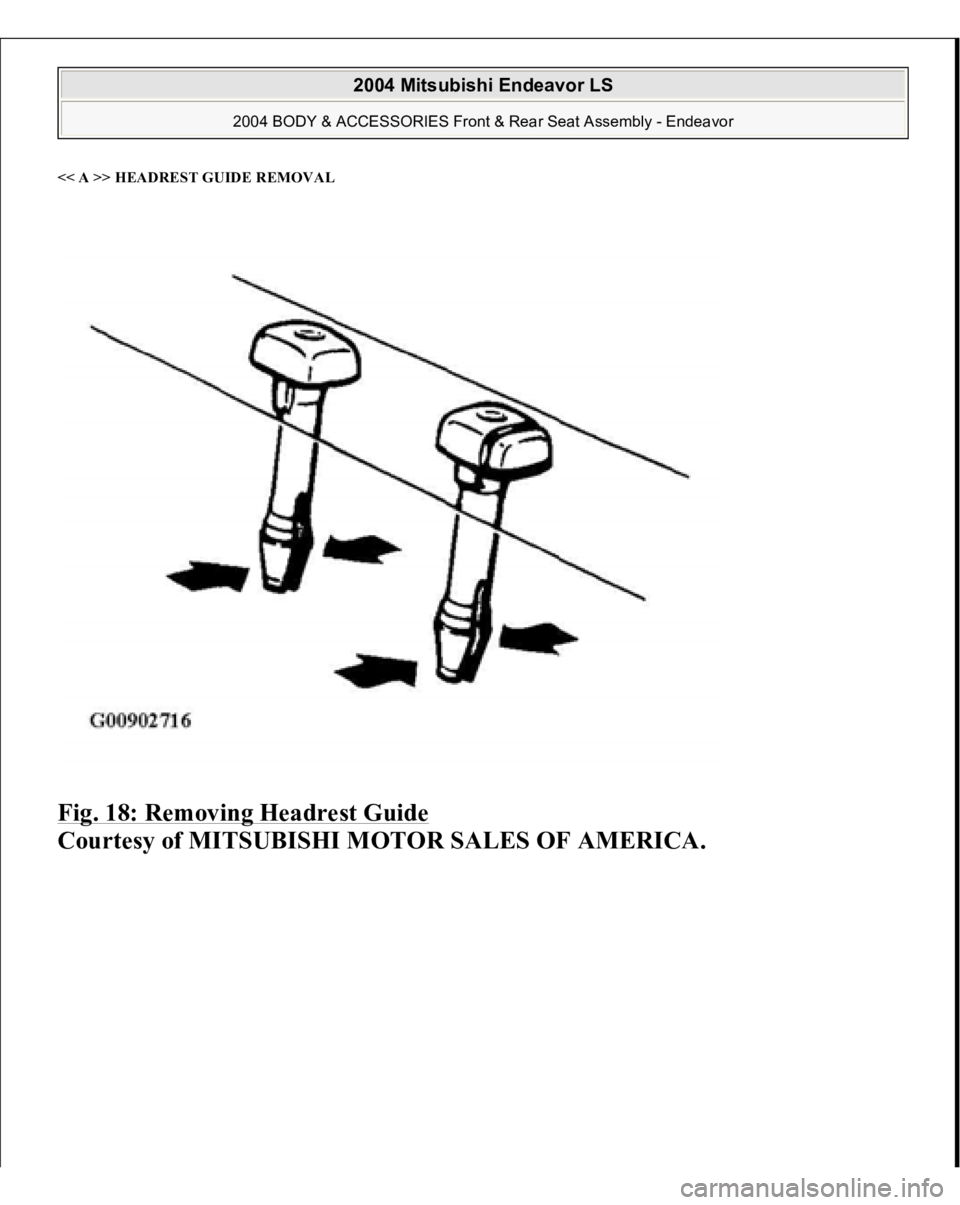

Fig. 18: Removing Headrest Guide

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor

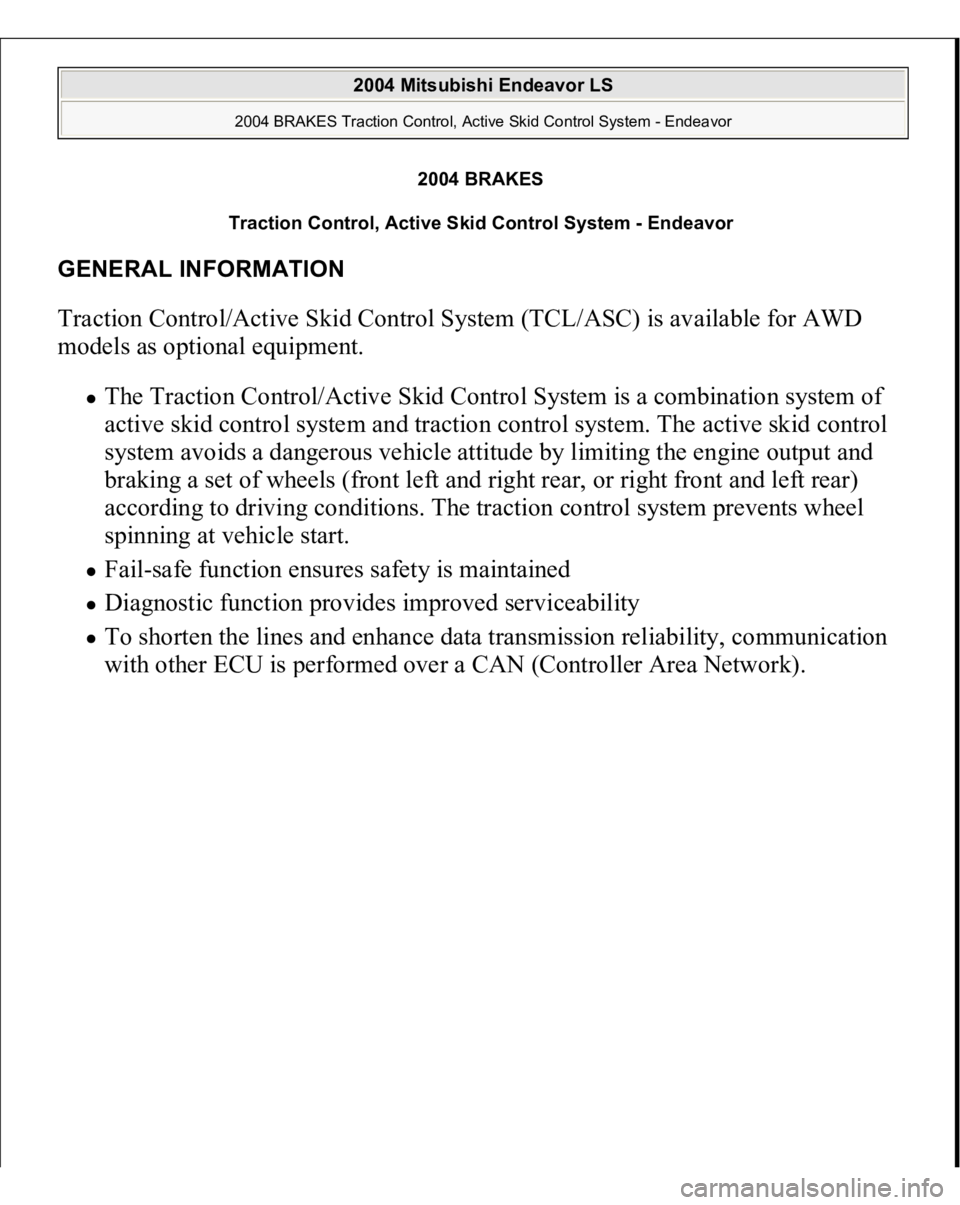

2004 BRAKES
Traction Control, Active Skid Control System - Endeavor
GENERAL INFORMATION Traction Control/Active Skid Control System (TCL/ASC) is available for AWD
models as optional equipment.
The Traction Control/Active Skid Control System is a combination system of
active skid control system and traction control system. The active skid control
system avoids a dangerous vehicle attitude by limiting the engine output and
braking a set of wheels (front left and right rear, or right front and left rear)
according to driving conditions. The traction control system prevents wheel
spinning at vehicle start. Fail-safe function ensures safety is maintained Diagnostic function provides improved serviceability To shorten the lines and enhance data transmission reliability, communication
with other ECU is
performed over a CAN
(Controller Area Network
).

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor


2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

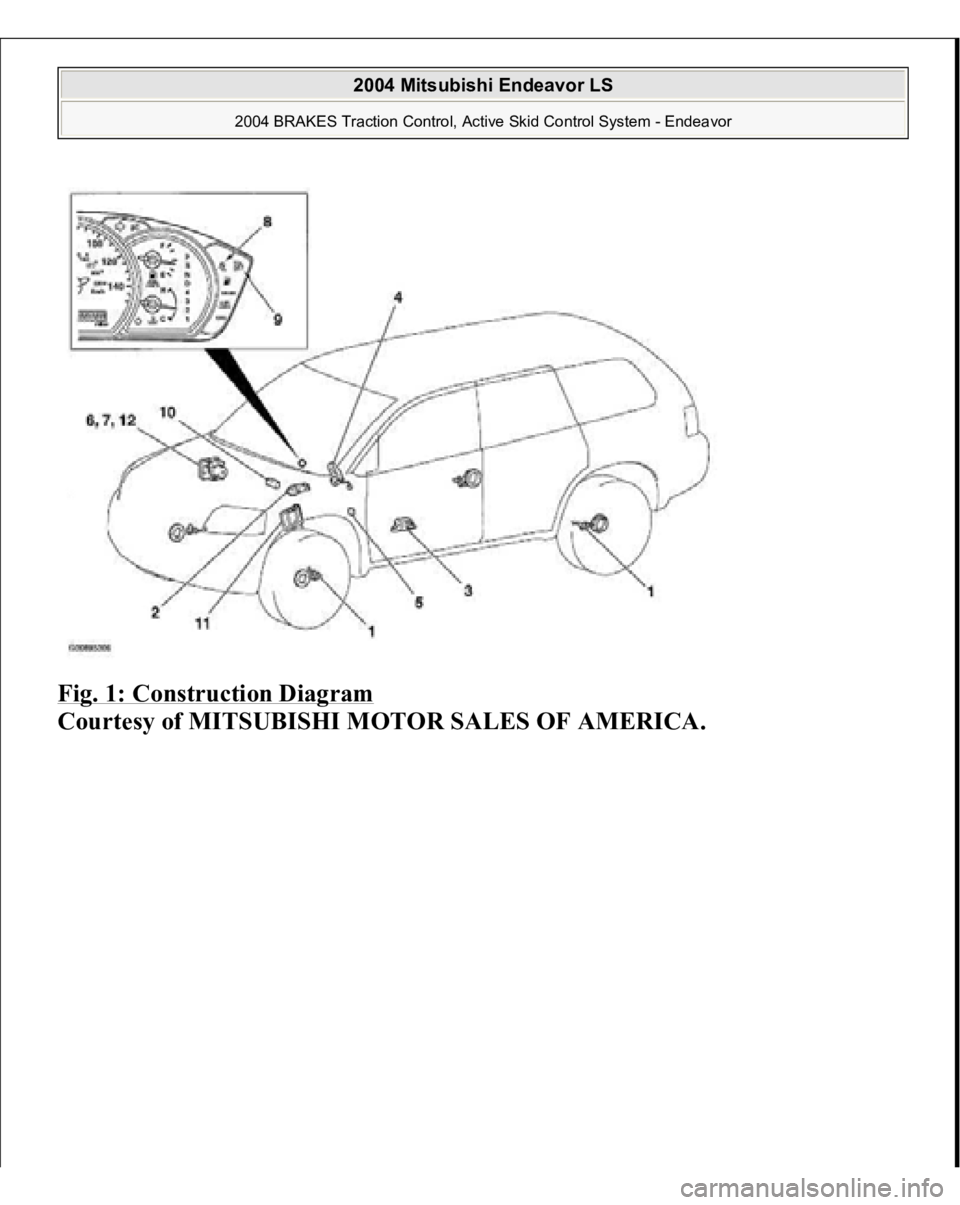

Fig. 1: Construction Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
