MITSUBISHI ENDEAVOR 2004 Service Repair Manual

unit reservoir, will be supplied to the front left wheel during oversteering or the rear
right wheel during understeering when the vehicle is at right turn. Furthermore, the

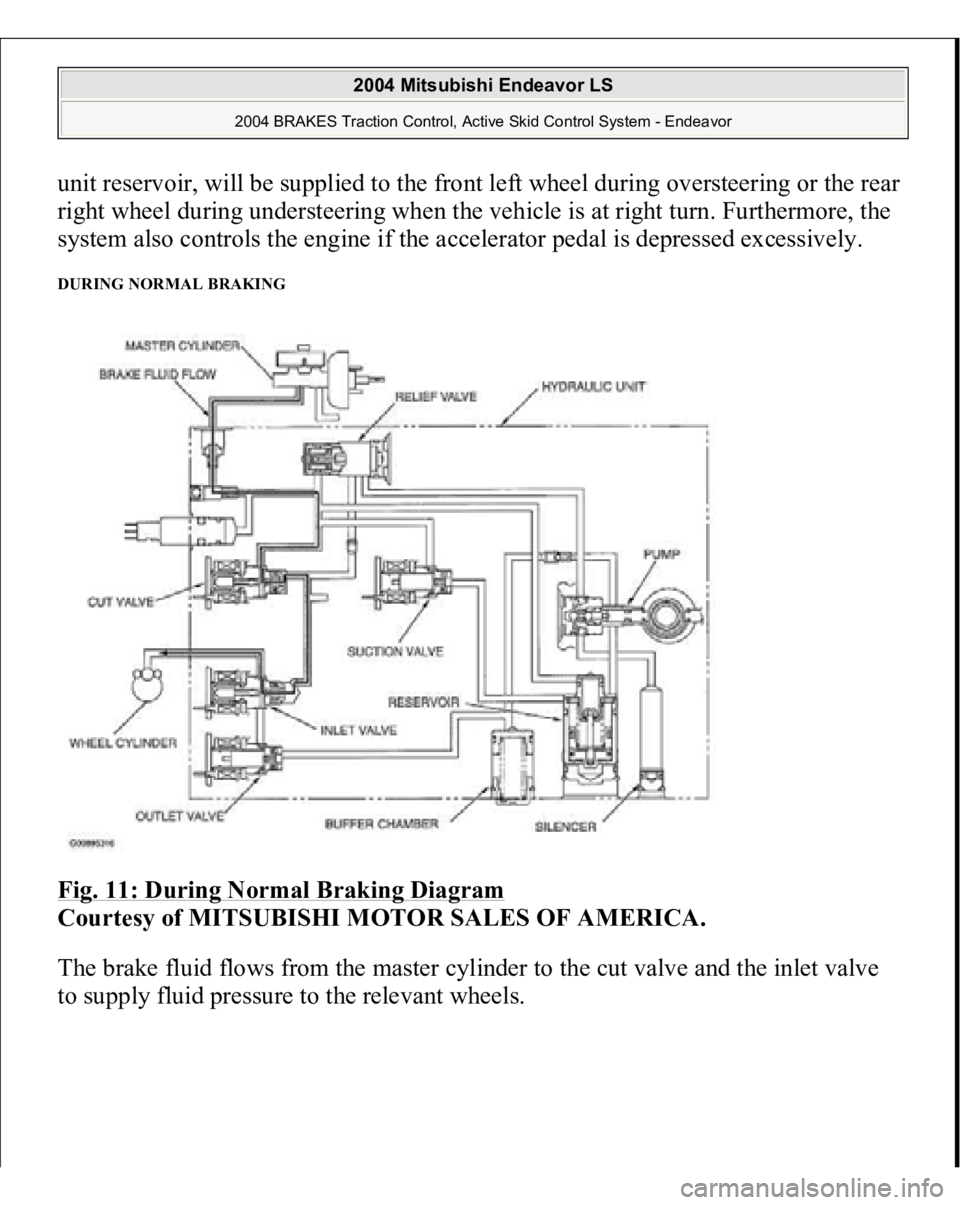

system also controls the engine if the accelerator pedal is depressed excessively. DURING NORMAL BRAKING Fig. 11: During Normal Braking Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The brake fluid flows from the master cylinder to the cut valve and the inlet valve
to supply fluid pressure to the relevant wheels.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

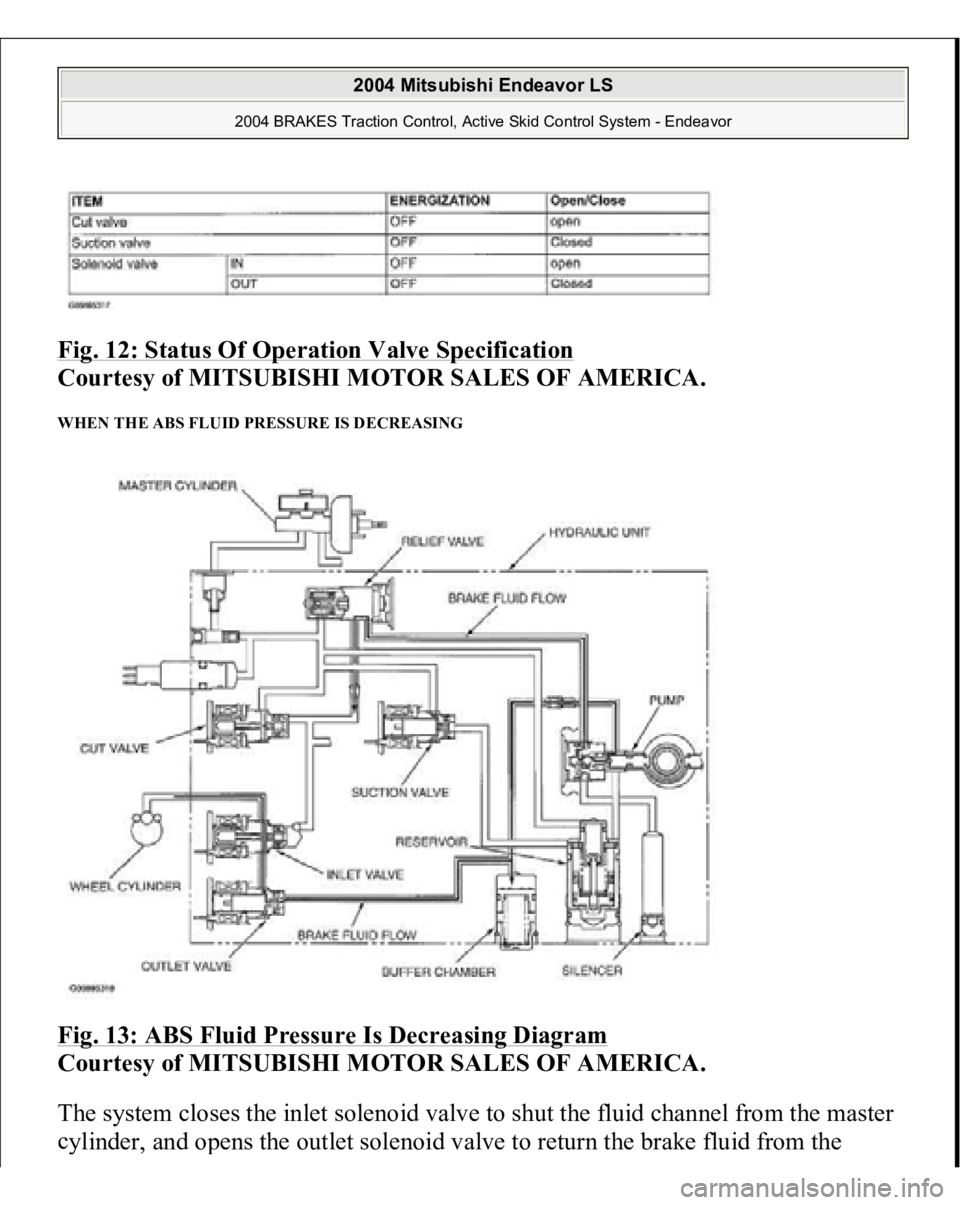

Fig. 12: Status Of Operation Valve Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WHEN THE ABS FLUID PRESSURE IS DECREASING Fig. 13: ABS Fluid Pressure Is Decreasing Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The system closes the inlet solenoid valve to shut the fluid channel from the master
c
ylinder, and o
pens the outlet solenoid valve to return the brake fluid from the

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

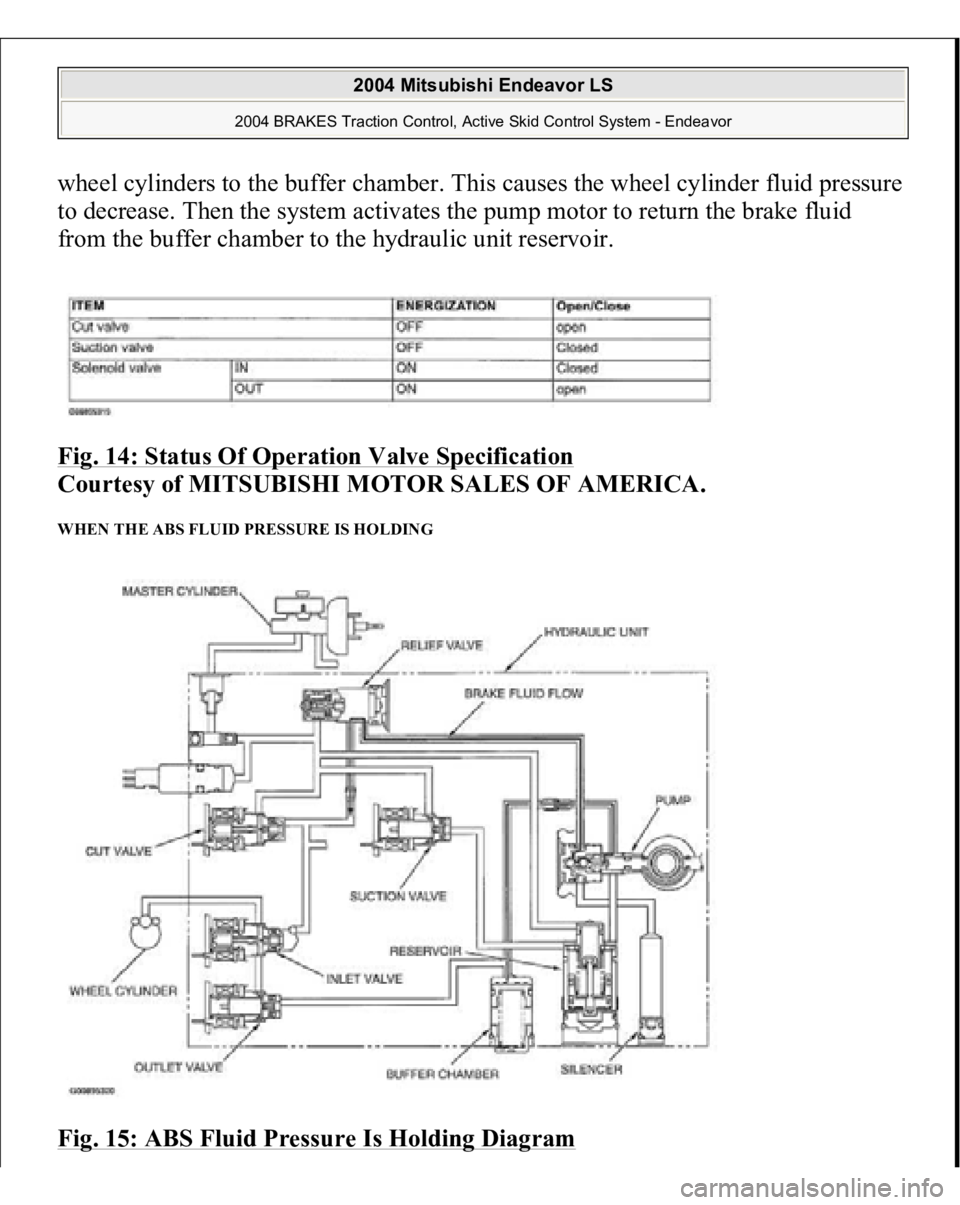

wheel cylinders to the buffer chamber. This causes the wheel cylinder fluid pressure
to decrease. Then the system activates the pump motor to return the brake fluid
from the buffer chamber to the hydraulic unit reservoir.
Fig. 14: Status Of Operation Valve Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WHEN THE ABS FLUID PRESSURE IS HOLDING Fig. 15: ABS Fluid Pressure Is Holding Diagram


2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

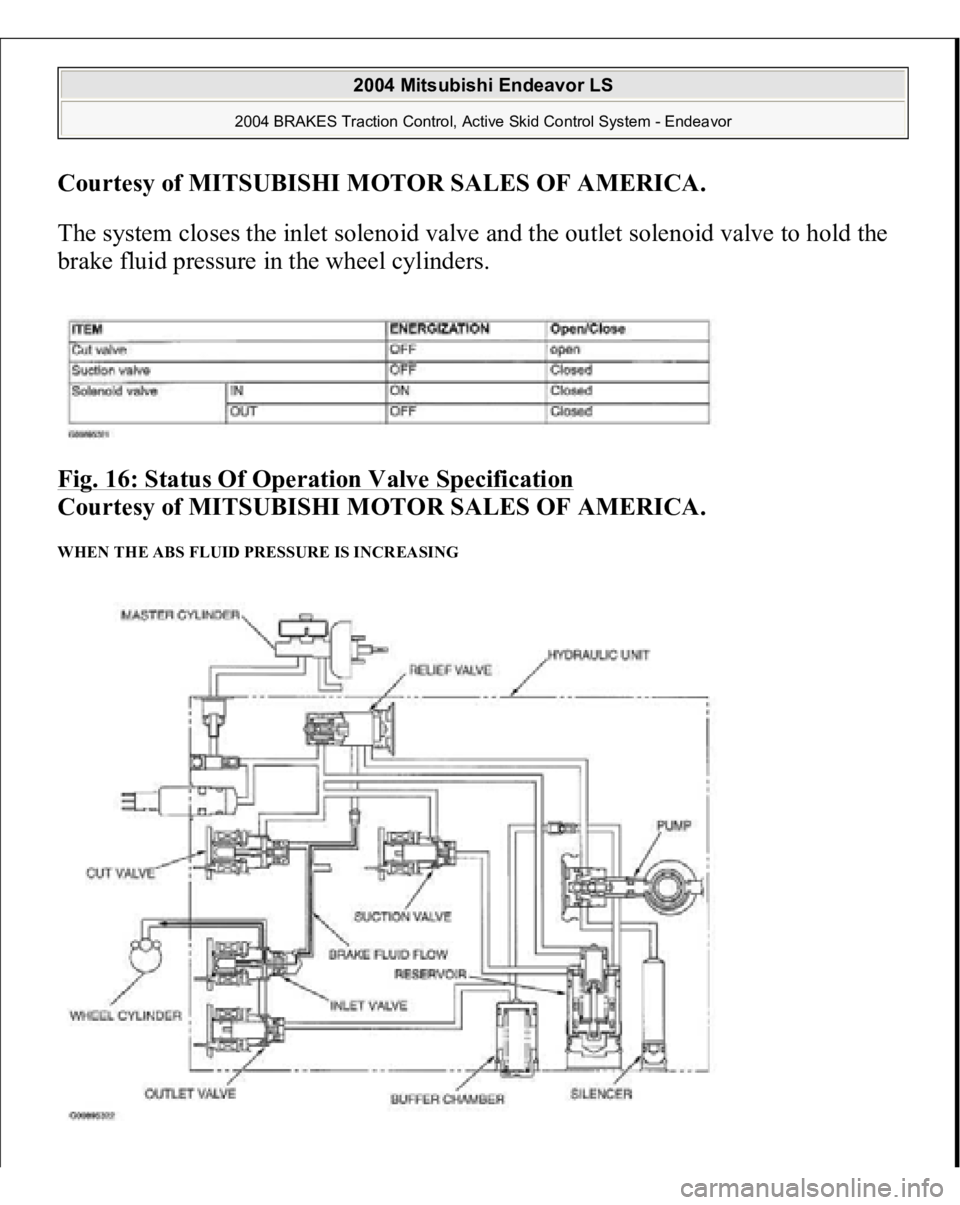

The system closes the inlet solenoid valve and the outlet solenoid valve to hold the
brake fluid pressure in the wheel cylinders.
Fig. 16: Status Of Operation Valve Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WHEN THE ABS FLUID PRESSURE IS INCREASING
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

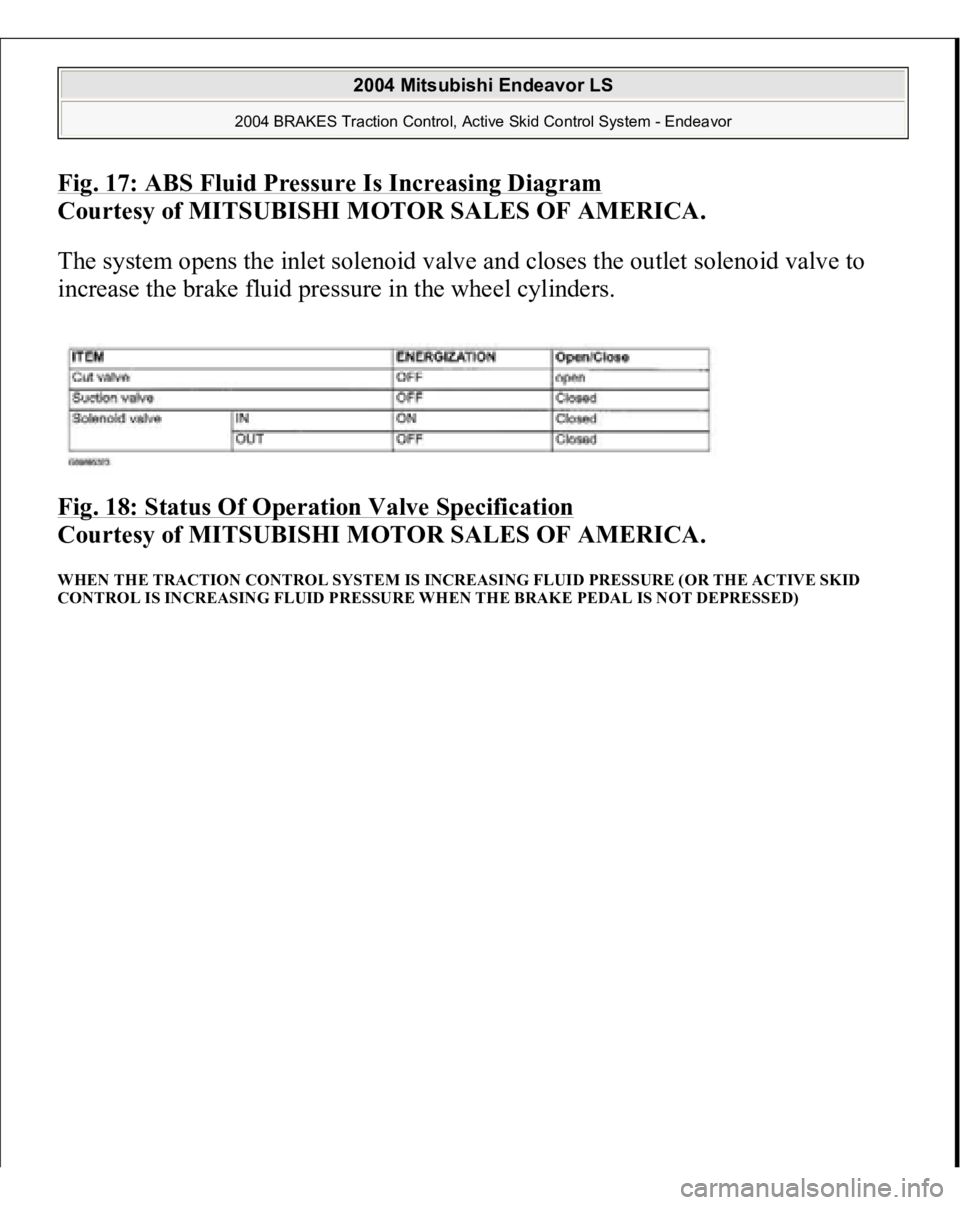

Fig. 17: ABS Fluid Pressure Is Increasing Diagra
m
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The system opens the inlet solenoid valve and closes the outlet solenoid valve to
increase the brake fluid pressure in the wheel cylinders.
Fig. 18: Status Of Operation Valve Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WHEN THE TRACTION CONTROL SYSTEM IS INCREASING FLUID PRESSURE (OR THE ACTIVE SKID
CONTROL IS INCREASING FLUID PRESSURE WHEN THE BRAKE PEDAL IS NOT DEPRESSED)
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

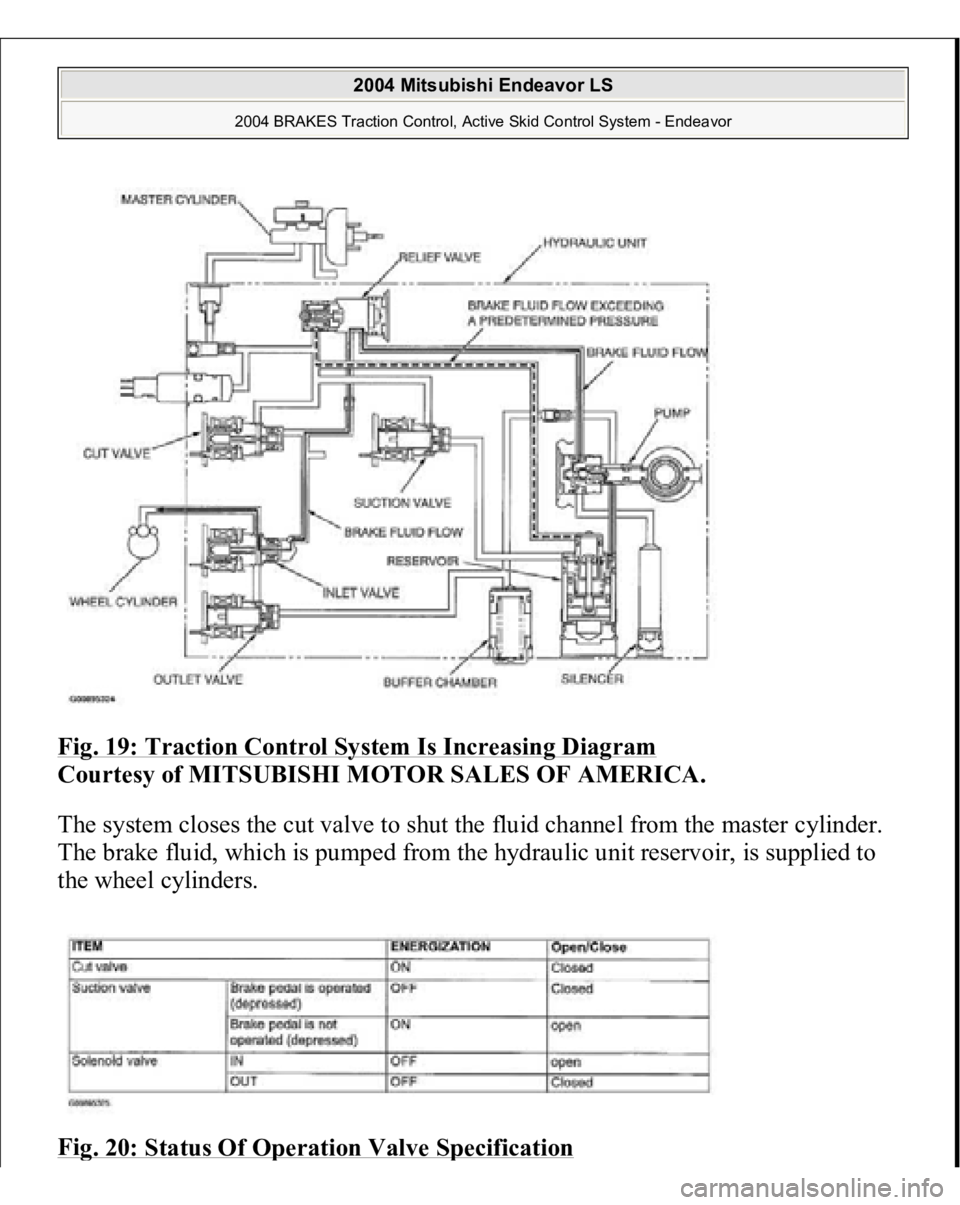

Fig. 19: Traction Control System Is Increasing Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The system closes the cut valve to shut the fluid channel from the master cylinder.
The brake fluid, which is pumped from the hydraulic unit reservoir, is supplied to
the wheel cylinders.
Fi
g. 20: Status Of O
peration Valve S
pecificatio
n

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

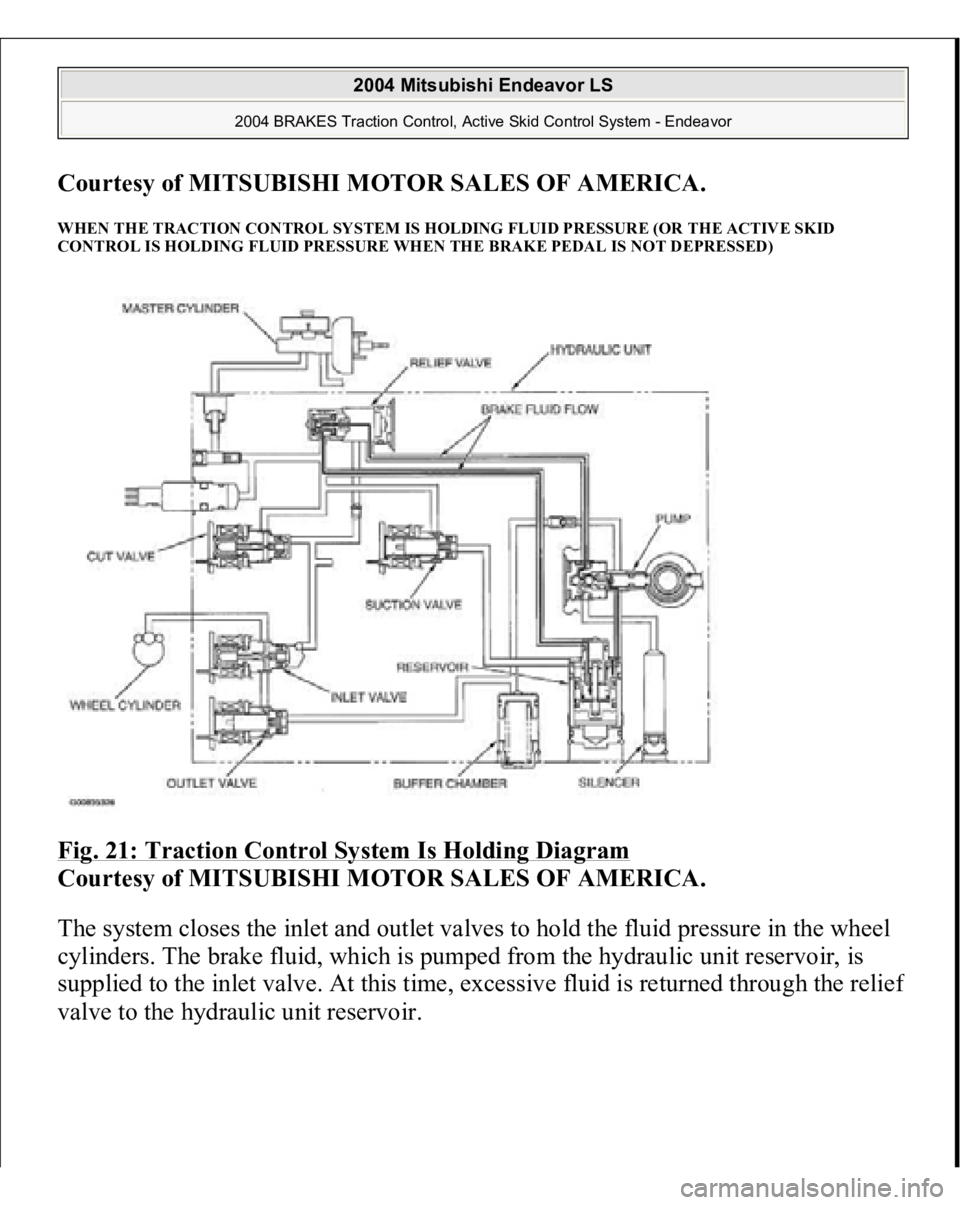

WHEN THE TRACTION CONTROL SYSTEM IS HOLDING FLUID PRESSURE (OR THE ACTIVE SKID
CONTROL IS HOLDING FLUID PRESSURE WHEN THE BRAKE PEDAL IS NOT DEPRESSED) Fig. 21: Traction Control System Is Holding Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The system closes the inlet and outlet valves to hold the fluid pressure in the wheel
cylinders. The brake fluid, which is pumped from the hydraulic unit reservoir, is
supplied to the inlet valve. At this time, excessive fluid is returned through the relie
f
valve to the h
ydraulic unit reservoir.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

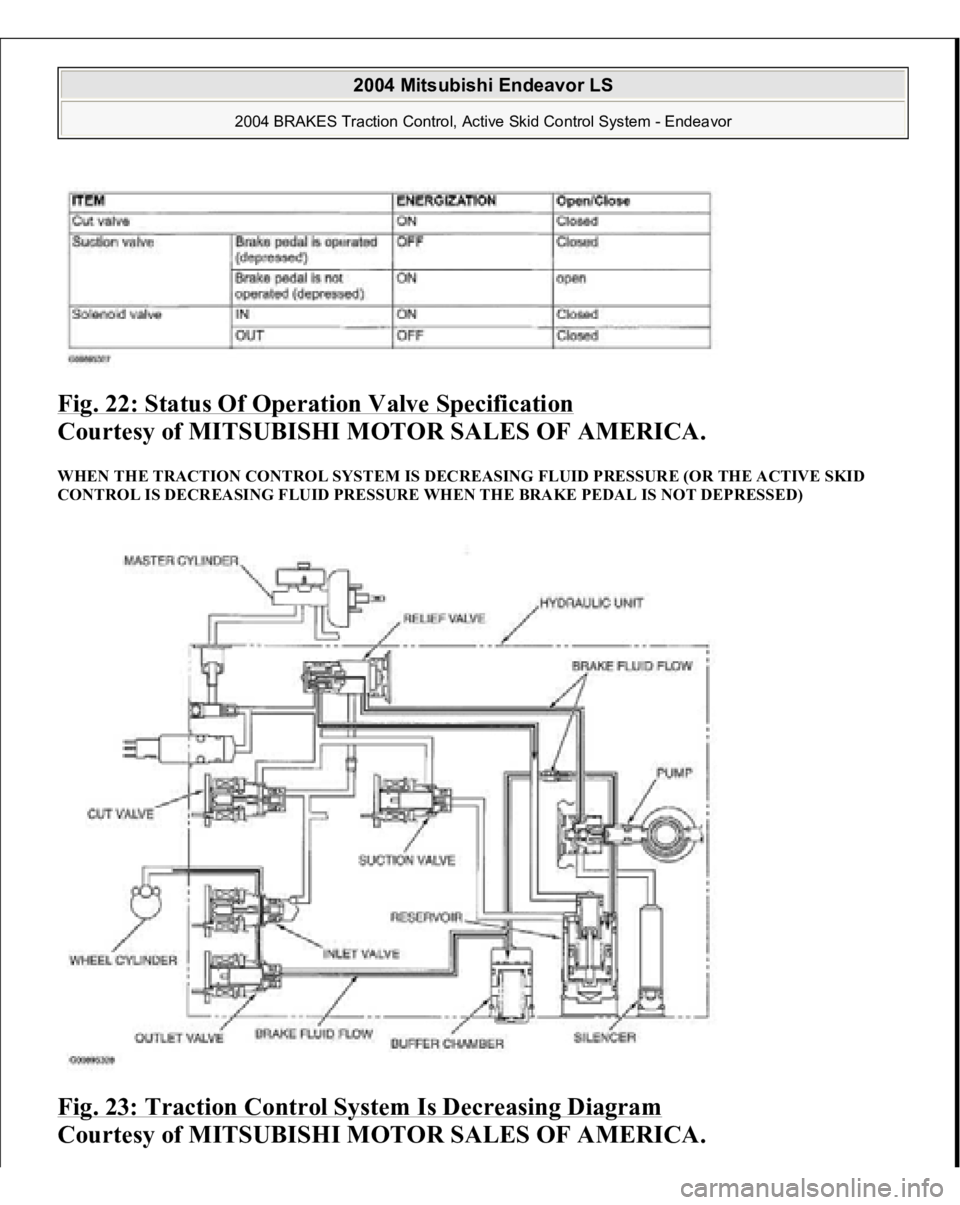

Fig. 22: Status Of Operation Valve Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WHEN THE TRACTION CONTROL SYSTEM IS DECREASING FLUID PRESSURE (OR THE ACTIVE SKID
CONTROL IS DECREASING FLUID PRESSURE WHEN THE BRAKE PEDAL IS NOT DEPRESSED) Fig. 23: Traction Control System Is Decreasing Diagram

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

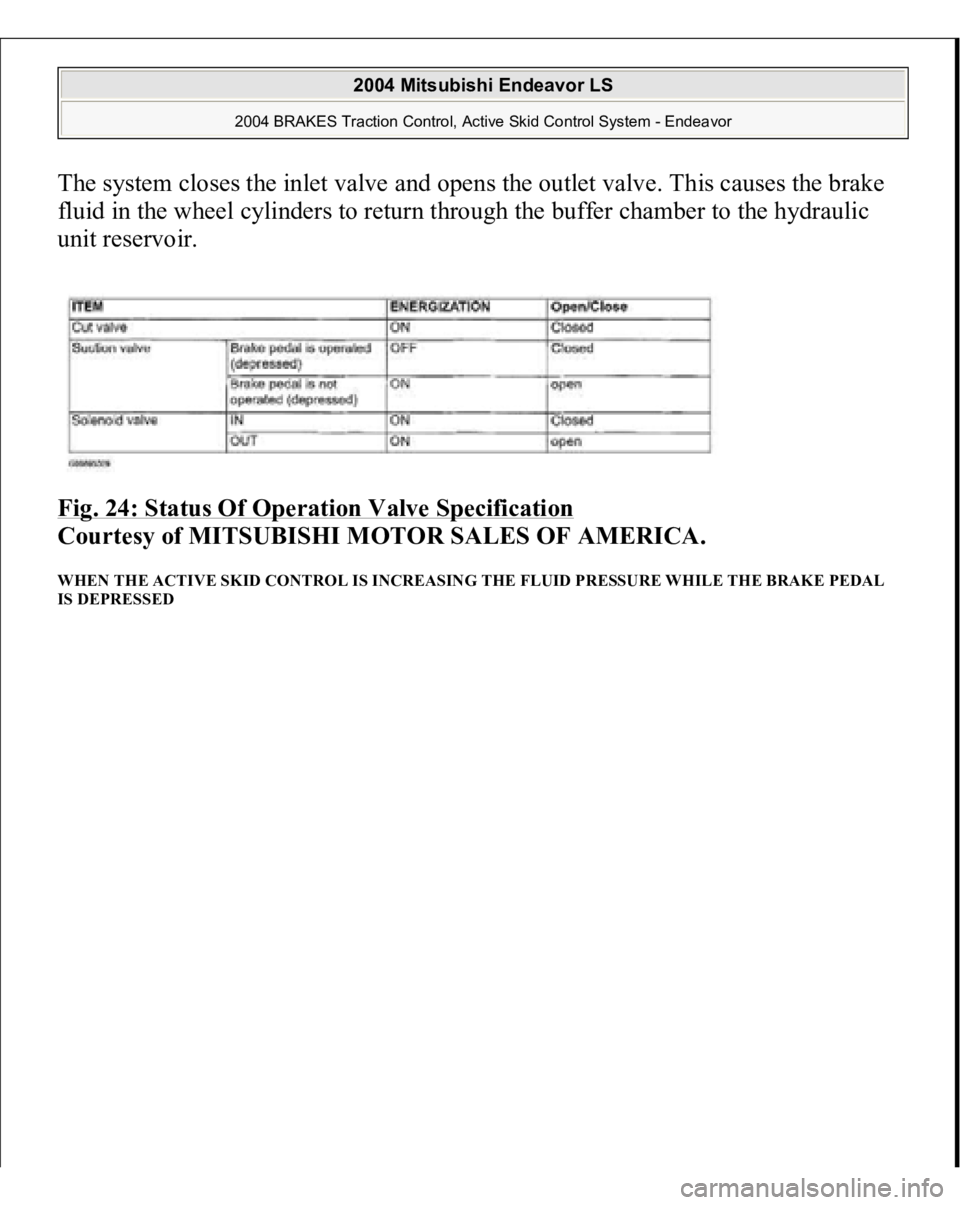

The system closes the inlet valve and opens the outlet valve. This causes the brake
fluid in the wheel cylinders to return through the buffer chamber to the hydraulic
unit reservoir.
Fig. 24: Status Of Operation Valve Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WHEN THE ACTIVE SKID CONTROL IS INCREASING THE FLUID PRESSURE WHILE THE BRAKE PEDAL
IS DEPRESSED
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

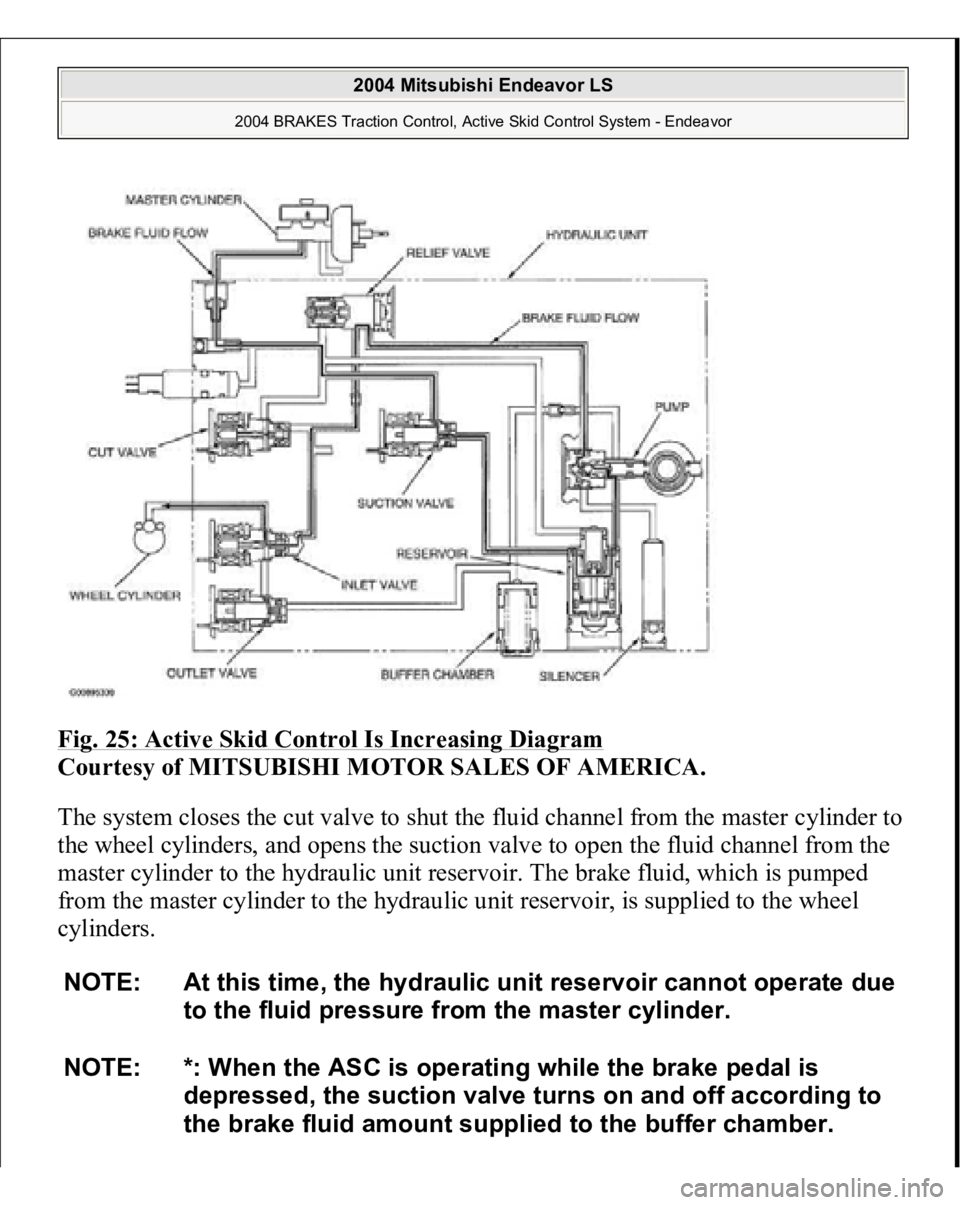

Fig. 25: Active Skid Control Is Increasing Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The system closes the cut valve to shut the fluid channel from the master cylinder to
the wheel cylinders, and opens the suction valve to open the fluid channel from the
master cylinder to the hydraulic unit reservoir. The brake fluid, which is pumped
from the master cylinder to the hydraulic unit reservoir, is supplied to the wheel
cylinders.
NOTE: At this time, the hydraulic unit reservoir cannot operate due
to the fluid pressure from the master cylinder.
NOTE: *: When the ASC is operating while the brake pedal is
depressed, the suction valve turns on and off according to
the brake fluid amount supplied to the buffer chamber.
