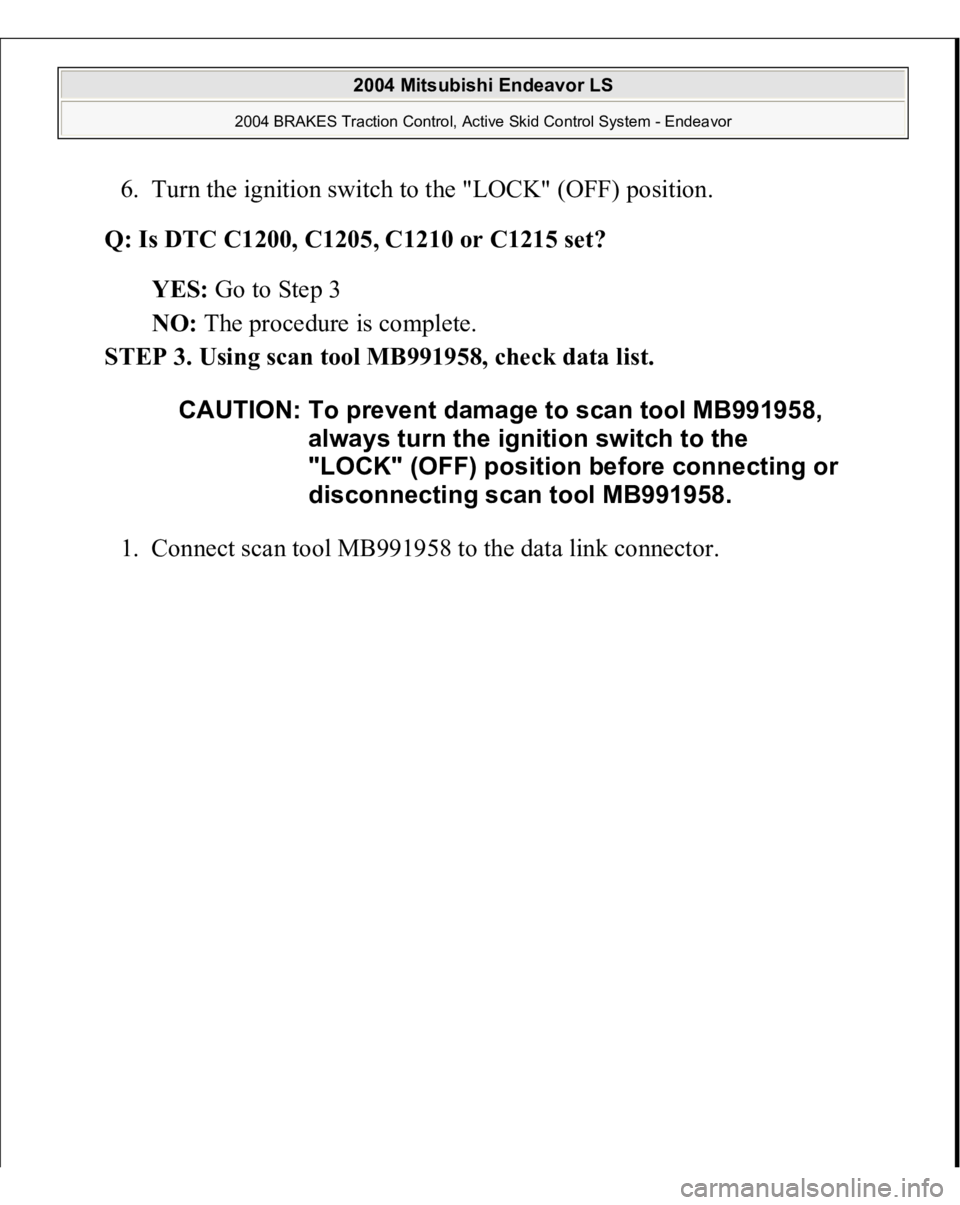

6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1200, C1205, C1210 or C1215 set?
YES: Go to Step 3
NO: The procedure is complete.
STEP 3. Using scan tool MB991958, check data list.
1. Connect scan tool MB991958 to the data link connec
tor.
CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 44: Connecting Scan Tool MB991958 To Data Link Connector

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Start the engine.
3. Set scan tool MB991958 to the data reading mode, and check the data list
items by driving the vehicle.
Item 01 (DTC C1200 is set): Front right ABS sensor Item 02 (DTC C1205 is set): Front left ABS sensor Item 03 (DTC C1210 is set): Rear right ABS sensor Item 04 (DTC C1215 is set): Rear left ABS sensor
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Does the speedometer indication match the scan tool indication?
YES: It can be assumed that this malfunction is intermittent.
Refer to HOW TO COPE WITH INTERMITTENT
MALFUNCTIONS
.
NO: Go to Step 4.
STEP 4. Measure the voltage at TCL/ASC-ECU connector A-32.
1. Disconnect the connector A-32, and connect special tool ABS Check
Harness (MB991952) to the wiring harness-side connector.
2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between the relevant signal and ground terminals in
the ABS sensor circuit and body ground. It should be less than 1V.
DTC C1200 is set: Between signal terminal 30 and body ground, and
between ground terminal 21 and body ground DTC C1205 is set: Between signal terminal 22 and body ground, and
between ground terminal 31 and body ground DTC C1210 is set: Between si
gnal terminal 8 and bo
dy ground, and
NOTE: Do not connect special tool ABS Check Harness
(MB991952) to the TCL/ASC-ECU.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

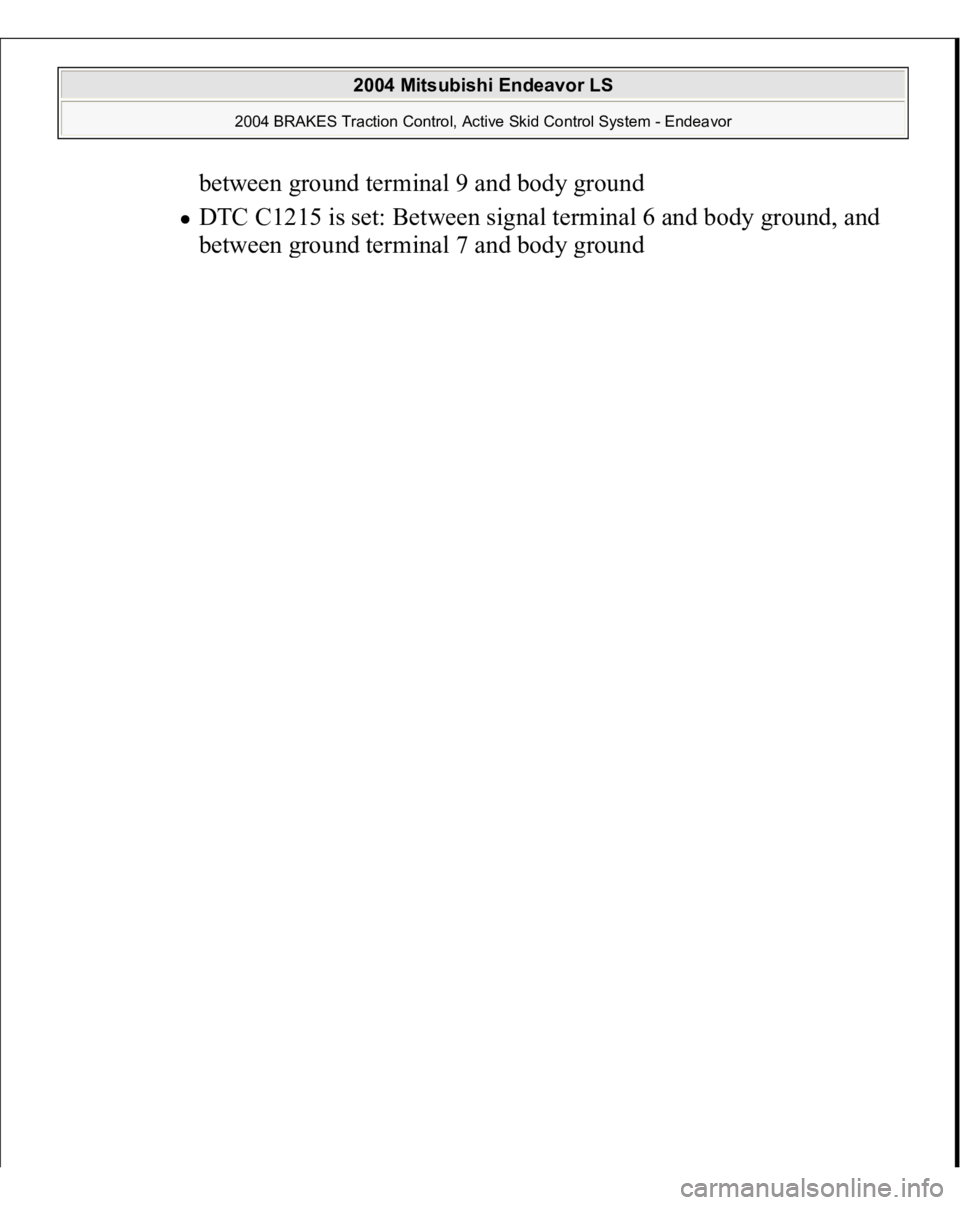

between ground terminal 9 and body ground DTC C1215 is set: Between signal terminal 6 and body ground, and between
ground terminal 7 and bod
y ground

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

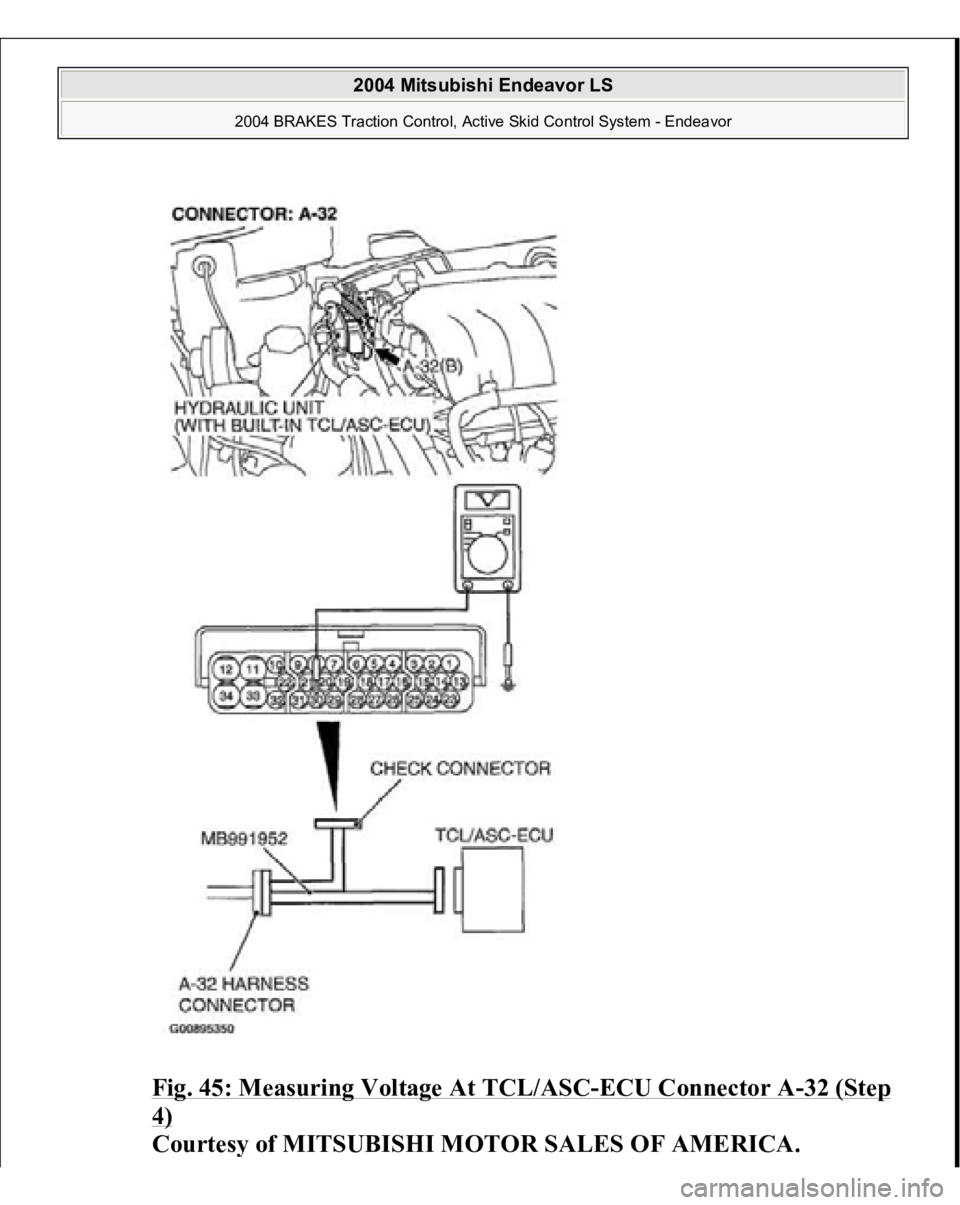

Fig. 45: Measuring Voltage At TCL/ASC
-ECU Connector A
-32 (Step
4)
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Q: Does the voltage measure 1 V or less?
YES: Go to Step 5.
NO (When the voltage between terminal 30 or 21 - and body ground
measures more than 1 V): Go to Step 7.
NO (When the voltage between terminal 22 or 31 - and body ground
measures more than 1 V): Go to Step 9
NO (When the voltage between terminal 8 or 9 - and body ground
measures more than 1 V): Go to Step 11.
NO (When the voltage between terminal 6 or 7 - and body ground
measures more than 1 V): Go to Step 13.
STEP 5. Measure the resistance at TCL/ASC-ECU connector A-32.
1. Disconnect the connector A-32, and connect special tool ABS Check
Harness (MB991952) to the wiring harness-side connector.
2. Measure the resistance between the relevant signal and ground terminals
in the ABS sensor circuit and body ground. There should be no continuity.
DTC C1200 is set: Between signal terminal 30 and body ground, and
between ground terminal 21 and body ground DTC C1205 is set: Between signal terminal 22 and body ground, and
between ground terminal 31 and body ground DTC C1210 is set: Between signal terminal 8 and body ground, and
between ground terminal 9 and body ground DTC C1215 is set: Between signal terminal 6 and body ground, and between ground terminal 7 and body ground
NOTE: Do not connect special tool ABS Check Harness
(MB991952) to the TCL/ASC-ECU.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 46: Measuring Resistance At TCL/ASC
-ECU Connector A
-32
(Step 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

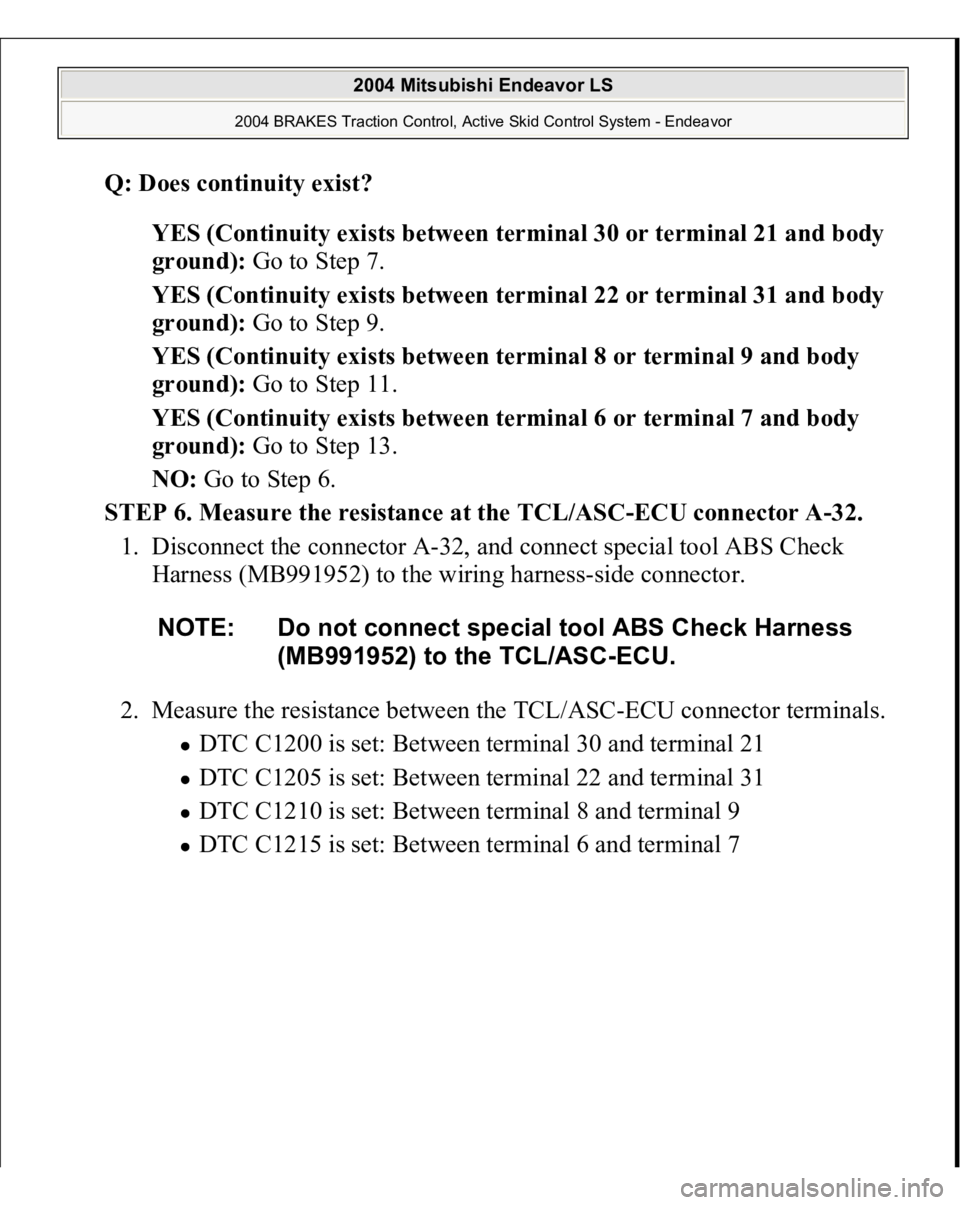

Q: Does continuity exist?
YES (Continuity exists between terminal 30 or terminal 21 and body
ground): Go to Step 7.
YES (Continuity exists between terminal 22 or terminal 31 and body
ground): Go to Step 9.
YES (Continuity exists between terminal 8 or terminal 9 and body
ground): Go to Step 11.
YES (Continuity exists between terminal 6 or terminal 7 and body
ground): Go to Step 13.
NO: Go to Step 6.
STEP 6. Measure the resistance at the TCL/ASC-ECU connector A-32.
1. Disconnect the connector A-32, and connect special tool ABS Check
Harness (MB991952) to the wiring harness-side connector.
2. Measure the resistance between the TCL/ASC-ECU connector terminals.
DTC C1200 is set: Between terminal 30 and terminal 21 DTC C1205 is set: Between terminal 22 and terminal 31 DTC C1210 is set: Between terminal 8 and terminal 9 DTC C1215 is set: Between terminal 6 and terminal 7
NOTE: Do not connect special tool ABS Check Harness
(MB991952) to the TCL/ASC-ECU.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

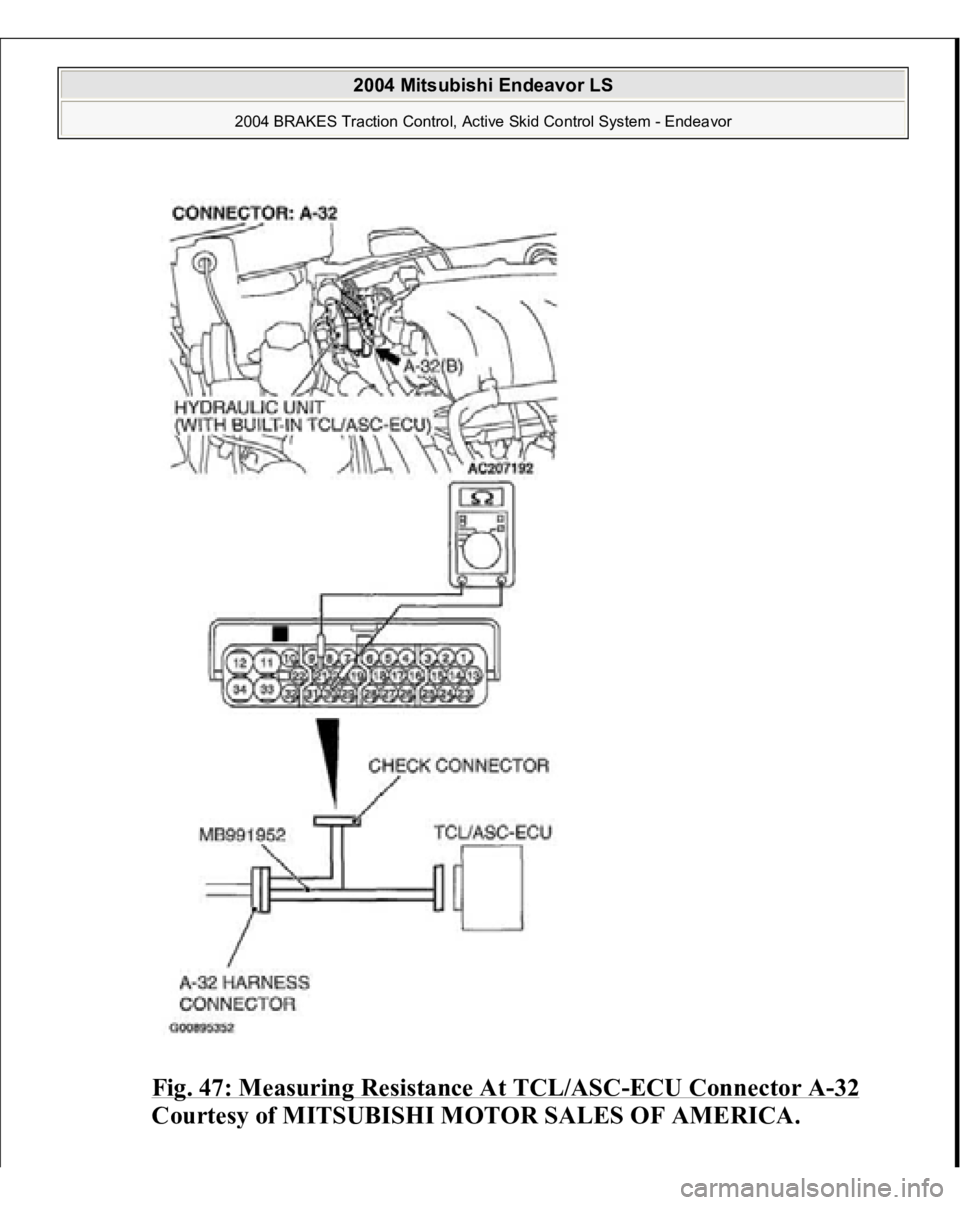

Fig. 47: Measuring Resistance At TCL/ASC
-ECU Connector A
-32
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Standard Value: 1.24 - 1.64 koh
m
Q: Is the resistance between terminals 30 and 21, 22 and 31, 8 and 9, or 6
and 7 within the standard value?
YES (When resistances between all terminals are within the standard
value): Go to Step 16.
NO (When resistance between terminal 30 and 21 is not within the
standard value): Go to Step 7.
NO (When resistance between terminals 22 and 31 is not within the
standard value): Go to Step 9.
NO (When resistance between terminals 8 and 9 is not within the
standard value): Go to Step 11.
NO (When resistance between terminals 6 and 7 is not within the
standard value): Go to Step 13.
STEP 7. Check TCL/ASC-ECU connector A-32 and ABS sensor < front:
RH > connector A-31 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
