MITSUBISHI ENDEAVOR 2004 Service Repair Manual

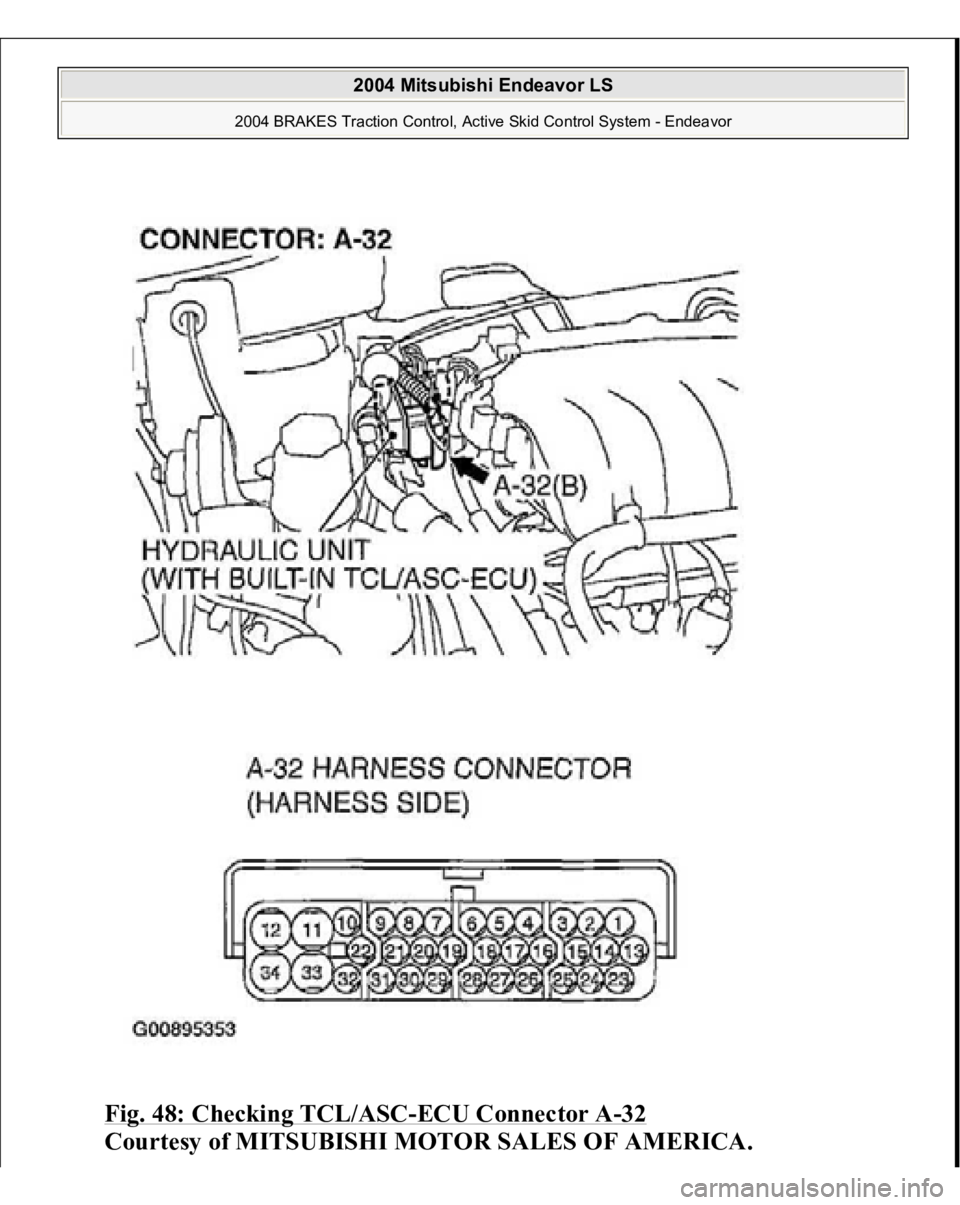

Fig. 48: Checking TCL/ASC
-ECU Connector A
-32
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 49: Checking ABS Sensor Connector A
-31
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are TCL/ASC-ECU connector A-32 and ABS sensor < front: RH >
connector A-31 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 17.
NO: Go to Step 8.
STEP 8. Check the harness wires between TCL/ASC-ECU connector A-32
(terminal 30, 21) and ABS sensor < front: RH > connector A-31 (terminal
2, 1).

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

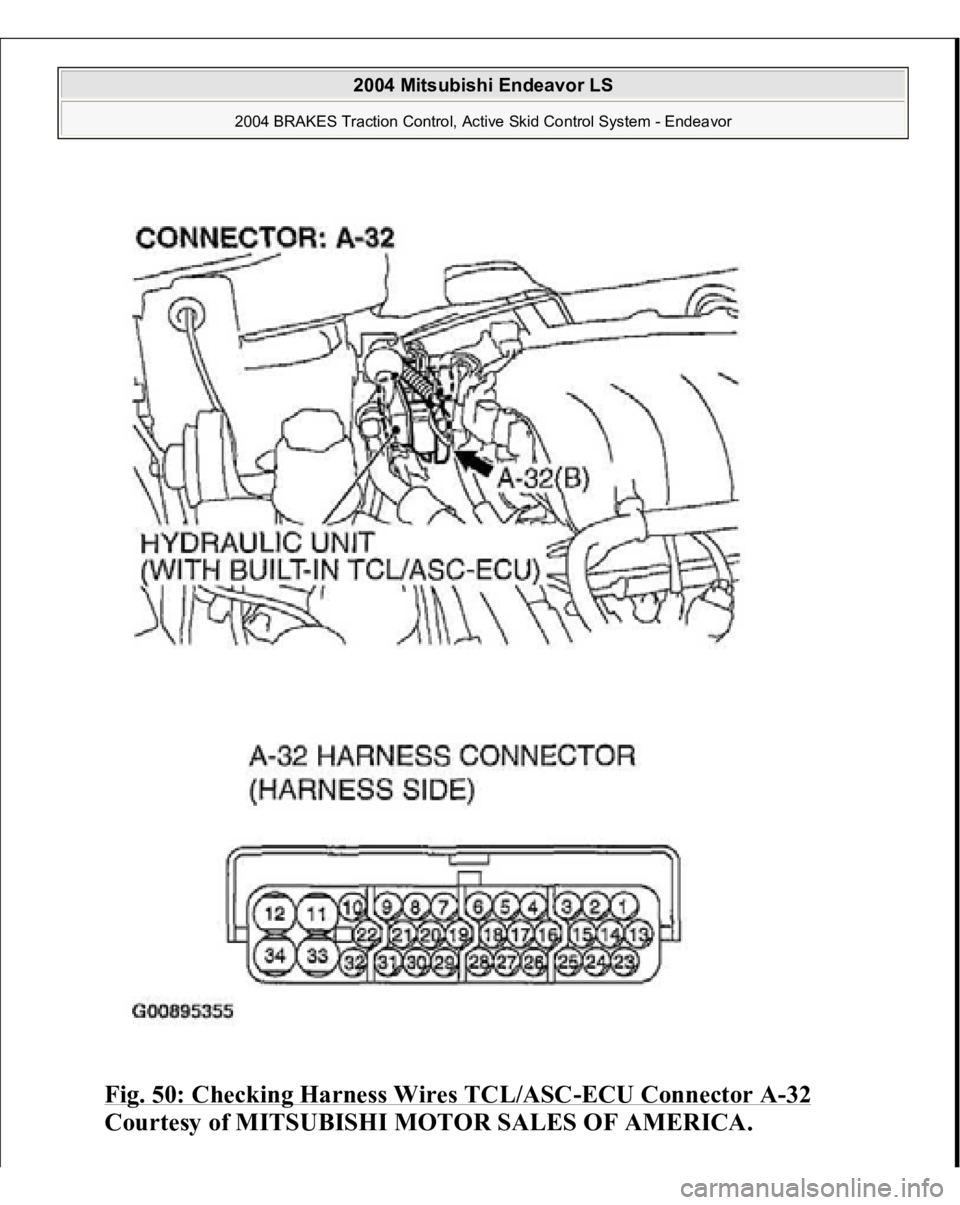

Fig. 50: Checking Harness Wires TCL/ASC
-ECU Connector A
-32
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 51: Checking ABS Sensor Connector A
-31
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the harness wire between TCL/ASC-ECU connector A-32 (terminal
30, 21) and ABS sensor < front: RH > connector A-31 (terminal 1, 2)
damaged?
YES: Repair the wiring harness. Then go to Step 17.
NO: Go to Step 15.
STEP 9. Check TCL/ASC-ECU connector A-32 and ABS sensor < front:
LH > connector A-14 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

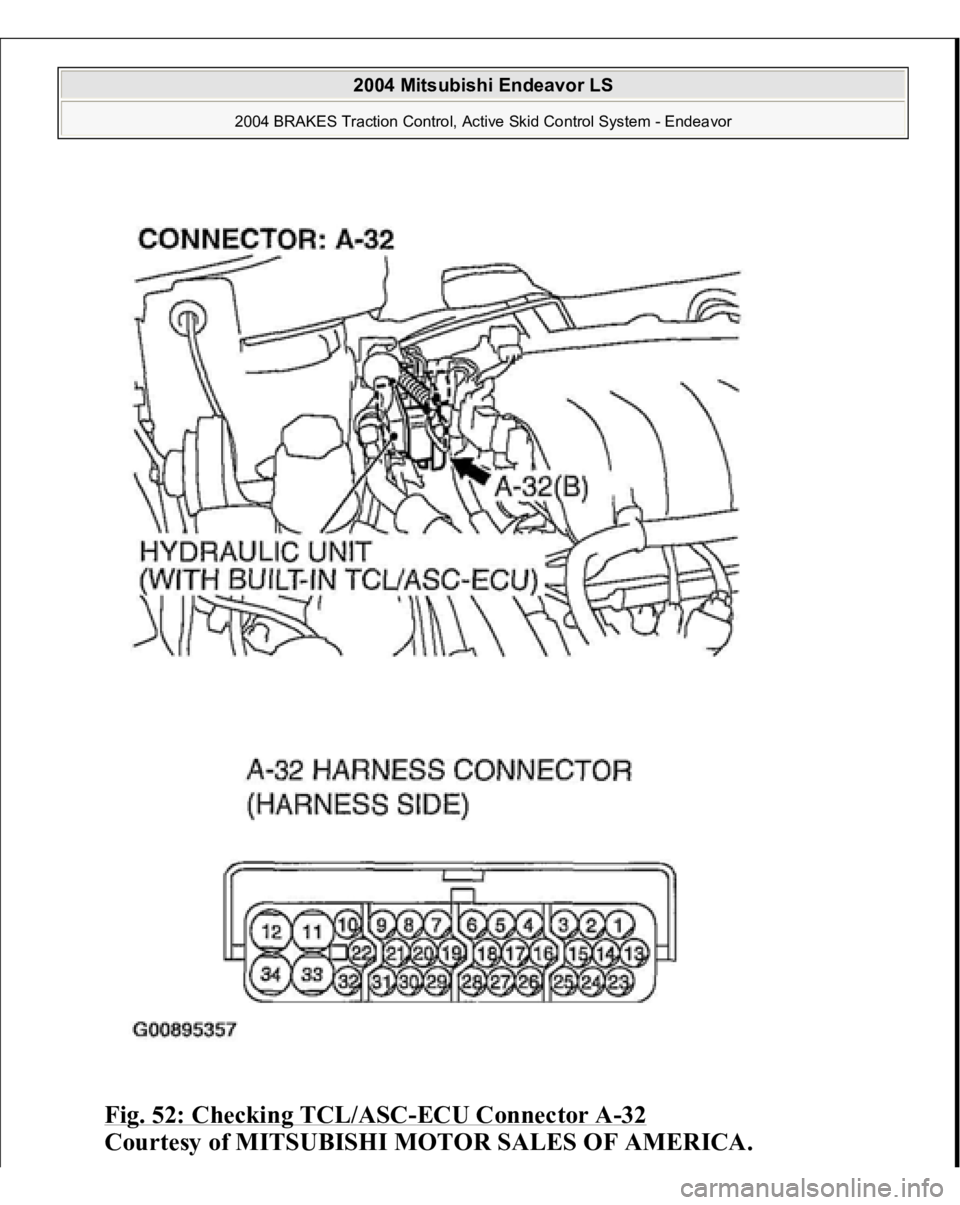

Fig. 52: Checking TCL/ASC
-ECU Connector A
-32
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 53: Checking ABS Sensor Connector A
-14
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are TCL/ASC-ECU connector A-32 and ABS sensor < front: LH >
connector A-14 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 17.
NO: Go to Step 10.
STEP 10. Check the harness wires between TCL/ASC-ECU connector A-
32 (terminal 22, 31) and ABS sensor < front: LH > connector A-14
(terminal 2, 1).

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 54: Checking Harness Wires TCL/ASC
-ECU Connector A
-32
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 55: Checking ABS Sensor Connector A
-14
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the harness wires between TCL/ASC-ECU connector A-32 (terminal
22, 31) and ABS sensor < front: LH > connector A-14 (terminal 2, 1)
damaged?
YES: Repair the wiring harness. Then go to Step 17.
NO: Go to Step 15.
STEP 11. Check TCL/ASC-ECU connector A-32, intermediate connector
C-32 and ABS sensor < rear: RH > connector D-10 for loose, corroded or
damaged terminals, or terminals pushed back in the connector.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

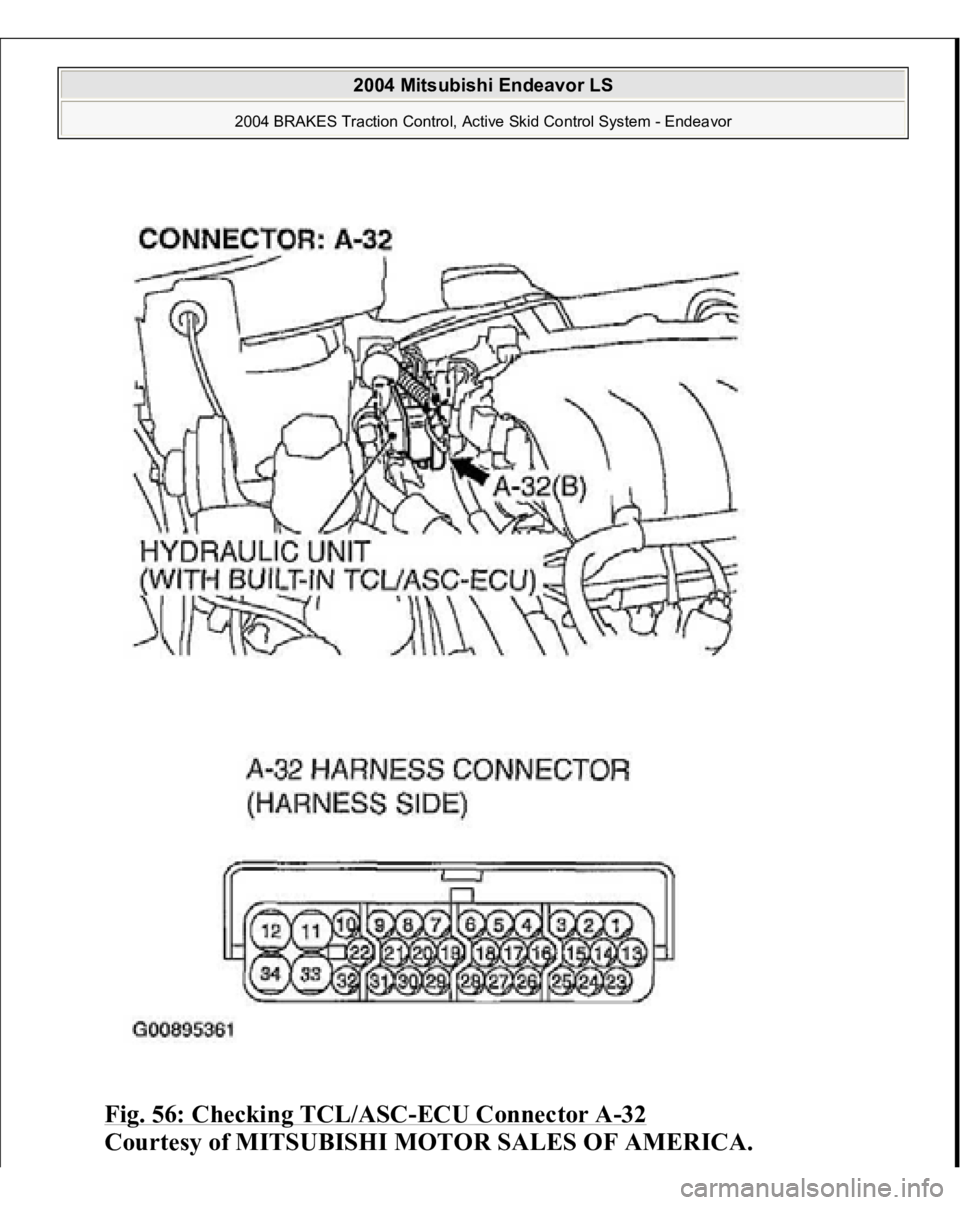

Fig. 56: Checking TCL/ASC
-ECU Connector A
-32
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

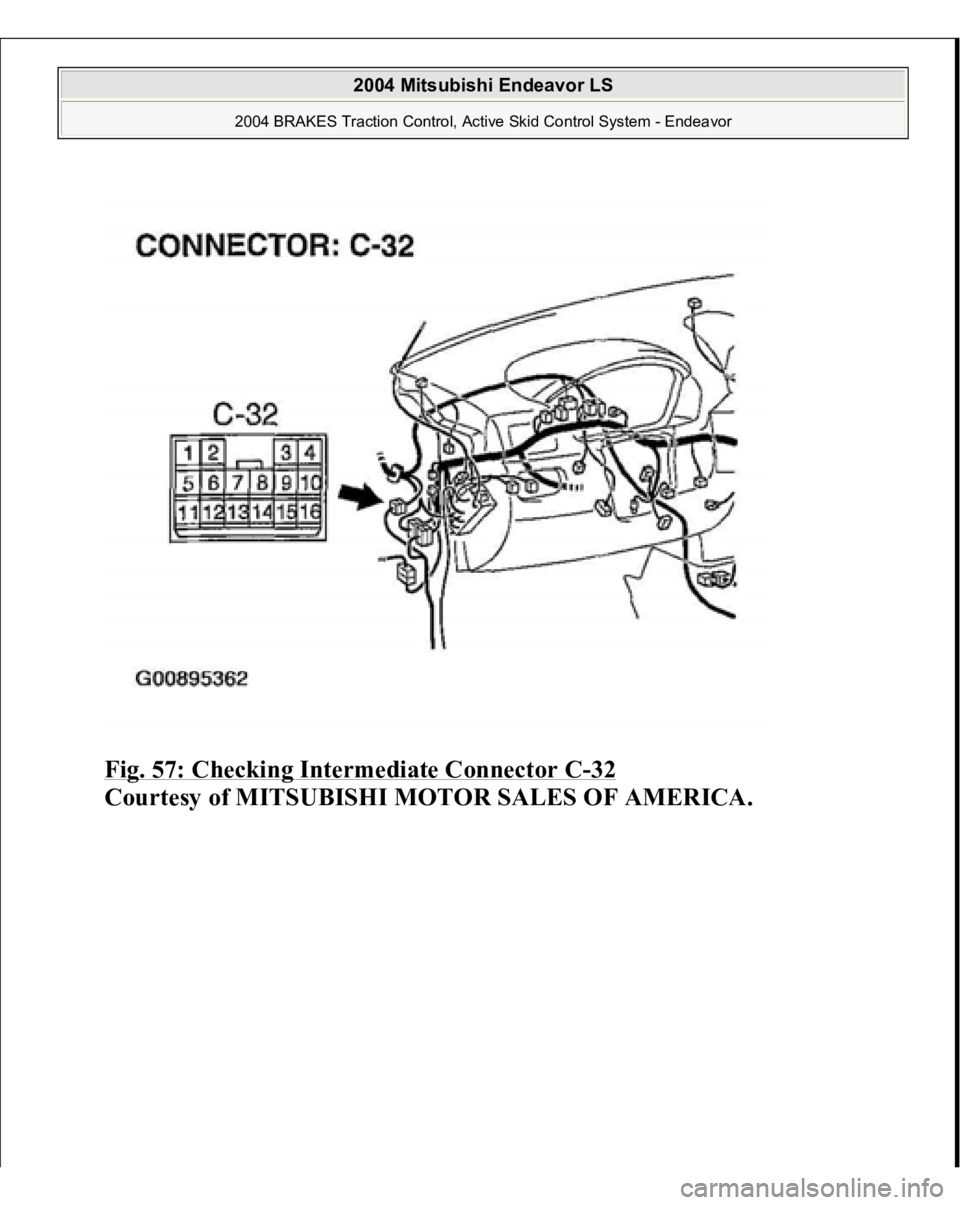

Fig. 57: Checking Intermediate Connector C
-32
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
