Q: Is the measured resistance 2 ohms or less?
YES: Go to Step 7.
NO: Go to Step 6.
STEP 6. Check TCL/ASC-ECU connector A-32 for loose, corroded or
dama
ged terminals, or terminals
pushed back in the connector
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

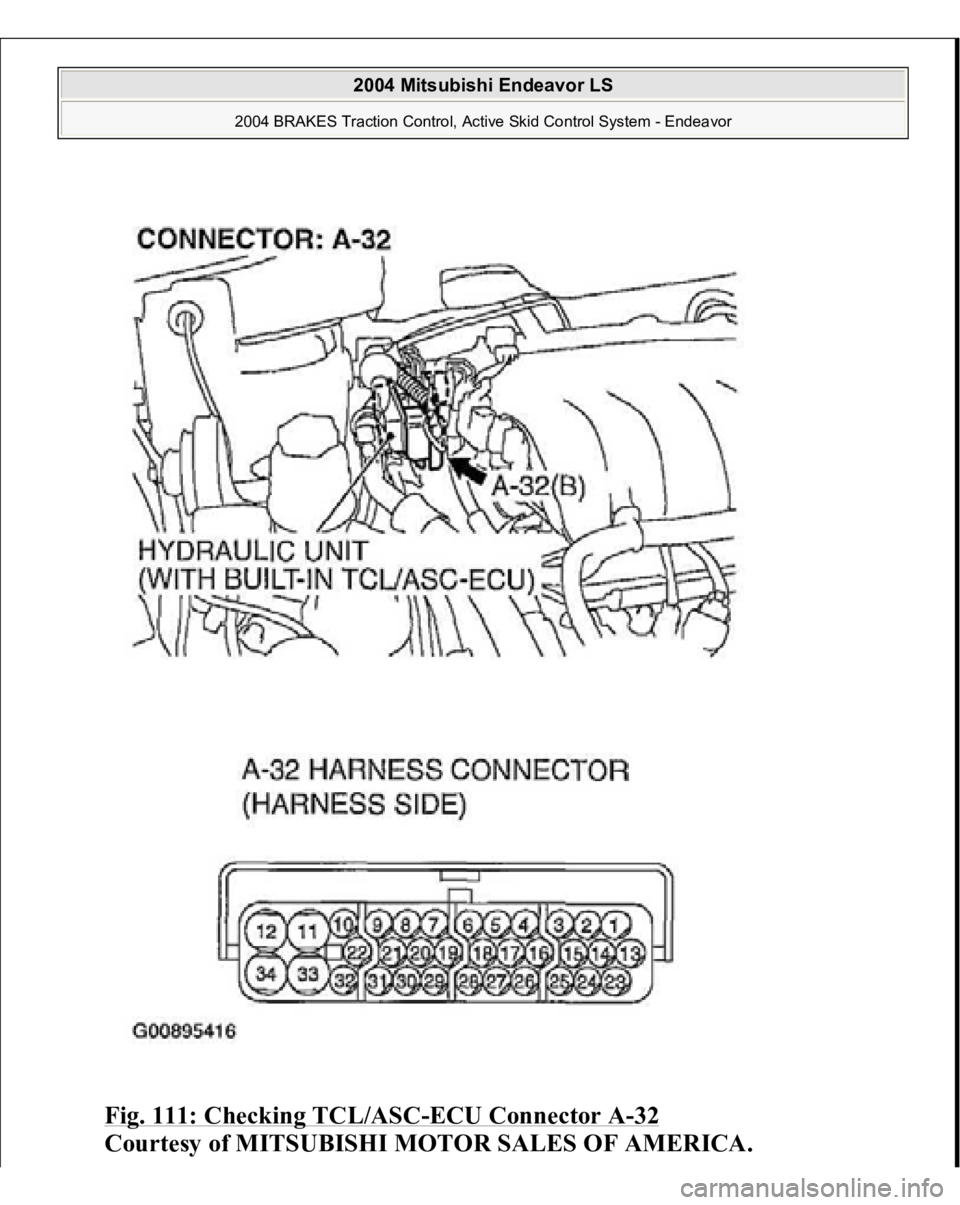

Fig. 111: Checking TCL/ASC
-ECU Connector A
-32
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

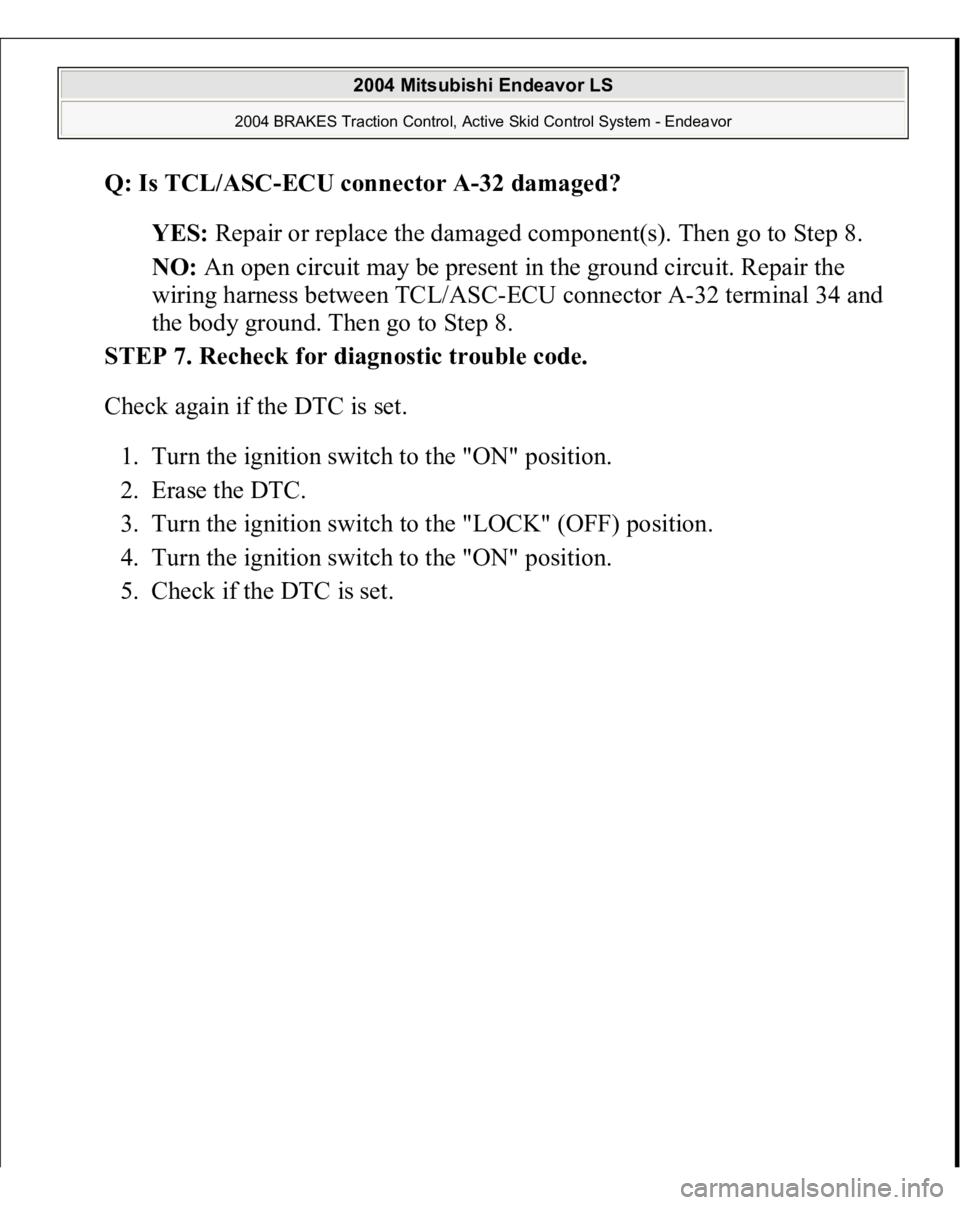

Q: Is TCL/ASC-ECU connector A-32 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 8.
NO: An open circuit may be present in the ground circuit. Repair the
wiring harness between TCL/ASC-ECU connector A-32 terminal 34 and
the body ground. Then go to Step 8.
STEP 7. Recheck for diagnostic trouble code.
Check again if the DTC is set.
1. Turn the ignition switch to the "ON" position.
2. Erase the DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.
4. Turn the ignition switch to the "ON" position.
5. Check if the DTC is set.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 112: Rechecking For Diagnostic Trouble Code

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

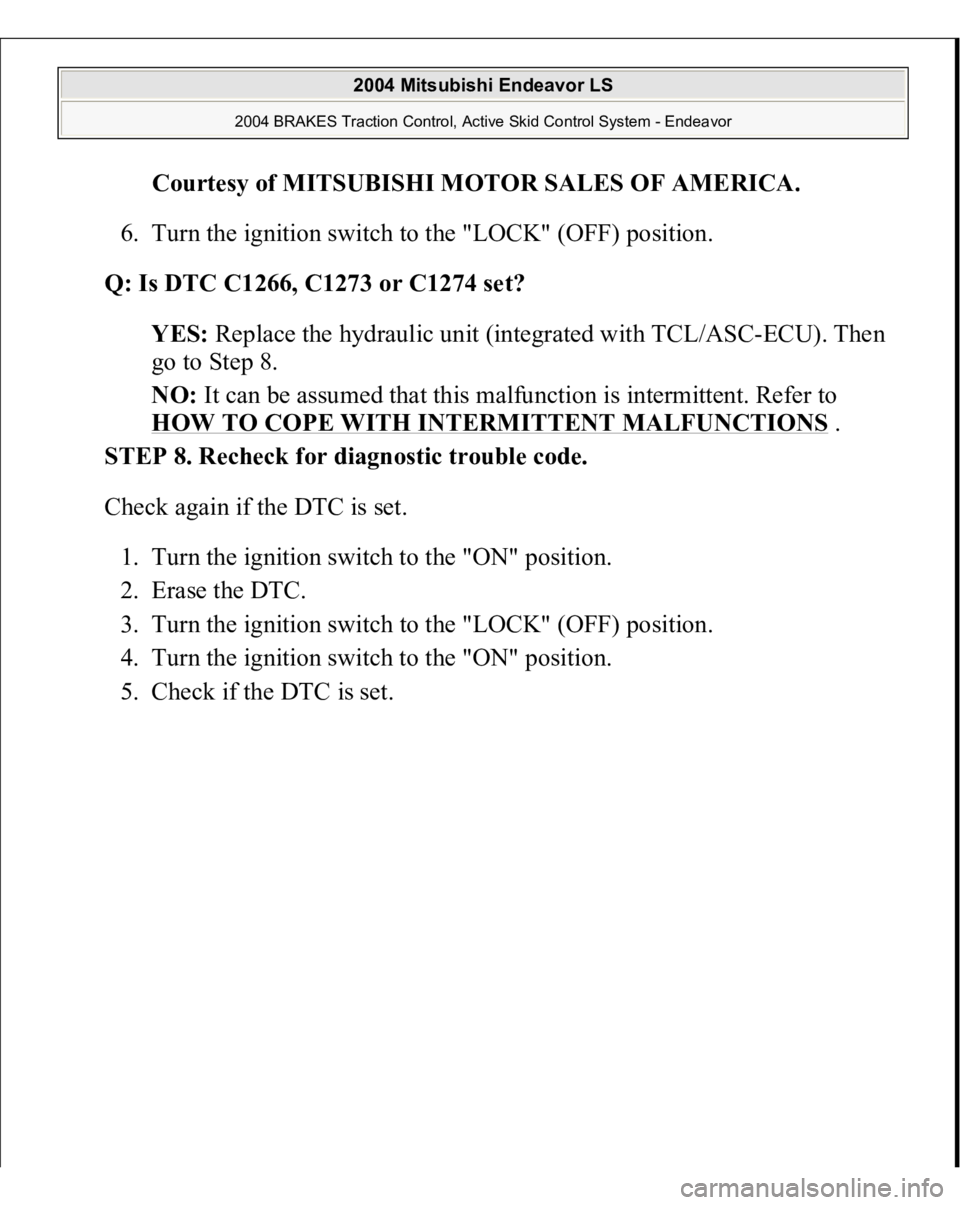

6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1266, C1273 or C1274 set?
YES: Replace the hydraulic unit (integrated with TCL/ASC-ECU). Then
go to Step 8.
NO: It can be assumed that this malfunction is intermittent. Refer to
HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
.
STEP 8. Recheck for diagnostic trouble code.
Check again if the DTC is set.
1. Turn the ignition switch to the "ON" position.
2. Erase the DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.
4. Turn the ignition switch to the "ON" position.
5. Check if the DTC is set.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

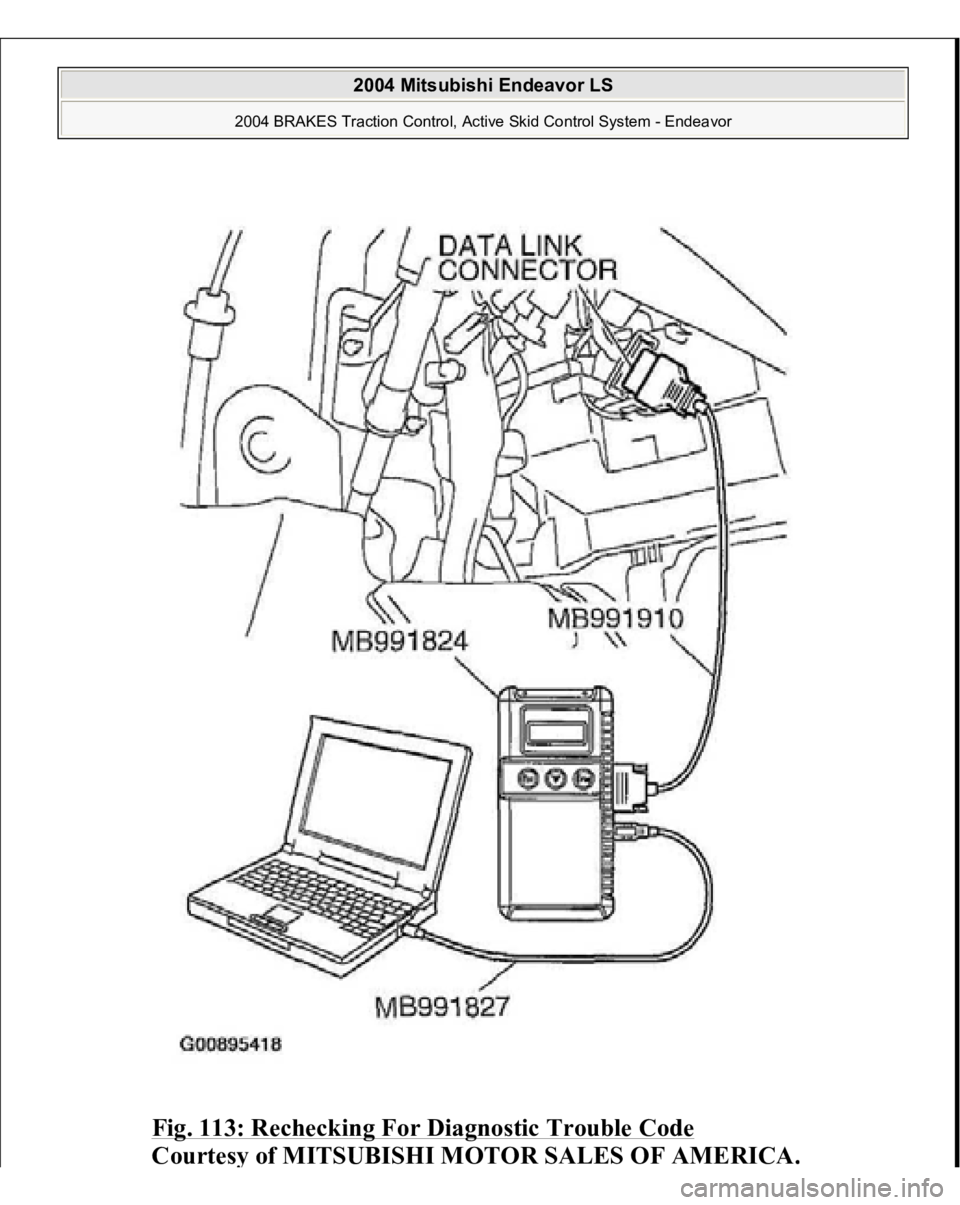

Fig. 113: Rechecking For Diagnostic Trouble Code

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1266, C1273 or C1274 set?
YES: Go to Step 1.
NO: The procedure is complete.

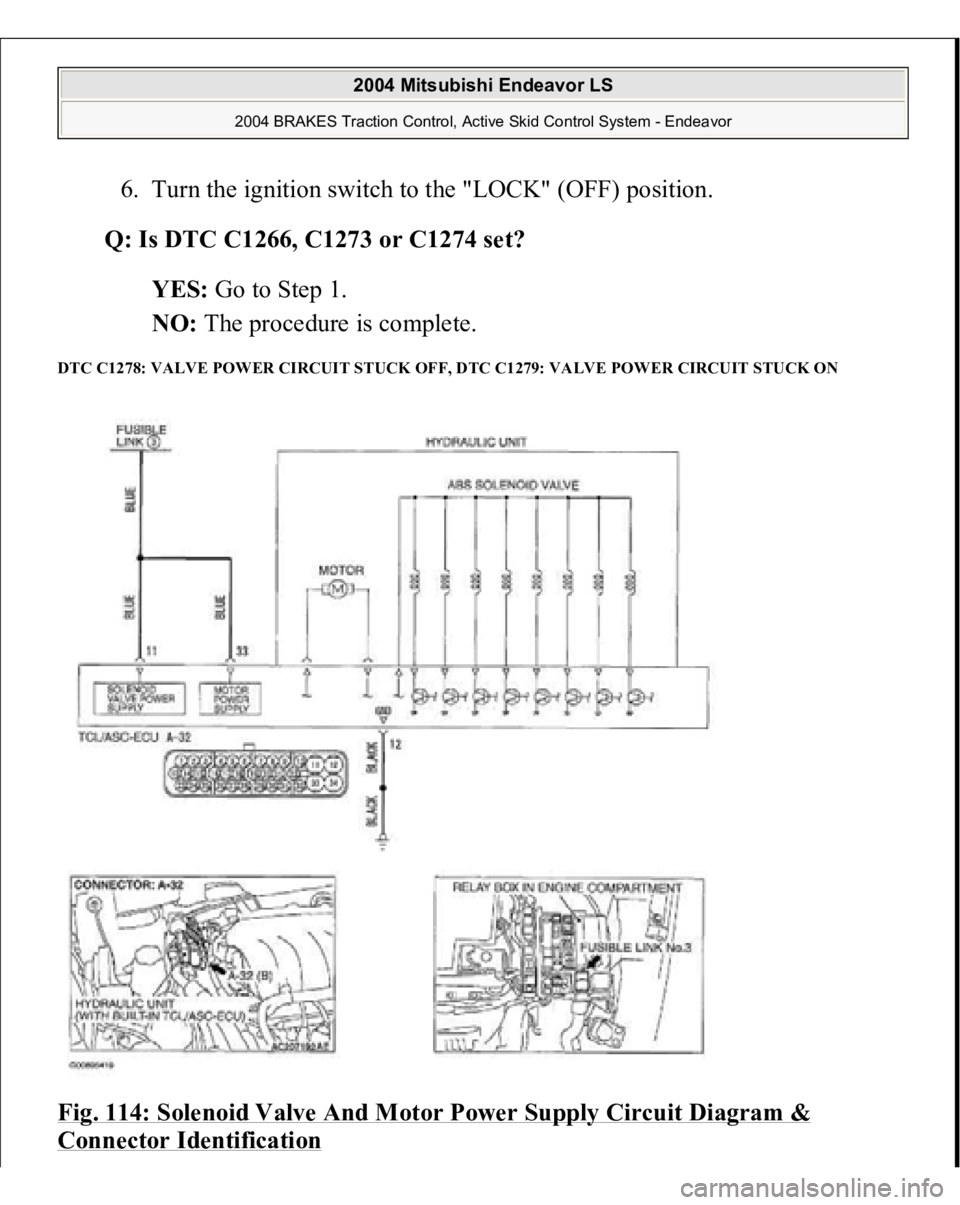

DTC C1278: VALVE POWER CIRCUIT STUCK OFF, DTC C1279: VALVE POWER CIRCUIT STUCK ON Fig. 114: Solenoid Valve And Motor Power Supply Circuit Diagram & Connector Identification
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

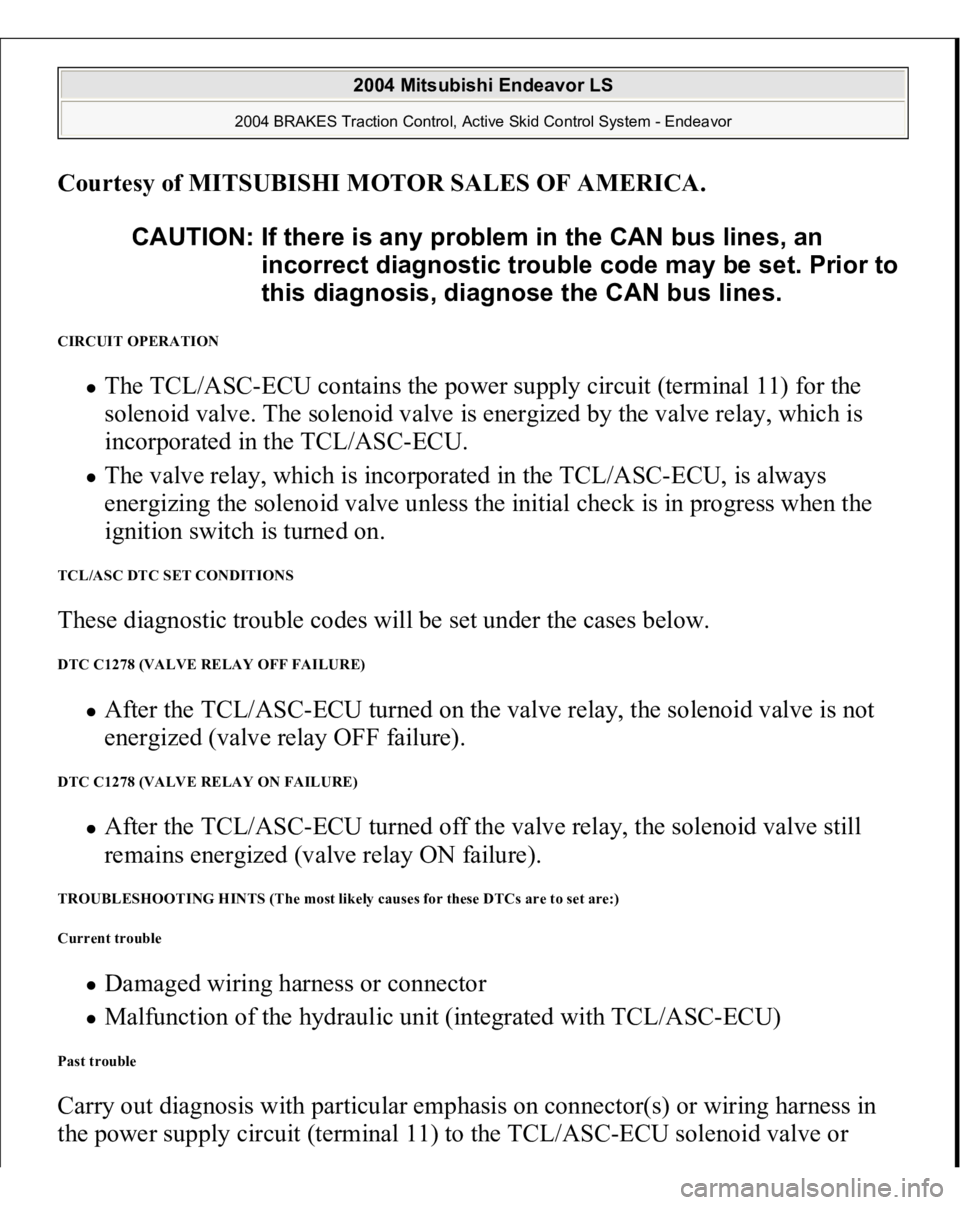

CIRCUIT OPERATION
The TCL/ASC-ECU contains the power supply circuit (terminal 11) for the
solenoid valve. The solenoid valve is energized by the valve relay, which is
incorporated in the TCL/ASC-ECU. The valve relay, which is incorporated in the TCL/ASC-ECU, is always
energizing the solenoid valve unless the initial check is in progress when the
ignition switch is turned on.
TCL/ASC DTC SET CONDITIONS These diagnostic trouble codes will be set under the cases below. DTC C1278 (VALVE RELAY OFF FAILURE)
After the TCL/ASC-ECU turned on the valve relay, the solenoid valve is not
energized (valve relay OFF failure).
DTC C1278 (VALVE RELAY ON FAILURE)
After the TCL/ASC-ECU turned off the valve relay, the solenoid valve still
remains energized (valve relay ON failure).
TROUBLESHOOTING HINTS (The most likely causes for these DTCs are to set are:)
Current trouble
Damaged wiring harness or connector Malfunction of the hydraulic unit (integrated with TCL/ASC-ECU)
Past trouble Carry out diagnosis with particular emphasis on connector(s) or wiring harness in
the power supply circuit (terminal 11) to the TCL/AS
C-ECU solenoid valve or CAUTION: If there is any problem in the CAN bus lines, an
incorrect diagnostic trouble code may be set. Prior to
this diagnosis, diagnose the CAN bus lines.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

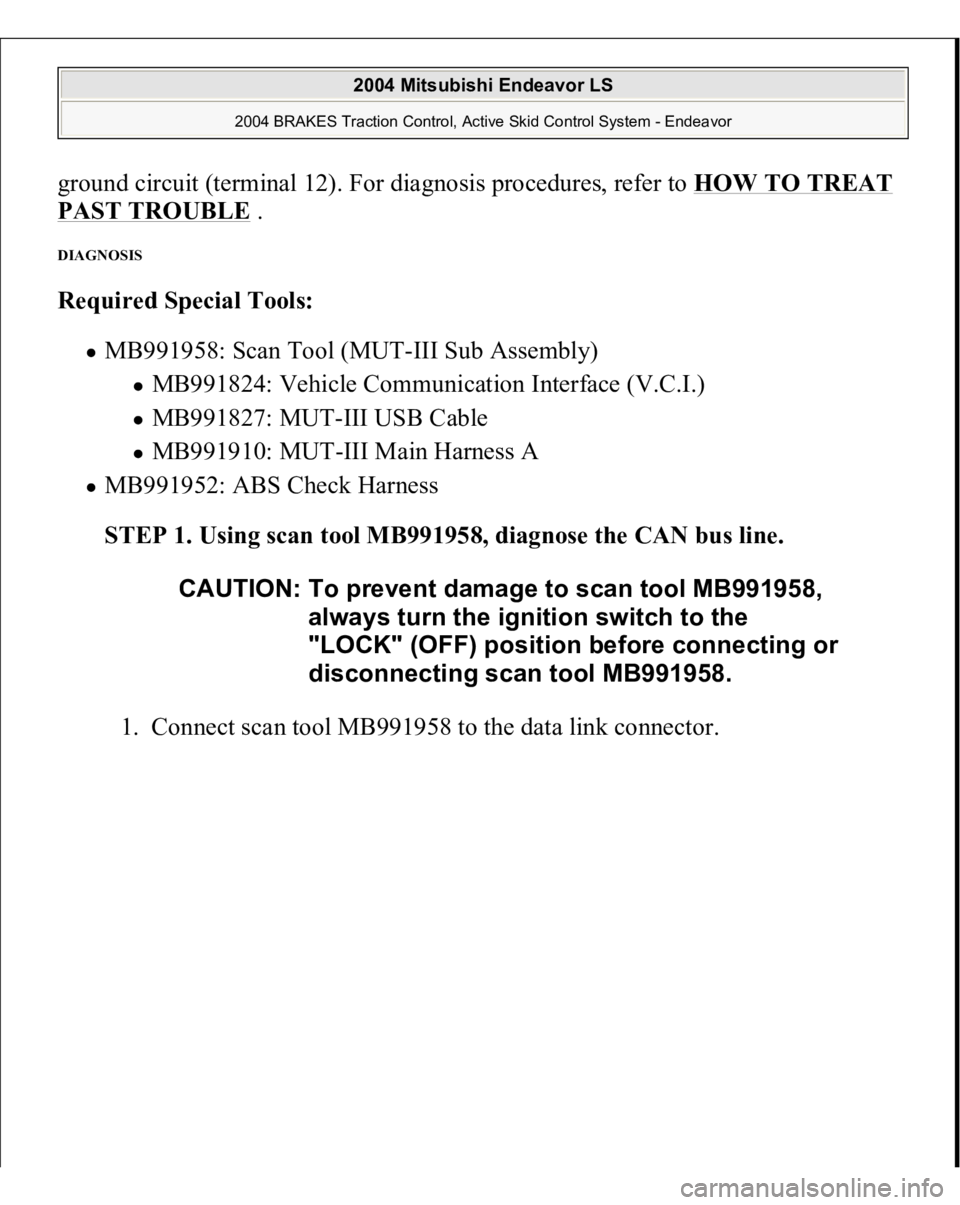

ground circuit (terminal 12). For diagnosis procedures, refer to HOW TO TREAT PAST TROUBLE
.
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
MB991952: ABS Check Harness
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
1. Connect scan tool MB991958 to the data link connec
tor. CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 115: Connecting Scan Tool MB991958 To Data Link Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
