MITSUBISHI ENDEAVOR 2004 Service Repair Manual

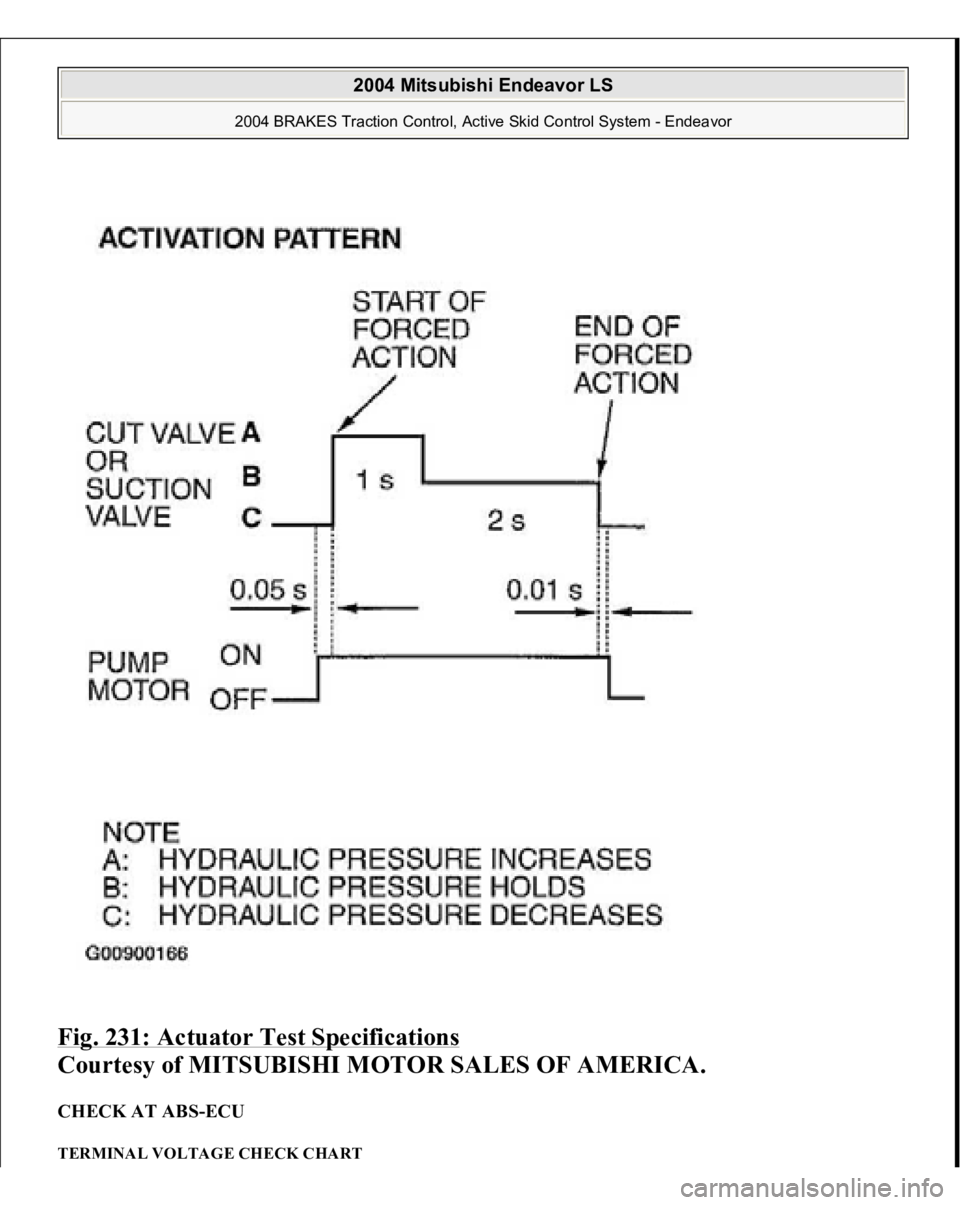

Fig. 231: Actuator Test Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CHECK AT ABS-ECU TERMINAL VOLTAGE CHECK CHART
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

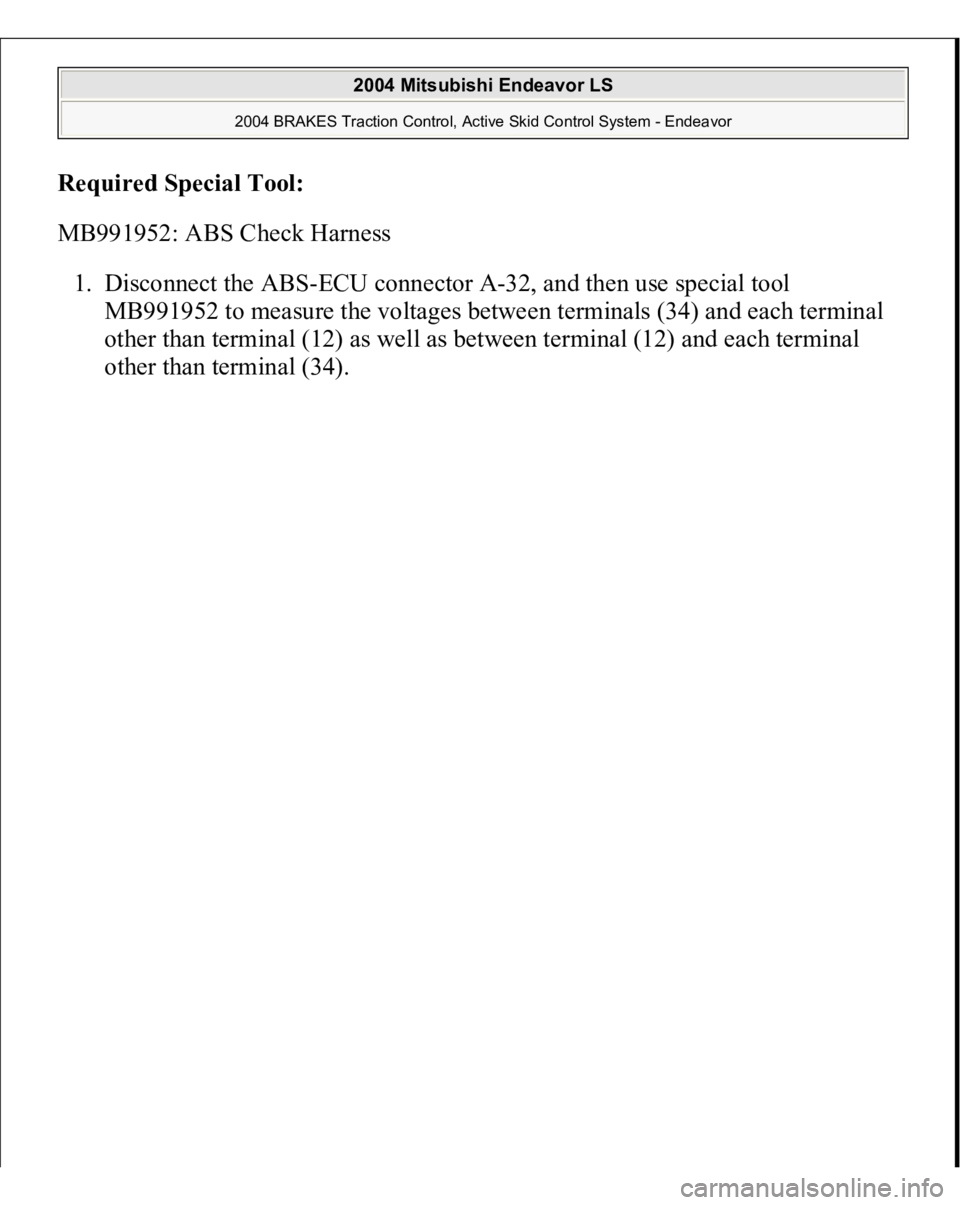

Required Special Tool
:
MB991952: ABS Check Harness
1. Disconnect the ABS-ECU connector A-32, and then use special tool
MB991952 to measure the voltages between terminals (34) and each terminal
other than terminal (12) as well as between terminal (12) and each terminal
other than terminal (34).

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

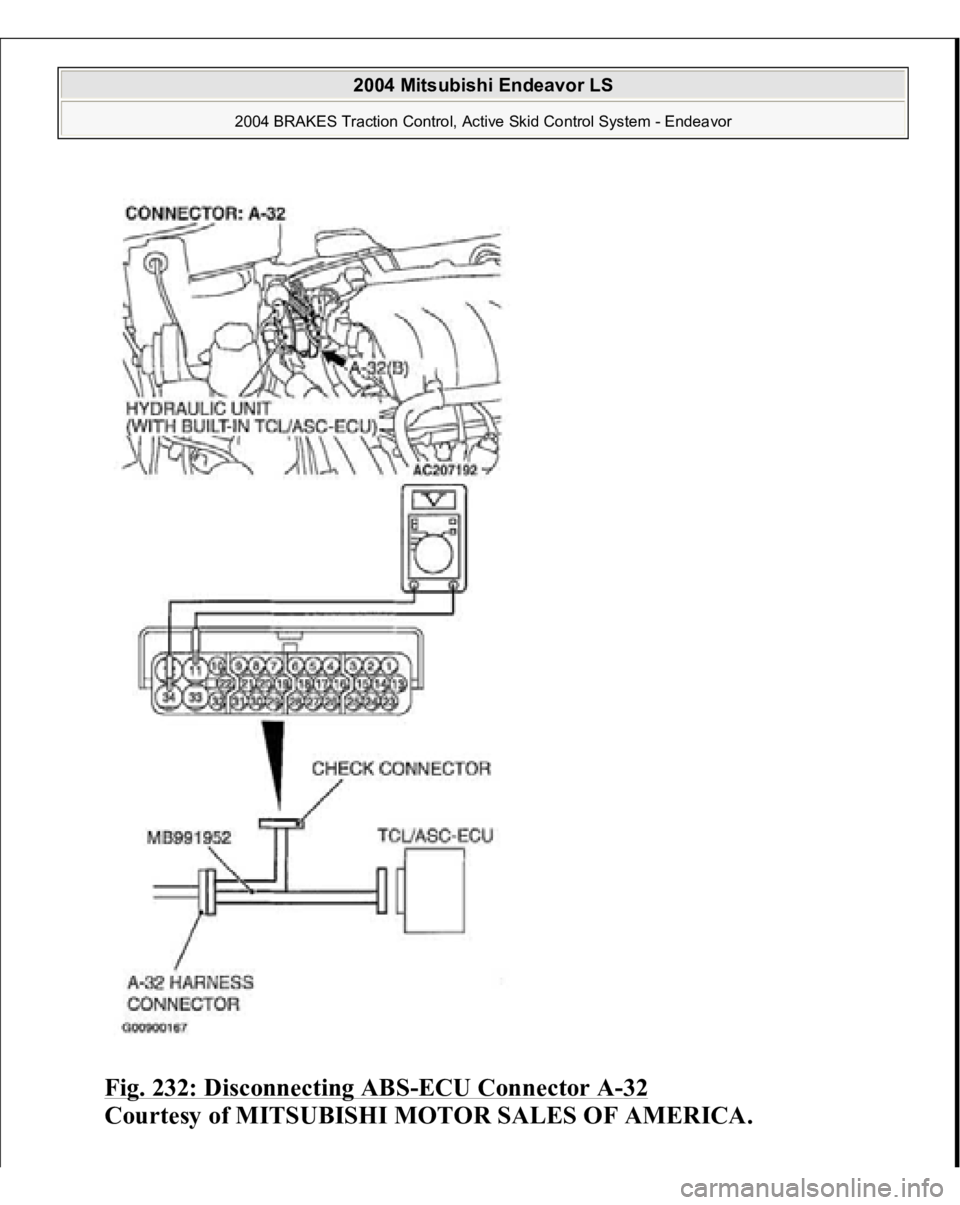

Fig. 232: Disconnecting ABS
-ECU Connector A
-32
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

2. The terminal layouts are shown in the illustrations below.

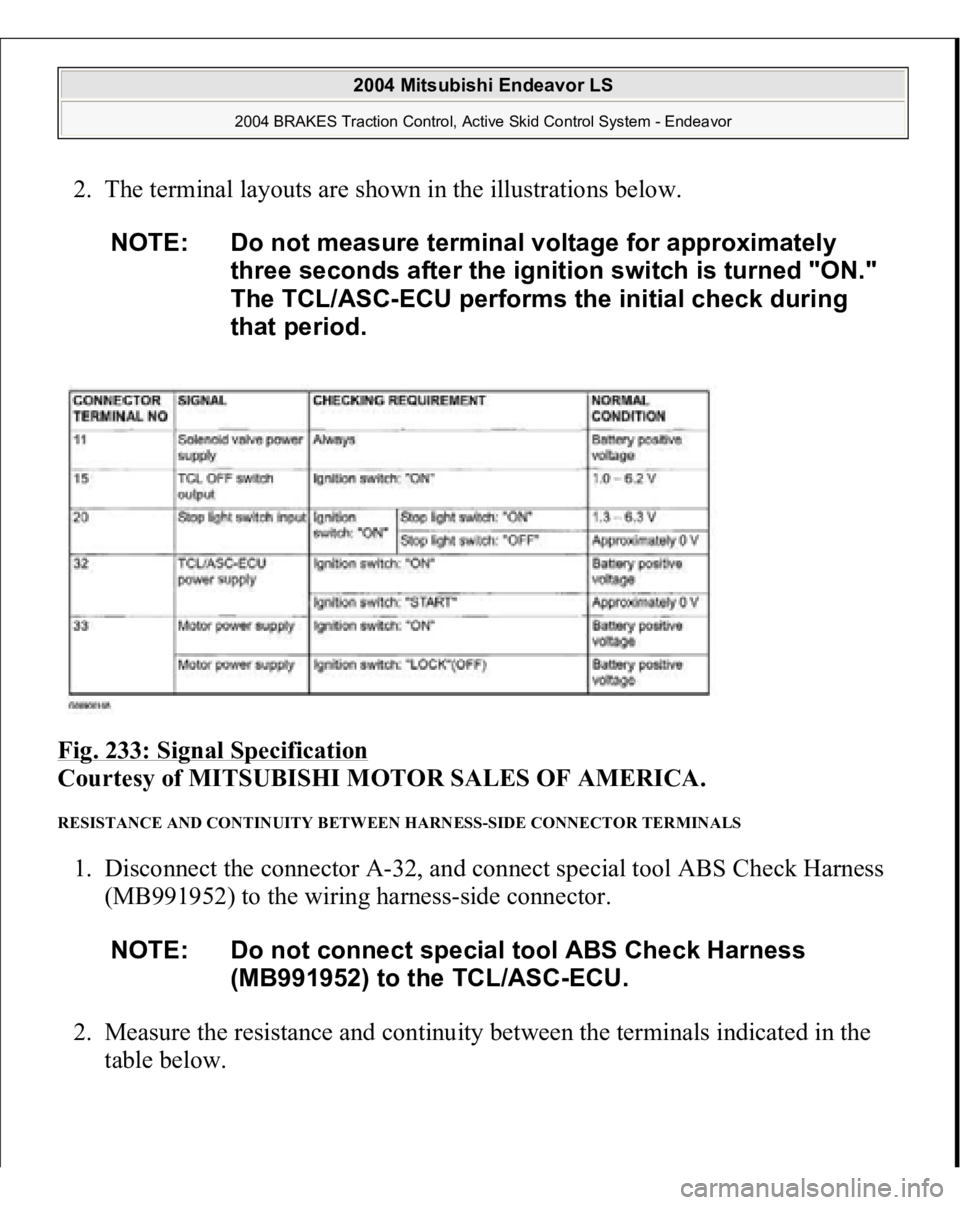

Fig. 233: Signal Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
RESISTANCE AND CONTINUITY BETWEEN HARNESS-SIDE CONNECTOR TERMINALS 1. Disconnect the connector A-32, and connect special tool ABS Check Harness
(MB991952) to the wiring harness-side connector.
2. Measure the resistance and continuity between the terminals indicated in the
table below. NOTE: Do not measure terminal voltage for approximately
three seconds after the ignition switch is turned "ON."
The TCL/ASC-ECU performs the initial check during
that period.
NOTE: Do not connect special tool ABS Check Harness
(MB991952) to the TCL/ASC-ECU.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 234: Measuring Resistance And Continuity Between Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig. 235: Signal Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SPECIAL TOOLS
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 236: Identifying Special Tools (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 237: Identifying Special Tools (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ON-VEHICLE SERVICE WHEEL SPEED SENSOR OUTPUT VOLTAGE MEASUREMENT Required Special Tool:
MB991219: Inspection Harness
1. Release the parking brake and lift up the vehicle.
2. Disconnect the TCL/ASC-ECU connector A-32, and then use special tool
MB991219 to measure the out
put volta
ge at the harness side connector.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

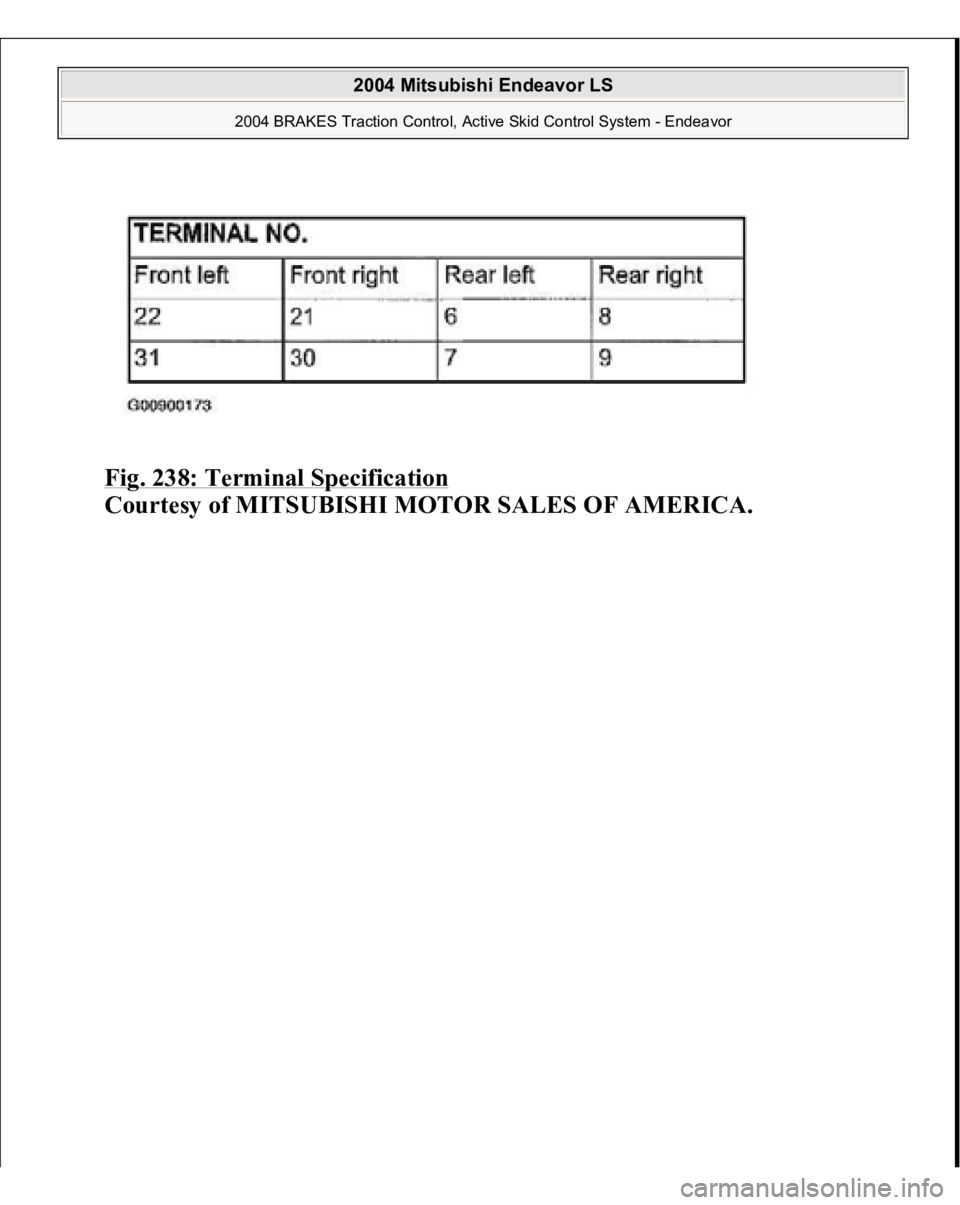

Fig. 238: Terminal Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

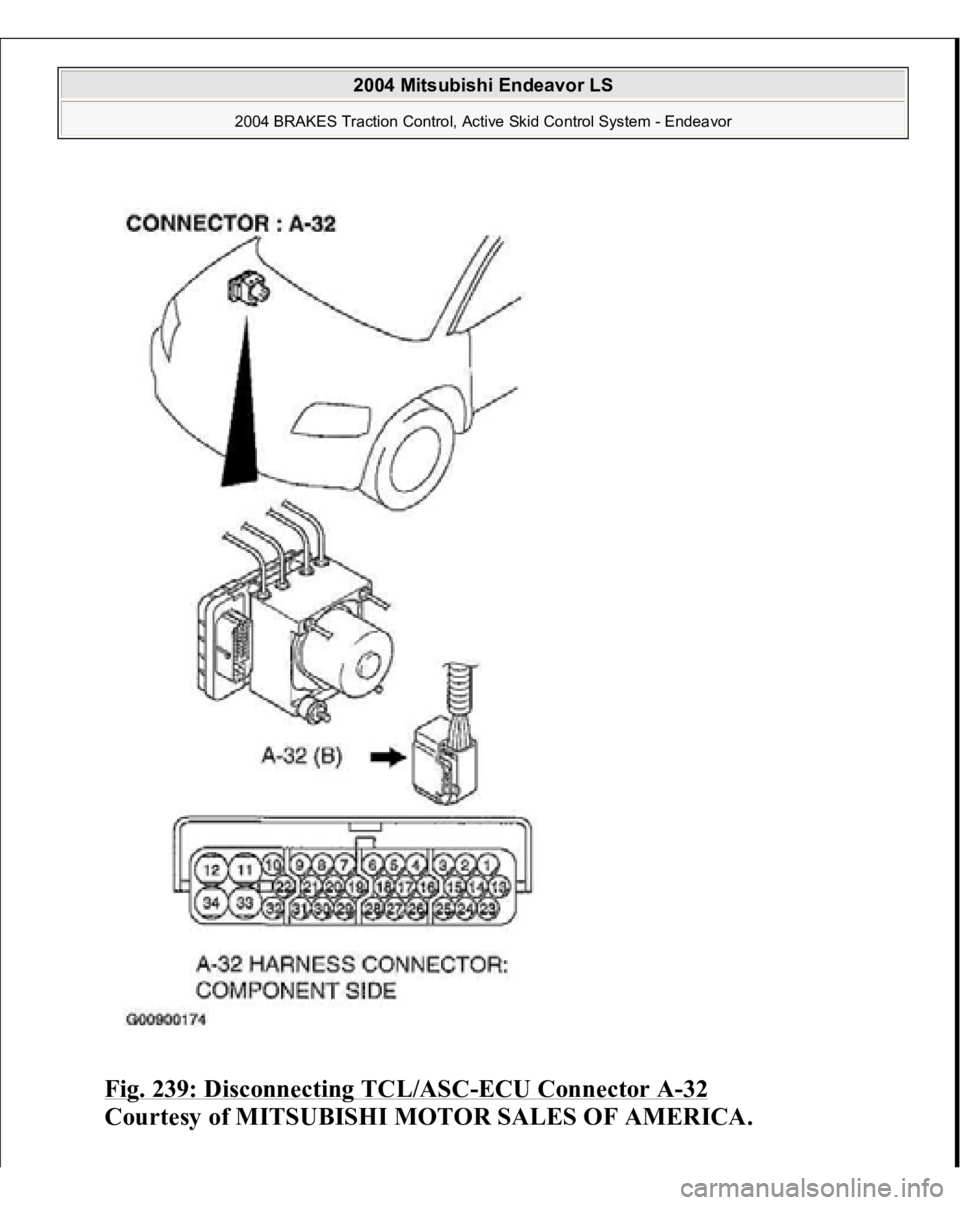

Fig. 239: Disconnecting TCL/ASC
-ECU Connector A
-32
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
