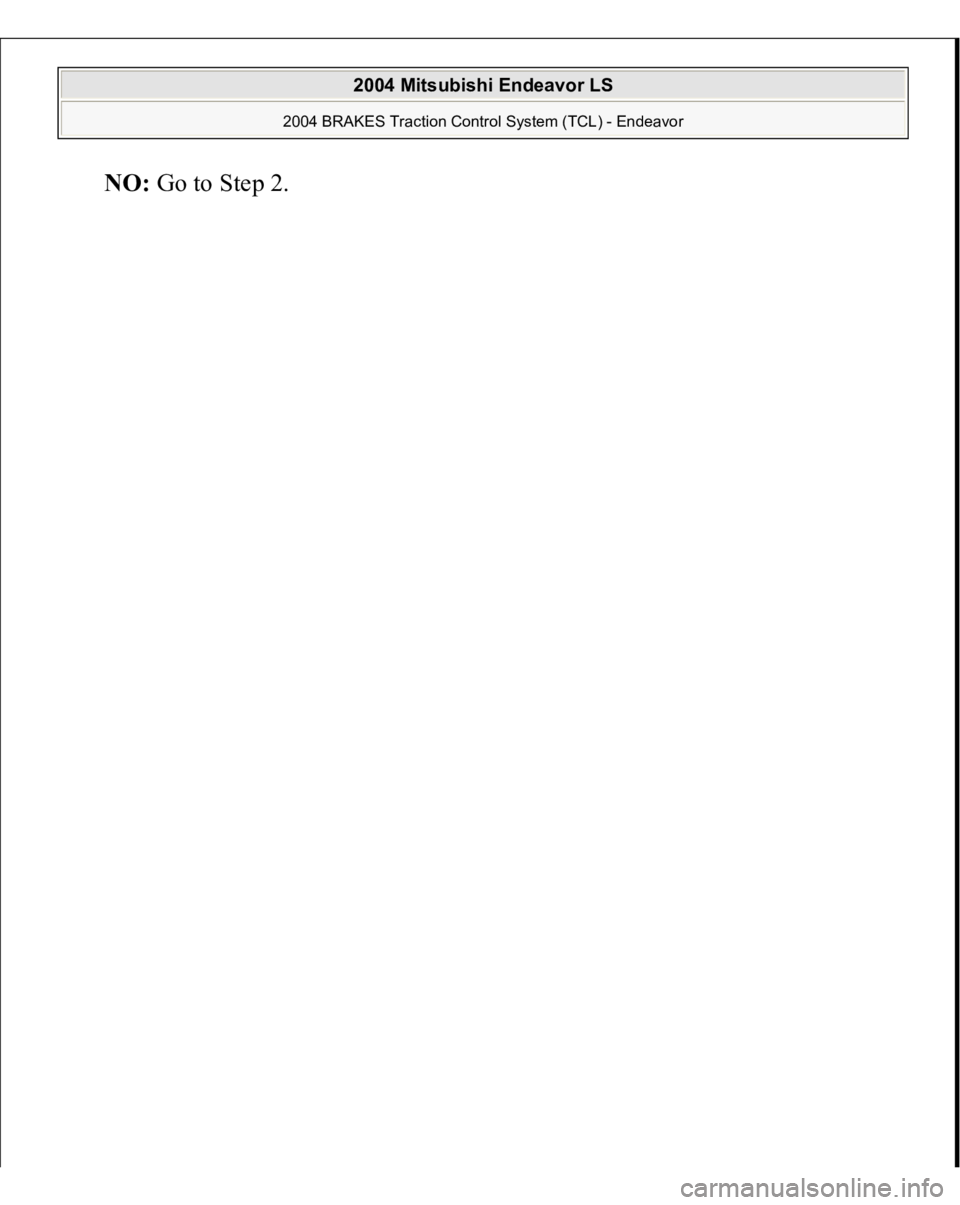

NO
: Go to Ste
p 2.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

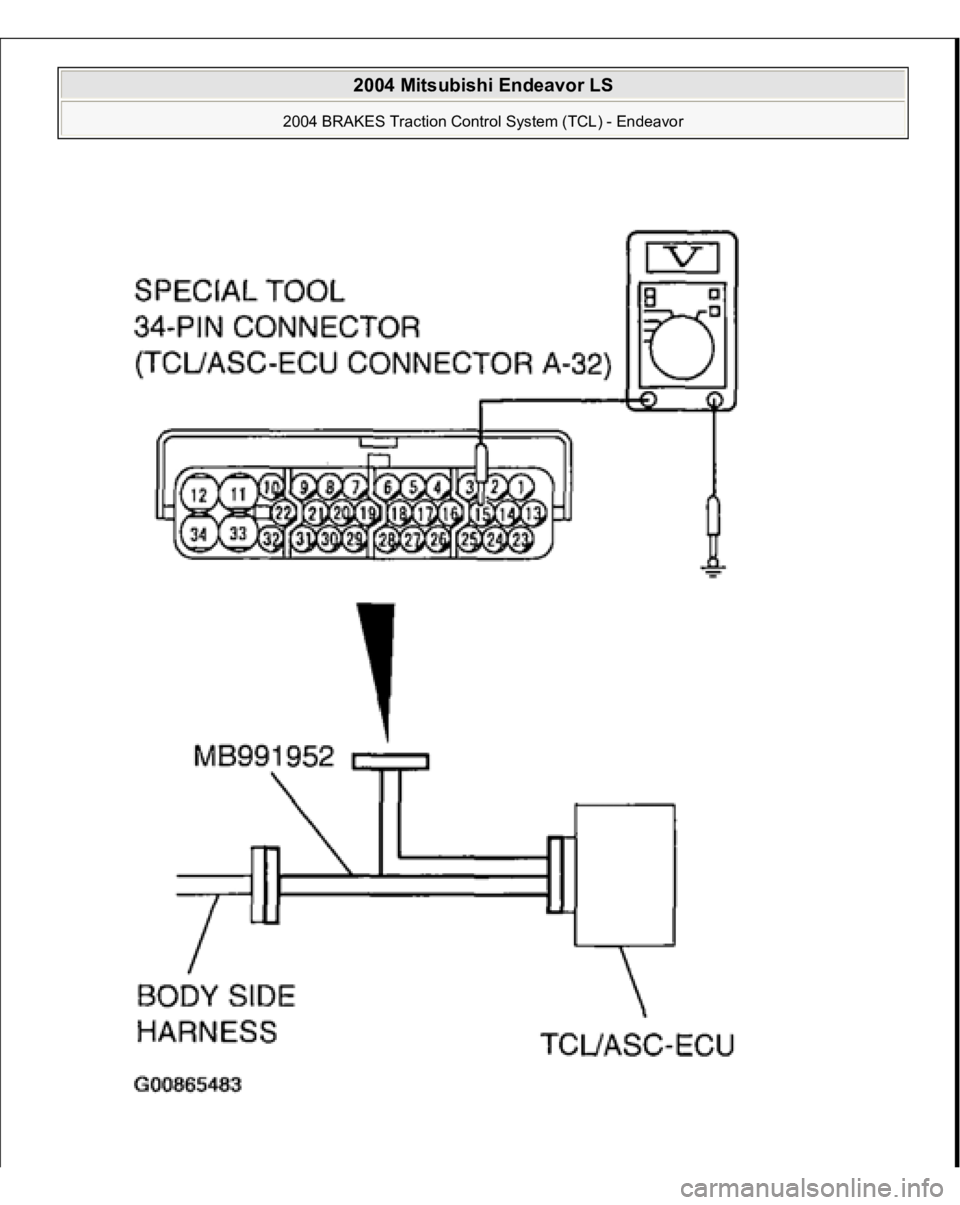

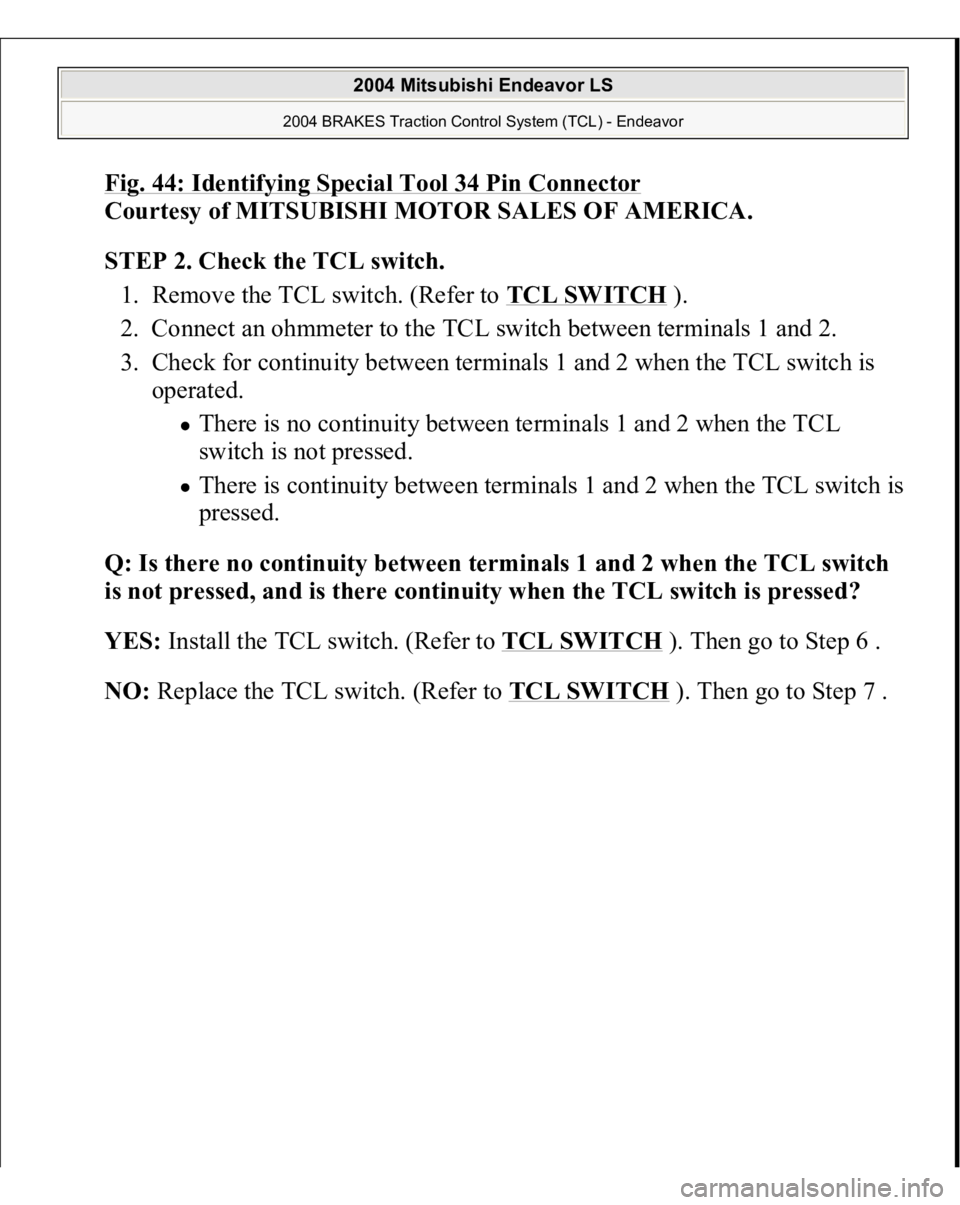

Fig. 44: Identifying Special Tool 34 Pin Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
STEP 2. Check the TCL switch.
1. Remove the TCL switch. (Refer to TCL SWITCH
).
2. Connect an ohmmeter to the TCL switch between terminals 1 and 2.
3. Check for continuity between terminals 1 and 2 when the TCL switch is
operated.
There is no continuity between terminals 1 and 2 when the TCL
switch is not pressed. There is continuity between terminals 1 and 2 when the TCL switch is
pressed.
Q: Is there no continuity between terminals 1 and 2 when the TCL switch
is not pressed, and is there continuity when the TCL switch is pressed?
YES: Install the TCL switch. (Refer to TCL SWITCH
). Then go to Step 6 .
NO
: Re
place the TCL switch.
(Refer to TCL SWITCH
). Then
go to Ste
p 7 .

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

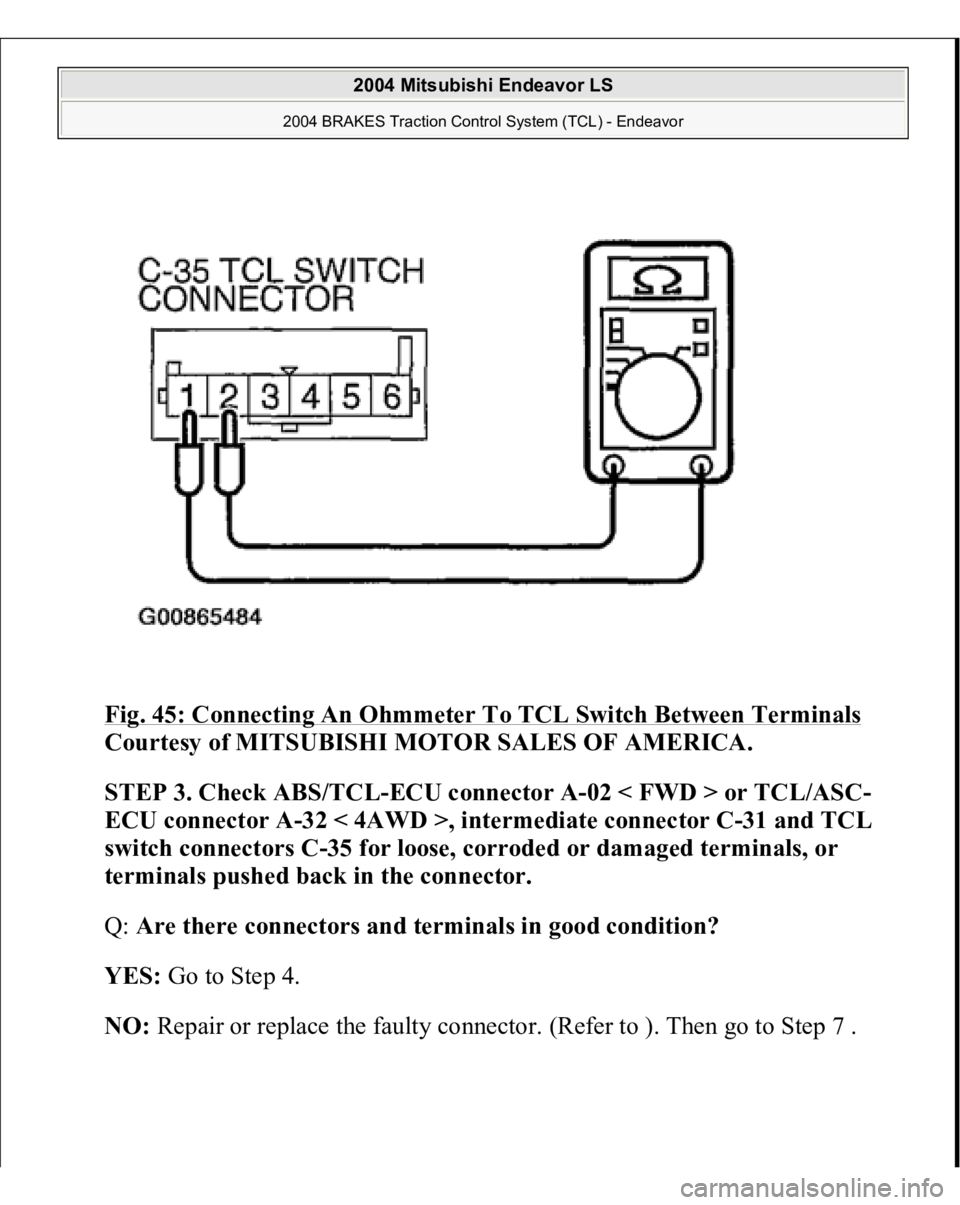

Fig. 45: Connecting An Ohmmeter To TCL Switch Between Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
STEP 3. Check ABS/TCL-ECU connector A-02 < FWD > or TCL/ASC-
ECU connector A-32 < 4AWD >, intermediate connector C-31 and TCL
switch connectors C-35 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Are there connectors and terminals in good condition?
YES: Go to Step 4.
NO: Re
pair or re
place the fault
y connector.
(Refer to
). Then
go to Ste
p 7 .

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

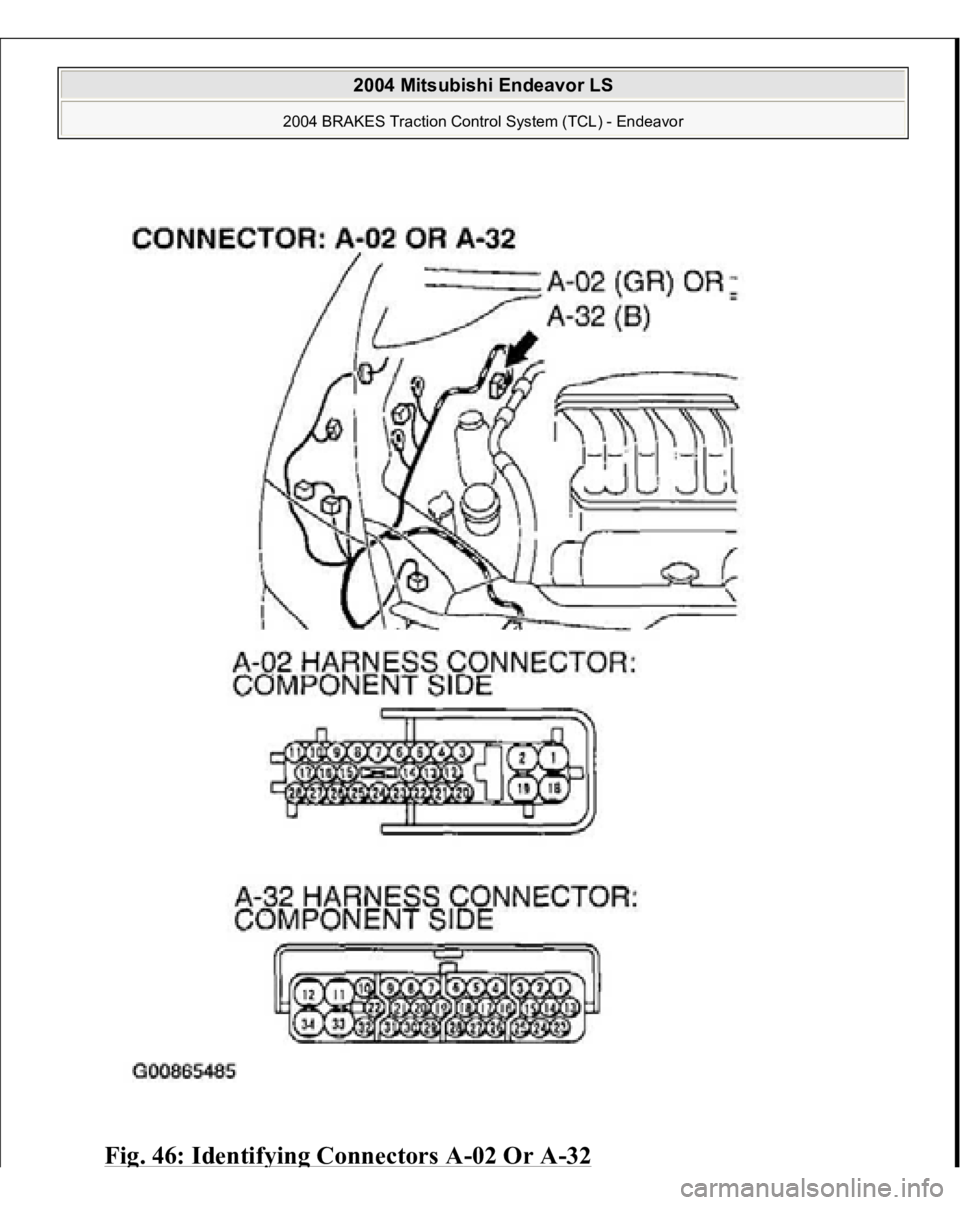

Fig. 46: Identif
ying Connectors A
-02 Or A
-32

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

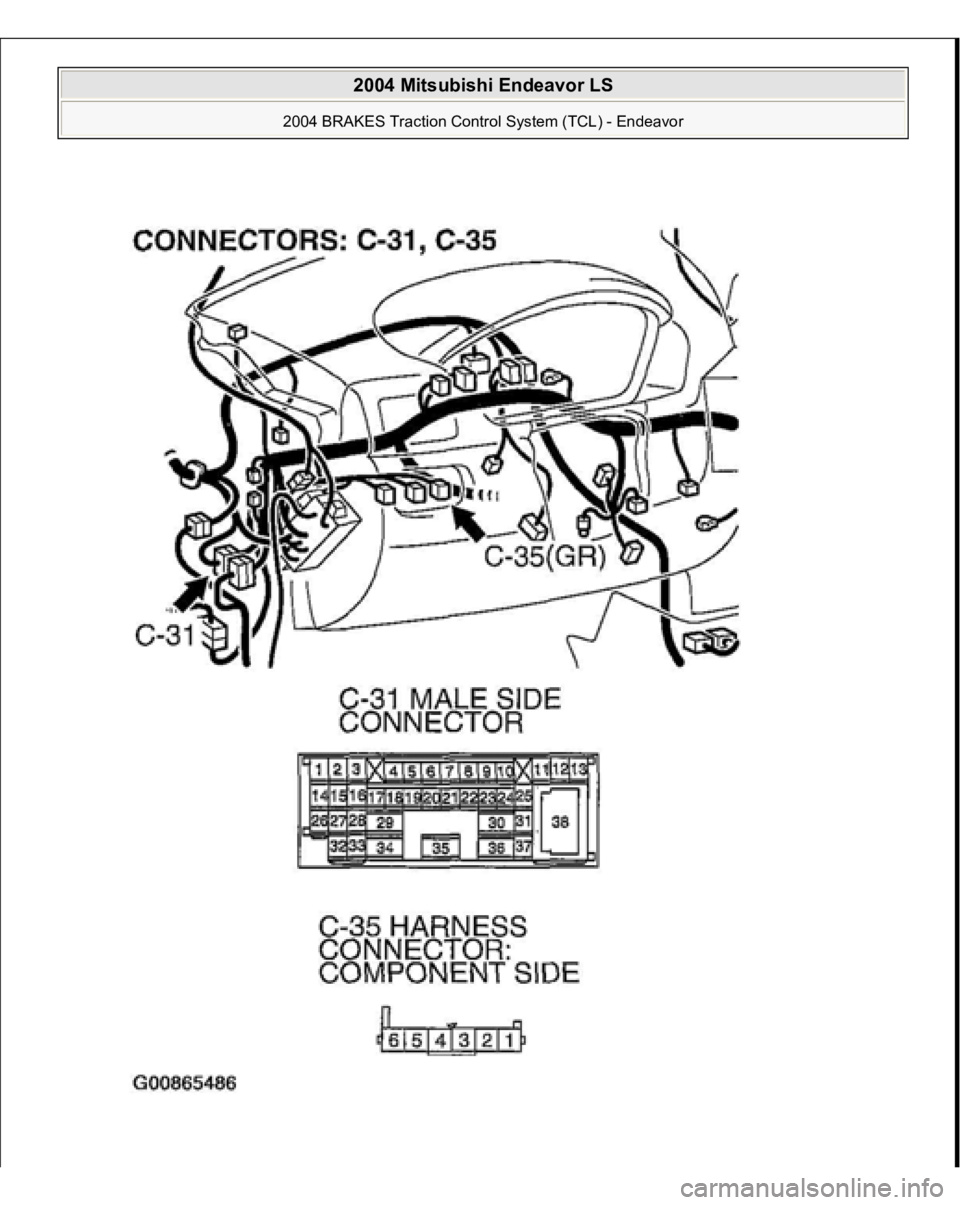

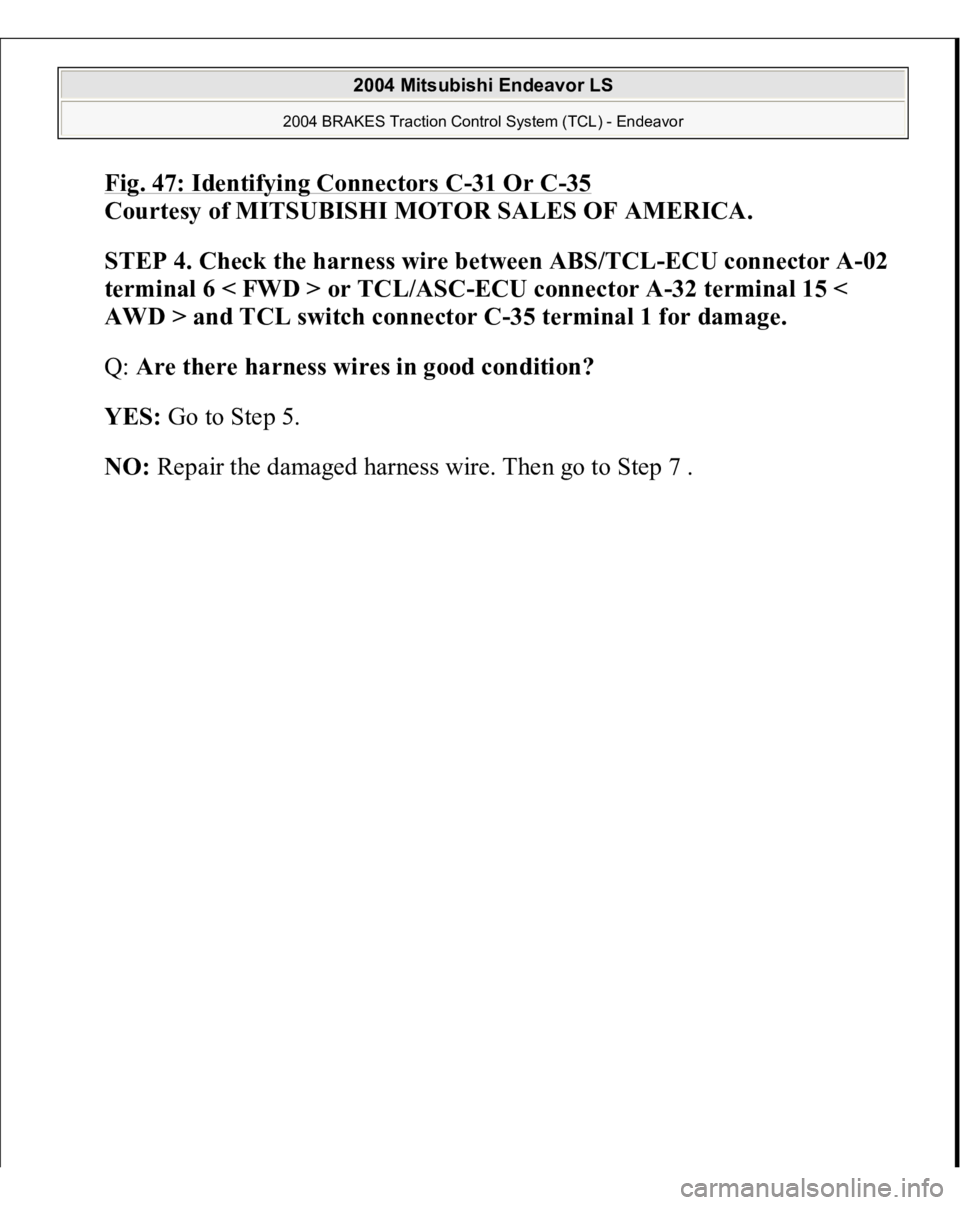

Fig. 47: Identifying Connectors C
-31 Or C
-35
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
STEP 4. Check the harness wire between ABS/TCL-ECU connector A-02
terminal 6 < FWD > or TCL/ASC-ECU connector A-32 terminal 15 <
AWD > and TCL switch connector C-35 terminal 1 for damage.
Q: Are there harness wires in good condition?
YES: Go to Step 5.
NO: Repair the damaged harness wire. Then go to Step 7 .

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

Fig. 48: Identifying Connectors A
-02 Or A
-32
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

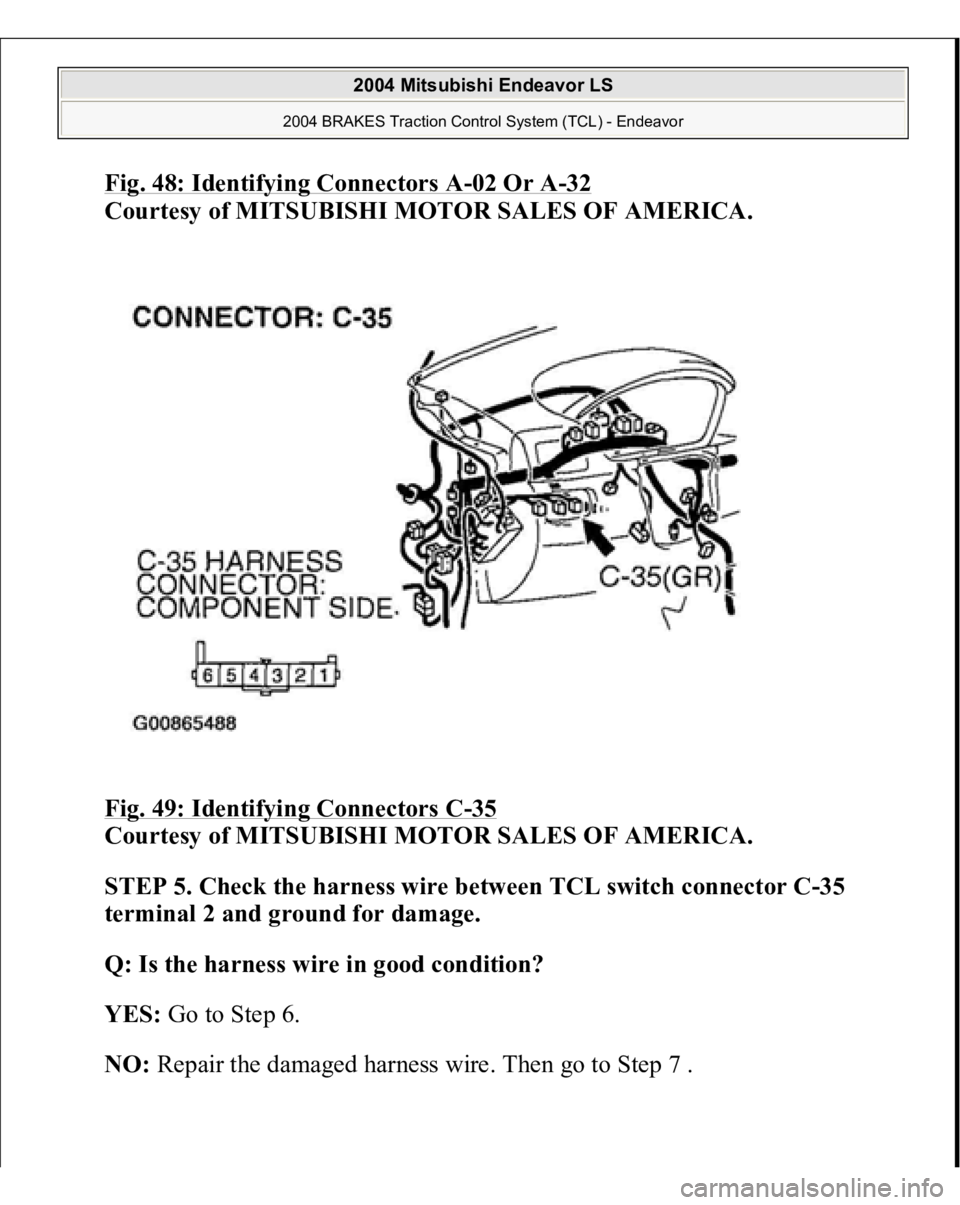

Fig. 49: Identifying Connectors C
-35
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
STEP 5. Check the harness wire between TCL switch connector C-35
terminal 2 and ground for damage.
Q: Is the harness wire in good condition?
YES: Go to Step 6.
NO: Re
pair the dama
ged harness wire. Then
go to Ste
p 7 .
