MITSUBISHI ENDEAVOR 2004 Service Repair Manual

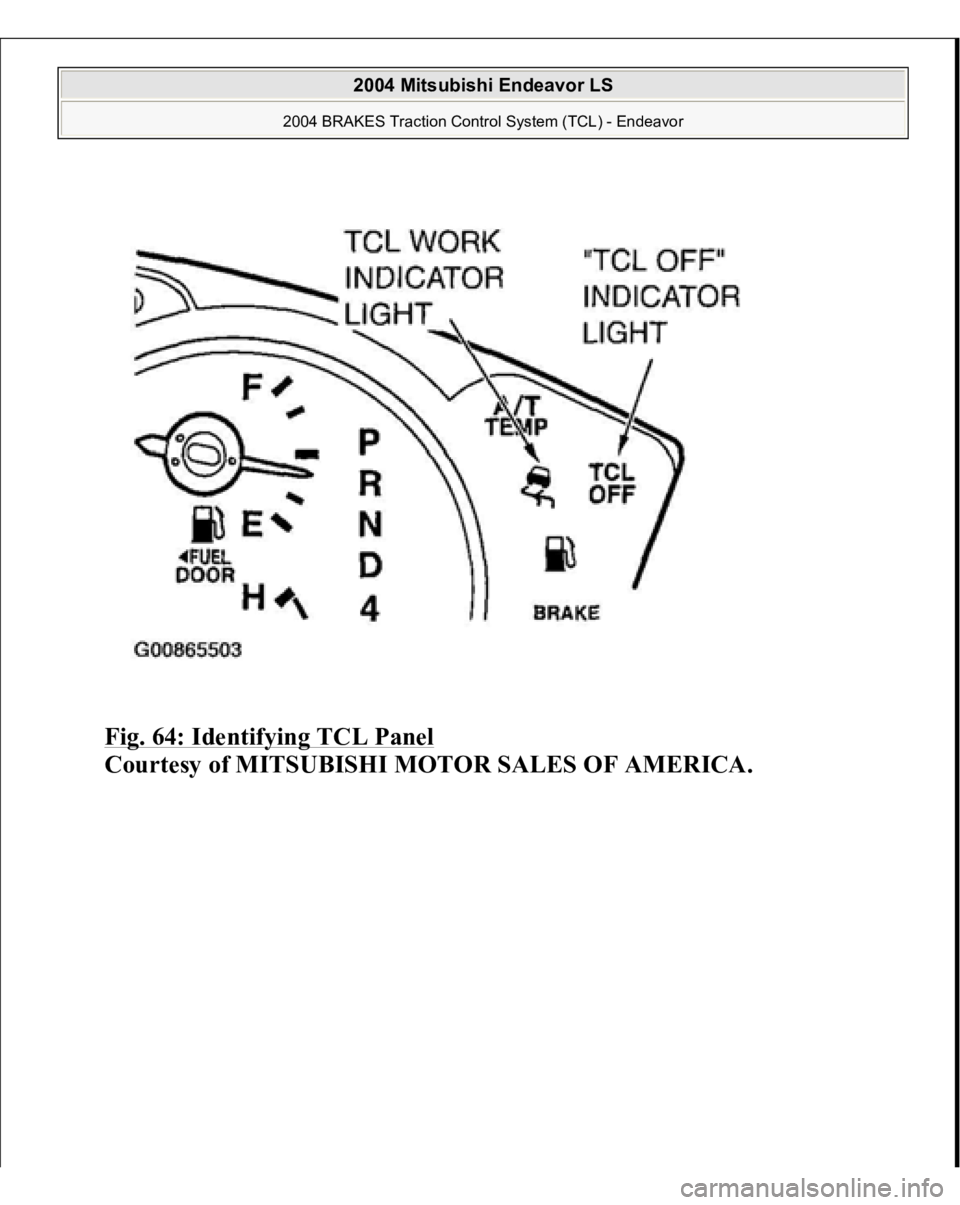

Fig. 64: Identifying TCL Panel

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

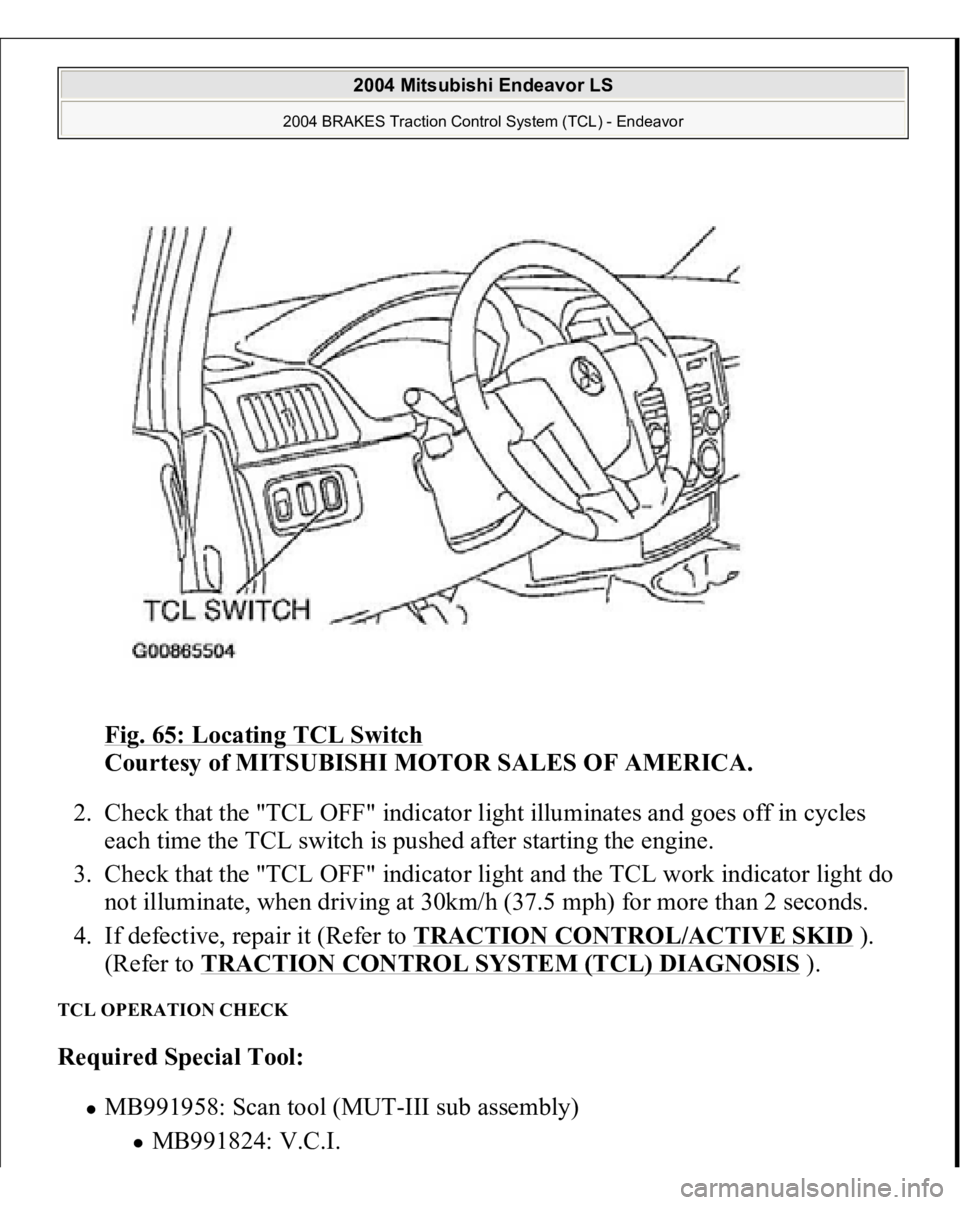

Fig. 65: Locating TCL Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Check that the "TCL OFF" indicator light illuminates and goes off in cycles
each time the TCL switch is pushed after starting the engine.
3. Check that the "TCL OFF" indicator light and the TCL work indicator light do
not illuminate, when driving at 30km/h (37.5 mph) for more than 2 seconds.
4. If defective, repair it (Refer to TRACTION CONTROL/ACTIVE SKID
).
(Refer to TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS
).
TCL OPERATION CHECK Required Special Tool:
MB991958: Scan tool (MUT-III sub assembly)
MB991824: V.C.I.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

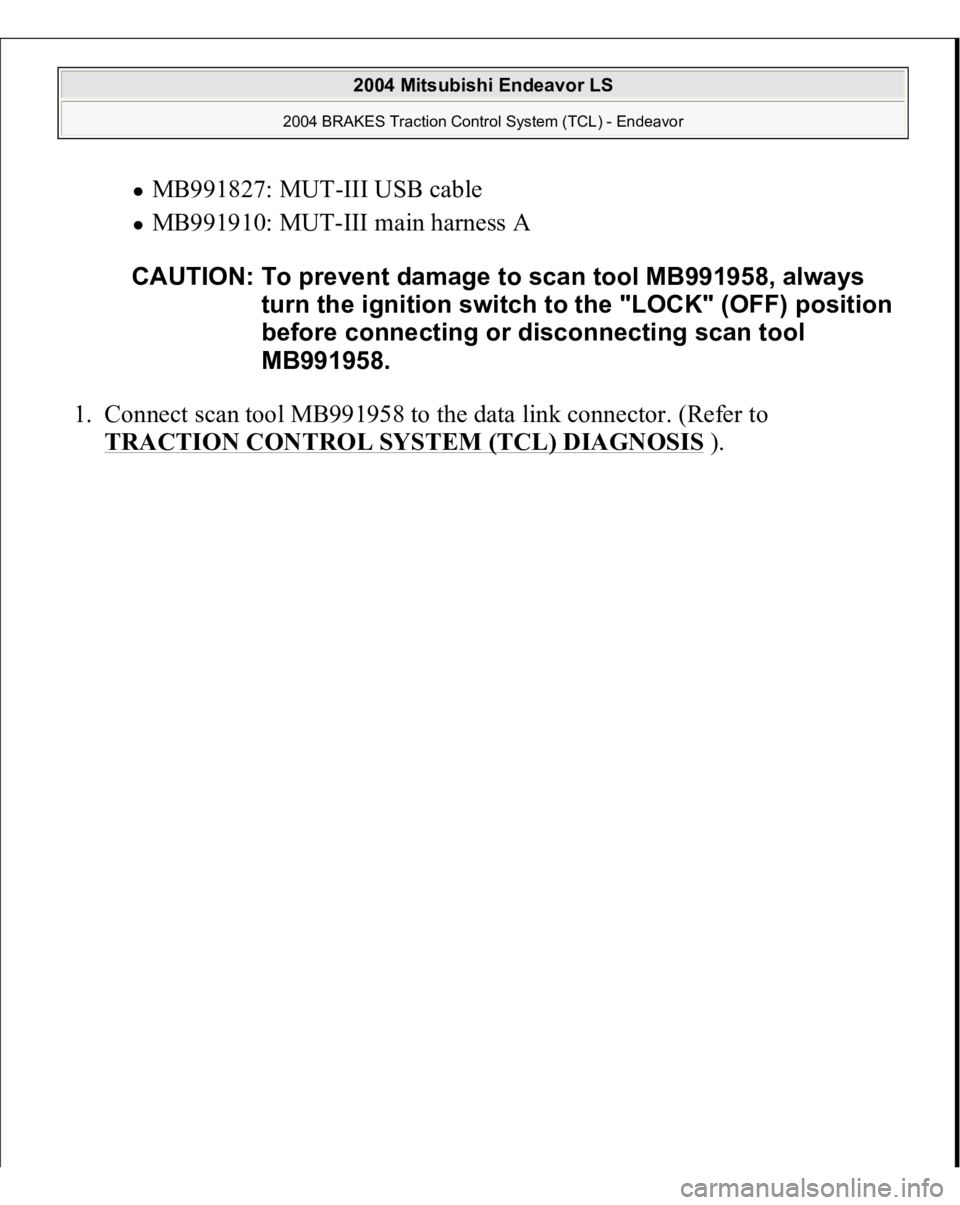

MB991827: MUT-III USB cable MB991910: MUT-III main harness A
1. Connect scan tool MB991958 to the data link connector. (Refer to
TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS
). CAUTION: To prevent damage to scan tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting scan tool
MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

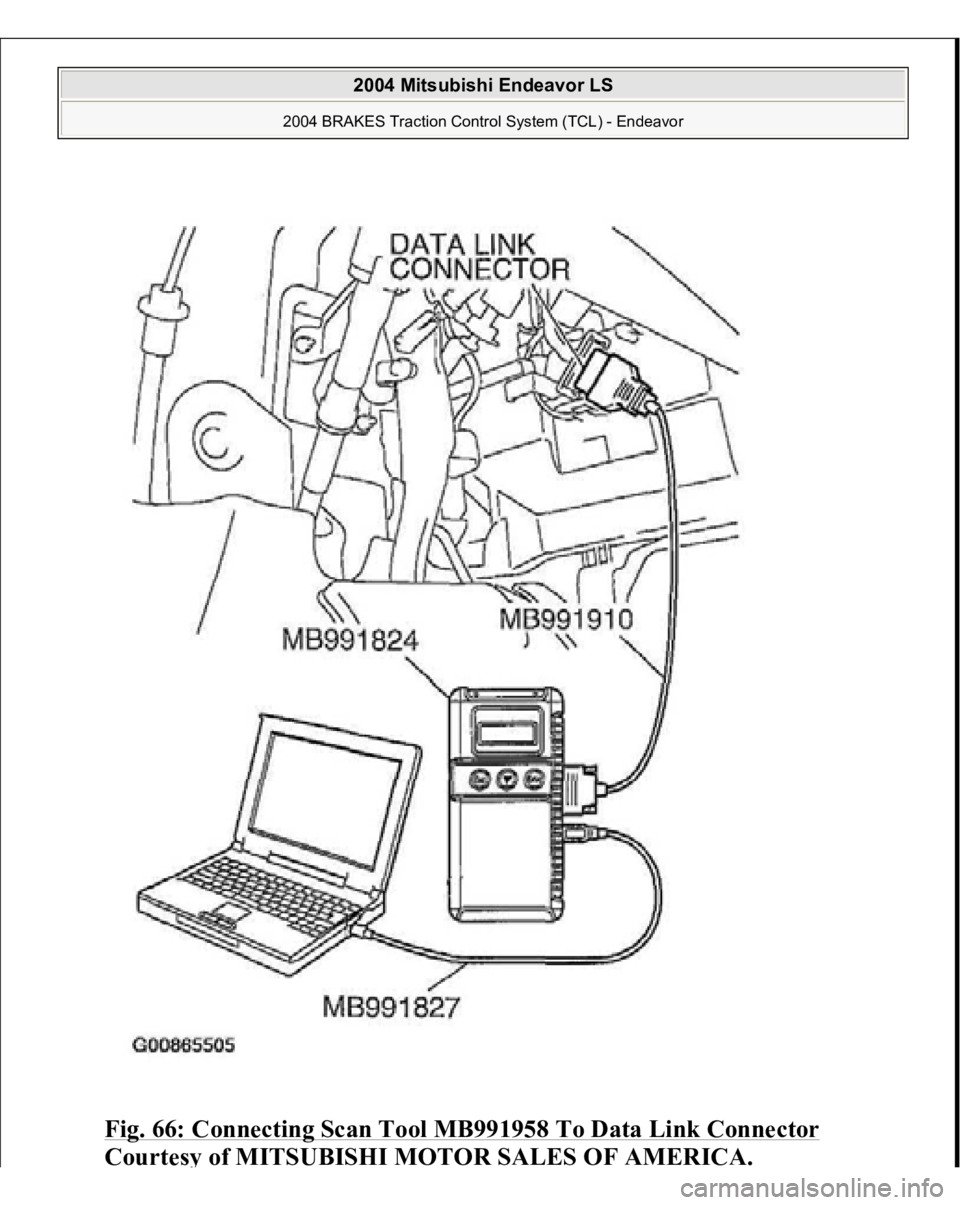

Fig. 66: Connecting Scan Tool MB991958 To Data Link Connector

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

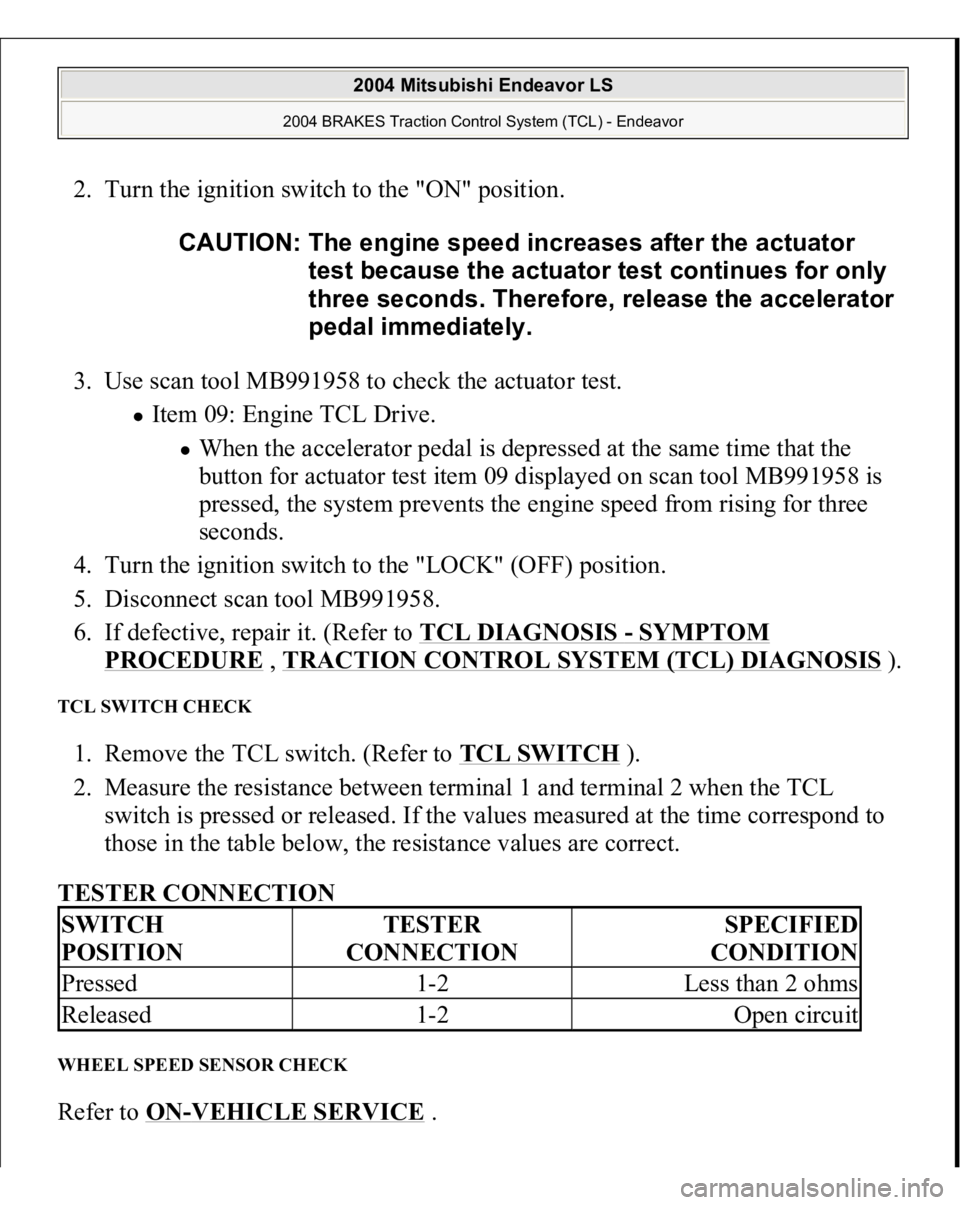

2. Turn the ignition switch to the "ON" position.
3. Use scan tool MB991958 to check the actuator test.
Item 09: Engine TCL Drive.
When the accelerator pedal is depressed at the same time that the
button for actuator test item 09 displayed on scan tool MB991958 is
pressed, the system prevents the engine speed from rising for three
seconds.
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
6. If defective, repair it. (Refer to TCL DIAGNOSIS
- SYMPTOM
PROCEDURE
, TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS
).
TCL SWITCH CHECK 1. Remove the TCL switch. (Refer to TCL SWITCH
).
2. Measure the resistance between terminal 1 and terminal 2 when the TCL
switch is pressed or released. If the values measured at the time correspond to
those in the table below, the resistance values are correct.
TESTER CONNECTION
WHEEL SPEED SENSOR CHECK Refer to ON
-VEHICLE SERVICE
. CAUTION: The engine speed increases after the actuator
test because the actuator test continues for only
three seconds. Therefore, release the accelerator
pedal immediately.
SWITCH
POSITION
TESTER
CONNECTION
SPECIFIED
CONDITION
Pressed
1-2
Less than 2 ohms
Released
1-2
Open circuit

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

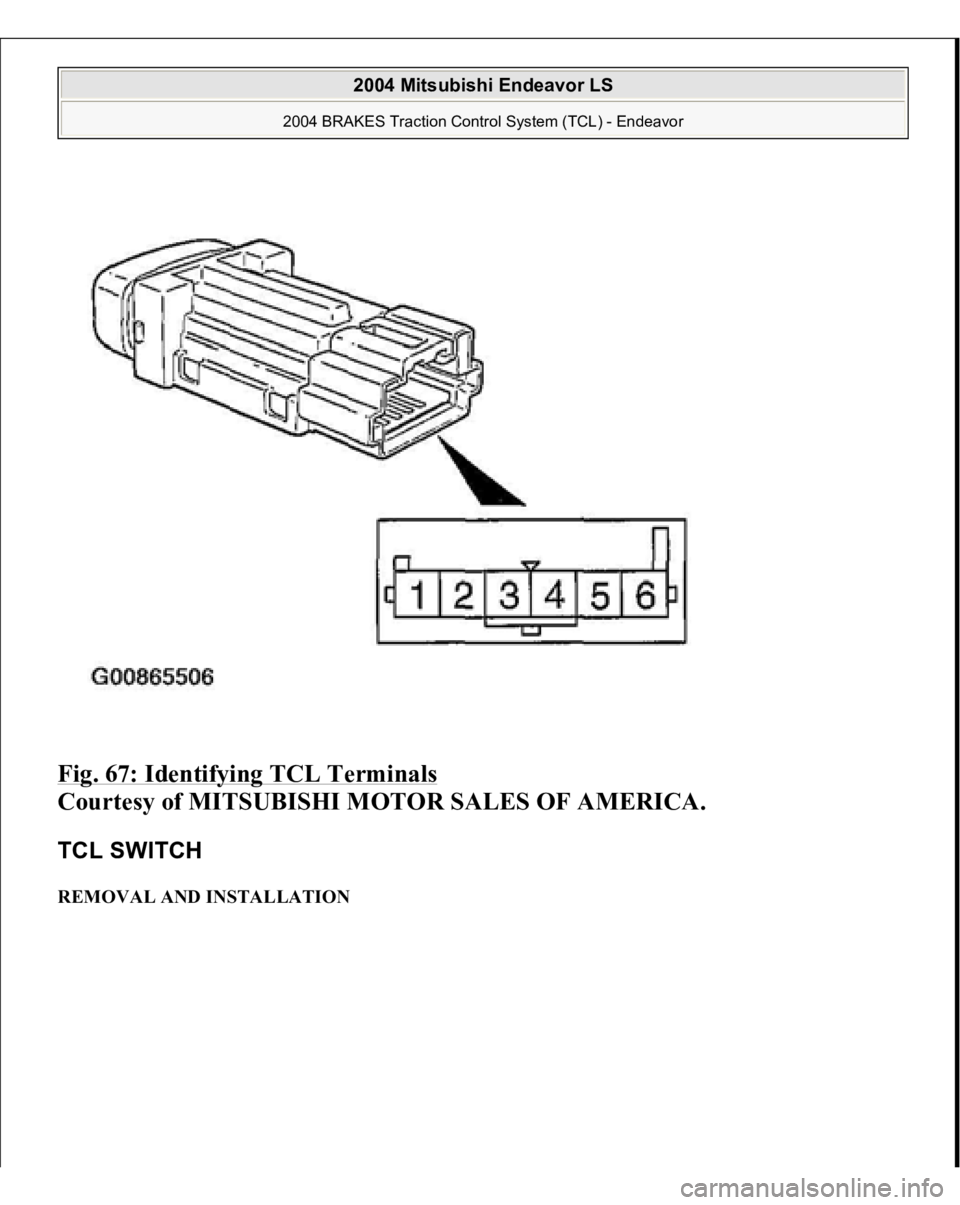

Fig. 67: Identifying TCL Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
TCL SWITCH REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

Fig. 68: Removing & Installing TCL Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WHEEL SPEED SENSOR REMOVAL AND INSTALLATION Refer to WHEEL SPEED SENSOR
.
ABS/TCL-ECU REMOVAL AND INSTALLATION Replace the hydraulic unit (integrated with ABS/TCL-ECU < FWD > or TCL/ASC-
ECU < AWD >
). (Refer to HYDRAULIC UNIT
).

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

2004 BODY & ACCESSORIES
Trims - Endeavor

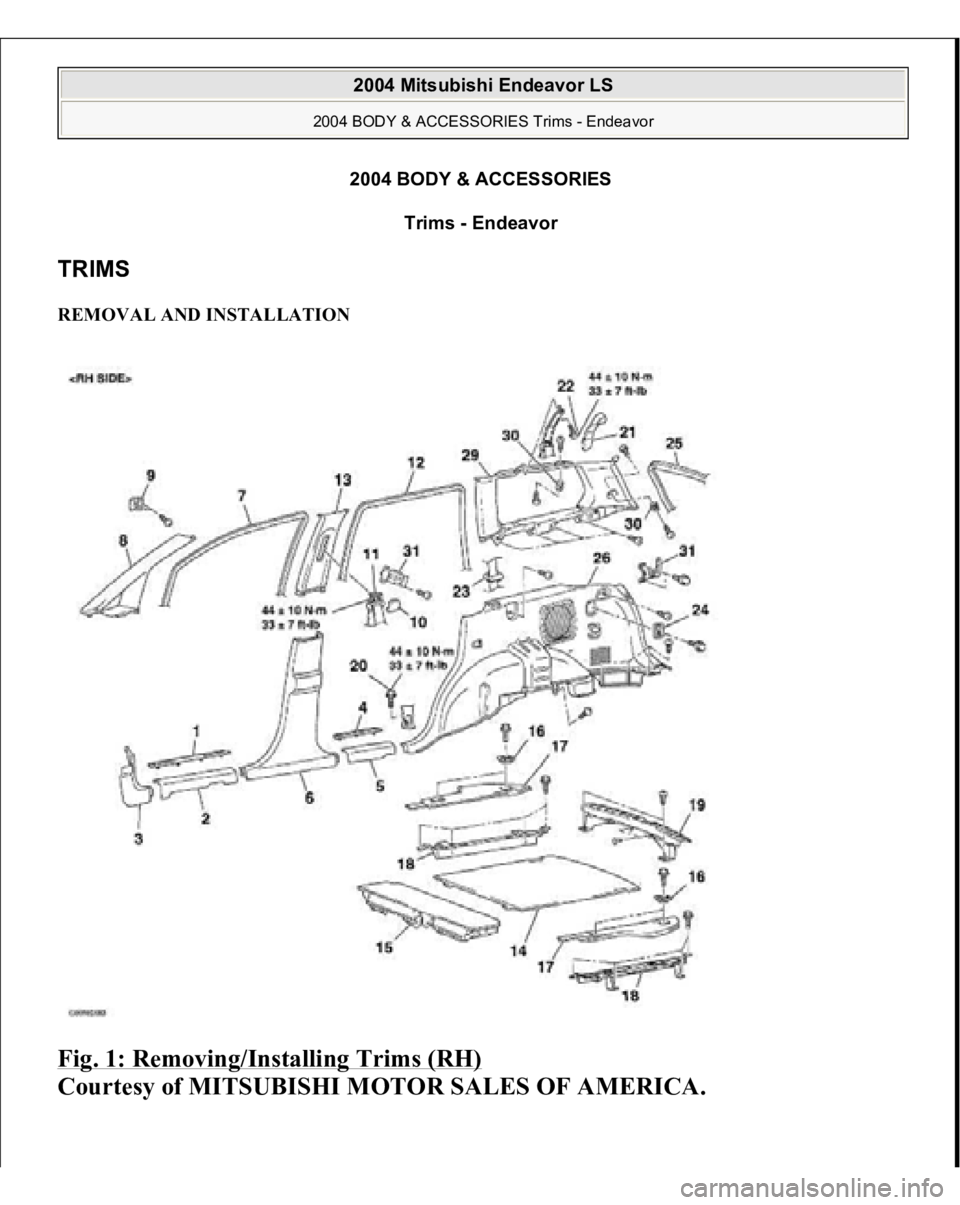

TRIMS REMOVAL AND INSTALLATION Fig. 1: Removing/Installing Trims (RH)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Trims - Endeavor


2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Trims - Endeavor

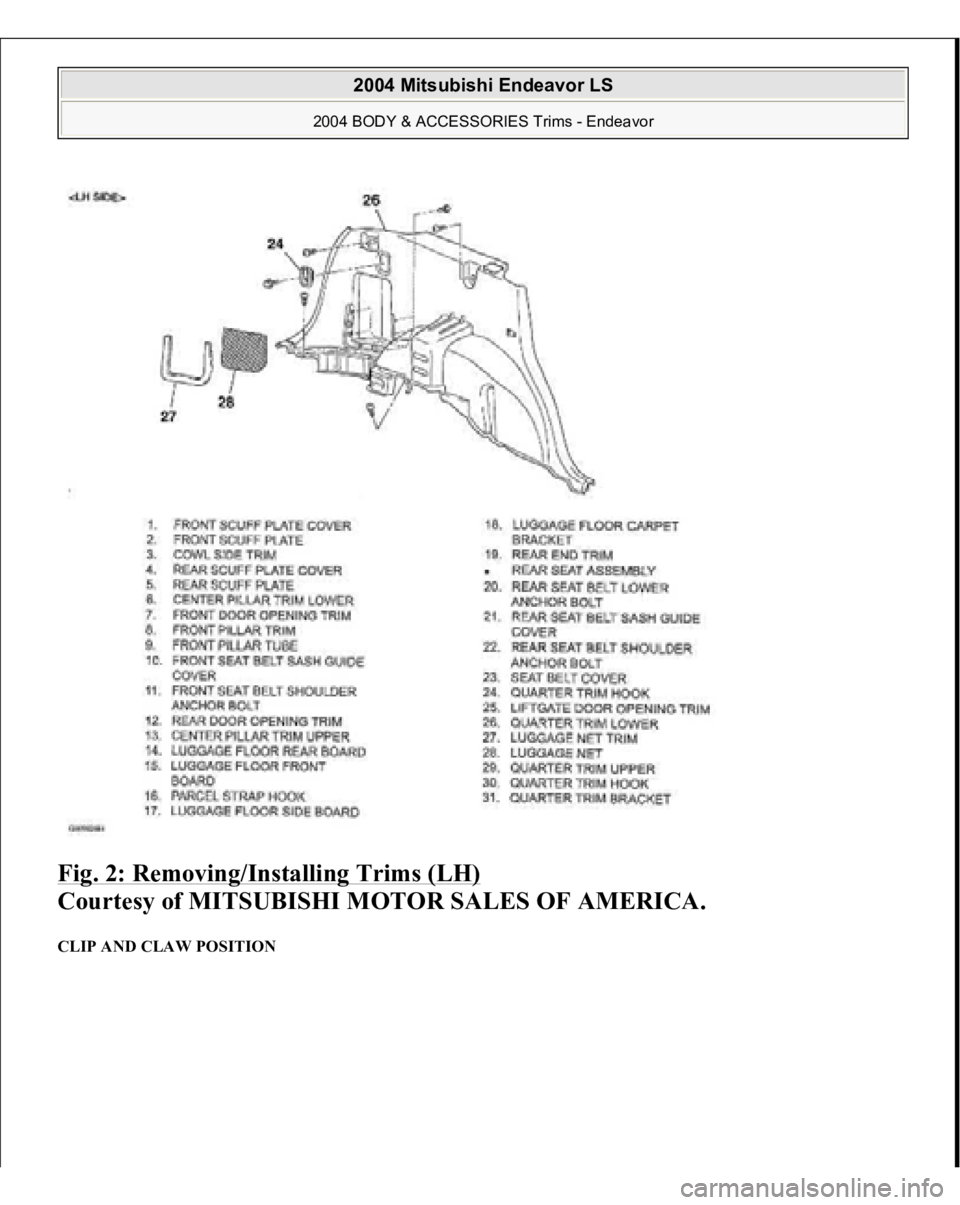

Fig. 2: Removing/Installing Trims (LH)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CLIP AND CLAW POSITION
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Trims - Endeavor

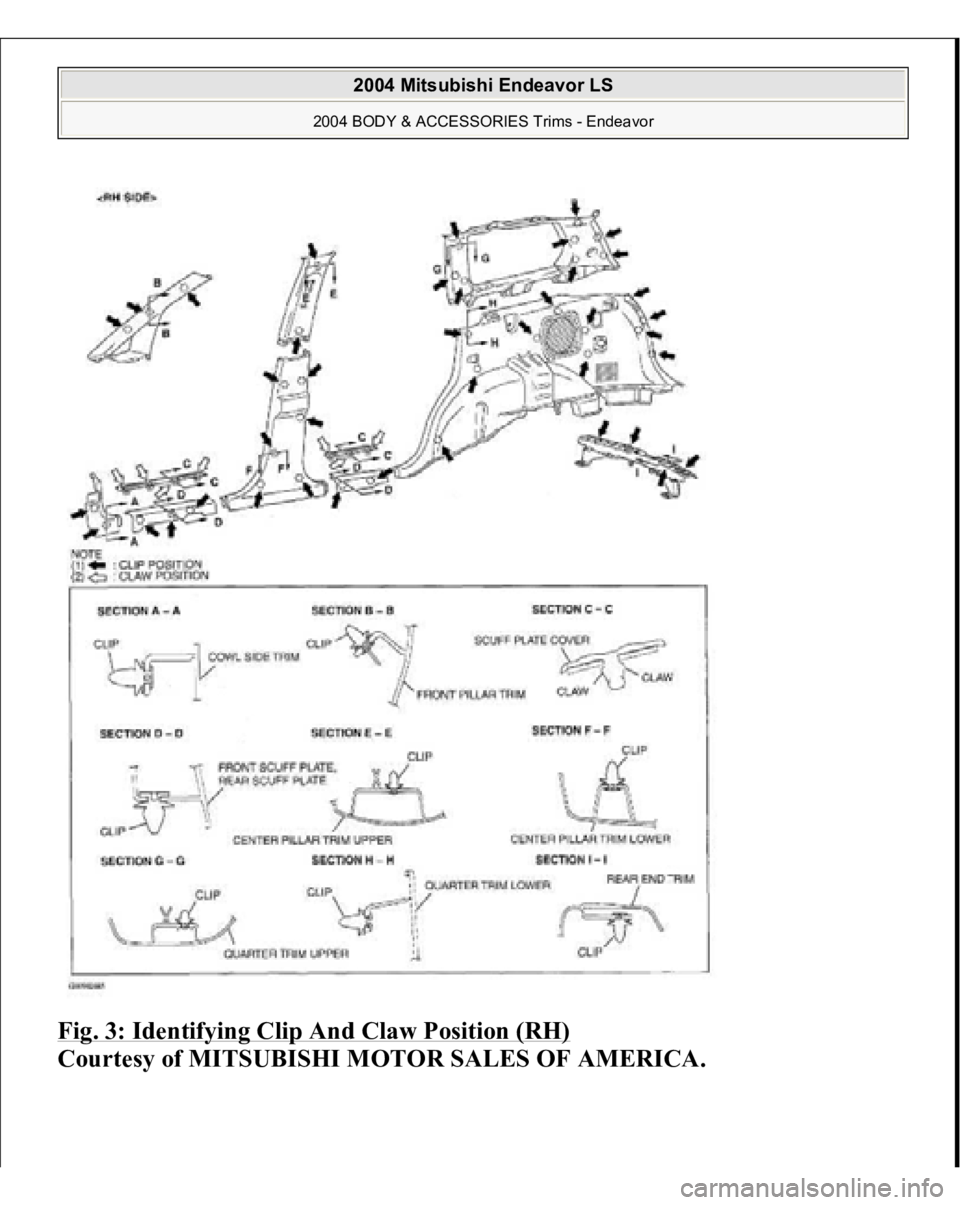

Fig. 3: Identifying Clip And Claw Position (RH)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Trims - Endeavor
