2004 BRAKES Traction Control System (TCL) - Endeavor

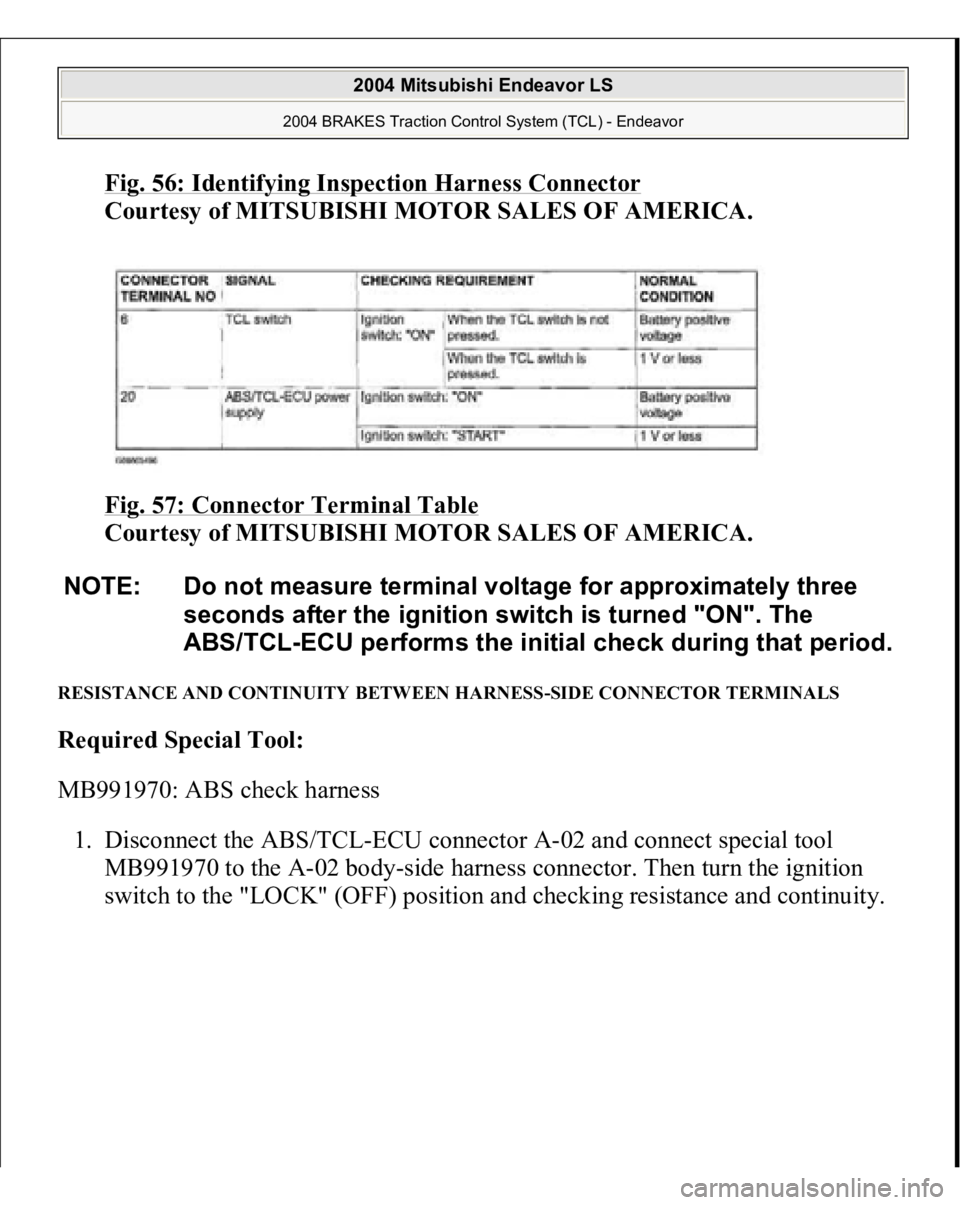

Fig. 56: Identifying Inspection Harness Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig. 57:
Connector Terminal Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
RESISTANCE AND CONTINUITY BETWEEN HARNESS-SIDE CONNECTOR TERMINALS Required Special Tool:
MB991970: ABS check harness
1. Disconnect the ABS/TCL-ECU connector A-02 and connect special tool
MB991970 to the A-02 body-side harness connector. Then turn the ignition
switch to the "LOCK"
(OFF
) position and checkin
g resistance and continuit
y.
NOTE: Do not measure terminal voltage for approximately three
seconds after the ignition switch is turned "ON". The
ABS/TCL-ECU performs the initial check during that period.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

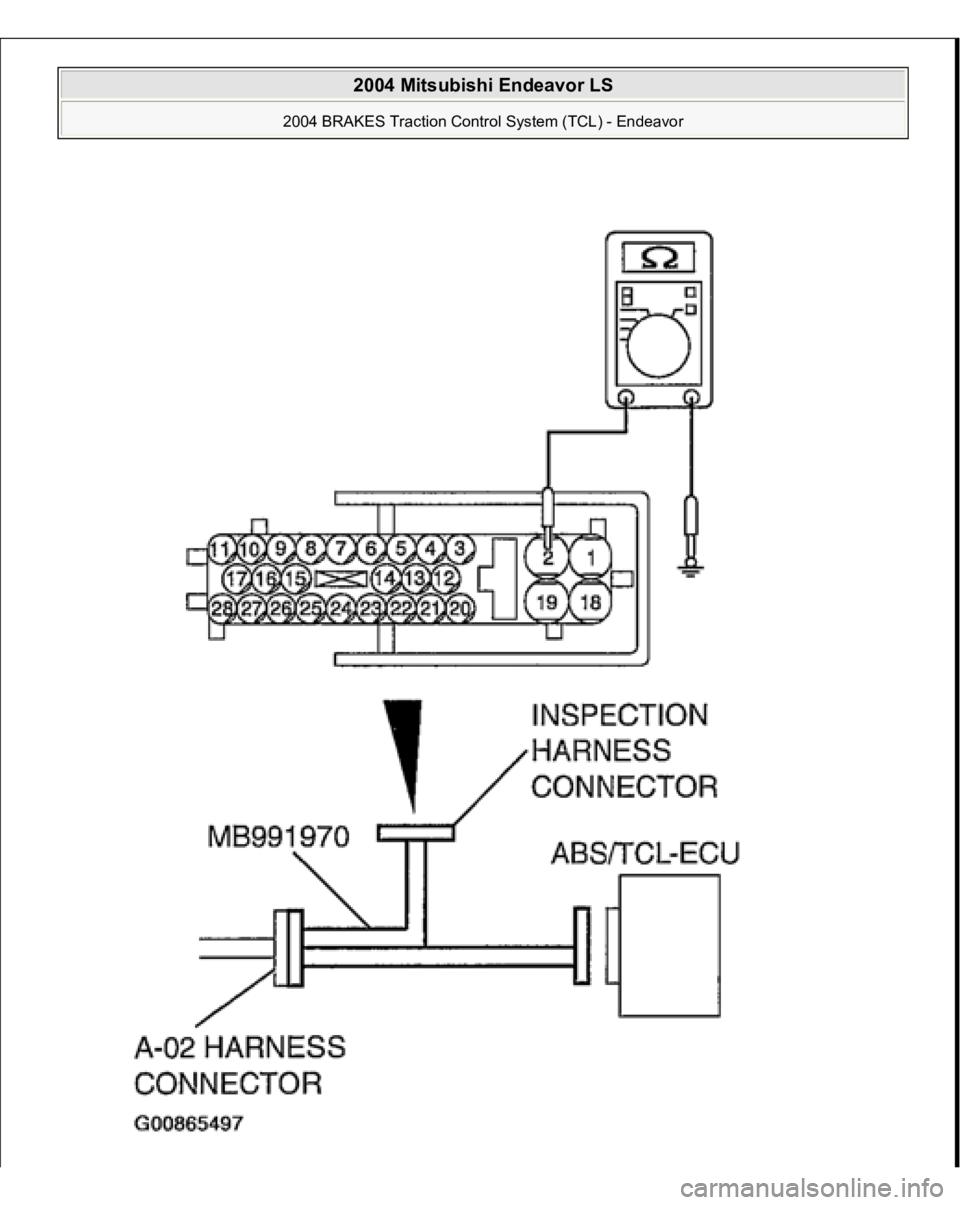

Fig. 58: Inspecting Harness Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Check the resistance and continuity between the terminals indicated in the table
below.
3. The terminal layout is shown in the illustration.
CONNECTOR TERMINAL
CHECK AT TCL/ASC-ECU TERMINAL VOLTAGE & TERMINAL VOLTAGE CHECK CHART Required Special Tool:
MB991952: ABS check harness
1. Disconnect the TCL/ASC-ECU connector A-32 and connect special tool
MB991952 between the TCL/ASC-ECU and the body-side harness connector.
Then use special tool MB991952 to measure the voltage between terminal 12
and each terminal.
2. The terminal la
youts are shown in the illustrations below.
CONNECTOR
TERMINAL NO.
SIGNAL
NORMAL
CONDITION
2 - body ground
Ground
Less than 2 ohms
9 - 10
Front-right wheel speed
sensor
1.24 - 1.64 kohm
11 - 17
Rear-right wheel speed
sensor
1.24 - 1.64 kohm
16 - 26
Front-left wheel speed
sensor
1.24 - 1.64 kohm
18 - body ground
Ground
Less than 2 ohms
27 - 28
Rear-left wheel speed
sensor
1.24 - 1.64 kohm

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

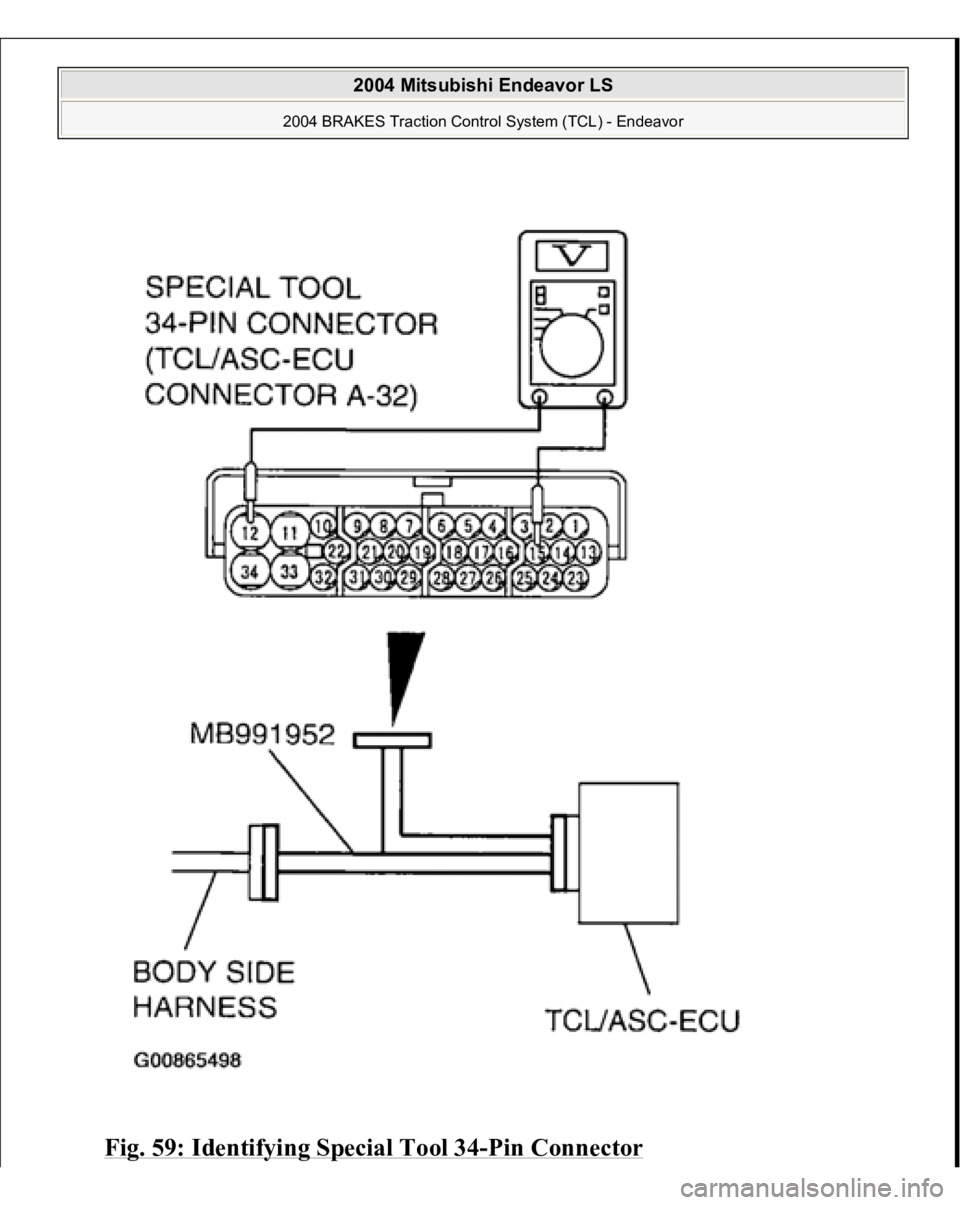

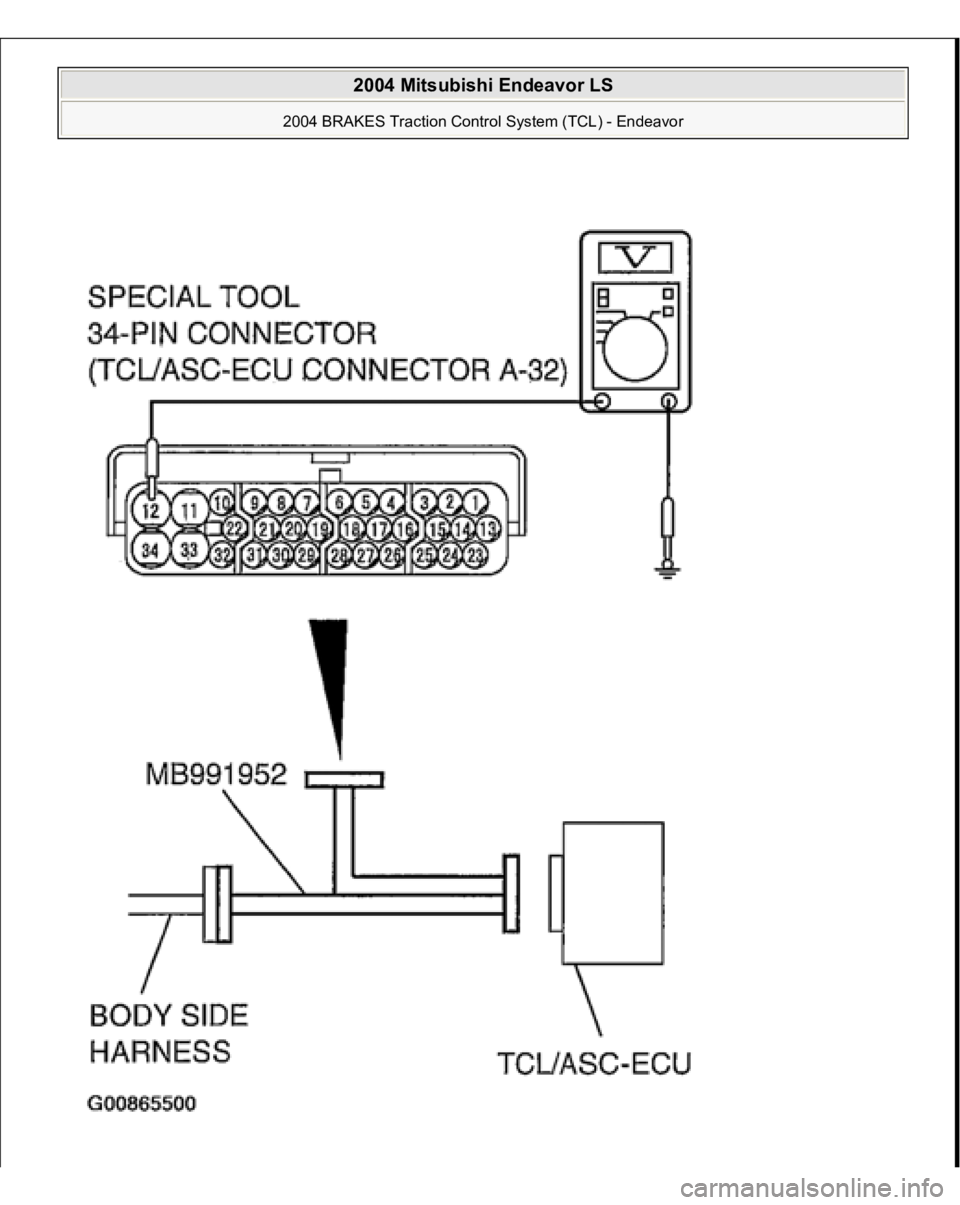

Fig. 59: Identifying Special Tool 34
-Pin Connector

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

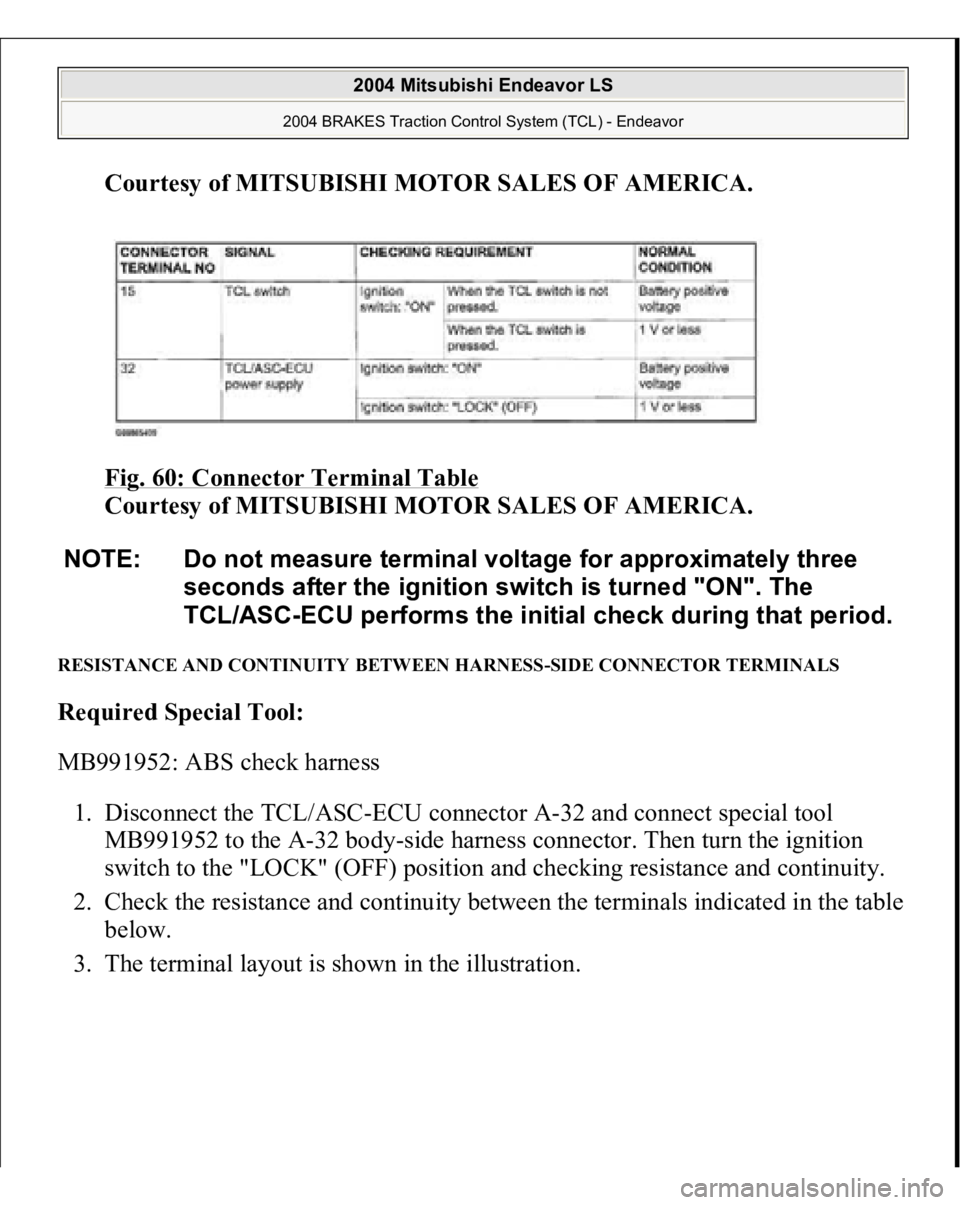

Fig. 60: Connector Terminal Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
RESISTANCE AND CONTINUITY BETWEEN HARNESS-SIDE CONNECTOR TERMINALS Required Special Tool:
MB991952: ABS check harness
1. Disconnect the TCL/ASC-ECU connector A-32 and connect special tool
MB991952 to the A-32 body-side harness connector. Then turn the ignition
switch to the "LOCK" (OFF) position and checking resistance and continuity.
2. Check the resistance and continuity between the terminals indicated in the table
below.
3. The terminal la
yout is shown in the illustration.
NOTE: Do not measure terminal voltage for approximately three
seconds after the ignition switch is turned "ON". The
TCL/ASC-ECU performs the initial check during that period.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

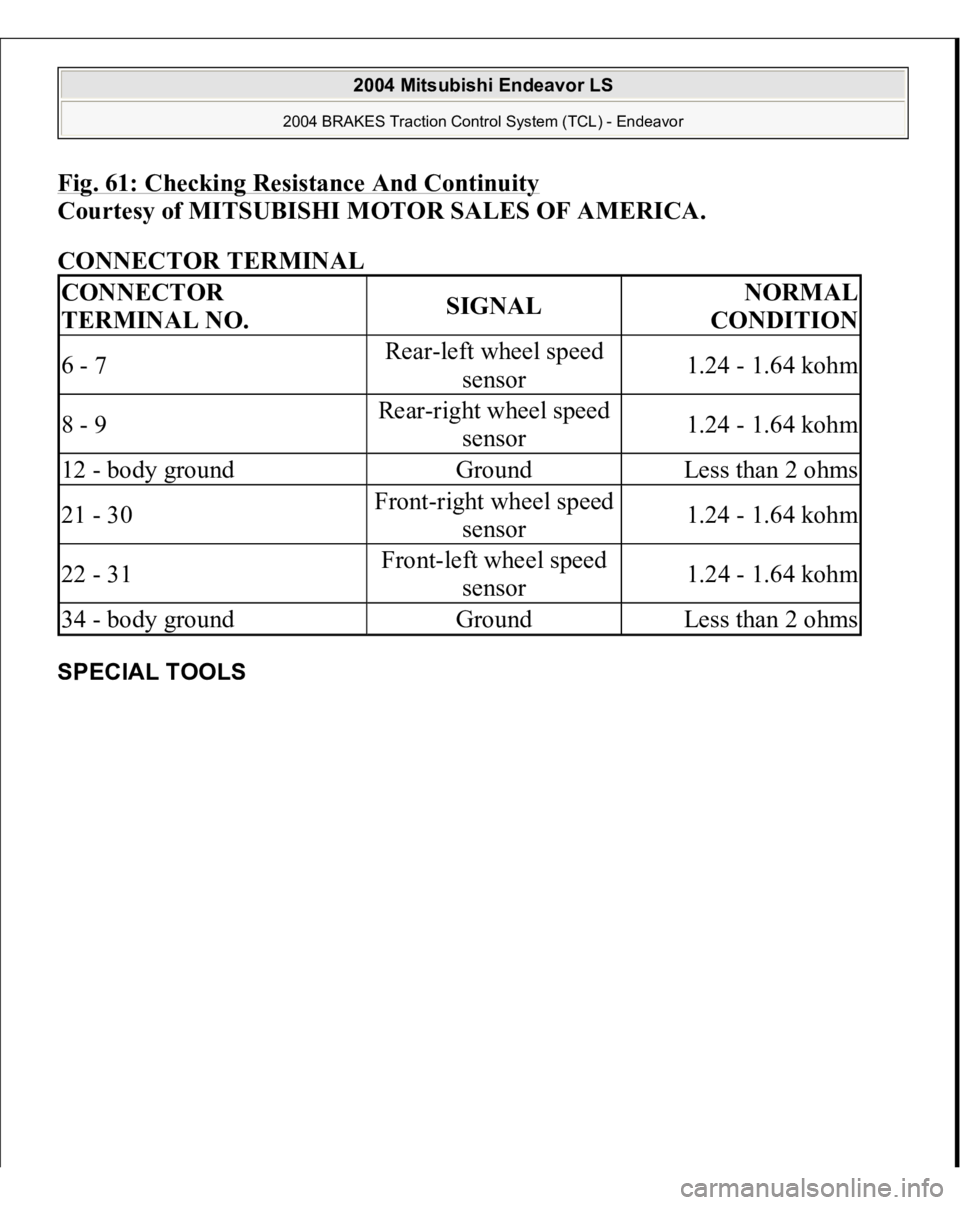

Fig. 61: Checking Resistance And Continuity

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CONNECTOR TERMINAL
SPECIAL TOOLS CONNECTOR
TERMINAL NO.
SIGNAL
NORMAL
CONDITION
6 - 7
Rear-left wheel speed
sensor
1.24 - 1.64 kohm
8 - 9
Rear-right wheel speed
sensor
1.24 - 1.64 kohm
12 - body ground
Ground
Less than 2 ohms
21 - 30
Front-right wheel speed
sensor
1.24 - 1.64 kohm
22 - 31
Front-left wheel speed
sensor
1.24 - 1.64 kohm
34 - body ground
Ground
Less than 2 ohms

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

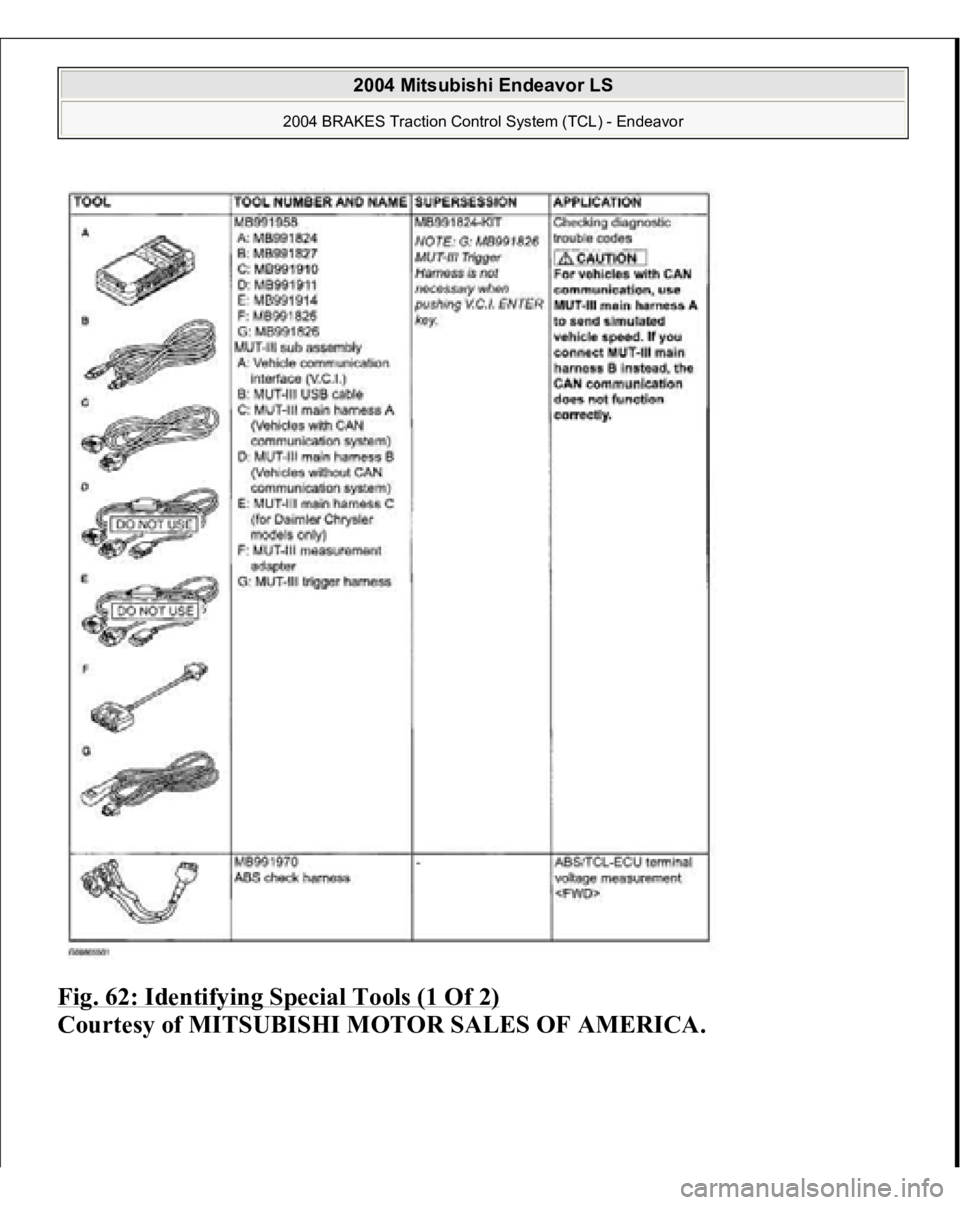

Fig. 62: Identifying Special Tools (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

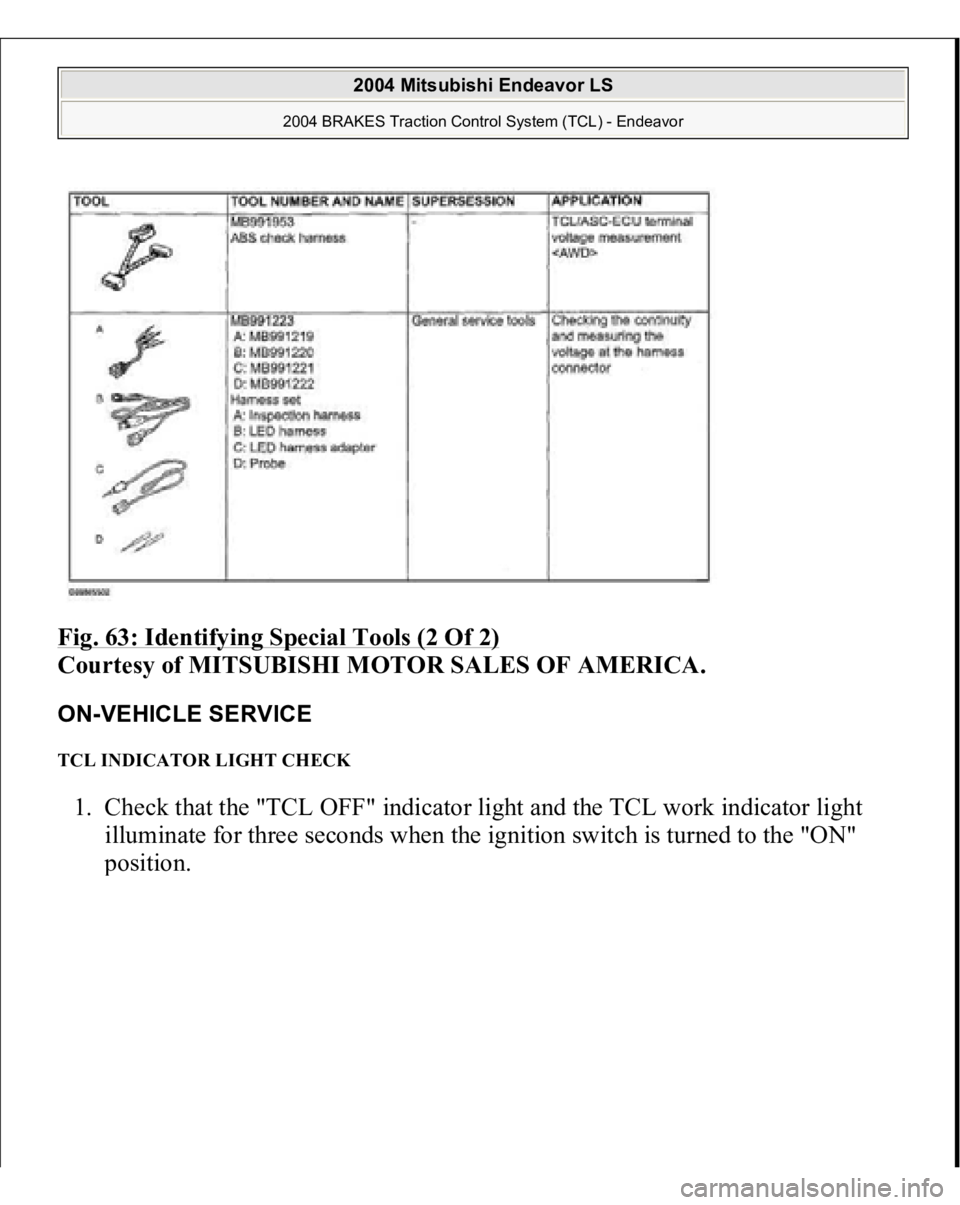

Fig. 63: Identifying Special Tools (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ON-VEHICLE SERVICE TCL INDICATOR LIGHT CHECK 1. Check that the "TCL OFF" indicator light and the TCL work indicator light
illuminate for three seconds when the ignition switch is turned to the "ON"
position.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor
