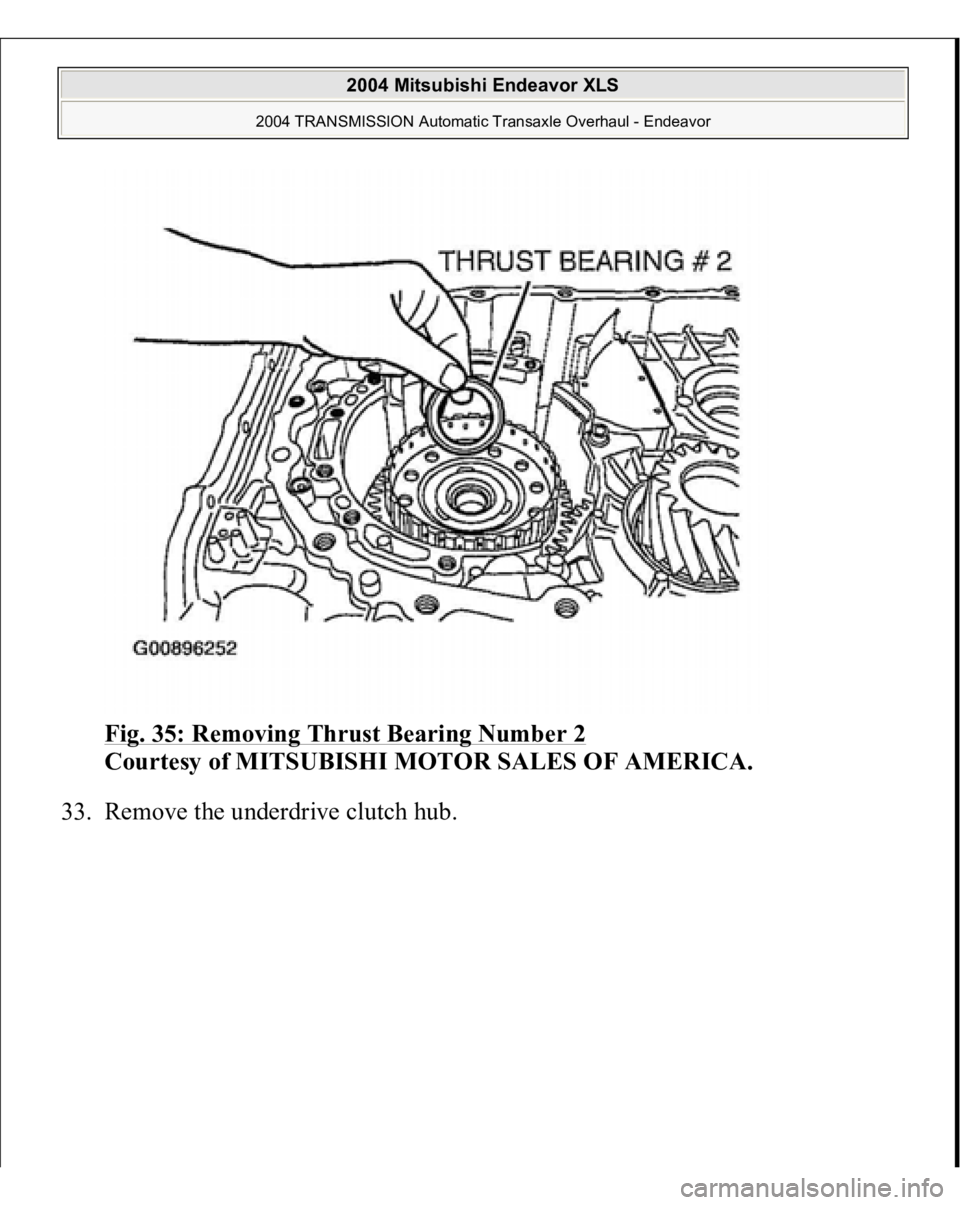

Fig. 35: Removing Thrust Bearing Number 2

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
33. Remove the underdrive clutch hub.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

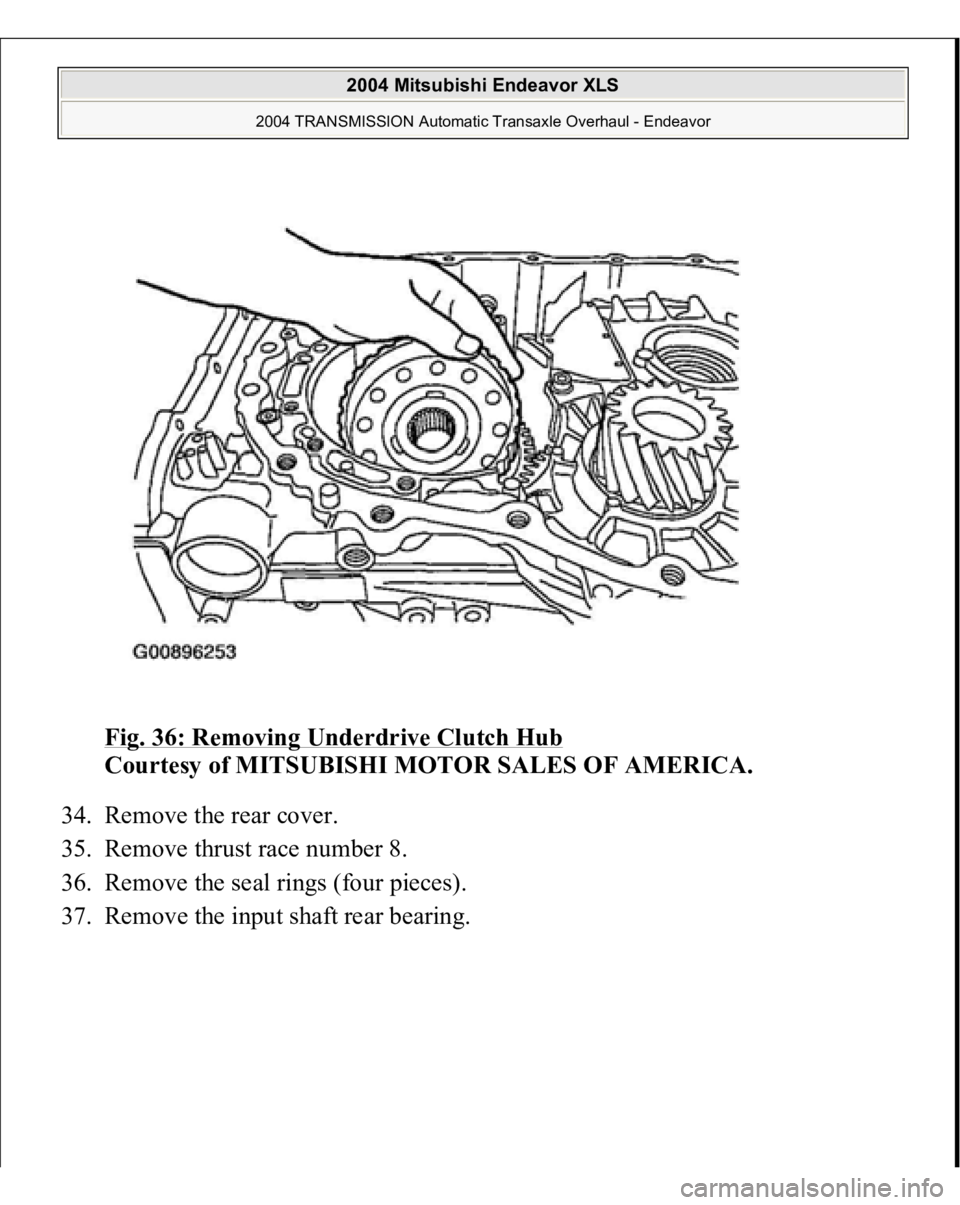

Fig. 36: Removing Underdrive Clutch Hub

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
34. Remove the rear cover.
35. Remove thrust race number 8.
36. Remove the seal rings (four pieces).
37. Remove the in
put shaft rear bearin
g.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

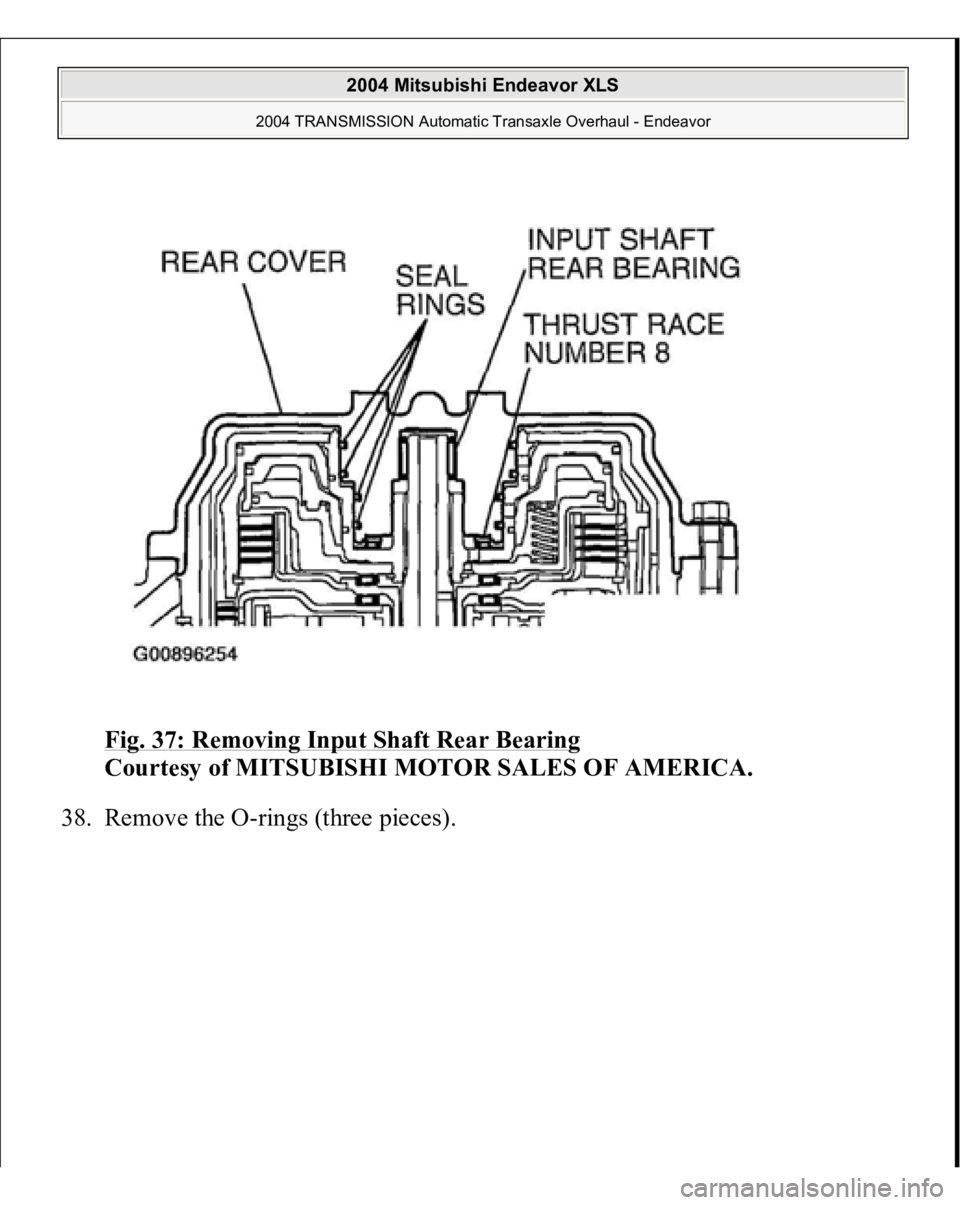

Fig. 37: Removing Input Shaft Rear Bearing

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
38. Remove the O-rin
gs (three
pieces
).

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

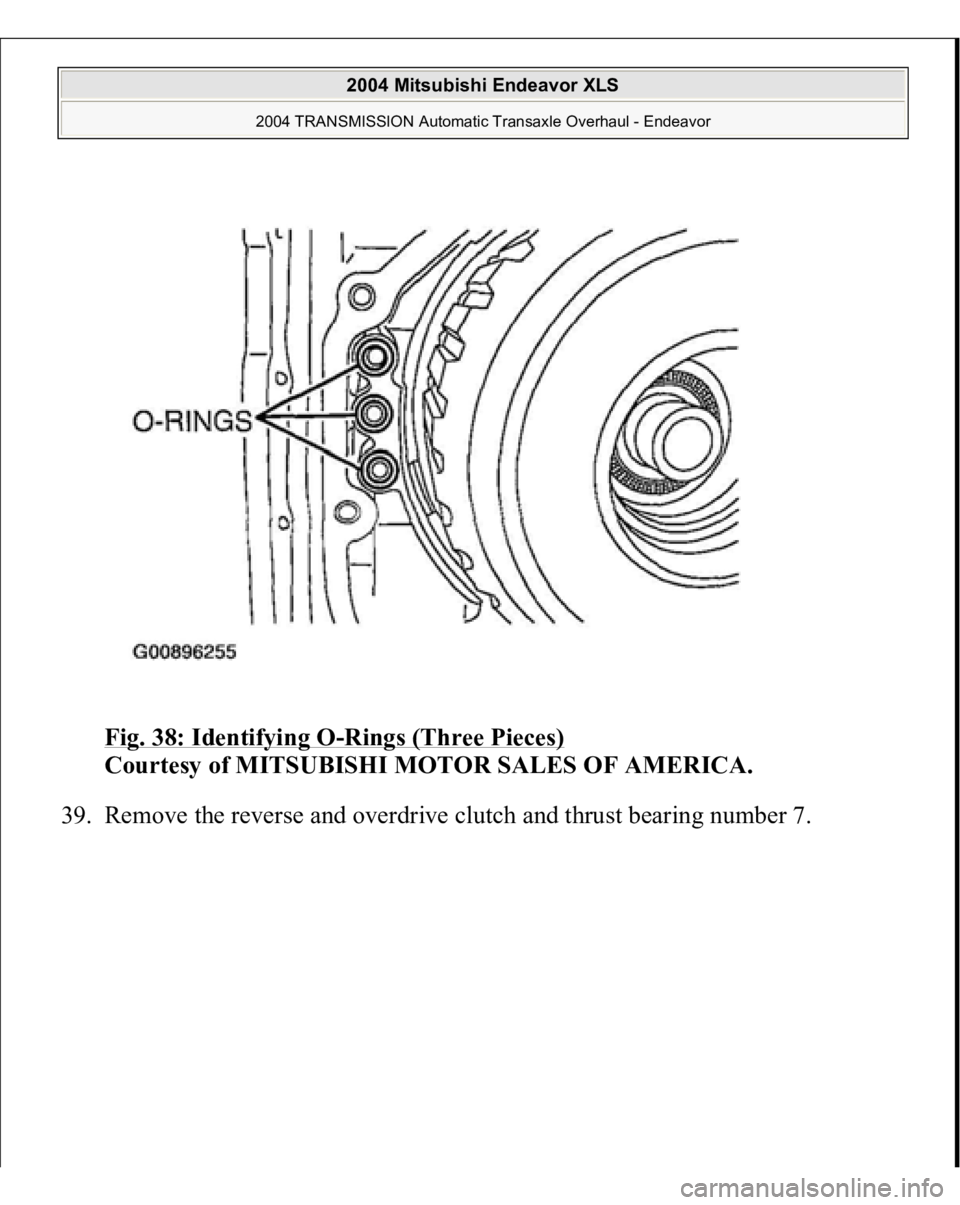

Fig. 38: Identifying O
-Rings (Three Pieces)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
39. Remove the reverse and overdrive clutch and thrust
bearin
g number 7.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

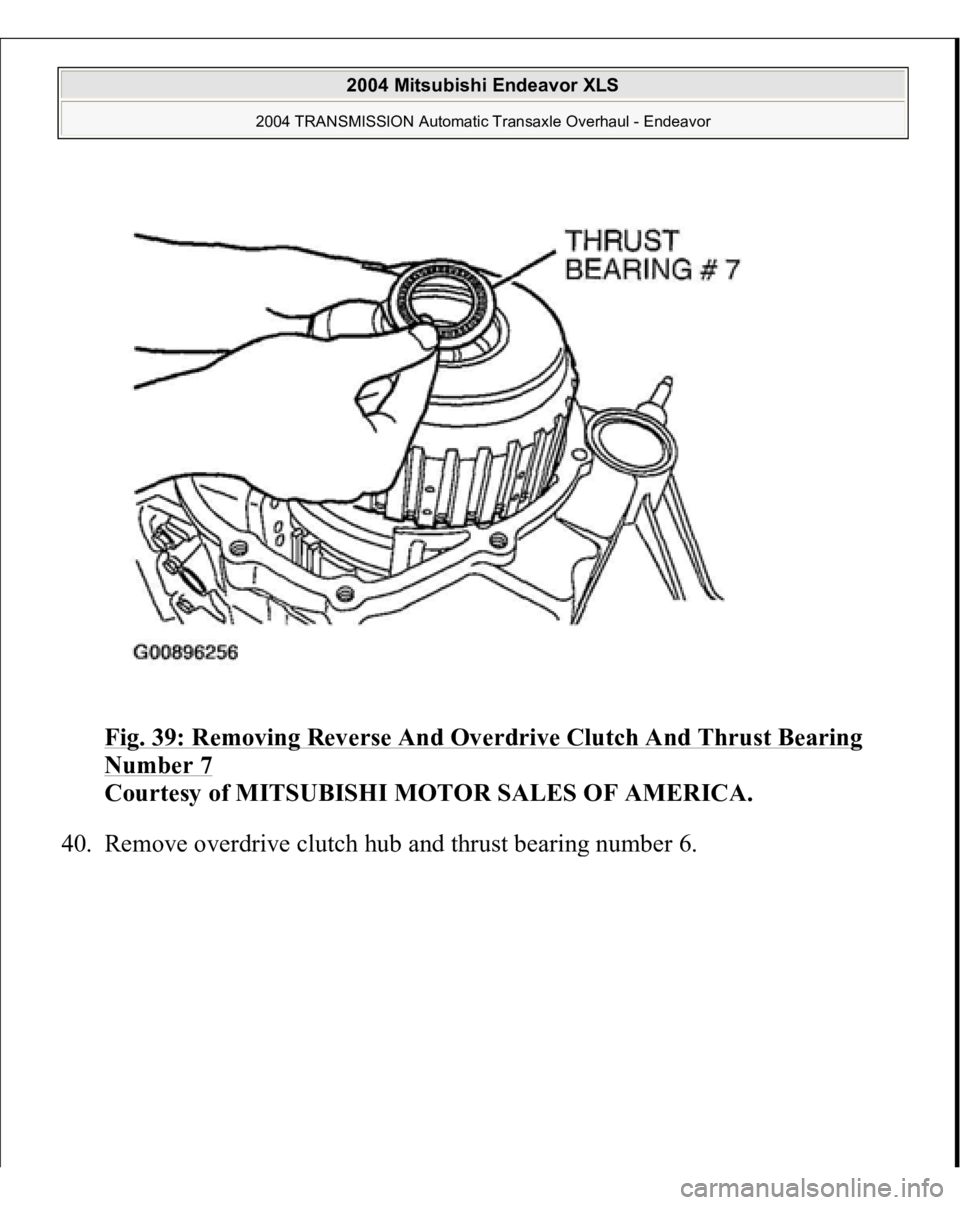

Fig. 39: Removing Reverse And Overdrive Clutch And Thrust Bearing Number 7

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
40. Remove overdrive clutch hub and thrust bearin
g number 6.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

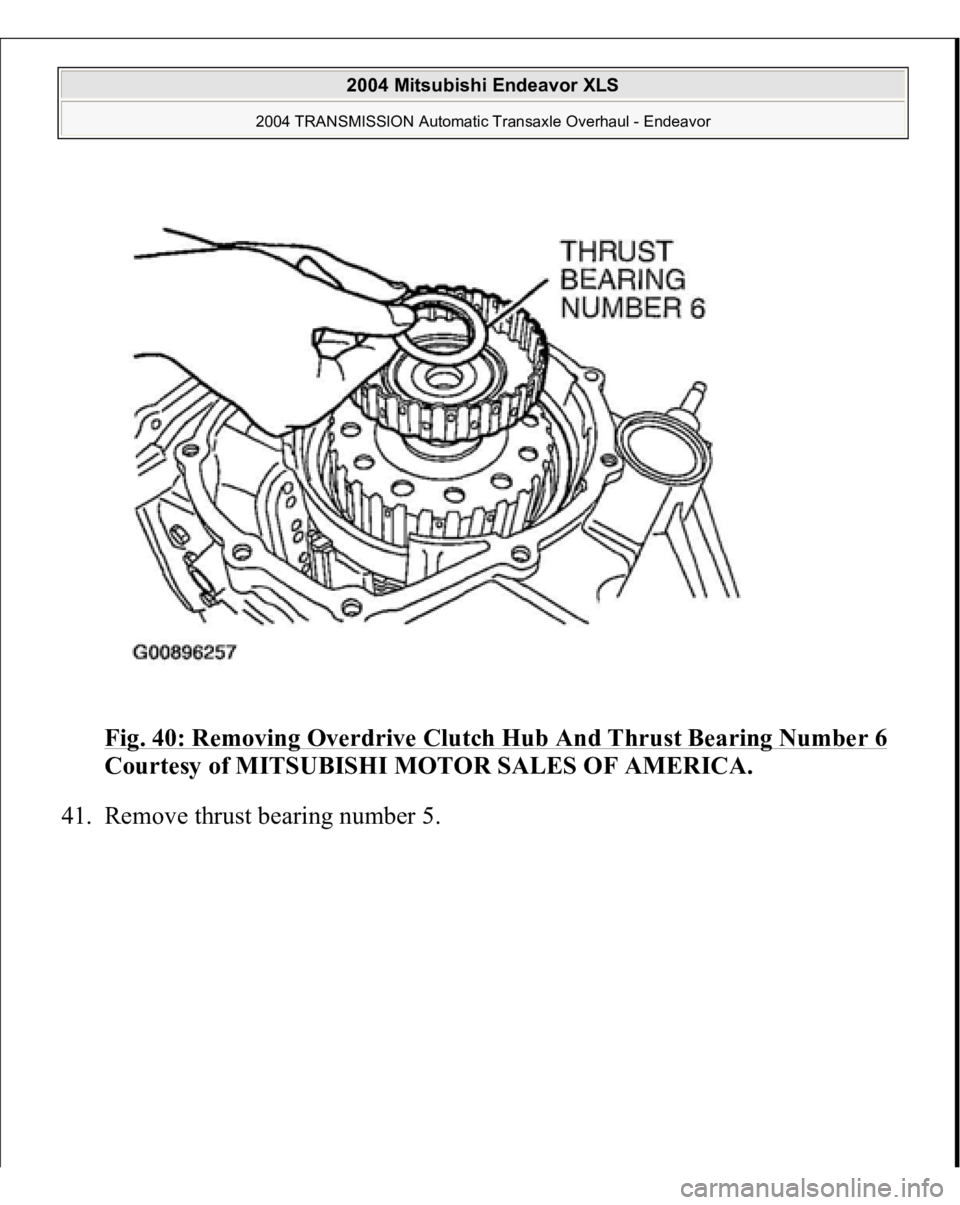

Fig. 40: Removing Overdrive Clutch Hub And Thrust Bearing Number 6

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
41. Remove thrust bearin
g number 5.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Fig. 41: Removing Thrust Bearing Number 5

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
42. Remove the planetary reverse sun gear.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

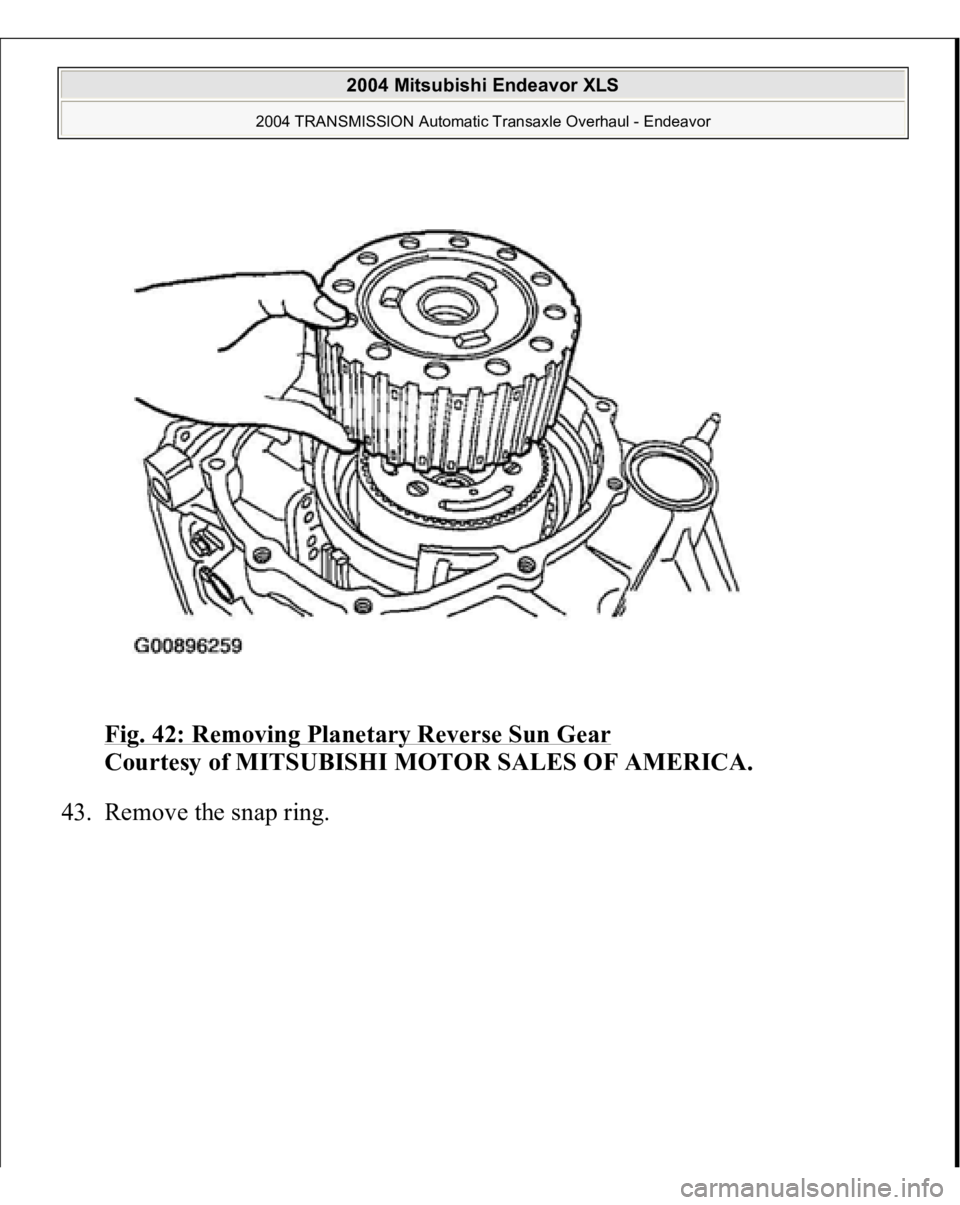

Fig. 42: Removing Planetary Reverse Sun Gear

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
43. Remove the snap ring.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

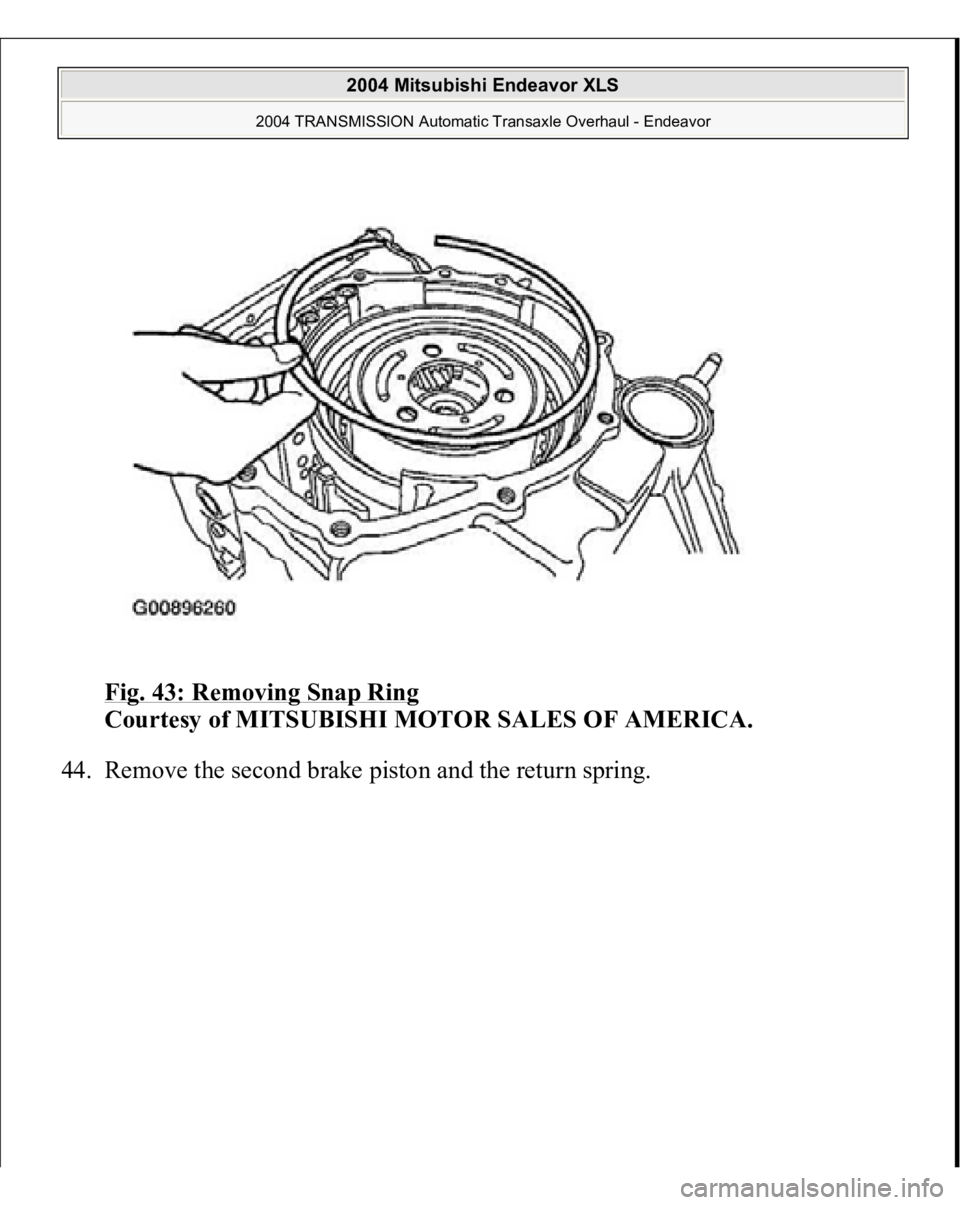

Fig. 43: Removing Snap Ring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
44. Remove the second brake
piston and the return s
prin
g.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Fig. 44: Removing Second Brake Piston And Return Spring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
45. Remove the
pressure
plate, brake discs and brake
plates.

2004 Mitsubishi Endeavor XLS
