Page 471 of 3870
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
7. Remove the input shaft speed sensor and output shaft speed sensor.

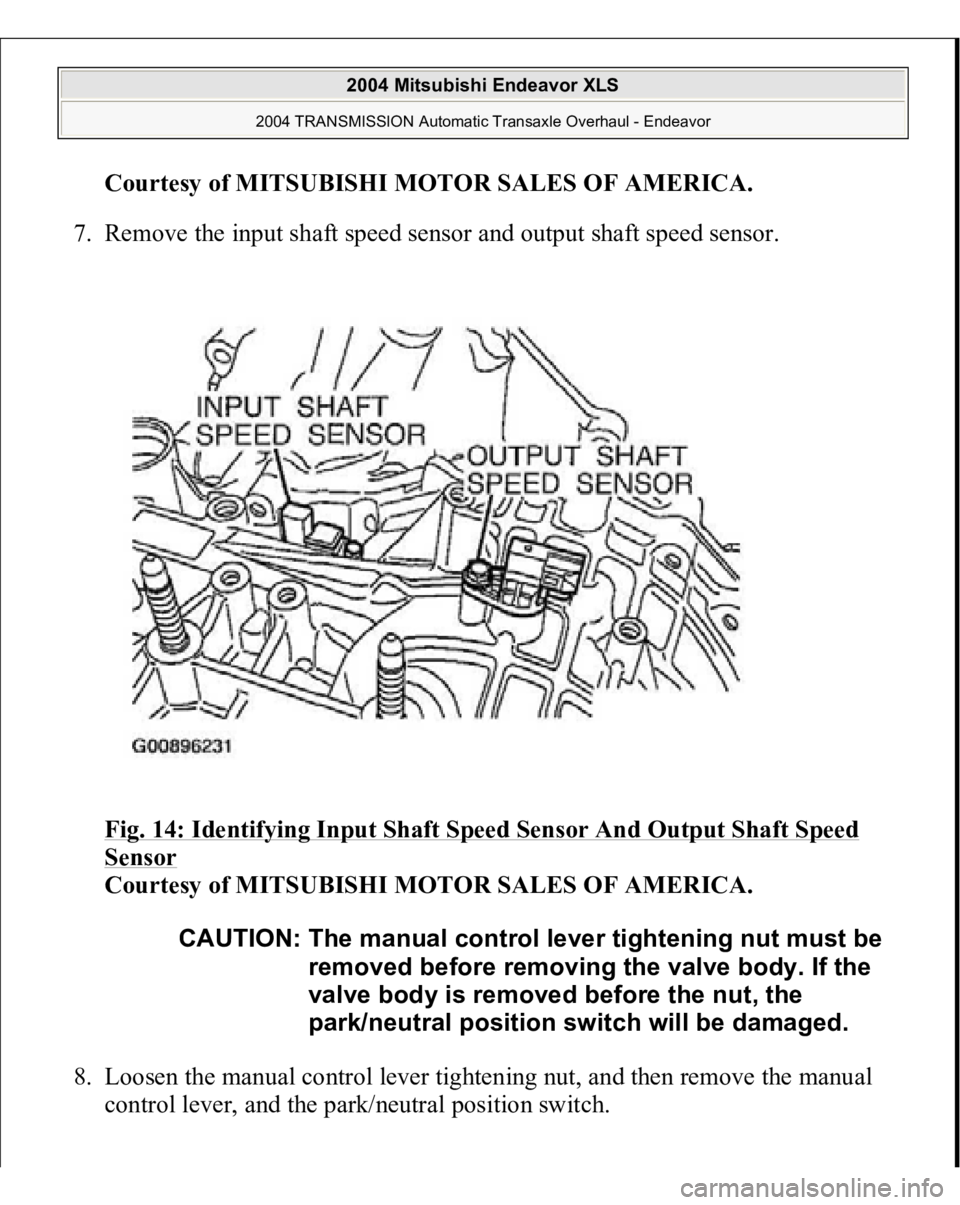

Fig. 14: Identifying Input Shaft Speed Sensor And Output Shaft Speed
Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
8. Loosen the manual control lever tightening nut, and then remove the manual
control lever, and the park/neutral position switch. CAUTION: The manual control lever tightening nut must be
removed before removing the valve body. If the
valve body is removed before the nut, the
park/neutral position switch will be damaged.
2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor
Page 472 of 3870

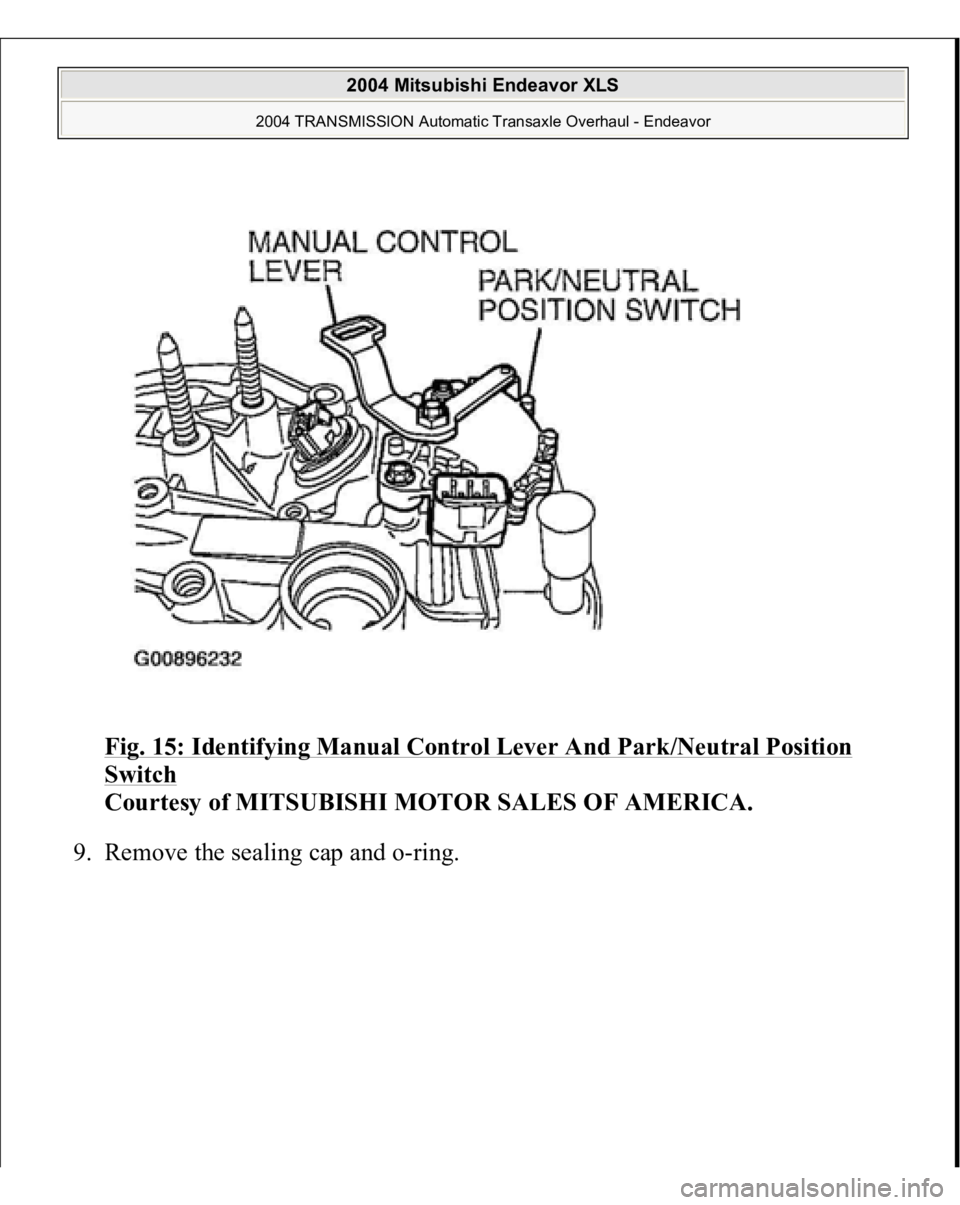

Fig. 15: Identifying Manual Control Lever And Park/Neutral Position Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
9. Remove the sealing cap and o-ring.
2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor
Page 473 of 3870

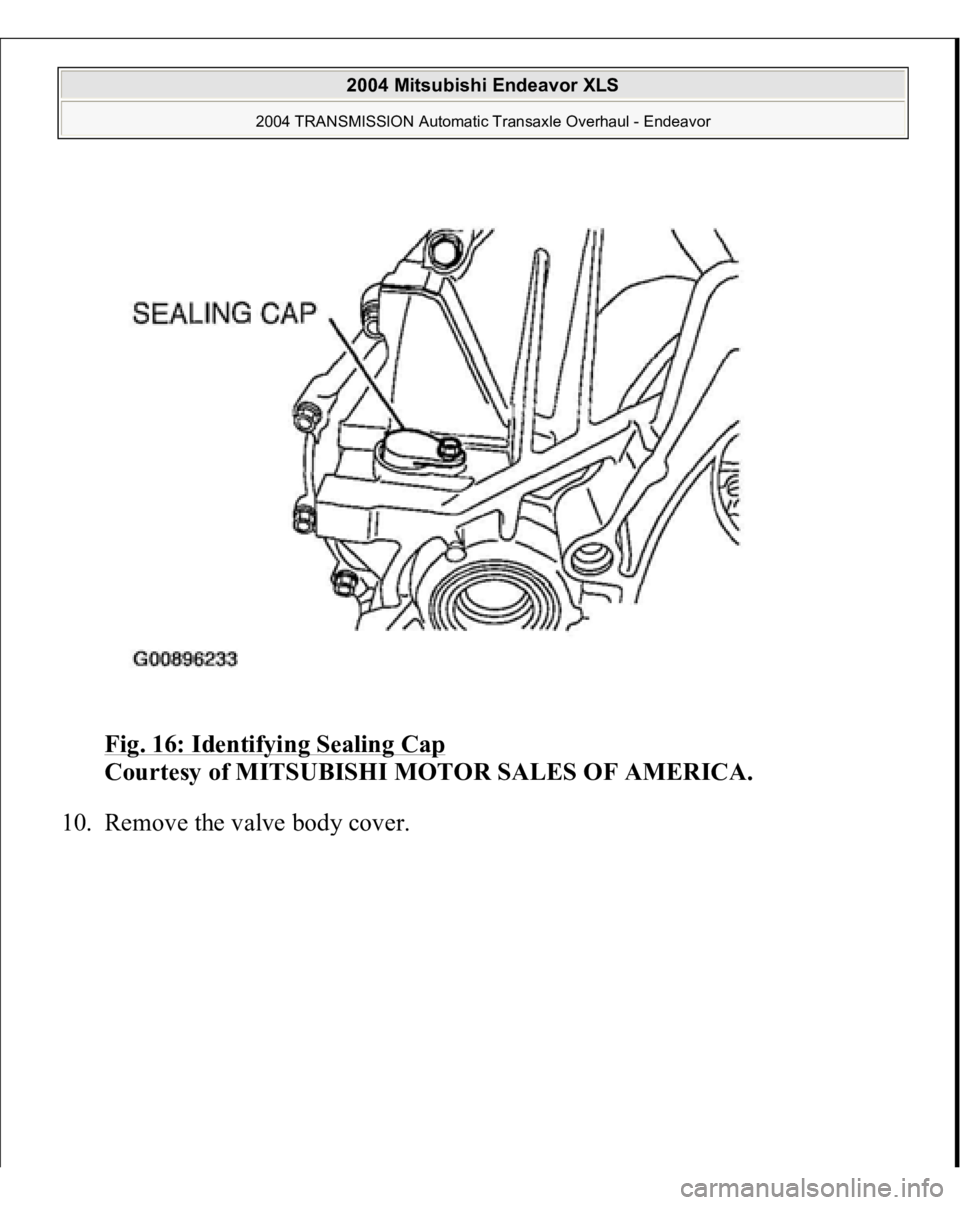

Fig. 16: Identifying Sealing Cap
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
10. Remove the valve bod
y cover.
2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor
Page 474 of 3870

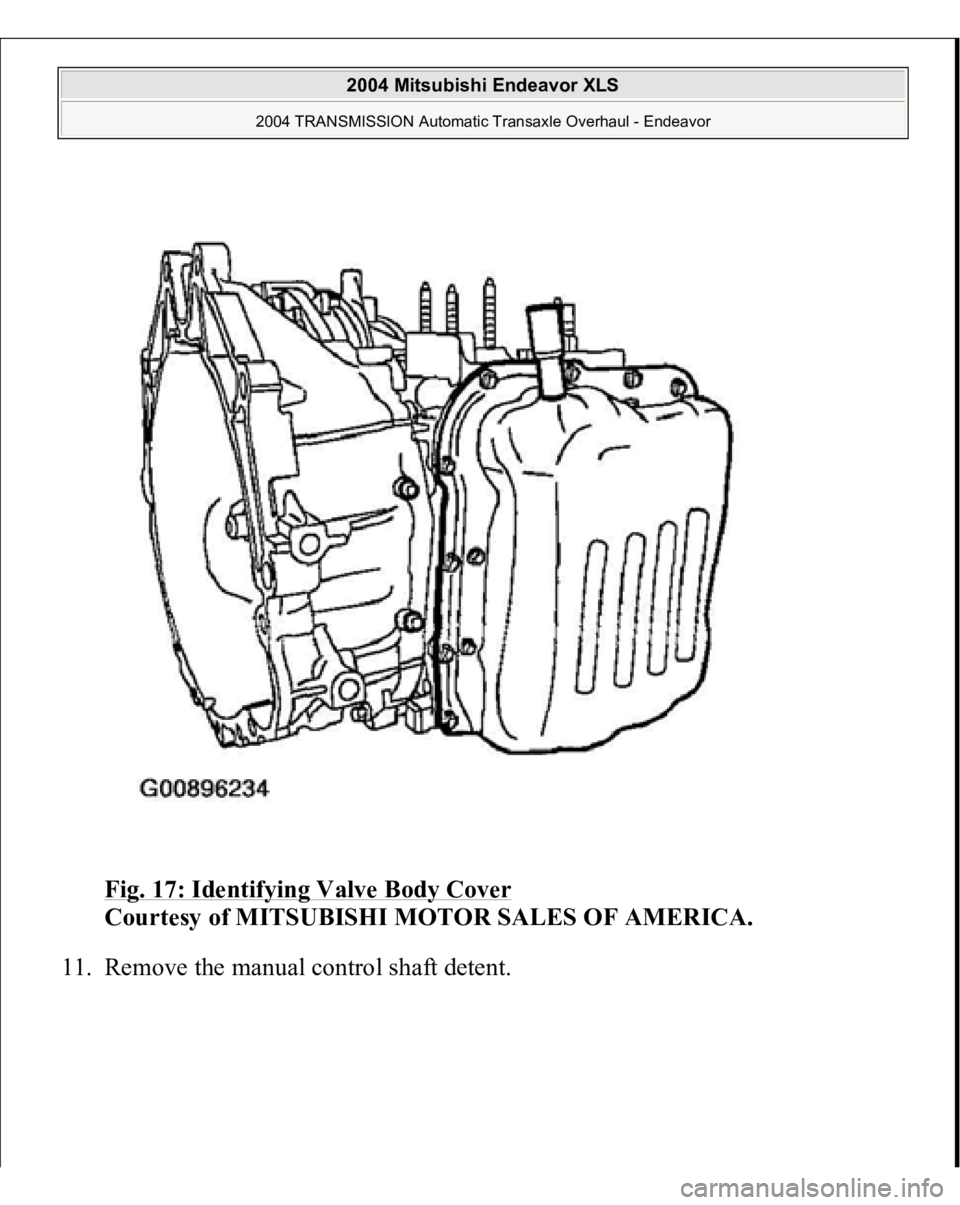

Fig. 17: Identifying Valve Body Cover
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
11. Remove the manual control shaft detent.
2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor
Page 475 of 3870

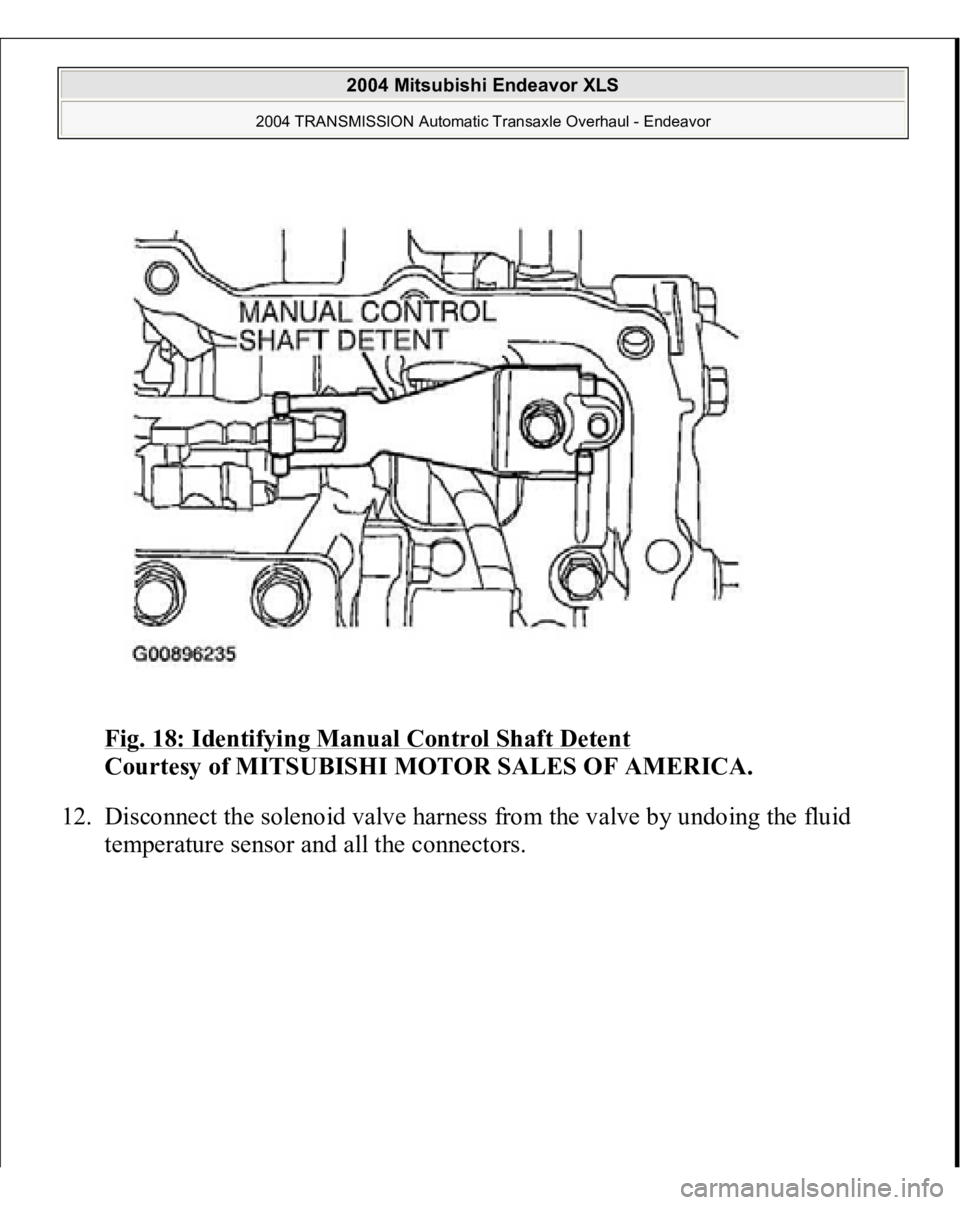

Fig. 18: Identifying Manual Control Shaft Detent
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
12. Disconnect the solenoid valve harness from the valve by undoing the fluid
tem
perature sensor and all the connectors.
2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor
Page 476 of 3870

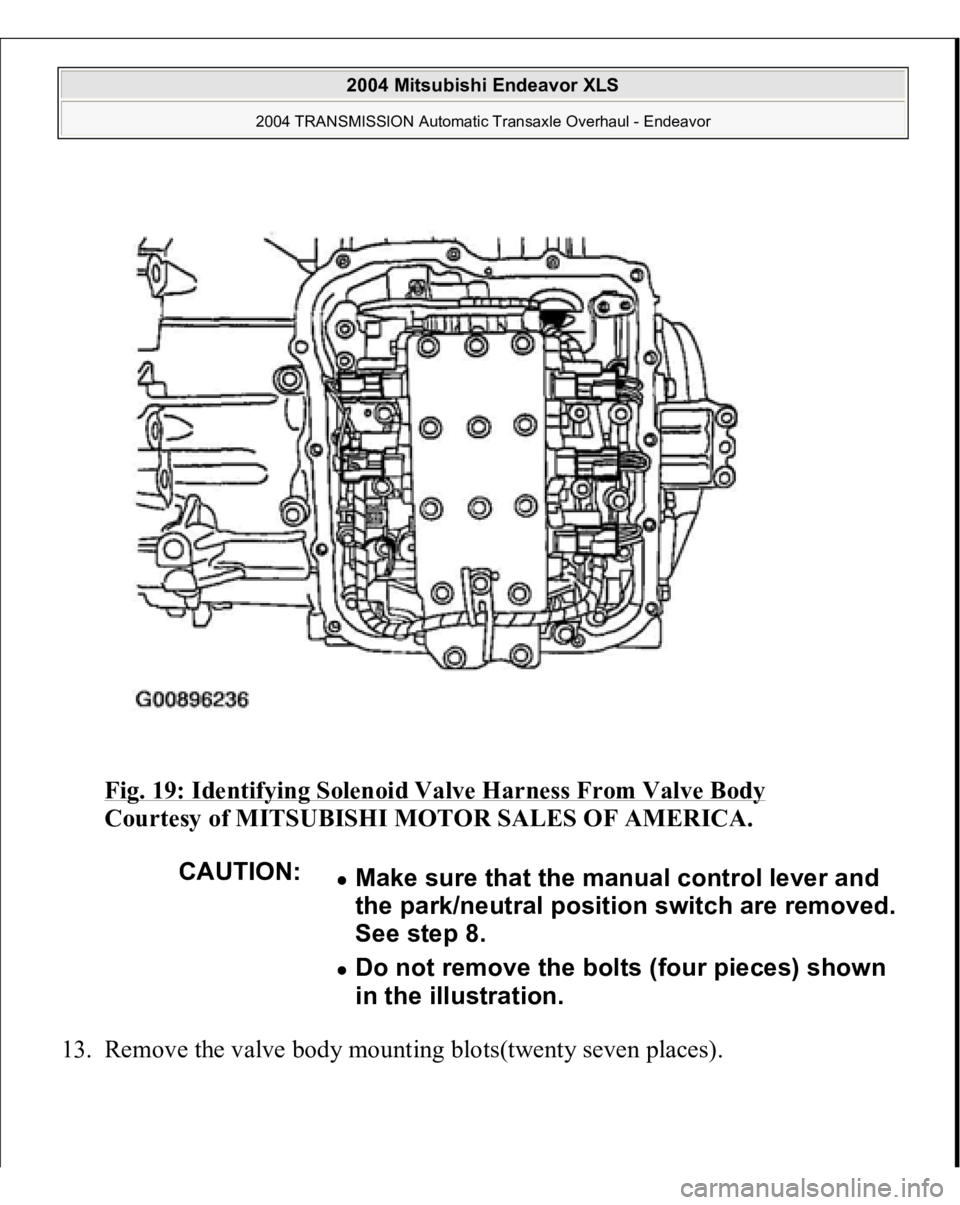

Fig. 19: Identifying Solenoid Valve Harness From Valve Body
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
13. Remove the valve bod
y mountin
g blots
(twent
y seven
places
).
CAUTION:
Make sure that the manual control lever and
the park/neutral position switch are removed.
See step 8. Do not remove the bolts (four pieces) shown
in the illustration.
2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor
Page 477 of 3870

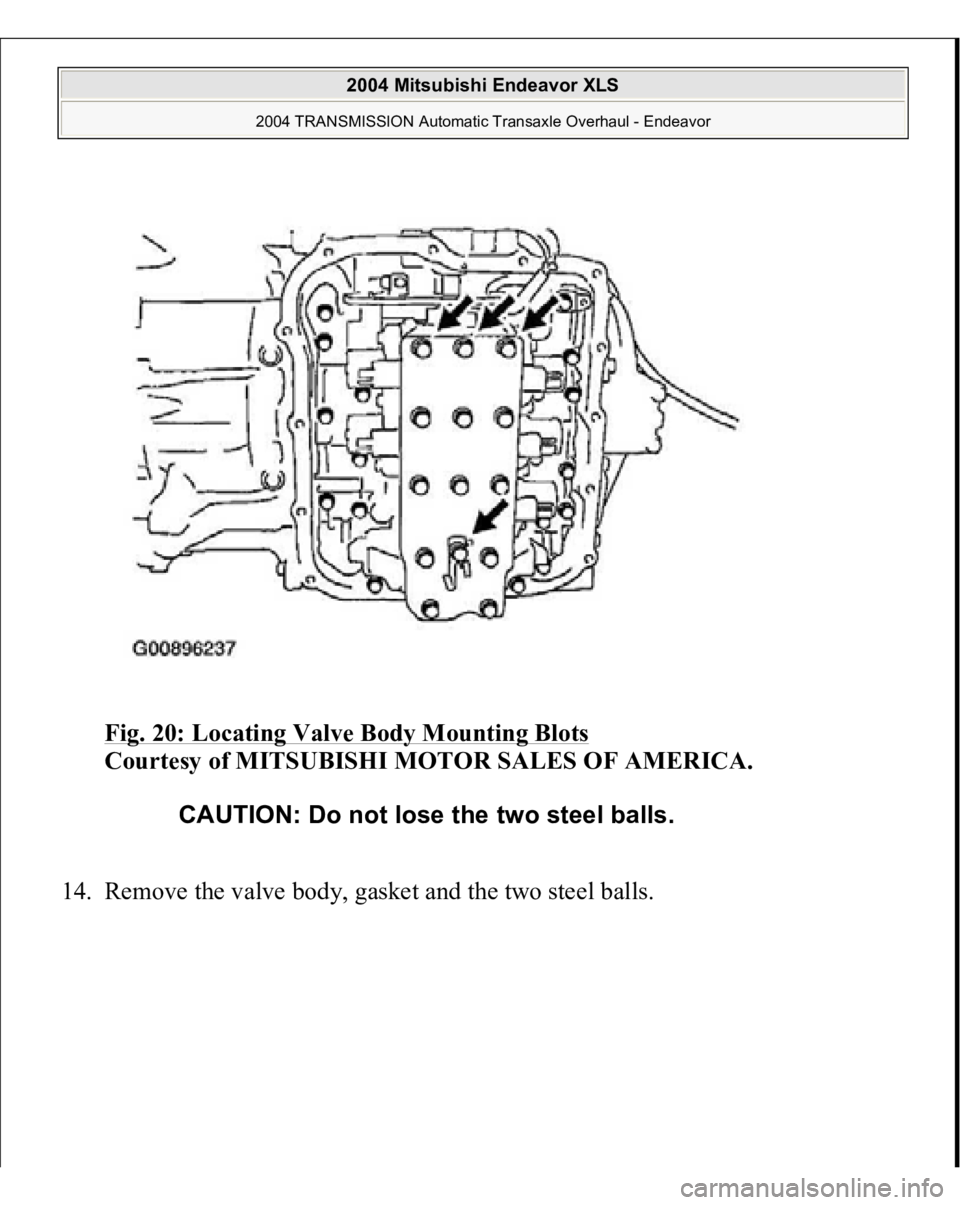

Fig. 20: Locating Valve Body Mounting Blots
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
14. Remove the valve bod
y, gasket and the two steel balls.
CAUTION: Do not lose the two steel balls.
2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor
Page 478 of 3870

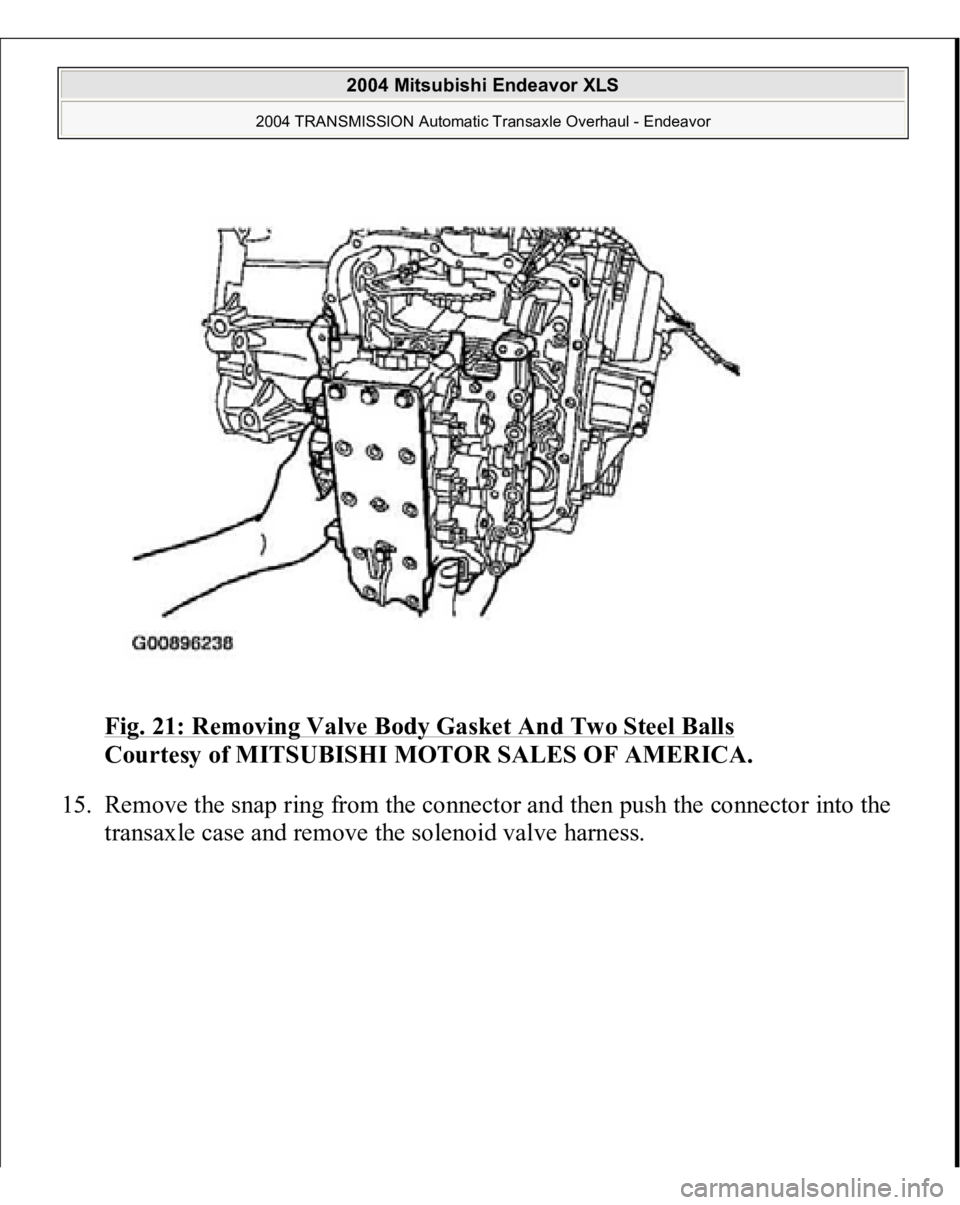

Fig. 21: Removing Valve Body Gasket And Two Steel Balls
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
15. Remove the snap ring from the connector and then push the connector into the
transaxle case and remove the solenoid valve harness.
2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor
Page 479 of 3870

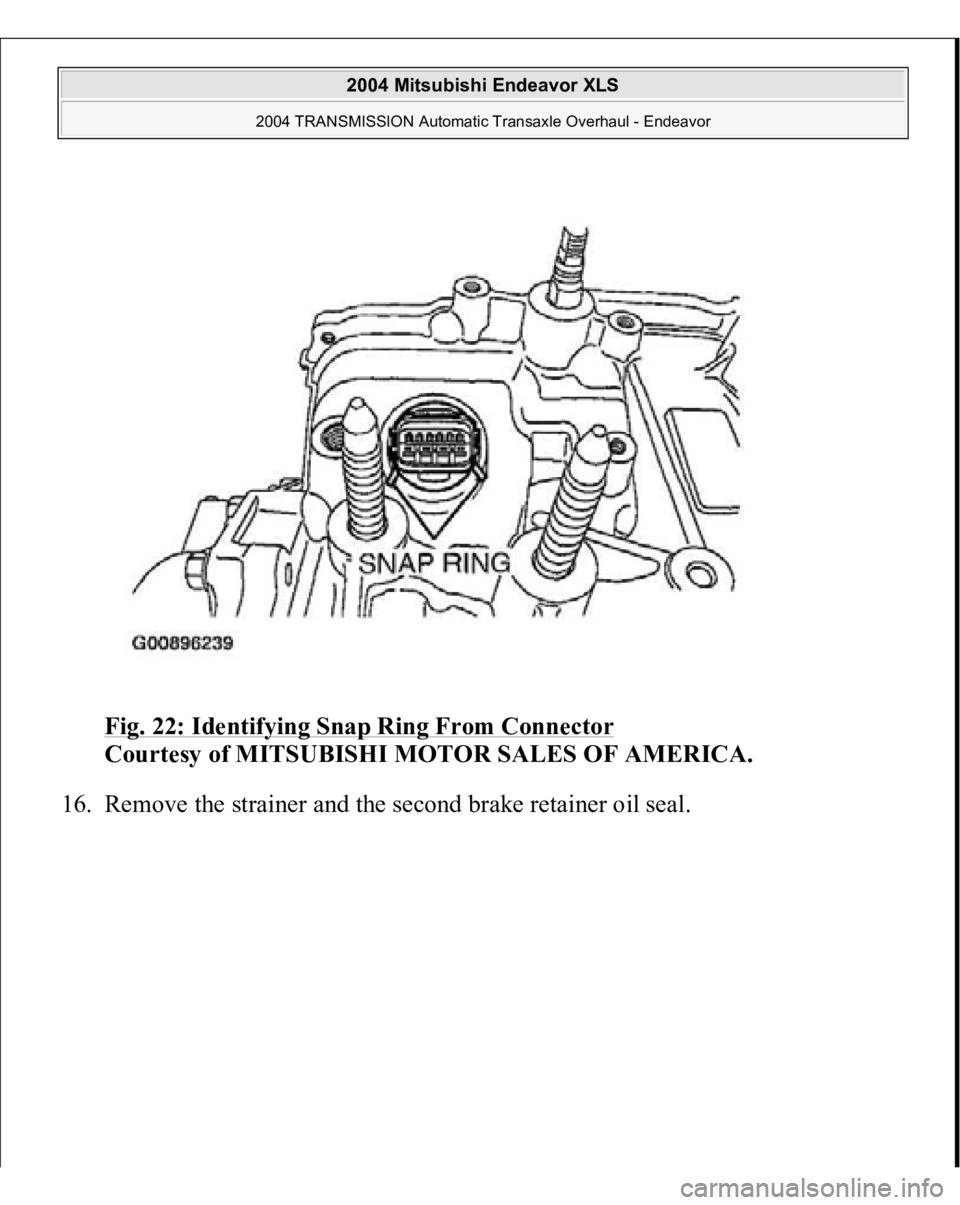

Fig. 22: Identifying Snap Ring From Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
16. Remove the strainer and the second brake retainer oil seal.
2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor
Page 480 of 3870

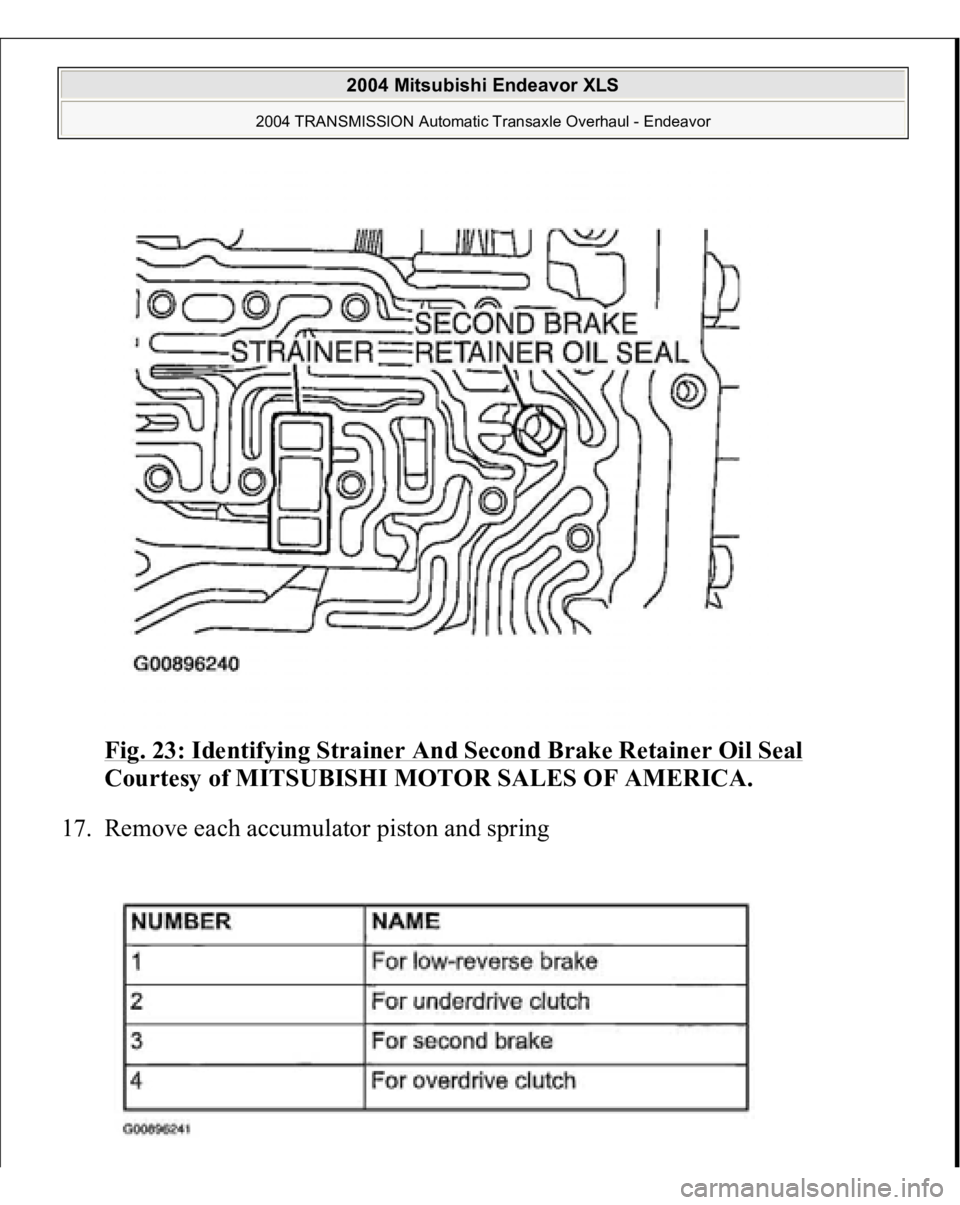

Fig. 23: Identifying Strainer And Second Brake Retainer Oil Seal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
17. Remove each accumulator piston and spring
2004 Mitsubishi Endeavor XLS
