MITSUBISHI ENDEAVOR 2004 Service Repair Manual

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

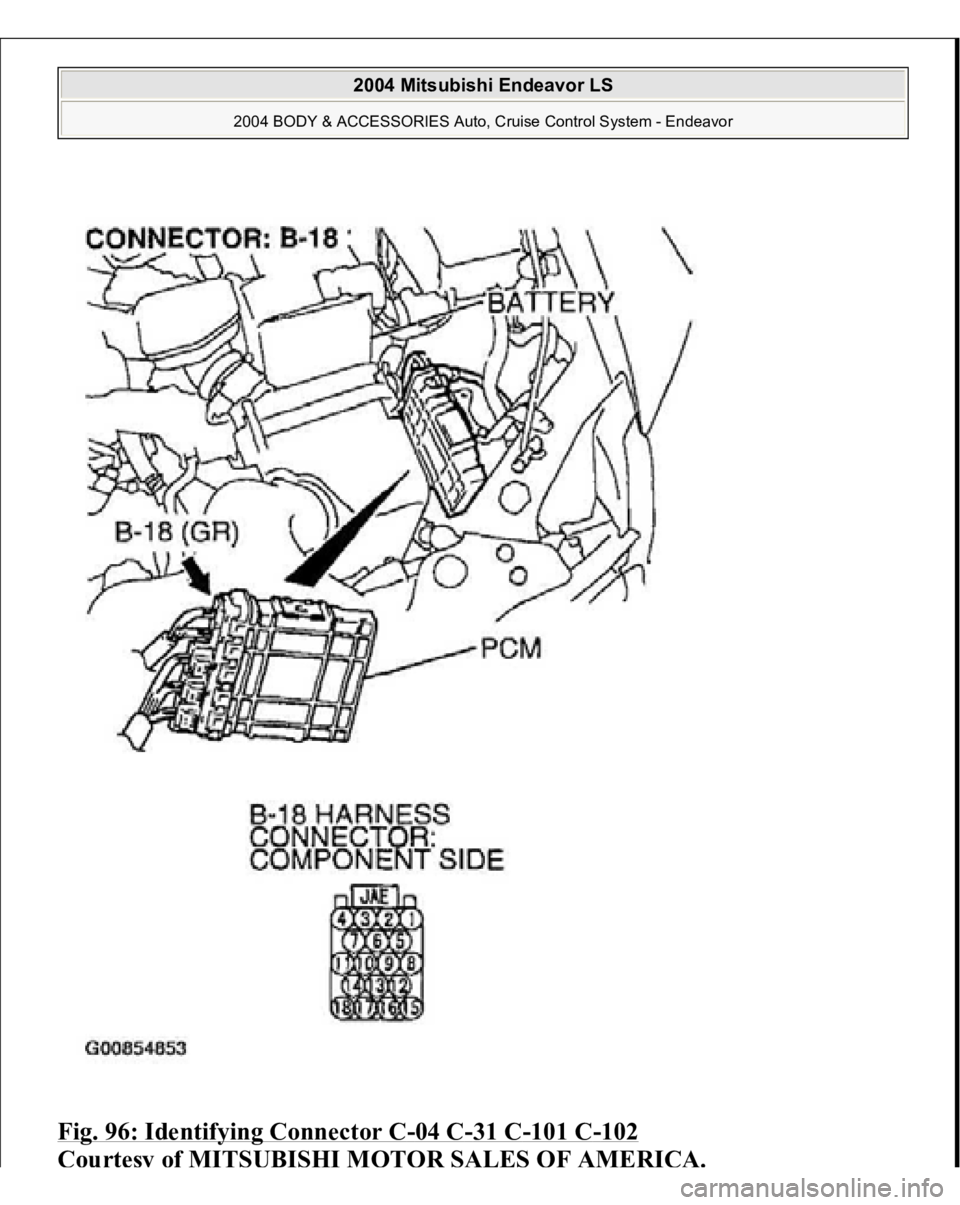

Fig. 95: Identifying Connector
B-18
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

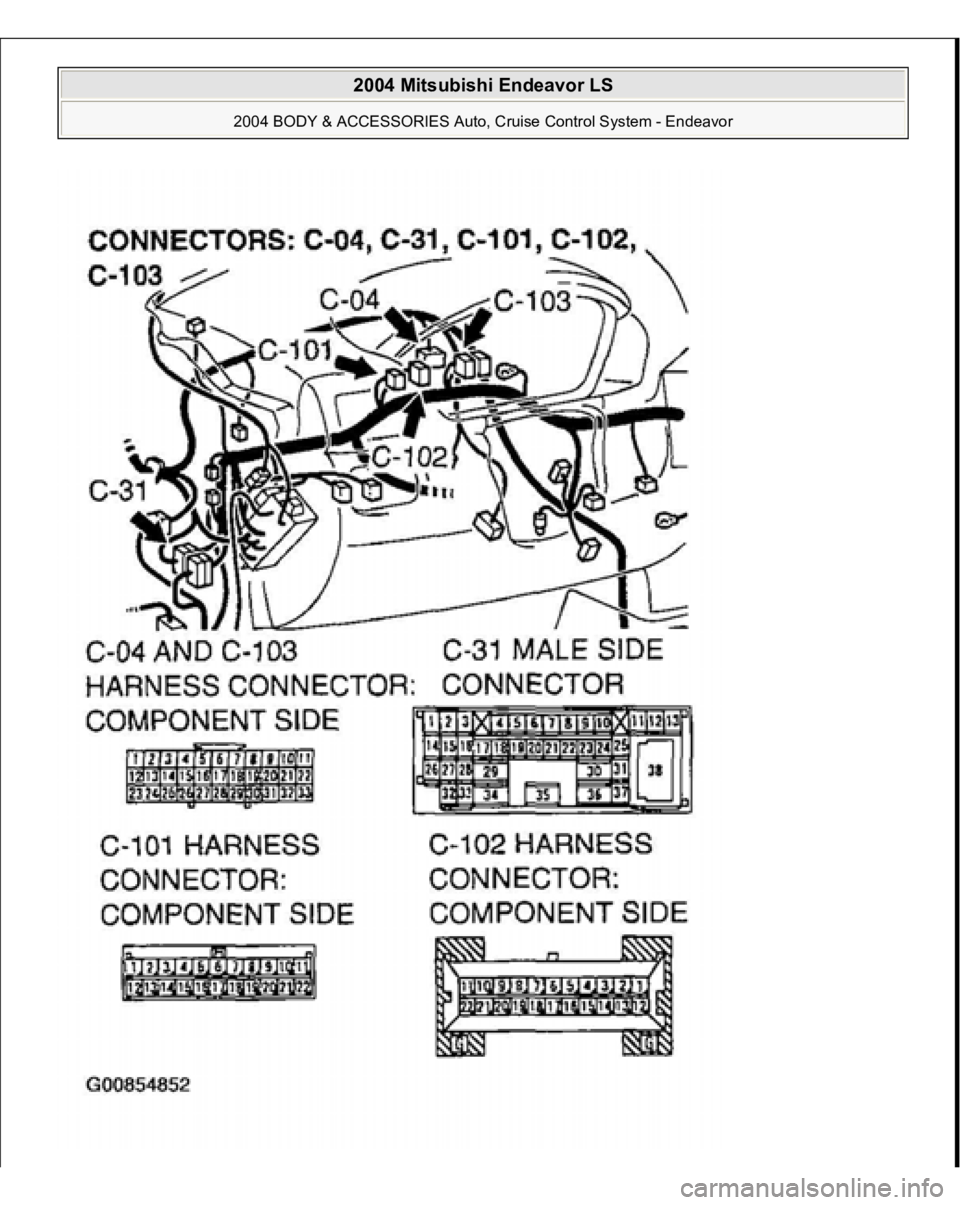

Fig. 96: Identifying Connector C
-04 C
-31 C
-101 C
-102

Cou
rtesy
of MIT
SU
BI
SHI M
OTOR SALE
S OF AMERI
CA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Fig. 97: Identif
ying Connector C
-211 C
-215

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

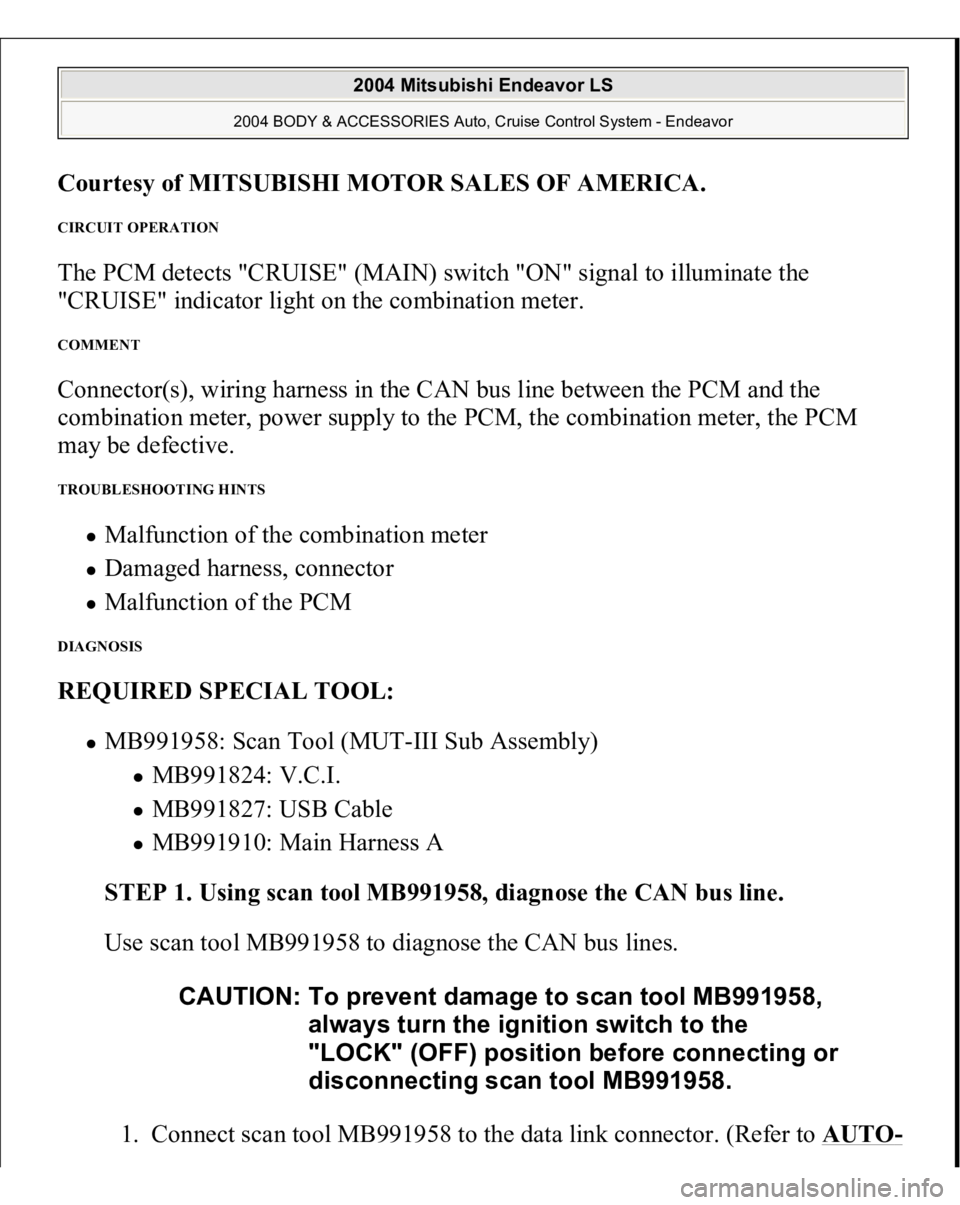

CIRCUIT OPERATION The PCM detects "CRUISE" (MAIN) switch "ON" signal to illuminate the
"CRUISE" indicator light on the combination meter. COMMENT Connector(s), wiring harness in the CAN bus line between the PCM and the
combination meter, power supply to the PCM, the combination meter, the PCM
may be defective. TROUBLESHOOTING HINTS
Malfunction of the combination meter Damaged harness, connector Malfunction of the PCM
DIAGNOSIS REQUIRED SPECIAL TOOL:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: V.C.I. MB991827: USB Cable MB991910: Main Harness A
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
Use scan tool MB991958 to diagnose the CAN bus lines.
1. Connect scan tool MB991958 to the data link connec
tor.
(Refer to AUTO
-
CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

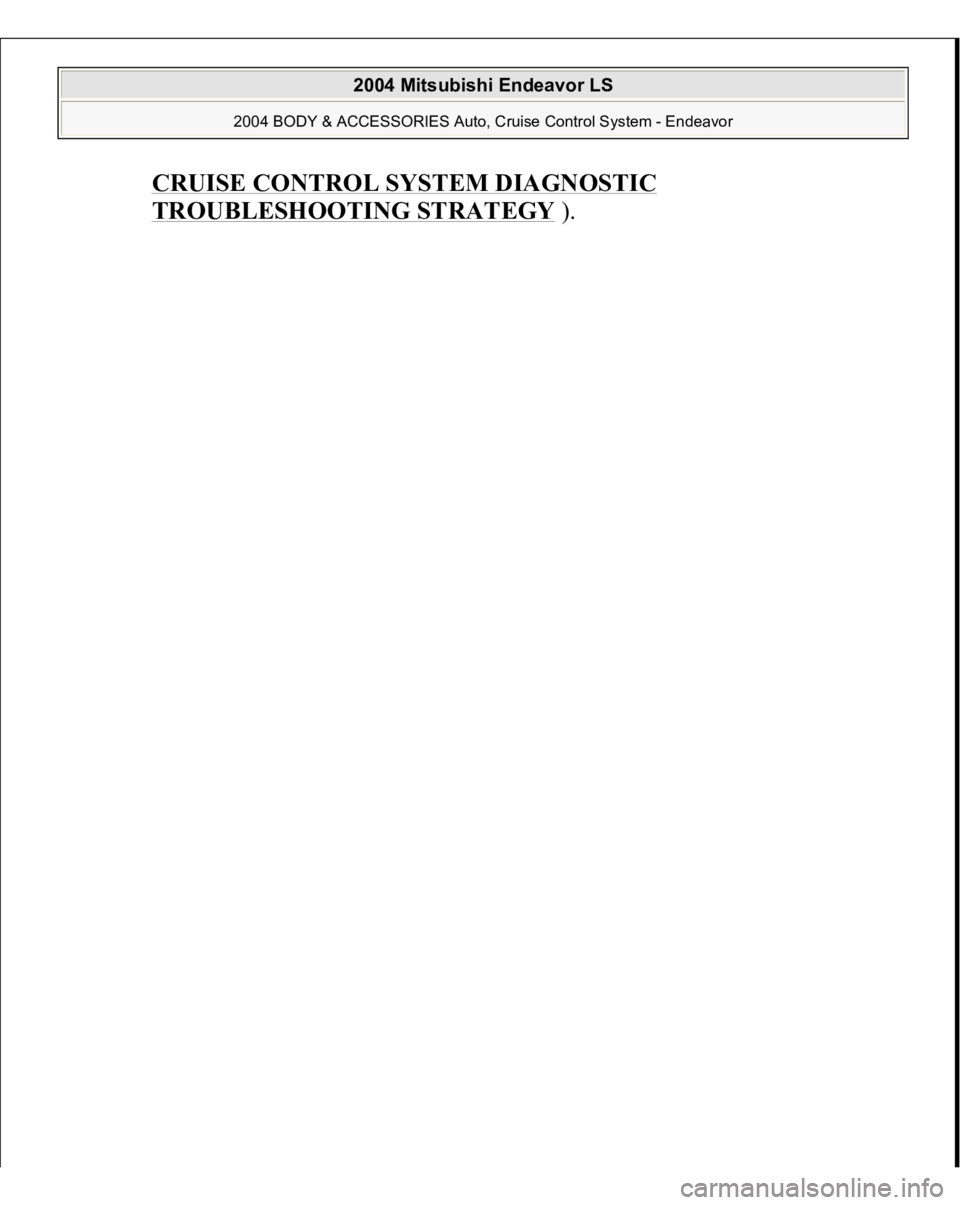

CRUISE CONTROL SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY
).

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Fig. 98: Connecting Scan Tool To Data Link Connector

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

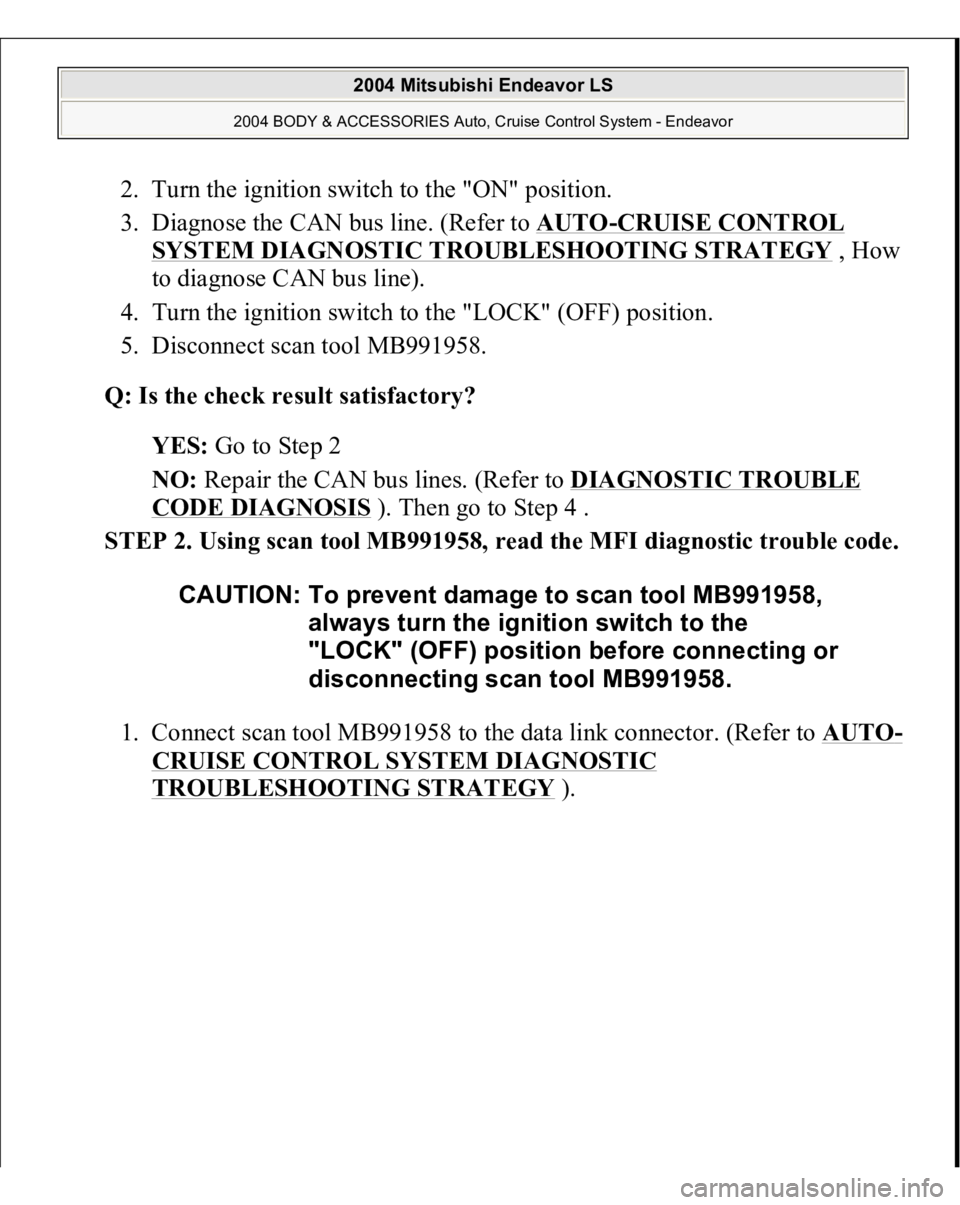

2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line. (Refer to AUTO
-CRUISE CONTROL
SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY
, How
to diagnose CAN bus line).
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is the check result satisfactory?
YES: Go to Step 2
NO: Repair the CAN bus lines. (Refer to DIAGNOSTIC TROUBLE
CODE DIAGNOSIS
). Then go to Step 4 .
STEP 2. Using scan tool MB991958, read the MFI diagnostic trouble code.
1. Connect scan tool MB991958 to the data link connector. (Refer to AUTO
-
CRUISE CONTROL SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY
).
CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Fig. 99: Connectin
g Scan Tool To Data Link Connector

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

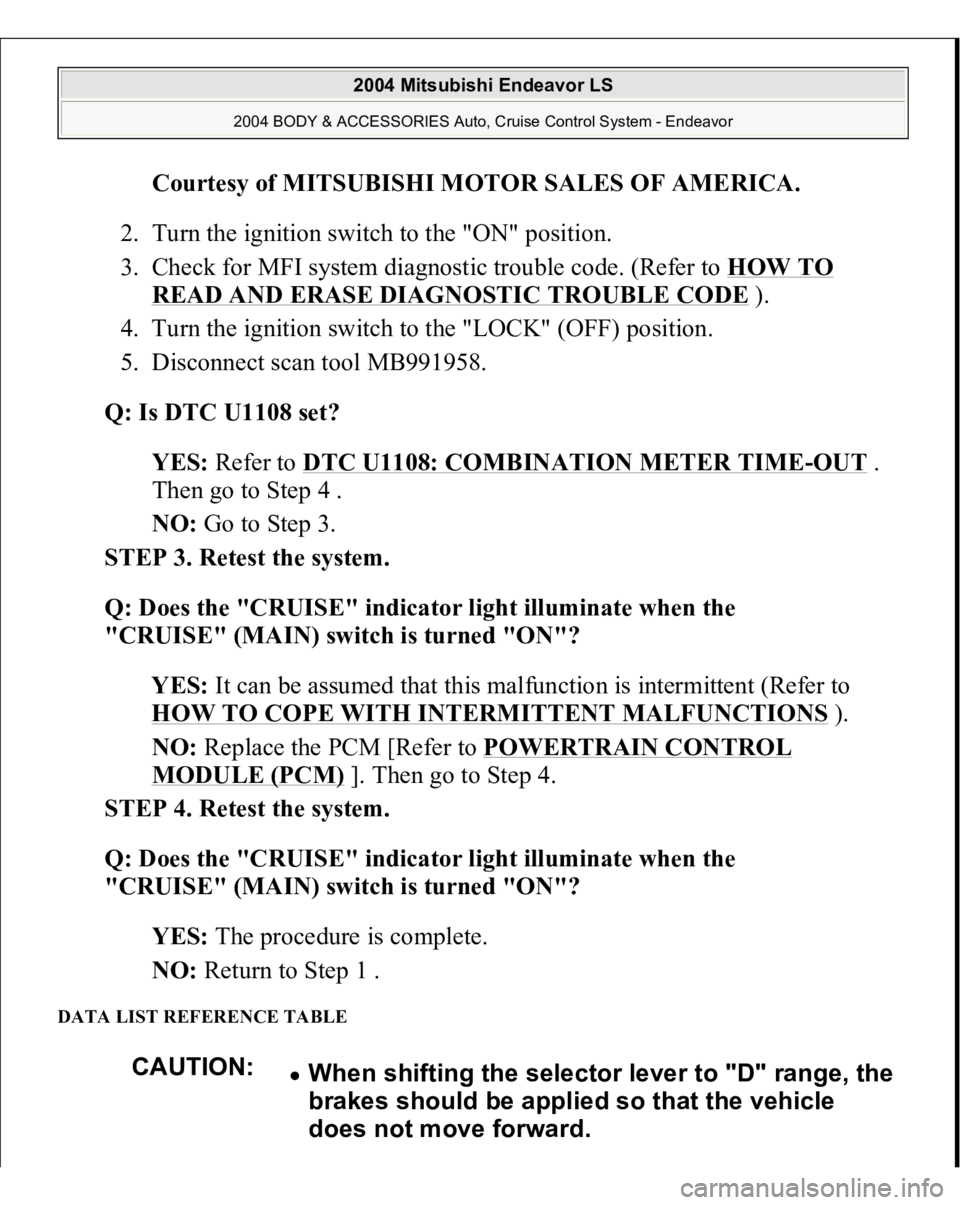

2. Turn the ignition switch to the "ON" position.
3. Check for MFI system diagnostic trouble code. (Refer to HOW TO
READ AND ERASE DIAGNOSTIC TROUBLE CODE
).
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is DTC U1108 set?
YES: Refer to DTC U1108: COMBINATION METER TIME
-OUT
.
Then go to Step 4 .
NO: Go to Step 3.
STEP 3. Retest the system.
Q: Does the "CRUISE" indicator light illuminate when the
"CRUISE" (MAIN) switch is turned "ON"?
YES: It can be assumed that this malfunction is intermittent (Refer to
HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
).
NO: Replace the PCM [Refer to POWERTRAIN CONTROL
MODULE (PCM)
]. Then go to Step 4.
STEP 4. Retest the system.
Q: Does the "CRUISE" indicator light illuminate when the
"CRUISE" (MAIN) switch is turned "ON"?
YES: The procedure is complete.
NO: Return to Step 1 .
DATA LIST REFERENCE TABLE
CAUTION:
When shifting the selector lever to "D" range, the
brakes should be applied so that the vehicle
does not move forward.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
