MITSUBISHI GRANDIS 2008 Owner's Manual (in English)

Instruments and controls
3-5
3
NOTE●Display TRIP and each have a maximum distance
of 999.9 km (999.9 miles).
●Even when the ignition switch has been turned to the
“LOCK” position, pressing the tripmeter reset button
causes the odometer/tripmeter indication to appear for
approximately 30 seconds.
●When disconnecting the battery terminal for a long time,
the memory of tripmeter display TRIP and are
cleared, and the display returns to “0”.

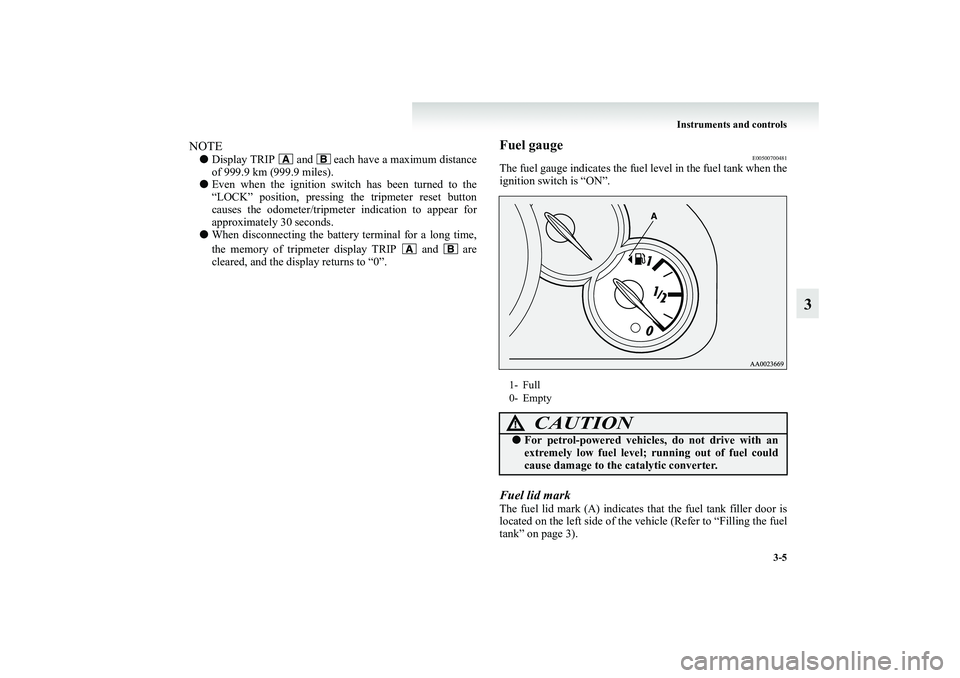

Fuel gauge
E00500700481
The fuel gauge indicates the fuel level in the fuel tank when the
ignition switch is “ON”.Fuel lid markThe fuel lid mark (A) indicates that the fuel tank filler door is
located on the left side of the vehicle (Refer to “Filling the fuel
tank” on page 3).1- Full
0- Empty
CAUTION
!●For petrol-powered vehicles, do not drive with an
extremely low fuel level; running out of fuel could
cause damage to the catalytic converter.
BK-XP08E1ENUK.en-uk.book Page 5 Monday, August 13, 2007 2:20 PM

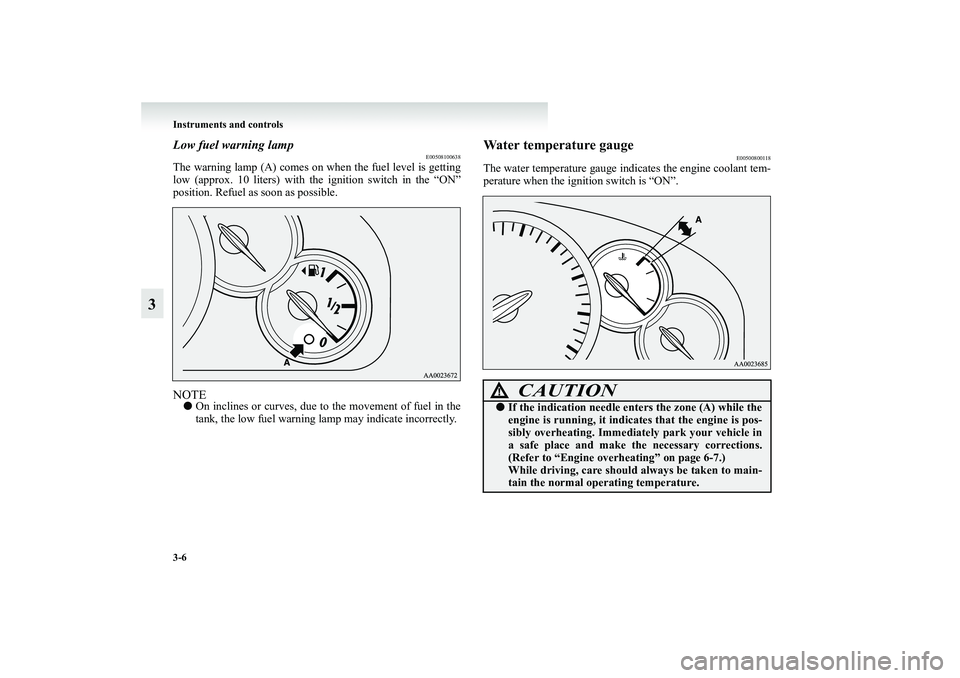

3-6 Instruments and controls
3
Low fuel warning lamp
E00508100638
The warning lamp (A) comes on when the fuel level is getting
low (approx. 10 liters) with the ignition switch in the “ON”
position. Refuel as soon as possible.NOTE●On inclines or curves, due to the movement of fuel in the
tank, the low fuel warning lamp may indicate incorrectly.
Water temperature gauge
E00500800118
The water temperature gauge indicates the engine coolant tem-
perature when the ignition switch is “ON”.
CAUTION
!●If the indication needle enters the zone (A) while the
engine is running, it indicates that the engine is pos-
sibly overheating. Immediately park your vehicle in
a safe place and make the necessary corrections.
(Refer to “Engine overheating” on page 6-7.)
While driving, care should always be taken to main-
tain the normal operating temperature.
BK-XP08E1ENUK.en-uk.book Page 6 Monday, August 13, 2007 2:20 PM

Instruments and controls
3-7
3

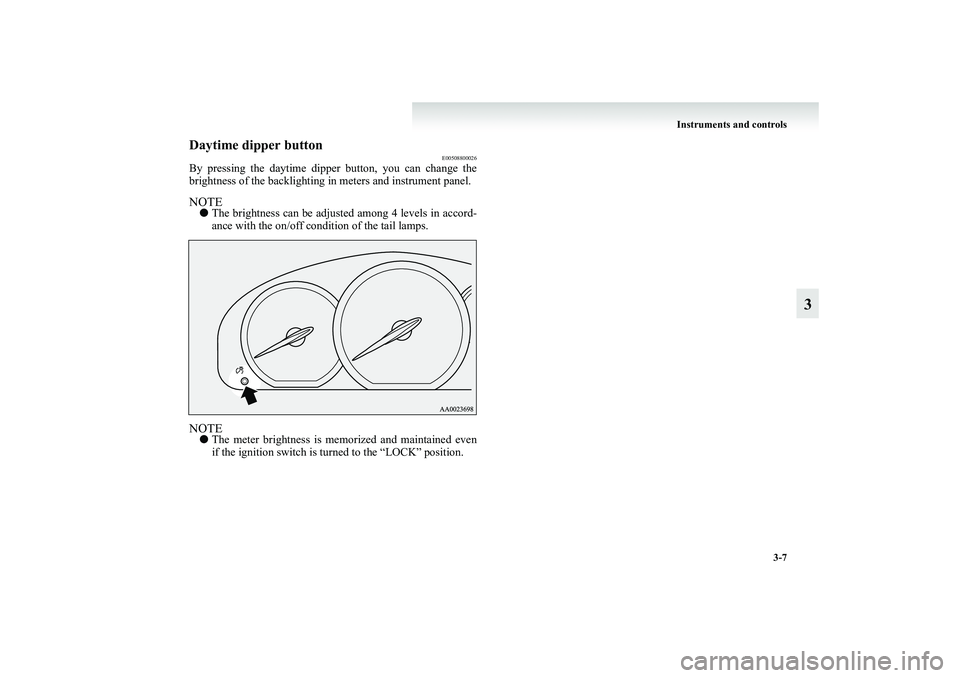

Daytime dipper button
E00508800026
By pressing the daytime dipper button, you can change the
brightness of the backlighting in meters and instrument panel.NOTE●The brightness can be adjusted among 4 levels in accord-
ance with the on/off condition of the tail lamps.NOTE●The meter brightness is memorized and maintained even
if the ignition switch is turned to the “LOCK” position.
BK-XP08E1ENUK.en-uk.book Page 7 Monday, August 13, 2007 2:20 PM

3-8 Instruments and controls

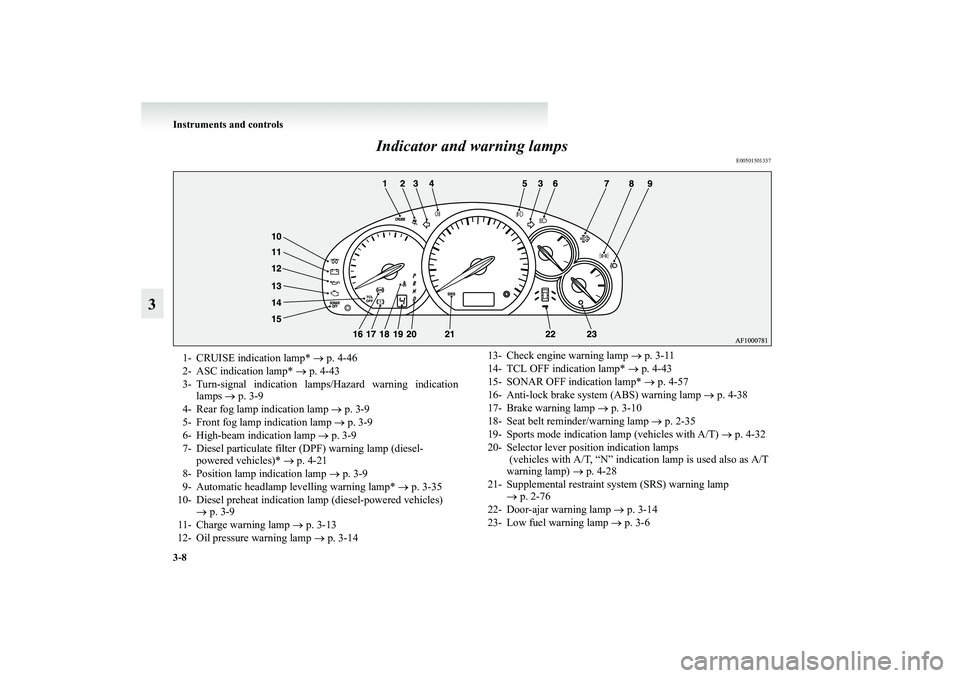

3Indicator and warning lamps
E00501501337
1- CRUISE indication lamp* → p. 4-46
2- ASC indication lamp* → p. 4-43
3- Turn-signal indication lamps/Hazard warning indication
lamps → p. 3-9
4- Rear fog lamp indication lamp → p. 3-9
5- Front fog lamp indication lamp → p. 3-9
6- High-beam indication lamp → p. 3-9
7- Diesel particulate filter (DPF) warning lamp (diesel-
powered vehicles)* → p. 4-21
8- Position lamp indication lamp → p. 3-9
9- Automatic headlamp levelling warning lamp* → p. 3-35
10- Diesel preheat indication lamp (diesel-powered vehicles)
→ p. 3-9
11- Charge warning lamp → p. 3-13

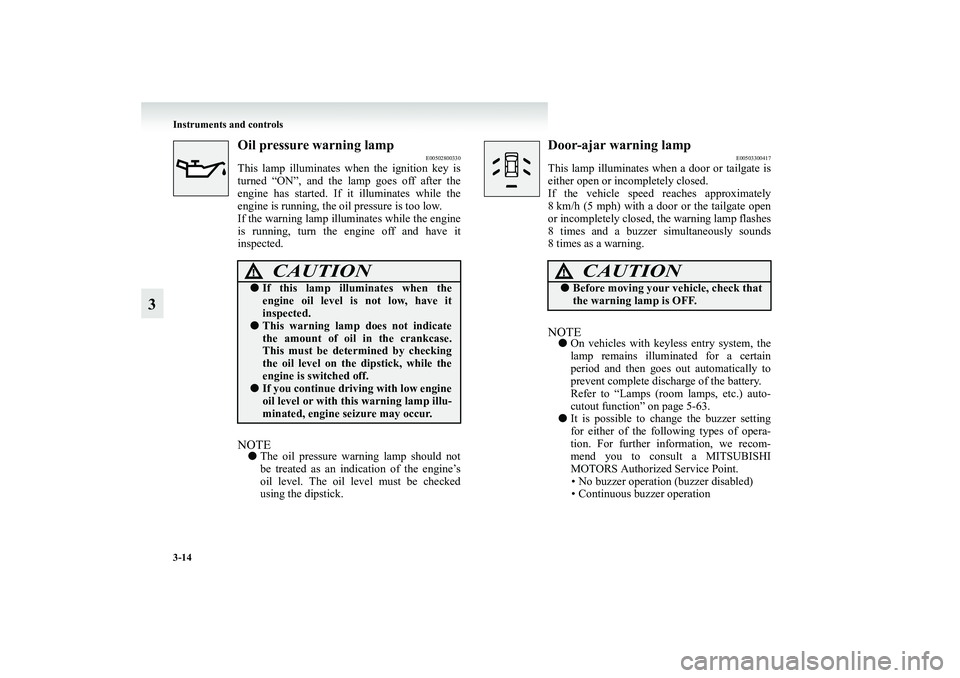

12- Oil pressure warning lamp → p. 3-1413- Check engine warning lamp → p. 3-11
14- TCL OFF indication lamp* → p. 4-43
15- SONAR OFF indication lamp* → p. 4-57
16- Anti-lock brake system (ABS) warning lamp → p. 4-38
17- Brake warning lamp → p. 3-10
18- Seat belt reminder/warning lamp → p. 2-35
19- Sports mode indication lamp (vehicles with A/T) → p. 4-32
20- Selector lever position indication lamps
(vehicles with A/T, “N” indication lamp is used also as A/T
warning lamp) → p. 4-28
21- Supplemental restraint system (SRS) warning lamp
→ p. 2-76
22- Door-ajar warning lamp → p. 3-14
23- Low fuel warning lamp → p. 3-6
BK-XP08E1ENUK.en-uk.book Page 8 Monday, August 13, 2007 2:20 PM

Instruments and controls
3-9
3 Indicator lamps
E00501600012
Turn-signal indication lamps/Hazard
warning indication lamps
E00501700169
These indication lamps blink on and off when a
turn-signal lamp is operating.NOTE●If the blinking is too fast, the cause may be
a faulty turn-signal connection or a blown
lamp bulb.
When the hazard warning lamp switch is
pressed, all turn-signal lamps will flash on and
off continuously.High-beam indication lamp
E00501800160
This indication lamp illuminates when the high
beam is used.Front fog lamp indication lamp
E00501900321
This lamp illuminates while the front fog lamps
are on.
Rear fog lamp indication lamp
E00502000101
This lamp illuminates while the rear fog lamp is
on.Position lamp indication lamp
E00508900102
This lamp illuminates with the lamp switch at
“ ” or “ ” positionDiesel preheat indication lamp
(diesel-powered vehicles)
E00502300061
This indication lamp illuminates when the igni-
tion switch is placed in the “ON” position. As
the glow plug becomes hot, the lamp goes out
and the engine can be started. If it does not go off
after a few seconds, we recommend you to have
the vehicle checked.NOTE●If the engine is cold, the diesel preheat indi-
cation lamp is on for a longer time.
●When the engine has not been started within
about 5 seconds after the diesel preheat
indication lamp went out, return the ignition
switch to the “LOCK” position. Then, turn
the switch to the “ON” position to preheat
the engine again.
BK-XP08E1ENUK.en-uk.book Page 9 Monday, August 13, 2007 2:20 PM

3-10 Instruments and controls
3
●When the engine is warm, the diesel preheat
indication lamp does not come on even if
the ignition switch is placed in the “ON”
position.

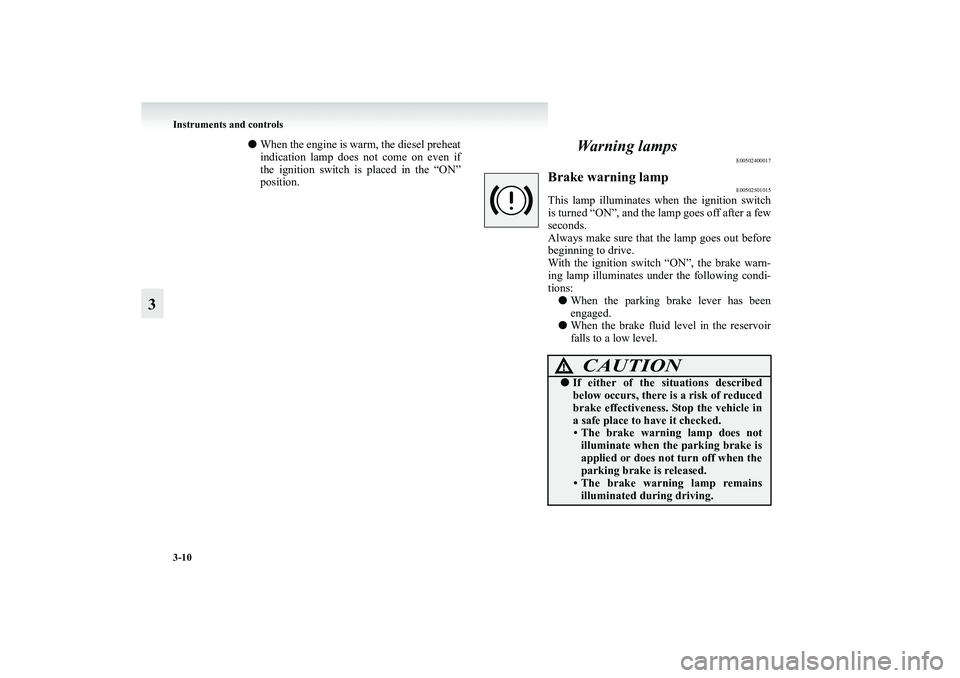

Warning lamps
E00502400017
Brake warning lamp
E00502501015
This lamp illuminates when the ignition switch
is turned “ON”, and the lamp goes off after a few
seconds.
Always make sure that the lamp goes out before
beginning to drive.
With the ignition switch “ON”, the brake warn-
ing lamp illuminates under the following condi-
tions:
●When the parking brake lever has been
engaged.
●When the brake fluid level in the reservoir
falls to a low level.
CAUTION
!●If either of the situations described
below occurs, there is a risk of reduced
brake effectiveness. Stop the vehicle in
a safe place to have it checked.
• The brake warning lamp does not
illuminate when the parking brake is
applied or does not turn off when the
parking brake is released.
• The brake warning lamp remains
illuminated during driving.
BK-XP08E1ENUK.en-uk.book Page 10 Monday, August 13, 2007 2:20 PM

Instruments and controls
3-11
3

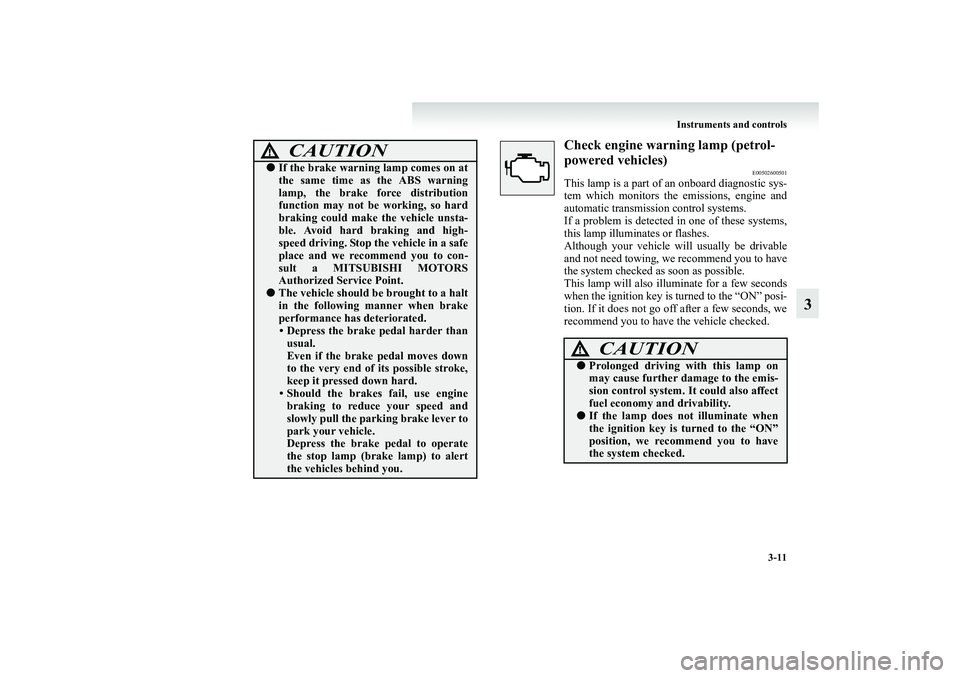

Check engine warning lamp (petrol-
powered vehicles)
E00502600501
This lamp is a part of an onboard diagnostic sys-
tem which monitors the emissions, engine and
automatic transmission control systems.
If a problem is detected in one of these systems,
this lamp illuminates or flashes.
Although your vehicle will usually be drivable
and not need towing, we recommend you to have
the system checked as soon as possible.
This lamp will also illuminate for a few seconds
when the ignition key is turned to the “ON” posi-
tion. If it does not go off after a few seconds, we
recommend you to have the vehicle checked.
●If the brake warning lamp comes on at
the same time as the ABS warning
lamp, the brake force distribution
function may not be working, so hard
braking could make the vehicle unsta-
ble. Avoid hard braking and high-
speed driving. Stop the vehicle in a safe
place and we recommend you to con-
sult a MITSUBISHI MOTORS
Authorized Service Point.●The vehicle should be brought to a halt
in the following manner when brake
performance has deteriorated.
• Depress the brake pedal harder than
usual.
Even if the brake pedal moves down
to the very end of its possible stroke,
keep it pressed down hard.
• Should the brakes fail, use engine
braking to reduce your speed and
slowly pull the parking brake lever to
park your vehicle.
Depress the brake pedal to operate
the stop lamp (brake lamp) to alert
the vehicles behind you.CAUTION
!
CAUTION
!●Prolonged driving with this lamp on
may cause further damage to the emis-
sion control system. It could also affect
fuel economy and drivability.●If the lamp does not illuminate when
the ignition key is turned to the “ON”
position, we recommend you to have
the system checked.
BK-XP08E1ENUK.en-uk.book Page 11 Monday, August 13, 2007 2:20 PM

3-12 Instruments and controls
3
NOTE●The engine electronic control module
accommodating the onboard diagnostic sys-
tem has various fault data (especially about
the exhaust emission) stored.
This data will be erased if a battery cable is
disconnected which will make a rapid diag-
nosis difficult. Do not disconnect a battery
cable when the check engine warning lamp
is ON.

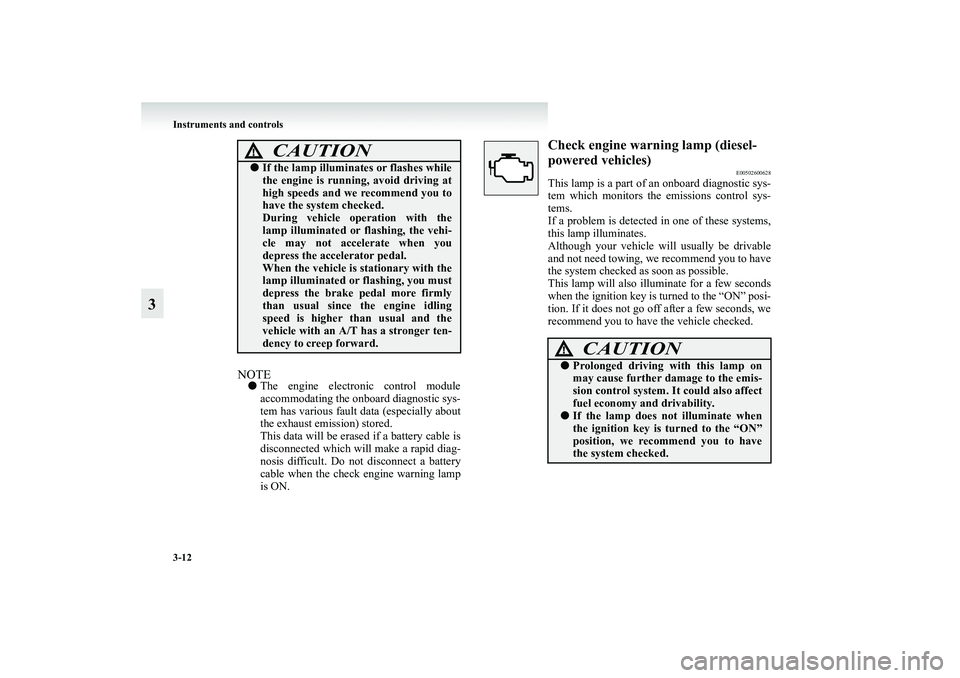

Check engine warning lamp (diesel-
powered vehicles)
E00502600628
This lamp is a part of an onboard diagnostic sys-
tem which monitors the emissions control sys-
tems.
If a problem is detected in one of these systems,
this lamp illuminates.
Although your vehicle will usually be drivable
and not need towing, we recommend you to have
the system checked as soon as possible.
This lamp will also illuminate for a few seconds
when the ignition key is turned to the “ON” posi-
tion. If it does not go off after a few seconds, we
recommend you to have the vehicle checked.
●If the lamp illuminates or flashes while
the engine is running, avoid driving at
high speeds and we recommend you to
have the system checked.
During vehicle operation with the
lamp illuminated or flashing, the vehi-
cle may not accelerate when you
depress the accelerator pedal.
When the vehicle is stationary with the
lamp illuminated or flashing, you must
depress the brake pedal more firmly
than usual since the engine idling
speed is higher than usual and the
vehicle with an A/T has a stronger ten-
dency to creep forward.
CAUTION
!
CAUTION
!●Prolonged driving with this lamp on
may cause further damage to the emis-
sion control system. It could also affect
fuel economy and drivability.●If the lamp does not illuminate when
the ignition key is turned to the “ON”
position, we recommend you to have
the system checked.
BK-XP08E1ENUK.en-uk.book Page 12 Monday, August 13, 2007 2:20 PM

Instruments and controls
3-13
3
NOTE●The engine electronic control module
accommodating the onboard diagnostic sys-
tem has various fault data (especially about
the exhaust emission) stored.
This data will be erased if a battery cable is
disconnected which will make a rapid diag-
nosis difficult. Do not disconnect a battery
cable when the check engine warning lamp
is ON.

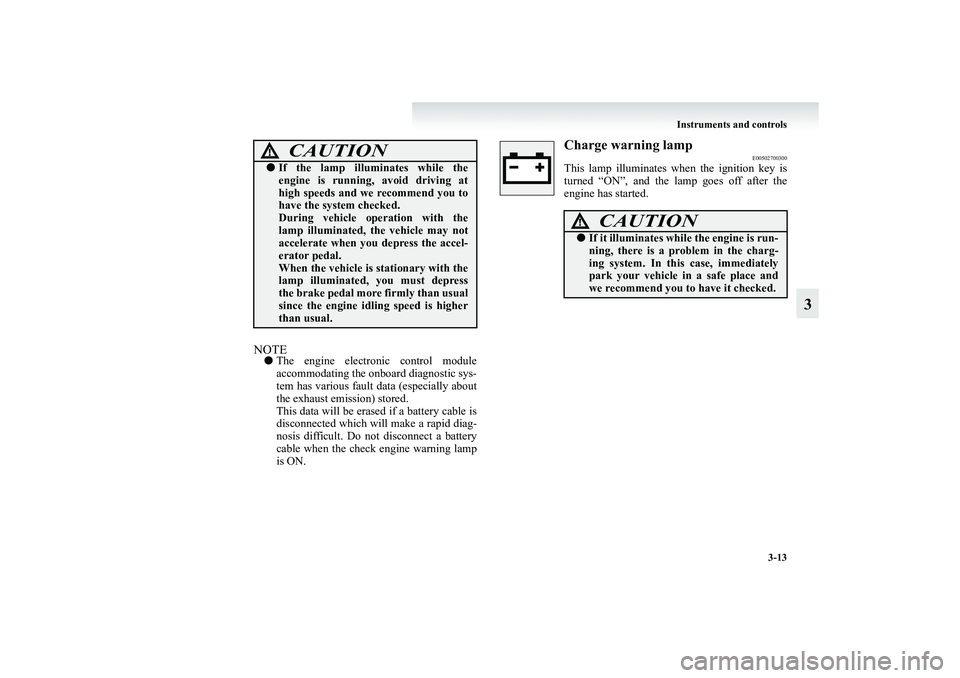

Charge warning lamp
E00502700300
This lamp illuminates when the ignition key is
turned “ON”, and the lamp goes off after the
engine has started.
●If the lamp illuminates while the
engine is running, avoid driving at
high speeds and we recommend you to
have the system checked.
During vehicle operation with the
lamp illuminated, the vehicle may not
accelerate when you depress the accel-
erator pedal.
When the vehicle is stationary with the
lamp illuminated, you must depress
the brake pedal more firmly than usual
since the engine idling speed is higher
than usual.
CAUTION
!
CAUTION
!●If it illuminates while the engine is run-
ning, there is a problem in the charg-
ing system. In this case, immediately
park your vehicle in a safe place and
we recommend you to have it checked.
BK-XP08E1ENUK.en-uk.book Page 13 Monday, August 13, 2007 2:20 PM

3-14 Instruments and controls
3
Oil pressure warning lamp
E00502800330
This lamp illuminates when the ignition key is
turned “ON”, and the lamp goes off after the
engine has started. If it illuminates while the
engine is running, the oil pressure is too low.
If the warning lamp illuminates while the engine
is running, turn the engine off and have it
inspected.NOTE●The oil pressure warning lamp should not
be treated as an indication of the engine’s
oil level. The oil level must be checked
using the dipstick.
Door-ajar warning lamp
E00503300417
This lamp illuminates when a door or tailgate is
either open or incompletely closed.
If the vehicle speed reaches approximately
8 km/h (5 mph) with a door or the tailgate open
or incompletely closed, the warning lamp flashes
8 times and a buzzer simultaneously sounds
8 times as a warning.NOTE●On vehicles with keyless entry system, the
lamp remains illuminated for a certain
period and then goes out automatically to
prevent complete discharge of the battery.
Refer to “Lamps (room lamps, etc.) auto-
cutout function” on page 5-63.
●It is possible to change the buzzer setting
for either of the following types of opera-
tion. For further information, we recom-
mend you to consult a MITSUBISHI
MOTORS Authorized Service Point.
• No buzzer operation (buzzer disabled)
• Continuous buzzer operation
CAUTION
!●If this lamp illuminates when the
engine oil level is not low, have it
inspected.●This warning lamp does not indicate
the amount of oil in the crankcase.
This must be determined by checking
the oil level on the dipstick, while the
engine is switched off.●If you continue driving with low engine
oil level or with this warning lamp illu-
minated, engine seizure may occur.
CAUTION
!●Before moving your vehicle, check that
the warning lamp is OFF.
BK-XP08E1ENUK.en-uk.book Page 14 Monday, August 13, 2007 2:20 PM
