MITSUBISHI GRANDIS 2008 Owner's Manual (in English)

Instruments and controls
3-15

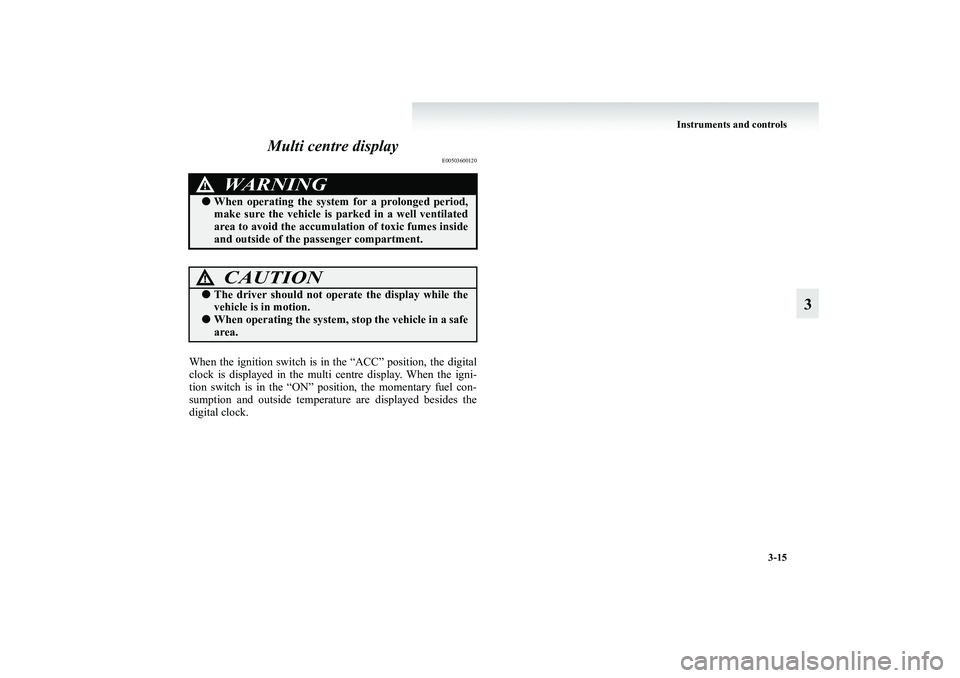

3 Multi centre display
E00503600120
When the ignition switch is in the “ACC” position, the digital
clock is displayed in the multi centre display. When the igni-
tion switch is in the “ON” position, the momentary fuel con-
sumption and outside temperature are displayed besides the
digital clock.
WARNING
!●When operating the system for a prolonged period,
make sure the vehicle is parked in a well ventilated
area to avoid the accumulation of toxic fumes inside
and outside of the passenger compartment.
CAUTION
!●The driver should not operate the display while the
vehicle is in motion.●When operating the system, stop the vehicle in a safe
area.
BK-XP08E1ENUK.en-uk.book Page 15 Monday, August 13, 2007 2:20 PM

3-16 Instruments and controls
3

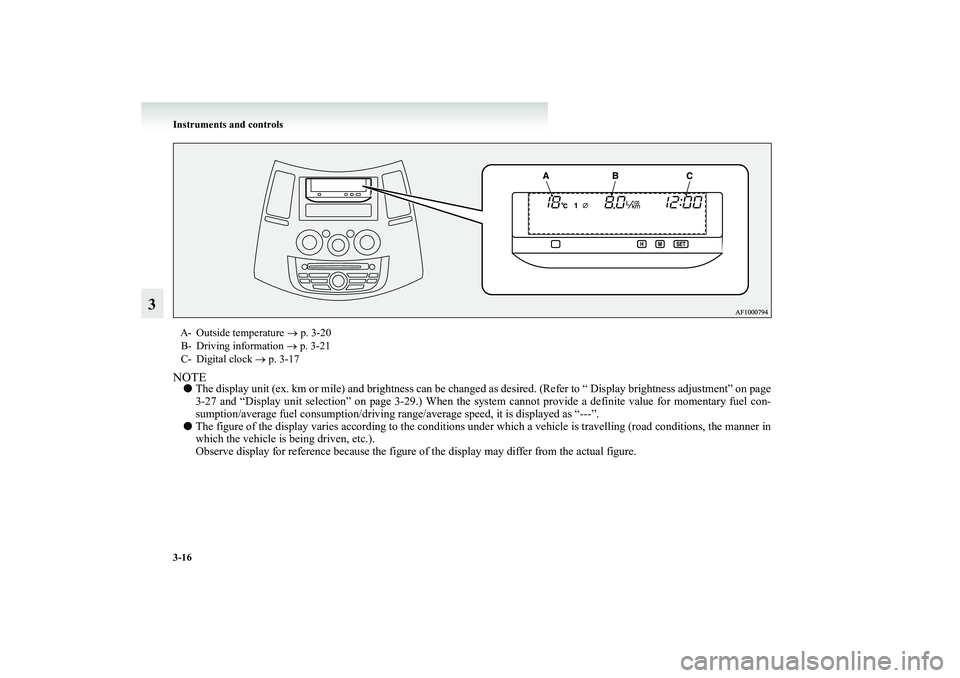

NOTE●The display unit (ex. km or mile) and brightness can be changed as desired. (Refer to “ Display brightness adjustment” on page
3-27 and “Display unit selection” on page 3-29.) When the system cannot provide a definite value for momentary fuel con-
sumption/average fuel consumption/driving range/average speed, it is displayed as “---”.
●The figure of the display varies according to the conditions under which a vehicle is travelling (road conditions, the manner in
which the vehicle is being driven, etc.).
Observe display for reference because the figure of the display may differ from the actual figure.A- Outside temperature → p. 3-20
B- Driving information → p. 3-21
C- Digital clock → p. 3-17
BK-XP08E1ENUK.en-uk.book Page 16 Monday, August 13, 2007 2:20 PM

Instruments and controls
3-17
3

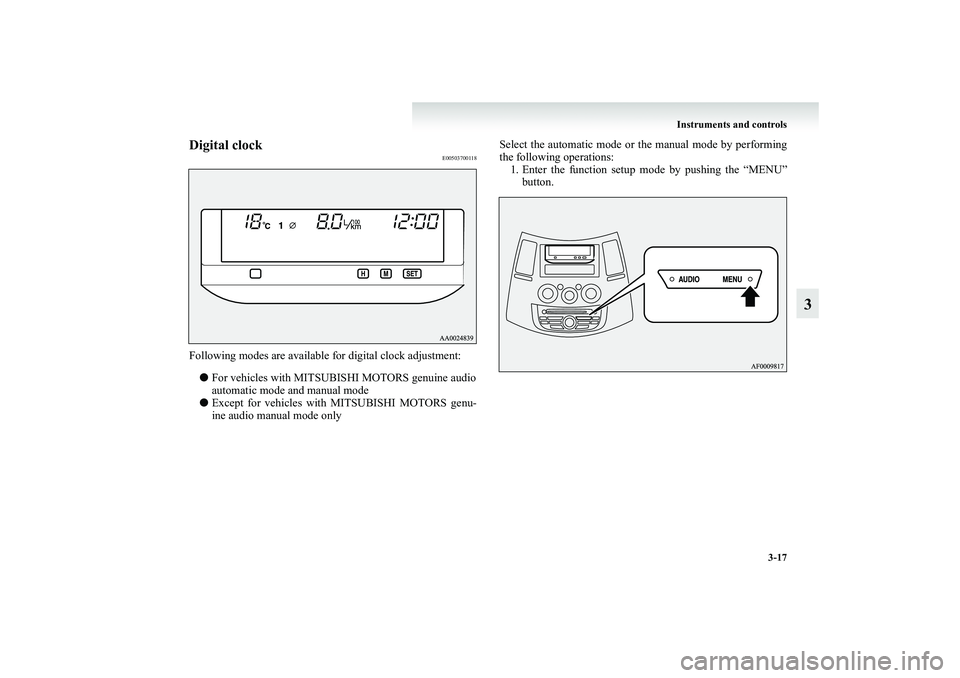

Digital clock
E00503700118
Following modes are available for digital clock adjustment:
●For vehicles with MITSUBISHI MOTORS genuine audio
automatic mode and manual mode
●Except for vehicles with MITSUBISHI MOTORS genu-
ine audio manual mode onlySelect the automatic mode or the manual mode by performing
the following operations:
1. Enter the function setup mode by pushing the “MENU”
button.
BK-XP08E1ENUK.en-uk.book Page 17 Monday, August 13, 2007 2:20 PM

3-18 Instruments and controls
3

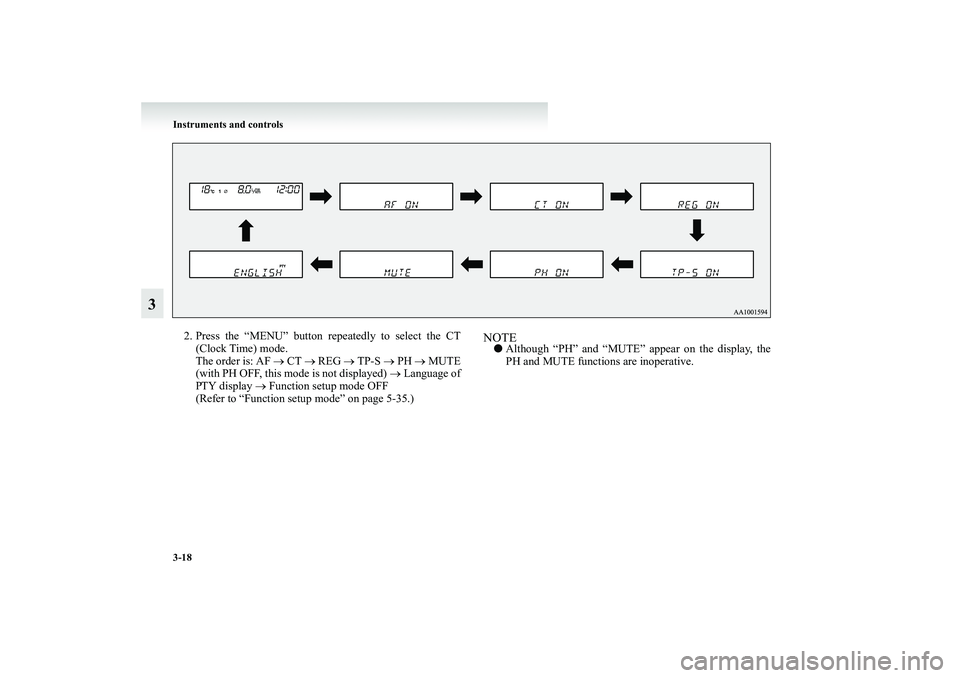

2. Press the “MENU” button repeatedly to select the CT
(Clock Time) mode.
The order is: AF → CT → REG → TP-S → PH → MUTE
(with PH OFF, this mode is not displayed) → Language of
PTY display → Function setup mode OFF
(Refer to “Function setup mode” on page 5-35.)
NOTE●Although “PH” and “MUTE” appear on the display, the
PH and MUTE functions are inoperative.
BK-XP08E1ENUK.en-uk.book Page 18 Monday, August 13, 2007 2:20 PM

Instruments and controls
3-19
3

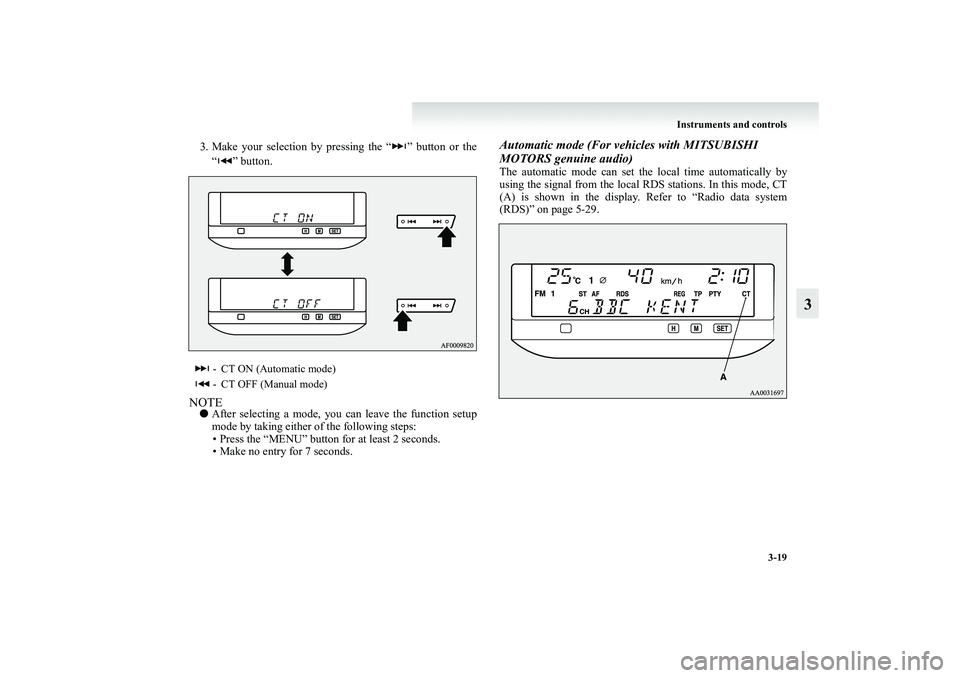

3. Make your selection by pressing the “ ” button or the
“ ” button.NOTE●After selecting a mode, you can leave the function setup
mode by taking either of the following steps:
• Press the “MENU” button for at least 2 seconds.
• Make no entry for 7 seconds.
Automatic mode (For vehicles with MITSUBISHI
MOTORS genuine audio)The automatic mode can set the local time automatically by
using the signal from the local RDS stations. In this mode, CT
(A) is shown in the display. Refer to “Radio data system
(RDS)” on page 5-29.
- CT ON (Automatic mode)
- CT OFF (Manual mode)
BK-XP08E1ENUK.en-uk.book Page 19 Monday, August 13, 2007 2:20 PM

3-20 Instruments and controls
3

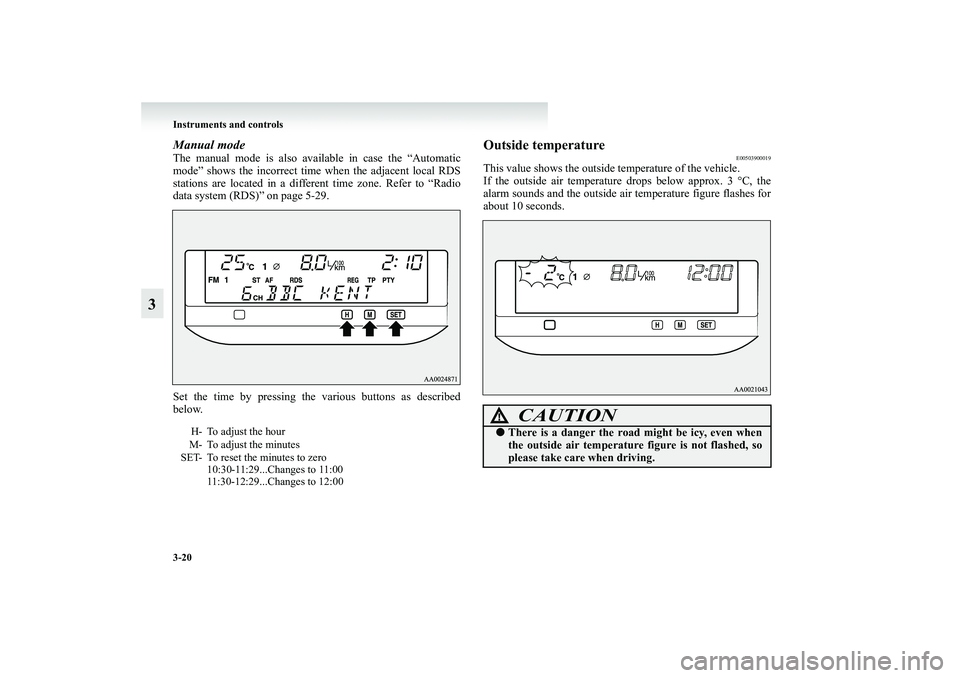

Manual modeThe manual mode is also available in case the “Automatic
mode” shows the incorrect time when the adjacent local RDS
stations are located in a different time zone. Refer to “Radio
data system (RDS)” on page 5-29.
Set the time by pressing the various buttons as described
below.
Outside temperature
E00503900019
This value shows the outside temperature of the vehicle.
If the outside air temperature drops below approx. 3 °C, the
alarm sounds and the outside air temperature figure flashes for
about 10 seconds.
H- To adjust the hour
M- To adjust the minutes
SET- To reset the minutes to zero
10:30-11:29...Changes to 11:00
11:30-12:29...Changes to 12:00
CAUTION
!●There is a danger the road might be icy, even when
the outside air temperature figure is not flashed, so
please take care when driving.
BK-XP08E1ENUK.en-uk.book Page 20 Monday, August 13, 2007 2:20 PM

Instruments and controls
3-21
3

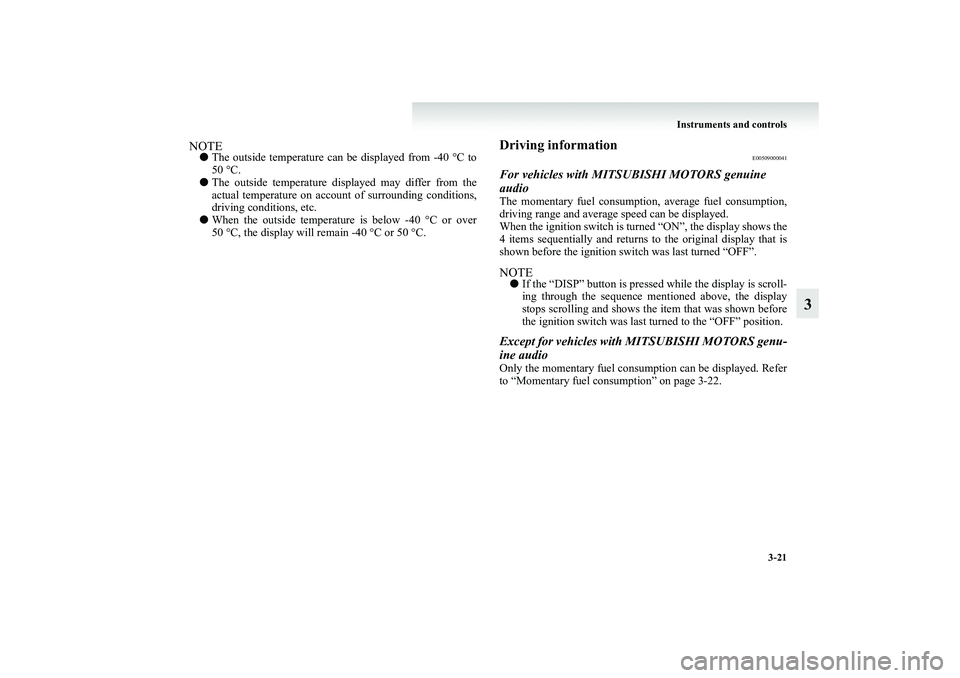

NOTE●The outside temperature can be displayed from -40 °C to
50 °C.
●The outside temperature displayed may differ from the
actual temperature on account of surrounding conditions,
driving conditions, etc.
●When the outside temperature is below -40 °C or over
50°C, the display will remain -40 °C or 50 °C.
Driving information
E00509000041
For vehicles with MITSUBISHI MOTORS genuine
audioThe momentary fuel consumption, average fuel consumption,
driving range and average speed can be displayed.
When the ignition switch is turned “ON”, the display shows the
4 items sequentially and returns to the original display that is
shown before the ignition switch was last turned “OFF”.NOTE●If the “DISP” button is pressed while the display is scroll-
ing through the sequence mentioned above, the display
stops scrolling and shows the item that was shown before
the ignition switch was last turned to the “OFF” position.Except for vehicles with MITSUBISHI MOTORS genu-
ine audioOnly the momentary fuel consumption can be displayed. Refer
to “Momentary fuel consumption” on page 3-22.
BK-XP08E1ENUK.en-uk.book Page 21 Monday, August 13, 2007 2:20 PM

3-22 Instruments and controls
3

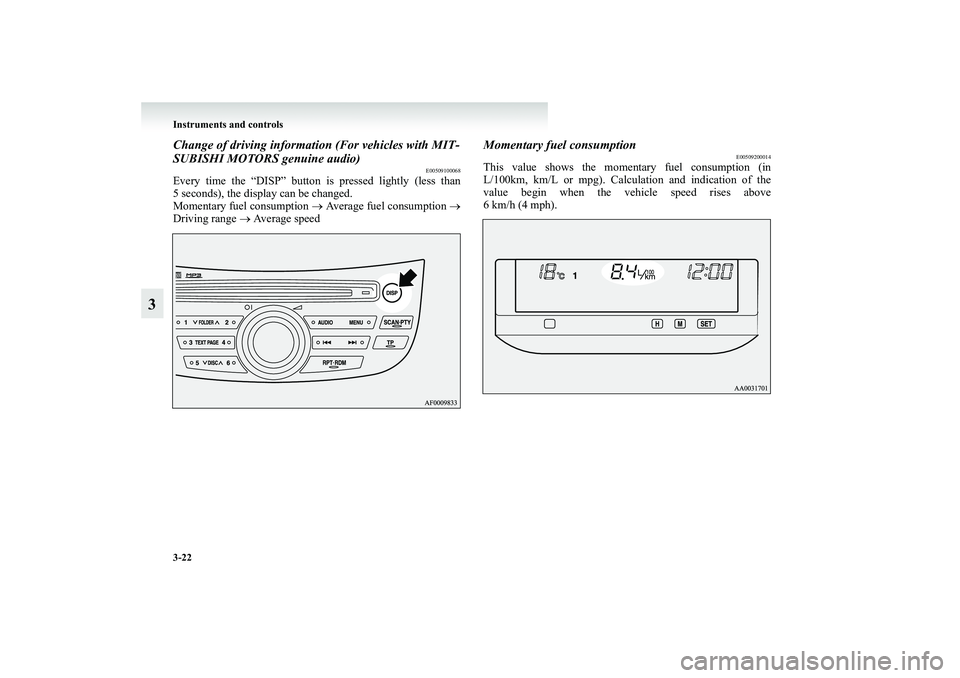

Change of driving information (For vehicles with MIT-
SUBISHI MOTORS genuine audio)
E00509100068
Every time the “DISP” button is pressed lightly (less than
5 seconds), the display can be changed.
Momentary fuel consumption → Average fuel consumption →
Driving range → Average speed
Momentary fuel consumption
E00509200014
This value shows the momentary fuel consumption (in
L/100km, km/L or mpg). Calculation and indication of the
value begin when the vehicle speed rises above
6km/h(4mph).
BK-XP08E1ENUK.en-uk.book Page 22 Monday, August 13, 2007 2:20 PM

Instruments and controls
3-23
3

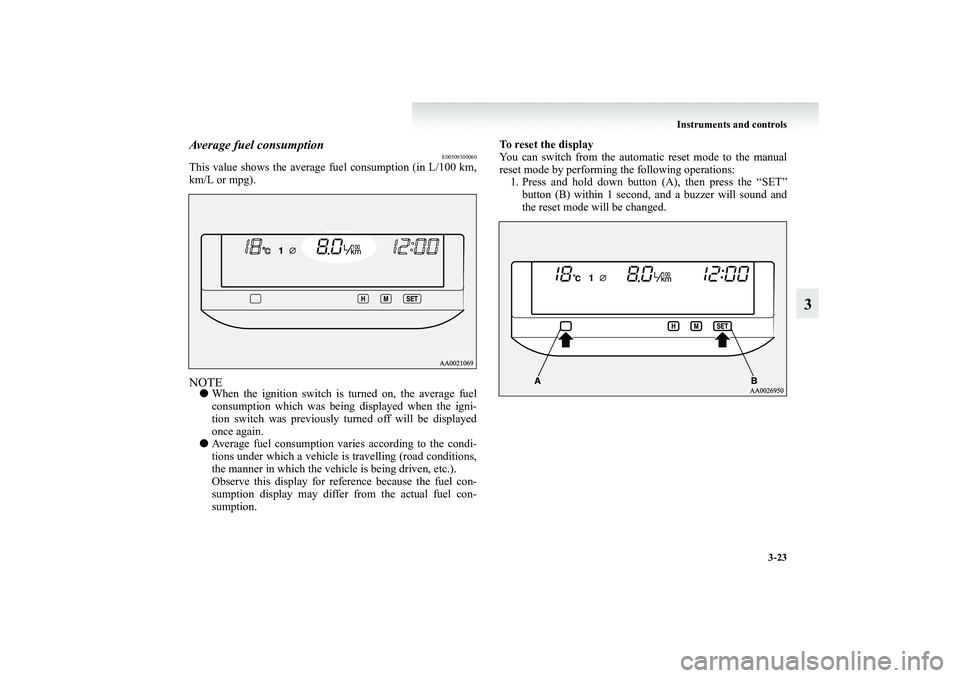

Average fuel consumption
E00509300060
This value shows the average fuel consumption (in L/100 km,
km/L or mpg).NOTE●When the ignition switch is turned on, the average fuel
consumption which was being displayed when the igni-
tion switch was previously turned off will be displayed
once again.
●Average fuel consumption varies according to the condi-
tions under which a vehicle is travelling (road conditions,
the manner in which the vehicle is being driven, etc.).
Observe this display for reference because the fuel con-
sumption display may differ from the actual fuel con-
sumption.To r e s e t t h e d i s p l a y
You can switch from the automatic reset mode to the manual
reset mode by performing the following operations:
1. Press and hold down button (A), then press the “SET”
button (B) within 1 second, and a buzzer will sound and
the reset mode will be changed.
BK-XP08E1ENUK.en-uk.book Page 23 Monday, August 13, 2007 2:20 PM

3-24 Instruments and controls
3

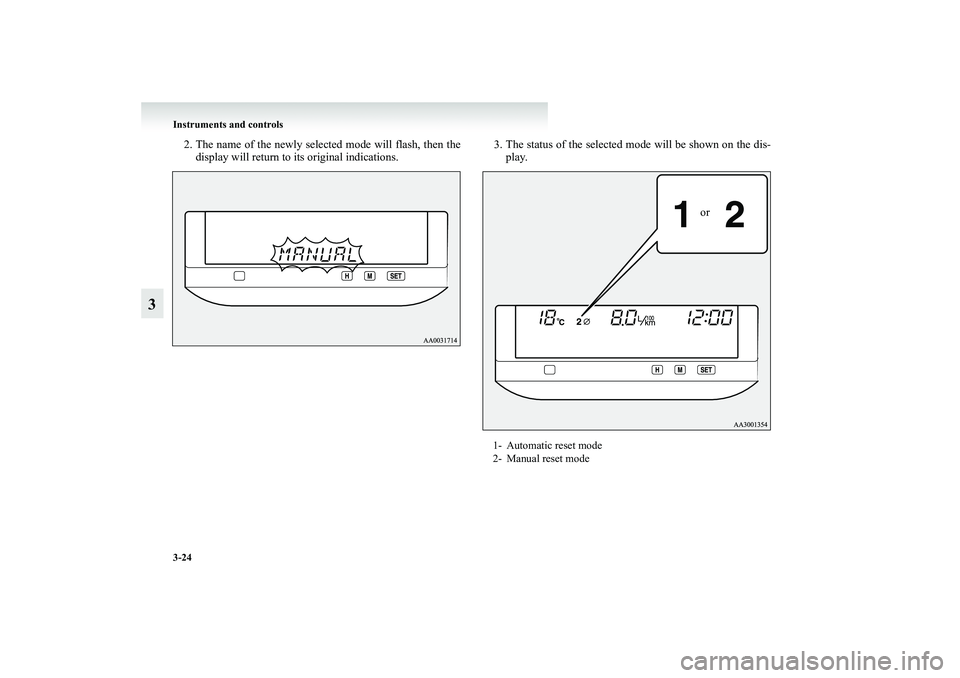

2. The name of the newly selected mode will flash, then the
display will return to its original indications.3. The status of the selected mode will be shown on the dis-
play.
1- Automatic reset mode
2- Manual reset mode
or
BK-XP08E1ENUK.en-uk.book Page 24 Monday, August 13, 2007 2:20 PM
