electrical MITSUBISHI LANCER 2005 Workshop Manual

SIDE TURN-SIGNAL LAMP
CHASSIS ELECTRICAL54A-77
FRONT FOG LAMP RELAY CHECK
SIDE TURN-SIGNAL LAMP
SPECIAL TOOLM1542000600913
SIDE TURN-SIGNAL LAMP
REMOVAL AND INSTALLATIONM1542003300159
REMOVAL SERVICE POINT
Use a special tool ornament remover (MB990784),
etc. to remove the side turn signal lamp by pushing
the fender forward, bending the hook, and then
unclamping the thumb.
AC305279
1 4
3
2
AB
Rear fog lamp relay
Battery voltage Tester
connectionSpecified
condition
Not supplied 1 − 4 Open circuit
•Connect
terminal 3 to
the positive
battery terminal
•Connect
terminal 2 to
the negative
battery terminal1 − 4 Less than 2
ohms
Tool Number Name Use
MB990784 Ornament remover Removal of side turn-signal lamp
MB990784
AC005718
Side turn signal lamps
MB990784
: Front of vehicle
AC

ROOM LAMP
CHASSIS ELECTRICAL54A-78
INSTALLATION SERVICE POINTClamp the thumb on the fender panel the assemble
the side turn signal lamp.
ROOM LAMP
TROUBLESHOOTINGM1542000701311
Dimmer interior lamp control function
The room lamp off is delayed by ETACS-ECU. The
lamps off delay time vary according to the conditions.
The control details are as follows. The lamp delay off
Yes/NO and delay time can be set with the settings
(adjustment function). for adjustment methods and
adjustment details (post-adjustment operations).
•ADJUSTMENT PROCEDURE
•Not using SWS monitor: GROUP 54B,
P.54B-423.
•The room lamp lights up if the ignition switch is at
the "LOCK" (OFF) position and either of the
doors are opened (either of the door switches:
ON). At this time, if all doors are closed (all door
switches: OFF) then the lamp will gradually dim
down to lamps off in about 15 seconds.
NOTE: When the lamps are dimmed and the ignition
switch is turned ON or if the door is locked, then
the dimming operations stop and the lamps are
turned OFF.
•When the ignition switch is at the ON position and
one of the doors are opened (one of the door
switches: ON) then the room lamp will light up. At
this time, if all doors are closed (all door switches:
OFF) then the lamps will dim out.
•When the ignition key is pulled out the room lamp
lights up and then will dim out in 15 seconds. The
lamp will dim out if the ignition key is inserted
again and the door is locked while the timer is
activated.
The room lamp is controlled by the Smart Wiring
System (SWS). For troubleshooting, refer to
respective Groups below.•Not using SWS monitor: GROUP 54B, SWS
Troubleshooting P.54B-38.
•Using SWS monitor: GROUP 54C, SWS
Troubleshooting P.54C-22.
Interior lamp automatic shutdown
function system>
The interior lamp automatic shutdown function, dims
out the room lamp and other interior lamps by
activating the keep relay built-in the ETACS-ECU
when the ignition switch is OFF and the
multi-purpose fuse loaded signals built-in the
ETACS-ECU is ON and 30 minutes passes. The
lamps lights back up if the ignition switch is turned to
the ON position or either of the doors is opened
(either of the door switches: ON). The function
Yes/No feature can be changed with the settings
(adjustment function). for adjustment methods and
adjustment details (post-adjustment operations).
•ADJUSTMENT PROCEDURE
•Not using SWS monitor: GROUP 54B,
P.54B-423.
The head lamp are controlled by the Smart Wiring
System (SWS). For troubleshooting, refer to
respective Groups below.
•Not using SWS monitor: GROUP 54B, SWS
Troubleshooting P.54B-38.
•Using SWS monitor: GROUP 54C, SWS
Troubleshooting P.54C-22.
AC005719
Fender panelHook
Claw
Fender panel
: Front of vehicle
AE

REAR COMBINATION LAMP
CHASSIS ELECTRICAL54A-79
REAR COMBINATION LAMP
TROUBLESHOOTINGM1542000701322
The lamps setup on the rear combination lamp is
controlled in the same manner as the lamps of the
headlamp assembly. For details go to the reference.
For troubleshooting, refer to respective Groups
below.•Not using SWS monitor: GROUP 54B, SWS
Troubleshooting P.54B-38.
•Using SWS monitor: GROUP 54C, SWS
Troubleshooting P.54C-22.
SPECIAL TOOLM1542000600924
REAR COMBINATION LAMP
REMOVAL AND INSTALLATIONM1542003900441

Tool Number Name Use
MB990784 Ornament remover Removal of rear combination
lamp assembly
MB990784
AC304667
4.9 ± 0.7 N·m
AB
3
4
2
1
Removal steps
1. Rear combination lamp assembly
2. Rear combination lamp body3. Socket assembly
4. BulbRemoval steps (Continued)

HIGH-MOUNTED STOP LAMP
CHASSIS ELECTRICAL54A-80

HIGH-MOUNTED STOP LAMP
ON-VEHICLE SERVICE
HIGH-MOUNTED STOP LAMP BULB
REPLACEMENT
M1542014600013
CAUTION
Do not touch bulb surface bare-handed or with
dirty gloves. If dirt is attached on glass surface of
the bulb, immediately use alcohol or thinner to
remove dirt, and install the bulb after well dried.Remove socket from trunk compartment, and
replace bulb.
AC304715AB
3
2 14
Removal steps
1. Rear combination lamp assembly
2. Rear combination lamp body3. Socket assembly
4. BulbRemoval steps (Continued)
AC305292AB
High-mounted
stop lamp

HIGH-MOUNTED STOP LAMP
CHASSIS ELECTRICAL54A-81
HIGH-MOUNTED STOP LAMP

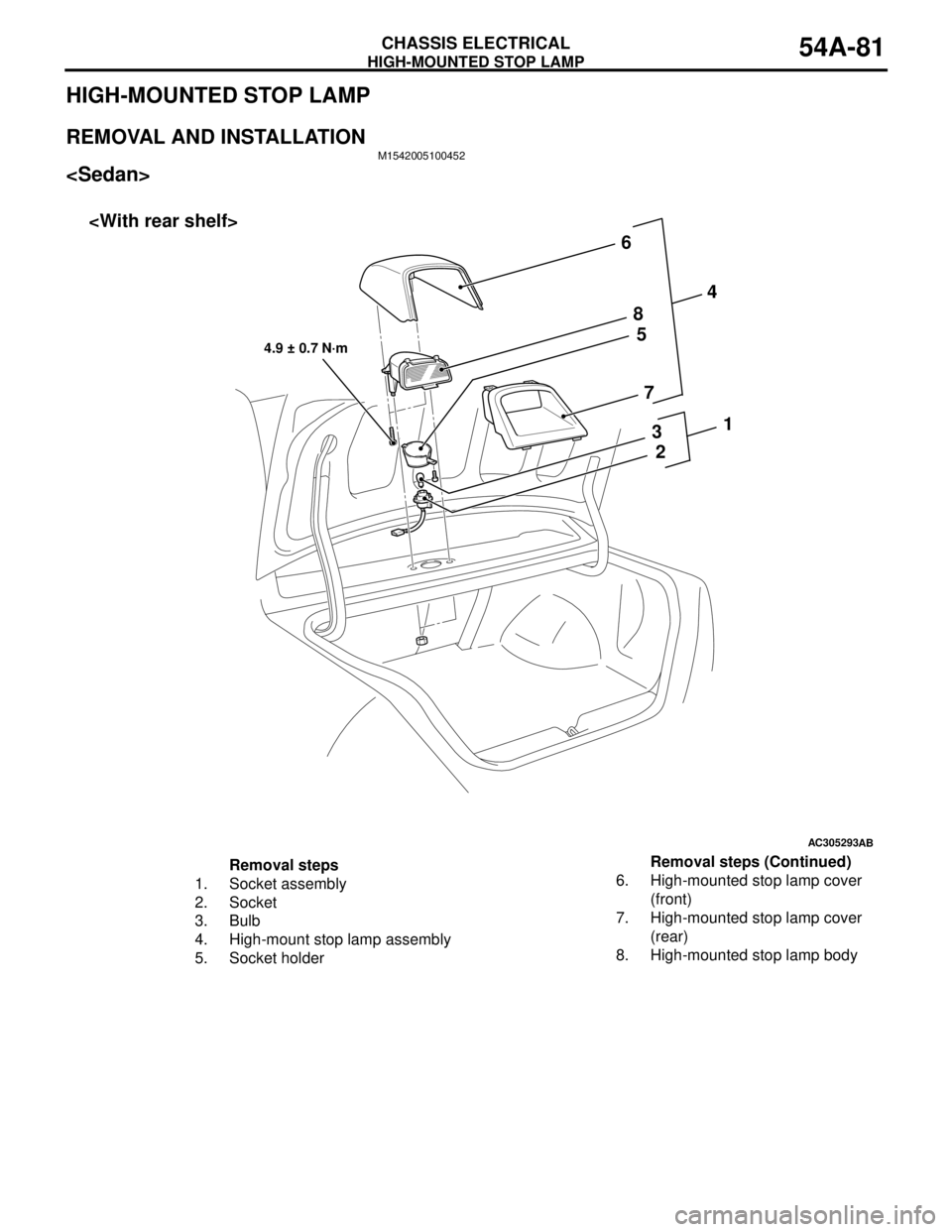

REMOVAL AND INSTALLATIONM1542005100452

AC305293
AB
2 3 5 6
7 8
4
1
4.9 ± 0.7 N·m

Removal steps
1. Socket assembly
2. Socket
3. Bulb
4. High-mount stop lamp assembly
5. Socket holder 6. High-mounted stop lamp cover
(front)
7. High-mounted stop lamp cover
(rear)
8. High-mounted stop lamp body Removal steps (Continued)

HIGH-MOUNTED STOP LAMP
CHASSIS ELECTRICAL54A-82

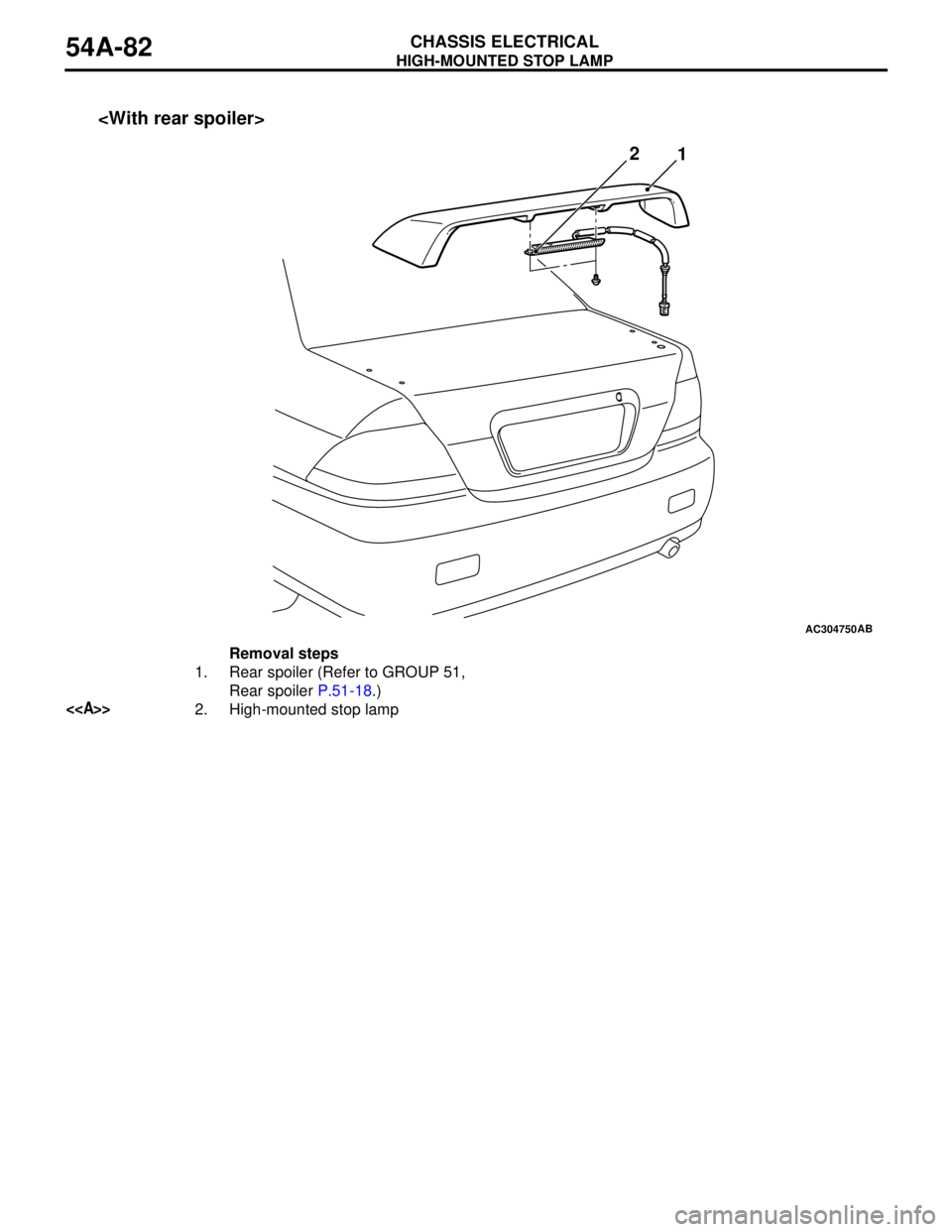

AC304750AB
12
Removal steps
1. Rear spoiler (Refer to GROUP 51,
Rear spoiler P.51-18.)
<>2. High-mounted stop lamp

HIGH-MOUNTED STOP LAMP
CHASSIS ELECTRICAL54A-83

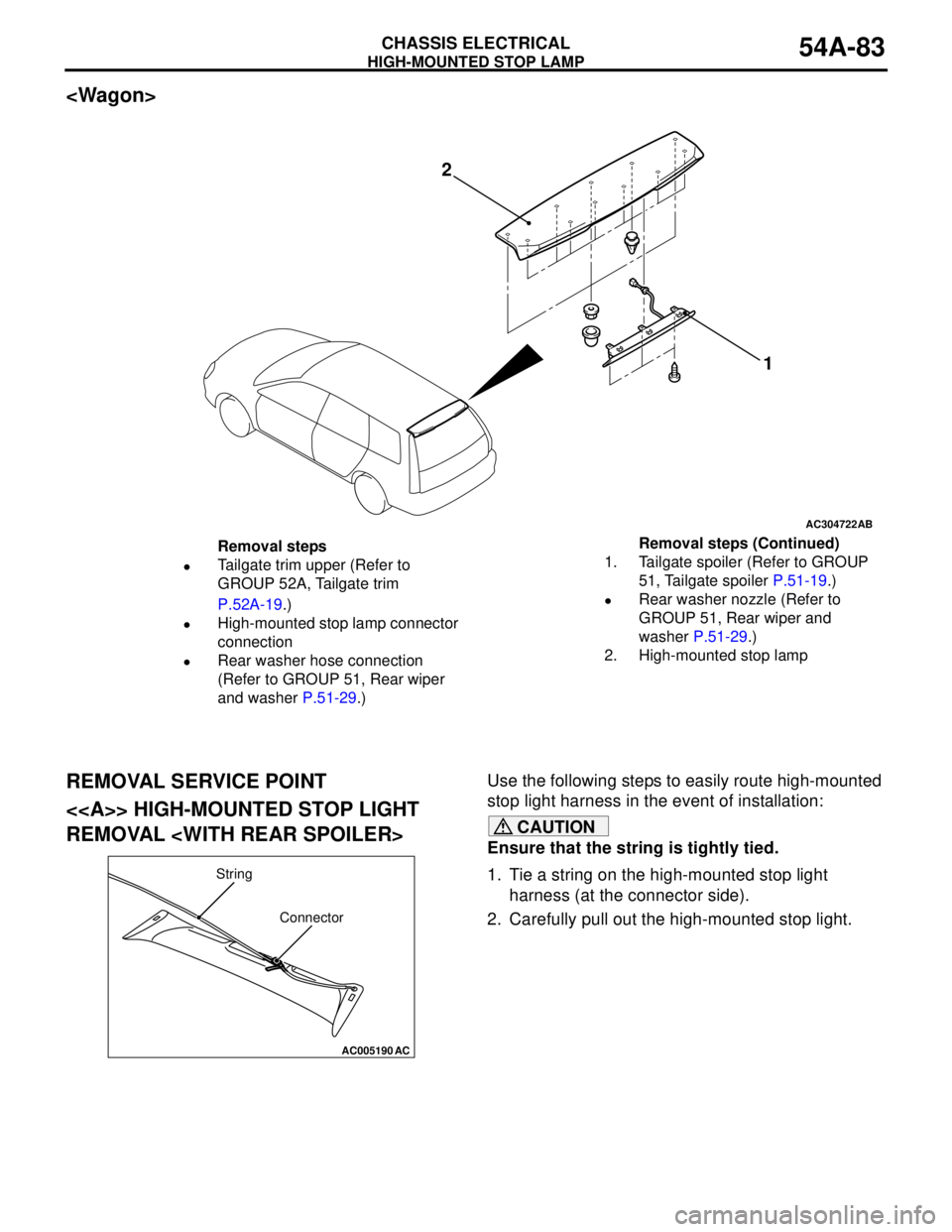

REMOVAL SERVICE POINT
<> HIGH-MOUNTED STOP LIGHT
REMOVAL
Use the following steps to easily route high-mounted
stop light harness in the event of installation:
CAUTION
Ensure that the string is tightly tied.
1. Tie a string on the high-mounted stop light
harness (at the connector side).
2. Carefully pull out the high-mounted stop light.
AC304722AB
2
1
Removal steps
•Tailgate trim upper (Refer to
GROUP 52A, Tailgate trim
P.52A-19.)
•High-mounted stop lamp connector
connection
•Rear washer hose connection
(Refer to GROUP 51, Rear wiper
and washer P.51-29.)1. Tailgate spoiler (Refer to GROUP
51, Tailgate spoiler P.51-19.)
•Rear washer nozzle (Refer to
GROUP 51, Rear wiper and
washer P.51-29.)
2. High-mounted stop lampRemoval steps (Continued)
AC005190
String
Connector
AC

LICENCE PLATE LAMP
CHASSIS ELECTRICAL54A-84

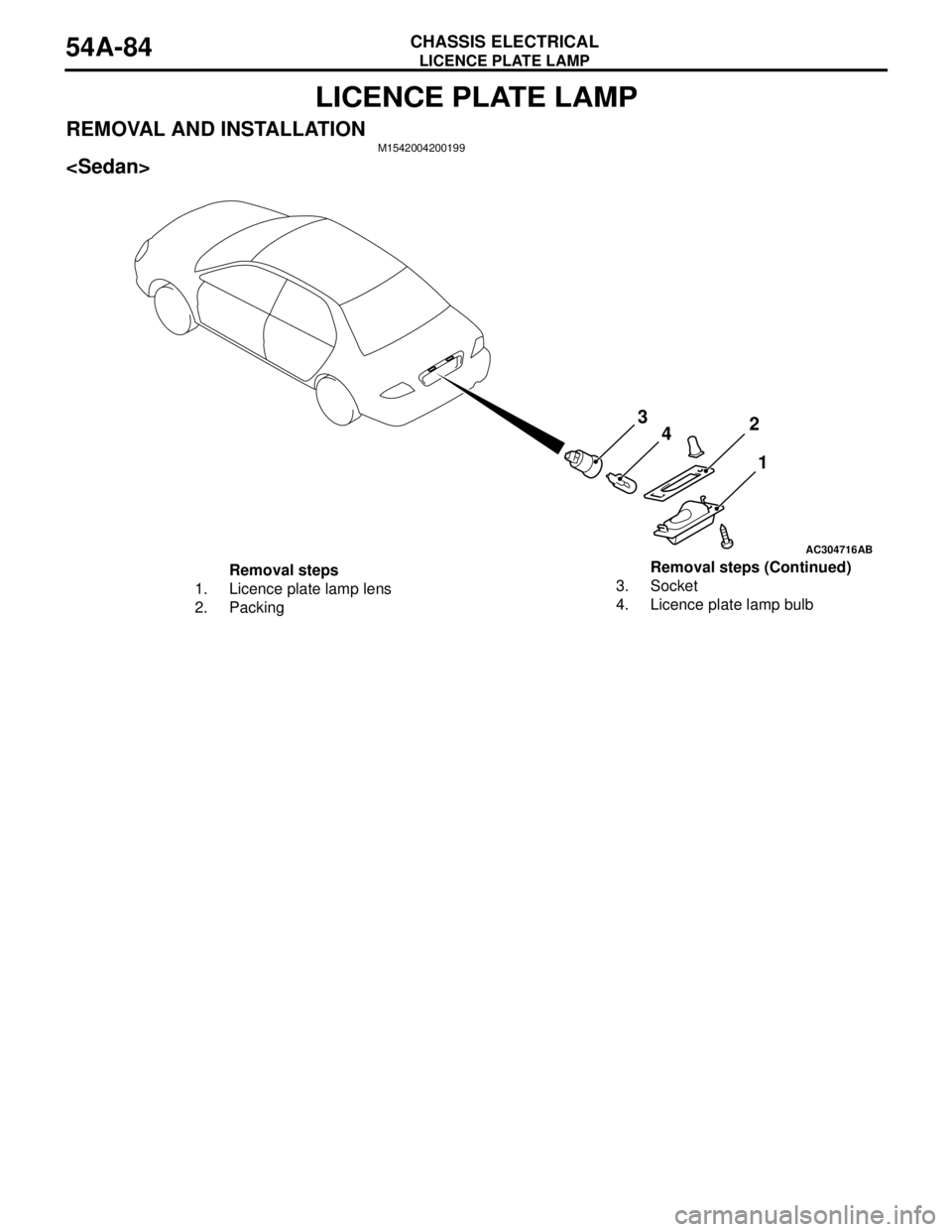

LICENCE PLATE LAMP
REMOVAL AND INSTALLATIONM1542004200199

AC304716AB
3
42
1
Removal steps
1. Licence plate lamp lens
2. Packing3. Socket
4. Licence plate lamp bulbRemoval steps (Continued)

HAZARD WARNING LAMP SWITCH
CHASSIS ELECTRICAL54A-85

HAZARD WARNING LAMP SWITCH
TROUBLESHOOTING
M1542000701333
FLASHER TIMER FUNCTION
The hazard warning lamps (flasher timer function)
are controlled by the Smart Wiring System (SWS).
For troubleshooting, refer to respective Groups
below.•Not using SWS monitor: GROUP 54B, SWS
Troubleshooting P.54B-38.
•Using SWS monitor: GROUP 54C, SWS
Troubleshooting P.54C-22.
SPECIAL TOOL
M1542000600935
AC304717AB
2
1 3 4
56
Removal steps
1. Licence plate lamp lens
2. Packing
3. Licence plate lamp body4. Socket
5. Licence plate lamp bulb
6. HarnessRemoval steps (Continued)
Tool Number Name Use
MB990784 Ornament remover Removal of centre panel and
centre air outlet panel
MB990784

HAZARD WARNING LAMP SWITCH
CHASSIS ELECTRICAL54A-86

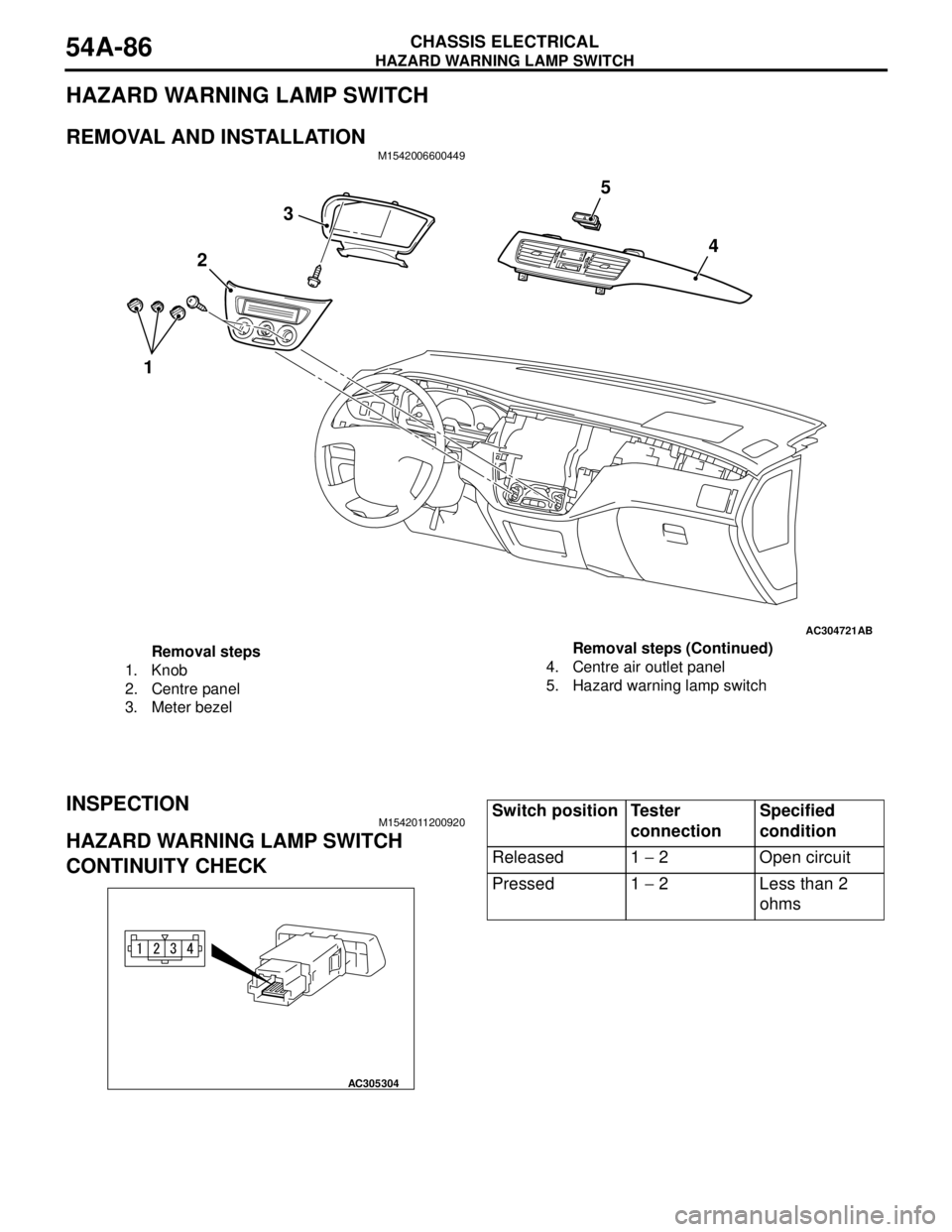

HAZARD WARNING LAMP SWITCH
REMOVAL AND INSTALLATIONM1542006600449
INSPECTIONM1542011200920
HAZARD WARNING LAMP SWITCH
CONTINUITY CHECK
AC304721AB
3
4
2
15
Removal steps
1. Knob
2. Centre panel
3. Meter bezel4. Centre air outlet panel
5. Hazard warning lamp switchRemoval steps (Continued)
AC305304
Switch position Tester
connectionSpecified
condition
Released 1 − 2 Open circuit
Pressed 1 − 2 Less than 2
ohms
