SOLENOID VALVE

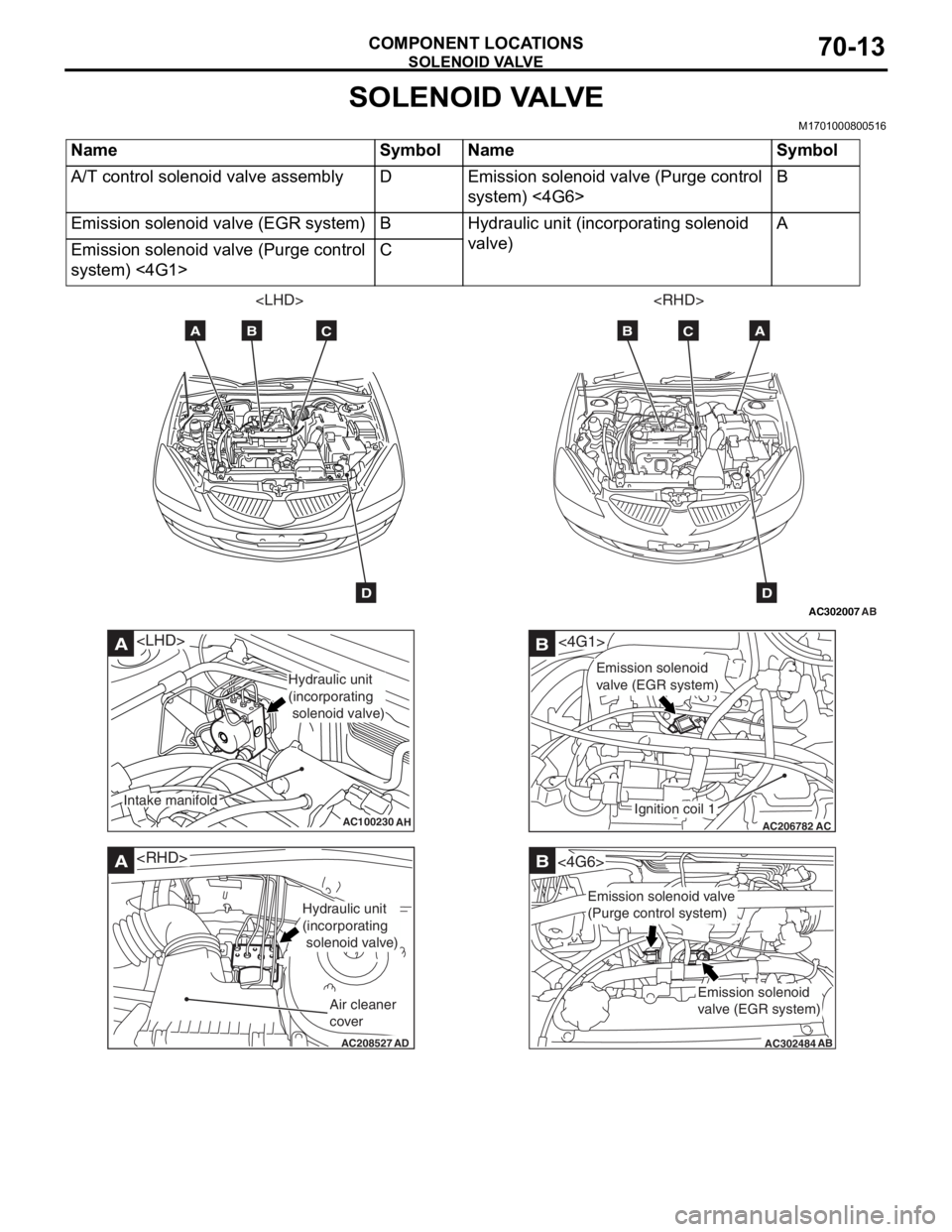

COMPONENT LOCATIONS70-13
SOLENOID VALVE
M1701000800516
NameSymbolNameSymbol
A/T control solenoid valve assemblyDEmission solenoid valve (Purge control
system) <4G6>B
Emission solenoid valve (EGR system)BHydraulic unit (incorporating solenoid
valve)A
Emission solenoid valve (Purge control
system) <4G1>C
AC302007

AB
AB

ABC
D
C
D
AC100230
A
AH

Hydraulic unit
(incorporating
solenoid valve)
Intake manifold
AC208527
A
AD

Hydraulic unit
(incorporating
solenoid valve)
Air cleaner
cover
AC206782
<4G1>B
AC
Ignition coil 1
Emission solenoid
valve (EGR system)
AC302484
B
AB
<4G6>
Emission solenoid
valve (EGR system)
Emission solenoid valve
(Purge control system)

AC208529AD
C<4G1>Idle speed
control servo
Emission solenoid valve
(Purge control system)
AC208684
D
AD
A/T control solenoid
valve assembly connector
Inhibitor switch
A/T control solenoid
valve assembly
Transmission
assembly
DIOD E
COMPONENT LOCA TIONS70-14
DIODE
M1701 0009 0022 3
AC300441
AC301240
Diode

AD

OVERALL CONFIGURATION DIAGRAM
CONFIGURATION DIAGRAMS80-2

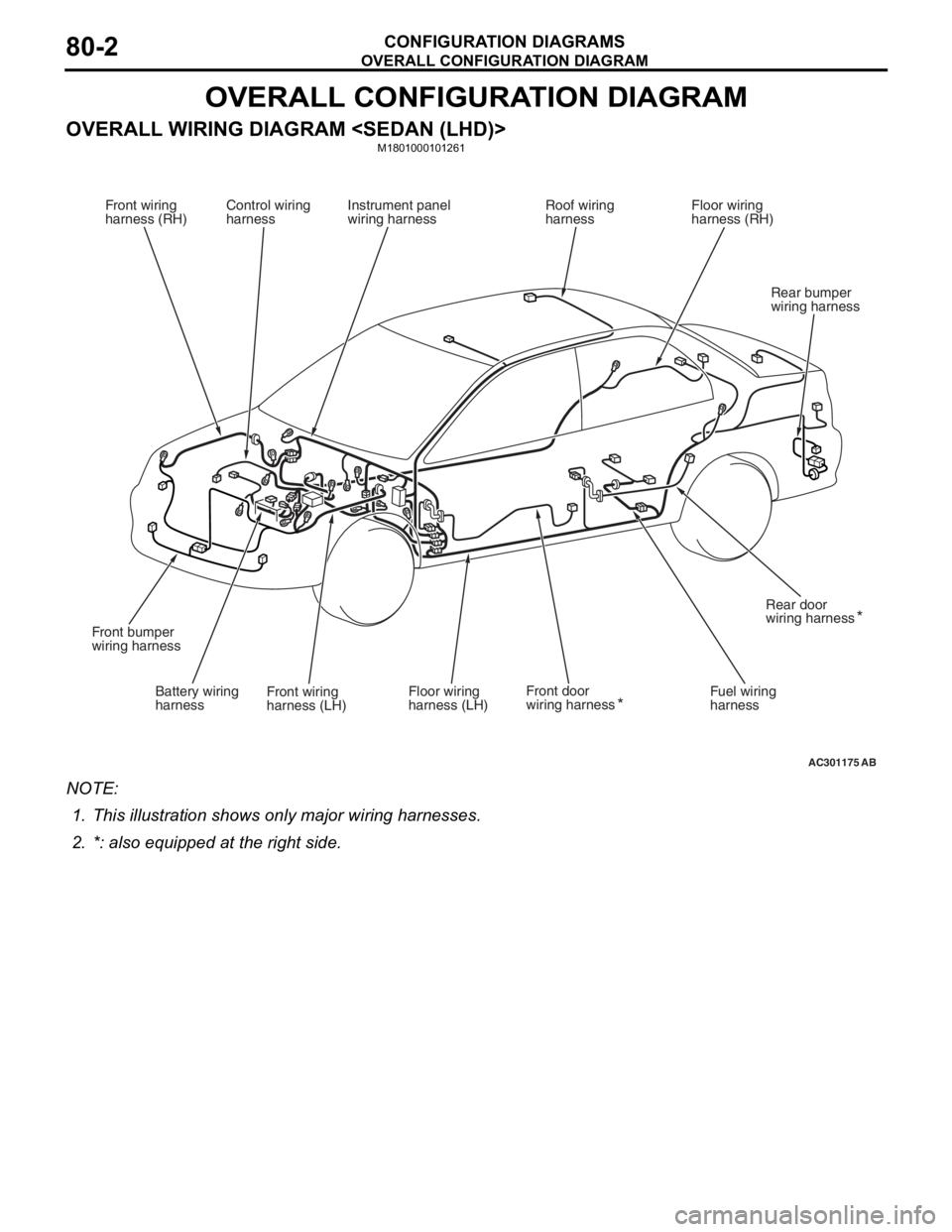

OVERALL CONFIGURATION DIAGRAM
OVERALL WIRING DIAGRAM M1801000101261
AC301175AB
Front wiring
harness (RH) Control wiring
harness Instrument panel
wiring harness Roof wiring
harnessFloor wiring
harness (RH)
Battery wiring
harness Front wiring
harness (LH) Front door
wiring harness
Floor wiring
harness (LH) Fuel wiring
harnessRear door
wiring harness
Front bumper
wiring harness
Rear bumper
wiring harness
*
*
NO
TE: .
1.This illu stration shows o n ly major wirin g harne sses.
2.*: also eq uipp ed at t he rig h t side.

OVERALL CONFIGURATION DIAGRAM
CONFIGURATION DIAGRAMS80-3

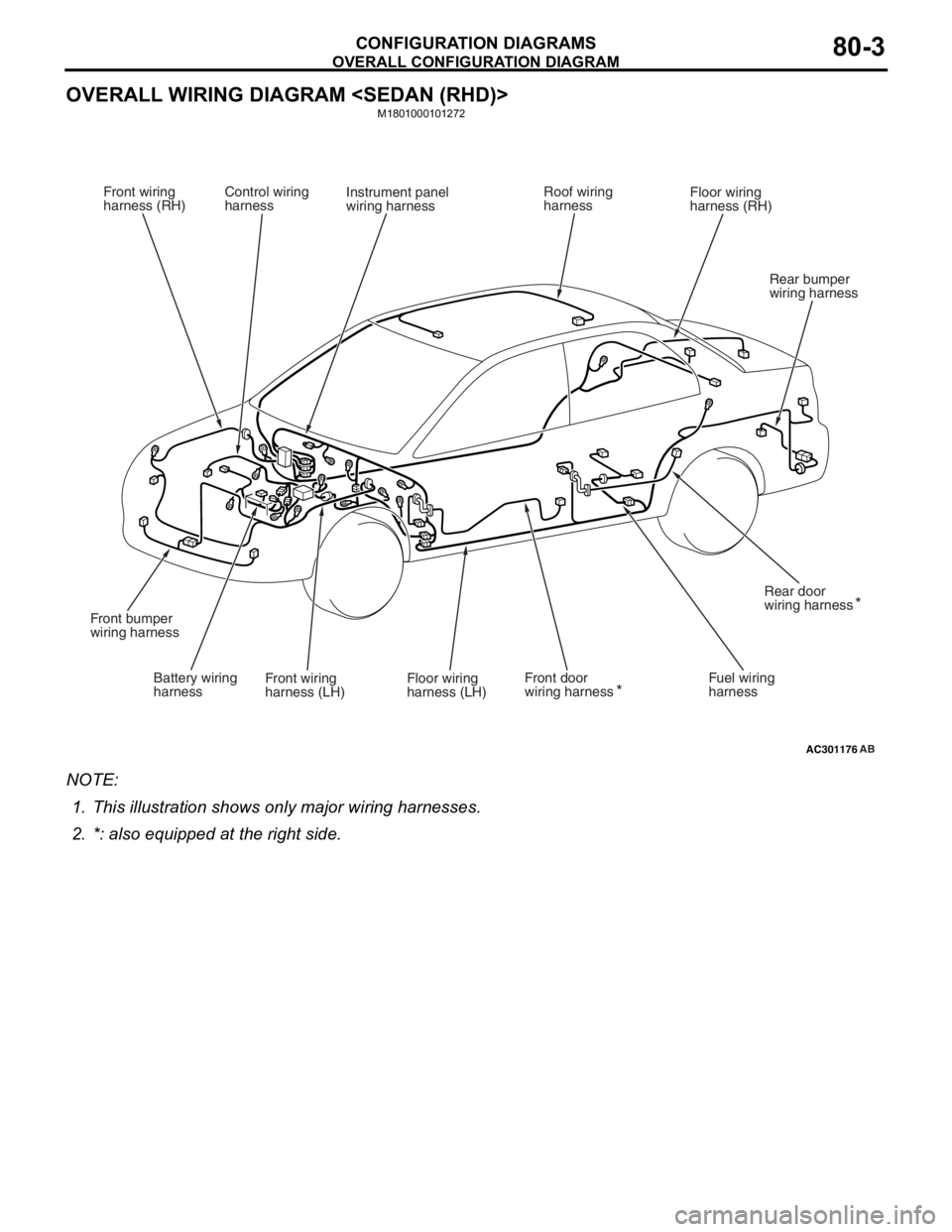

OVERALL WIRING DIAGRAM
M1801000101272
AC301176AB
Front wiring
harness (RH) Control wiring
harness Instrument panel
wiring harness Roof wiring
harnessFloor wiring
harness (RH)
Battery wiring
harness Front wiring
harness (LH) Front door
wiring harness
Floor wiring
harness (LH) Fuel wiring
harnessRear door
wiring harness
Front bumper
wiring harness
Rear bumper
wiring harness
*
*
NO
TE: .
1.This illu stration shows o n ly major wirin g harne sses.
2.*: also eq uipp ed at t he rig h t side.

OVERALL CONFIGURATION DIAGRAM
CONFIGURATION DIAGRAMS80-4
OVERALL WIRING DIAGRAM
M1801000101283
AC301177AB
Front wiring
harness (RH)Control wiring
harness Instrument panel
wiring harness Roof wiring
harnessFloor wiring
harness (RH)
Battery wiring
harness Front wiring
harness (LH) Front door
wiring harness
Floor wiring
harness (LH) Fuel wiring
harnessRear door
wiring harness
Front bumper
wiring harness
Rear bumper
wiring harness
*
*
Tailgate wiring
harness
NO
TE: .
1.This illu stration shows o n ly major wirin g harne sses.
2.*: also eq uipp ed at t he rig h t side.

OVERALL CONFIGURATION DIAGRAM
CONFIGURATION DIAGRAMS80-5
OVERALL WIRING DIAGRAM
M1801000101294
AC301178AB
Front wiring
harness (RH)Control wiring
harness Instrument panel
wiring harness Roof wiring
harnessFloor wiring
harness (RH)
Battery wiring
harness Front wiring
harness (LH) Front door
wiring harness
Floor wiring
harness (LH) Fuel wiring
harnessRear door
wiring harness
Front bumper
wiring harness
Rear bumper
wiring harness
*
*
Tailgate wiring
harness
NO
TE: .
1.This illu stration shows o n ly major wirin g harne sses.
2.*: also eq uipp ed at t he rig h t side.

ENGINE COMPARTMENT
CONFIGURATION DIAGRAMS80-6
ENGINE COMPARTMENT
ENGINE COMPARTMENT M1801000302440
AC301123
Front wiring
harness (RH)
A-01
A-32
A-31
A-29
A-28
A-27
A-26
A-25 A-23
A-24 A-22
AC
1
Front bumper
wiring harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Connector
symbol
A
A-01(2-GR)Side turn signal lamp (RH)
A-02(2-GR)Side turn signal lamp (LH)
A-03(2-B)Wheel speed sensor (Front: LH)
A-04X(4)Front fog lamp relay or spare connector
(for front fog lamp)
A-05X(4)Horn relay
A-09X(4)Fan control relay
A-10X(11)Front-ECU
A-11X(11)Front-ECU
A-12(2-B)Front wiring harness (LH) and control
wiring harness combination
A-13(12-B)Front wiring harness (LH) and control
wiring harness combination
A-14(3-B)Headlamp (LH)
A-15(6-B)Front combination lamp (LH)
A-16(2)Front turn signal lamp (LH)

AC502048AB
A-02A-03
A-04X
A-05X
A-09X
A-10X
A-11X
A-12
A-13
A-14
A-15
A-16
A-17
A-18
A-19
A-20
A-21 Front wiring
harness
(LH)
12
A-33
A-17(2-B)Front fog lamp (LH)
A-18(3-GR)Cooling fan motor drive control unit
A-19(1-B)Horn (HI)
A-20(2-B)Front wiring harness (LH) and front
bumper wiring harness combination
A-21(1-B)Horn (LO)
A-22(2-B)Front fog lamp (RH)
A-23(2)Front turn signal lamp (RH)
A-24(1)Spare connector (for front fog lamp)
A-25(6-B)Front combination lamp (RH)
A-26(2)Windshield washer motor
A-27(2-G)Rear washer motor
A-28(2-B)Headlamp washer motor
A-29(3-B)Headlamp (RH)
A-31(2-BR)Dual pressure switch
A-32(2-B)Wheel speed sensor (Front: RH)
A-33(2-BR)Outside thermo sensor
ENGINE COMP AR TMEN T
CONF IGURA TION D I A G RA MS80-7

ENGINE COMPARTMENT
CONFIGURATION DIAGRAMS80-8
ENGINE COMPARTMENT
M1801000302451
AC301126
Front wiring
harness (RH)
A-01
A-32
A-31
A-29 A-30
A-27
A-26
A-25 A-23
A-24 A-22
AC
1
Front bumper
wiring harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Connector
symbol
A
A-01(2-GR)Side turn signal lamp (RH)
A-02(2-GR)Side turn signal lamp (LH)
A-03(2-B)Wheel speed sensor (Front: LH)
A-04X(4)Front fog lamp relay or spare connector
(for front fog lamp)
A-05X(4)Horn relay
A-09X(4)Fan control relay
A-10X(11)Front-ECU
A-11X(11)Front-ECU
A-12(2-B)Front wiring harness (LH) and control
wiring harness combination
A-14(3-B)Headlamp (LH)
A-15(6-B)Front combination lamp (LH)
A-16(2)Front turn signal lamp (LH)
A-17(2-B)Front fog lamp (LH)

AC502049
A-33
AB
A-02A-03
A-04X
A-05X
A-09X
A-10X
A-11X
A-12
A-14
A-15
A-16
A-17
A-18
A-19
A-20
A-21 Front wiring
harness
(LH)
12
A-18(3-GR)Cooling fan motor drive control unit
A-19(1-B)Horn (HI)
A-20(2-B)Front wiring harness (LH) and front
bumper wiring harness combination
A-21(1-B)Horn (LO)
A-22(2-B)Front fog lamp (RH)
A-23(2)Front turn signal lamp (RH)
A-24(1)Spare connector (for front fog lamp)
A-25(6-B)Front combination lamp (RH)
A-26(2)Windshield washer motor
A-27(2-G)Rear washer motor
A-29(3-B)Headlamp (RH)
A-30(2-GR)No connection
A-31(2-BR)Dual pressure switch
A-32(2-B)Wheel speed sensor (Front: RH)
A-33(2-BR)Outside thermo sensor
ENGINE COMP AR TMEN T
CONF IGURA TION D I A G RA MS80-9
