5-108 Features and controls
5
N00558101310
—
 The F. A. S. T. -key is not detected.
Insert the F. A. S. T.
-key into the key slot
in the glove compartment. Refer to “If the F. A. S. T. -key is not operating properly” on page 5-21.
—
 You have forgotten to remove the F. A. S. T. -key from the key slot in the glove com-partment.
 Remove the F. A. S. T. -key from the key slot in the glove compartment.
—
 The engine switch is pressed to stop the engine and the selector lever is in a posi-tion other than the “P” (PARK) position.
 On vehicles with CVT, place the selector lever in the “P” (PARK) position to put the operation mode in OFF.
—
 There is a fault in the electrical system.
Park your vehicle in a safe place as soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facil- ity of your choice to have the system checked.

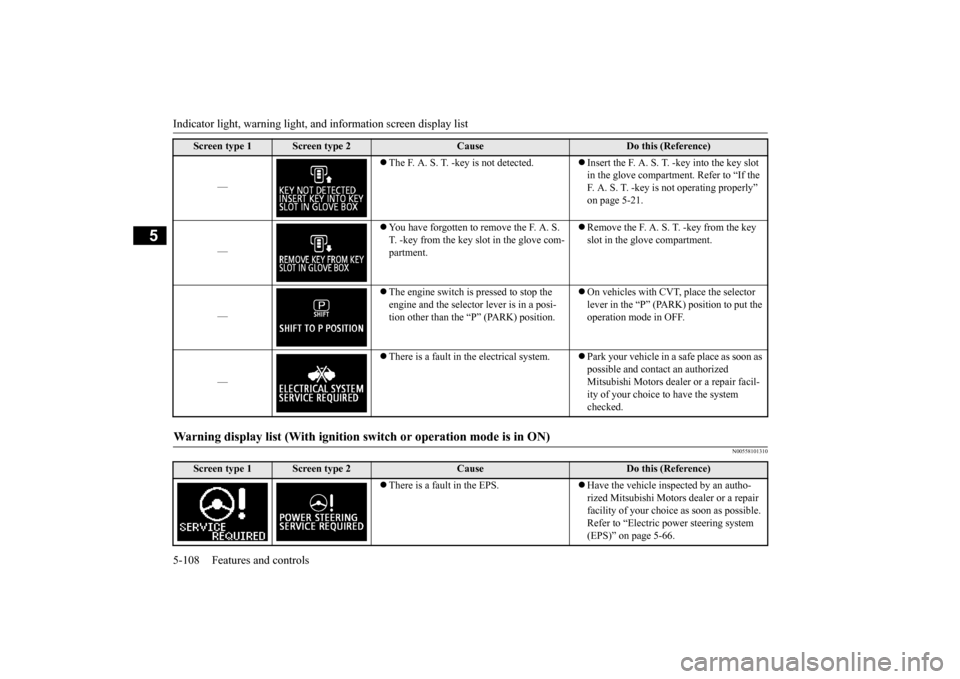

Warning display list (With ignition sw
itch or operation mode is in ON)
Screen type 1
Screen type 2
Cause
Do this (Reference)
 There is a fault in the EPS.
Have the vehicle inspected by an autho- rized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible. Refer to “Electric power steering system (EPS)” on page 5-66.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0202700US.book
108 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Indicator light, warning light, an
d information screen display list Features and controls 5-109
5
—
 There is a fault in the F.A.S.T.-key. Refer to “Free-hand Advanced Security Trans-
mitter (F.A.S.T.-key)” on page 5-11.
 Immobilizer is registered. Refer to “Customer key programming (Except
for vehicles sold in Canada)” on page 5-6.Refer to “Customer F.A.S.T.-key program- ming (Except for vehicles sold in Canada)” on page 5-23.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0202700US.book
109 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Indicator light, warning light, an
d information screen display list
5-110 Features and controls
5

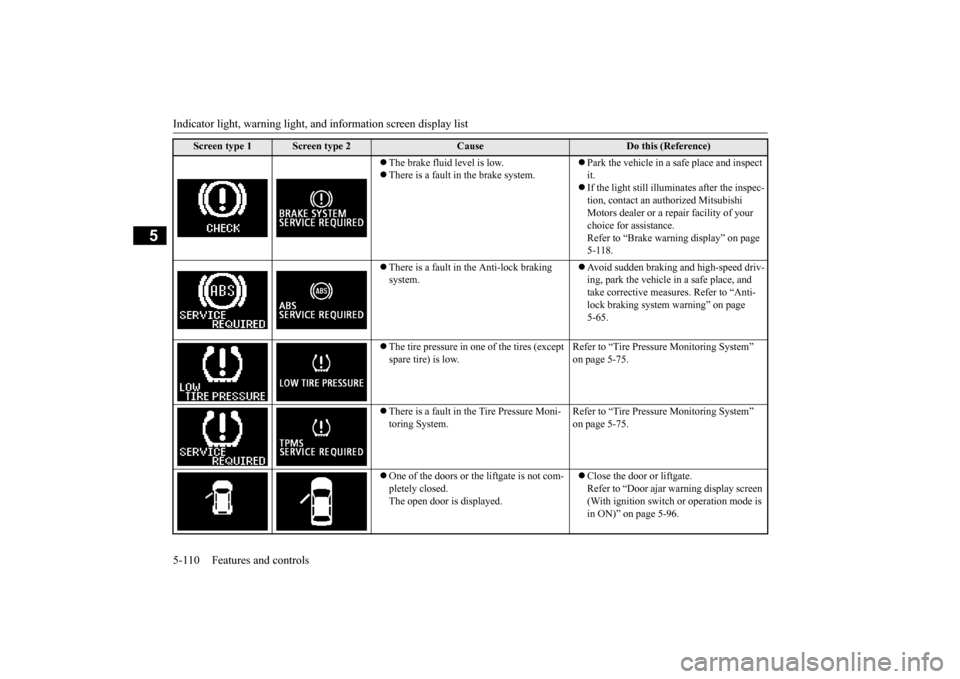

 The brake fluid level is low.  There is a fault in the brake system.
 Park the vehicle in a safe place and inspect it.  If the light still illuminates after the inspec- tion, contact an authorized Mitsubishi Motors dealer or a repair facility of your choice for assistance.Refer to “Brake warning display” on page 5-118.
 There is a fault in the Anti-lock braking system.
 Avoid sudden braking and high-speed driv- ing, park the vehicle in a safe place, and take corrective measures. Refer to “Anti- lock braking system warning” on page 5-65.
 The tire pressure in one of the tires (except spare tire) is low.
Refer to “Tire Pressure Monitoring System” on page 5-75.
 There is a fault in the Tire Pressure Moni- toring System.
Refer to “Tire Pressure Monitoring System” on page 5-75.
 One of the doors or the liftgate is not com- pletely closed.The open door is displayed.
 Close the door or liftgate. Refer to “Door ajar warning display screen (With ignition switch or operation mode is in ON)” on page 5-96.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0202700US.book
110 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Indicator light, warning light, an
d information screen display list Features and controls 5-111
5

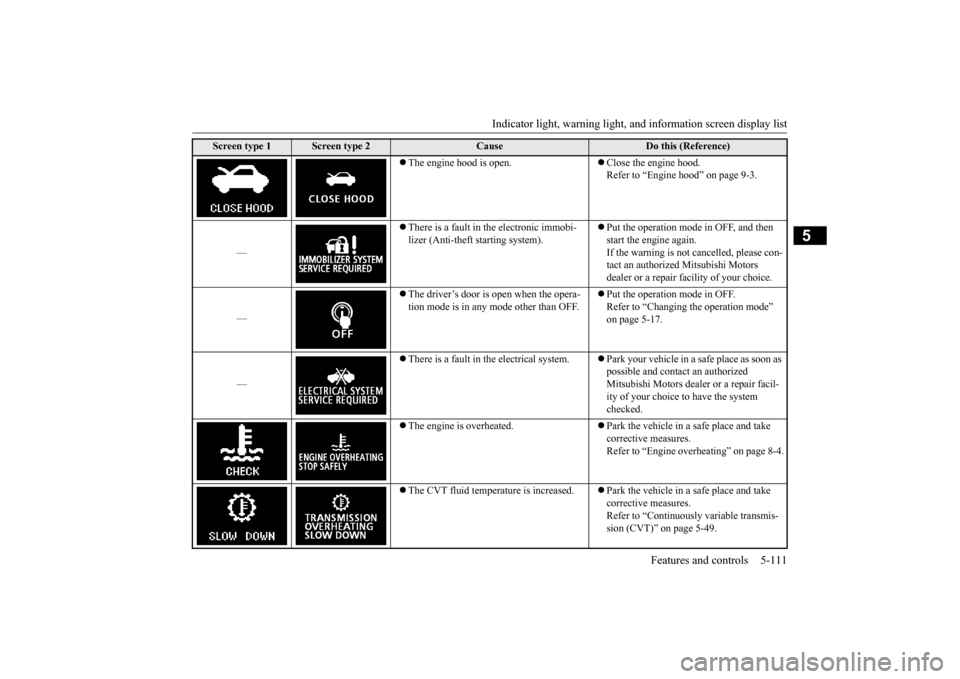

 The engine hood is open.
Close the engine hood. Refer to “Engine hood” on page 9-3.
—
 There is a fault in the electronic immobi- lizer (Anti-theft starting system).
 Put the operation mode in OFF, and then start the engine again.If the warning is not cancelled, please con- tact an authorized Mitsubishi Motors dealer or a repair facility of your choice.
—
 The driver’s door is open when the opera- tion mode is in any mode other than OFF.
 Put the operation mode in OFF. Refer to “Changing the operation mode” on page 5-17.
—
 There is a fault in the electrical system.
Park your vehicle in a safe place as soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facil- ity of your choice to have the system checked.
 The engine is overheated.
Park the vehicle in a safe place and take corrective measures. Refer to “Engine overheating” on page 8-4.
 The CVT fluid temperature is increased.
Park the vehicle in a safe place and take corrective measures.Refer to “Continuously variable transmis- sion (CVT)” on page 5-49.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0202700US.book
111 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Indicator light, warning light, an
d information screen display list
5-112 Features and controls
5

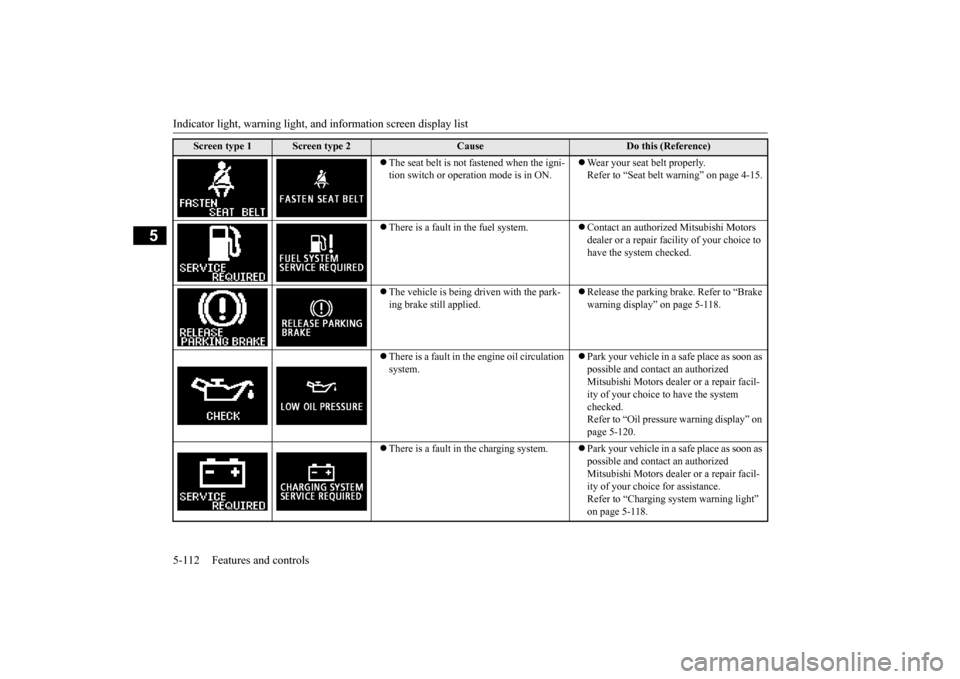

 The seat belt is not fastened when the igni- tion switch or operation mode is in ON.
 Wear your seat belt properly. Refer to “Seat belt warning” on page 4-15.
 There is a fault in the fuel system.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.
 The vehicle is being driven with the park- ing brake still applied.
 Release the parking brake. Refer to “Brake warning display” on page 5-118.
 There is a fault in the engine oil circulation system.
 Park your vehicle in a safe place as soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facil- ity of your choice to have the system checked. Refer to “Oil pressure warning display” on page 5-120.
 There is a fault in the charging system.
Park your vehicle in a safe place as soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facil- ity of your choice for assistance.Refer to “Charging system warning light” on page 5-118.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0202700US.book
112 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Indicator light, warning light, an
d information screen display list Features and controls 5-113
5

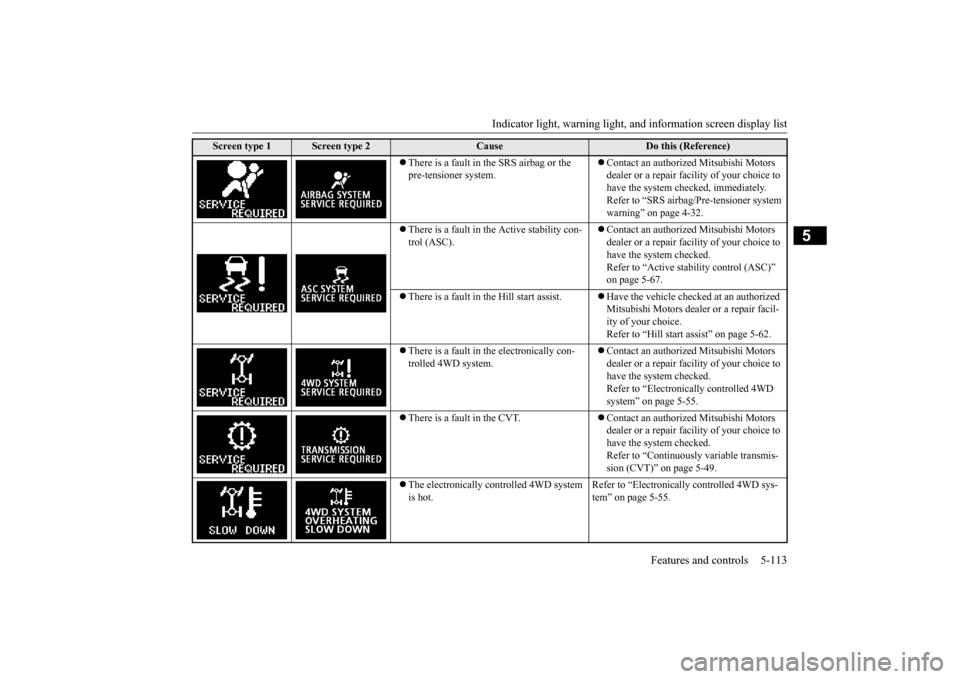

 There is a fault in the SRS airbag or the pre-tensioner system.
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked, immediately.Refer to “SRS airbag/Pre-tensioner system warning” on page 4-32.
 There is a fault in the Active stability con- trol (ASC).
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked. Refer to “Active stability control (ASC)” on page 5-67.
 There is a fault in the Hill start assist.
Have the vehicle checked at an authorized Mitsubishi Motors deal
er or a repair facil-
ity of your choice. Refer to “Hill start assist” on page 5-62.
 There is a fault in the electronically con- trolled 4WD system.
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked. Refer to “Electronically controlled 4WD system” on page 5-55.
 There is a fault in the CVT.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.Refer to “Continuously variable transmis- sion (CVT)” on page 5-49.
 The electronically controlled 4WD system is hot.
Refer to “Electronically controlled 4WD sys- tem” on page 5-55.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0202700US.book
113 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Indicator light, warning light, an
d information screen display list
5-114 Features and controls
5
N00558200242

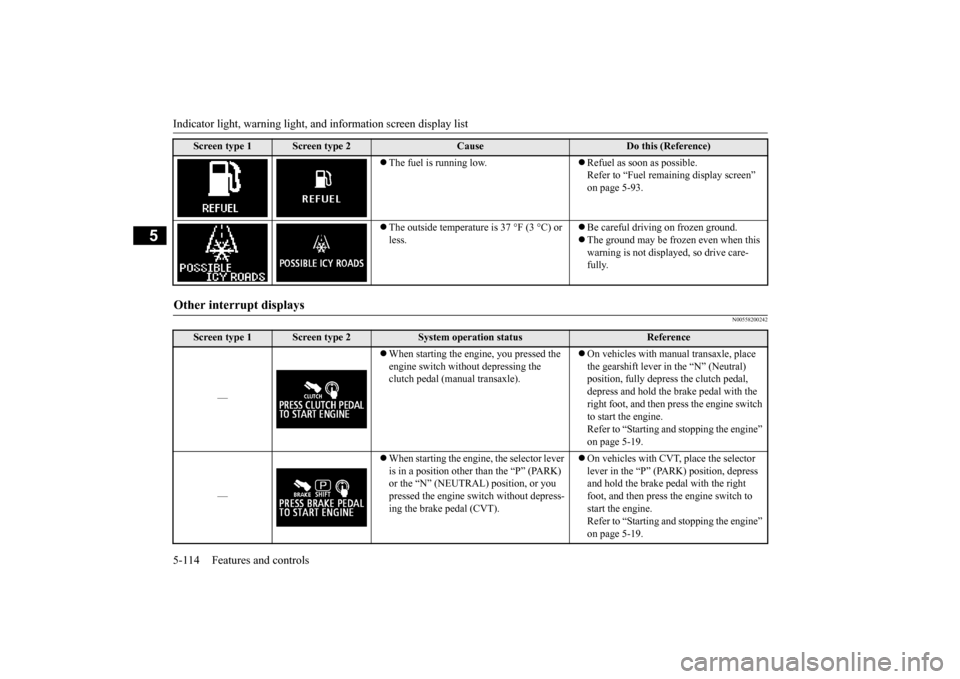

 The fuel is running low.
Refuel as soon as possible. Refer to “Fuel remaining display screen” on page 5-93.
 The outside temperature is 37 °F (3 °C) or less.
 Be careful driving on frozen ground.  The ground may be frozen even when this warning is not displayed, so drive care- fully.
Other interrupt displays
Screen type 1
Screen type 2
System operation status
Reference
—
 When starting the engine, you pressed the engine switch without depressing the clutch pedal (manual transaxle).
 On vehicles with manual transaxle, place the gearshift lever in
the “N” (Neutral)
position, fully depress the clutch pedal, depress and hold the brake pedal with the right foot, and then press the engine switch to start the engine. Refer to “Starting and stopping the engine” on page 5-19.
—
 When starting the engine, the selector lever is in a position other than the “P” (PARK) or the “N” (NEUTRAL) position, or you pressed the engine switch without depress- ing the brake pedal (CVT).
 On vehicles with CVT, place the selector lever in the “P” (PARK) position, depress and hold the brake pedal with the right foot, and then press the engine switch to start the engine. Refer to “Starting and stopping the engine” on page 5-19.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0202700US.book
114 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Indicator light, warning light, an
d information screen display list Features and controls 5-115
5
The operation status of each system is displayed on the information screen. For further details, refer to the appropriate page
for each system.
Screen type 1
Screen type 2
System operation status
Reference

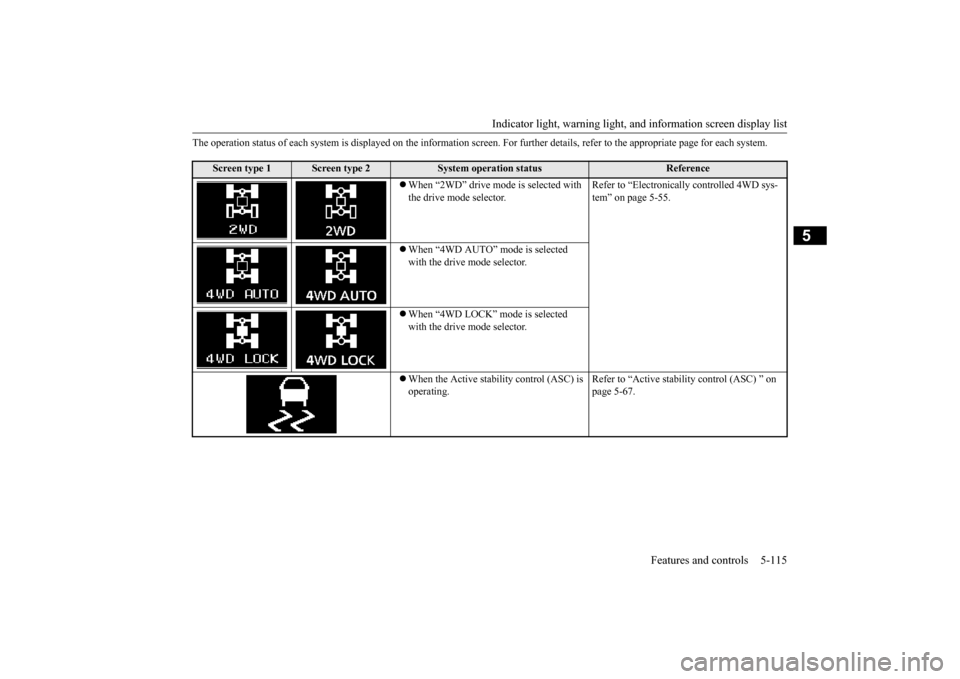

 When “2WD” drive mode is selected with the drive mode selector.
Refer to “Electronically controlled 4WD sys- tem” on page 5-55.
 When “4WD AUTO” mode is selected with the drive mode selector.  When “4WD LOCK” mode is selected with the drive mode selector.  When the Active stability control (ASC) is operating.
Refer to “Active stability control (ASC) ” on page 5-67.
BK0202700US.book
115 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Indicators 5-116 Features and controls
5

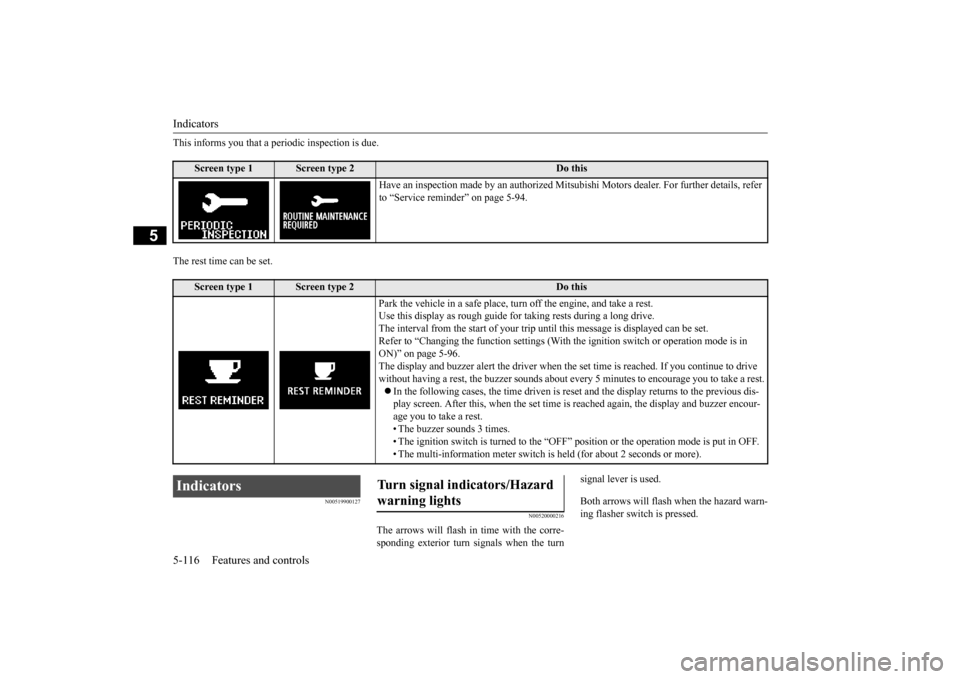

This informs you that a periodic inspection is due. The rest time can be set.
N00519900127
N00520000216
The arrows will flash in time with the corre- sponding exterior turn signals when the turn
signal lever is used. Both arrows will flas
h when the hazard warn-
ing flasher switch is pressed.
Screen type 1
Screen type 2
Do this
Have an inspection made by an authorized Mitsub
ishi Motors dealer. For further details, refer
to “Service reminder” on page 5-94.
Screen type 1
Screen type 2
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest. Use this display as rough guide for taking rests during a long drive. The interval from the start of your trip un
til this message is displayed can be set.
Refer to “Changing the function settings (With
the ignition switch or operation mode is in
ON)” on page 5-96. The display and buzzer alert the driver when th
e set time is reached. If you continue to drive
without having a rest, the buzzer
sounds about every 5 minutes to
encourage you to take a rest.
 In the following cases, the time driven is rese
t and the display return
s to the previous dis-
play screen. After this, when the set time is
reached again, the display and buzzer encour-
age you to take a rest.• The buzzer sounds 3 times. • The ignition switch is turned to the “OFF” position or the operation mode is put in OFF. • The multi-information meter switch is
held (for about 2 seconds or more).
Indicators
Turn signal indicators/Hazard warning lights
BK0202700US.book
116 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Warning lights
Features and controls 5-117
5
N00520100086
A blue light comes on when the headlights are on high beam.
N00520200175
This indicator comes on while the front fog lights are on.
N00551300026
This indicator light illuminates while theposition lights are on.
N00568800023
This indicator will be displayed when fuel-efficient driving is achieved.
N00520300147 N00520400470
This light comes on when the ignition switch is turned to the “ON” position (engine off) orthe operation mode is put in ON. When the engine is started, the light should go off a few seconds later. A warning is alsodisplayed in the multi-information display.The warning light also illuminates after start- ing the engine under the following condi- tions.  When the parking brake is still applied.  When the brake fluid level is low.  When the brake system circuit is not working properly.
Before driving, be sure that the parking brake is fully released and brake warning light is off.
N00520500804
This indicator is a part of the onboard diag- nostic (OBD) system which monitors the emissions, engine control system or continu- ously variable transmission (CVT) control
NOTE
 If the indicator flashes faster than usual or if the indicator stays on without flashing, check for a malfunctioning turn signal light bulb or turn signal connection.
High beam indicator Front fog light indicator
(if so
equipped)Position indicator ECO mode indicator
(if so
equipped)
Warning lights Brake warning light
CAUTION If the brake warning light and the Anti-lock braking system warning light are illuminated at the same time, the braking force distribu- tion function will not operate, so the vehiclemay be destabilized during sudden braking under the following conditions.
• When the brake warning light does not goout even when the parking brake is released.• When the brake warning light stays onwhile driving.• If the above occurs, avoid sudden brakingand high-speed driving. Park the vehicle in a safe place, and contact an authorized Mitsubishi Motors dealer or a repair facilityof your choice as soon as possible.
 The vehicle should be brought to a halt in the following manner when brake performance is deteriorated.• Confirm that the vehicle slows down whenyou press down on the brake pedal harder than usual. In some cases, the brake pedalmay go all the way to the floor.• Should the brakes fail, use engine brakingto reduce your speed and slowly apply the parking brake. Depress the brake pedal to illuminate thestop lights to alert the vehicles behind you.
Engine malfunction indicator (“SERVICE ENGINE SOON” or “Check engine light”)
CAUTION
