MITSUBISHI OUTLANDER SPORT 2014 3.G Owners Manual

Fuses11-20 Maintenance
11
*: Fusible linkzSome fuses may not be installed on yourvehicle, depending on the vehicle modelor specifications.zThe table above shows the main equip-ment corresponding to each fuse.
The fuse block does not contain spare 7.5 Aor 30 A fuses. If one of these fuses burns out,substitute with the following fuse.7.5 A: 10 A spare fuse30 A: 30 A audio system amp fuseWhen using a substitute fuse, replace with afuse of the correct capacity as soon as possi-ble.
E01008101389E01007801884
1. Before replacing a fuse, always turn offthe electrical circuit concerned and put theoperation mode of the power switch inOFF.
2. Remove the fuse puller (A) from theinside of the main fuse block cover in theengine compartment.3. Referring to the fuse load capacity table,check the fuse pertaining to the problem.
F2 — — —F3 — — —F4
Fuel tank filler
door
7.5 A
F5
Solenoid valve (Air condition-
ing)
7.5 A
F6
Wa t e r p u m p (Air condition-
ing)
7.5 A
F7
Electric motor unit control
10 A
F8 — — —F9
Drive battery fun motor
15 A
F10
Ignition control 15 A
F11
Ignition control 7.5 A
No.
Sym-bol
Electrical sys-
tem
Capacities
Identification of fuse Capacity
Colour
7.5 A
Brown
10 A
Red
15 A
Blue
20 A
Ye l l o w
30 A
Green (fuse type) /Pink (fusible
link type)
40 A Green (fusible link type)
Fuse replacement
B- Fuse is OKC- Blown fuse
BK0203201EN.book 20 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Replacement of lamp bulbs
Maintenance 11-21
11

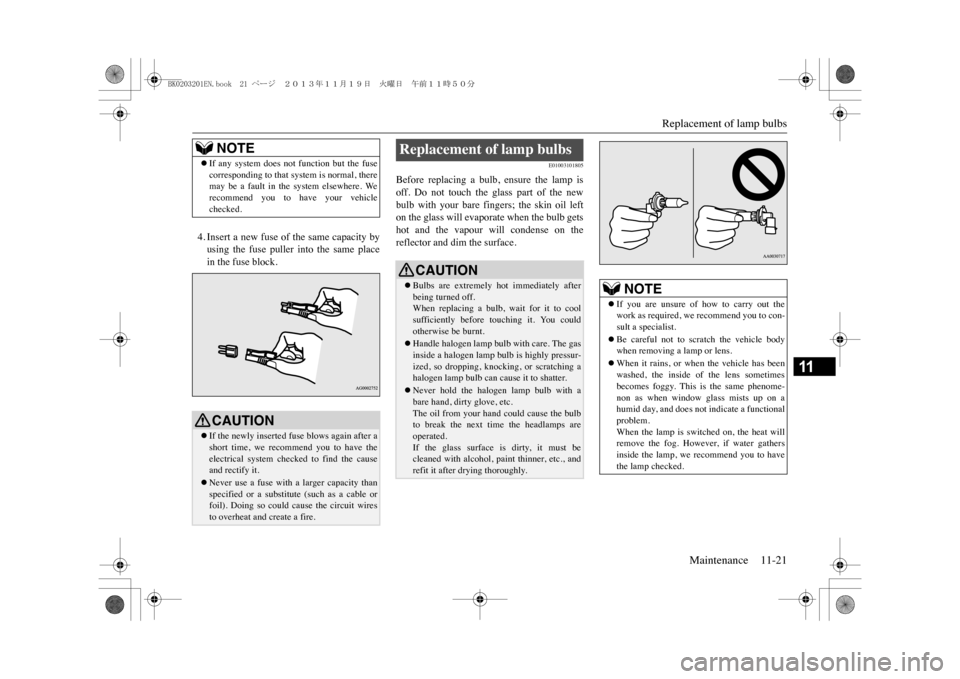

4. Insert a new fuse of the same capacity byusing the fuse puller into the same placein the fuse block.
E01003101805
Before replacing a bulb, ensure the lamp isoff. Do not touch the glass part of the newbulb with your bare fingers; the skin oil lefton the glass will evaporate when the bulb getshot and the vapour will condense on thereflector and dim the surface.
NOTE
zIf any system does not function but the fusecorresponding to that system is normal, theremay be a fault in the system elsewhere. Werecommend you to have your vehiclechecked.CAUTIONzIf the newly inserted fuse blows again after ashort time, we recommend you to have theelectrical system checked to find the causeand rectify it.zNever use a fuse with a larger capacity thanspecified or a substitute (such as a cable orfoil). Doing so could cause the circuit wiresto overheat and create a fire.
Replacement of lamp bulbs
CAUTIONzBulbs are extremely hot immediately afterbeing turned off.When replacing a bulb, wait for it to coolsufficiently before
touching it. You could
otherwise be burnt.zHandle halogen lamp bulb with care. The gasinside a halogen lamp
bulb is highly pressur-
ized, so dropping, knocking, or scratching ahalogen lamp bulb can cause it to shatter.zNever hold the haloge
n lamp bulb with a
bare hand, dirty glove, etc.The oil from your hand could cause the bulbto break the next tim
e the headlamps are
operated.If the glass surface is dirty, it must becleaned with alcohol, paint thinner, etc., andrefit it after drying thoroughly.
NOTE
zIf you are unsure of how to carry out thework as required, we
recommend you to con-
sult a specialist.zBe careful not to scratch the vehicle bodywhen removing a lamp or lens.zWhen it rains, or when the vehicle has beenwashed, the inside of the lens sometimesbecomes foggy. This is the same phenome-non as when window glass mists up on ahumid day, and does not
indicate a functional
problem.When the lamp is switched on, the heat willremove the fog. However, if water gathersinside the lamp, we
recommend you to have
the lamp checked.
BK0203201EN.book 21 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Replacement of lamp bulbs11-22 Maintenance
11
E01003200333
When replacing a bulb, use a new bulb withthe same wattage and colour.
E01003304042
Codes in parentheses indicate bulb types.
Codes in parentheses indicate bulb types.

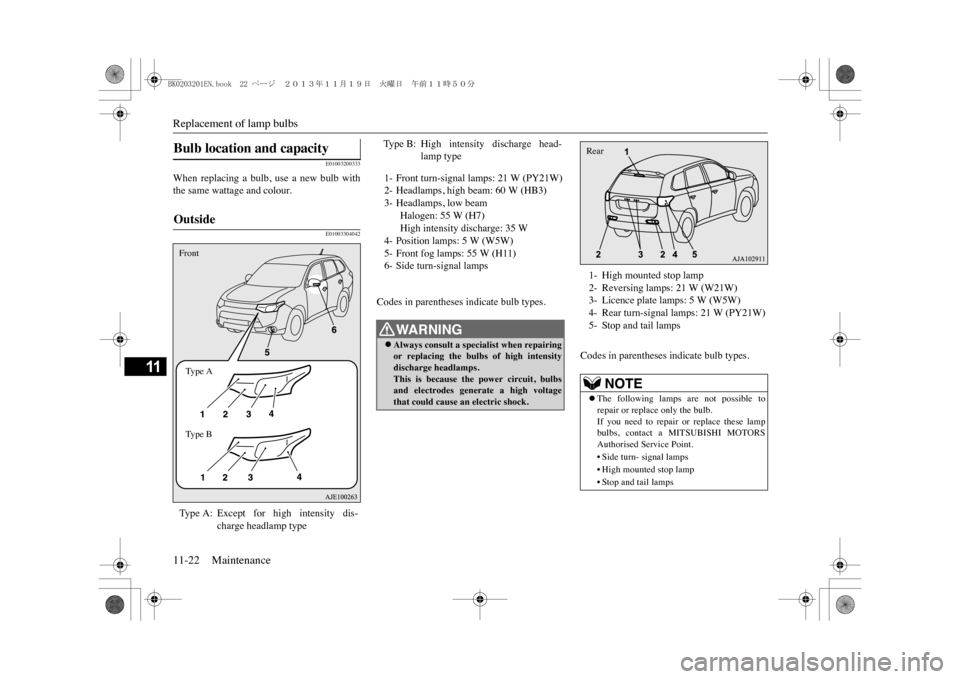

Bulb location and capacity Outside Ty p e A : E x c e p t f o r h i g h i n t e n s i t y d i s -
charge headlamp type
FrontTy p e ATy p e B
Ty p e B : H i g h i n t e n s i t y d i s c h a r g e h e a d -
lamp type
1- Front turn-signal lamps: 21 W (PY21W)2- Headlamps, high beam: 60 W (HB3)3- Headlamps, low beam
Halogen: 55 W (H7)High intensity discharge: 35 W
4- Position lamps: 5 W (W5W)5- Front fog lamps: 55 W (H11)6- Side turn-signal lamps
WA R N I N GzAlways consult a specialist when repairingor replacing the bulbs
of high intensity
discharge headlamps.This is because the power circuit, bulbsand electrodes generate a high voltagethat could cause an electric shock.
1- High mounted stop lamp2- Reversing lamps: 21 W (W21W)3- Licence plate lamps: 5 W (W5W)4- Rear turn-signal lamps: 21 W (PY21W)5- Stop and tail lamps
NOTE
zThe following lamps are not possible torepair or replace only the bulb.If you need to repair or replace these lampbulbs, contact a MITSUBISHI MOTORSAuthorised Service Point.•Side turn- signal lamps•High mounted stop lamp•Stop and tail lampsRear
BK0203201EN.book 22 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Replacement of lamp bulbs
Maintenance 11-23
11
E01003401912
E01009301421

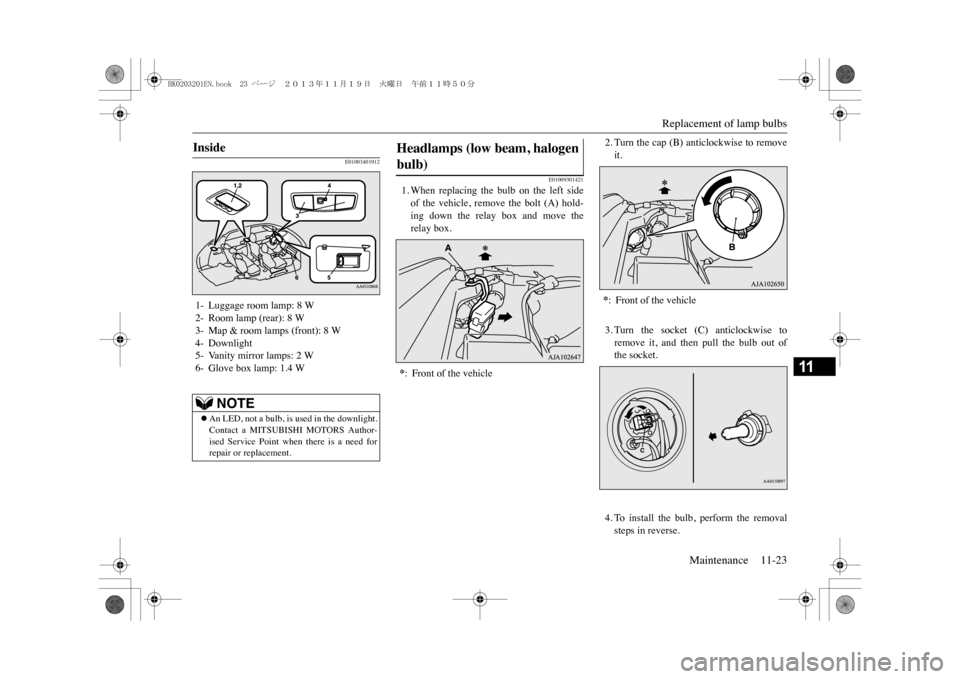

1. When replacing the bulb on the left sideof the vehicle, remove the bolt (A) hold-ing down the relay box and move therelay box.
2. Turn the cap (B) anticlockwise to removeit.3. Turn the socket (C) anticlockwise toremove it, and then pull the bulb out ofthe socket.4. To install the bulb, perform the removalsteps in reverse.
Inside 1- Luggage room lamp: 8 W2- Room lamp (rear): 8 W3- Map & room lamps (front): 8 W4- Downlight5- Vanity mirror lamps: 2 W6- Glove box lamp: 1.4 W
NOTE
zAn LED, not a bulb, is used in the downlight.Contact a MITSUBISHI MOTORS Author-ised Service Point when there is a need forrepair or replacement.
Headlamps (low beam, halogen bulb) *:Front of the vehicle
*:Front of the vehicle
BK0203201EN.book 23 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Replacement of lamp bulbs11-24 Maintenance
11
E01009401246

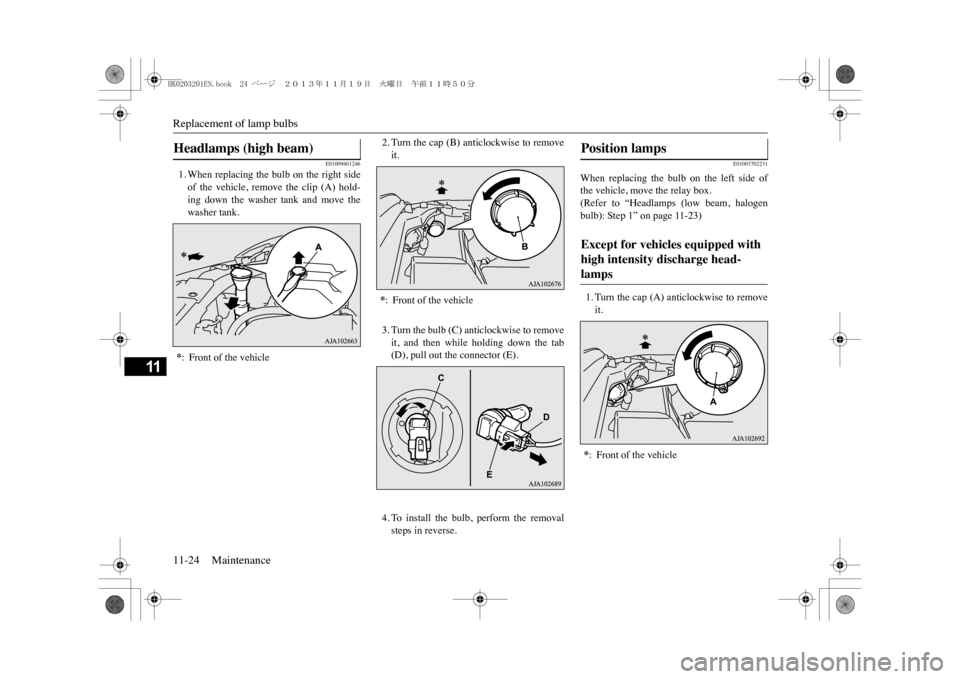

1. When replacing the bulb on the right sideof the vehicle, remove the clip (A) hold-ing down the washer tank and move thewasher tank.
2. Turn the cap (B) anticlockwise to removeit.3. Turn the bulb (C) anticlockwise to removeit, and then while holding down the tab(D), pull out the connector (E).4. To install the bulb, perform the removalsteps in reverse.
E01003702231
When replacing the bulb on the left side ofthe vehicle, move the relay box.(Refer to “Headlamps (low beam, halogenbulb): Step 1” on page 11-23)1. Turn the cap (A) anticlockwise to removeit.
Headlamps (high beam) *:Front of the vehicle
*:Front of the vehicle
Position lamps Except for vehicles equipped with high intensity discharge head-lamps *:Front of the vehicle
BK0203201EN.book 24 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Replacement of lamp bulbs
Maintenance 11-25
11

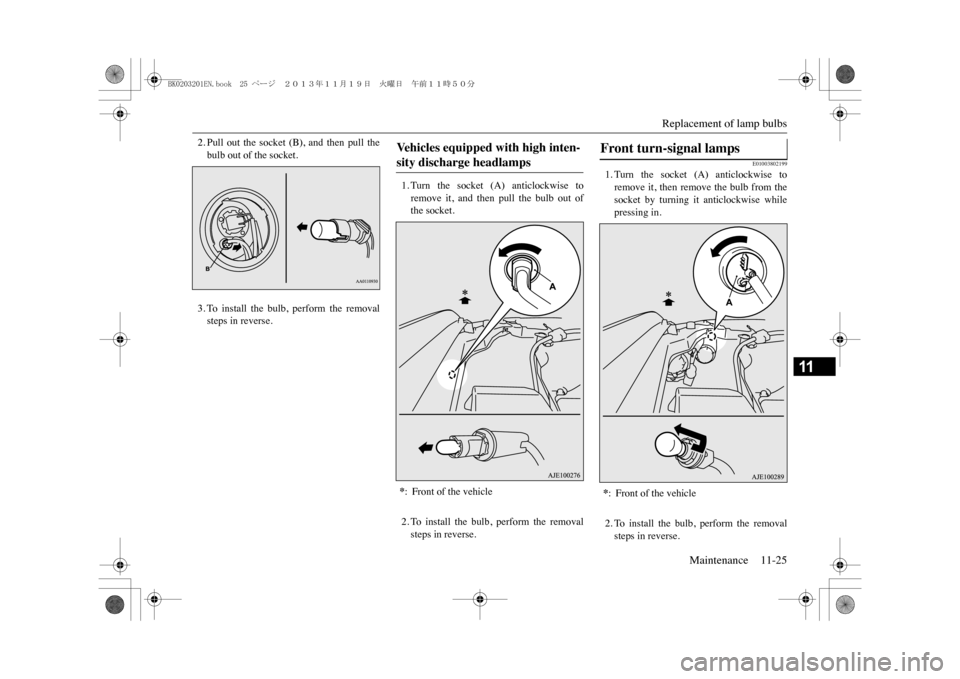

2. Pull out the socket (B), and then pull thebulb out of the socket.3. To install the bulb, perform the removalsteps in reverse.
1. Turn the socket (A) anticlockwise toremove it, and then pull the bulb out ofthe socket.2. To install the bulb, perform the removalsteps in reverse.
E01003802199
1. Turn the socket (A) anticlockwise toremove it, then remove the bulb from thesocket by turning it anticlockwise whilepressing in.2. To install the bulb, perform the removalsteps in reverse.
Ve h i c l e s e q u i p p e d w i t h h i g h i n t e n -sity discharge headlamps *:Front of the vehicle
Front turn-signal lamps *:Front of the vehicle
BK0203201EN.book 25 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Replacement of lamp bulbs11-26 Maintenance
11
E01004002808

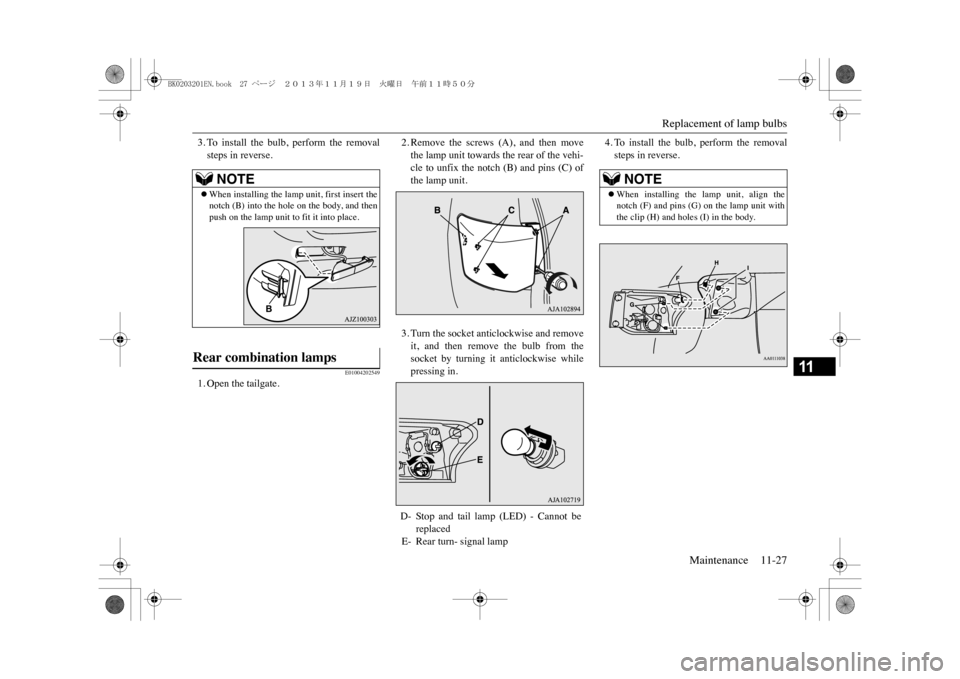

1. Insert a straight blade (or minus) screw-driver with a cloth over its tip at the edgeof the cover (A) and pry gently to removethe cover.2. Remove the 3 screws (B) and remove thelamp unit.
3. Turn the bulb (D) anticlockwise toremove it, and then while holding downthe tab (E), pull out the connector (F).
4. To install the bulb, perform the removalsteps in reverse.
E01004401401
1. Push the lamp unit toward the centre ofthe vehicle body to remove it.2. Turn the socket (A) anticlockwise toremove it, and then pull the bulb out ofthe socket.
Front fog lamps
NOTE
zWhen unfastening the screws of the foglamp, be careful not to mistakenly move thebeam position adjustment screw (C).
Reversing lamps
BK0203201EN.book 26 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Replacement of lamp bulbs
Maintenance 11-27
11
3. To install the bulb, perform the removalsteps in reverse.
E01004202549
1. Open the tailgate.
2. Remove the screws (A), and then movethe lamp unit towards the rear of the vehi-cle to unfix the notch (B) and pins (C) ofthe lamp unit.3. Turn the socket anticlockwise and removeit, and then remove the bulb from thesocket by turning it anticlockwise whilepressing in.
4. To install the bulb, perform the removalsteps in reverse.
NOTE
zWhen installing the lamp
unit, first insert the
notch (B) into the hole on the body, and thenpush on the lamp unit to fit it into place.
Rear combination lamps
D- Stop and tail lamp (LED) - Cannot be
replaced
E- Rear turn- signal lamp
NOTE
zWhen installing the lamp unit, align thenotch (F) and pins (G) on the lamp unit withthe clip (H) and holes (I) in the body.
BK0203201EN.book 27 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Replacement of lamp bulbs11-28 Maintenance
11
E01004600679

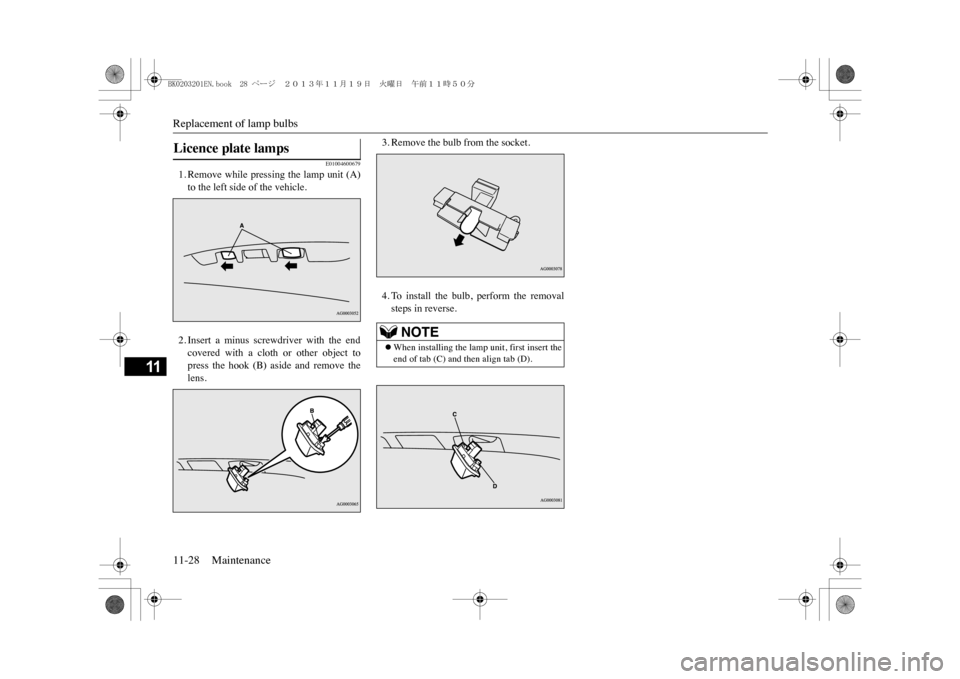

1. Remove while pressing the lamp unit (A)to the left side of the vehicle.2. Insert a minus screwdriver with the endcovered with a cloth or other object topress the hook (B) aside and remove thelens.
3. Remove the bulb from the socket.4. To install the bulb, perform the removalsteps in reverse.
Licence plate lamps
NOTE
zWhen installing the lamp unit, first insert theend of tab (C) and then align tab (D).
BK0203201EN.book 28 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

12
SpecificationsVe h i c l e l a b e l i n g . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2 - 2Ve h i c l e d i m e n s i o n s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2 - 4Ve h i c l e p e r f o r m a n c e . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2 - 5Ve h i c l e m a s s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2 - 5Engine specifications ......................................................................12-6Charging system specifications .....................................................12-7Electric motor specifications .........................................................12-8Low voltage electrical system ........................................................12-8Ty r e s a n d w h e e l s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2 - 8Other specifications ........................................................................12-9Refill capacities ............................................................................12-10
