MITSUBISHI OUTLANDER SPORT 2014 3.G Owners Manual

Vehicle labeling12-2 Specifications
12
E01100104372

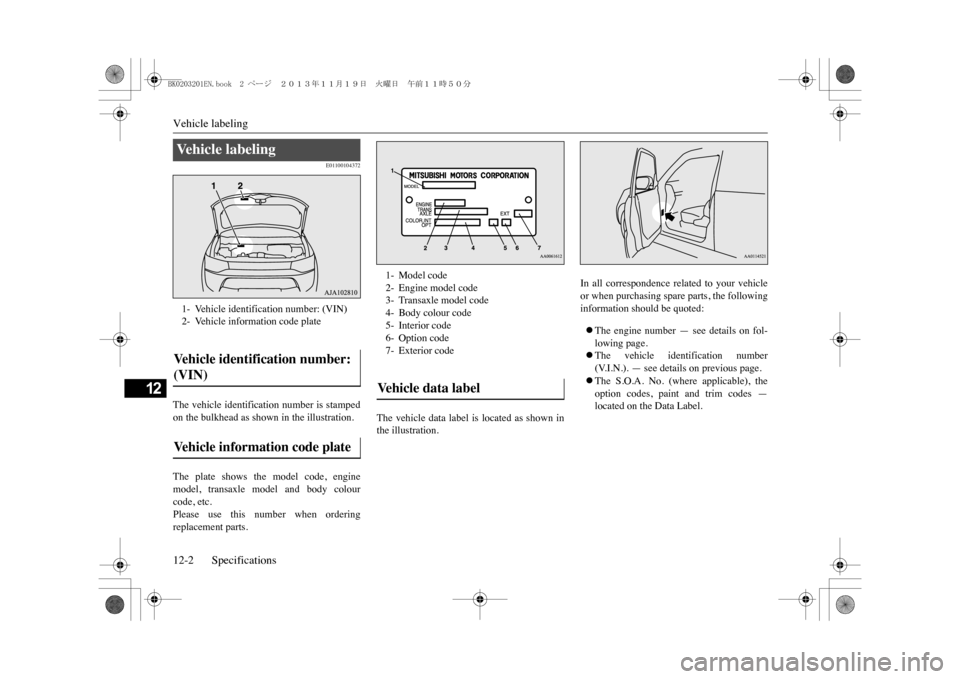

The vehicle identification number is stampedon the bulkhead as shown in the illustration.The plate shows the model code, enginemodel, transaxle model and body colourcode, etc.Please use this number when orderingreplacement parts.
The vehicle data label is located as shown inthe illustration.
In all correspondence related to your vehicleor when purchasing spare parts, the followinginformation should be quoted:zThe engine number — see details on fol-lowing page.zThe vehicle identification number(V.I.N.). — see details on previous page.zThe S.O.A. No. (where applicable), theoption codes, paint and trim codes —located on the Data Label.
Ve h i c l e l a b e l i n g 1- Vehicle identification number: (VIN)2- Vehicle information code plateVe h i c l e i d e n t i f i c a t i o n n u m b e r : (VIN) Ve h i c l e i n f o r m a t i o n c o d e p l a t e
1- Model code2- Engine model code3- Transaxle model code4- Body colour code5- Interior code6- Option code7- Exterior codeVe h i c l e d a t a l a b e l
BK0203201EN.book 2 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Vehicle labeling
Specifications 12-3
12

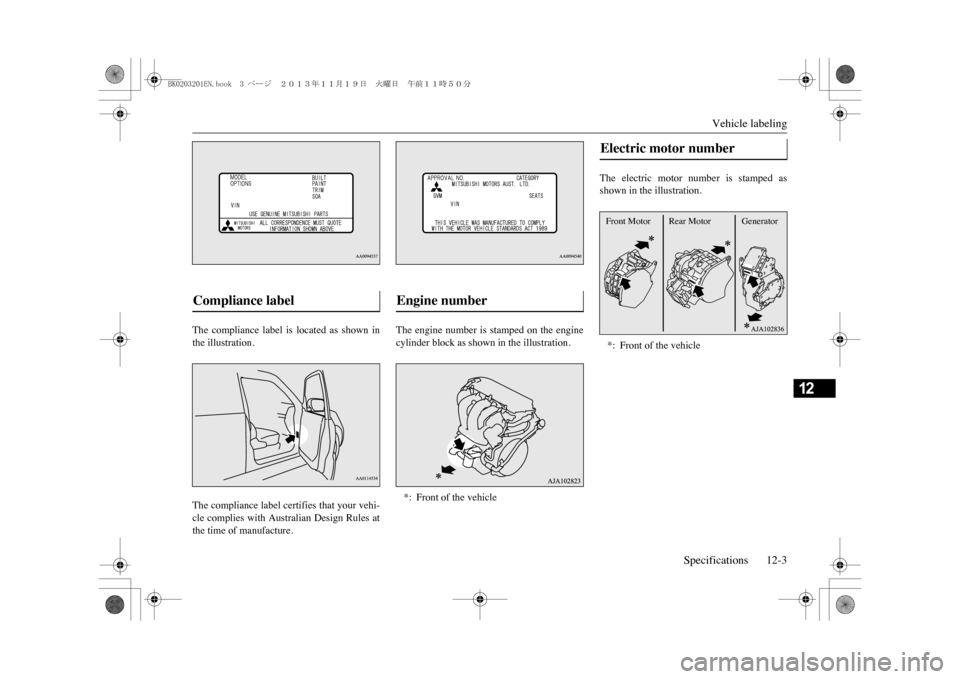

The compliance label is located as shown inthe illustration.The compliance label certifies that your vehi-cle complies with Australian Design Rules atthe time of manufacture.
The engine number is stamped on the enginecylinder block as shown in the illustration.
The electric motor number is stamped asshown in the illustration.
Compliance label
Engine number *: Front of the vehicle
Electric motor number *: Front of the vehicleFront Motor Rear Motor Generator
BK0203201EN.book 3 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Vehicle dimensions12-4 Specifications
12
E01100203956

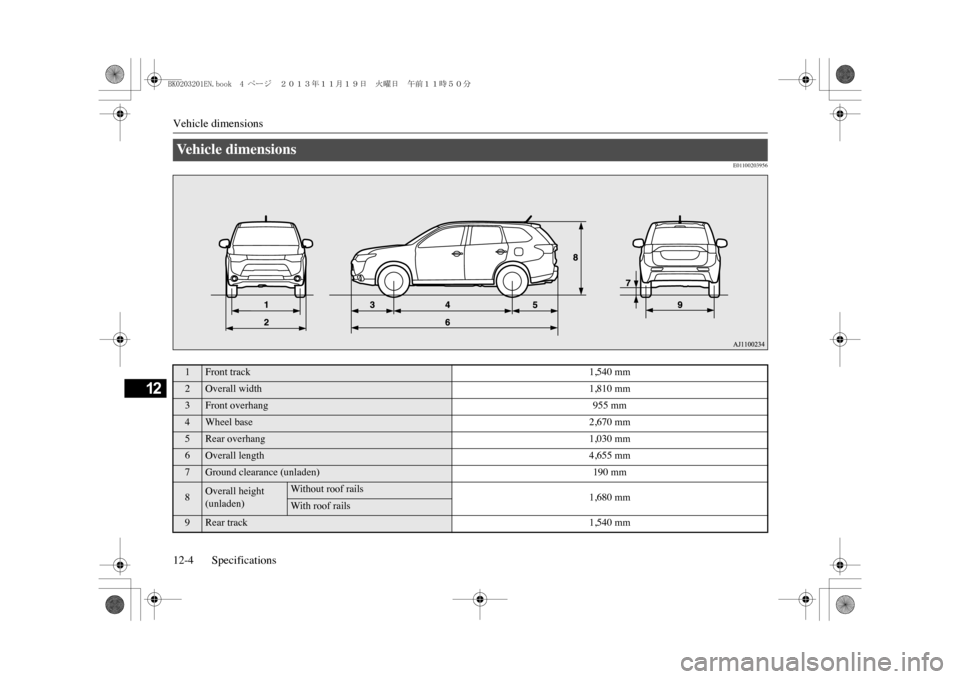

Ve h i c l e d i m e n s i o n s 1
Front track
1,540 mm
2
Overall width
1,810 mm
3
Front overhang
955 mm
4
Wheel base
2,670 mm
5
Rear overhang
1,030 mm
6
Overall length
4,655 mm
7
Ground clearance (unladen)
190 mm
8
Overall height (unladen)
Without roof rails
1,680 mm
With roof rails
9
Rear track
1,540 mm
BK0203201EN.book 4 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Vehicle performanceSpecifications 12-5
12
E01100303540E01100501740
Minimum turning radius
Body
5.73 m
Wheel
5.3 m
Vehicle performance Maximum speed
170 km/h
Ve h i c l e m a s s Kerb mass
Without optional parts
1,810 kg
With full optional parts
1,871 kg
Maximum gross vehicle mass
2,310 kg
Maximum axle mass
Front
1,160 kg
Rear
1,255 kg
Maximum towable mass
With brake
1,500 kg
Without brake
750 kg
Maximum trailer-nose mass
150 kg
Maximum roof load
80 kg
Maximum gross combination mass
3,810 kg
Seating capacity
5 persons
NOTE
zTo w i n g c a p a c i t y a n d t o w b a l l l o a d a r e w h e n f i t t
ed with a MITSUBISHI MOTORS Genuine Part
s tow bar. The capacity may be reduced i
f a non MITSUB-
ISHI MOTORS Genuine Parts tow bar is fitted. For further inform
ation when towing, including warranty coverage, refer to the sec
tion entitled “Towing
caravans and trailers” on page 7-71.
BK0203201EN.book 5 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Engine specifications12-6 Specifications
12
E01100603934
zWhen loading luggage and/or towing trailer, make sure
not to exceed any of the a
bove maximum ma
ss all th
e time.
zThe vehicle kerb mass specified may vary depe
nding on the equipment installed to the vehicle.
Engine specifications Engine type
Four-cylinder, in line, water-cooled four-cycle, double overhead cam-
shaft
Engine model Total displacement Bore Stroke Compression ratio
4B111,998 cc86.0 mm86.0 mm10.5
Firing order
1-3-4-2
NOTE
BK0203201EN.book 6 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Charging system specifications
Specifications 12-7
12
E01101901044
Charging system specifications Normal charging sys-tem
Rated input voltage
AC 240V (single phase)
Rated input frequency
50 Hz/60 Hz
Maximum rated current
10 A*
1
Maximum power consumption
3.6 kVA*
2
Applicable standards
Charging cable (with connector and control box)
EN61851-1EN61851-21IEC61851-1IEC61851-21IEC62196-1HD21.13HD22.4
On board charger
EN61851-1EN61851-21IEC61851-1IEC61851-21
Leakage current sensitivity in cable control box
20 mA
Charging mode
Based on IEC61851-1Mode 2/Case B*
1
Mode 3/Case C*
2
*1:When using a genuine charging cable with control box
*2:When using a home or public charging device (EVSE: Electric Vehicles Supply Equipment)
BK0203201EN.book 7 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Electric motor specifications12-8 Specifications
12
E01100603947E01100803747E01100904211
Normal charging system
IP degrees
IP44: When a charge connector is connected
IP55: When charging lid is closed and vehicle is moving
Electric motor specifications
Item
Front Motor
Rear Motor
Electric motor model
S61
Y61
Maximum output (ECE net)
60 kW
Maximum torque
137 N•m
195 N•m
Maximum 30 minutes power
25 kW
Low voltage electrical system Vo l t a g e
12 V
Auxiliary battery
Ty p e ( J I S )
S46B24L(S)
Capacity (5HR)
36 Ah
Spark plug type
NGK
DIFR5C11
Ty r e s a n d w h e e l s Ty r e
215/70R16 100H
225/55R18 98H
Wheel
Size
16x6 1/2JJ
18x7J
Offset
38 mm
BK0203201EN.book 8 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Other specifications
Specifications 12-9
12
E01101002185
NOTE
zContact your MITSUBISHI MOTORS Aut
horised Service Point for details on
the combination used on your vehicle.
Other specifications Fuel system
Fuel control
Electric controlled injection
Fuel pump
Electric motor type
Steering system
Rack and pinion type, power assisted
Suspension
Front
Independent type, MacPherson strut, coil spring
Rear
Independent type, multi-link, coil spring
Service brakes
Ty p e
Hydraulic, dual diagonal circuit with power assistance,
anti-lock brake system with electronic brake force distribution function
and regenerative brake system
Front
Ve n t i l a t e d d i s c b r a k e s
Rear
Disc brakes
Parking brakes
Parking brake acts mechanically on rear wheels
NOTE
zYo u r v e h i c l e c a n n o t b e r u n o n L .
P. G. ( L i q u i d P e t r o l e u m G a s ) .
BK0203201EN.book 9 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

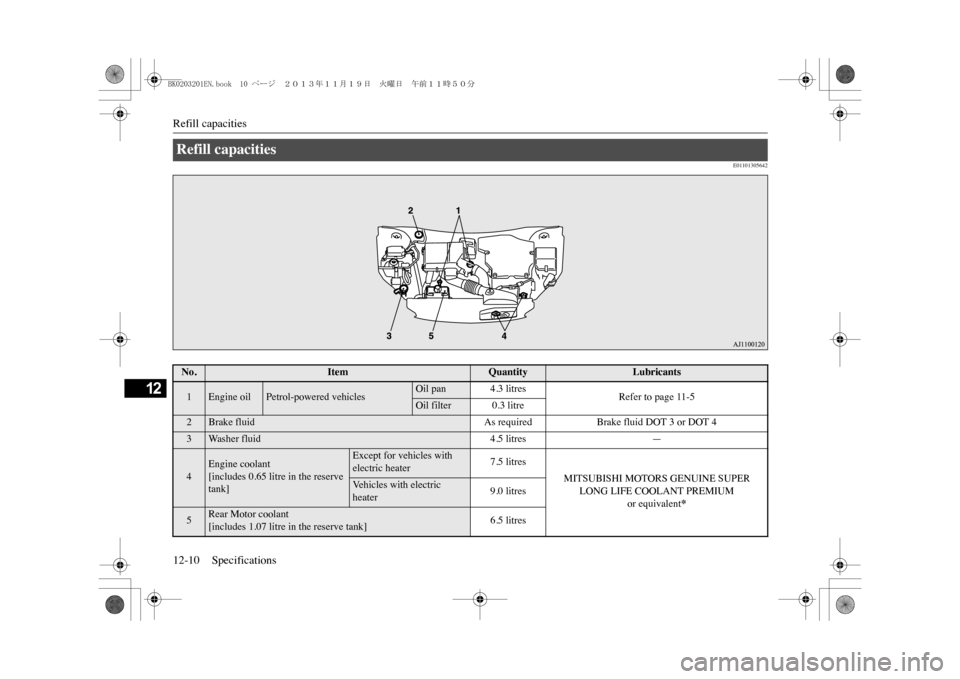

Refill capacities12-10 Specifications
12
E01101305642
Refill capacities No.
Item
Quantity
Lubricants
1
Engine oil
Petrol-powered vehicles
Oil pan 4.3 litres
Refer to page 11-5
Oil filter 0.3 litre
2
Brake fluid
As required
Brake fluid DOT 3 or DOT 4
3
Wa s h e r f l u i d
4.5 litres
—
4
Engine coolant[includes 0.65 litre in the reserve tank]
Except for vehicles with electric heater
7.5 litres
MITSUBISHI MOTORS GENUINE SUPER
LONG LIFE COOLANT PREMIUM
or equivalent
*
Ve h i c l e s w i t h e l e c t r i c heater
9.0 litres
5
Rear Motor coolant[includes 1.07 litre in the reserve tank]
6.5 litres
BK0203201EN.book 10 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Refill capacities
Specifications 12-11
12
*: Similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid
organic acid tech-
nology
6
Front Motor fluid
2.2 litres MITSUBISHI MOTORS GENUINE CVTF-J4
7
Transaxle fluid
Front 3.46 litres
MITSUBISHI MOTORS GENUINE ATF SP III
Rear
0.85 litres
CAUTIONzFor the transaxle fluid, use only th
e MITSUBISHI MOTORS GENUINE ATF.
Use of a different fluid could damage the transaxle.No.
Item
Quantity
Lubricants
8
Refrigerant (air conditioner)
570 - 610 g
HFC-134a
No.
Item
Quantity
Lubricants
