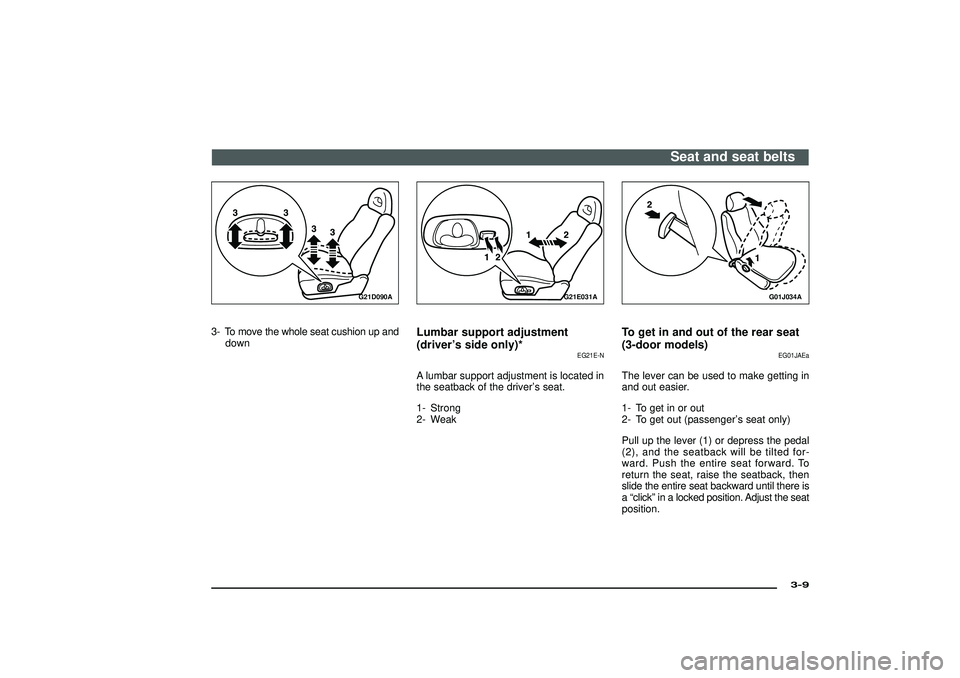

3- To move the whole seat cushion up and
down
G21E031A
Lumbar support adjustment
(driver’s side only)*
EG21E-N
A lumbar support adjustment is located in
the seatback of the driver’s seat.
1- Strong
2- Weak
G01J034A
To get in and out of the rear seat
(3-door models)
EG01JAEa
The lever can be used to make getting in
and out easier.
1- To get in or out
2- To get out (passenger’s seat only)
Pull up the lever (1) or depress the pedal
(2), and the seatback will be tilted for-
ward. Push the entire seat forward. To
return the seat, raise the seatback, then
slide the entire seat backward until there is
a“click”in a locked position. Adjust the seat
position.
Seat and seat belts
3-9
Div:
Out put date:

CAUTION
(1) Use a foot to operate the pedal
(2).
(2) The reclining mechanism of the
seatback is spring loaded, caus-
ing it to return to the vertical
position when the lock lever is
operated. When using the lever,
sit close to the seatback or hold
it with your hand.
WARNING
The front seatbacks also serve the
purpose of protecting passengers in
the rear seat from being thrown for-
wards in case of an accident. Thus,
in order to prevent serious injury, the
vehicle should not be driven with a
seatback tilted forward.
G16A030A

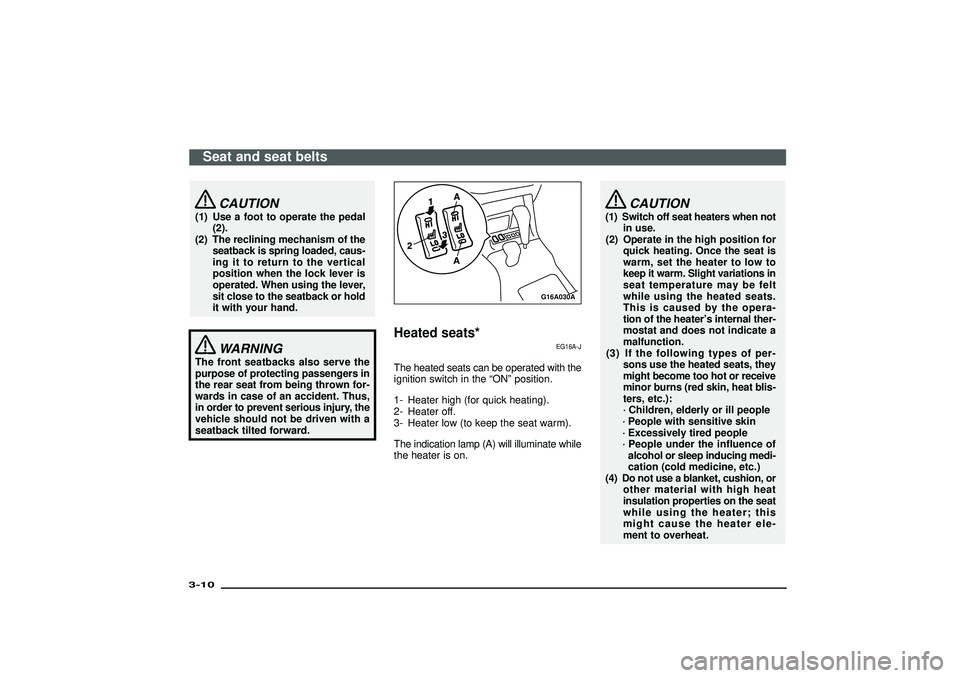

Heated seats*
EG16A-J
The heated seats can be operated with the
ignition switch in the“ON”position.
1- Heater high (for quick heating).
2- Heater off.
3- Heater low (to keep the seat warm).
The indication lamp (A) will illuminate while
the heater is on.
CAUTION
(1) Switch off seat heaters when not
in use.
(2) Operate in the high position for
quick heating. Once the seat is
warm, set the heater to low to
keep it warm. Slight variations in
seat temperature may be felt
while using the heated seats.
This is caused by the opera-
tion of the heater’s internal ther-
mostat and does not indicate a
malfunction.
(3) If the following types of per-
sons use the heated seats, they
might become too hot or receive
minor burns (red skin, heat blis-
ters, etc.):
·Children, elderly or ill people
·People with sensitive skin
·Excessively tired people
·People under the influence of
alcohol or sleep inducing medi-
cation (cold medicine, etc.)
(4) Do not use a blanket, cushion, or
other material with high heat
insulation properties on the seat
while using the heater; this
might cause the heater ele-
ment to overheat.
Seat and seat belts
3-10Div:
Out put date:

CAUTION
(5) Turn the heater off immediately
if it appears to be malfunction-
ing during use.
NOTE
(1) Do not place heavy objects on the seat
or stick pins, needles, or other pointed
objects into it.
(2) When cleaning the seat, do not use
benzene, gasoline, alcohol, or other
organic solvents; this might damage the
surface of the seat, but also the heater
element.
(3) If water or any other liquid is spilled on
the seat, allow it to dry thoroughly
before attempting to use the heater.
G21D091A
Suspension seat*
EG01BOS
When the vehicle is driven over rugged ter-
rain or along rough roads, this seat absorbs
the vehicle vibrations caused by the road
surface, reducing driver fatigue and pro-
viding a comfortable ride.
To adjust seat spring tension
Turn the adjusting dial (A) to get the desired
spring tension. The height and bounce of
the seat can be adjusted by using this dial.
1- Softer
2- Harder
G21D092A
To stop the suspension function
To stop the seat suspension function, set
the lever (B) to the lock position (3).
To start the seat suspension function again,
replace the lever (B) to the unlock posi-
tion (4).
NOTE
If it is hard to set the lever (B) to the lock
position (3), turn the adjusting dial (A) to a
softer position.
Seat and seat belts
3-11
Div:
Out put date:

G21C076A

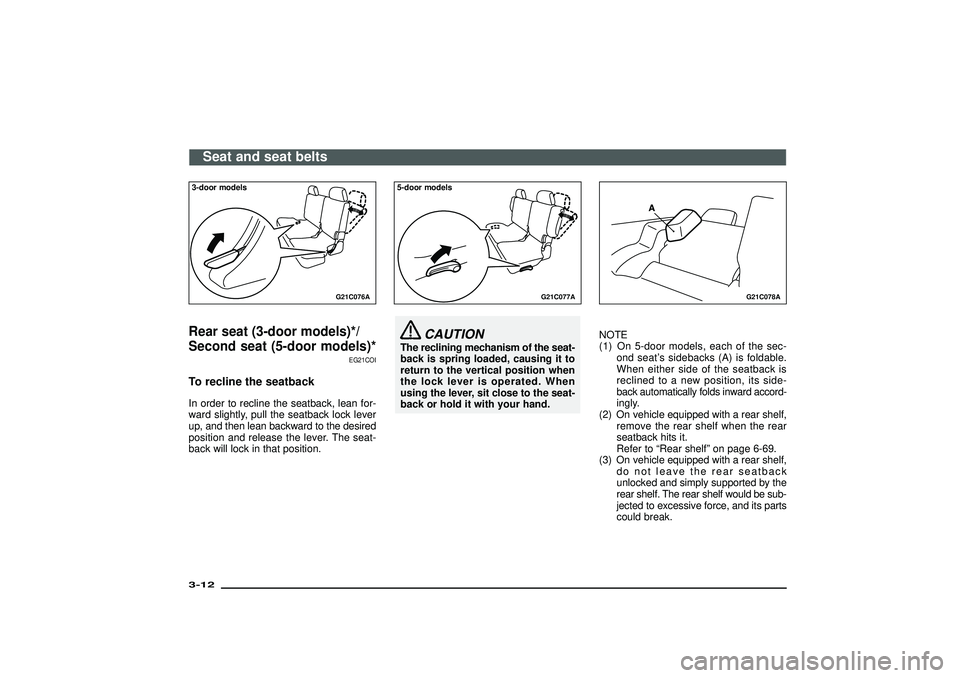

3-door modelsRear seat (3-door models)*/
Second seat (5-door models)*
EG21COI
To recline the seatbackIn order to recline the seatback, lean for-
ward slightly, pull the seatback lock lever
up, and then lean backward to the desired
position and release the lever. The seat-
back will lock in that position.
G21C077A
5-door models
CAUTION
The reclining mechanism of the seat-
back is spring loaded, causing it to
return to the vertical position when
the lock lever is operated. When
using the lever, sit close to the seat-
back or hold it with your hand.
G21C078A
NOTE
(1) On 5-door models, each of the sec-
ond seat’s sidebacks (A) is foldable.
When either side of the seatback is
reclined to a new position, its side-
back automatically folds inward accord-
ingly.
(2) On vehicle equipped with a rear shelf,
remove the rear shelf when the rear
seatback hits it.
Refer to“Rear shelf”on page 6-69.
(3) On vehicle equipped with a rear shelf,
do not leave the rear seatback
unlocked and simply supported by the
rear shelf. The rear shelf would be sub-
jected to excessive force, and its parts
could break.
Seat and seat belts
3-12Div:
Out put date:

G23C010A

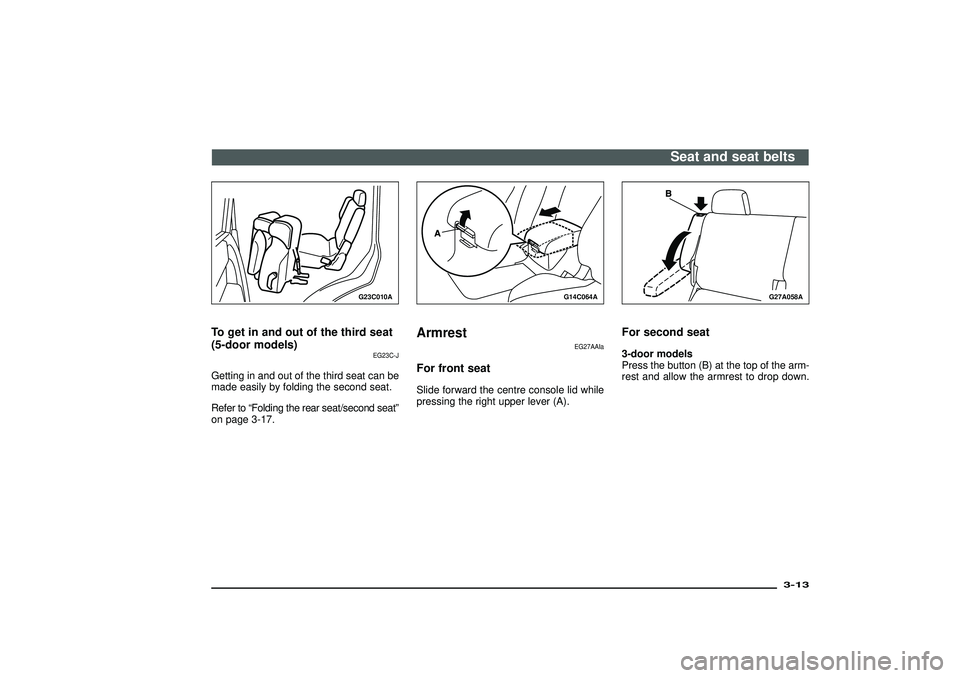

To get in and out of the third seat
(5-door models)
EG23C-J
Getting in and out of the third seat can be
made easily by folding the second seat.
Refer to“Folding the rear seat/second seat”
on page 3-17.
G14C064A
Armrest
EG27AAIa
For front seatSlide forward the centre console lid while
pressing the right upper lever (A).
G27A058A
For second seat3-door models
Press the button (B) at the top of the arm-
rest and allow the armrest to drop down.
Seat and seat belts
3-13
Div:
Out put date:

G27A059A
5-door models
Tilt the armrest while pulling up the strap
(C).
G24A015A
Third seat
(5-door models)*
EG24A-Sa
To recline the seatbackIn order to recline the seatback, lean for-
ward slightly, pull the seatback lock lever
as shown in the illustration, and then lean
backward to the desired position and
release the lever. The seatback will lock in
that position.
CAUTION
The reclining mechanism of the seat-
back is spring loaded, causing it to
return to the vertical position when
the lock lever is operated. When
using the lever, sit close to the seat-
back or hold it with your hand.

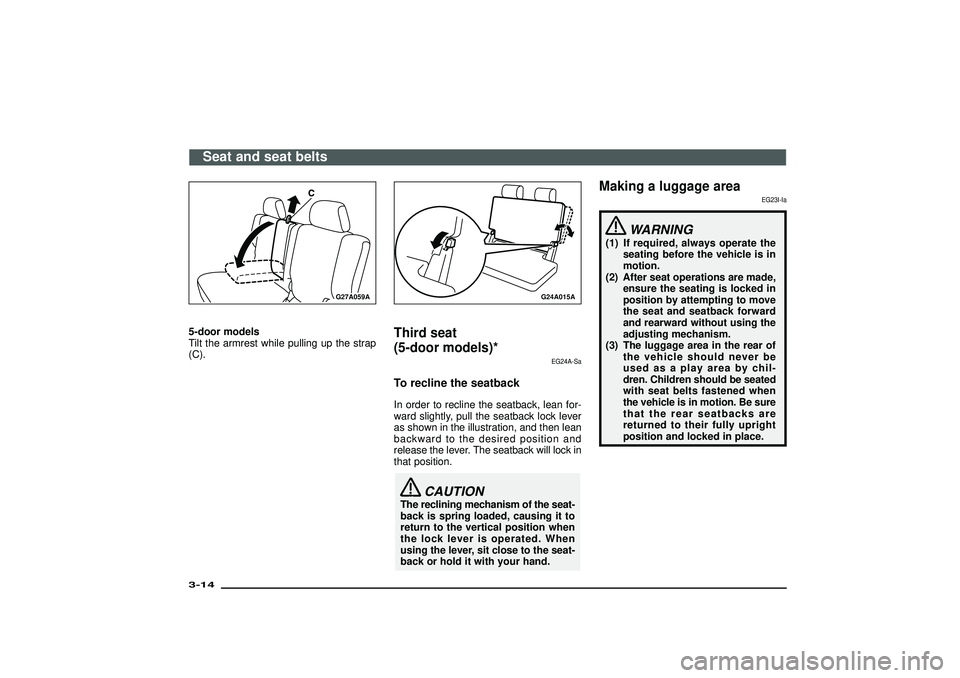

Making a luggage area
EG23I-Ia
WARNING
(1) If required, always operate the
seating before the vehicle is in
motion.
(2) After seat operations are made,
ensure the seating is locked in
position by attempting to move
the seat and seatback forward
and rearward without using the
adjusting mechanism.
(3) The luggage area in the rear of
the vehicle should never be
used as a play area by chil-
dren. Children should be seated
with seat belts fastened when
the vehicle is in motion. Be sure
that the rear seatbacks are
returned to their fully upright
position and locked in place.
Seat and seat belts
3-14Div:
Out put date:

CAUTION
(1) Do not stack the luggage above
the seatback height.
Secure the luggage firmly.
Otherwise, serious accidents
could result due to restricted
rear vision or unrestrained
objects entering the passenger
compartment during sudden
braking.
(2) Make sure that the seat is oper-
ated by an adult. If it is oper-
ated by a child, an unexpected
accident might occur.
(3) When folding, storing or remov-
ing the seat, be sure not to catch
your hand or leg.

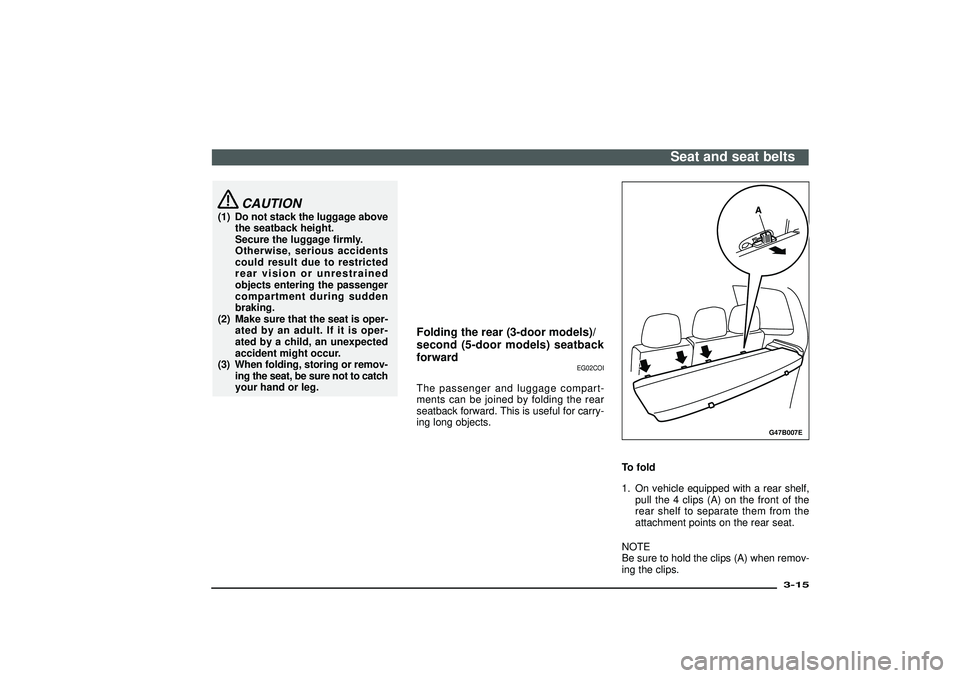

Folding the rear (3-door models)/
second (5-door models) seatback
forward
EG02COI
The passenger and luggage compart-
ments can be joined by folding the rear
seatback forward. This is useful for carry-
ing long objects.
G47B007E
To fold
1. On vehicle equipped with a rear shelf,
pull the 4 clips (A) on the front of the
rear shelf to separate them from the
attachment points on the rear seat.
NOTE
Be sure to hold the clips (A) when remov-
ing the clips.
Seat and seat belts
3-15
Div:
Out put date:

G23F071A

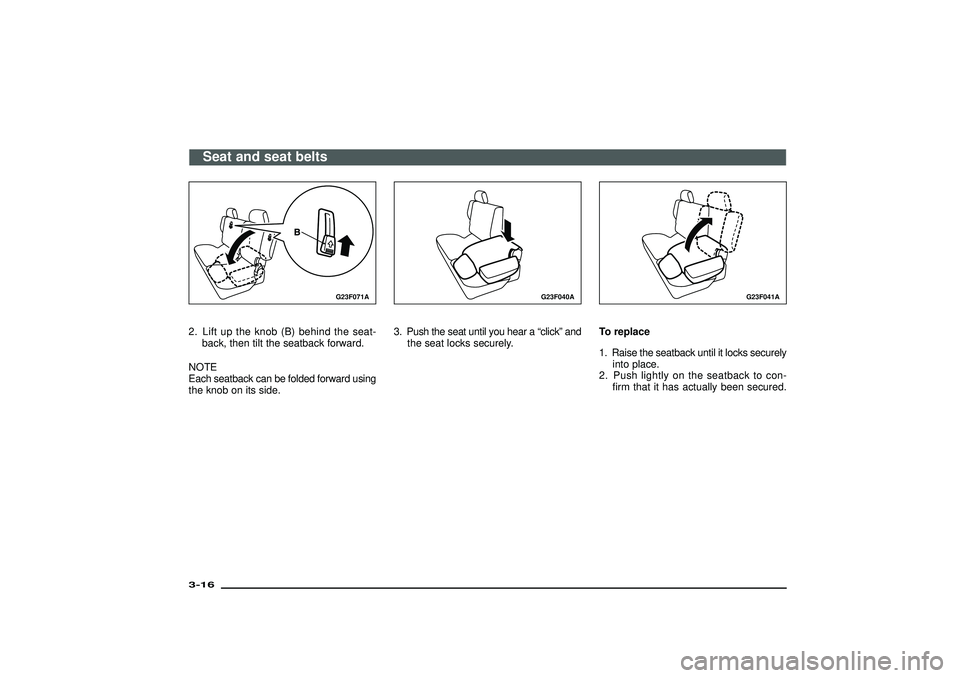

2. Lift up the knob (B) behind the seat-
back, then tilt the seatback forward.
NOTE
Each seatback can be folded forward using
the knob on its side.
G23F040A
3. Push the seat until you hear a“click”and
the seat locks securely.
G23F041A
To replace
1. Raise the seatback until it locks securely
into place.
2. Push lightly on the seatback to con-
firm that it has actually been secured.
Seat and seat belts
3-16Div:
Out put date:

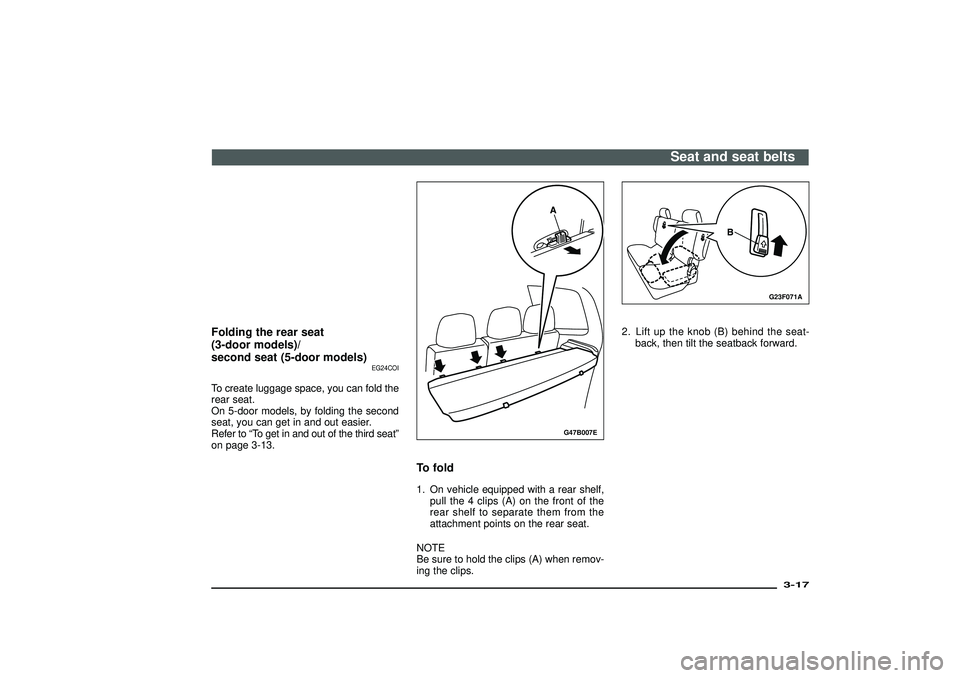

Folding the rear seat
(3-door models)/
second seat (5-door models)
EG24COI
To create luggage space, you can fold the
rear seat.
On 5-door models, by folding the second
seat, you can get in and out easier.
Refer to“To get in and out of the third seat”
on page 3-13.
G47B007E
To fold1. On vehicle equipped with a rear shelf,
pull the 4 clips (A) on the front of the
rear shelf to separate them from the
attachment points on the rear seat.
NOTE
Be sure to hold the clips (A) when remov-
ing the clips.
G23F071A
2. Lift up the knob (B) behind the seat-
back, then tilt the seatback forward.
Seat and seat belts
3-17
Div:
Out put date:

G23F038A

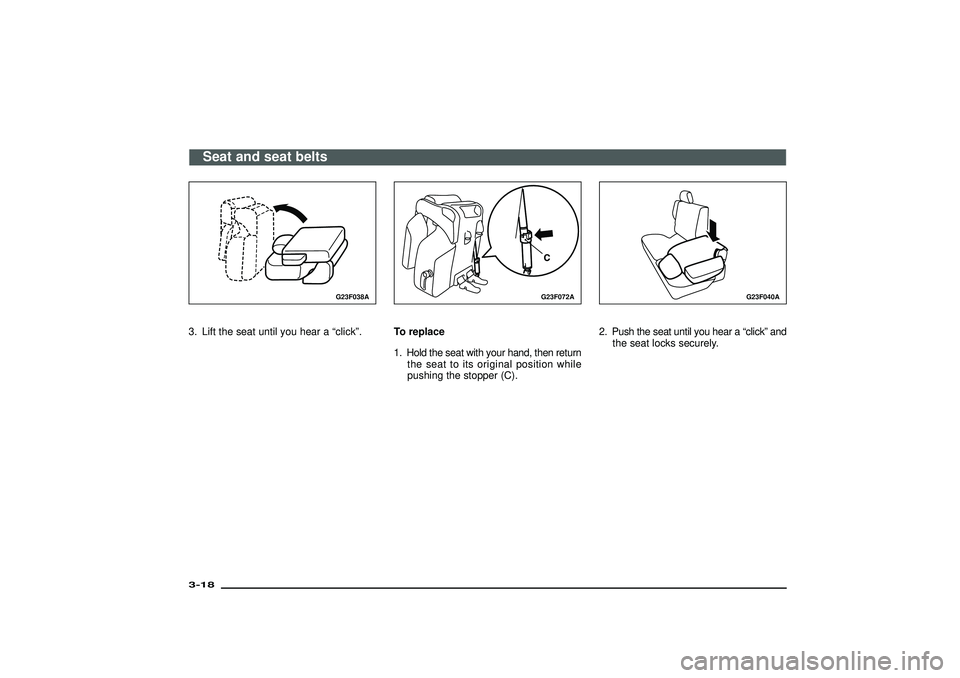

3. Lift the seat until you hear a“click”.
G23F072A
To replace
1. Hold the seat with your hand, then return
the seat to its original position while
pushing the stopper (C).
G23F040A
2. Push the seat until you hear a“click”and
the seat locks securely.
Seat and seat belts
3-18Div:
