MITSUBISHI SHOGUN 2003 (in English) Owner's Guide

CAUTION
When driving with a child in the rear
seat, please use the child protec-
tion to prevent accidental door open-
ing which may cause an accident.
F36A002A

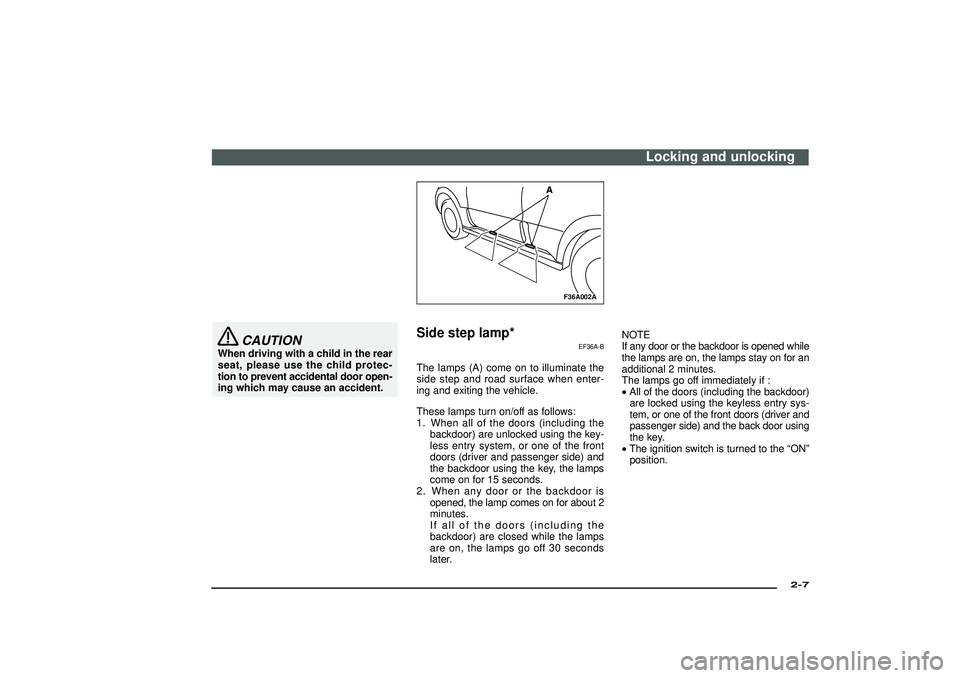

Side step lamp*
EF36A-B
The lamps (A) come on to illuminate the
side step and road surface when enter-
ing and exiting the vehicle.
These lamps turn on/off as follows:
1. When all of the doors (including the
backdoor) are unlocked using the key-
less entry system, or one of the front
doors (driver and passenger side) and
the backdoor using the key, the lamps
come on for 15 seconds.
2. When any door or the backdoor is
opened, the lamp comes on for about 2
minutes.
If all of the doors (including the
backdoor) are closed while the lamps
are on, the lamps go off 30 seconds
later.NOTE
If any door or the backdoor is opened while
the lamps are on, the lamps stay on for an
additional 2 minutes.
The lamps go off immediately if :
•All of the doors (including the backdoor)
are locked using the keyless entry sys-
tem, or one of the front doors (driver and
passenger side) and the back door using
the key.
•The ignition switch is turned to the“ON”
position.
Locking and unlocking
2-7
Div:
Out put date:

F12A262A

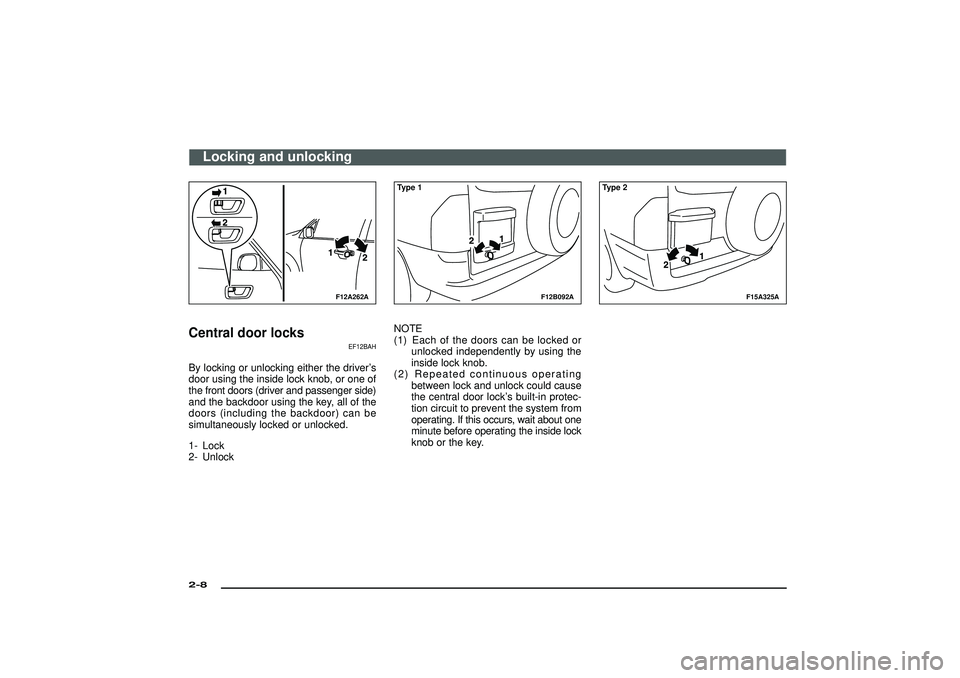

Central door locks
EF12BAH
By locking or unlocking either the driver’s
door using the inside lock knob, or one of
the front doors (driver and passenger side)
and the backdoor using the key, all of the
doors (including the backdoor) can be
simultaneously locked or unlocked.
1- Lock
2- Unlock
F12B092A
Type 1NOTE
(1) Each of the doors can be locked or
unlocked independently by using the
inside lock knob.
(2) Repeated continuous operating
between lock and unlock could cause
the central door lock’s built-in protec-
tion circuit to prevent the system from
operating. If this occurs, wait about one
minute before operating the inside lock
knob or the key.
F15A325A
Type 2
Locking and unlocking
2-8Div:
Out put date:

F13A157A

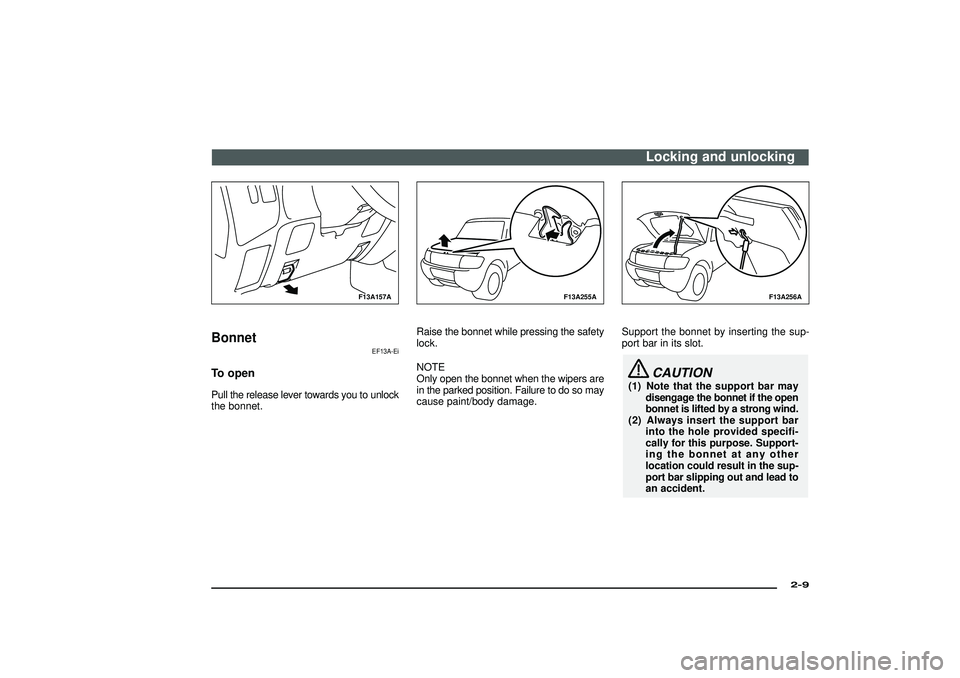

Bonnet
EF13A-Ei
To openPull the release lever towards you to unlock
the bonnet.
F13A255A
Raise the bonnet while pressing the safety
lock.
NOTE
Only open the bonnet when the wipers are
in the parked position. Failure to do so may
cause paint/body damage.
F13A256A
Support the bonnet by inserting the sup-
port bar in its slot.
CAUTION
(1) Note that the support bar may
disengage the bonnet if the open
bonnet is lifted by a strong wind.
(2) Always insert the support bar
into the hole provided specifi-
cally for this purpose. Support-
ing the bonnet at any other
location could result in the sup-
port bar slipping out and lead to
an accident.
Locking and unlocking
2-9
Div:
Out put date:

F13A257A

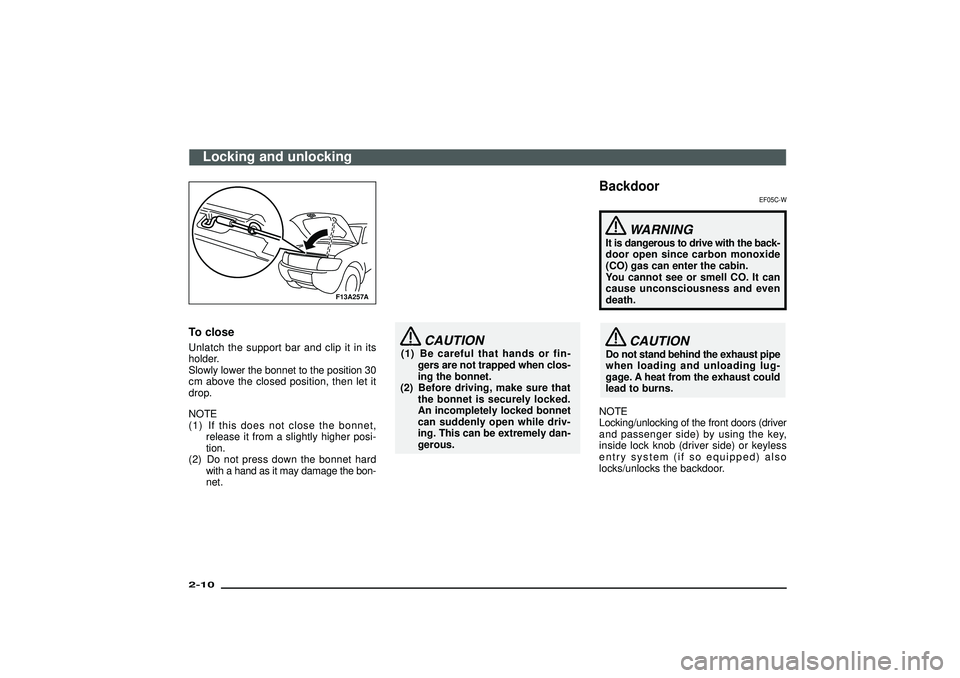

To closeUnlatch the support bar and clip it in its
holder.
Slowly lower the bonnet to the position 30
cm above the closed position, then let it
drop.
NOTE
(1) If this does not close the bonnet,
release it from a slightly higher posi-
tion.
(2) Do not press down the bonnet hard
with a hand as it may damage the bon-
net.
CAUTION
(1) Be careful that hands or fin-
gers are not trapped when clos-
ing the bonnet.
(2) Before driving, make sure that
the bonnet is securely locked.
An incompletely locked bonnet
can suddenly open while driv-
ing. This can be extremely dan-
gerous.
Backdoor
EF05C-W
WARNING
It is dangerous to drive with the back-
door open since carbon monoxide
(CO) gas can enter the cabin.
You cannot see or smell CO. It can
cause unconsciousness and even
death.
CAUTION
Do not stand behind the exhaust pipe
when loading and unloading lug-
gage. A heat from the exhaust could
lead to burns.
NOTE
Locking/unlocking of the front doors (driver
and passenger side) by using the key,
inside lock knob (driver side) or keyless
entry system (if so equipped) also
locks/unlocks the backdoor.
Locking and unlocking
2-10Div:
Out put date:

F15A192A

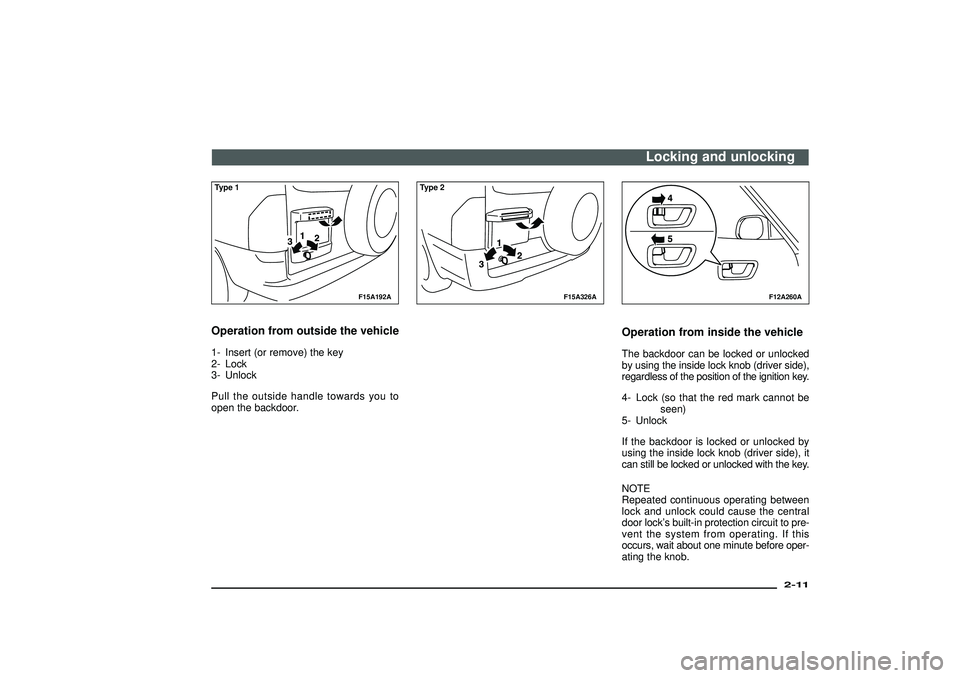

Type 1Operation from outside the vehicle1- Insert (or remove) the key
2- Lock
3- Unlock
Pull the outside handle towards you to
open the backdoor.
F15A326A
Type 2
F12A260A
Operation from inside the vehicleThe backdoor can be locked or unlocked
by using the inside lock knob (driver side),
regardless of the position of the ignition key.
4- Lock (so that the red mark cannot be
seen)
5- Unlock
If the backdoor is locked or unlocked by
using the inside lock knob (driver side), it
can still be locked or unlocked with the key.
NOTE
Repeated continuous operating between
lock and unlock could cause the central
door lock’s built-in protection circuit to pre-
vent the system from operating. If this
occurs, wait about one minute before oper-
ating the knob.
Locking and unlocking
2-11
Div:
Out put date:

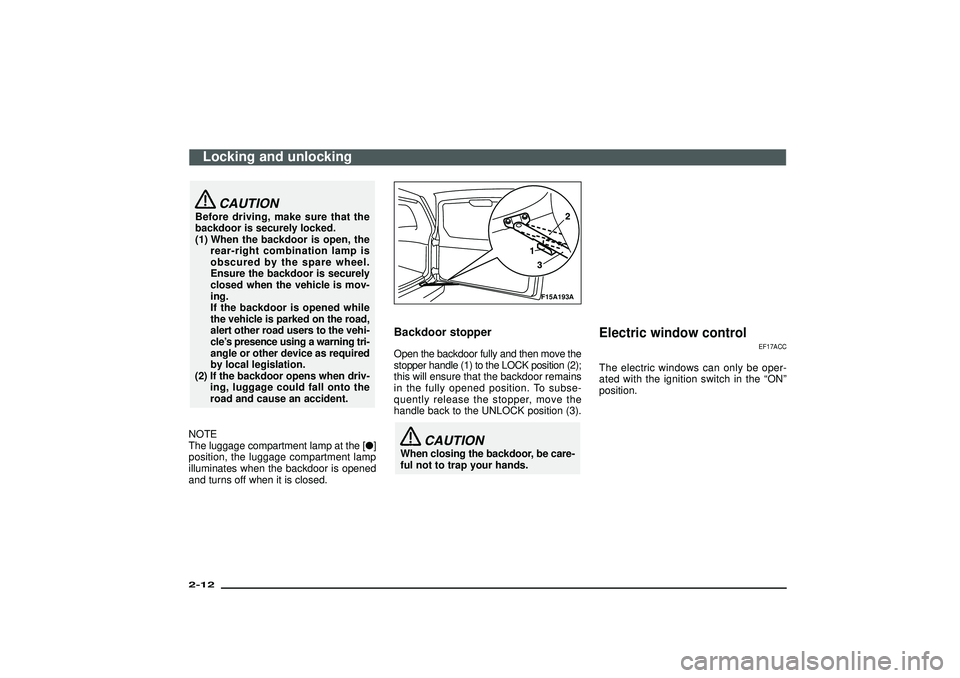

CAUTION
Before driving, make sure that the
backdoor is securely locked.
(1) When the backdoor is open, the
rear-right combination lamp is
obscured by the spare wheel.
Ensure the backdoor is securely
closed when the vehicle is mov-
ing.
If the backdoor is opened while
the vehicle is parked on the road,
alert other road users to the vehi-
cle’s presence using a warning tri-
angle or other device as required
by local legislation.
(2) If the backdoor opens when driv-
ing, luggage could fall onto the
road and cause an accident.
NOTE
The luggage compartment lamp at the [
]
position, the luggage compartment lamp
illuminates when the backdoor is opened
and turns off when it is closed.
F15A193A
Backdoor stopperOpen the backdoor fully and then move the
stopper handle (1) to the LOCK position (2);
this will ensure that the backdoor remains
in the fully opened position. To subse-
quently release the stopper, move the
handle back to the UNLOCK position (3).
CAUTION
When closing the backdoor, be care-
ful not to trap your hands.
Electric window control
EF17ACC
The electric windows can only be oper-
ated with the ignition switch in the“ON”
position.
Locking and unlocking
2-12Div:
Out put date:

F17A183A

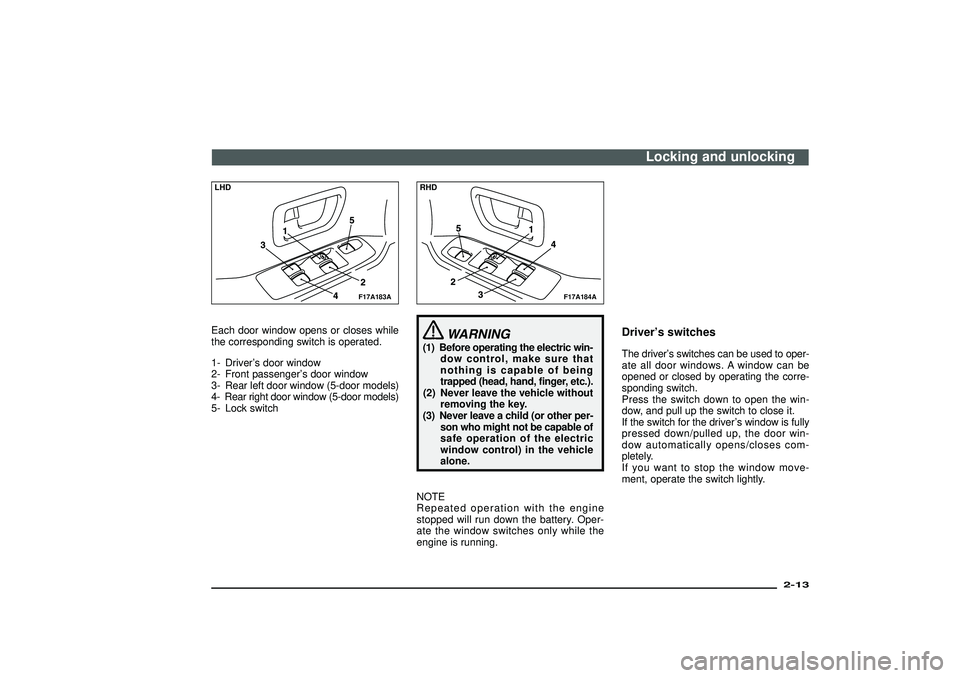

LHDEach door window opens or closes while
the corresponding switch is operated.
1- Driver’s door window
2- Front passenger’s door window
3- Rear left door window (5-door models)
4- Rear right door window (5-door models)
5- Lock switch
F17A184A
RHD
WARNING
(1) Before operating the electric win-
dow control, make sure that
nothing is capable of being
trapped (head, hand, finger, etc.).
(2) Never leave the vehicle without
removing the key.
(3) Never leave a child (or other per-
son who might not be capable of
safe operation of the electric
window control) in the vehicle
alone.
NOTE
Repeated operation with the engine
stopped will run down the battery. Oper-
ate the window switches only while the
engine is running.
Driver’s switchesThe driver’s switches can be used to oper-
ate all door windows. A window can be
opened or closed by operating the corre-
sponding switch.
Press the switch down to open the win-
dow, and pull up the switch to close it.
If the switch for the driver’s window is fully
pressed down/pulled up, the door win-
dow automatically opens/closes com-
pletely.
If you want to stop the window move-
ment, operate the switch lightly.
Locking and unlocking
2-13
Div:
Out put date:

F17A022A

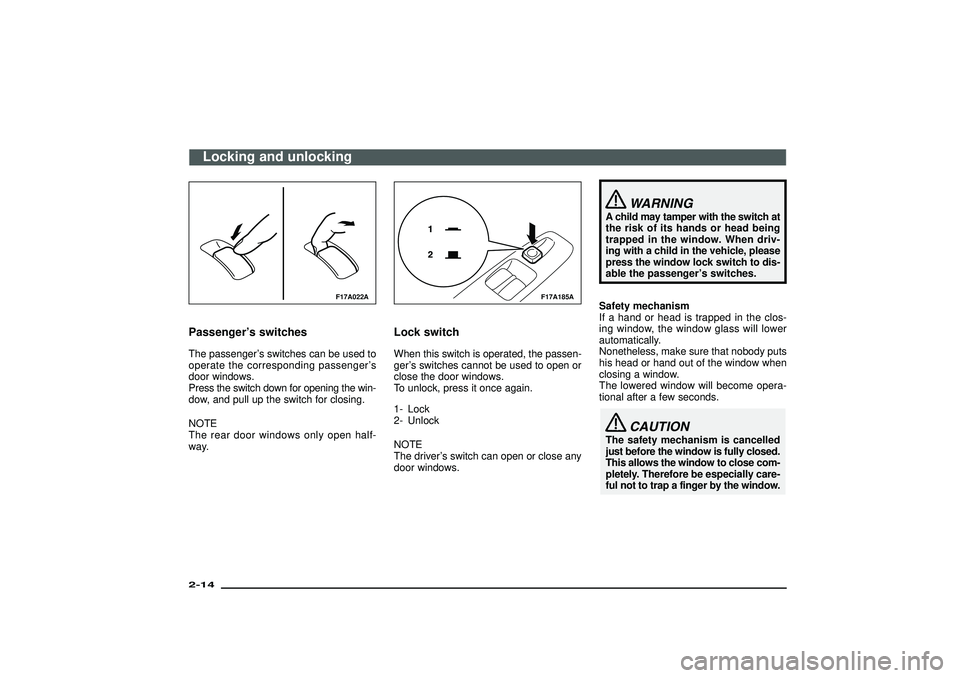

Passenger’s switchesThe passenger’s switches can be used to
operate the corresponding passenger’s
door windows.
Press the switch down for opening the win-
dow, and pull up the switch for closing.
NOTE
The rear door windows only open half-
way.
F17A185A
Lock switchWhen this switch is operated, the passen-
ger’s switches cannot be used to open or
close the door windows.
To unlock, press it once again.
1- Lock
2- Unlock
NOTE
The driver’s switch can open or close any
door windows.
WARNING
A child may tamper with the switch at
the risk of its hands or head being
trapped in the window. When driv-
ing with a child in the vehicle, please
press the window lock switch to dis-
able the passenger’s switches.
Safety mechanism
If a hand or head is trapped in the clos-
ing window, the window glass will lower
automatically.
Nonetheless, make sure that nobody puts
his head or hand out of the window when
closing a window.
The lowered window will become opera-
tional after a few seconds.
CAUTION
The safety mechanism is cancelled
just before the window is fully closed.
This allows the window to close com-
pletely. Therefore be especially care-
ful not to trap a finger by the window.
Locking and unlocking
2-14Div:
Out put date:

F18C014A

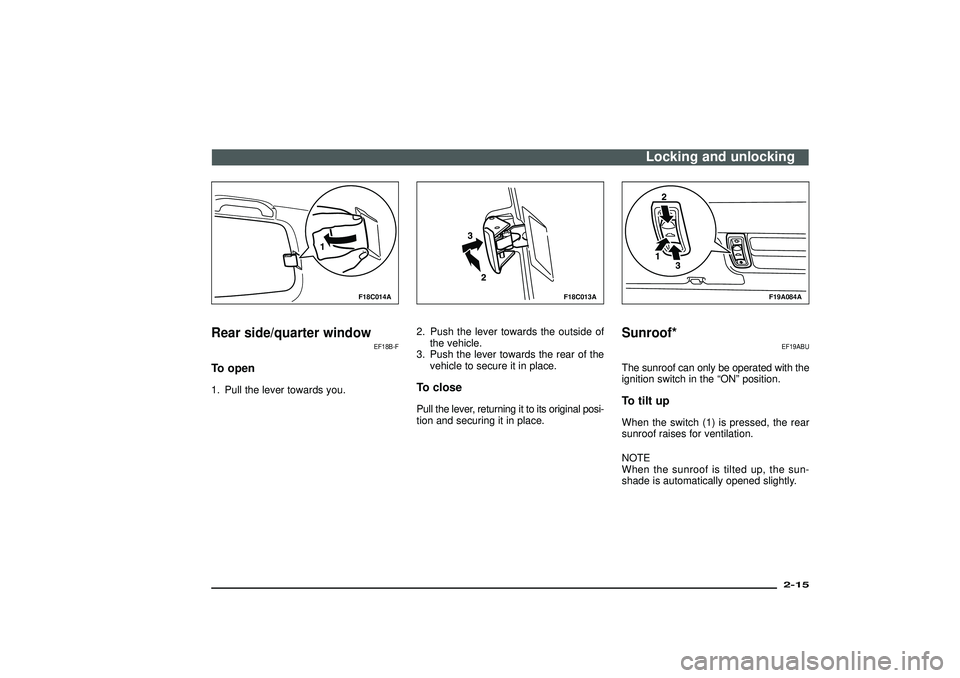

Rear side/quarter window
EF18B-F
To open1. Pull the lever towards you.
F18C013A
2. Push the lever towards the outside of
the vehicle.
3. Push the lever towards the rear of the
vehicle to secure it in place.To closePull the lever, returning it to its original posi-
tion and securing it in place.
F19A084A
Sunroof*
EF19ABU
The sunroof can only be operated with the
ignition switch in the“ON”position.To tilt upWhen the switch (1) is pressed, the rear
sunroof raises for ventilation.
NOTE
When the sunroof is tilted up, the sun-
shade is automatically opened slightly.
Locking and unlocking
2-15
Div:
Out put date:

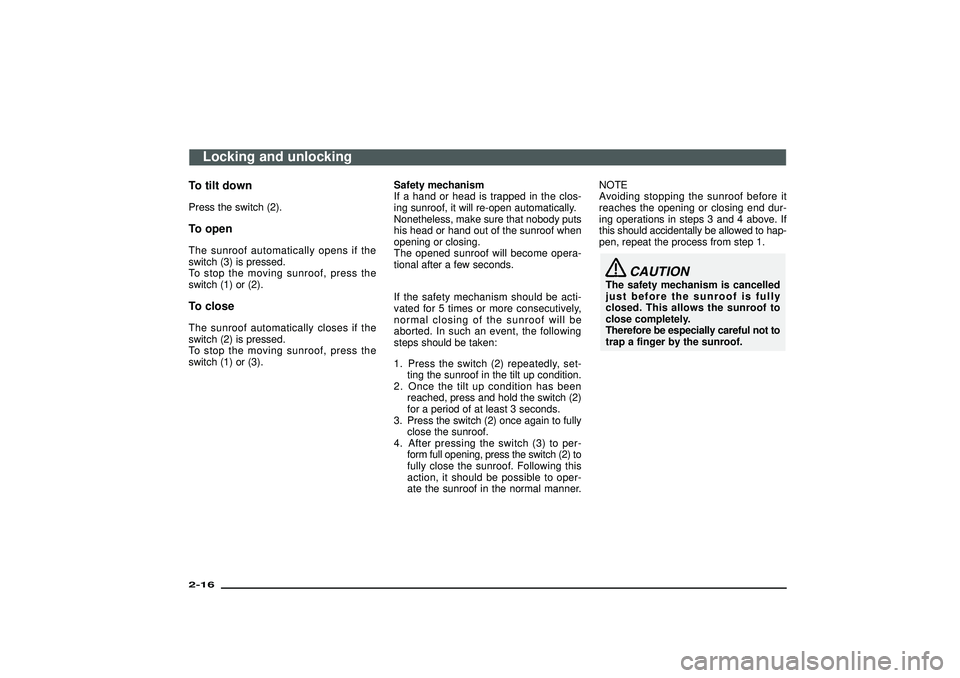

To tilt downPress the switch (2).To openThe sunroof automatically opens if the
switch (3) is pressed.
To stop the moving sunroof, press the
switch (1) or (2).To closeThe sunroof automatically closes if the
switch (2) is pressed.
To stop the moving sunroof, press the
switch (1) or (3).Safety mechanism
If a hand or head is trapped in the clos-
ing sunroof, it will re-open automatically.
Nonetheless, make sure that nobody puts
his head or hand out of the sunroof when
opening or closing.
The opened sunroof will become opera-
tional after a few seconds.
If the safety mechanism should be acti-
vated for 5 times or more consecutively,
normal closing of the sunroof will be
aborted. In such an event, the following
steps should be taken:
1. Press the switch (2) repeatedly, set-
ting the sunroof in the tilt up condition.
2. Once the tilt up condition has been
reached, press and hold the switch (2)
for a period of at least 3 seconds.
3. Press the switch (2) once again to fully
close the sunroof.
4. After pressing the switch (3) to per-
form full opening, press the switch (2) to
fully close the sunroof. Following this
action, it should be possible to oper-
ate the sunroof in the normal manner.NOTE
Avoiding stopping the sunroof before it
reaches the opening or closing end dur-
ing operations in steps 3 and 4 above. If
this should accidentally be allowed to hap-
pen, repeat the process from step 1.
CAUTION
The safety mechanism is cancelled
just before the sunroof is fully
closed. This allows the sunroof to
close completely.
Therefore be especially careful not to
trap a finger by the sunroof.
Locking and unlocking
