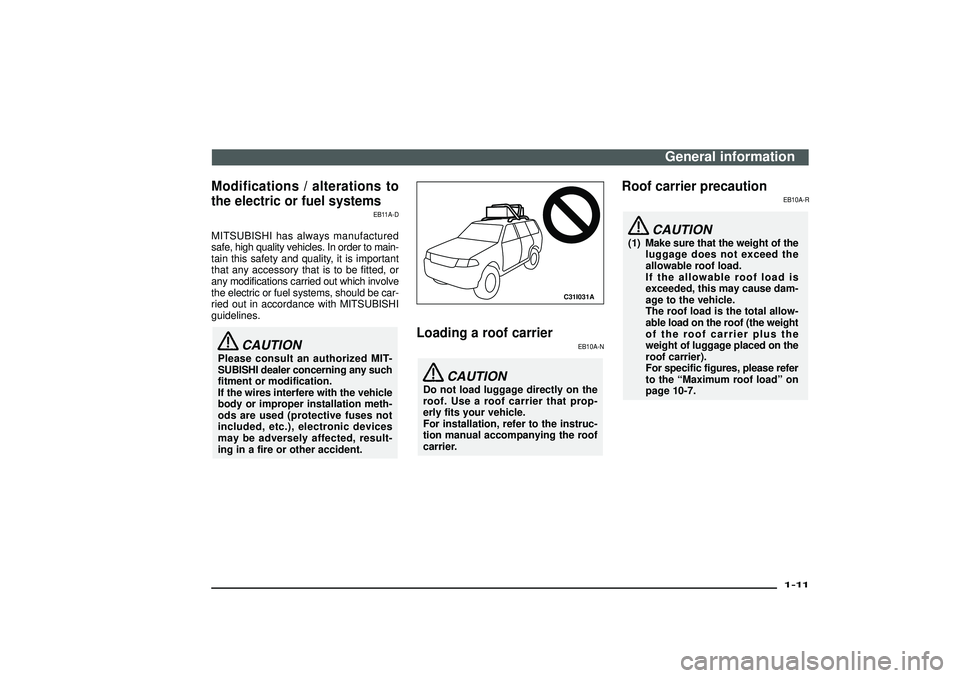

Modifications / alterations to
the electric or fuel systems
EB11A-D
MITSUBISHI has always manufactured
safe, high quality vehicles. In order to main-
tain this safety and quality, it is important
that any accessory that is to be fitted, or
any modifications carried out which involve
the electric or fuel systems, should be car-
ried out in accordance with MITSUBISHI
guidelines.
CAUTION
Please consult an authorized MIT-
SUBISHI dealer concerning any such
fitment or modification.
If the wires interfere with the vehicle
body or improper installation meth-
ods are used (protective fuses not
included, etc.), electronic devices
may be adversely affected, result-
ing in a fire or other accident.
C31I031A
Loading a roof carrier
EB10A-N
CAUTION
Do not load luggage directly on the
roof. Use a roof carrier that prop-
erly fits your vehicle.
For installation, refer to the instruc-
tion manual accompanying the roof
carrier.
Roof carrier precaution
EB10A-R
CAUTION
(1) Make sure that the weight of the
luggage does not exceed the
allowable roof load.
If the allowable roof load is
exceeded, this may cause dam-
age to the vehicle.
The roof load is the total allow-
able load on the roof (the weight
of the roof carrier plus the
weight of luggage placed on the
roof carrier).
For specific figures, please refer
to the“Maximum roof load”on
page 10-7.
General information
1-11
Div:
Out put date:

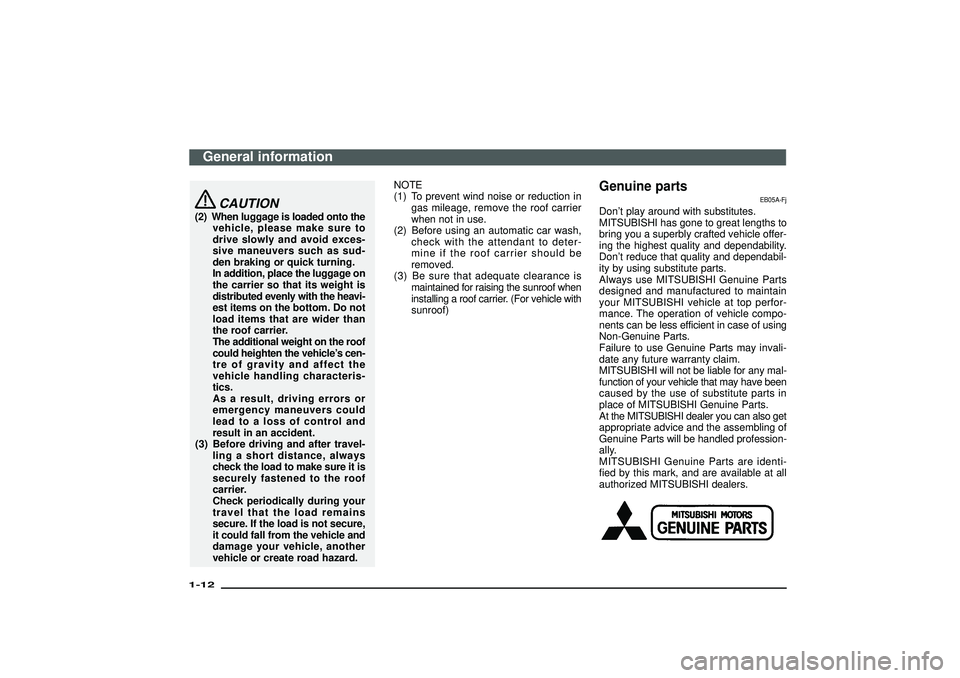

CAUTION
(2) When luggage is loaded onto the
vehicle, please make sure to
drive slowly and avoid exces-
sive maneuvers such as sud-
den braking or quick turning.
In addition, place the luggage on
the carrier so that its weight is
distributed evenly with the heavi-
est items on the bottom. Do not
load items that are wider than
the roof carrier.
The additional weight on the roof
could heighten the vehicle’s cen-
tre of gravity and affect the
vehicle handling characteris-
tics.
As a result, driving errors or
emergency maneuvers could
lead to a loss of control and
result in an accident.
(3) Before driving and after travel-
ling a short distance, always
check the load to make sure it is
securely fastened to the roof
carrier.
Check periodically during your
travel that the load remains
secure. If the load is not secure,
it could fall from the vehicle and
damage your vehicle, another
vehicle or create road hazard.NOTE
(1) To prevent wind noise or reduction in
gas mileage, remove the roof carrier
when not in use.
(2) Before using an automatic car wash,
check with the attendant to deter-
mine if the roof carrier should be
removed.
(3) Be sure that adequate clearance is
maintained for raising the sunroof when
installing a roof carrier. (For vehicle with
sunroof)
Genuine parts
EB05A-Fj
Don’t play around with substitutes.
MITSUBISHI has gone to great lengths to
bring you a superbly crafted vehicle offer-
ing the highest quality and dependability.
Don’t reduce that quality and dependabil-
ity by using substitute parts.
Always use MITSUBISHI Genuine Parts
designed and manufactured to maintain
your MITSUBISHI vehicle at top perfor-
mance. The operation of vehicle compo-
nents can be less efficient in case of using
Non-Genuine Parts.
Failure to use Genuine Parts may invali-
date any future warranty claim.
MITSUBISHI will not be liable for any mal-
function of your vehicle that may have been
caused by the use of substitute parts in
place of MITSUBISHI Genuine Parts.
At the MITSUBISHI dealer you can also get
appropriate advice and the assembling of
Genuine Parts will be handled profession-
ally.
MITSUBISHI Genuine Parts are identi-
fied by this mark, and are available at all
authorized MITSUBISHI dealers.
General information
1-12Div:
Out put date:

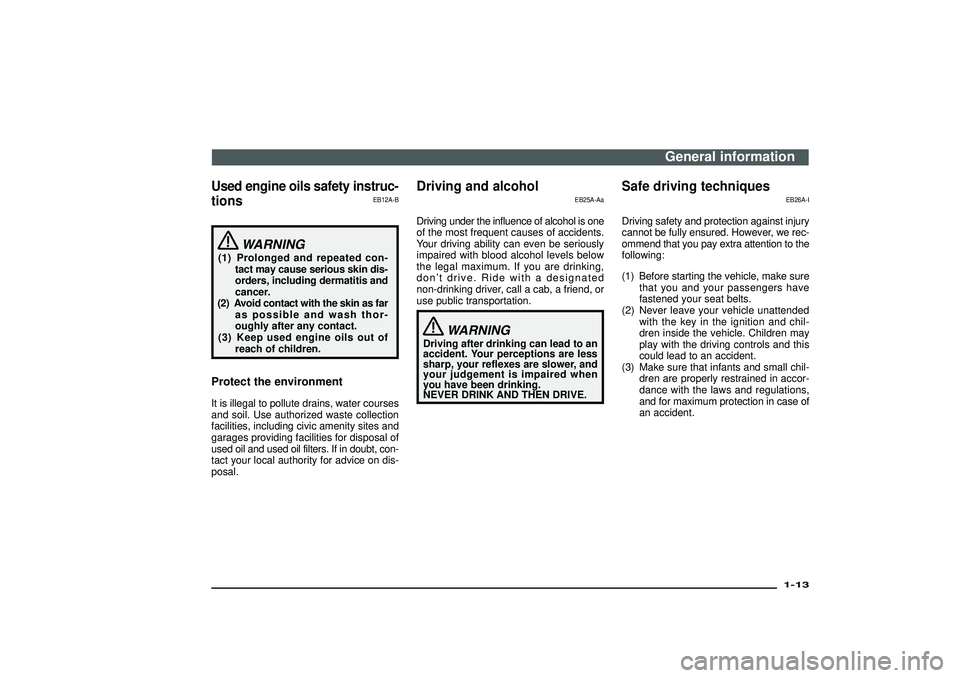

Used engine oils safety instruc-
tions
EB12A-B
WARNING
(1) Prolonged and repeated con-
tact may cause serious skin dis-
orders, including dermatitis and
cancer.
(2) Avoid contact with the skin as far
as possible and wash thor-
oughly after any contact.
(3) Keep used engine oils out of
reach of children.Protect the environmentIt is illegal to pollute drains, water courses
and soil. Use authorized waste collection
facilities, including civic amenity sites and
garages providing facilities for disposal of
used oil and used oil filters. If in doubt, con-
tact your local authority for advice on dis-
posal.
Driving and alcohol
EB25A-Aa
Driving under the influence of alcohol is one
of the most frequent causes of accidents.
Your driving ability can even be seriously
impaired with blood alcohol levels below
the legal maximum. If you are drinking,
don’t drive. Ride with a designated
non-drinking driver, call a cab, a friend, or
use public transportation.
WARNING
Driving after drinking can lead to an
accident. Your perceptions are less
sharp, your reflexes are slower, and
your judgement is impaired when
you have been drinking.
NEVER DRINK AND THEN DRIVE.
Safe driving techniques
EB26A-I
Driving safety and protection against injury
cannot be fully ensured. However, we rec-
ommend that you pay extra attention to the
following:
(1) Before starting the vehicle, make sure
that you and your passengers have
fastened your seat belts.
(2) Never leave your vehicle unattended
with the key in the ignition and chil-
dren inside the vehicle. Children may
play with the driving controls and this
could lead to an accident.
(3) Make sure that infants and small chil-
dren are properly restrained in accor-
dance with the laws and regulations,
and for maximum protection in case of
an accident.
General information
1-13
Div:
Out put date:

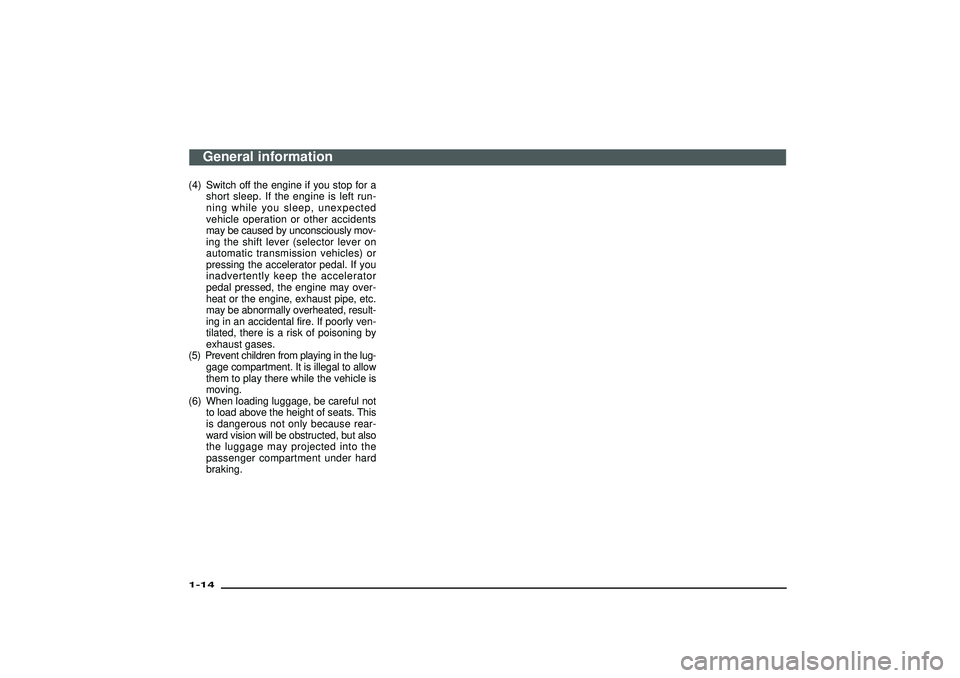

(4) Switch off the engine if you stop for a
short sleep. If the engine is left run-
ning while you sleep, unexpected
vehicle operation or other accidents
may be caused by unconsciously mov-
ing the shift lever (selector lever on
automatic transmission vehicles) or
pressing the accelerator pedal. If you
inadvertently keep the accelerator
pedal pressed, the engine may over-
heat or the engine, exhaust pipe, etc.
may be abnormally overheated, result-
ing in an accidental fire. If poorly ven-
tilated, there is a risk of poisoning by
exhaust gases.
(5) Prevent children from playing in the lug-
gage compartment. It is illegal to allow
them to play there while the vehicle is
moving.
(6) When loading luggage, be careful not
to load above the height of seats. This
is dangerous not only because rear-
ward vision will be obstructed, but also
the luggage may projected into the
passenger compartment under hard
braking.
General information
1-14Div:
Out put date:

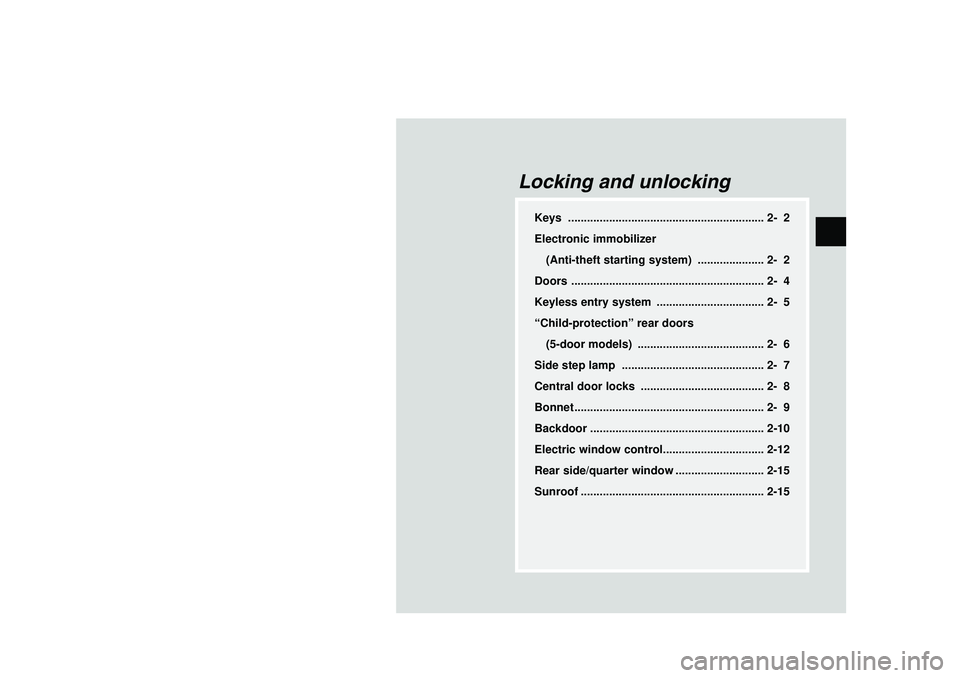

Locking and unlocking
Keys .............................................................. 2- 2
Electronic immobilizer
(Anti-theft starting system) ..................... 2- 2
Doors ............................................................. 2- 4
Keyless entry system .................................. 2- 5
“Child-protection” rear doors
(5-door models) ........................................ 2- 6
Side step lamp ............................................. 2- 7
Central door locks ....................................... 2- 8
Bonnet ............................................................ 2- 9
Backdoor ....................................................... 2-10
Electric window control................................ 2-12
Rear side/quarter window ............................ 2-15
Sunroof .......................................................... 2-15
Div:
Out put date:

F11A086A

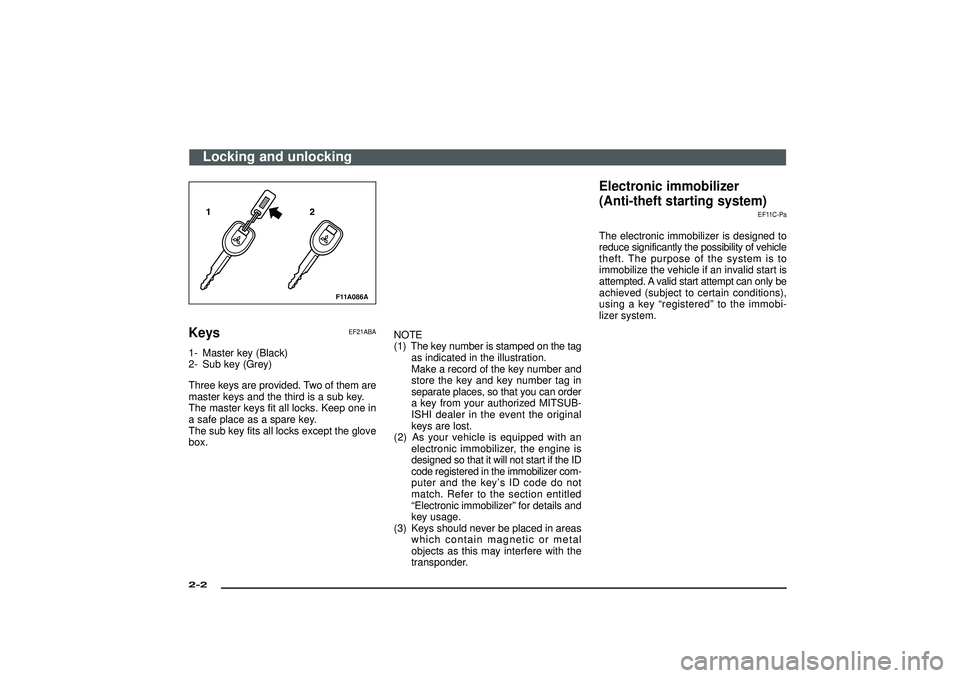

Keys
EF21ABA
1- Master key (Black)
2- Sub key (Grey)
Three keys are provided. Two of them are
master keys and the third is a sub key.
The master keys fit all locks. Keep one in
a safe place as a spare key.
The sub key fits all locks except the glove
box.NOTE
(1) The key number is stamped on the tag
as indicated in the illustration.
Make a record of the key number and
store the key and key number tag in
separate places, so that you can order
a key from your authorized MITSUB-
ISHI dealer in the event the original
keys are lost.
(2) As your vehicle is equipped with an
electronic immobilizer, the engine is
designed so that it will not start if the ID
code registered in the immobilizer com-
puter and the key’s ID code do not
match. Refer to the section entitled
“Electronic immobilizer” for details and
key usage.
(3) Keys should never be placed in areas
which contain magnetic or metal
objects as this may interfere with the
transponder.
Electronic immobilizer
(Anti-theft starting system)
EF11C-Pa
The electronic immobilizer is designed to
reduce significantly the possibility of vehicle
theft. The purpose of the system is to
immobilize the vehicle if an invalid start is
attempted. A valid start attempt can only be
achieved (subject to certain conditions),
using a key “registered” to the immobi-
lizer system.
Locking and unlocking
2-2Div:
Out put date:

F11C003G

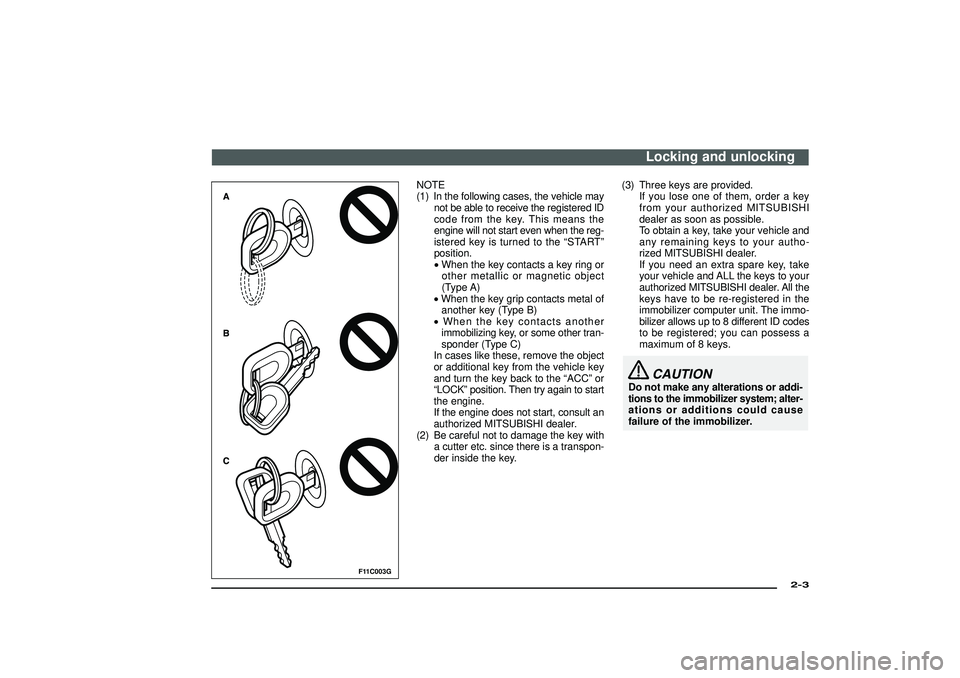

NOTE
(1) In the following cases, the vehicle may
not be able to receive the registered ID
code from the key. This means the
engine will not start even when the reg-
istered key is turned to the“START”
position.
•When the key contacts a key ring or
other metallic or magnetic object
(Type A)
•When the key grip contacts metal of
another key (Type B)
•When the key contacts another
immobilizing key, or some other tran-
sponder (Type C)
In cases like these, remove the object
or additional key from the vehicle key
and turn the key back to the“ACC”or
“LOCK”position. Then try again to start
the engine.
If the engine does not start, consult an
authorized MITSUBISHI dealer.
(2) Be careful not to damage the key with
a cutter etc. since there is a transpon-
der inside the key.(3) Three keys are provided.
If you lose one of them, order a key
from your authorized MITSUBISHI
dealer as soon as possible.
To obtain a key, take your vehicle and
any remaining keys to your autho-
rized MITSUBISHI dealer.
If you need an extra spare key, take
your vehicle and ALL the keys to your
authorized MITSUBISHI dealer. All the
keys have to be re-registered in the
immobilizer computer unit. The immo-
bilizer allows up to 8 different ID codes
to be registered; you can possess a
maximum of 8 keys.
CAUTION
Do not make any alterations or addi-
tions to the immobilizer system; alter-
ations or additions could cause
failure of the immobilizer.
Locking and unlocking
2-3
Div:
Out put date:

F12A259A

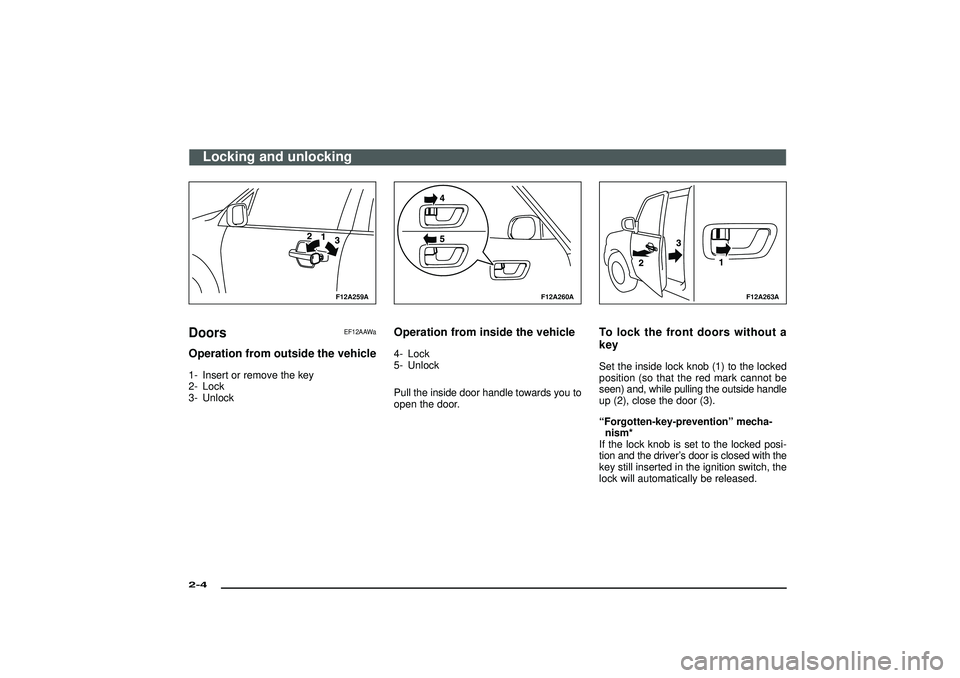

Doors
EF12AAWa
Operation from outside the vehicle1- Insert or remove the key
2- Lock
3- Unlock
F12A260A
Operation from inside the vehicle4- Lock
5- Unlock
Pull the inside door handle towards you to
open the door.
F12A263A
To lock the front doors without a
keySet the inside lock knob (1) to the locked
position (so that the red mark cannot be
seen) and, while pulling the outside handle
up (2), close the door (3).
“Forgotten-key-prevention”mecha-
nism*
If the lock knob is set to the locked posi-
tion and the driver’s door is closed with the
key still inserted in the ignition switch, the
lock will automatically be released.
Locking and unlocking
2-4Div:
Out put date:

F12A261A
To lock the rear doors
(5-door models)Set the inside lock knob (1) to the locked
position (so that the red mark cannot be
seen), and close the door (2).
CAUTION
(1) Make sure the doors are closed:
driving with doors incom-
pletely closed is very danger-
ous.
(2) Never leave children in the
vehicle unattended.
(3) Be careful not to lock the doors
while the key is inside the
vehicle.
F12D030A
Keyless entry system*
EF11B-Xa
Press the remote control switch, and all
doors (including the backdoor) will be
locked or unlocked as desired.Operation of all doors
(including the backdoor)To lock
Press the LOCK switch, and all doors
(including the backdoor) will be locked.
When they are locked with the room lamp
at the [•] position, the room lamp and the
turn-signal lamps blink twice.To unlock
Press the UNLOCK switch, and all doors
(including the backdoor) will be unlocked.
When unlocked with the room lamp at the
[•] position, the room lamp will be turned on
for approximately 15 seconds and
turn-signal lamps will blink 4 times.
Locking and unlocking
2-5
Div:
Out put date:

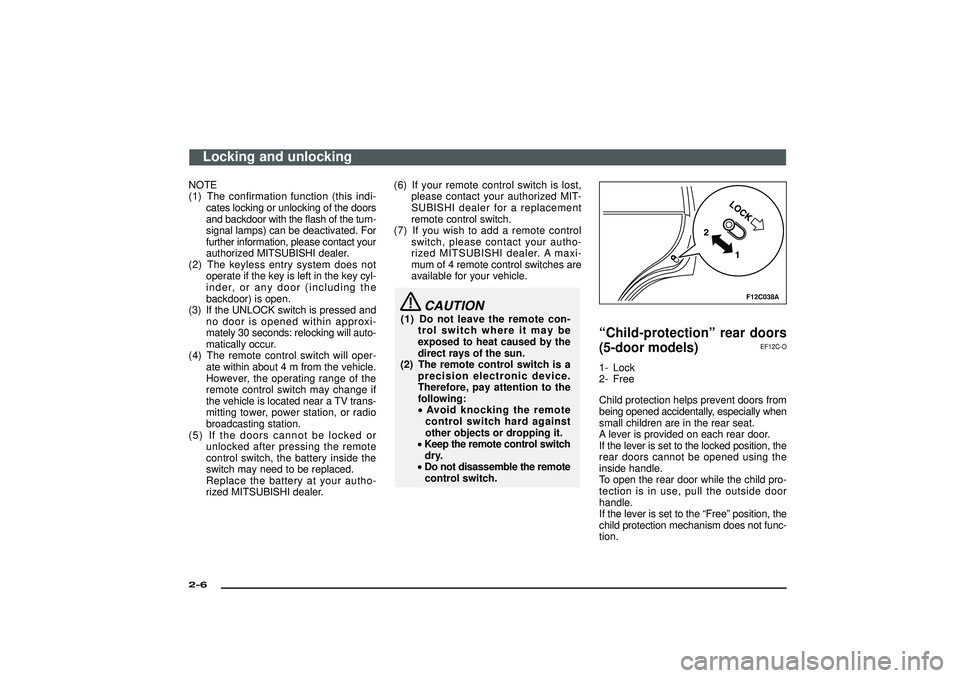

NOTE
(1) The confirmation function (this indi-
cates locking or unlocking of the doors
and backdoor with the flash of the turn-
signal lamps) can be deactivated. For
further information, please contact your
authorized MITSUBISHI dealer.
(2) The keyless entry system does not
operate if the key is left in the key cyl-
inder, or any door (including the
backdoor) is open.
(3) If the UNLOCK switch is pressed and
no door is opened within approxi-
mately 30 seconds: relocking will auto-
matically occur.
(4) The remote control switch will oper-
ate within about 4 m from the vehicle.
However, the operating range of the
remote control switch may change if
the vehicle is located near a TV trans-
mitting tower, power station, or radio
broadcasting station.
(5) If the doors cannot be locked or
unlocked after pressing the remote
control switch, the battery inside the
switch may need to be replaced.
Replace the battery at your autho-
rized MITSUBISHI dealer.(6) If your remote control switch is lost,
please contact your authorized MIT-
SUBISHI dealer for a replacement
remote control switch.
(7) If you wish to add a remote control
switch, please contact your autho-
rized MITSUBISHI dealer. A maxi-
mum of 4 remote control switches are
available for your vehicle.
CAUTION
(1) Do not leave the remote con-
trol switch where it may be
exposed to heat caused by the
direct rays of the sun.
(2) The remote control switch is a
precision electronic device.
Therefore, pay attention to the
following:
•Avoid knocking the remote
control switch hard against
other objects or dropping it.
•Keep the remote control switch
dry.
•Do not disassemble the remote
control switch.
F12C038A
“Child-protection”rear doors
(5-door models)
EF12C-O
1- Lock
2- Free
Child protection helps prevent doors from
being opened accidentally, especially when
small children are in the rear seat.
A lever is provided on each rear door.
If the lever is set to the locked position, the
rear doors cannot be opened using the
inside handle.
To open the rear door while the child pro-
tection is in use, pull the outside door
handle.
If the lever is set to the“Free”position, the
child protection mechanism does not func-
tion.
Locking and unlocking
2-6Div:
Out put date:
