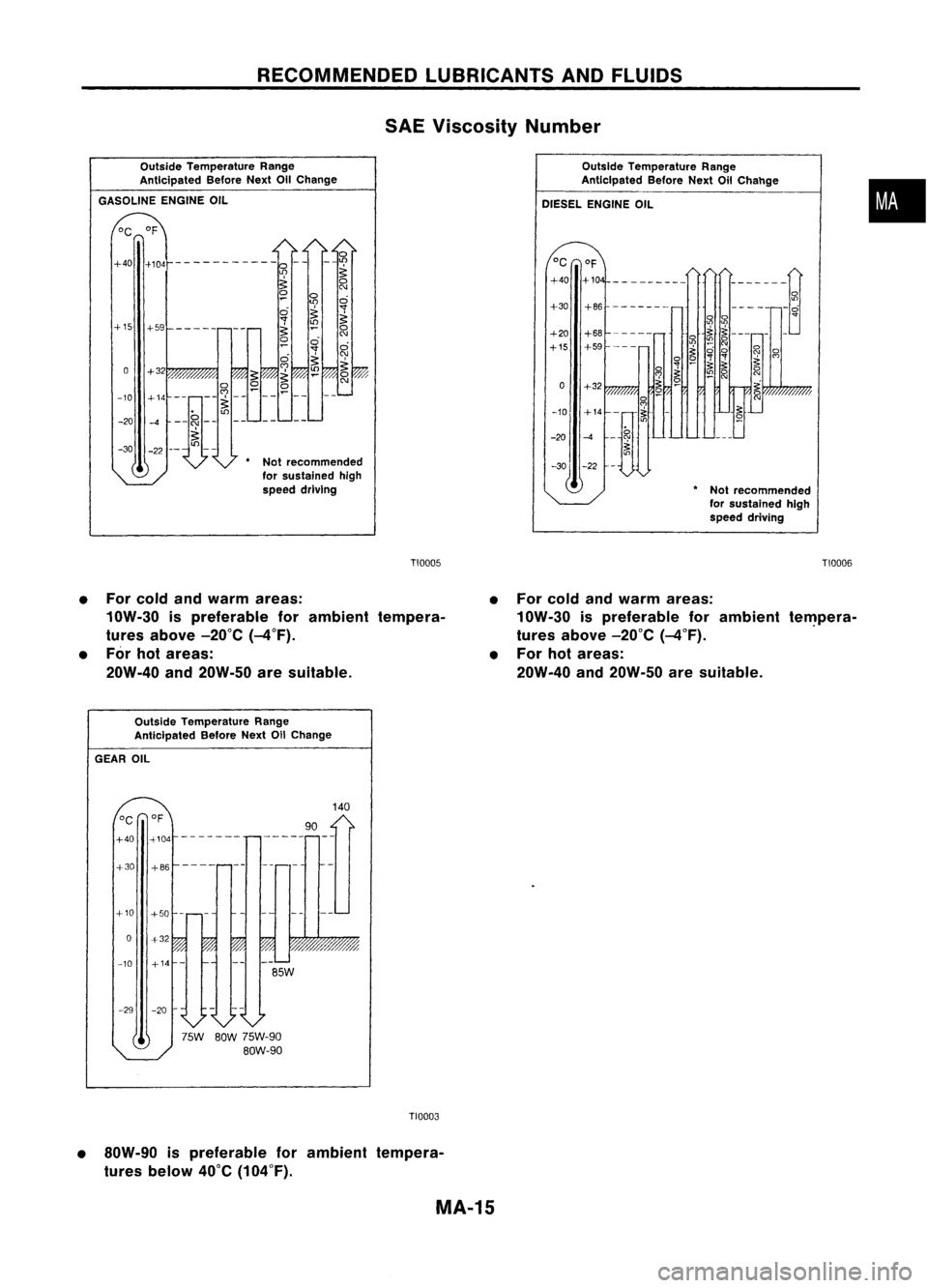

RECOMMENDEDLUBRICANTSANDFLUIDS
Outside Temperature Range
Anticipated BeforeNextOilChange
GASOLINE ENGINEOIL
SAE
Viscosity Number
OutsideTemperature Range
Anticipated BeforeNextOilChahge
DIESEL ENGINE OIL
•
°C of
+40 +10
---------
------~
+30 +86
-------
------0
0
o
...
'"
'"
+20 +68
0
~
~
---
-
-
'!2
0
+15 +59
'"
'"
0
~
0
0
'i'
0
~
'i
't
'"
?: ~
;:
0
~
0
'7 '"
N
-
'"
0 +32
~ ~
0
-10 +14
-t
;:
~
-20
-4
-'i'
~
-30 -22
•Not recommended
for sustained high
speed driving
lI)
~
0 0
~
'"
0
0
~'
'i
~~
~
0
(\J
0
-30
*
Not recommended
for sustained high
speed driving
-20
+32
-10 +14
+15
+59-----
TI0005
TIOOG6
• For cold andwarm areas:
10W-30 ispreferable forambient tempera-
tures above -20°C(-4°F).
• For hotareas:
20W-40 and20W-50 aresuitable. •
For cold andwarm areas:
10W-30 ispreferable forambient te~pera-
tures above -20°C(-4°F).
• For hotareas:
20W.40 and20W-50 aresuitable.
Outside Temperature Range
Anticipated BeforeNext011Change
GEAR OIL
140
°C
of
90
+40 +104
-------
+30 +86
+10 +50
-
0
%
-10
-29 -20
75W BOW75W-90
BOW-90
TI0003
• SOW-90 ispreferable forambient tempera-
tures below 40°C(104°F).
MA-15
Page 1502 of 1701

RECOMMENDEDLUBRICANTSANDFLUIDS

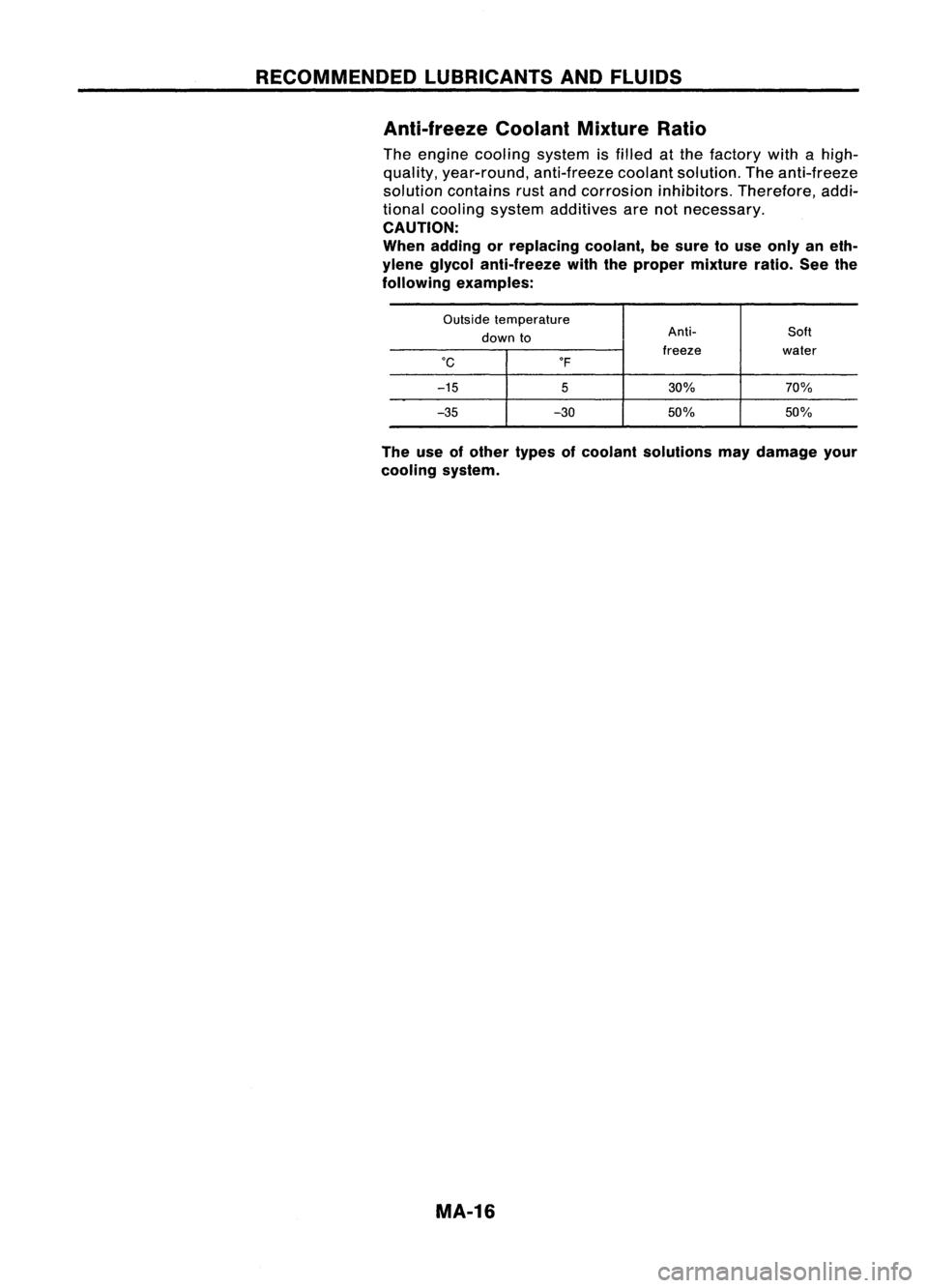

Anti-freeze CoolantMixtureRatio
The engine cooling systemisfilled atthe factory withahigh-
quality, year-round, anti-freezecoolantsolution. Theanti-freeze
solution contains rustandcorrosion inhibitors. Therefore, addi-
tional cooling systemadditives arenotnecessary.
CAUTION:
When adding orreplacing coolant,besure touse only aneth-
ylene glycol anti-freeze withtheproper mixture ratio.Seethe
following examples:
Outside temperature
down to Anti-
Soft
freeze water
'C
'F
-15 530%
70%
-35 -30
50%
50%
The useofother types ofcoolant solutions maydamage your
cooling system.
MA-16
Page 1503 of 1701

ENGINEMAINTENANCE

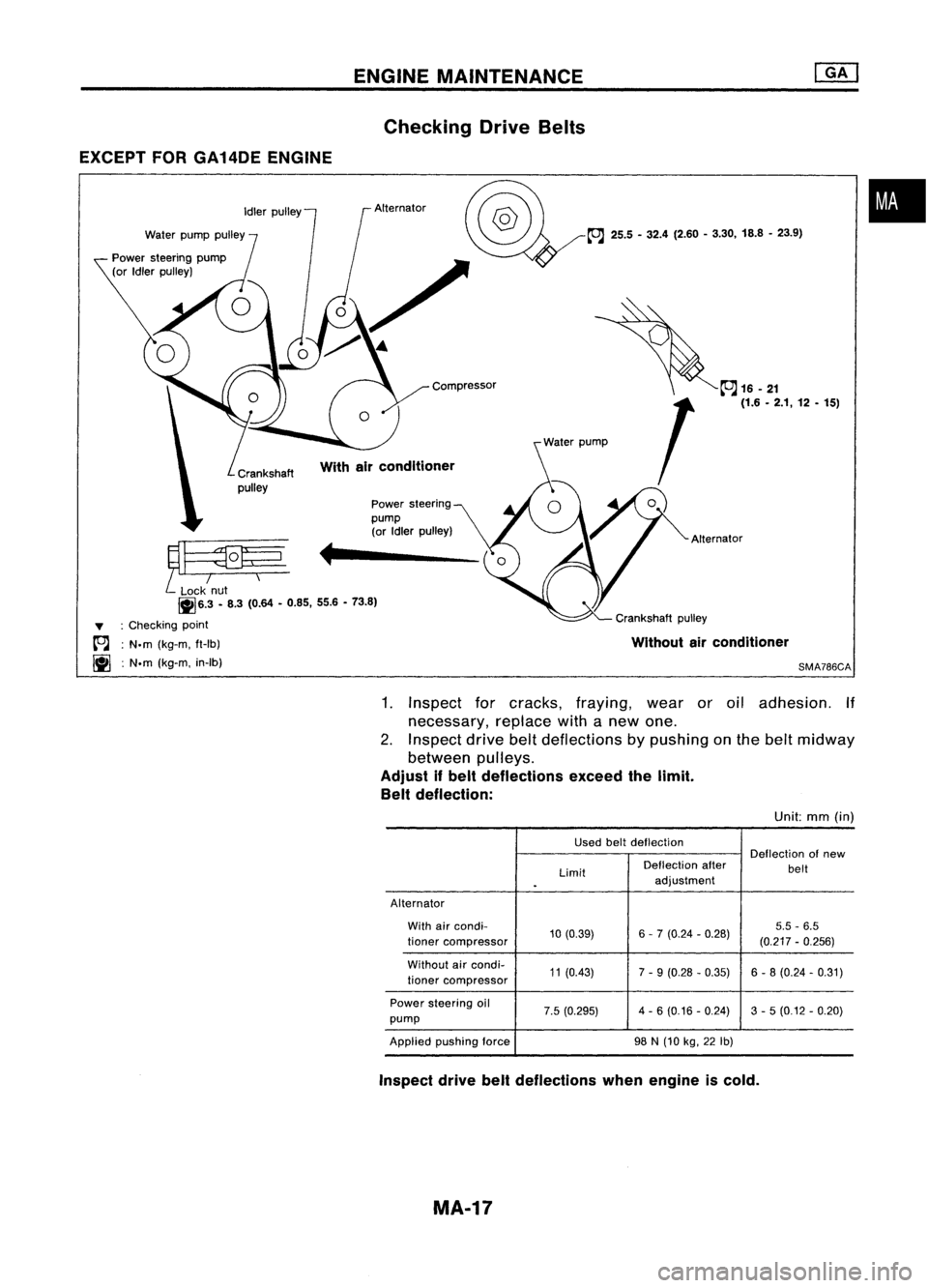

EXCEPT FORGA14DE ENGINE Checking
DriveBelts
•
~ 16-21
(1.6 •2.1, 12•15)
Alternator
SMA786CA
Without
airconditioner
Crankshaft
pUlley
~
25.5 -32.4 (2.60 -3.30, 18.8-23.9)
Compressor
Power steering
pump (or Idler pulley)
With
airconditioner
Idler
pulley
Crankshaft
pulley
Power
steering pump
(or Idler pulley)
~.
~6.3 -8.3 (0.64 -0.85, 55.6-73.8)
~ :Checking point
A :
N.m (kg-m, ft-lb)
III :
N.m (kg-m, in-Ib)
1.Inspect forcracks, fraying, wearoroil adhesion. If
necessary, replacewithanew one.
2. Inspect drivebeltdeflections bypushing onthe belt midway
between pulleys.
Adjust ifbelt deflections exceedthelimit.
Belt deflection:
Unit:mm(in)
Used beltdeflection
Deflectionofnew
Limit Deflection
after
belt
.
adjustment
Alternator With aircondi-
10(0.39) 6-7 (0.24 -0.28) 5.5
-6.5
lioner compressor
(0.217-0.256)
Without aircondi-
11(0.43) 7-9 (0.28 -0.35) 6-8 (0.24 -0.31)
lioner compressor
Power steering oil
7.5(0.295) 4
-6 (0.16 -0.24) 3-5 (0.12 -0.20)
pump
Applied pushing force
98
N
(10
kg,
22
Ib)
Inspect drivebeltdeflections whenengine iscold.
MA-17
Page 1504 of 1701

ENGINEMAINTENANCE
Checking DriveBelts(Cont'd)

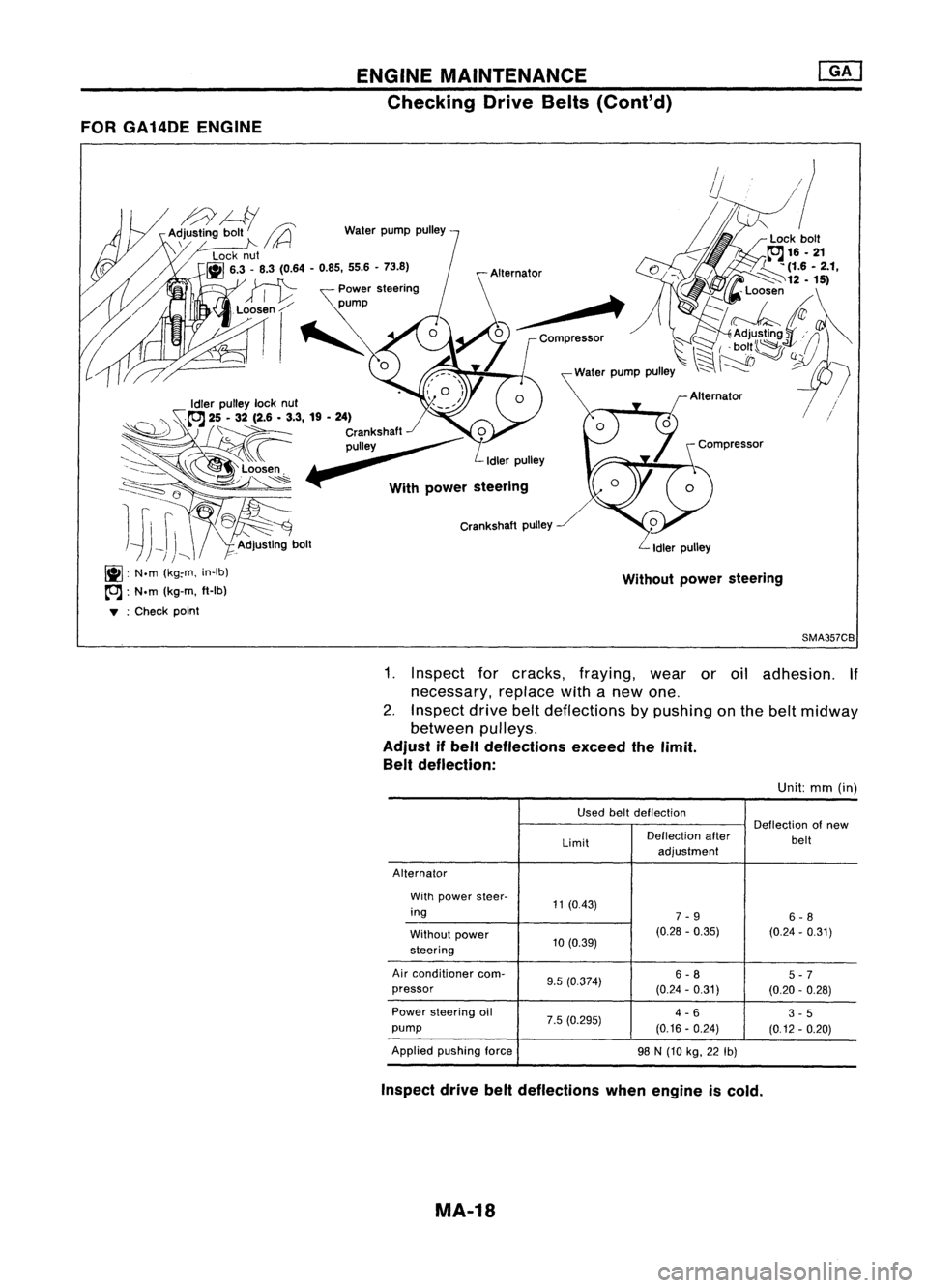

FOR GA14DE ENGINE
L
Idler pulley
Crankshaft
pulley
Withoutpowersteering
Idler
pulley locknut __
~ 25•32 (2.6 •3.3, 19-24)
)~'\c, ~ Crankshaft
'~~UlleY
~ ~\ Idlerpulley
Loosen
/
~
.
~~- - Withpower steering
SMA357CB
1. Inspect forcracks, fraying, wearoroil adhesion. If
necessary, replacewithanew one.
2. Inspect drivebeltdeflections bypushing onthe belt midway
between pulleys.
Adjust ifbelt deflections exceedthelimit.
Belt deflection:
Unit:mm(in)
Used beltdeflection
Deflectionofnew
Limit Deflection
alter
belt
adjustment
Alternator
With power steer-
11(0.43)
ing 7-9
6-8
Without power (0.28
-0.35)
(0.24-0.31)
steering 10
(0.39)
Air conditioner com-
9.5(0.374) 6
-8
5-7
pressor (0.24-0.31)
(0.20-0.28)
Power steering oil
7.5(0.295) 4-6
3-5
pump (0.16-0.24)
(0.12-0.20)
Applied pushing force
98N(10 kg, 22Ib)
Inspect drivebeltdeflections whenengine iscold.
MA-18
Page 1505 of 1701

ENGINEMAINTENANCE

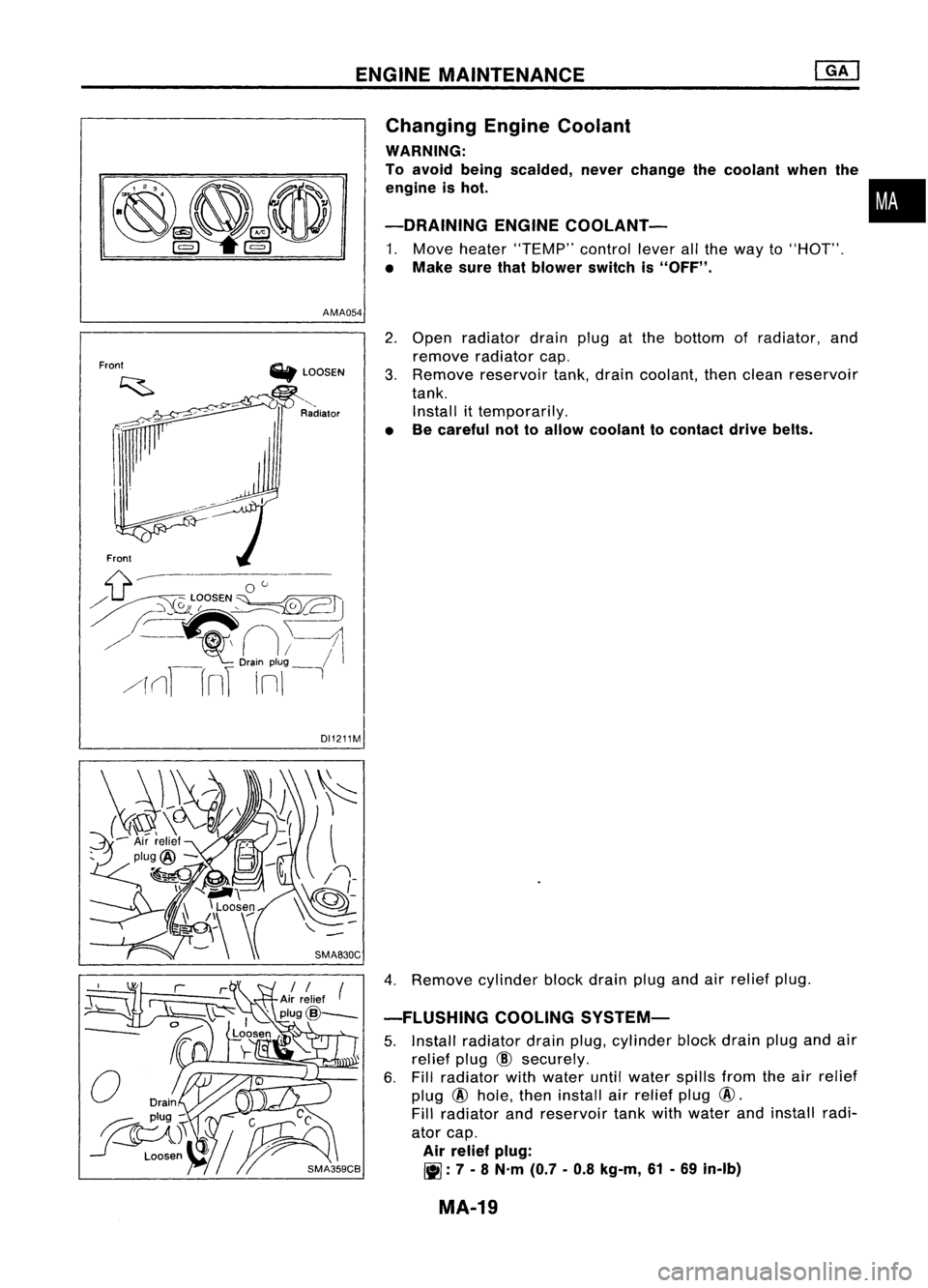

AMA054 Changing
EngineCoolant
WARNING:
To avoid being scalded, neverchange thecoolant whenthe
engine ishot.
-DRAINING ENGINECOOlANT-
1. Move heater "TEMP" controlleverallthe way to"HOT".
• Make surethatblower switchis"OFF".
•
Front
Fronl
'*'
LOOSEN
'--
Radialor
DI1211M
2.
Open radiator drainplugatthe bottom ofradiator, and
remove radiator cap.
3. Remove reservoir tank,drain coolant, thenclean reservoir
tank. Install ittemporarily.
• Becareful nottoallow coolant tocontact drivebelts.
4. Remove cylinder blockdrain plugandairrelief plug.
-FLUSHING COOLINGSYSTEM-
S. Install radiator drainplug,cylinder blockdrain plugandair
relief plug
CID
securely.
6. Fill radiator withwater untilwater spillsfromtheairrelief
plug @hole, theninstall airrelief plug@.
Fill radiator andreservoir tankwithwater andinstall radi-
ator cap.
Air relief plug:
~ :7 -
8 N'm (0.7-0.8 kg-m, 61-69 in-Ib)
MA-19
Page 1506 of 1701
![NISSAN ALMERA N15 1995 Service Manual
MAX,
MIN.
ENGINE
MAINTENANCE [QK]

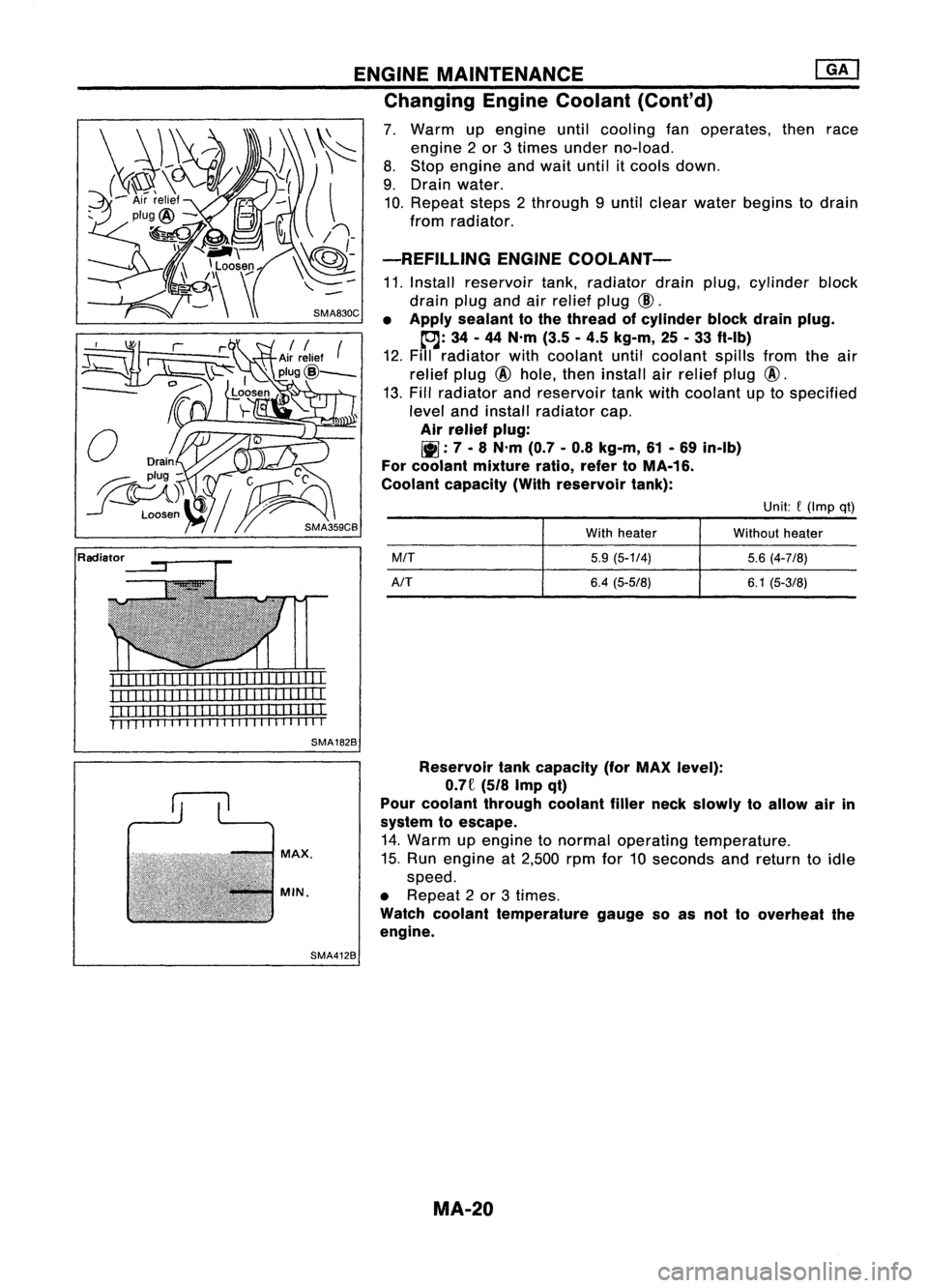

Changing EngineCoolant (Cont'd)
7. Warm upengine untilcooling fanoperates, thenrace
engine 2or 3times under no-load.
8. Stop engine andwait until itcools down NISSAN ALMERA N15 1995 Service Manual
MAX,
MIN.
ENGINE
MAINTENANCE [QK]
Changing EngineCoolant (Cont'd)
7. Warm upengine untilcooling fanoperates, thenrace
engine 2or 3times under no-load.
8. Stop engine andwait until itcools down](/img/5/57349/w960_57349-1505.png)
MAX,
MIN.
ENGINE
MAINTENANCE [QK]
Changing EngineCoolant (Cont'd)
7. Warm upengine untilcooling fanoperates, thenrace
engine 2or 3times under no-load.
8. Stop engine andwait until itcools down.
9. Drain water.
10. Repeat steps2through 9until clear water begins todrain
from radiator.
-REFILLING ENGINECOOLANT-
11. Install reservoir tank,radiator drainplug,cylinder block
drain plugandairrelief plug
@.
• Apply sealant tothe thread ofcylinder blockdrainplug.
toJ:
34-44 N.m (3.5-4.5 kg-m, 25-33 ft-Ib)
12. Fill radiator withcoolant untilcoolant spillsfromtheair
relief plug
@
hole, theninstall airrelief plug
@.
13. Fill radiator andreservoir tankwithcoolant uptospecified
level andinstall radiator cap.
Air relief plug:
~: 7-8 N.m (0.7-0.8 kg-m, 61-69 in-Ib)
For coolant mixture ratio,refertoMA-16.
Coolant capacity (Withreservoir tank):
Unit:f(Imp qt)
With heater
Withoutheater
M/T 5.9(5-1/4) 5.6(4-7/8)
AIT 6.4(5-5/8) 6.1(5-3/8)
Reservoir tankcapacity (forMAX level):
o.n
(5/8Impqt)
Pour coolant through coolantfillerneckslowly toallow airin
system toescape.
14. Warm upengine tonormal operating temperature.
15. Run engine at2,500 rpmfor10seconds andreturn toidle
speed.
• Repeat 2or 3times.
Watch coolant temperature gaugesoas not tooverheat the
engine.
SMA4128
MA-20
Page 1507 of 1701

SLC053B
Water
inlet
Wateroutlet ENGINE
MAINTENANCE
@KJ

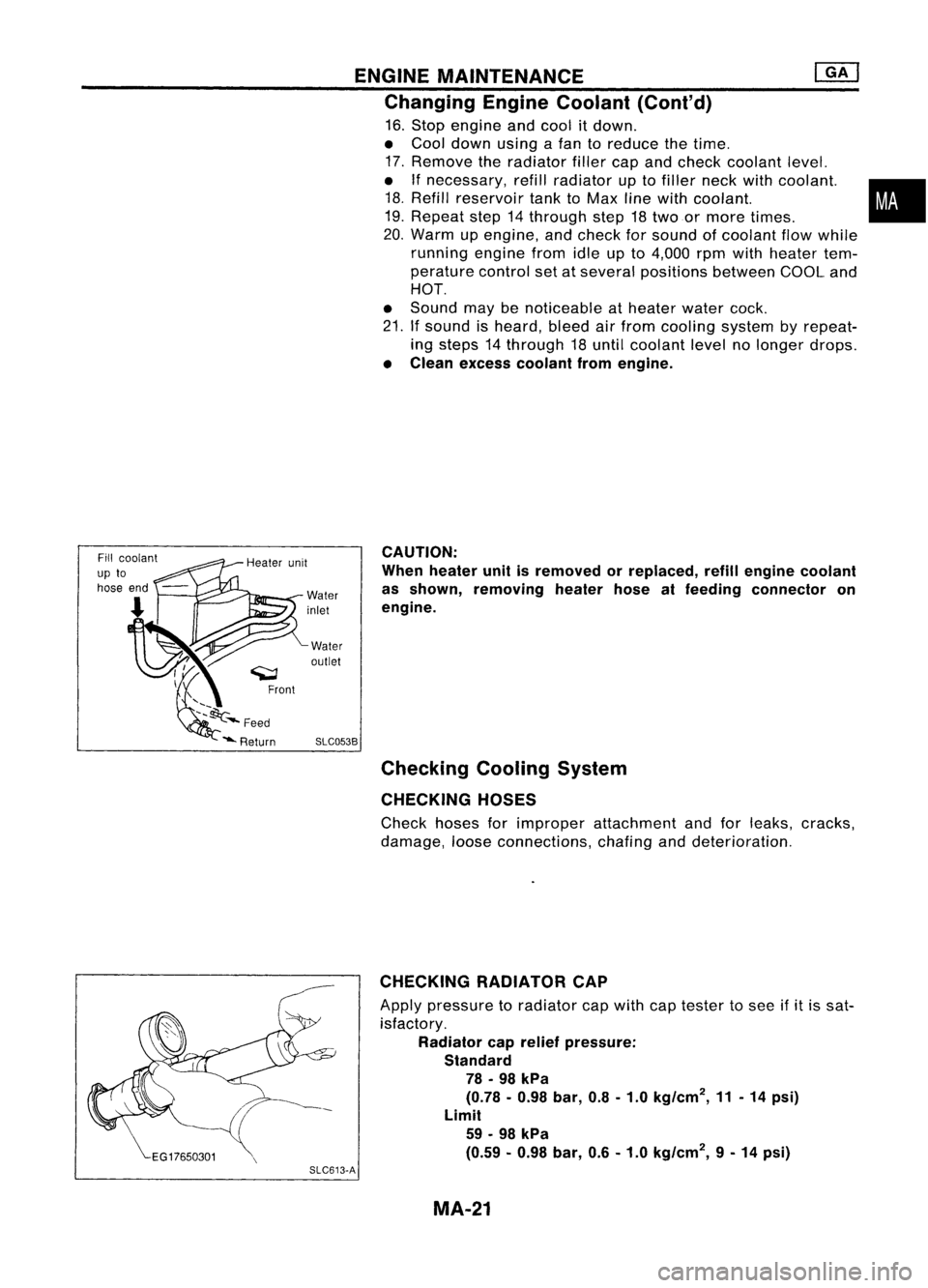

Changing EngineCoolant (Cont'd)
16. Stop engine andcool itdown.
• Cool down usingafan toreduce thetime.
17. Remove theradiator fillercapand check coolant level.
• If
necessary, refillradiator uptofiller neckwithcoolant. •
18. Refill reservoir tanktoMax linewith coolant. •
19. Repeat step14through step18two ormore times.
20. Warm upengine, andcheck forsound ofcoolant flowwhile
running enginefromidleupto4,000 rpmwith heater tem-
perature controlsetatseveral positions betweenCOOLand
HOT.
• Sound maybenoticeable atheater watercock.
21. Ifsound isheard, bleedairfrom cooling systembyrepeat-
ing steps 14through 18until coolant levelnolonger drops.
• Clean excess coolant fromengine.
CAUTION:
When heater unitisremoved orreplaced, refillengine coolant
as shown, removing heaterhoseatfeeding connector on
engine.
Checking CoolingSystem
CHECKING HOSES
Check hosesforimproper attachment andforleaks, cracks,
damage, looseconnections, chafinganddeterioration.
CHECKING RADIATORCAP
Apply pressure toradiator capwith captester tosee if
it
is sat-
isfactory.
Radiator caprelief pressure:
Standard 78 -98 kPa
(0.78 •0.98 bar,0.8-1.0 kg/cm
2,
11.14 psi)
Limit
59 -98 kPa
(0.59 -0.98 bar,0.6-1.0 kg/cm
2,
9-14 psi)
SLC613-A
MA-21
Page 1508 of 1701

ENGINEMAINTENANCE ~

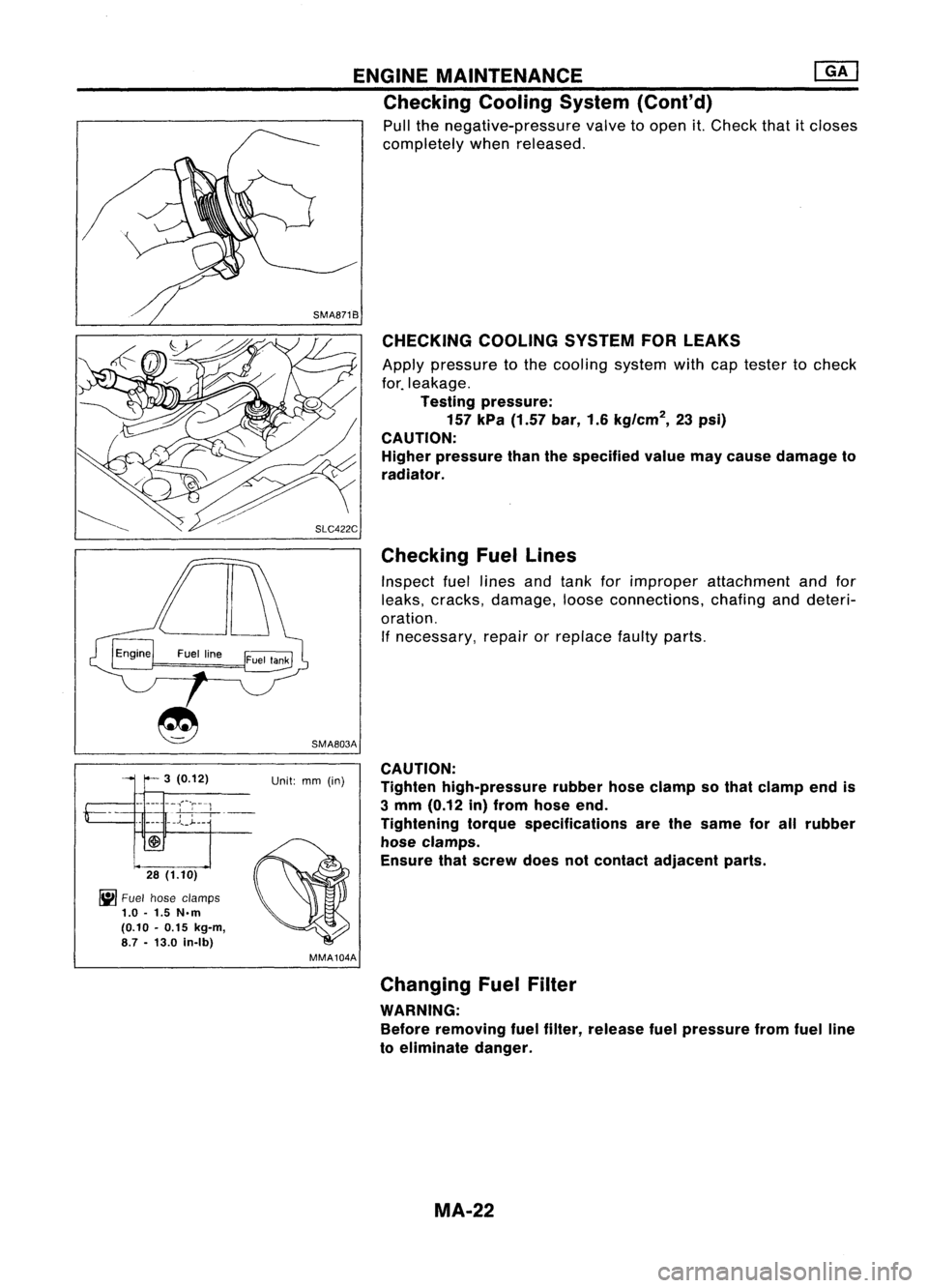

Checking CoolingSystem(Cont'd)
Pull thenegative-pressure valvetoopen it.Check thatitcloses
completely whenreleased.
SMA871B CHECKING COOLINGSYSTEMFORLEAKS
Apply pressure tothe cooling systemwithcaptester tocheck
for. leakage.
Testing pressure:
157 kPa (1.57 bar,1.6kg/cm
2,
23psi)
CAUTION: Higher pressure thanthespecified valuemaycause damage to
radiator.
Checking Fuellines
Inspect fuellines andtank forimproper attachment andfor
leaks, cracks, damage, looseconnections, chafinganddeteri-
oration. If necessary, repairorreplace faultyparts.
SMA803A
3 (0.12) Unit:mm(in)
-- --- ----,;~-r--1
"
,
-,-,-,
~-
_______ .J",_~__
28 (1.10)
~ Fuel hose clamps
1.0 -1.5 N.m
(0.10 -0.15 kg-m,
8.7 -13.0 in-Ib)
MMA104ACAUTION:
Tighten high-pressure rubberhoseclamp sothat clamp endis
3 mm (0.12 in)from hose end.
Tightening torquespecifications arethesame forallrubber
hose clamps.
Ensure thatscrew doesnotcontact adjacent parts.
Changing FuelFilter
WARNING: Before removing fuelfilter, release fuelpressure fromfuelline
to eliminate danger.
MA-22
Page 1509 of 1701

ENGINEMAINTENANCE @KJ

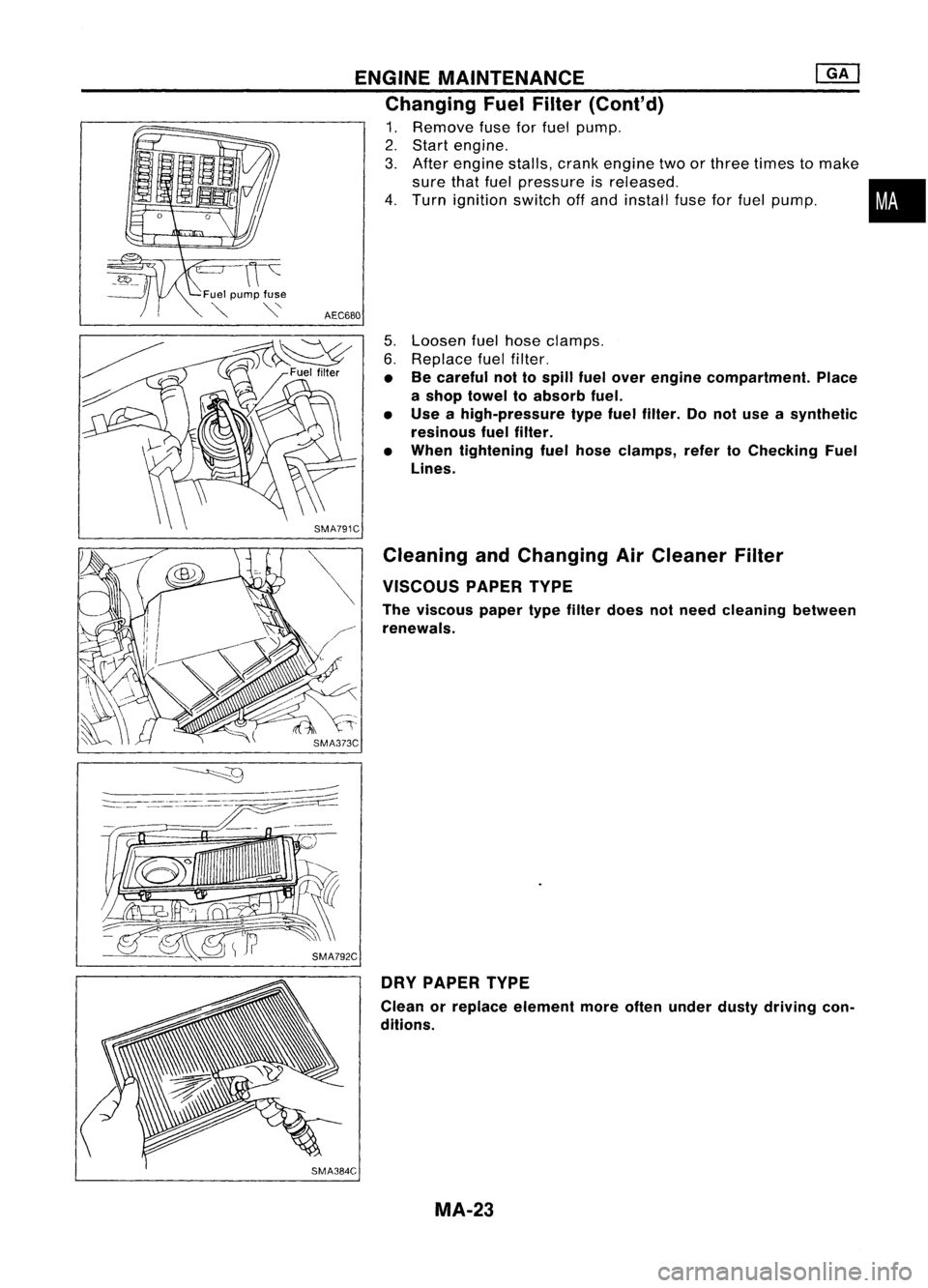

Changing FuelFilter (Cont'd)
1. Remove fuseforfuel pump.
2. Start engine.
3. After engine stalls,crankengine twoorthree times tomake
sure thatfuel pressure isreleased. •
4. Turn ignition switchoffand install fuseforfuel pump.
i
AECBBO
5.Loosen fuelhose clamps.
6. Replace fuelfilter.
• Becareful nottospill fuelover engine compartment. Place
a shop towel toabsorb fuel.
• Use ahigh-pressure typefuelfilter. Donot use asynthetic
resinous fuelfilter.
• When tightening fuelhose clamps, refertoChecking Fuel
Lines.
Cleaning andChanging AirCleaner Filter
VISCOUS PAPERTYPE
The viscous papertypefilter does notneed cleaning between
renewals.
DRY PAPER TYPE
Clean orreplace element moreoftenunder dustydriving con-
ditions.
SMA384C MA-23
Page 1510 of 1701

ENGINEMAINTENANCE

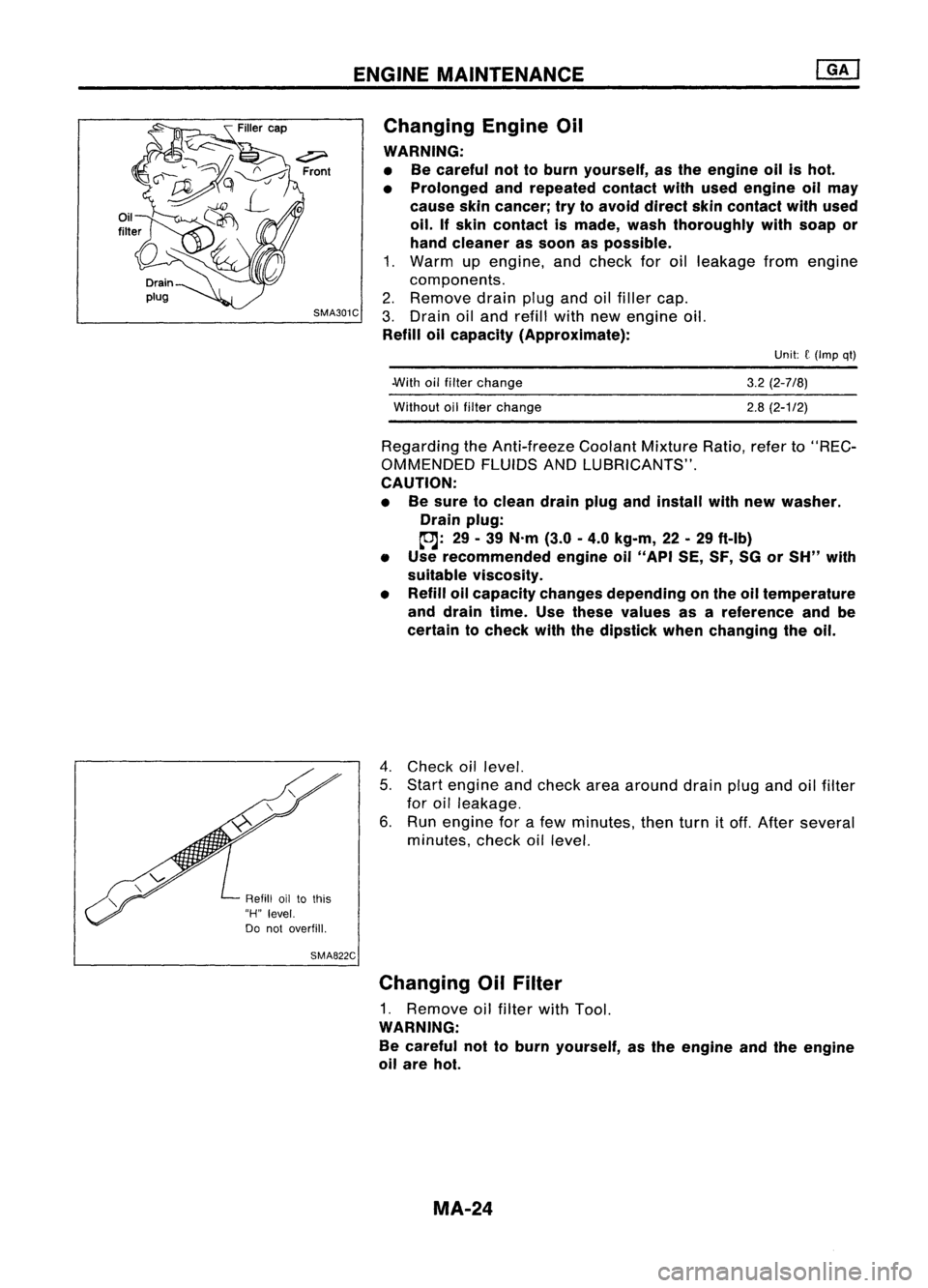

Changing EngineOil
WARNING:
• Becareful nottoburn yourself, asthe engine oilishot.
• Prolonged andrepeated contactwithused engine oilmay
cause skincancer; trytoavoid direct skincontact withused
oil.
If
skin contact ismade, washthoroughly withsoap or
hand cleaner assoon aspossible.
1. Warm upengine, andcheck foroilleakage fromengine
components.
2. Remove drainplugandoilfiller cap.
3. Drain oiland refill withnewengine oil.
Refill oilcapacity (Approximate):
Unit:
f
(Imp qt)
.With oilfilter change
Without oilfilter change
3.2
(2-7/8)
2.8 (2-1/2)
Regarding theAnti-freeze CoolantMixtureRatio,referto"REC-
OMMENDED FLUIDSANDLUBRICANTS".
CAUTION:
• Besure toclean drainplugandinstall withnew washer.
Drain plug:
~: 29-39 N'm (3.0-4.0 kg-m, 22-29 ft-Ib)
• Use recommended engineoil"API SE,SF,SGorSH" with
suitable viscosity.
• Refill oilcapacity changesdepending onthe oiltemperature
and drain time.Usethese values asareference andbe
certain tocheck withthedipstick whenchanging theoil.
4. Check oillevel.
5. Start engine andcheck areaaround drainplugandoilfilter
for oilleakage.
6. Run engine forafew minutes, thenturnitoff. After several
minutes, checkoillevel.
Refill oiltothis
"H" level.
Do not overfill.
SMA822C
Changing OilFilter
1. Remove oilfilter withTool.
WARNING:
Be careful nottoburn yourself, asthe engine andtheengine
oil are hot.
MA-24
