NISSAN ALMERA N16 2001 Electronic Repair Manual

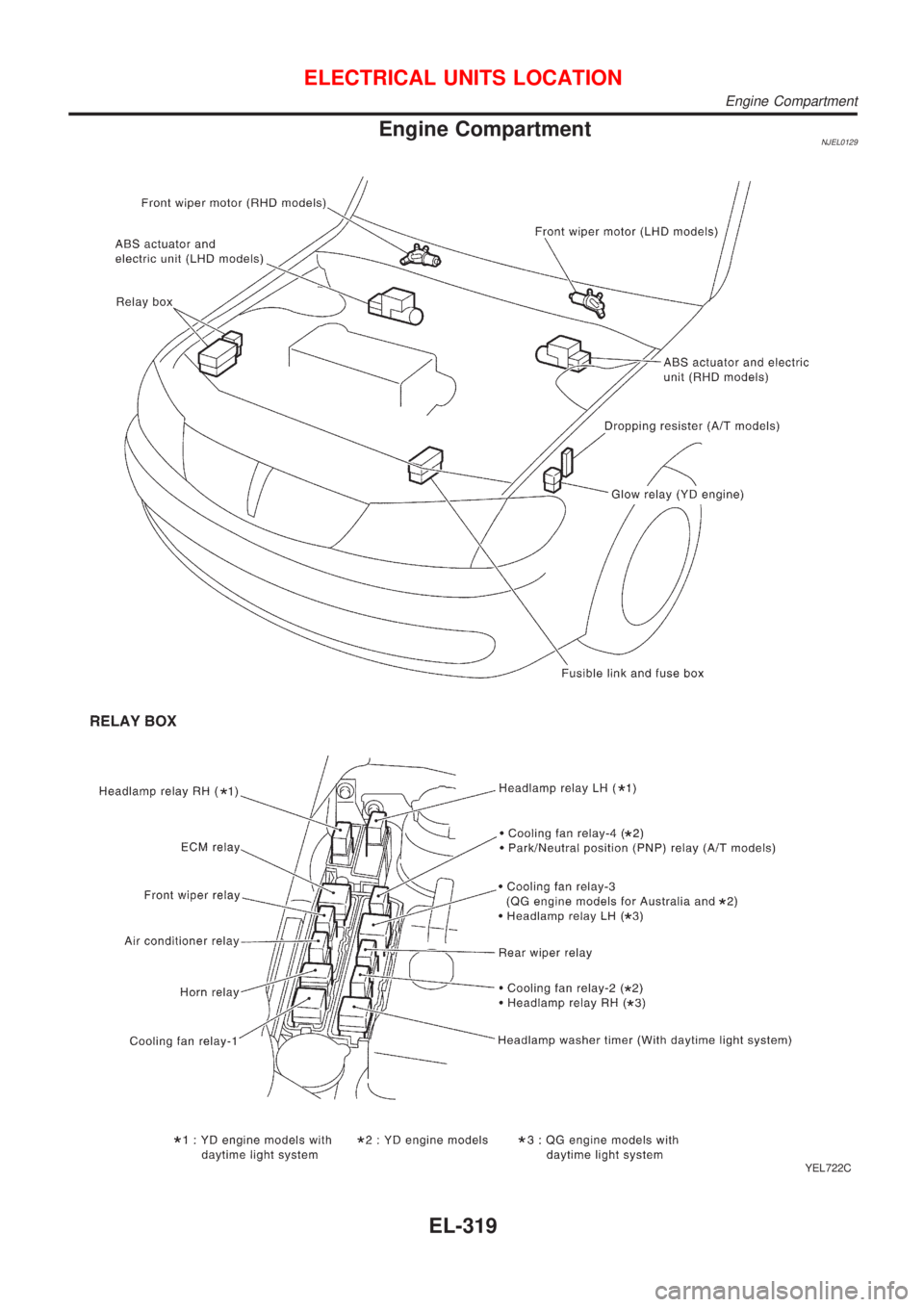

Engine CompartmentNJEL0129
YEL722C
ELECTRICAL UNITS LOCATION
Engine Compartment
EL-319

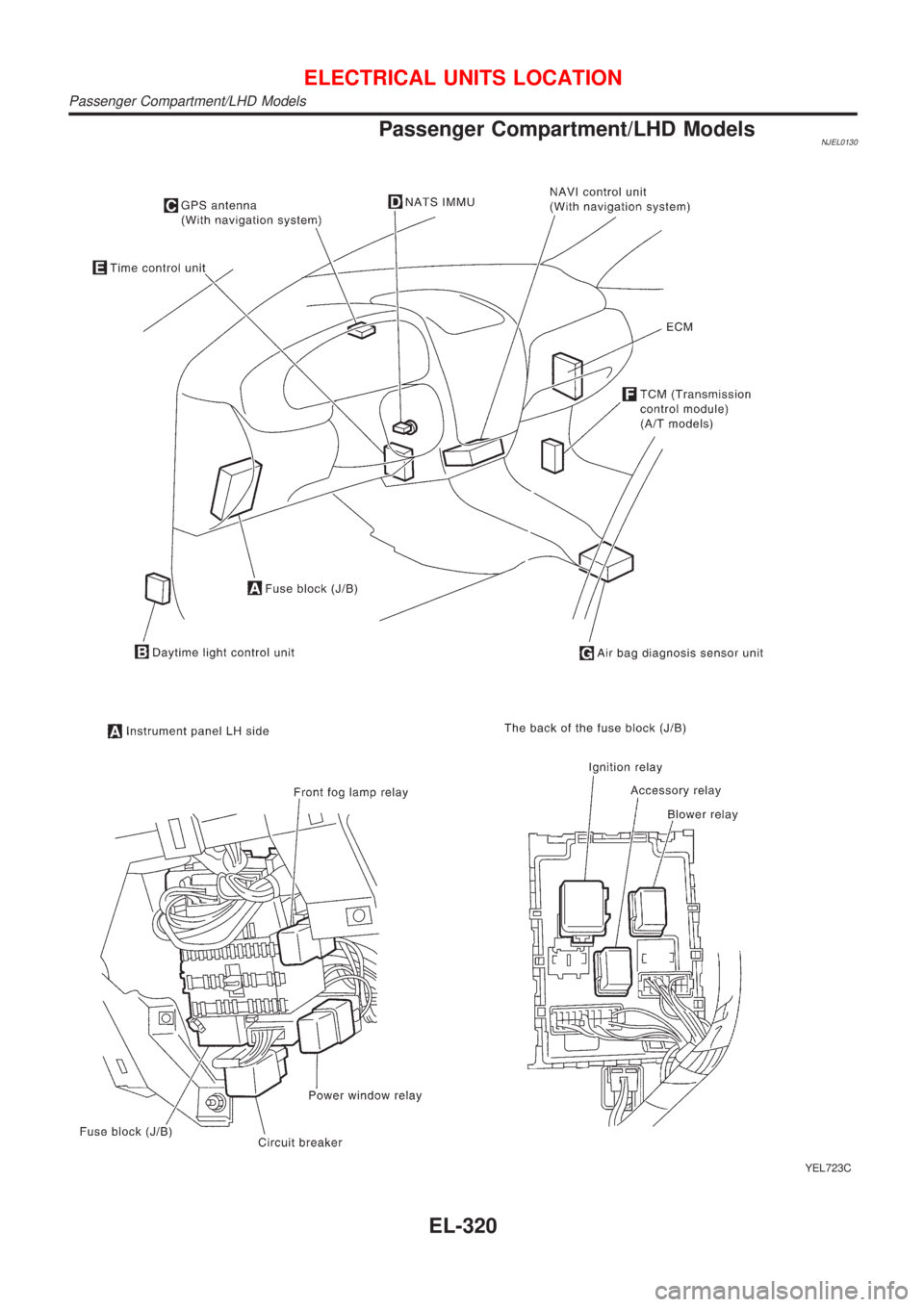

Passenger Compartment/LHD ModelsNJEL0130
YEL723C
ELECTRICAL UNITS LOCATION
Passenger Compartment/LHD Models
EL-320

YEL724C
ELECTRICAL UNITS LOCATION
Passenger Compartment/LHD Models (Cont'd)
EL-321

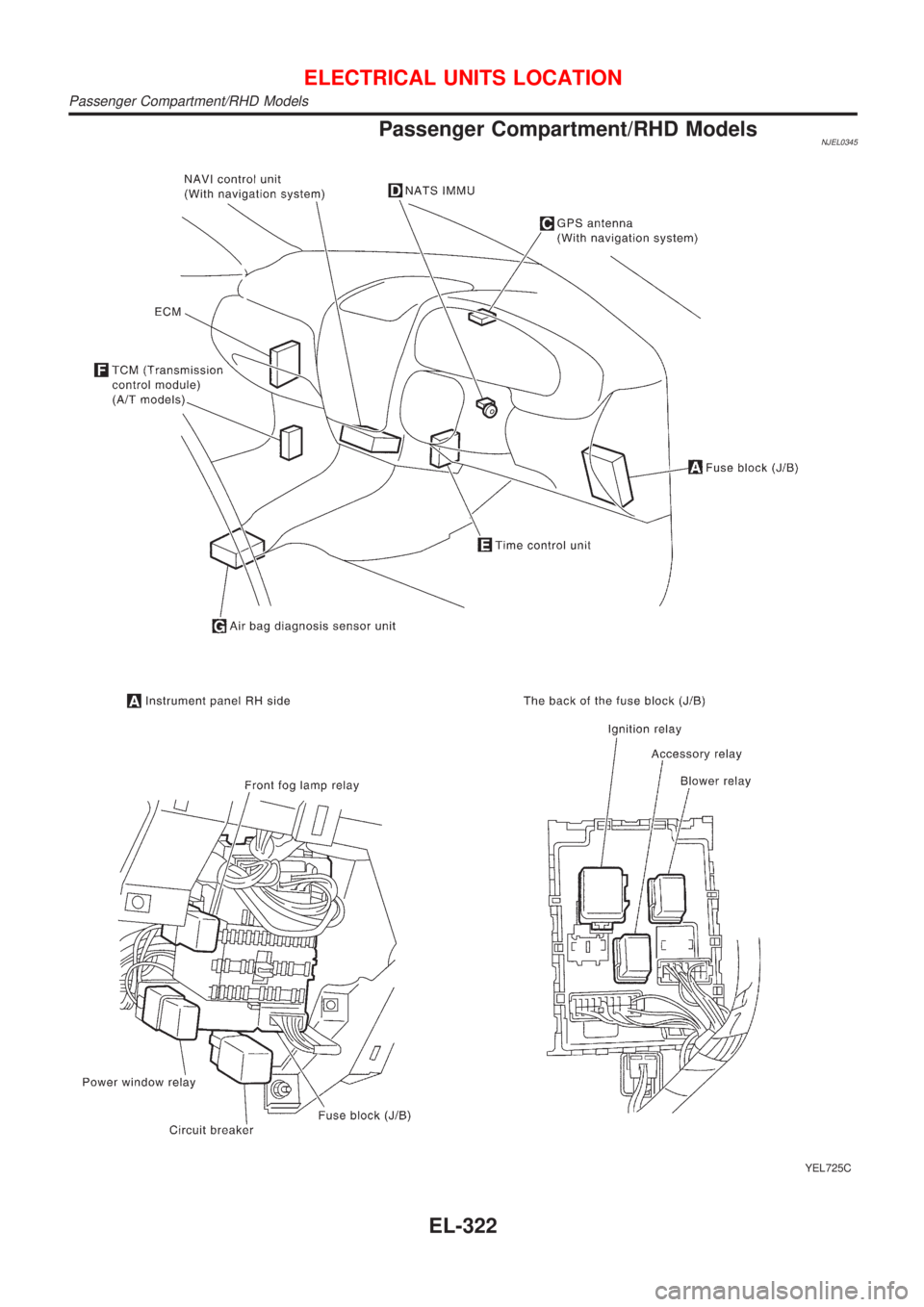

Passenger Compartment/RHD ModelsNJEL0345
YEL725C
ELECTRICAL UNITS LOCATION
Passenger Compartment/RHD Models
EL-322

YEL726C
ELECTRICAL UNITS LOCATION
Passenger Compartment/RHD Models (Cont'd)
EL-323

How to Read Harness LayoutNJEL0131
SEL252V
The following Harness Layouts use a map style grid to help locate connectors on the drawings:
+Main Harness
+Engine Room Harness (Engine Compartment)
+Engine Control Harness
+Body Harness
TO USE THE GRID REFERENCENJEL0131S011. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.
CONNECTOR SYMBOLNJEL0131S02Main symbols of connector (in Harness Layout) are indicated in the below.
Connector typeWater proof type Standard type
Male Female Male Female
+Cavity: Less than 4
+Relay connector
+Cavity: From 5 to 8
+Cavity: More than 9
+Ground terminal etc.
Ð
HARNESS LAYOUT
How to Read Harness Layout
EL-324

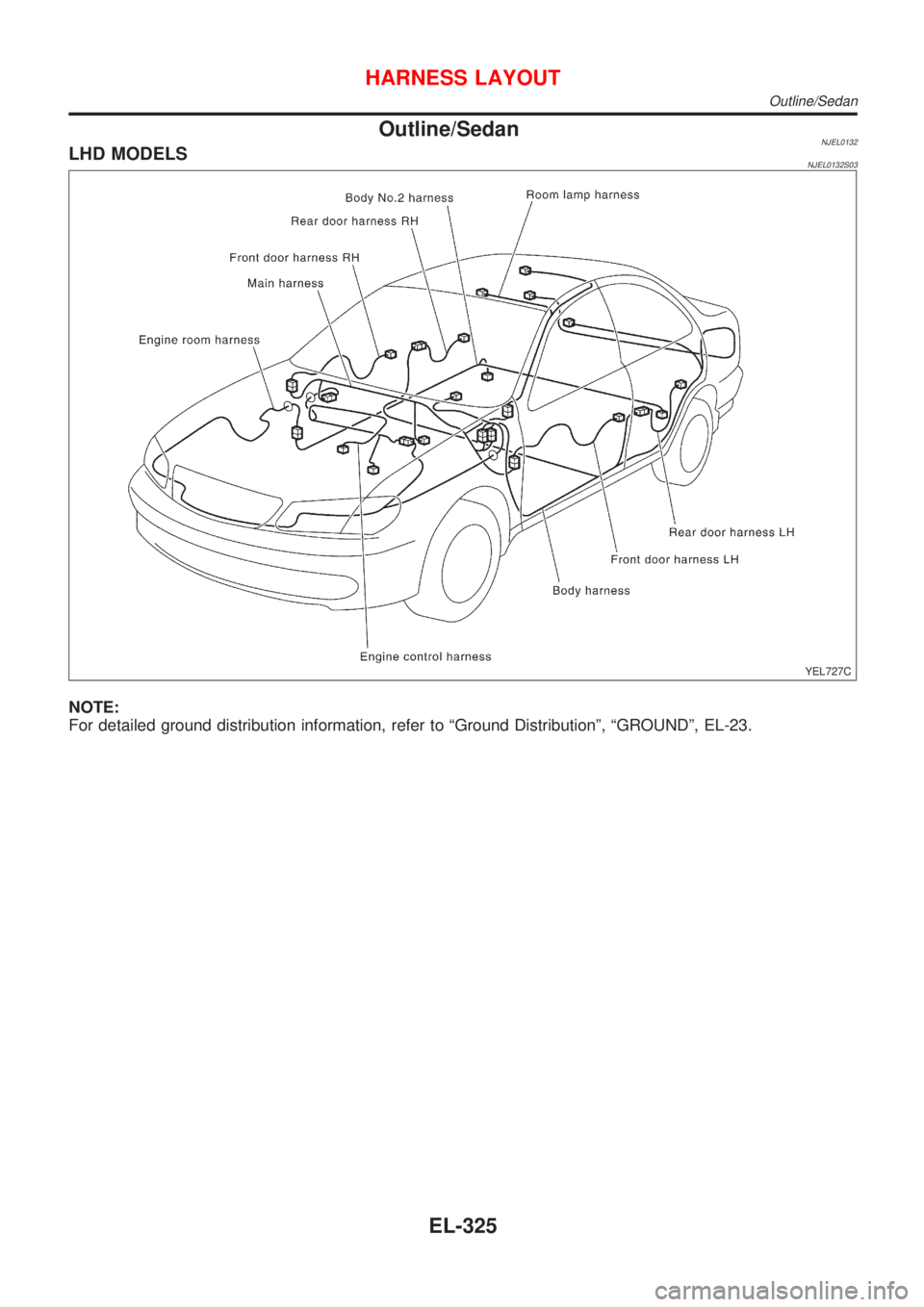

Outline/SedanNJEL0132LHD MODELSNJEL0132S03
YEL727C
NOTE:
For detailed ground distribution information, refer to ªGround Distributionº, ªGROUNDº, EL-23.
HARNESS LAYOUT
Outline/Sedan
EL-325

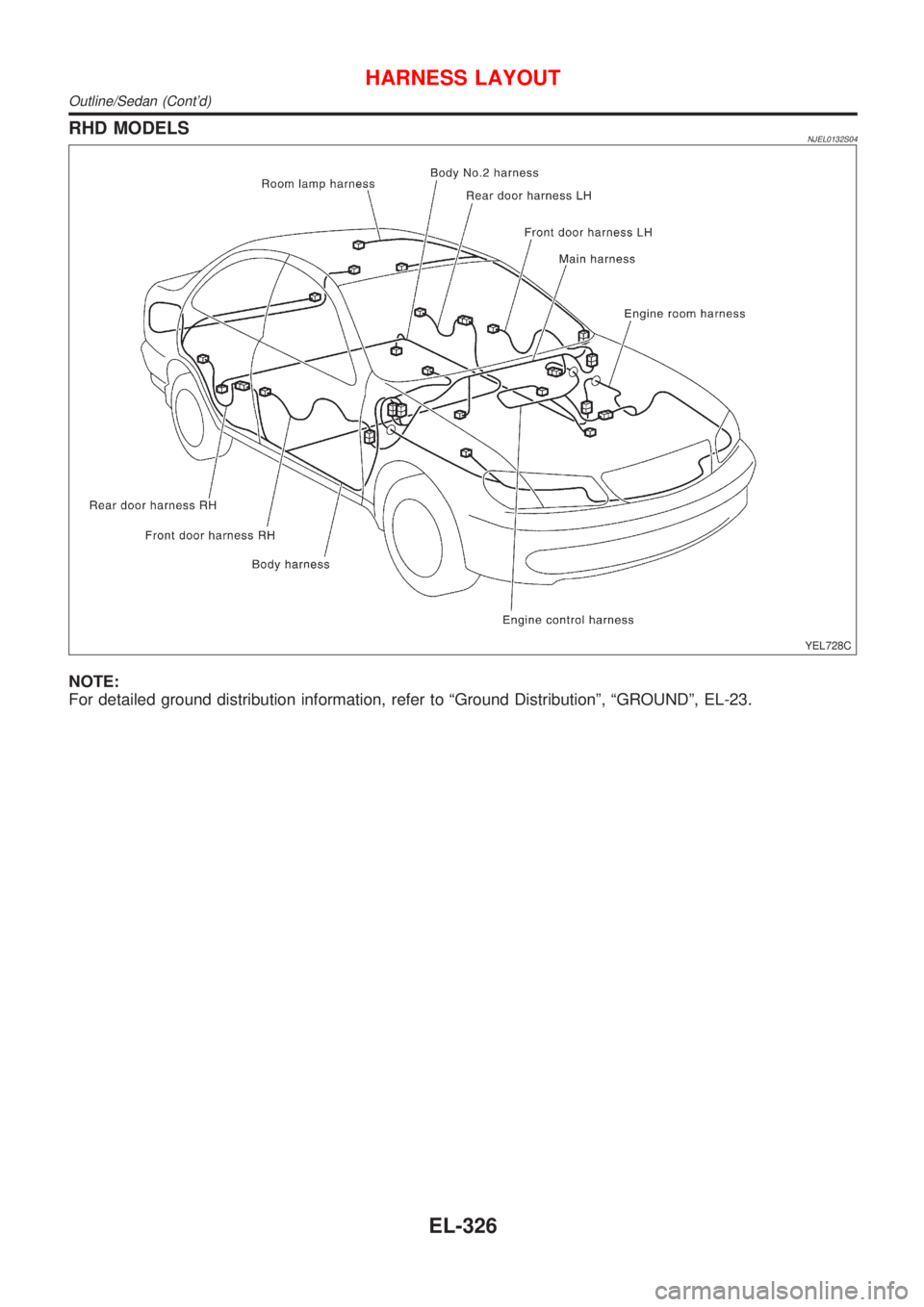

RHD MODELSNJEL0132S04
YEL728C
NOTE:
For detailed ground distribution information, refer to ªGround Distributionº, ªGROUNDº, EL-23.
HARNESS LAYOUT
Outline/Sedan (Cont'd)
EL-326

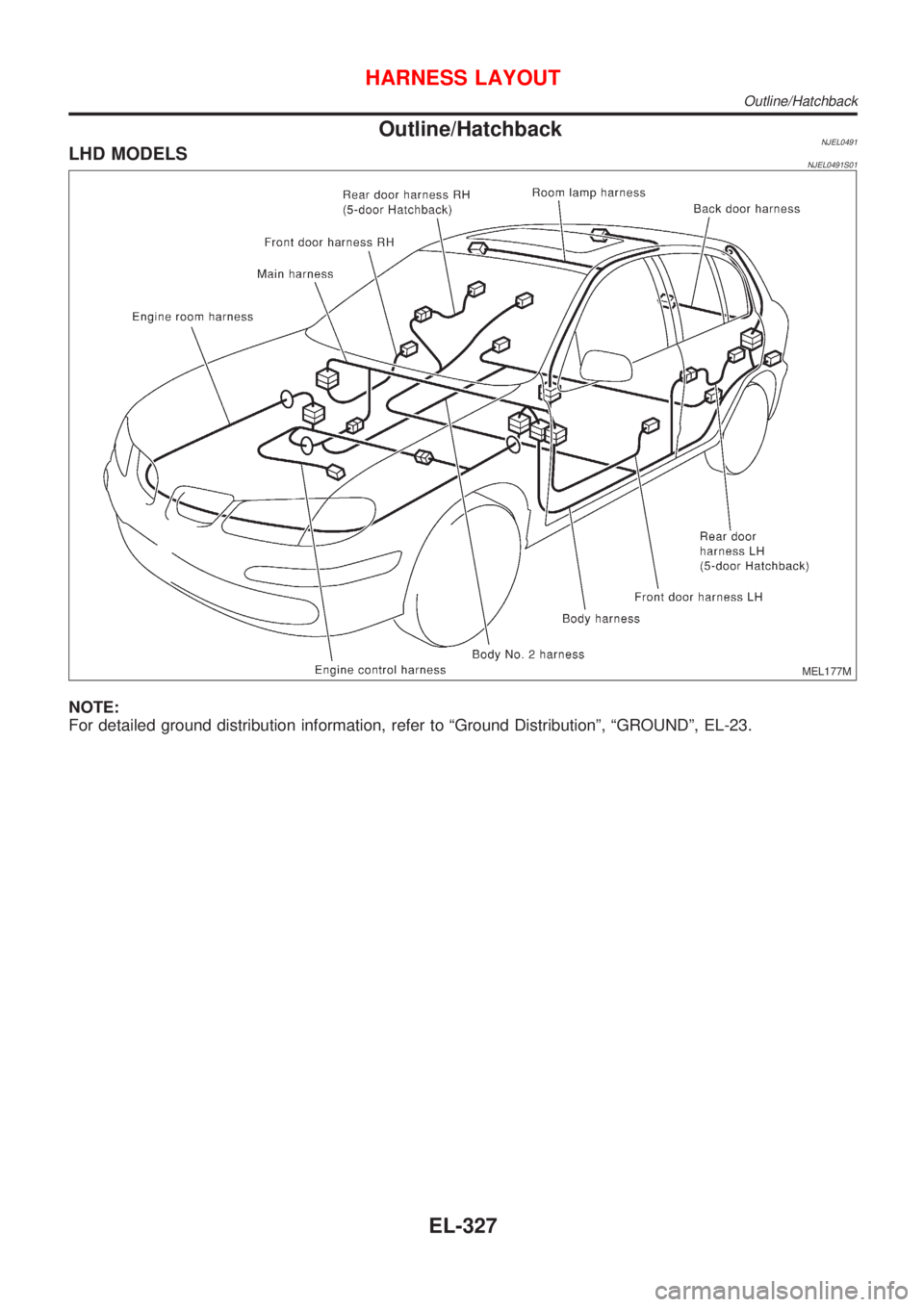

Outline/HatchbackNJEL0491LHD MODELSNJEL0491S01
MEL177M
NOTE:
For detailed ground distribution information, refer to ªGround Distributionº, ªGROUNDº, EL-23.
HARNESS LAYOUT
Outline/Hatchback
EL-327

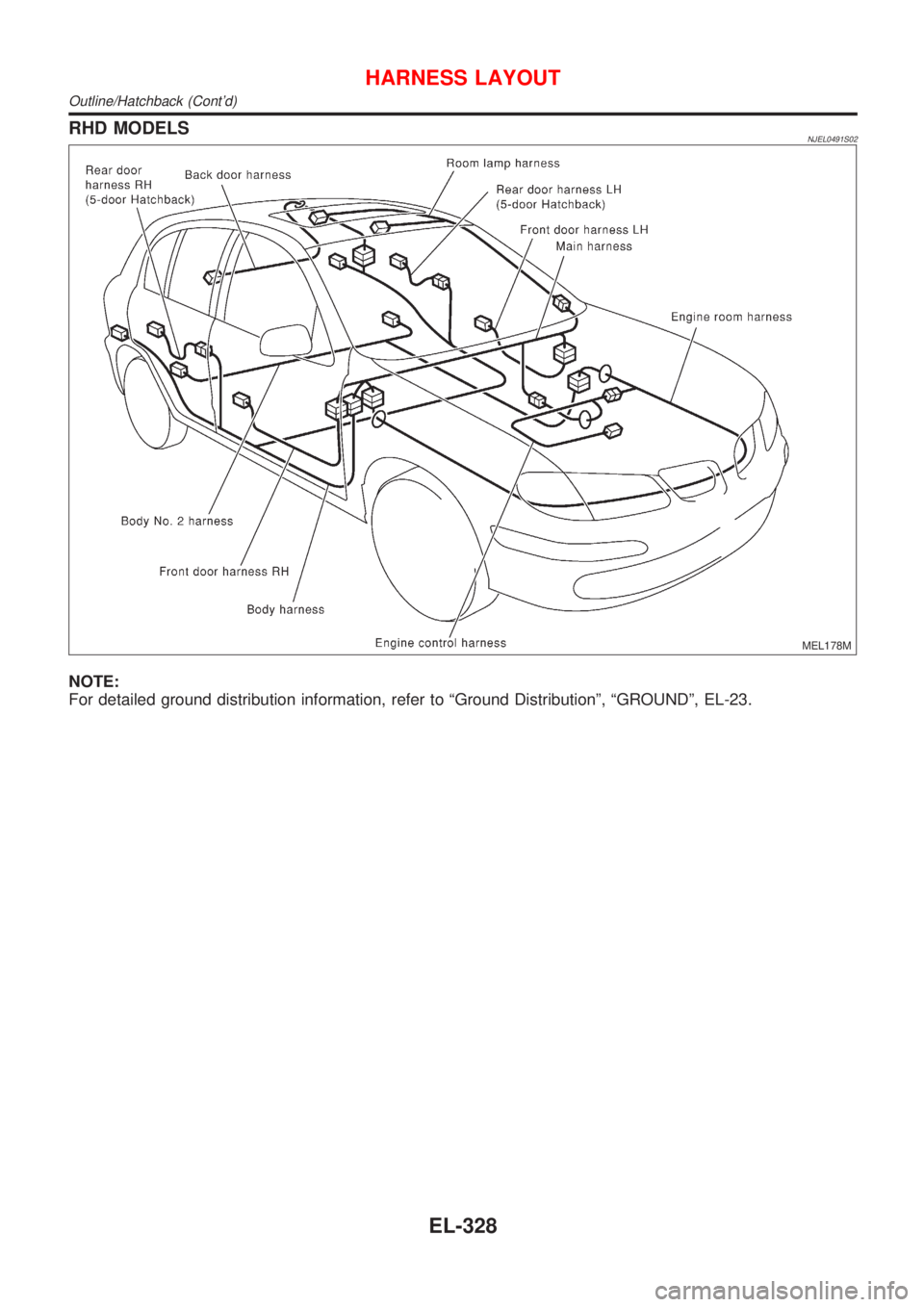

RHD MODELSNJEL0491S02
MEL178M
NOTE:
For detailed ground distribution information, refer to ªGround Distributionº, ªGROUNDº, EL-23.
HARNESS LAYOUT
Outline/Hatchback (Cont'd)
EL-328
