NISSAN ALMERA N16 2003 Electronic Repair Manual

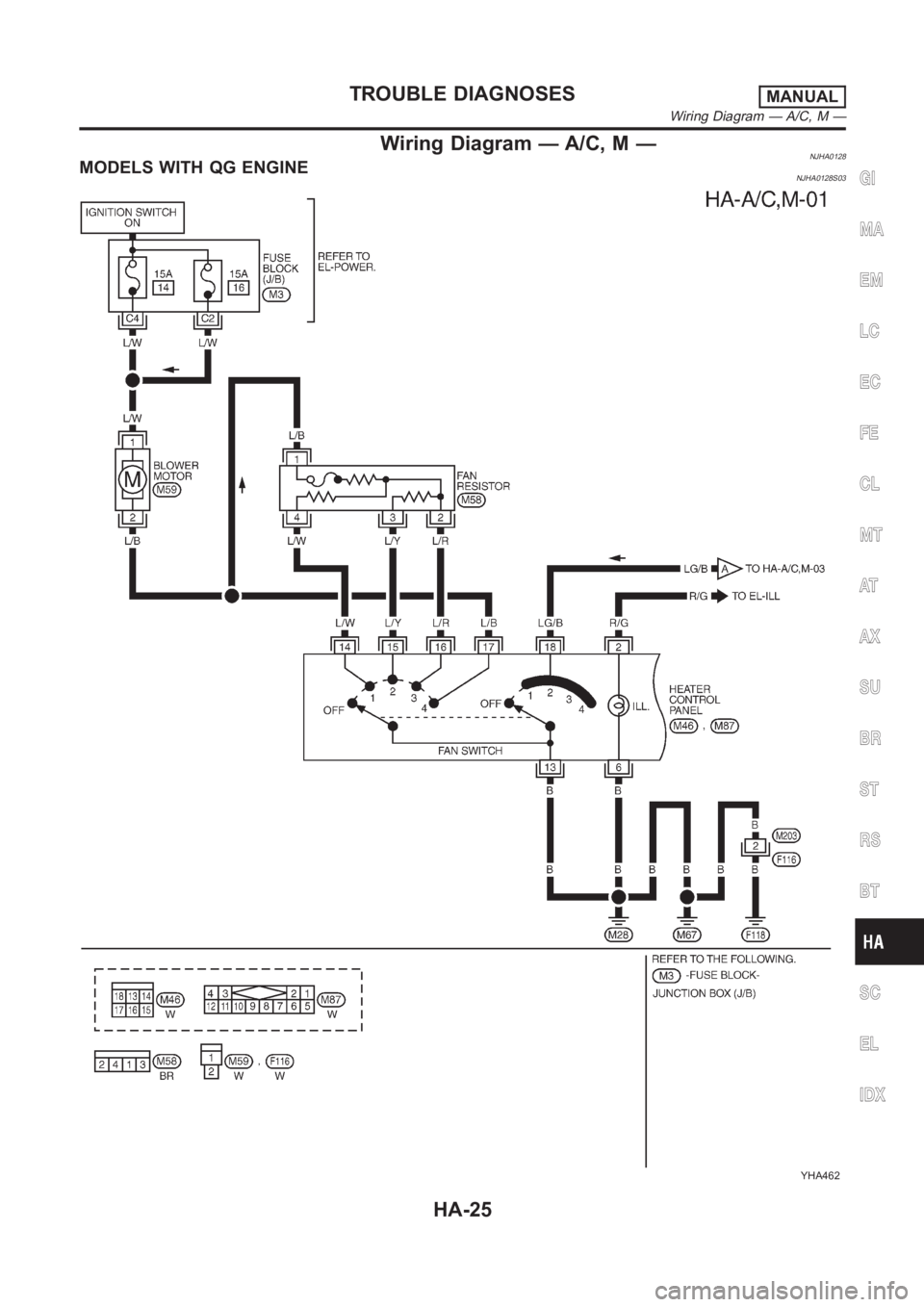

Wiring Diagram — A/C, M —NJHA0128MODELS WITH QG ENGINENJHA0128S03
YHA462
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSESMANUAL
Wiring Diagram — A/C, M —
HA-25

YHA463

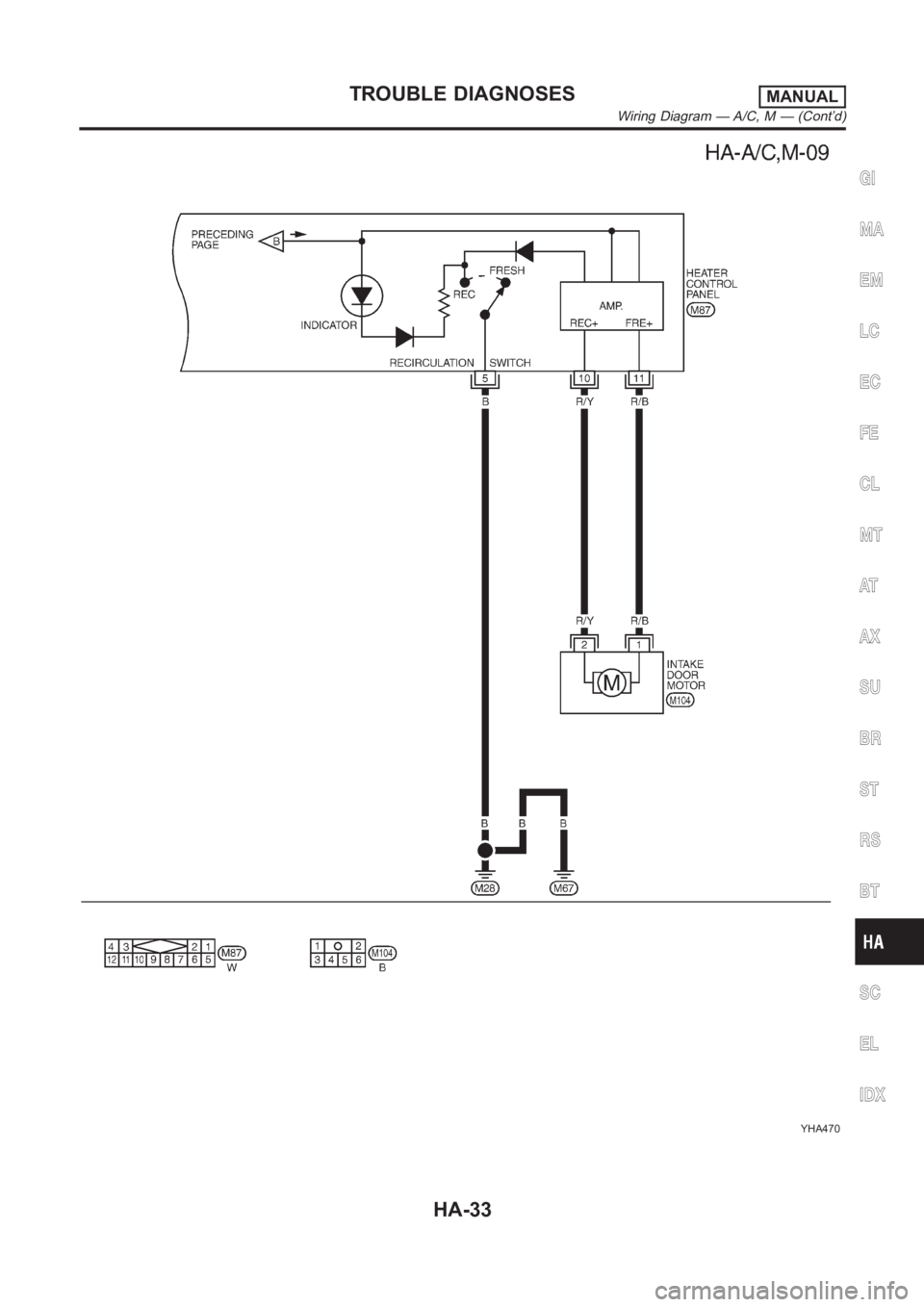

TROUBLE DIAGNOSESMANUAL

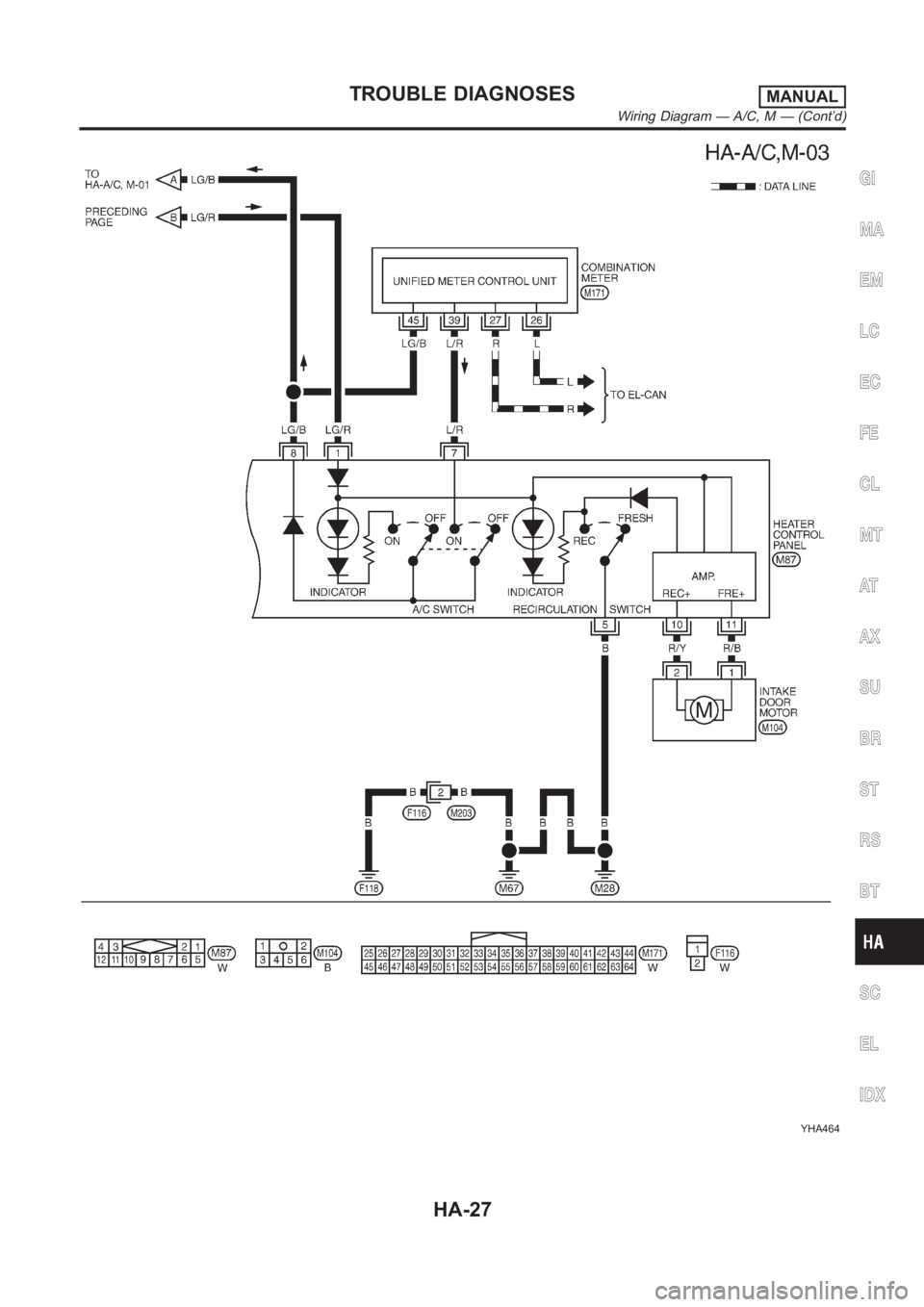

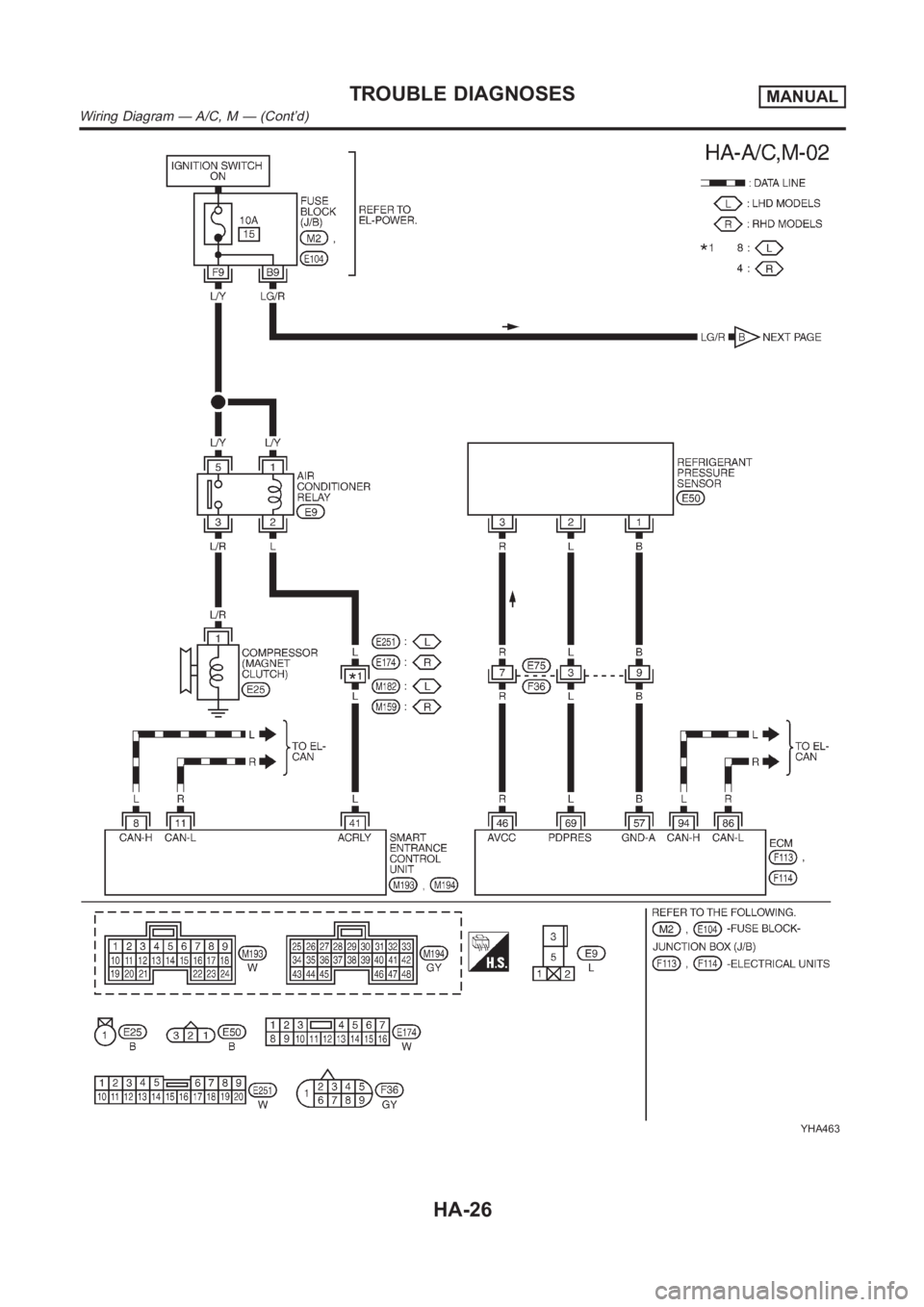

Wiring Diagram — A/C, M — (Cont’d)
HA-26

YHA464
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSESMANUAL

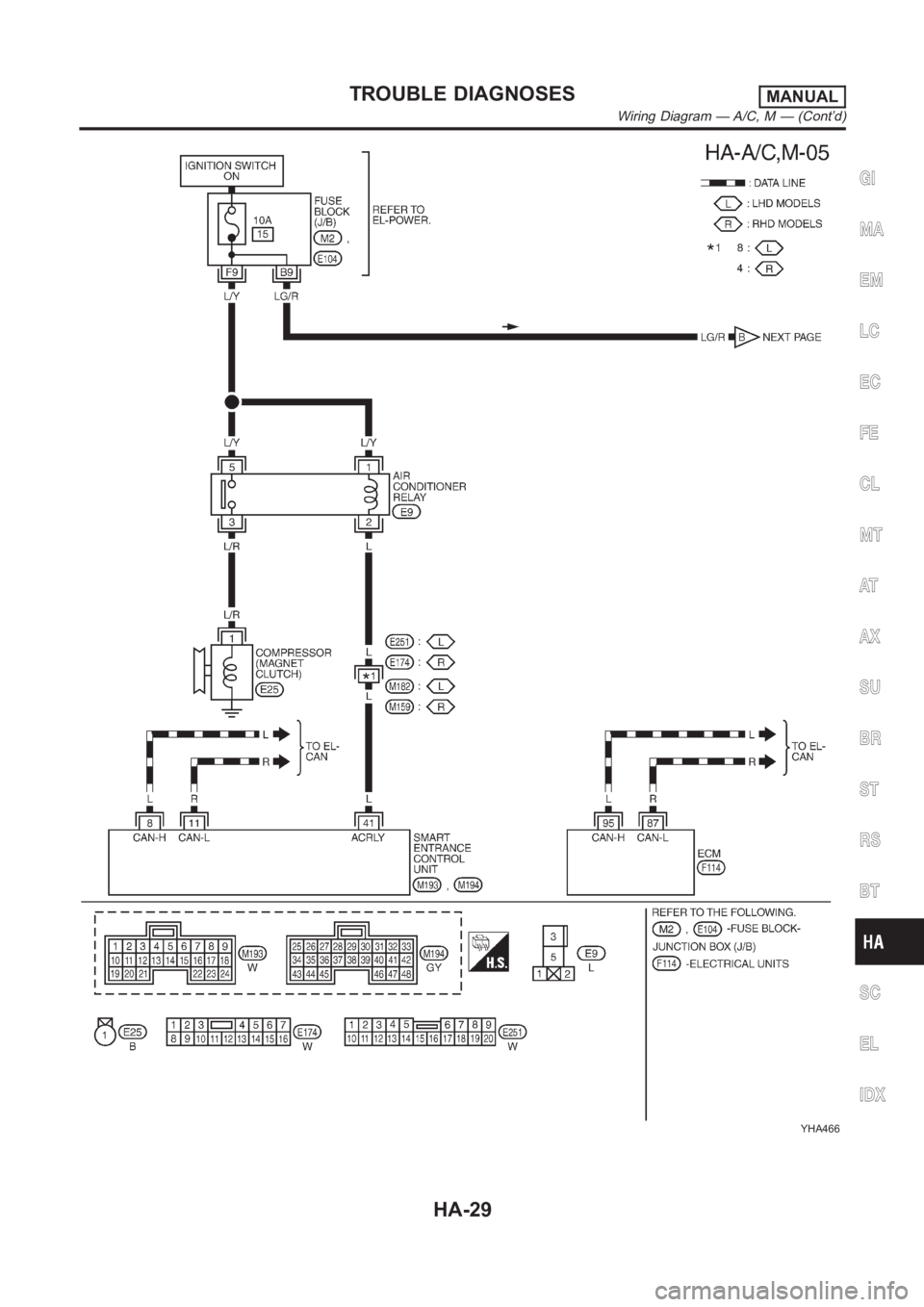

Wiring Diagram — A/C, M — (Cont’d)
HA-27

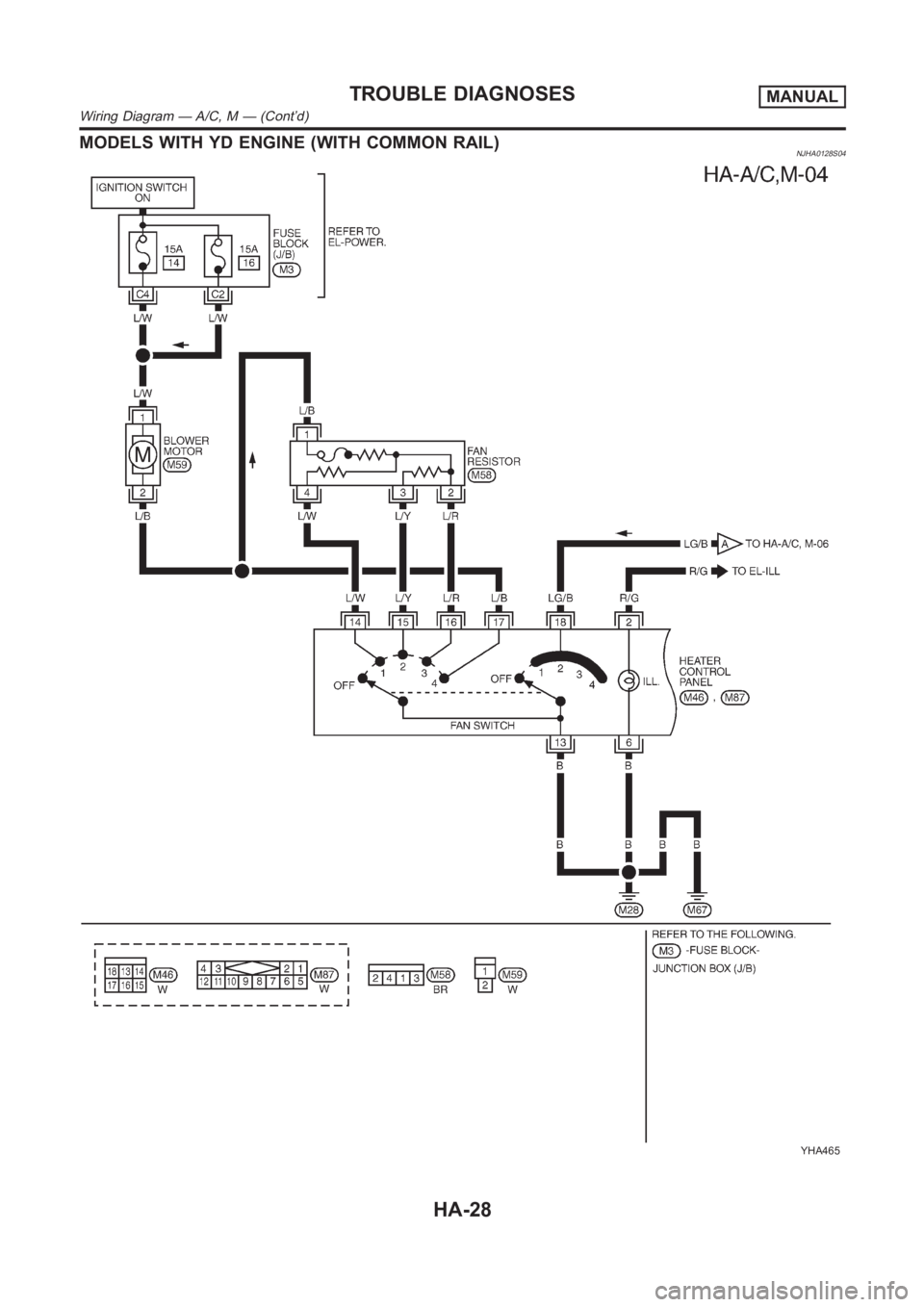

MODELS WITH YD ENGINE (WITH COMMON RAIL)NJHA0128S04
YHA465
TROUBLE DIAGNOSESMANUAL

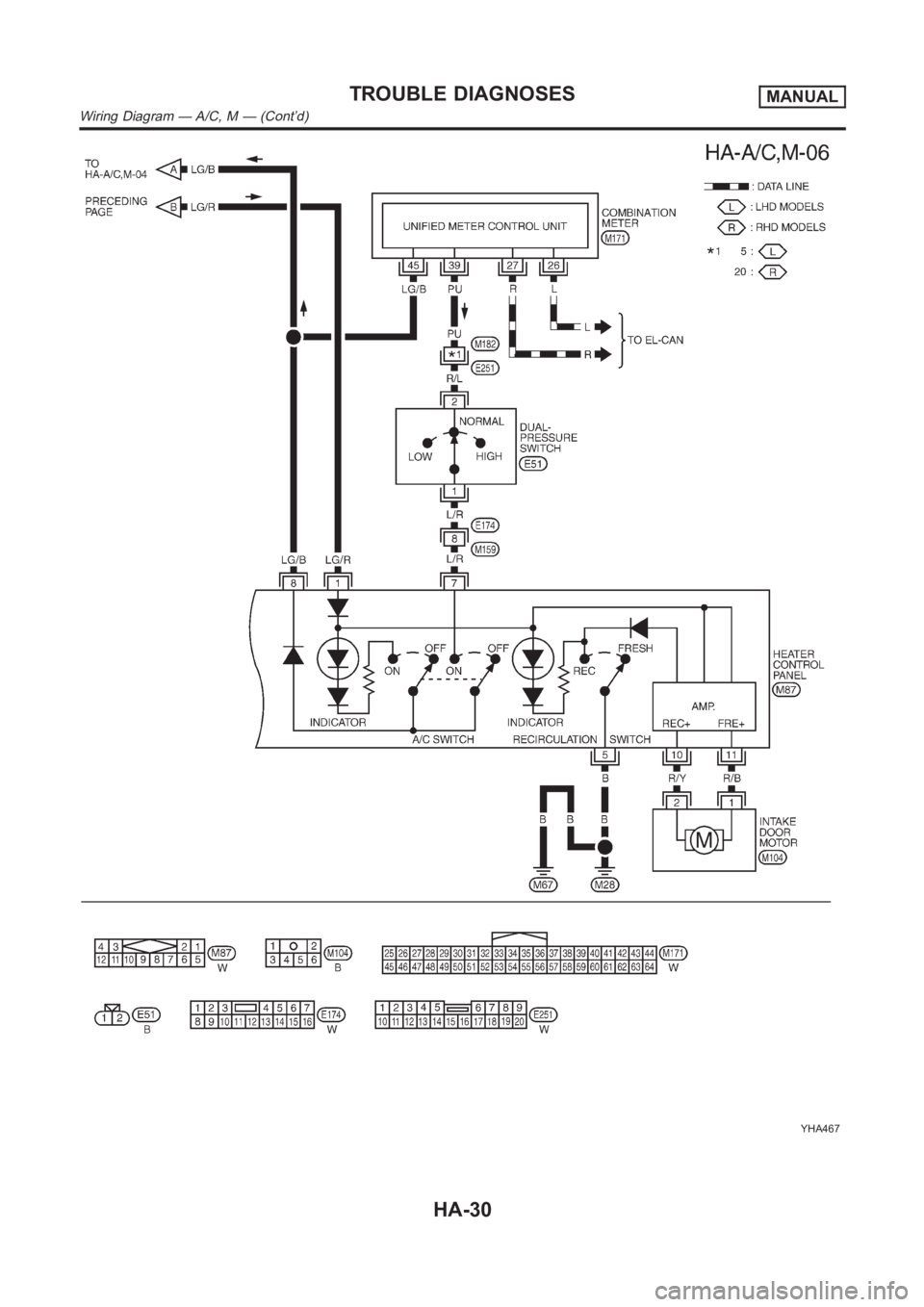

Wiring Diagram — A/C, M — (Cont’d)
HA-28

YHA466
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSESMANUAL
Wiring Diagram — A/C, M — (Cont’d)
HA-29

YHA467
TROUBLE DIAGNOSESMANUAL
Wiring Diagram — A/C, M — (Cont’d)
HA-30

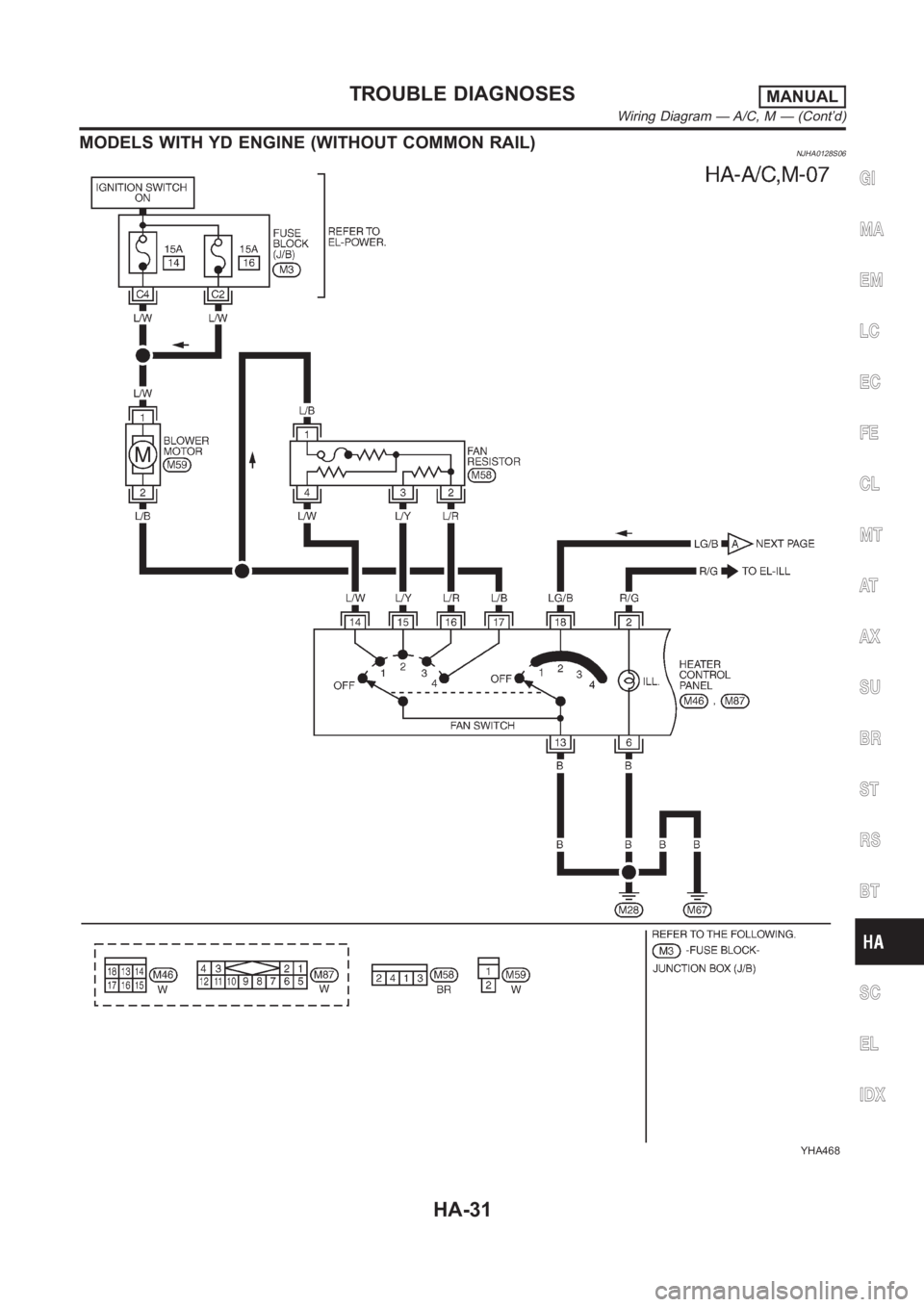

MODELS WITH YD ENGINE (WITHOUT COMMON RAIL)NJHA0128S06
YHA468
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSESMANUAL
Wiring Diagram — A/C, M — (Cont’d)
HA-31

YHA469
TROUBLE DIAGNOSESMANUAL

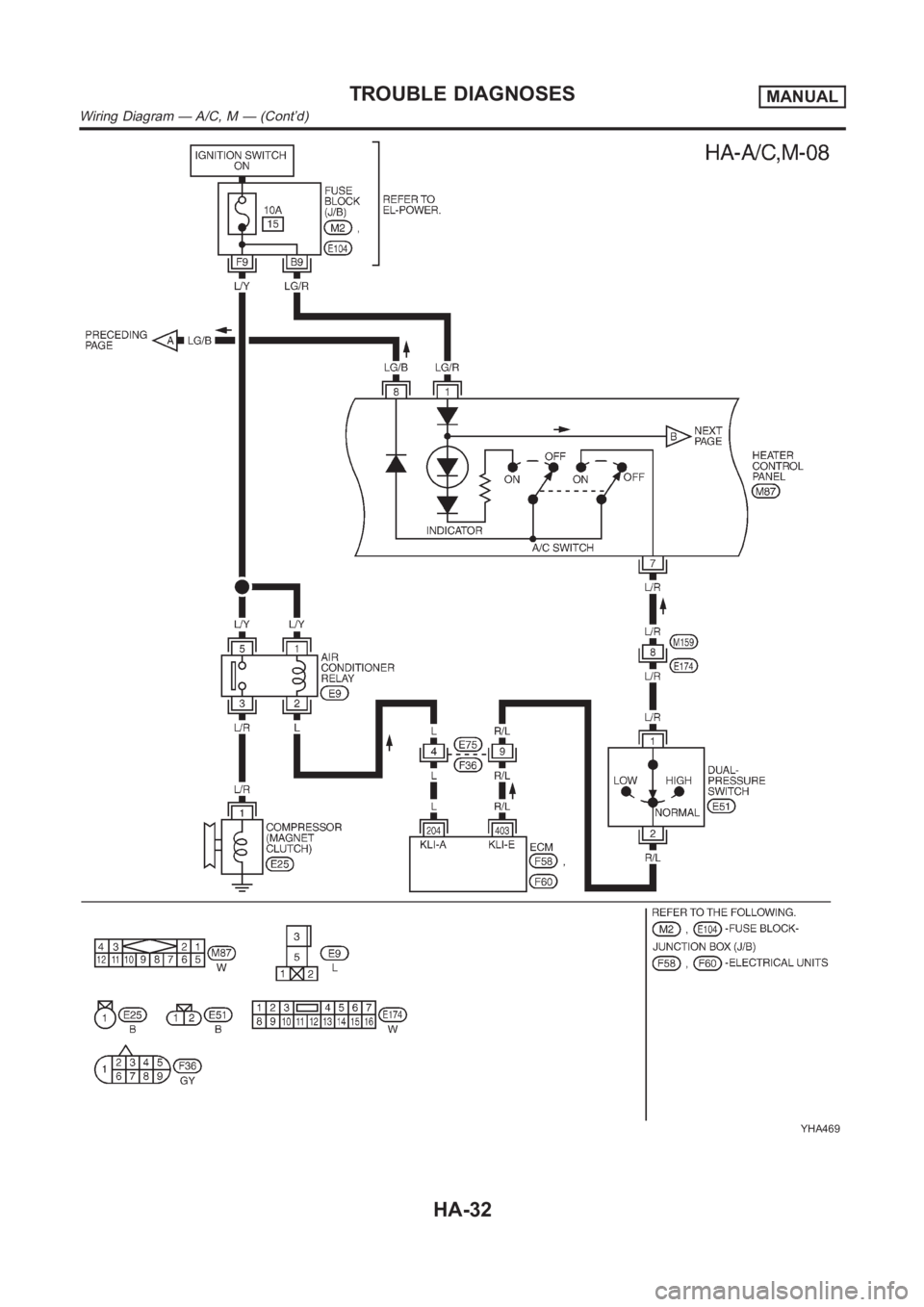

Wiring Diagram — A/C, M — (Cont’d)
HA-32

YHA470
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSESMANUAL
Wiring Diagram — A/C, M — (Cont’d)
HA-33

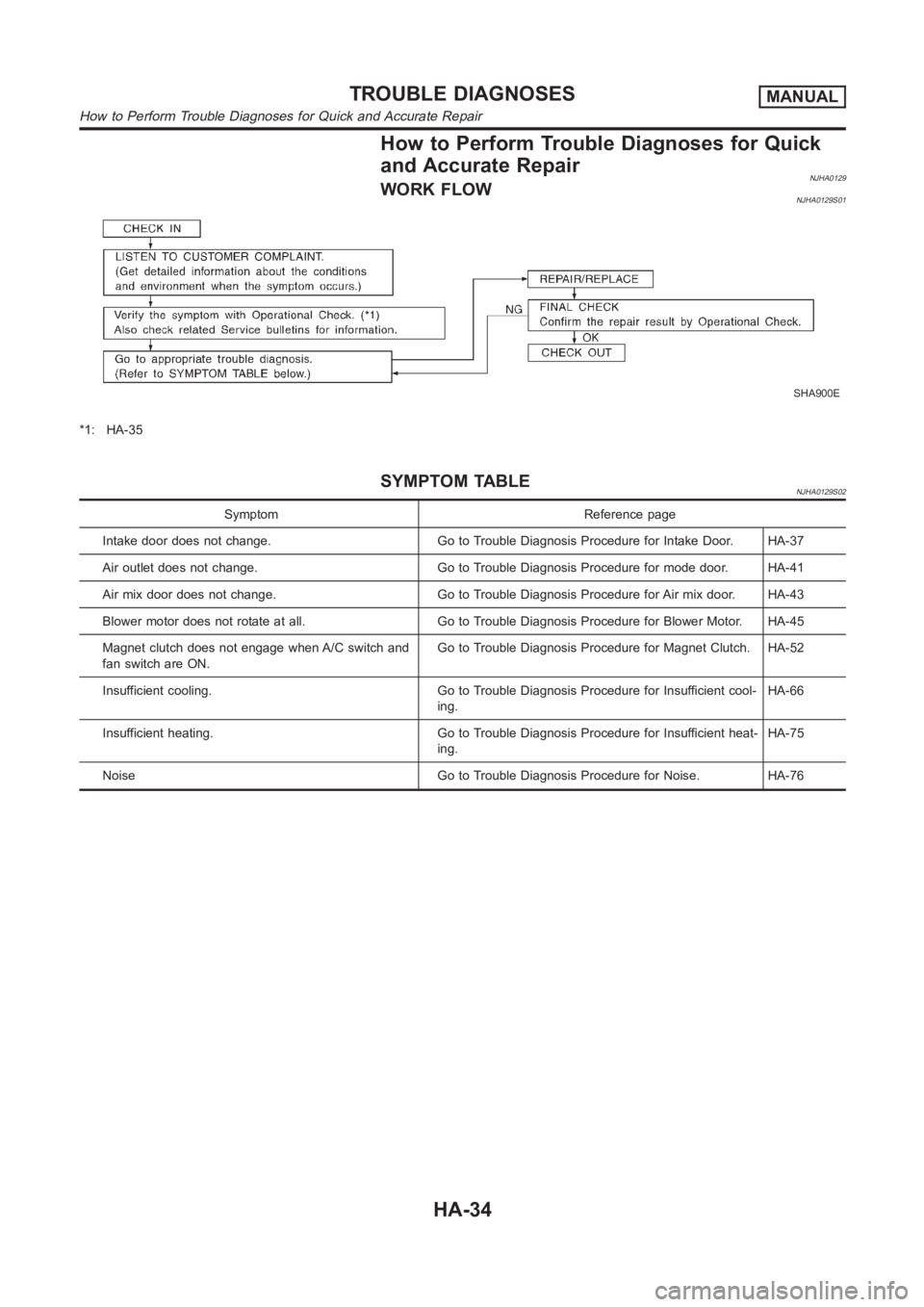

How to Perform Trouble Diagnoses for Quick
and Accurate Repair
NJHA0129WORK FLOWNJHA0129S01
SHA900E
*1: HA-35
SYMPTOM TABLENJHA0129S02
Symptom Reference page
Intake door does not change. Go to Trouble Diagnosis Procedure for Intake Door. HA-37
Air outlet does not change. Go to Trouble Diagnosis Procedure for mode door. HA-41
Air mix door does not change. Go to Trouble Diagnosis Procedure for Air mix door. HA-43
Blower motor does not rotate at all. Go to Trouble Diagnosis Procedure for Blower Motor. HA-45
Magnet clutch does not engage when A/C switch and
fan switch are ON.Go to Trouble Diagnosis Procedure for Magnet Clutch. HA-52
Insufficient cooling. Go to Trouble Diagnosis Procedure for Insufficient cool-
ing.HA-66
Insufficient heating. Go to Trouble Diagnosis Procedure for Insufficientheat-
ing.HA-75
Noise Go to Trouble Diagnosis Procedure for Noise. HA-76
TROUBLE DIAGNOSESMANUAL
How to Perform Trouble Diagnoses for Quick and Accurate Repair
HA-34
