NISSAN ALMERA N16 2003 Electronic Repair Manual

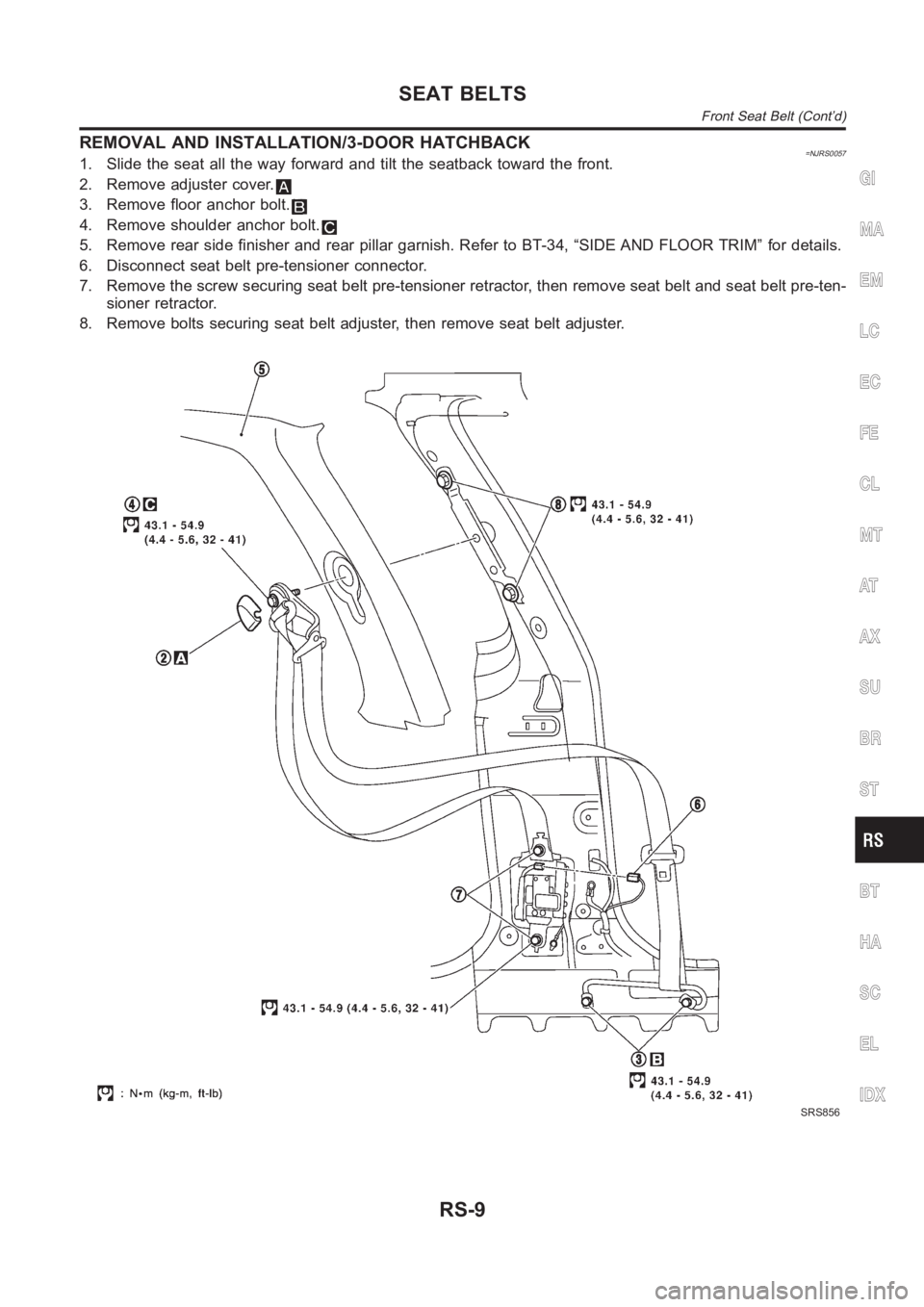

REMOVAL AND INSTALLATION/3-DOOR HATCHBACK=NJRS00571. Slide the seat all the way forward and tilt the seatback toward the front.
2. Remove adjuster cover.
3. Remove floor anchor bolt.
4. Remove shoulder anchor bolt.
5. Remove rear side finisher and rear pillar garnish. Refer to BT-34, “SIDEAND FLOOR TRIM” for details.
6. Disconnect seat belt pre-tensioner connector.
7. Remove the screw securing seat belt pre-tensioner retractor, then remove seat belt and seat belt pre-ten-
sioner retractor.
8. Remove bolts securing seat belt adjuster, then remove seat belt adjuster.
SRS856
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
BT
HA
SC
EL
IDX
SEAT BELTS
Front Seat Belt (Cont’d)
RS-9

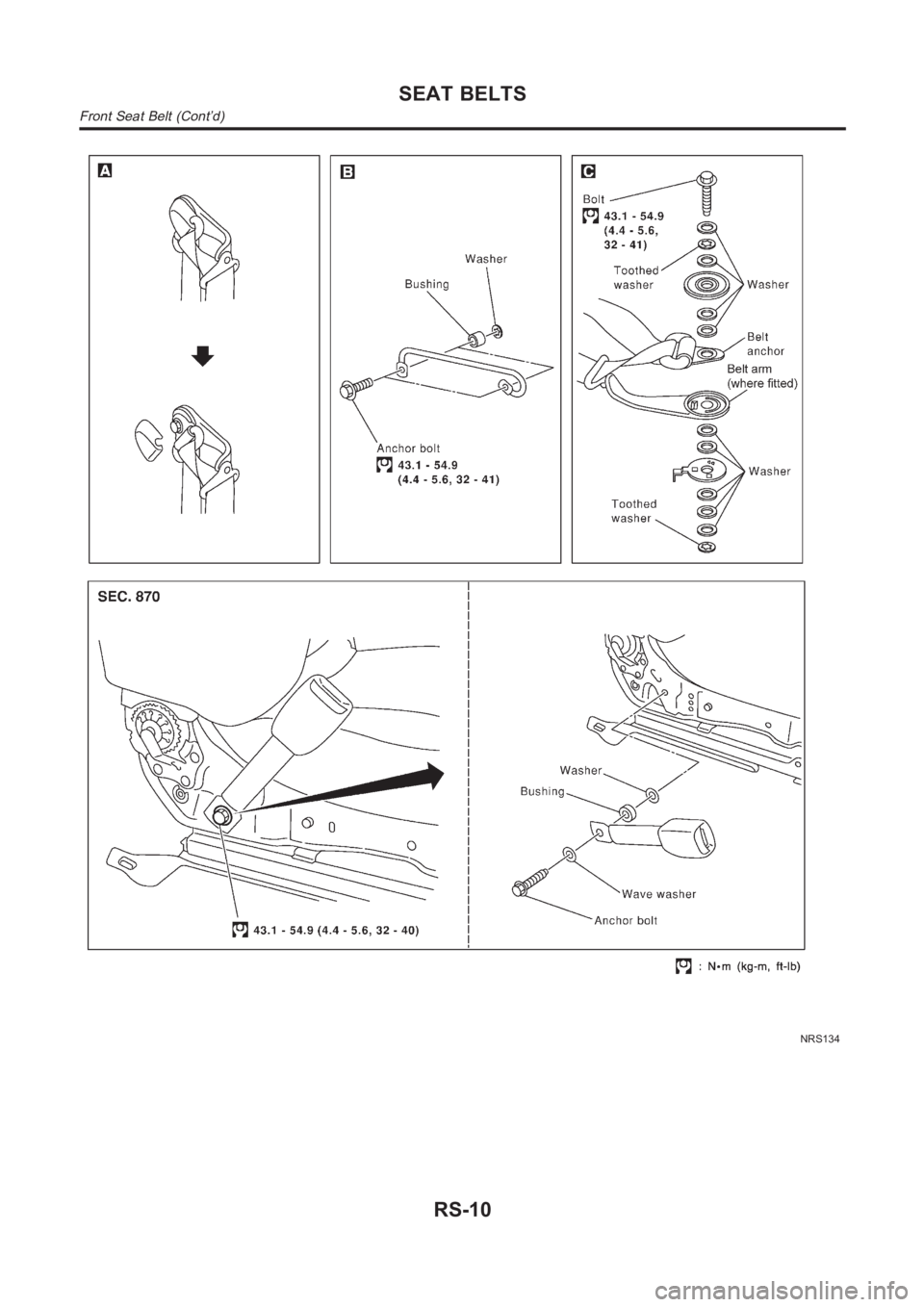

NRS134
SEAT BELTS
Front Seat Belt (Cont’d)
RS-10

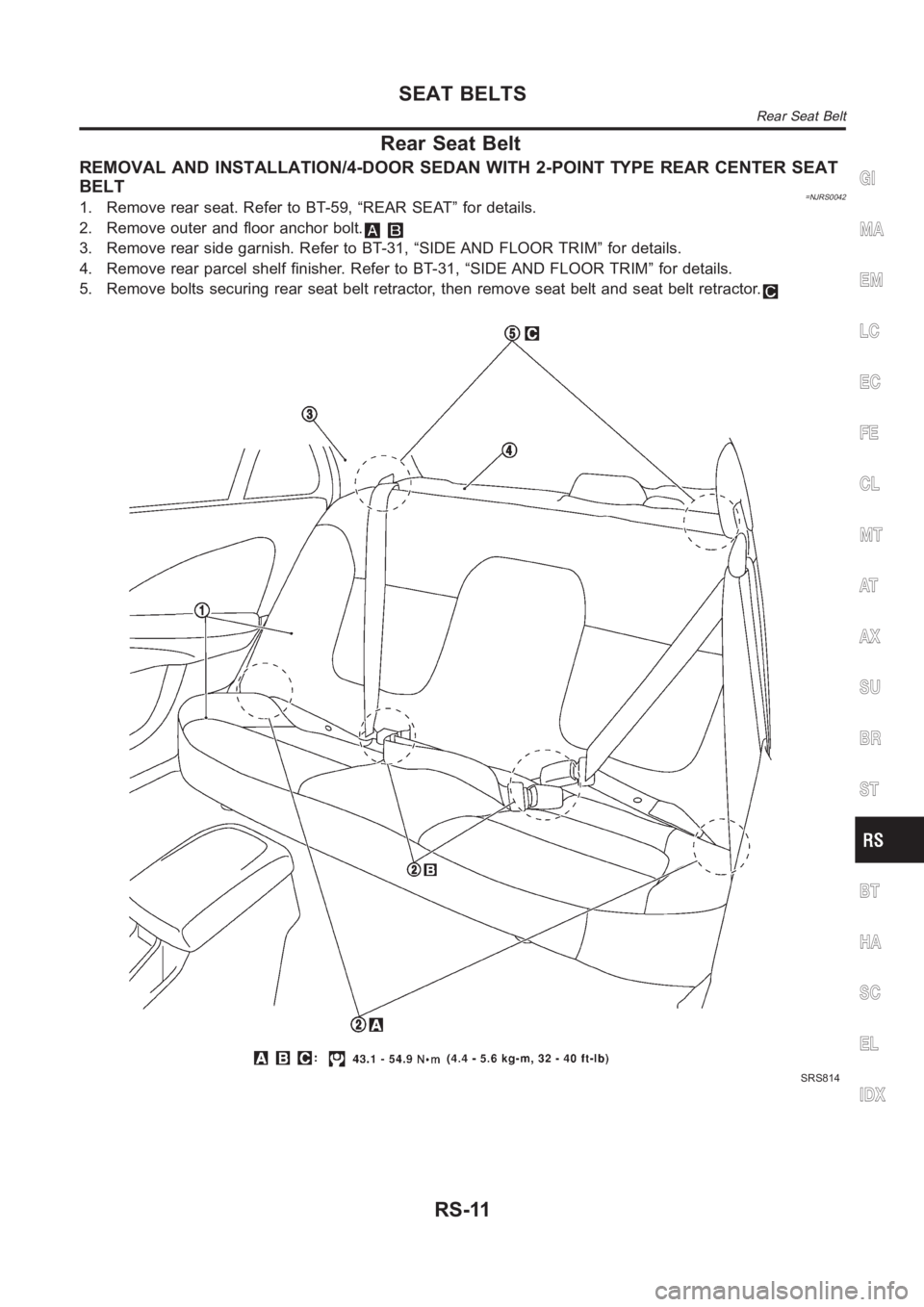

Rear Seat Belt
REMOVAL AND INSTALLATION/4-DOOR SEDAN WITH 2-POINT TYPE REAR CENTER SEAT
BELT
=NJRS00421. Remove rear seat. Refer to BT-59, “REAR SEAT” for details.
2. Remove outer and floor anchor bolt.
3. Remove rear side garnish. Refer to BT-31, “SIDE AND FLOOR TRIM” for details.
4. Remove rear parcel shelf finisher. Refer to BT-31, “SIDE AND FLOOR TRIM”for details.
5. Remove bolts securing rear seat belt retractor, then remove seat belt and seat belt retractor.
SRS814
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
BT
HA
SC
EL
IDX
SEAT BELTS
Rear Seat Belt
RS-11

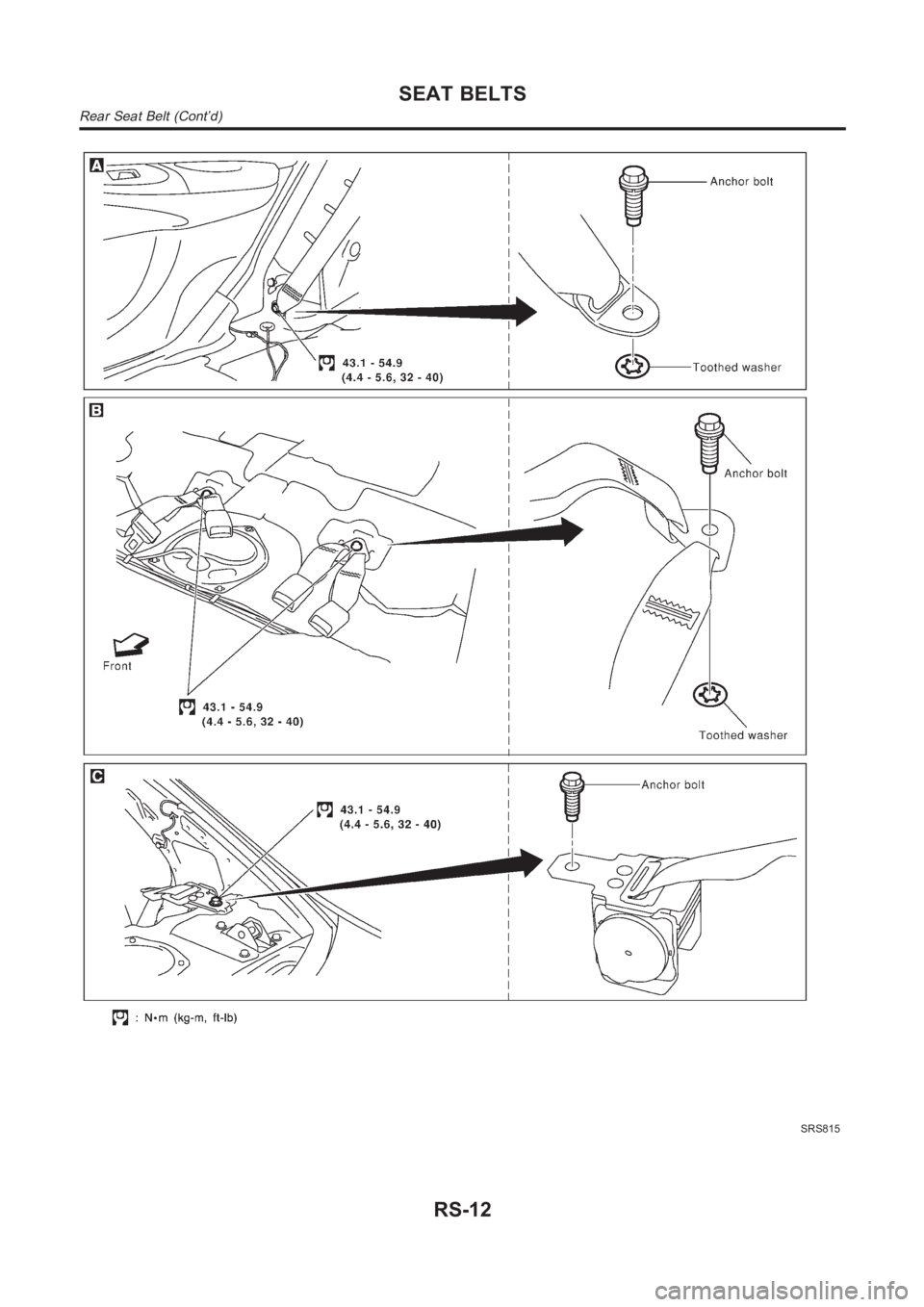

SRS815
SEAT BELTS
Rear Seat Belt (Cont’d)
RS-12

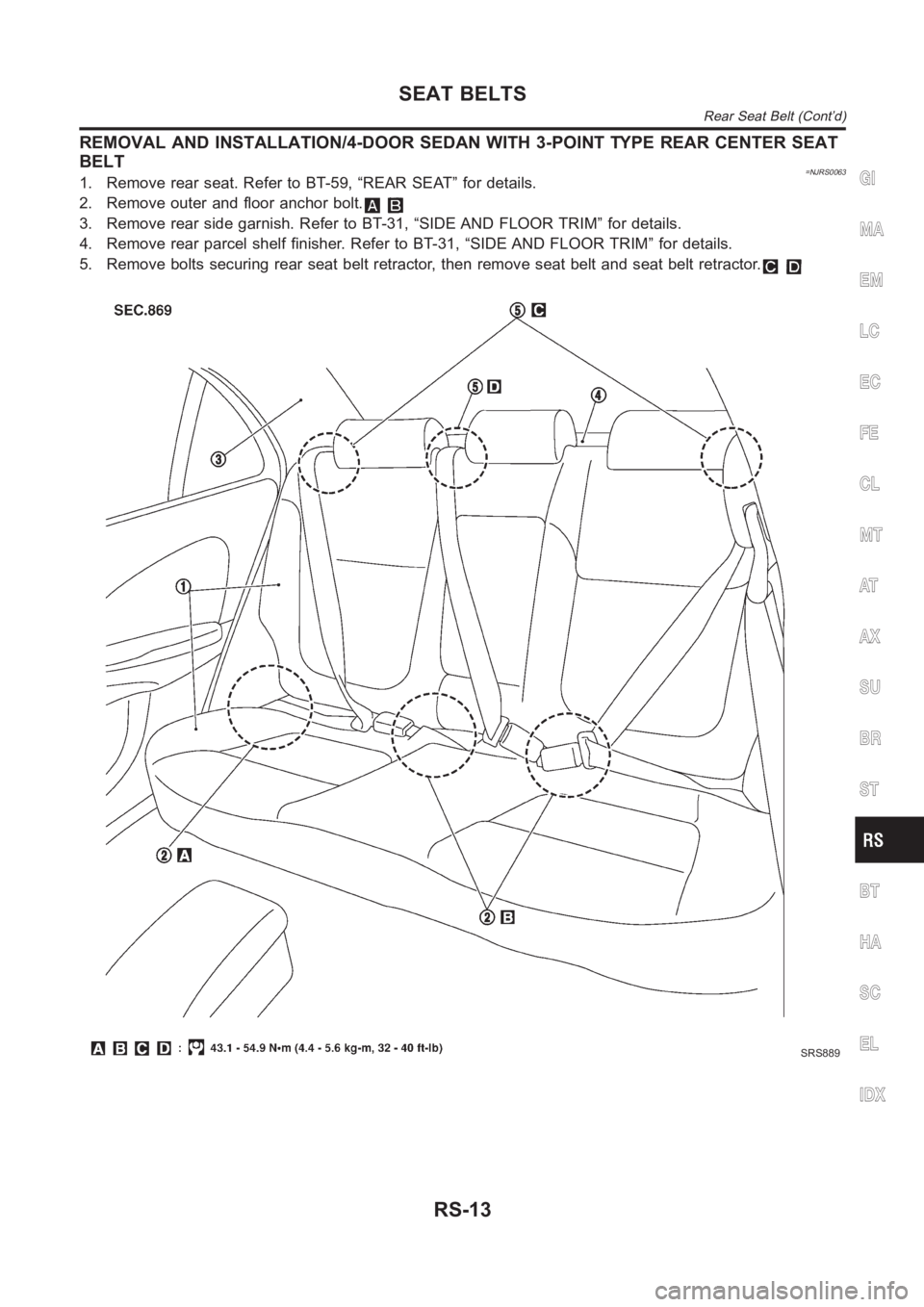

REMOVAL AND INSTALLATION/4-DOOR SEDAN WITH 3-POINT TYPE REAR CENTER SEAT
BELT
=NJRS00631. Remove rear seat. Refer to BT-59, “REAR SEAT” for details.
2. Remove outer and floor anchor bolt.
3. Remove rear side garnish. Refer to BT-31, “SIDE AND FLOOR TRIM” for details.
4. Remove rear parcel shelf finisher. Refer to BT-31, “SIDE AND FLOOR TRIM”for details.
5. Remove bolts securing rear seat belt retractor, then remove seat belt and seat belt retractor.
SRS889
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
BT
HA
SC
EL
IDX
SEAT BELTS
Rear Seat Belt (Cont’d)
RS-13

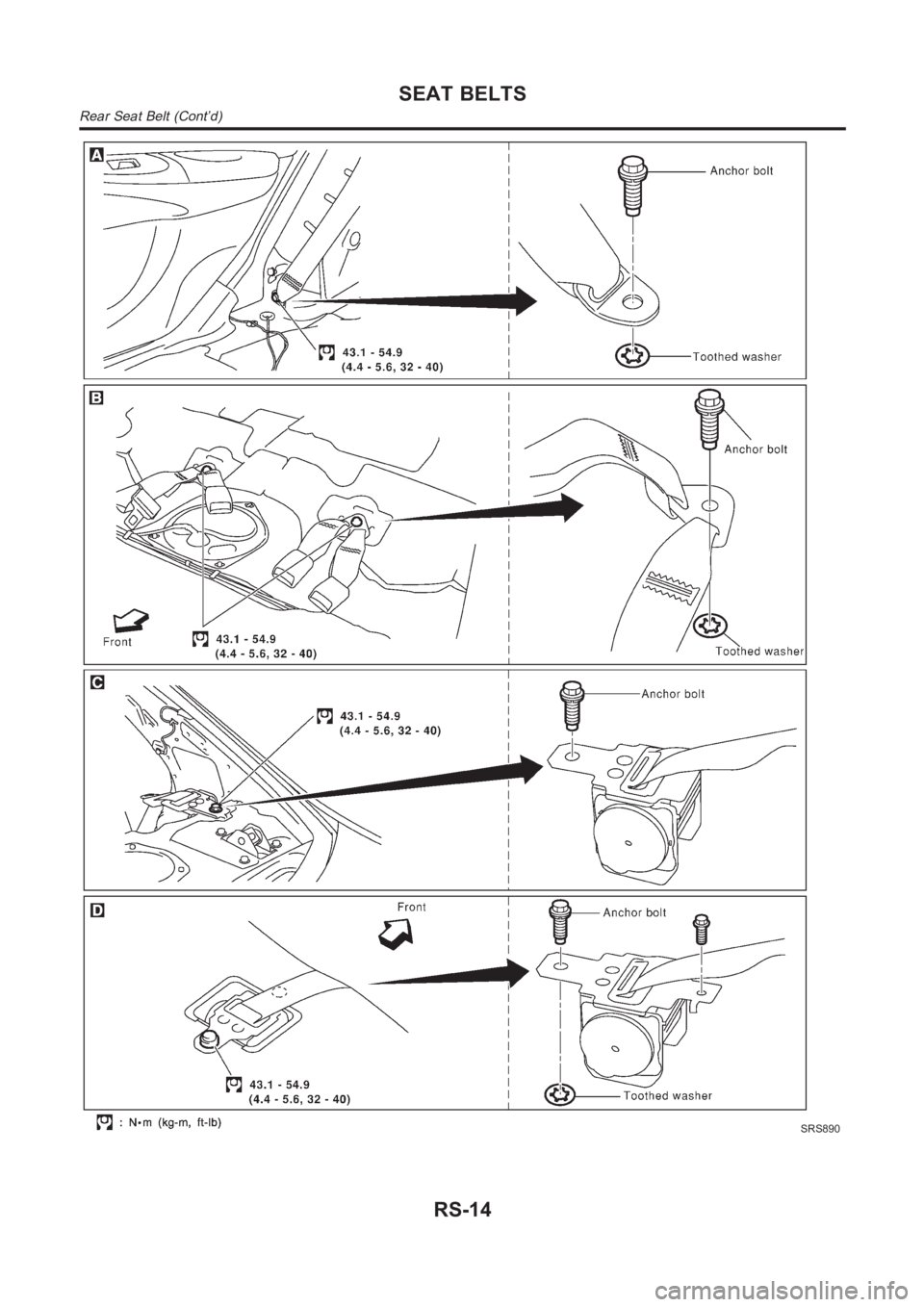

SRS890
SEAT BELTS
Rear Seat Belt (Cont’d)
RS-14

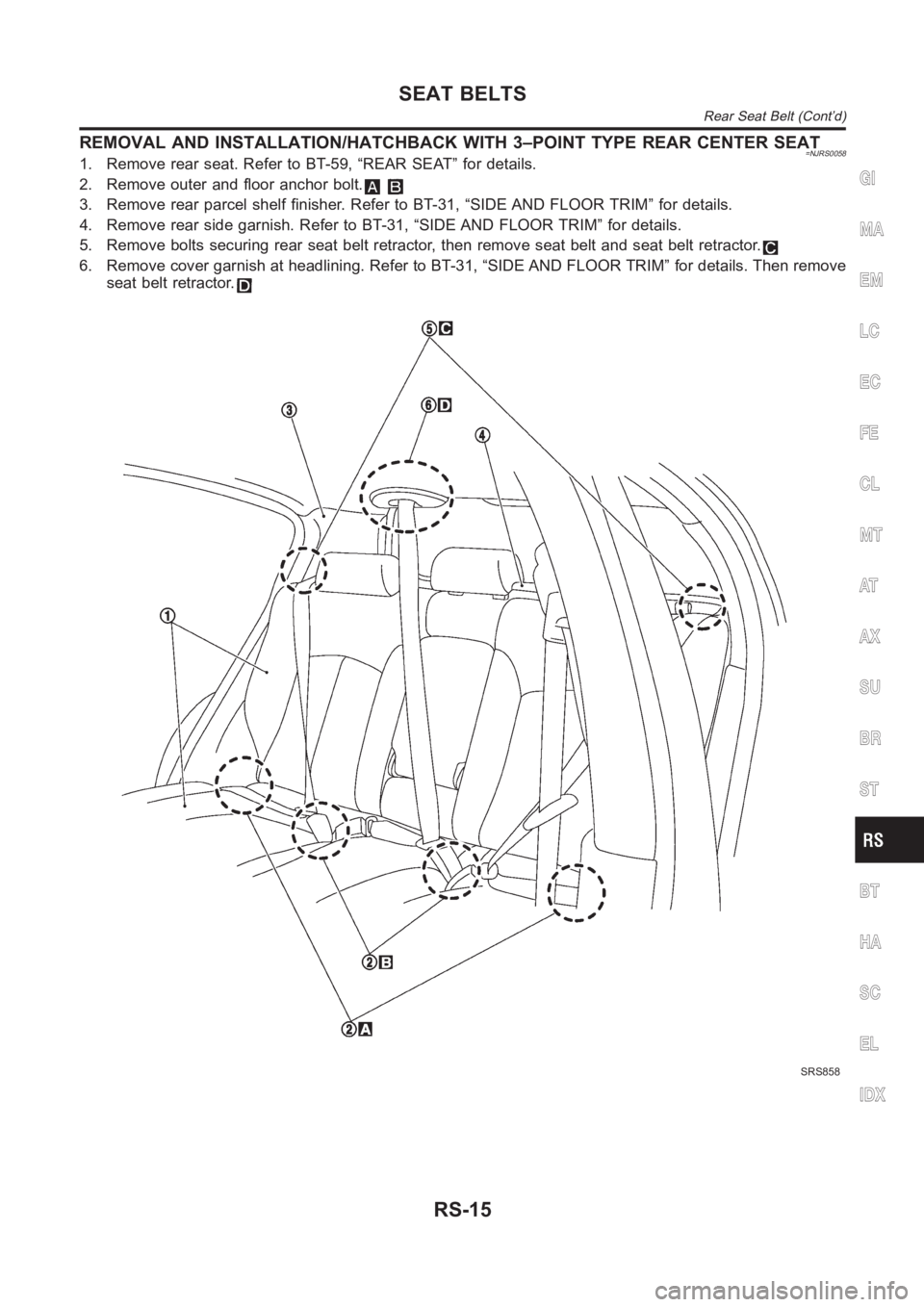

REMOVAL AND INSTALLATION/HATCHBACK WITH 3–POINT TYPE REAR CENTER SEAT=NJRS00581. Remove rear seat. Refer to BT-59, “REAR SEAT” for details.
2. Remove outer and floor anchor bolt.
3. Remove rear parcel shelf finisher. Refer to BT-31, “SIDE AND FLOOR TRIM”for details.
4. Remove rear side garnish. Refer to BT-31, “SIDE AND FLOOR TRIM” for details.
5. Remove bolts securing rear seat belt retractor, then remove seat belt and seat belt retractor.
6. Remove cover garnish at headlining. Refer to BT-31, “SIDE AND FLOOR TRIM” for details. Then remove
seat belt retractor.
SRS858
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
BT
HA
SC
EL
IDX
SEAT BELTS
Rear Seat Belt (Cont’d)
RS-15

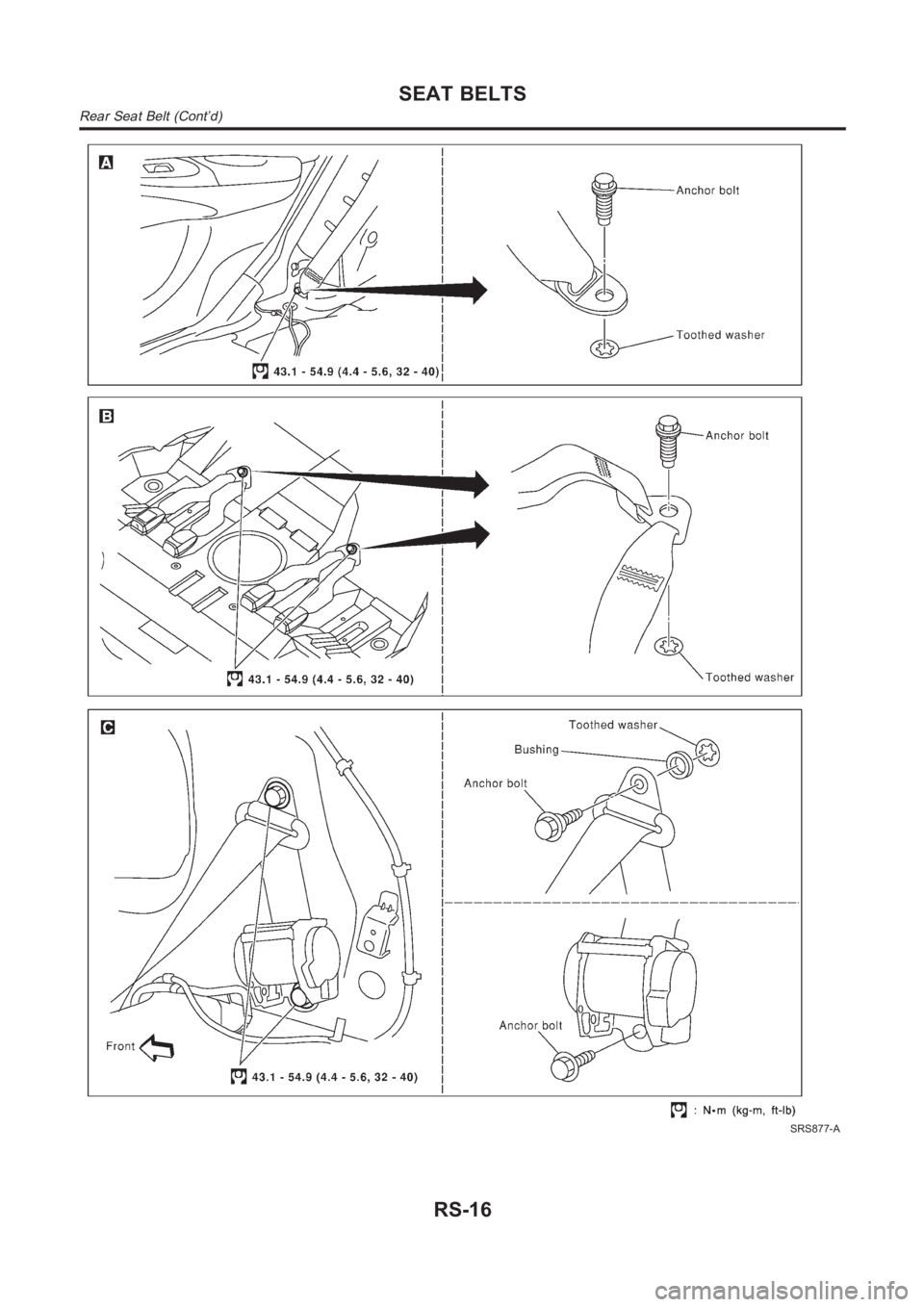

SRS877-A
SEAT BELTS
Rear Seat Belt (Cont’d)
RS-16

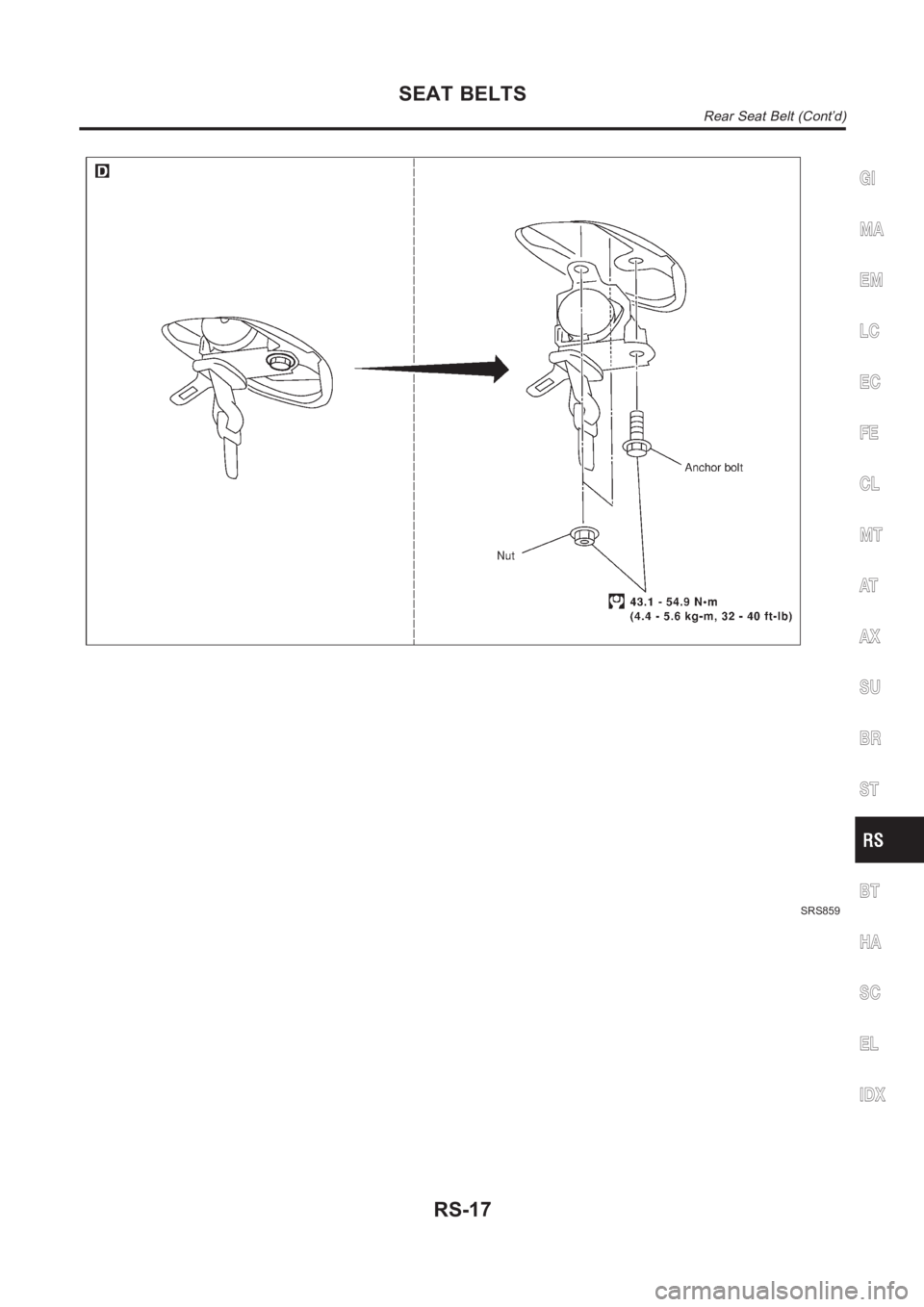

SRS859
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
BT
HA
SC
EL
IDX
SEAT BELTS
Rear Seat Belt (Cont’d)
RS-17

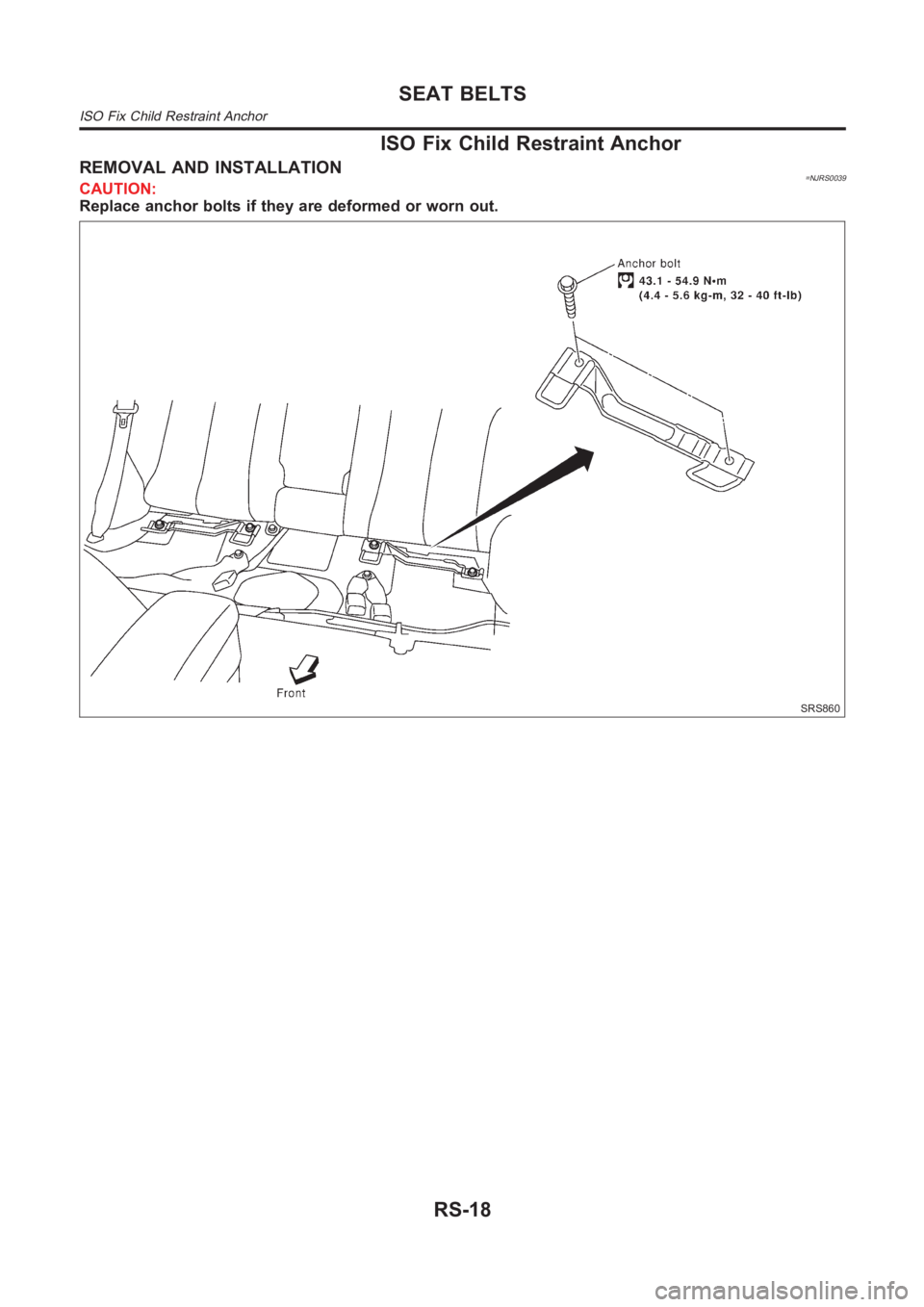

ISO Fix Child Restraint Anchor
REMOVAL AND INSTALLATION=NJRS0039CAUTION:
Replace anchor bolts if they are deformed or worn out.
SRS860
SEAT BELTS
ISO Fix Child Restraint Anchor
RS-18
