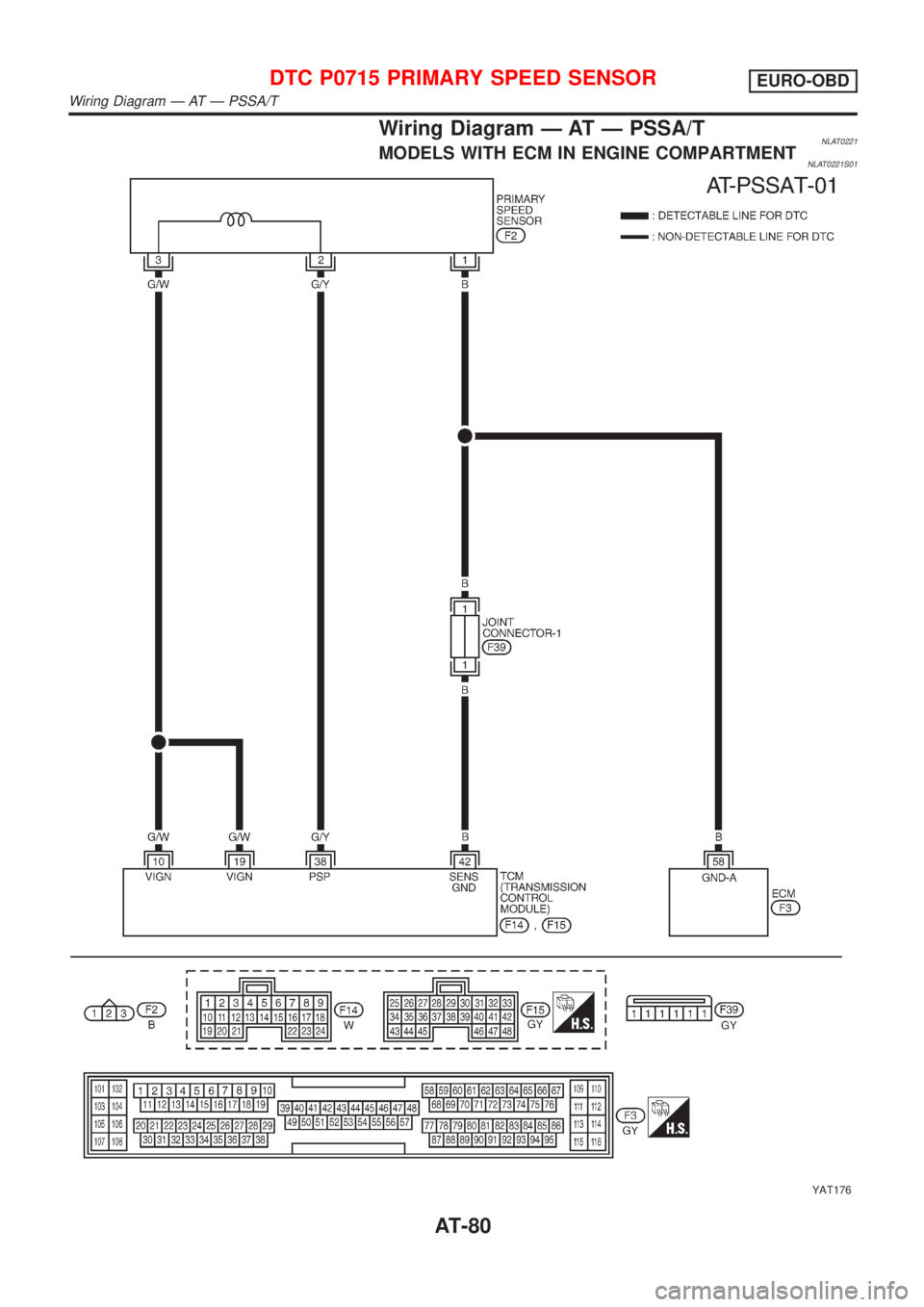

Wiring Diagram Ð AT Ð PSSA/TNLAT0221MODELS WITH ECM IN ENGINE COMPARTMENTNLAT0221S01
YAT176
DTC P0715 PRIMARY SPEED SENSOREURO-OBD
Wiring Diagram Ð AT Ð PSSA/T
AT-80

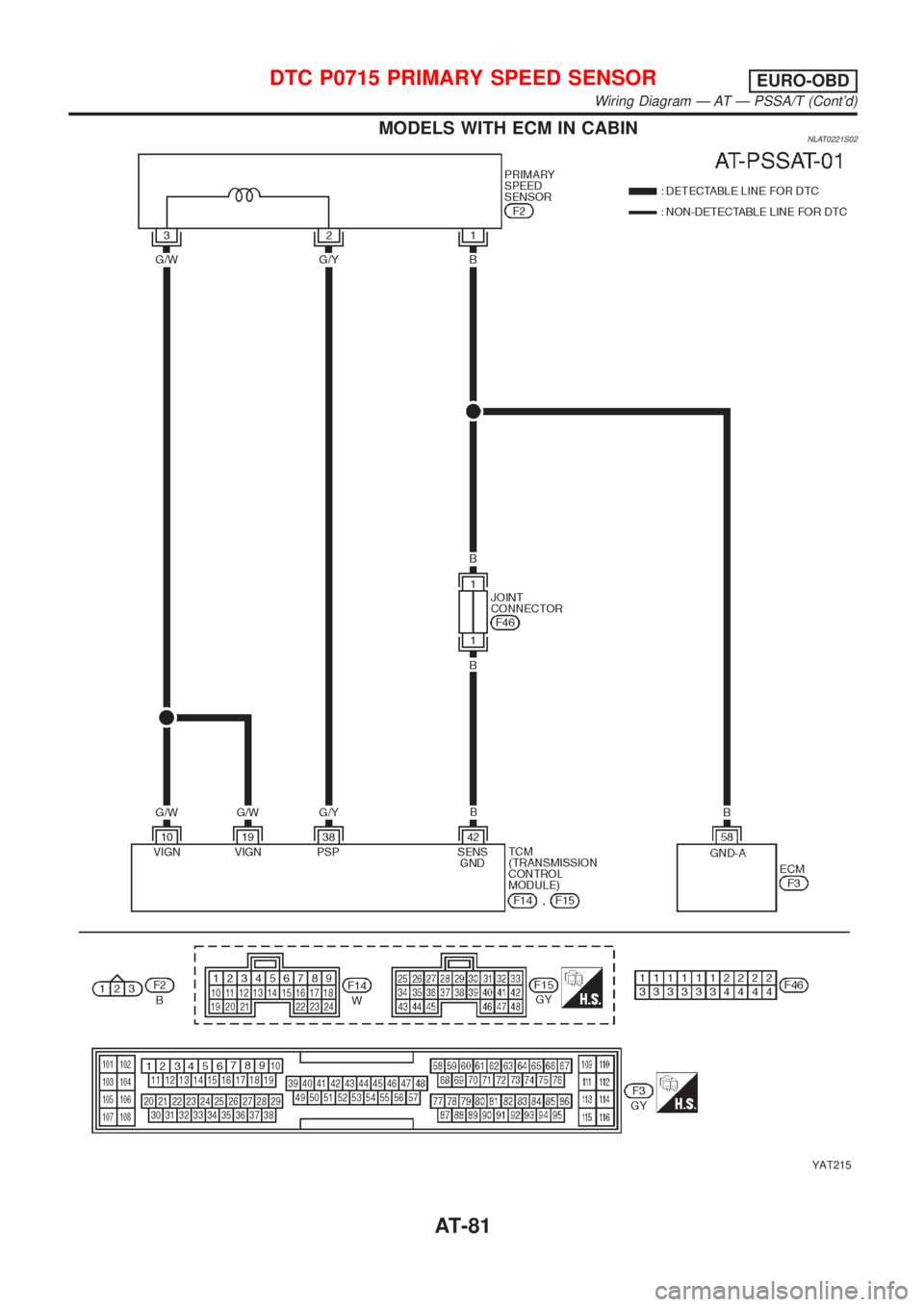

MODELS WITH ECM IN CABINNLAT0221S02
YAT215
DTC P0715 PRIMARY SPEED SENSOREURO-OBD
Wiring Diagram Ð AT Ð PSSA/T (Cont'd)
AT-81

Diagnostic ProcedureNLAT0222
1 CHECK PRIMARY SPEED SENSOR
Refer to ªComponent Inspectionº, AT-83.
OK or NG
OK (With CONSULT-II)©GO TO 2.
OK (Without CONSULT-
II)©GO TO 3.
NG©Repair or replace primary speed sensor.
2 CHECK INPUT SIGNAL (With CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select ªTCM INPUT SIGNALSº in ªDATA MONITORº mode for ªCVTº with CONSULT-II.
3. Read out the value of ªI/P PULLY SPDº while driving.
Check the value changes according to driving speed. (Almost same value as engine speed)
OK or NG
OK©GO TO 3.
NG©Check the following items:
+Harness for short or open between TCM, ECM and primary speed sensor (Main har-
ness)
+Ground circuit for ECM
Refer to EC section (ªTROUBLE DIAGNOSIS FOR POWER SUPPLYº).
3 CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-79.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
DTC P0715 PRIMARY SPEED SENSOREURO-OBD
Diagnostic Procedure
AT-82

SAT230K

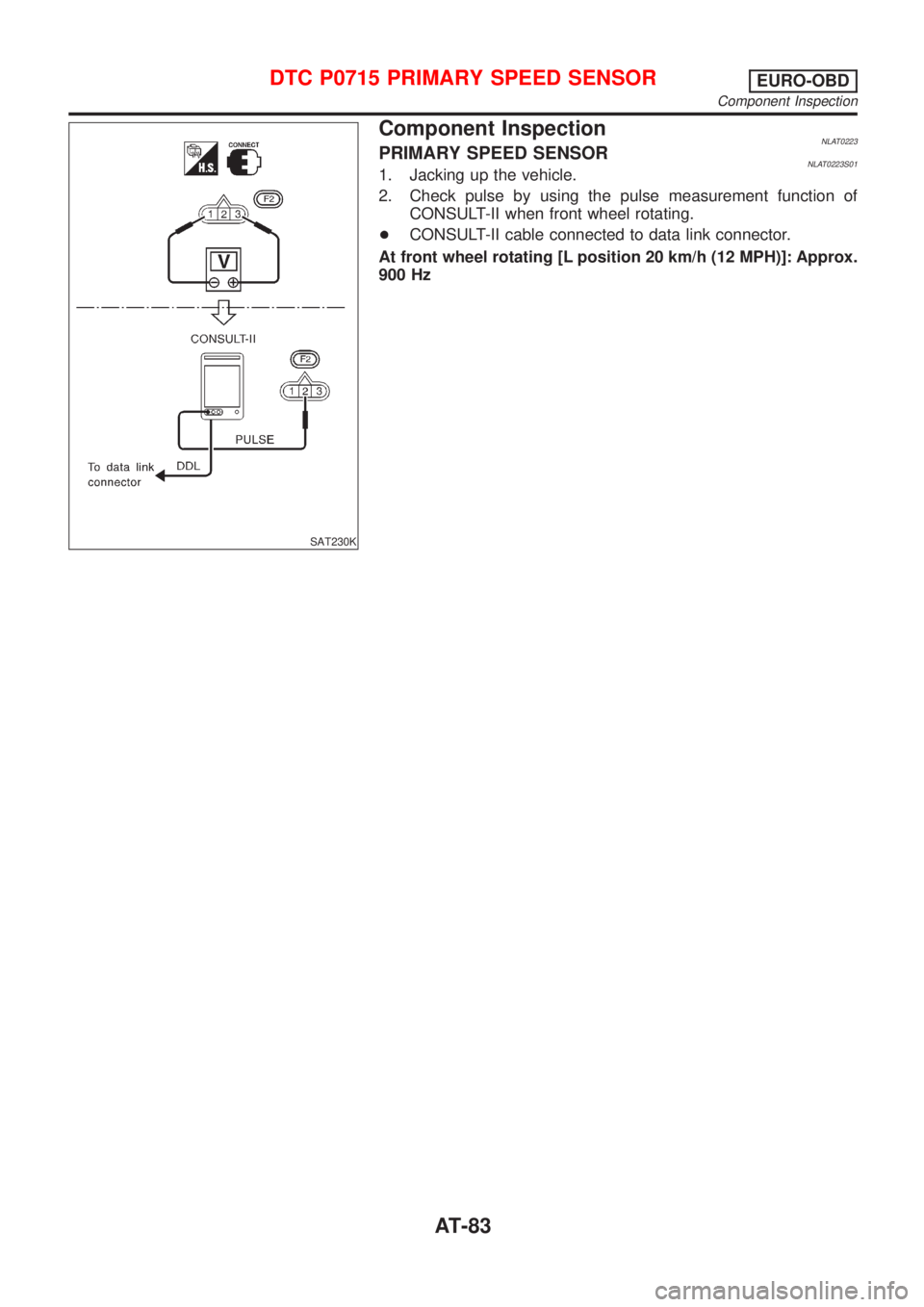

Component InspectionNLAT0223PRIMARY SPEED SENSORNLAT0223S011. Jacking up the vehicle.
2. Check pulse by using the pulse measurement function of
CONSULT-II when front wheel rotating.
+CONSULT-II cable connected to data link connector.
At front wheel rotating [L position 20 km/h (12 MPH)]: Approx.
900 Hz
DTC P0715 PRIMARY SPEED SENSOREURO-OBD
Component Inspection
AT-83

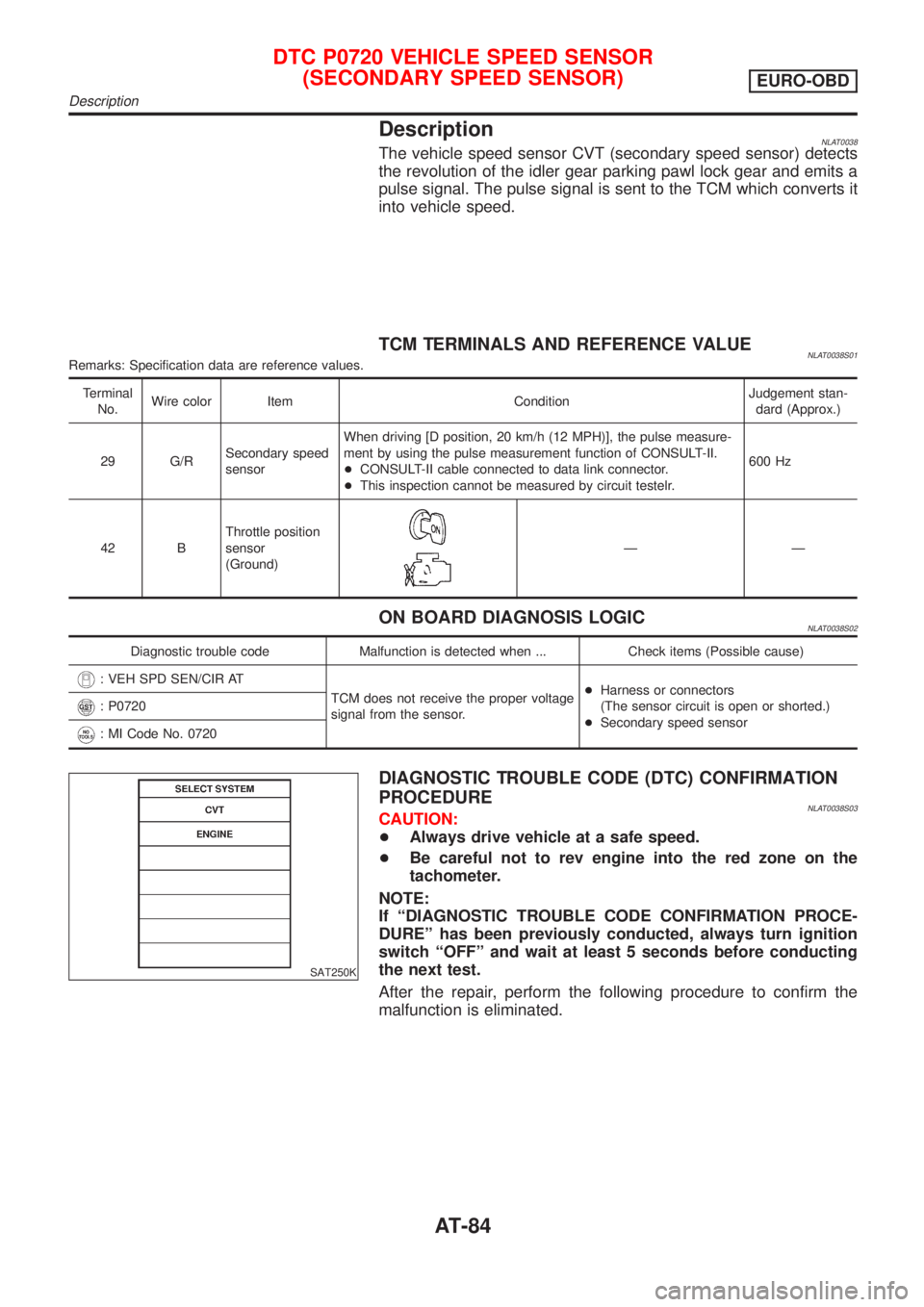

DescriptionNLAT0038The vehicle speed sensor CVT (secondary speed sensor) detects
the revolution of the idler gear parking pawl lock gear and emits a
pulse signal. The pulse signal is sent to the TCM which converts it
into vehicle speed.
TCM TERMINALS AND REFERENCE VALUENLAT0038S01Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard (Approx.)
29 G/RSecondary speed
sensorWhen driving [D position, 20 km/h (12 MPH)], the pulse measure-
ment by using the pulse measurement function of CONSULT-II.
+CONSULT-II cable connected to data link connector.
+This inspection cannot be measured by circuit testelr.600 Hz
42 BThrottle position
sensor
(Ground)
ÐÐ
ON BOARD DIAGNOSIS LOGICNLAT0038S02
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: VEH SPD SEN/CIR AT
TCM does not receive the proper voltage
signal from the sensor.+Harness or connectors
(The sensor circuit is open or shorted.)
+Secondary speed sensor
: P0720
: MI Code No. 0720
SAT250K
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
NLAT0038S03CAUTION:
+Always drive vehicle at a safe speed.
+Be careful not to rev engine into the red zone on the
tachometer.
NOTE:
If ªDIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DUREº has been previously conducted, always turn ignition
switch ªOFFº and wait at least 5 seconds before conducting
the next test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.
DTC P0720 VEHICLE SPEED SENSOR
(SECONDARY SPEED SENSOR)
EURO-OBD
Description
AT-84

SAT252K
SAT255K

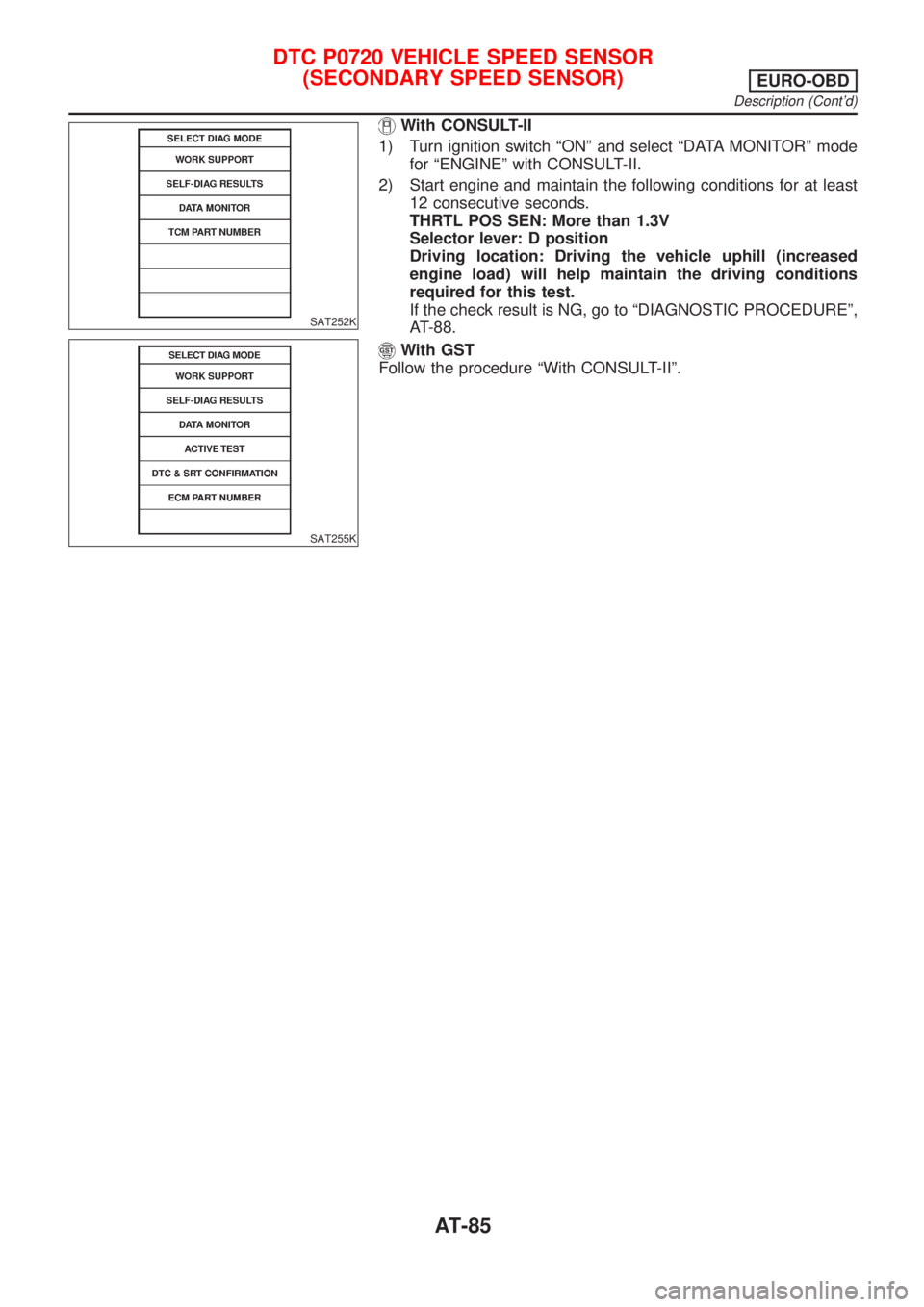

With CONSULT-II
1) Turn ignition switch ªONº and select ªDATA MONITORº mode
for ªENGINEº with CONSULT-II.
2) Start engine and maintain the following conditions for at least
12 consecutive seconds.
THRTL POS SEN: More than 1.3V
Selector lever: D position
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
If the check result is NG, go to ªDIAGNOSTIC PROCEDUREº,
AT-88.
With GST
Follow the procedure ªWith CONSULT-IIº.
DTC P0720 VEHICLE SPEED SENSOR
(SECONDARY SPEED SENSOR)
EURO-OBD
Description (Cont'd)
AT-85

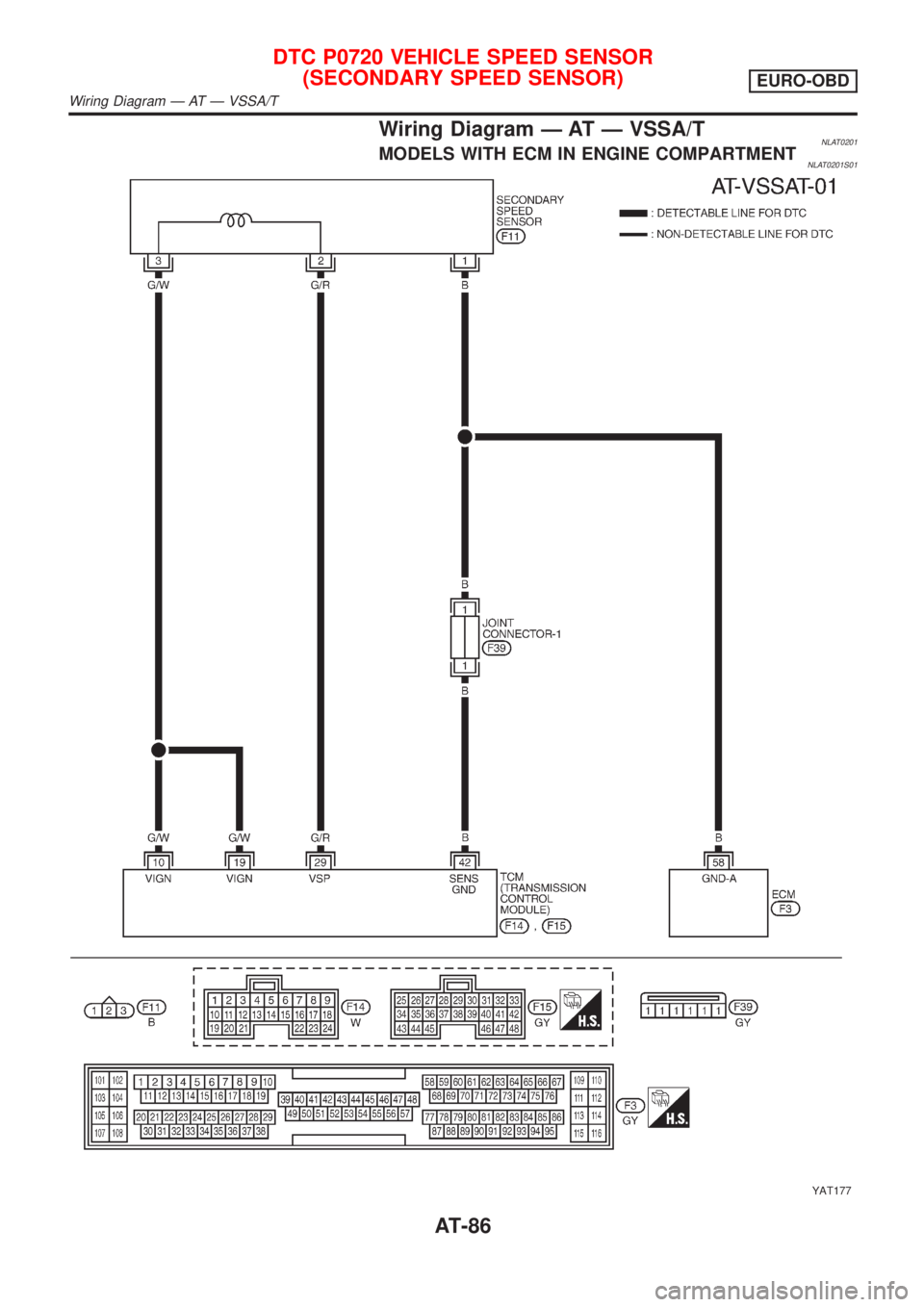

Wiring Diagram Ð AT Ð VSSA/TNLAT0201MODELS WITH ECM IN ENGINE COMPARTMENTNLAT0201S01
YAT177
DTC P0720 VEHICLE SPEED SENSOR
(SECONDARY SPEED SENSOR)
EURO-OBD
Wiring Diagram Ð AT Ð VSSA/T
AT-86

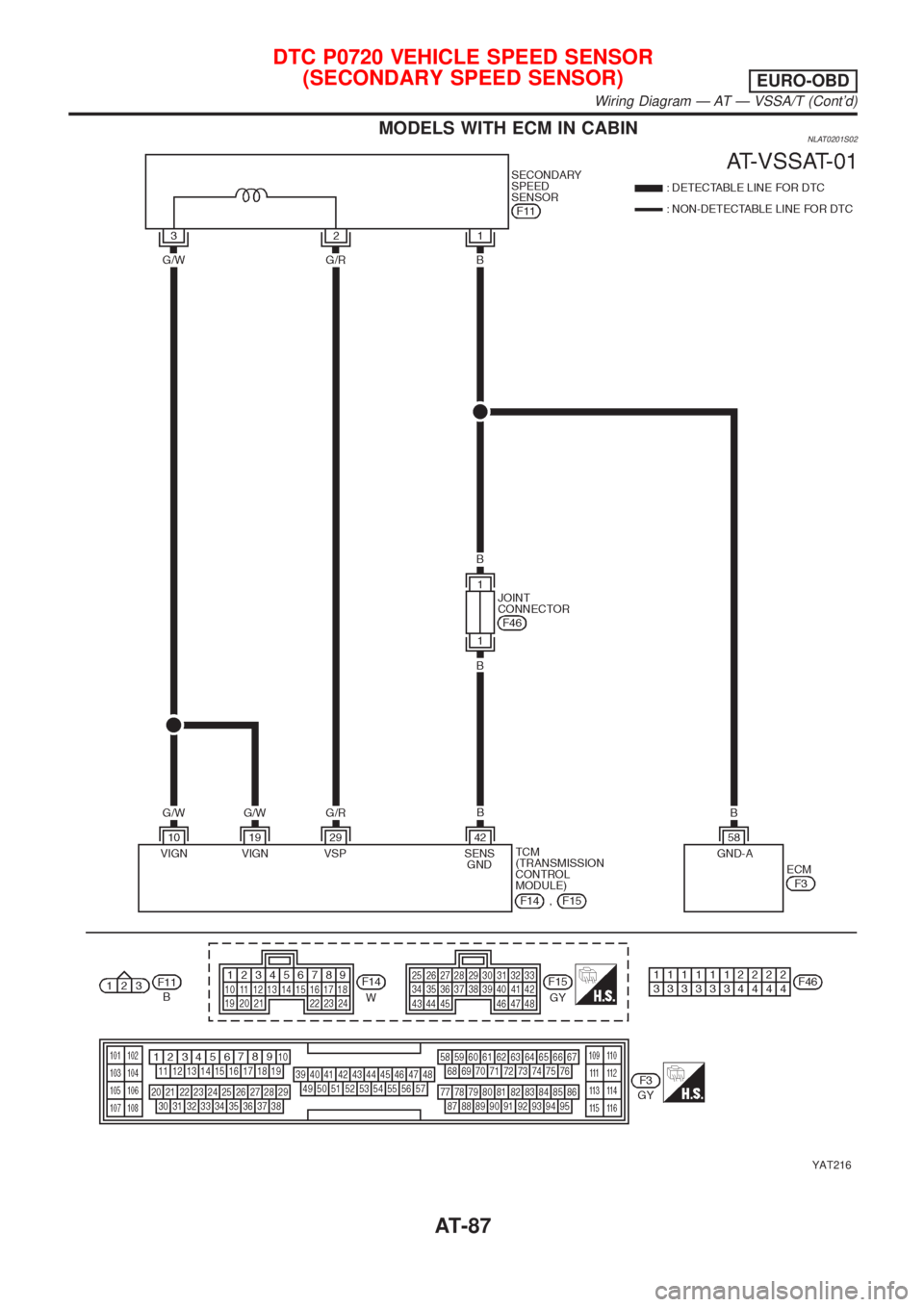

MODELS WITH ECM IN CABINNLAT0201S02
YAT216
DTC P0720 VEHICLE SPEED SENSOR
(SECONDARY SPEED SENSOR)
EURO-OBD
Wiring Diagram Ð AT Ð VSSA/T (Cont'd)
AT-87

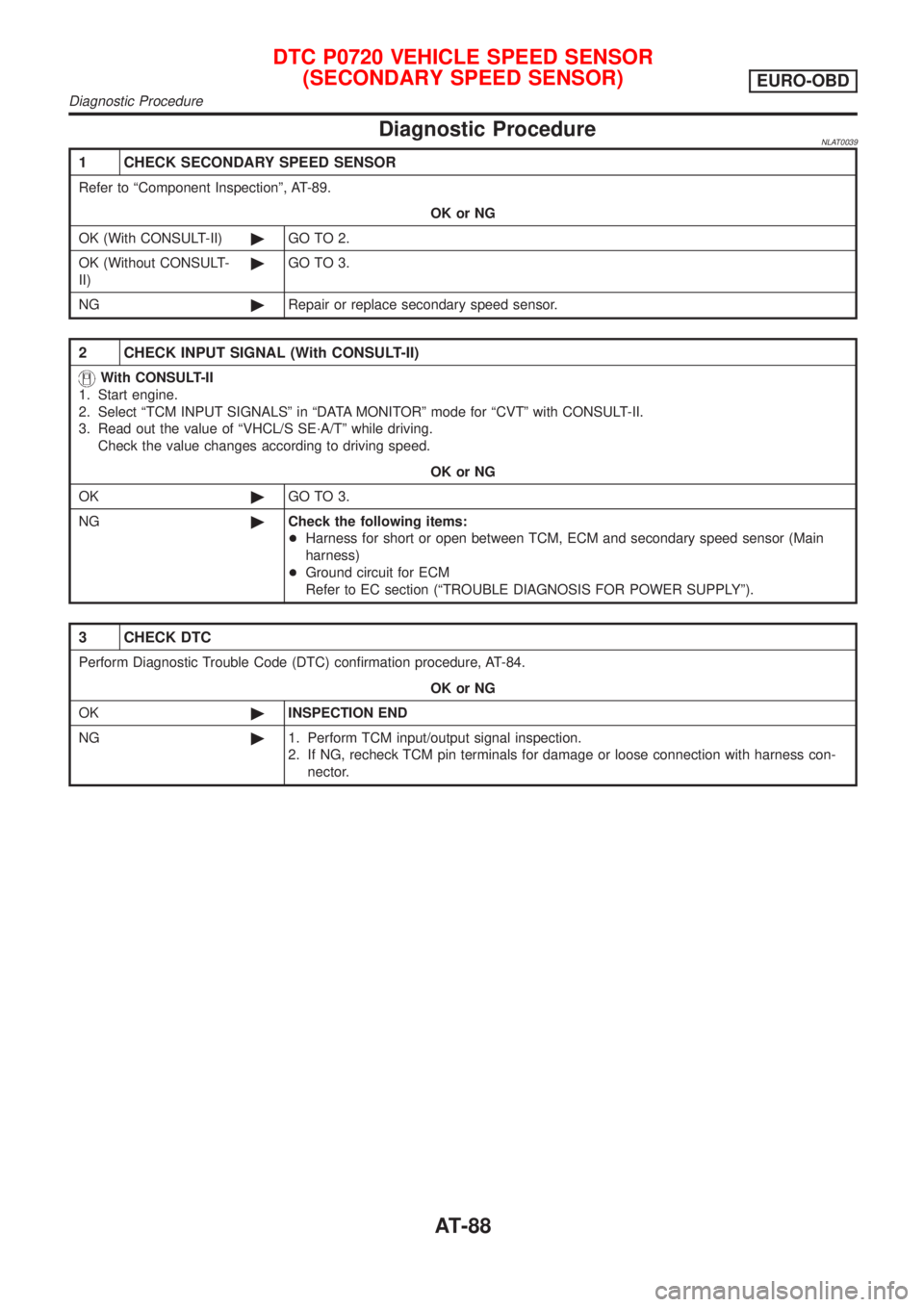

Diagnostic ProcedureNLAT0039
1 CHECK SECONDARY SPEED SENSOR
Refer to ªComponent Inspectionº, AT-89.
OK or NG
OK (With CONSULT-II)©GO TO 2.
OK (Without CONSULT-
II)©GO TO 3.
NG©Repair or replace secondary speed sensor.
2 CHECK INPUT SIGNAL (With CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select ªTCM INPUT SIGNALSº in ªDATA MONITORº mode for ªCVTº with CONSULT-II.
3. Read out the value of ªVHCL/S SE´A/Tº while driving.
Check the value changes according to driving speed.
OK or NG
OK©GO TO 3.
NG©Check the following items:
+Harness for short or open between TCM, ECM and secondary speed sensor (Main
harness)
+Ground circuit for ECM
Refer to EC section (ªTROUBLE DIAGNOSIS FOR POWER SUPPLYº).
3 CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-84.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
DTC P0720 VEHICLE SPEED SENSOR
(SECONDARY SPEED SENSOR)
EURO-OBD
Diagnostic Procedure
AT-88

SAT231K

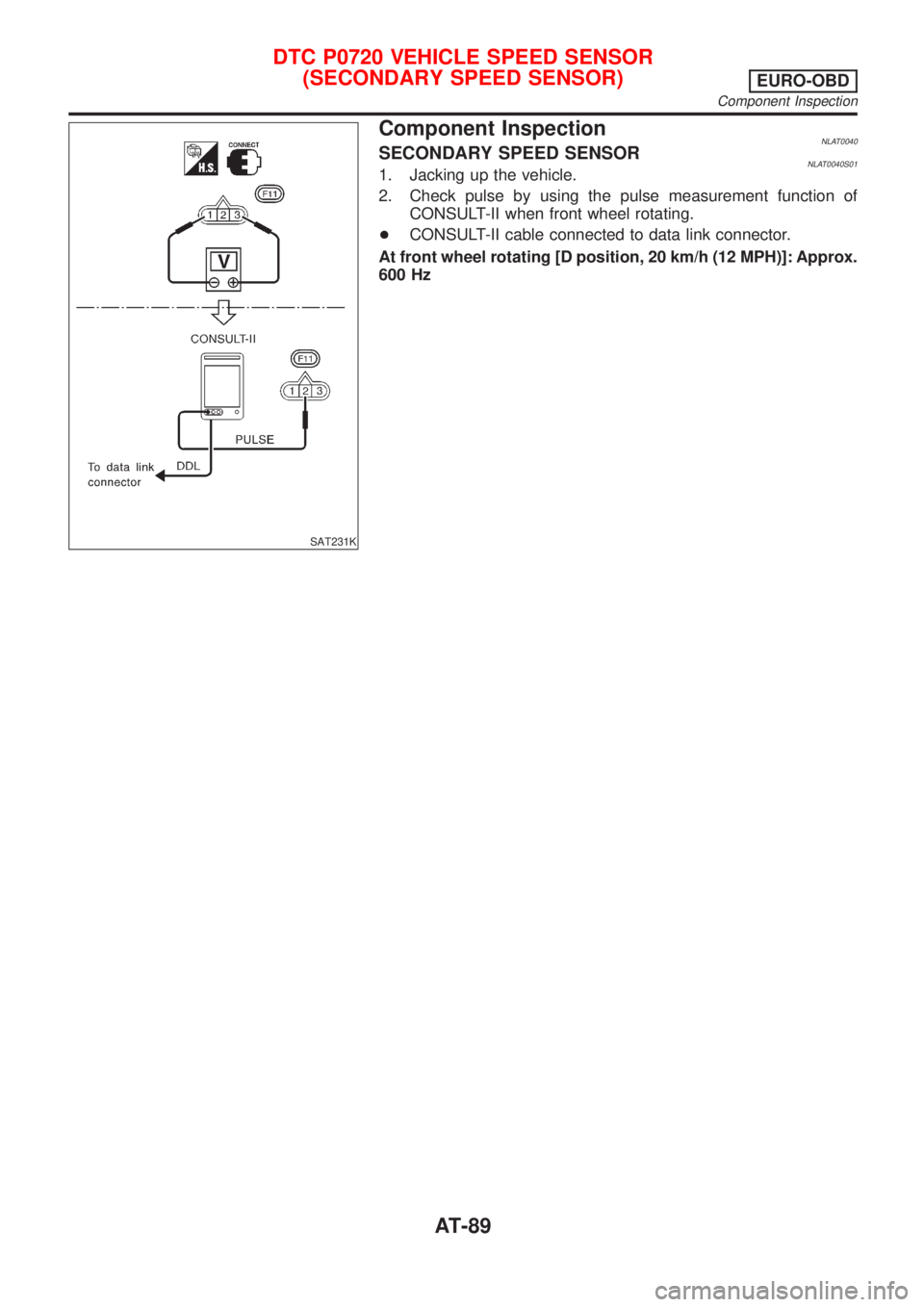

Component InspectionNLAT0040SECONDARY SPEED SENSORNLAT0040S011. Jacking up the vehicle.
2. Check pulse by using the pulse measurement function of
CONSULT-II when front wheel rotating.
+CONSULT-II cable connected to data link connector.
At front wheel rotating [D position, 20 km/h (12 MPH)]: Approx.
600 Hz
DTC P0720 VEHICLE SPEED SENSOR
(SECONDARY SPEED SENSOR)
EURO-OBD
Component Inspection
AT-89
