NISSAN NAVARA 2005 Repair Workshop Manual

LAN-114
[CAN]

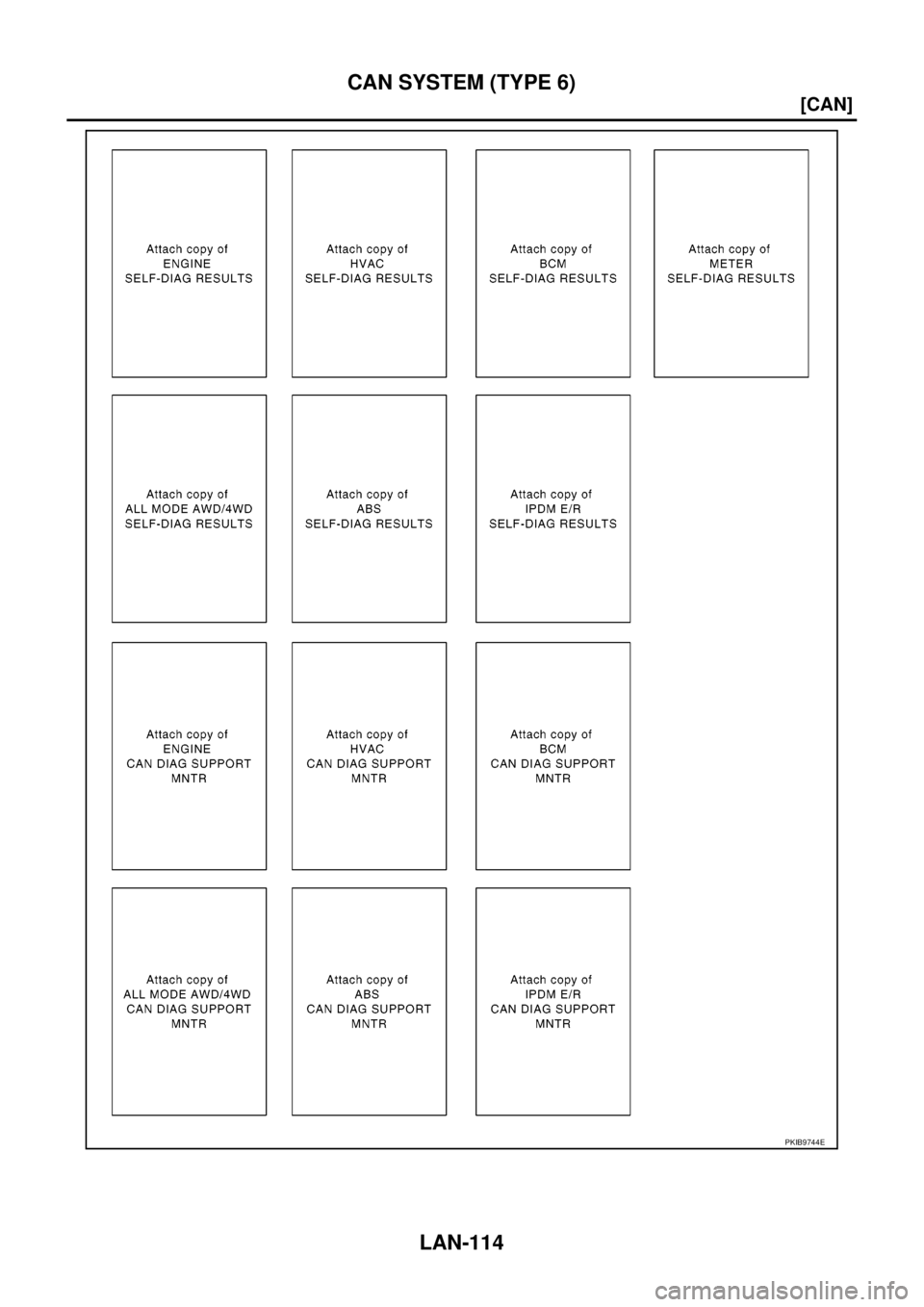

CAN SYSTEM (TYPE 6)
PKIB9744E

CAN SYSTEM (TYPE 6)
LAN-115
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

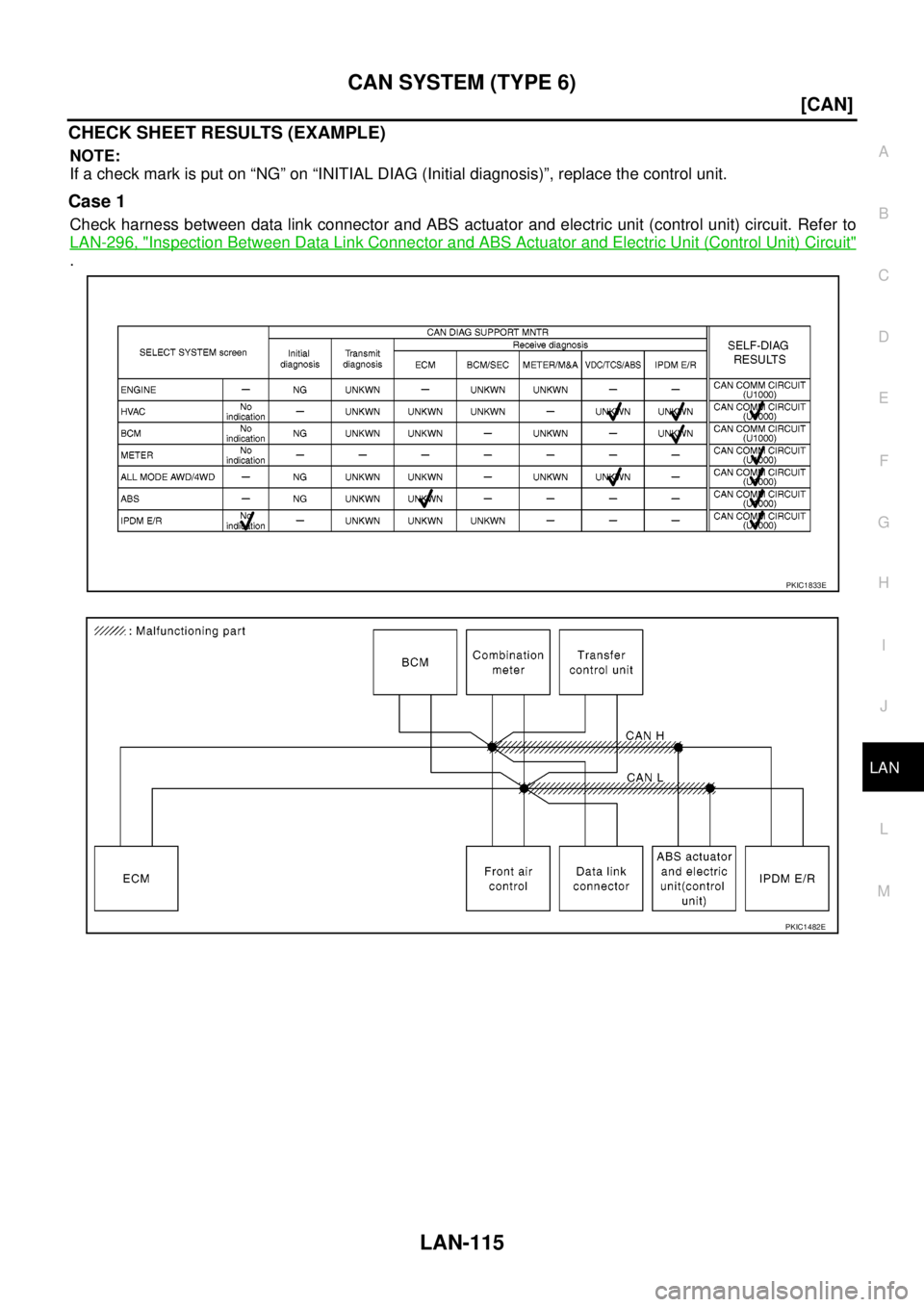

Case 1
Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to
LAN-296, "
Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"
.
PKIC1833E
PKIC1482E

LAN-116
[CAN]
CAN SYSTEM (TYPE 6)
Case 2
Check ECM circuit. Refer toLAN-297, "ECM Circuit Inspection for M/T Models".
PKIC1834E
PKIC1483E

CAN SYSTEM (TYPE 6)
LAN-117
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 3
Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection".
PKIC1835E
PKIC1484E

LAN-118
[CAN]
CAN SYSTEM (TYPE 6)

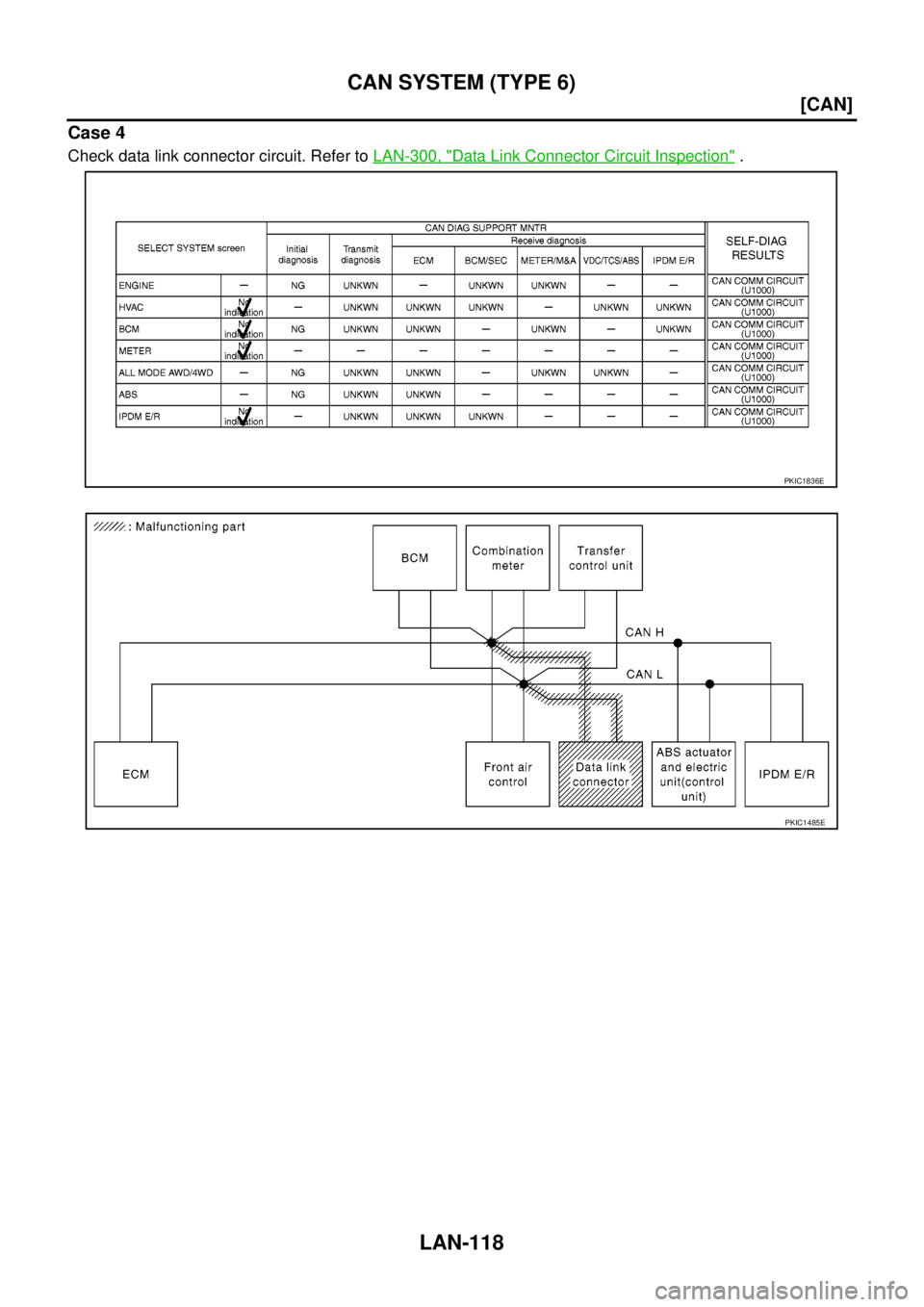

Case 4
Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection".
PKIC1836E
PKIC1485E

CAN SYSTEM (TYPE 6)
LAN-119
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

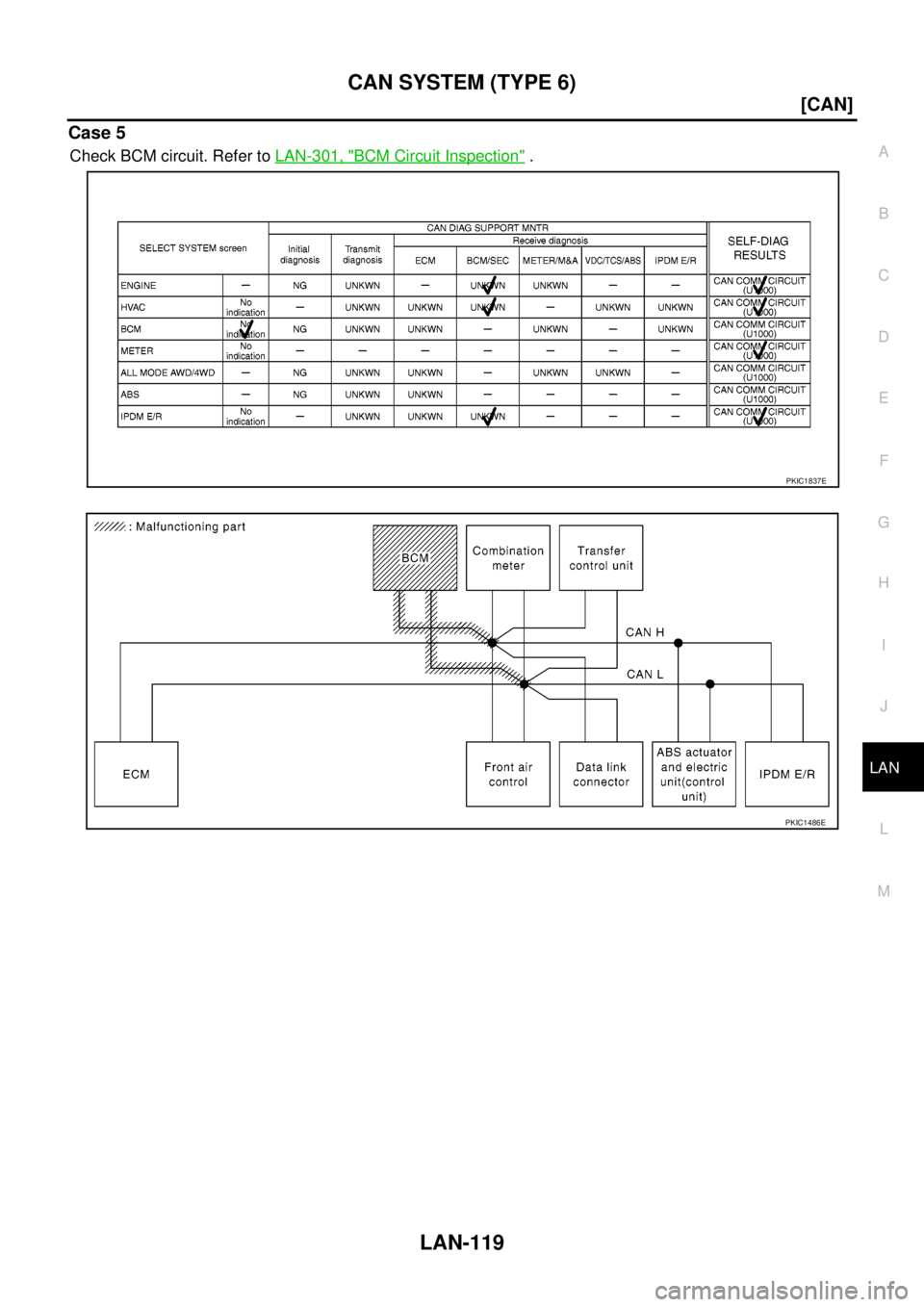

Case 5
Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection".
PKIC1837E
PKIC1486E

LAN-120
[CAN]
CAN SYSTEM (TYPE 6)

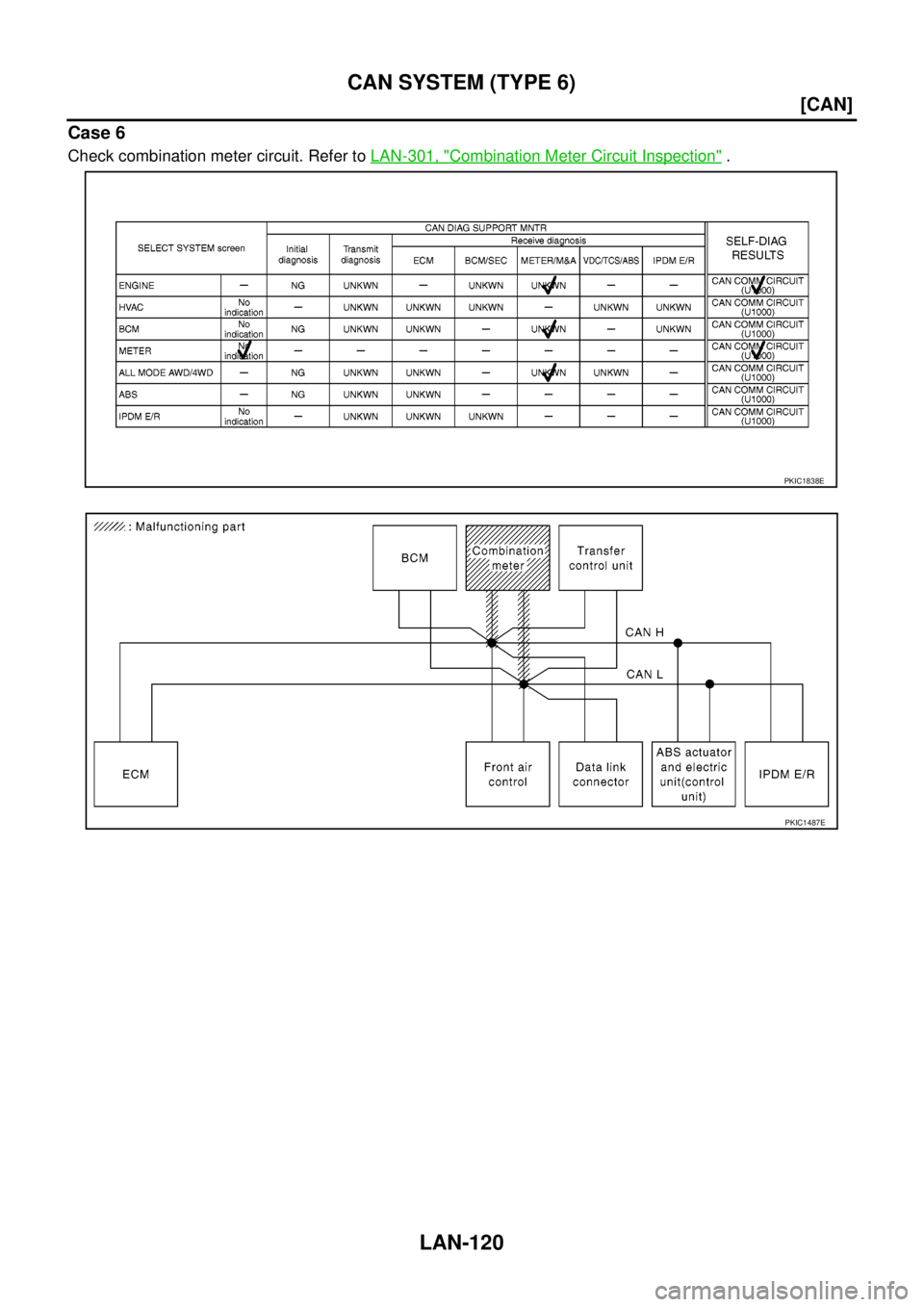

Case 6
Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection".
PKIC1838E
PKIC1487E

CAN SYSTEM (TYPE 6)
LAN-121
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

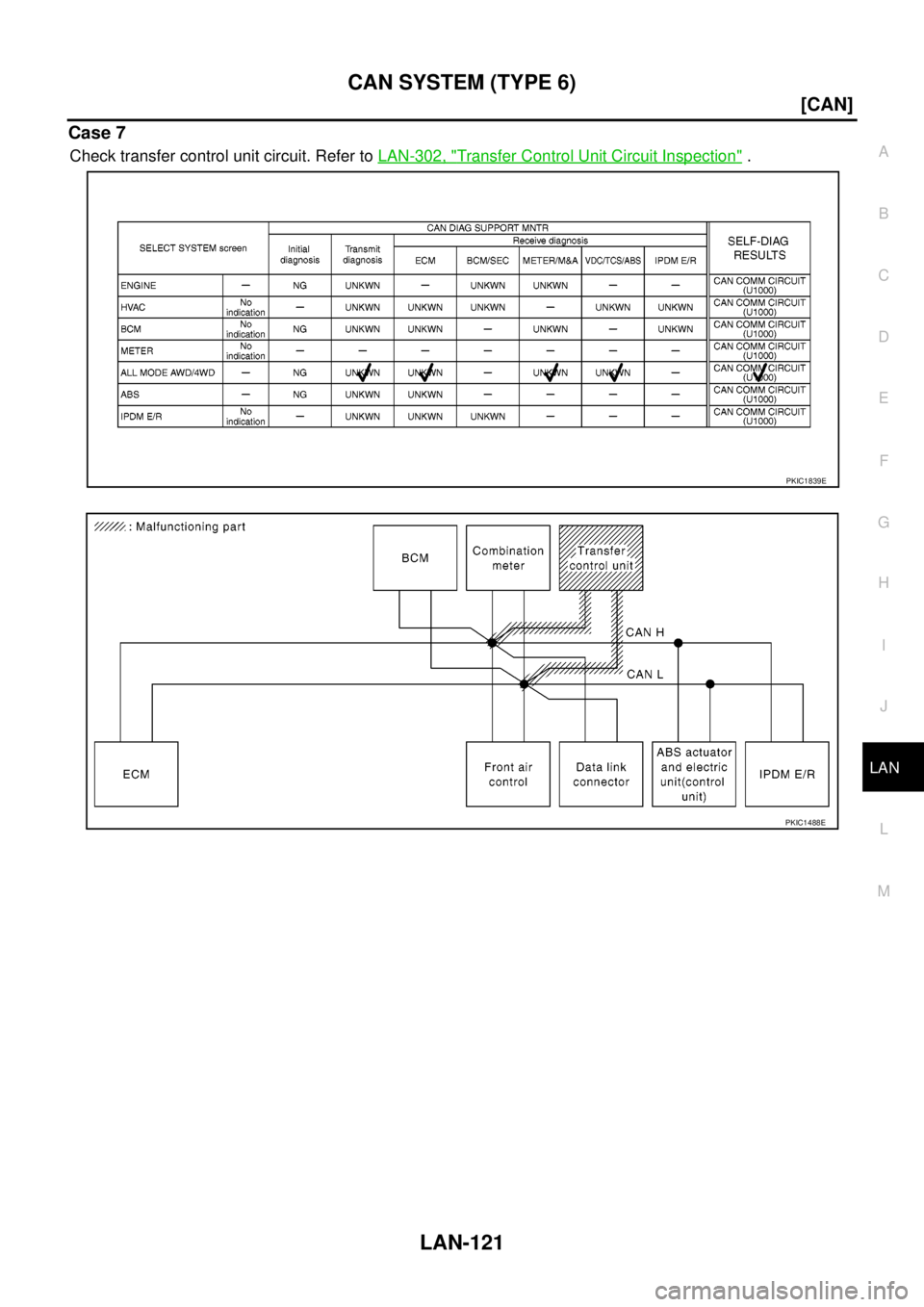

Case 7
Check transfer control unit circuit. Refer toLAN-302, "Transfer Control Unit Circuit Inspection".
PKIC1839E
PKIC1488E

LAN-122
[CAN]
CAN SYSTEM (TYPE 6)

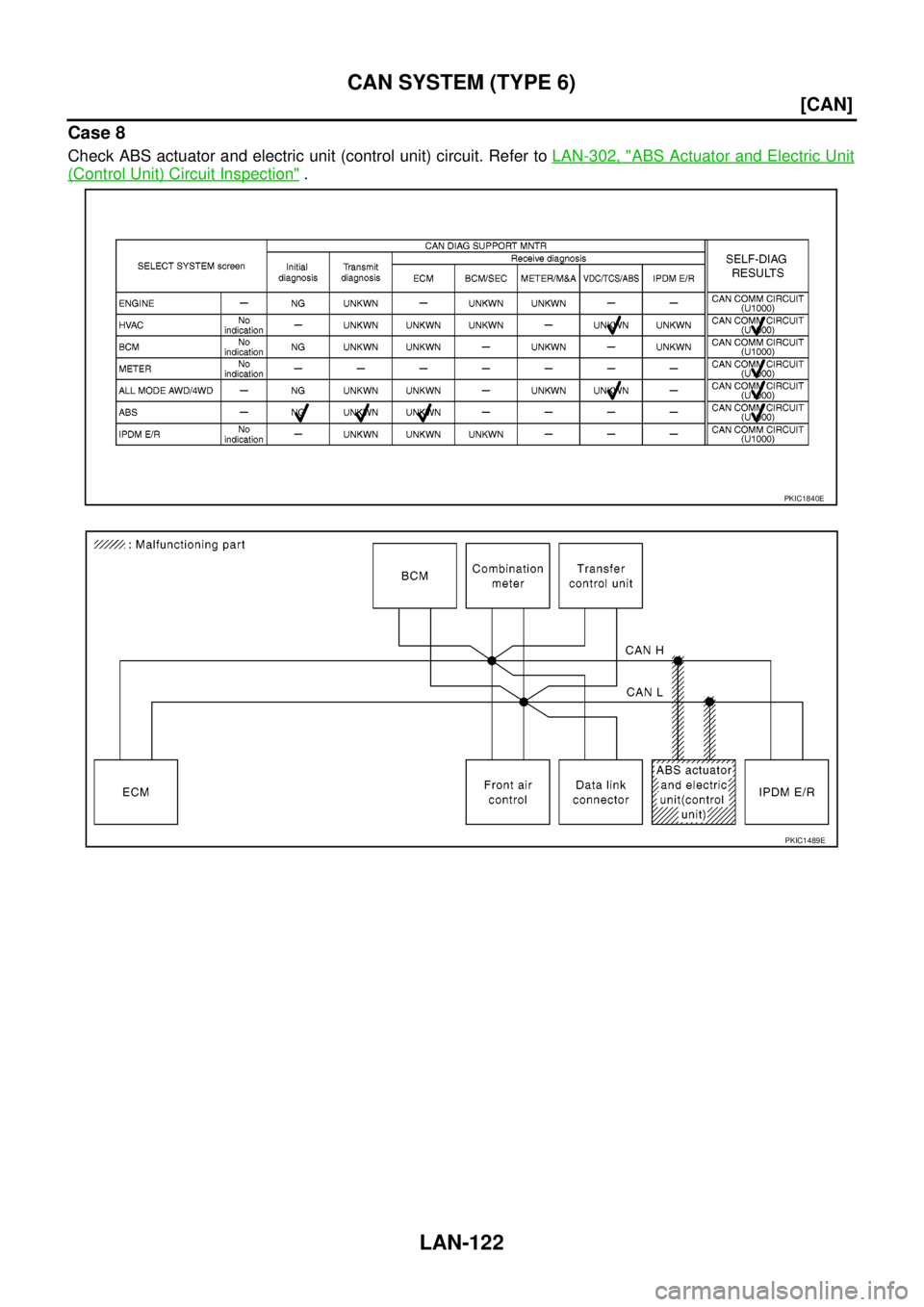

Case 8
Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection".
PKIC1840E
PKIC1489E

CAN SYSTEM (TYPE 6)
LAN-123
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 9
Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection".
Case 10
Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit Inspection".
PKIC1841E
PKIC1490E
PKIC1842E
