NISSAN NAVARA 2005 Repair Workshop Manual
NAVARA 2005
NISSAN
NISSAN
https://www.carmanualsonline.info/img/5/57362/w960_57362-0.png
NISSAN NAVARA 2005 Repair Workshop Manual
Trending: oil filter, Conditioning, power steering fluid, battery location, fog light bulb, ignition, fuse box location
Page 1881 of 3171
LAN-104
[CAN]
CAN SYSTEM (TYPE 5)

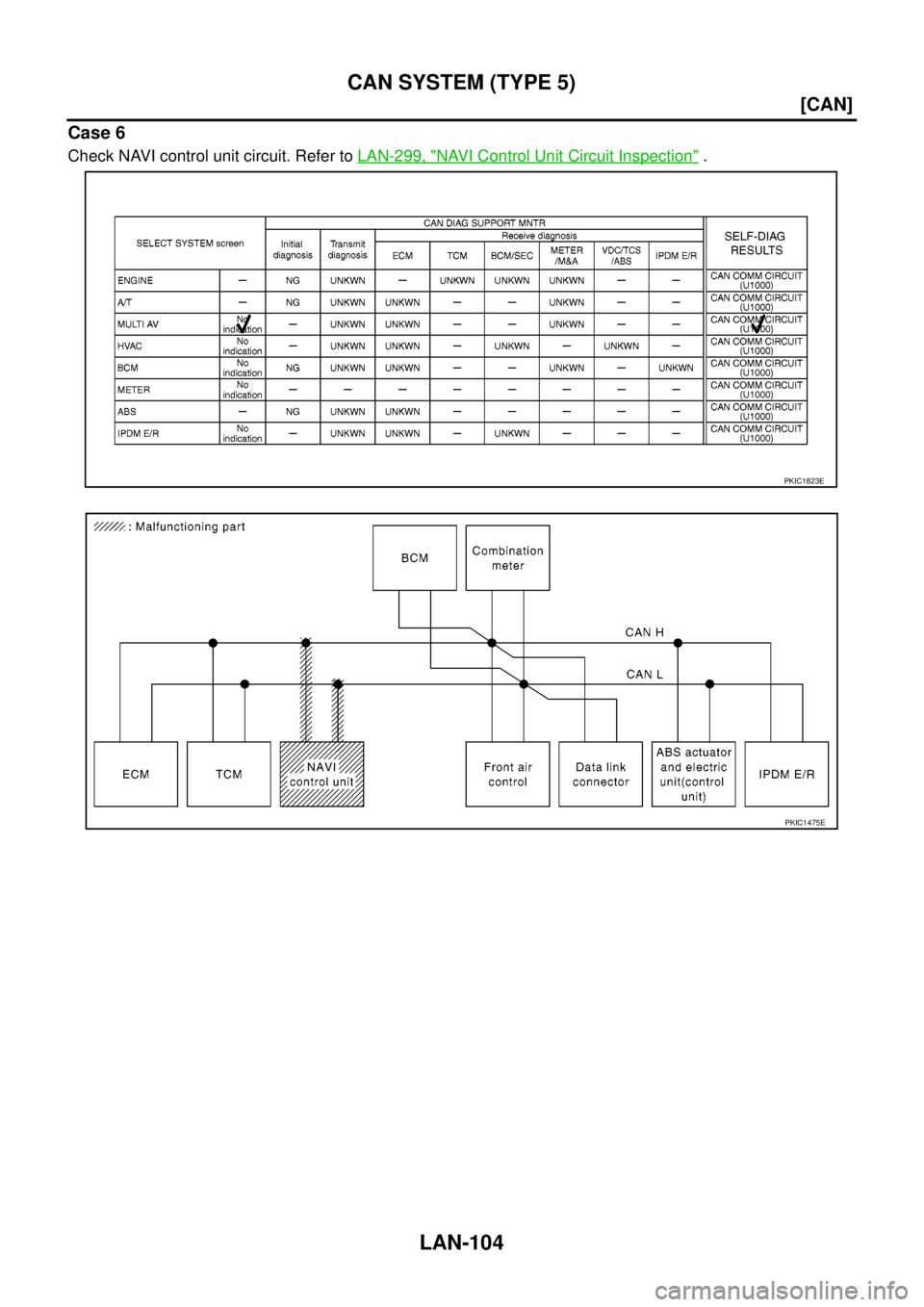

Case 6
Check NAVI control unit circuit. Refer toLAN-299, "NAVI Control Unit Circuit Inspection".
PKIC1823E
PKIC1475E
Page 1882 of 3171
CAN SYSTEM (TYPE 5)
LAN-105
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

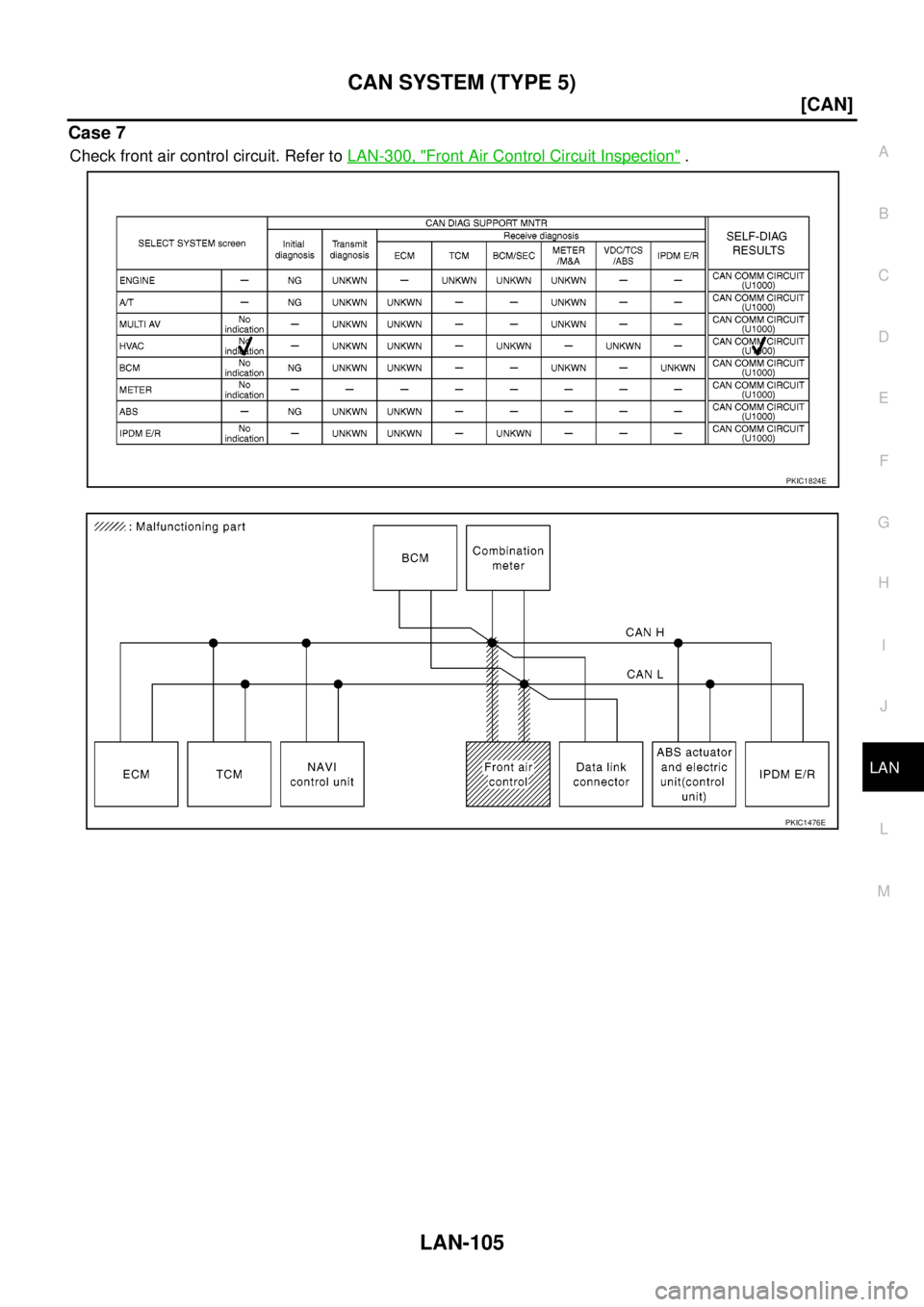

Case 7
Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection".
PKIC1824E
PKIC1476E
Page 1883 of 3171
LAN-106
[CAN]
CAN SYSTEM (TYPE 5)

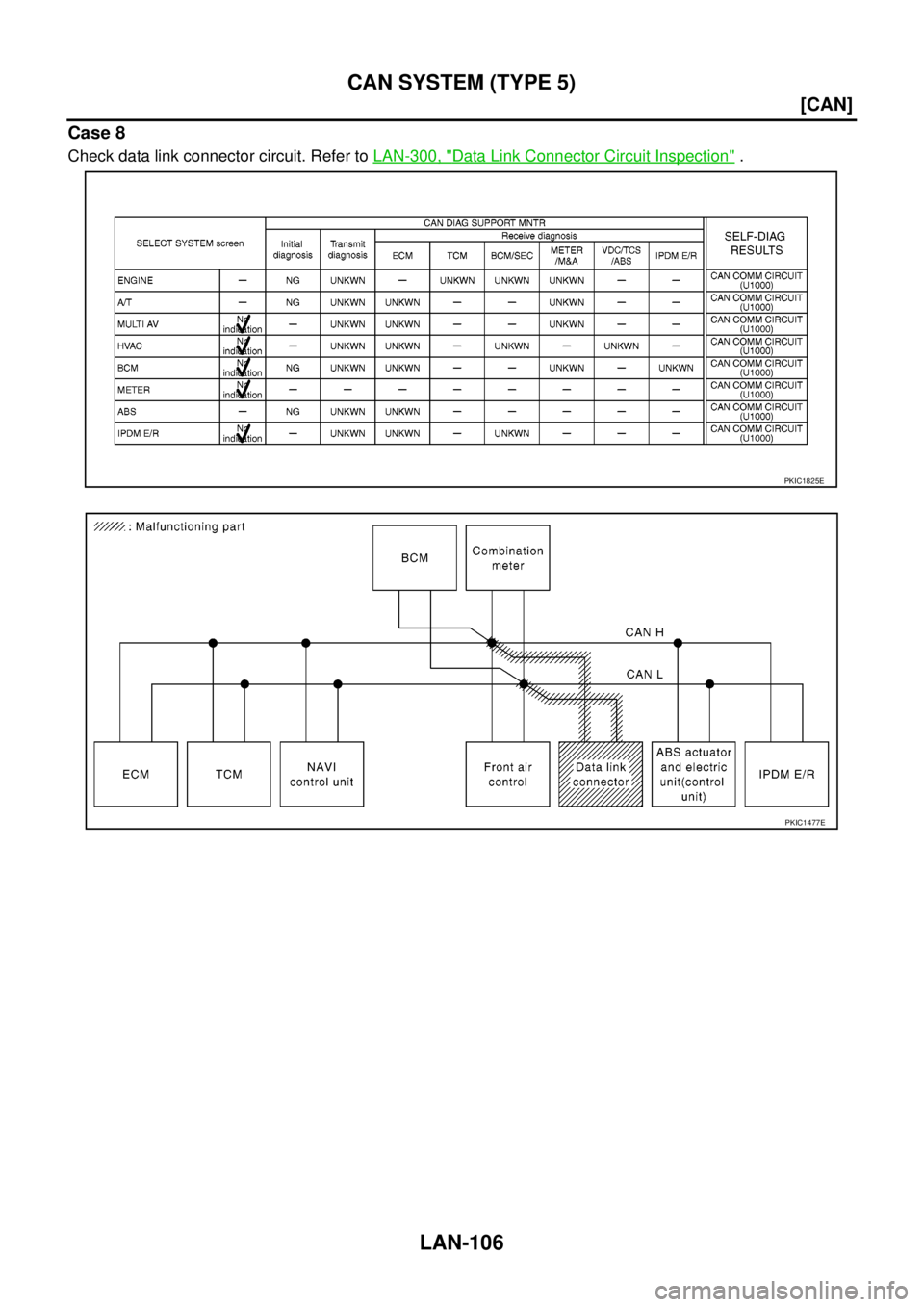

Case 8
Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection".
PKIC1825E
PKIC1477E
Page 1884 of 3171
CAN SYSTEM (TYPE 5)
LAN-107
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

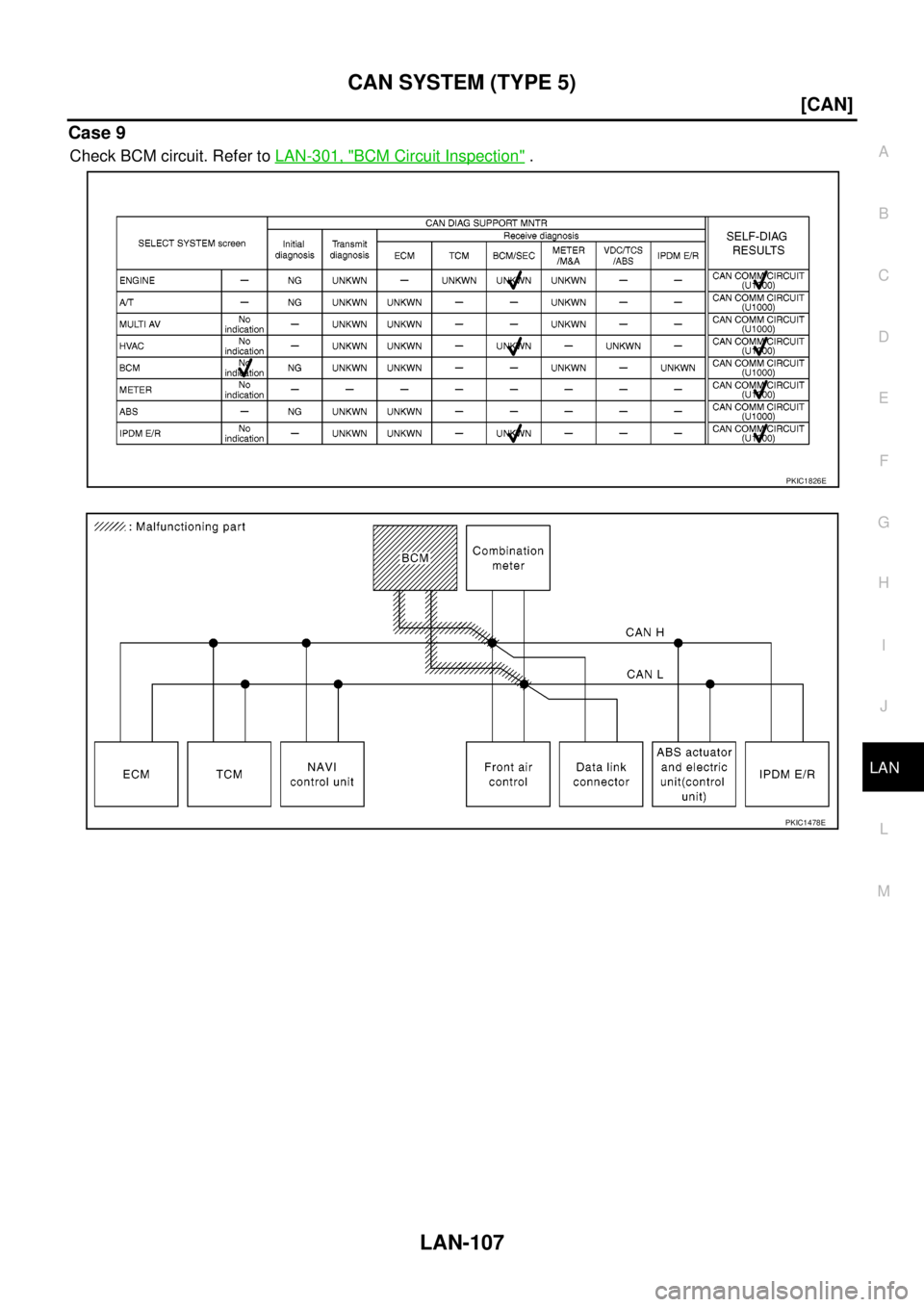

Case 9
Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection".
PKIC1826E
PKIC1478E
Page 1885 of 3171
LAN-108
[CAN]
CAN SYSTEM (TYPE 5)
Case 10
Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection".
PKIC1827E
PKIC1479E
Page 1886 of 3171
CAN SYSTEM (TYPE 5)
LAN-109
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

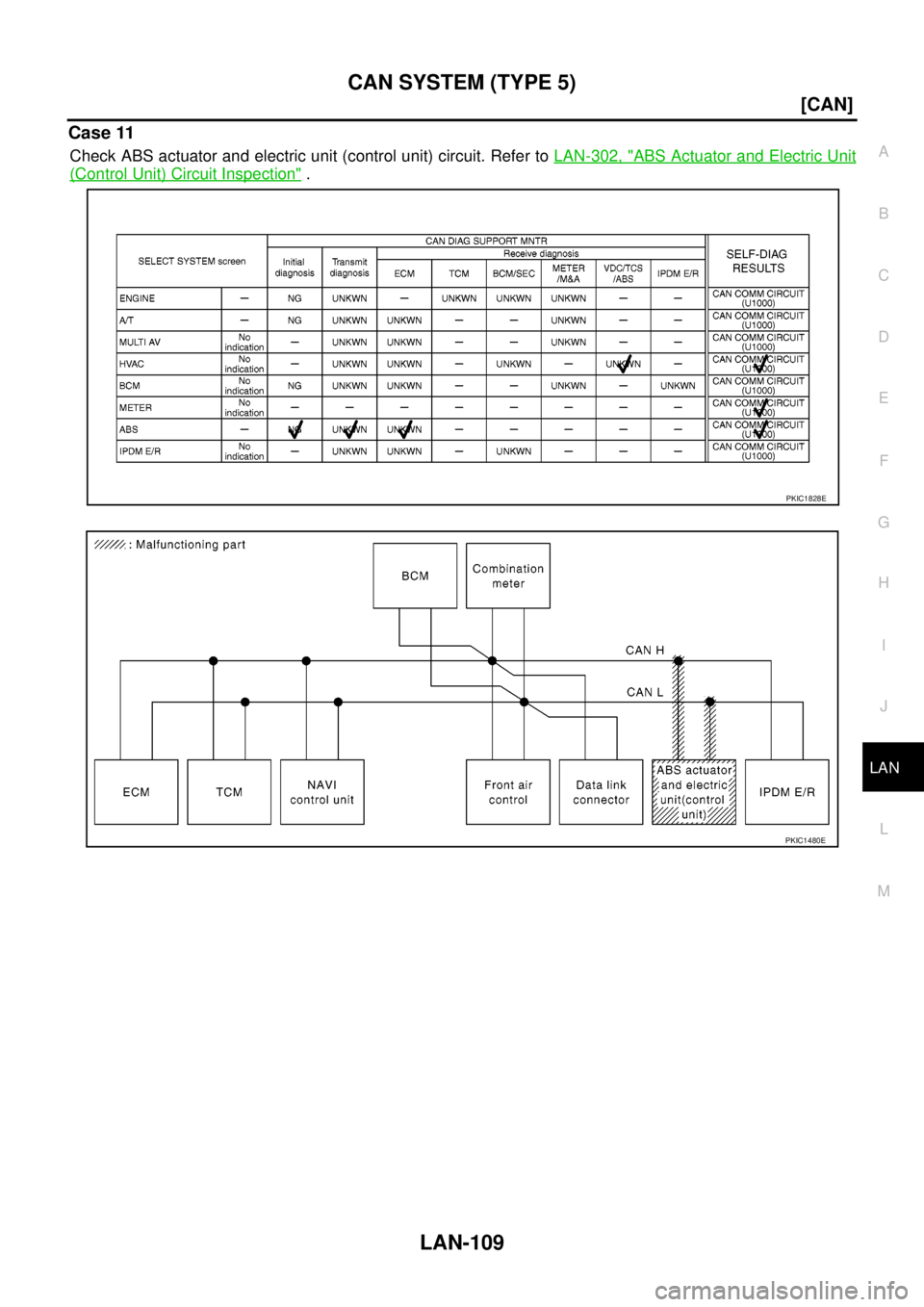

Case 11
Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection".
PKIC1828E
PKIC1480E
Page 1887 of 3171
LAN-110
[CAN]
CAN SYSTEM (TYPE 5)

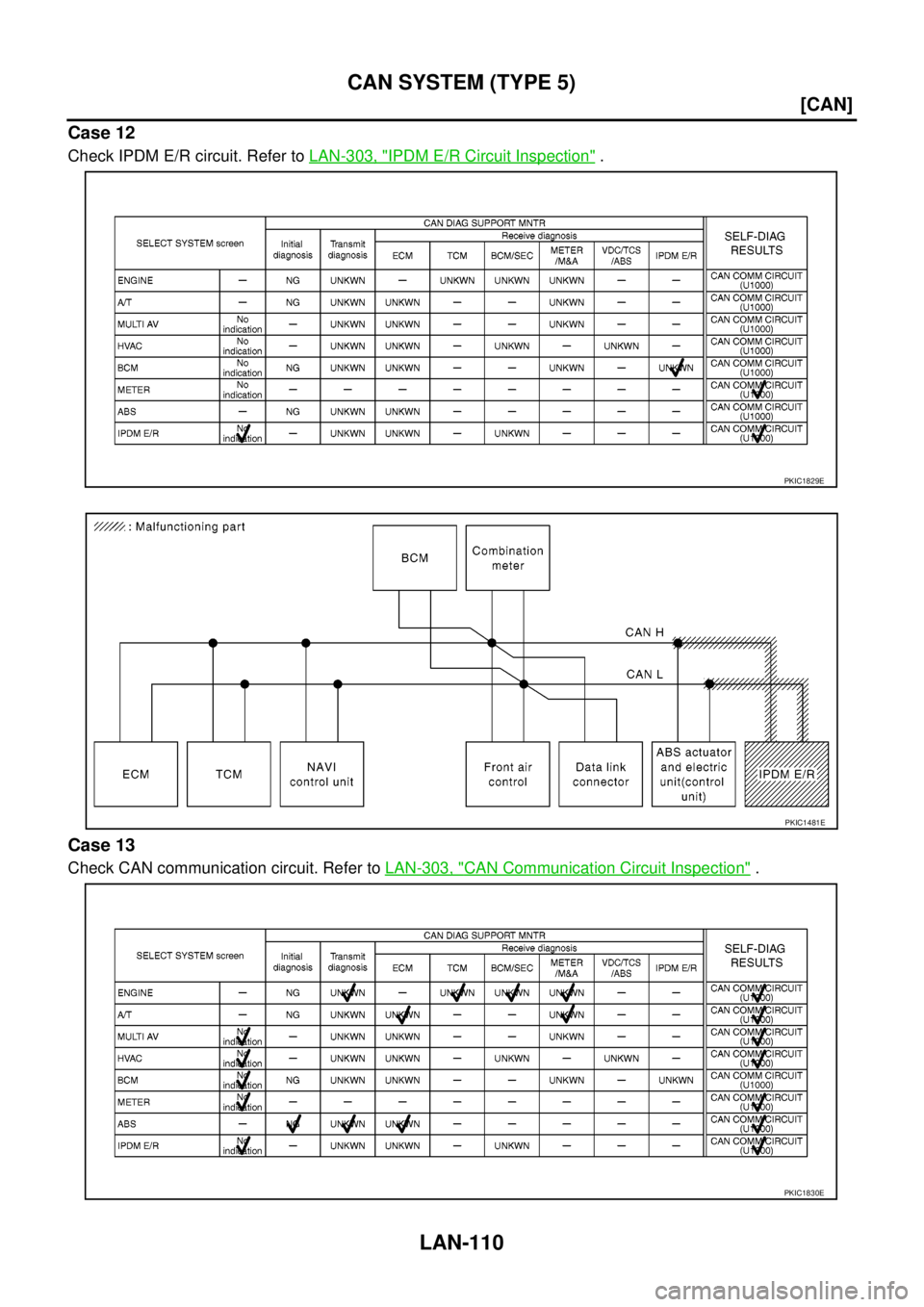

Case 12
Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection".
Case 13
Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit Inspection".
PKIC1829E
PKIC1481E
PKIC1830E
Page 1888 of 3171
CAN SYSTEM (TYPE 5)
LAN-111
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

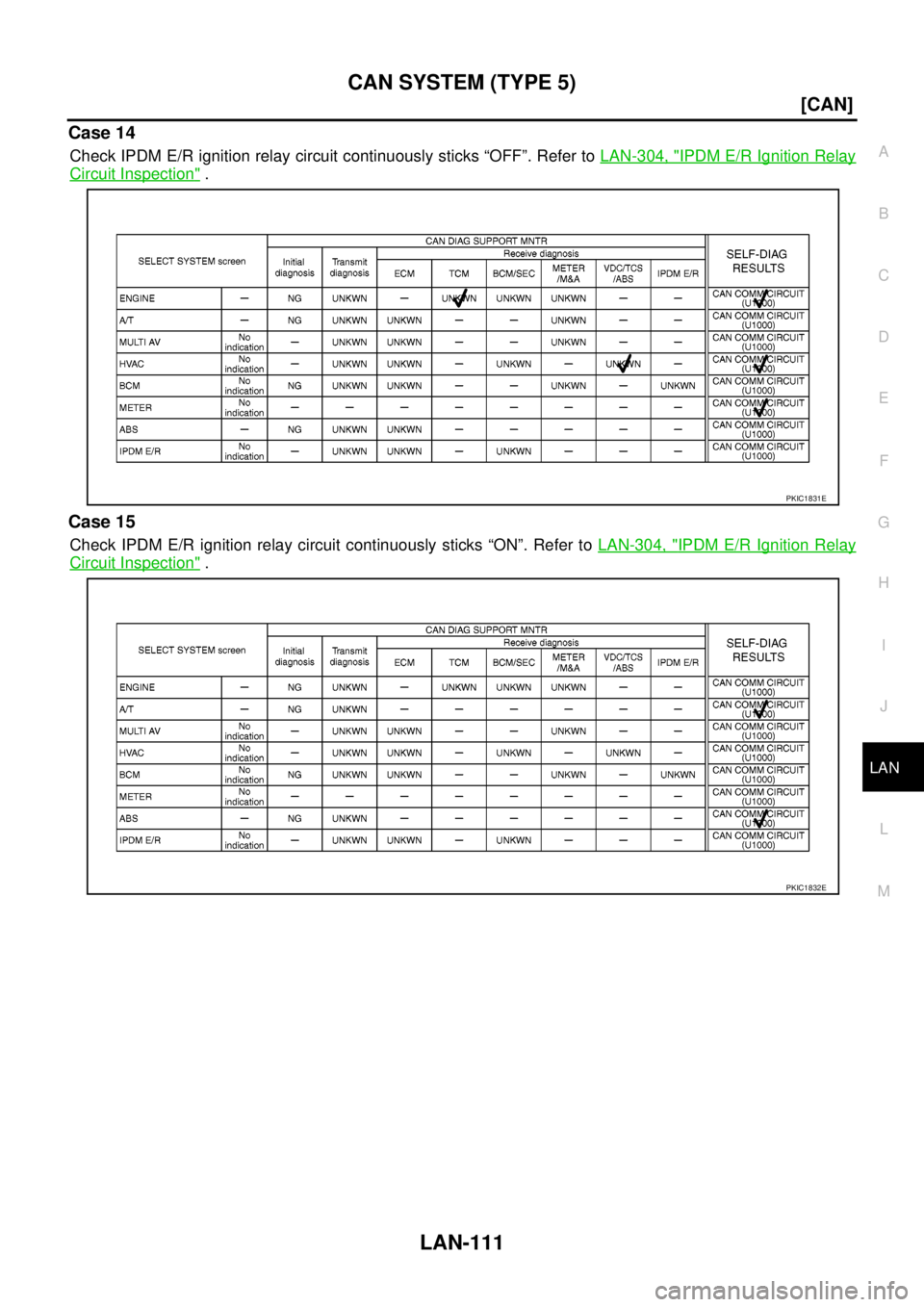

Case 14
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
Case 15
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
PKIC1831E
PKIC1832E
Page 1889 of 3171
LAN-112
[CAN]
CAN SYSTEM (TYPE 6)
CAN SYSTEM (TYPE 6)
PFP:23710
Component Parts and Harness Connector LocationEKS00OIM
Refer toLAN-23, "Component Parts and Harness Connector Location".
SchematicEKS00OIN
Refer toLAN-25, "Schematic".
Wiring Diagram — CAN —EKS00OIO
Refer toLAN-26, "Wiring Diagram—CAN—".
Page 1890 of 3171
CAN SYSTEM (TYPE 6)
LAN-113
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

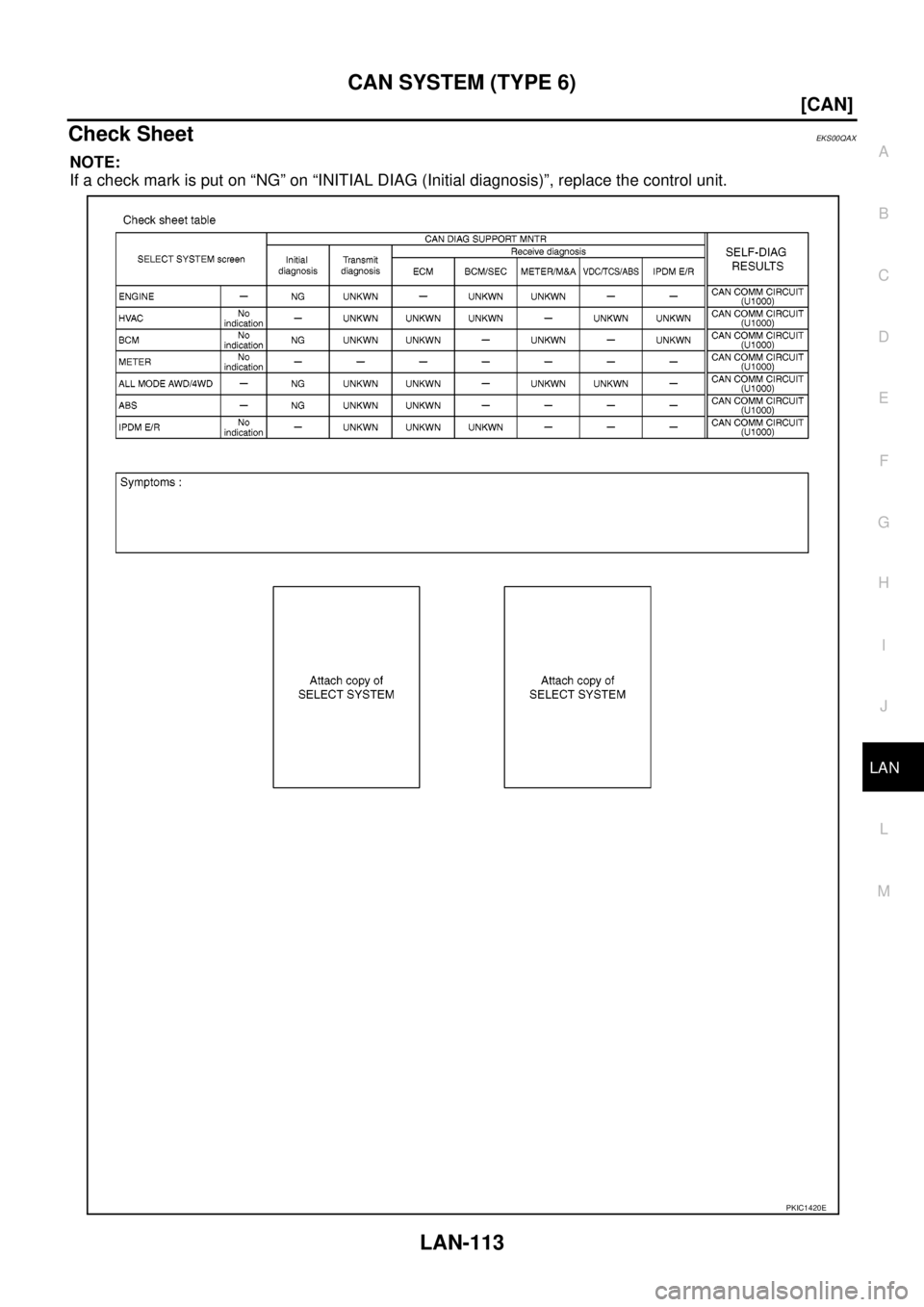

Check SheetEKS00QAX
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC1420E
