NISSAN NAVARA 2005 Repair Workshop Manual LAN-134 [CAN] CAN SYSTEM (TYPE 7) Case 7 Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection". PKIC1851E PKIC1497E

Page 1912 of 3171

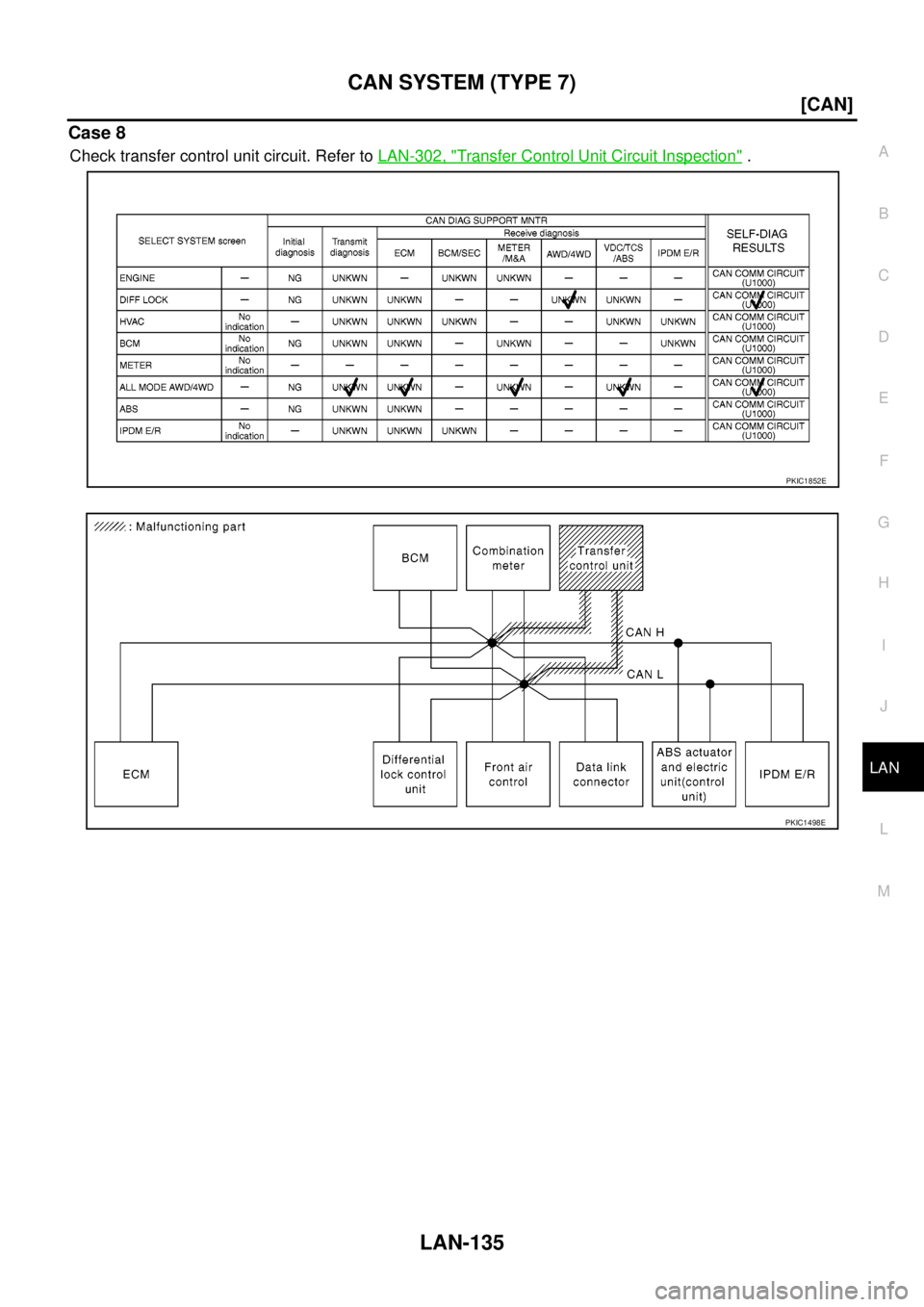

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 7) LAN-135 [CAN] C D E F G H I J L MA B LAN Case 8 Check transfer control unit circuit. Refer toLAN-302, "Transfer Control Unit Circuit Inspection". PKIC1852E PKIC1498E

Page 1913 of 3171

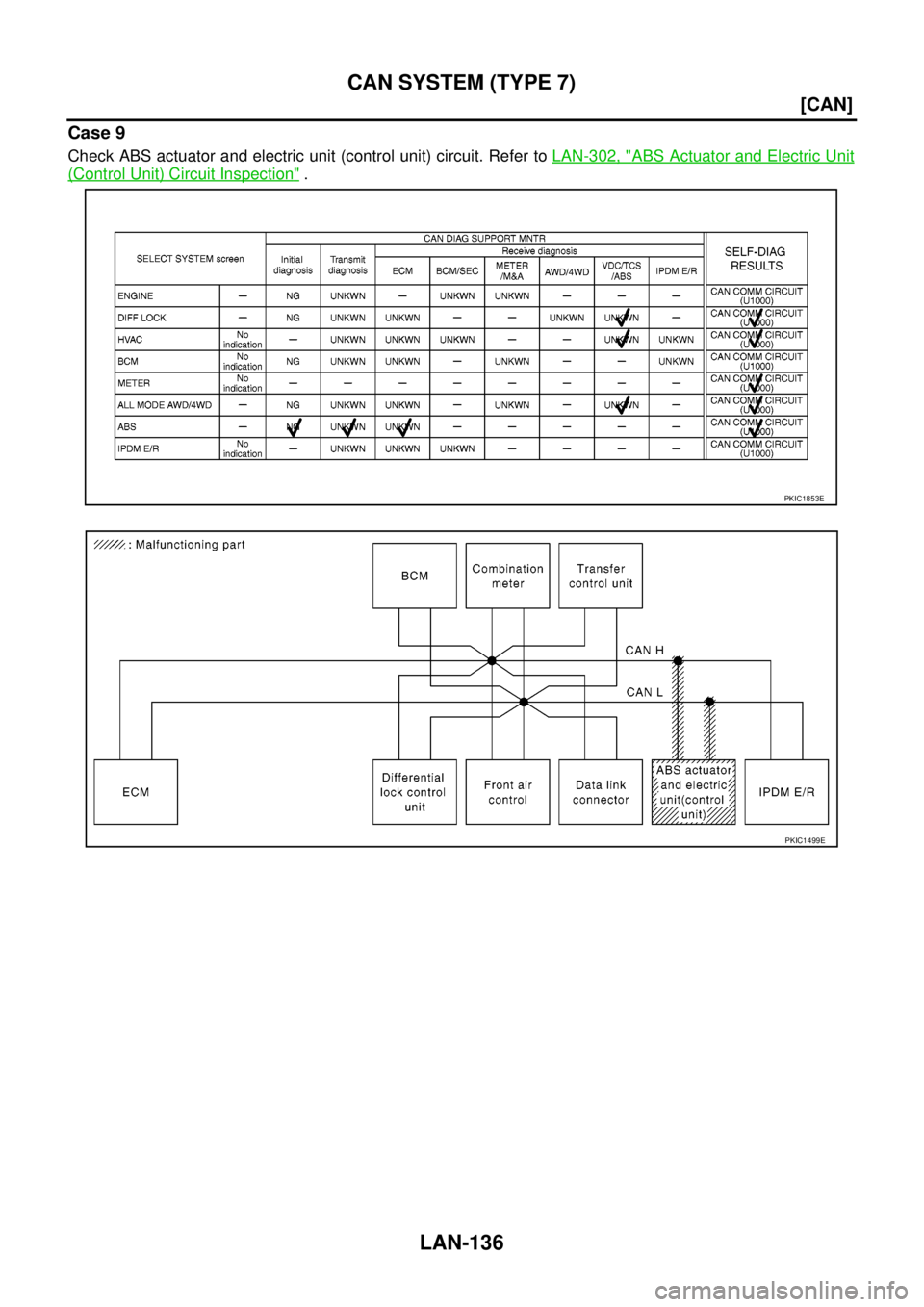

NISSAN NAVARA 2005 Repair Workshop Manual LAN-136 [CAN] CAN SYSTEM (TYPE 7) Case 9 Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit (Control Unit) Circuit Inspection". PKIC1853E PKI

Page 1914 of 3171

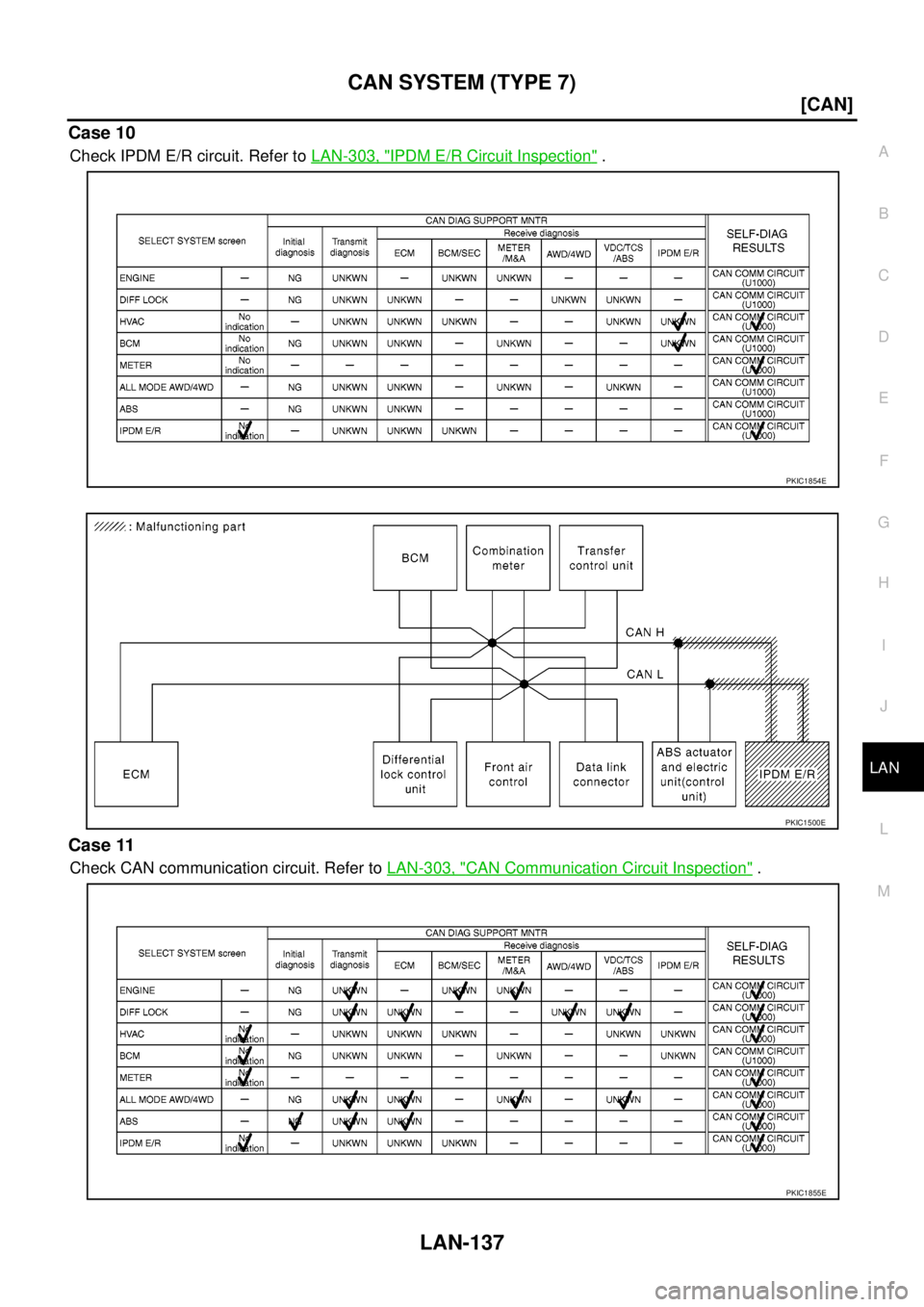

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 7) LAN-137 [CAN] C D E F G H I J L MA B LAN Case 10 Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection". Case 11 Check CAN communication circuit. Refer toLAN-303, "

Page 1915 of 3171

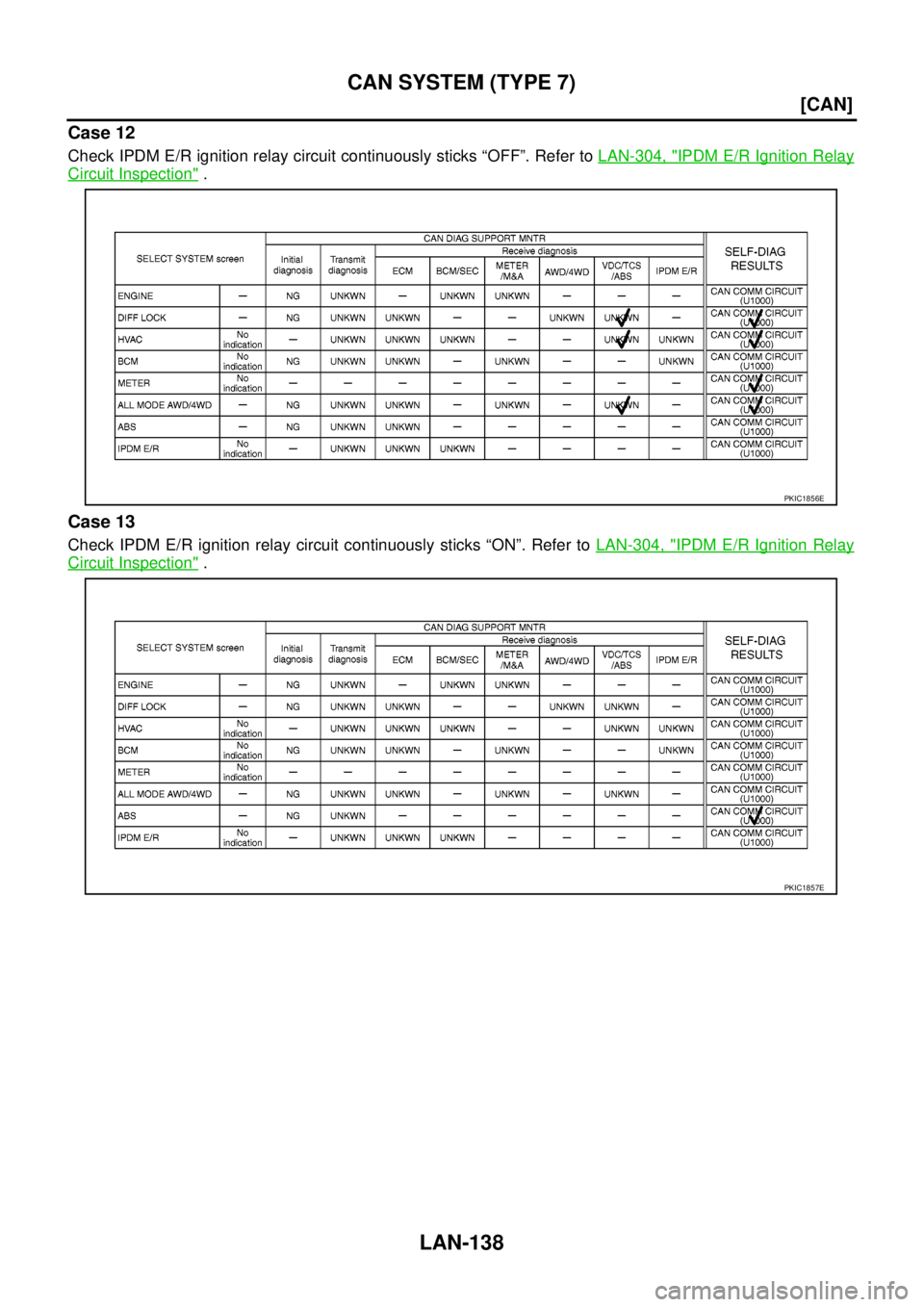

NISSAN NAVARA 2005 Repair Workshop Manual LAN-138 [CAN] CAN SYSTEM (TYPE 7) Case 12 Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay Circuit Inspection". Case 13 Check IPDM E/R ign

Page 1916 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 8) LAN-139 [CAN] C D E F G H I J L MA B LAN CAN SYSTEM (TYPE 8)PFP:23710 Component Parts and Harness Connector LocationEKS00OE7 Refer toLAN-23, "Component Parts and Harness Connector

Page 1917 of 3171

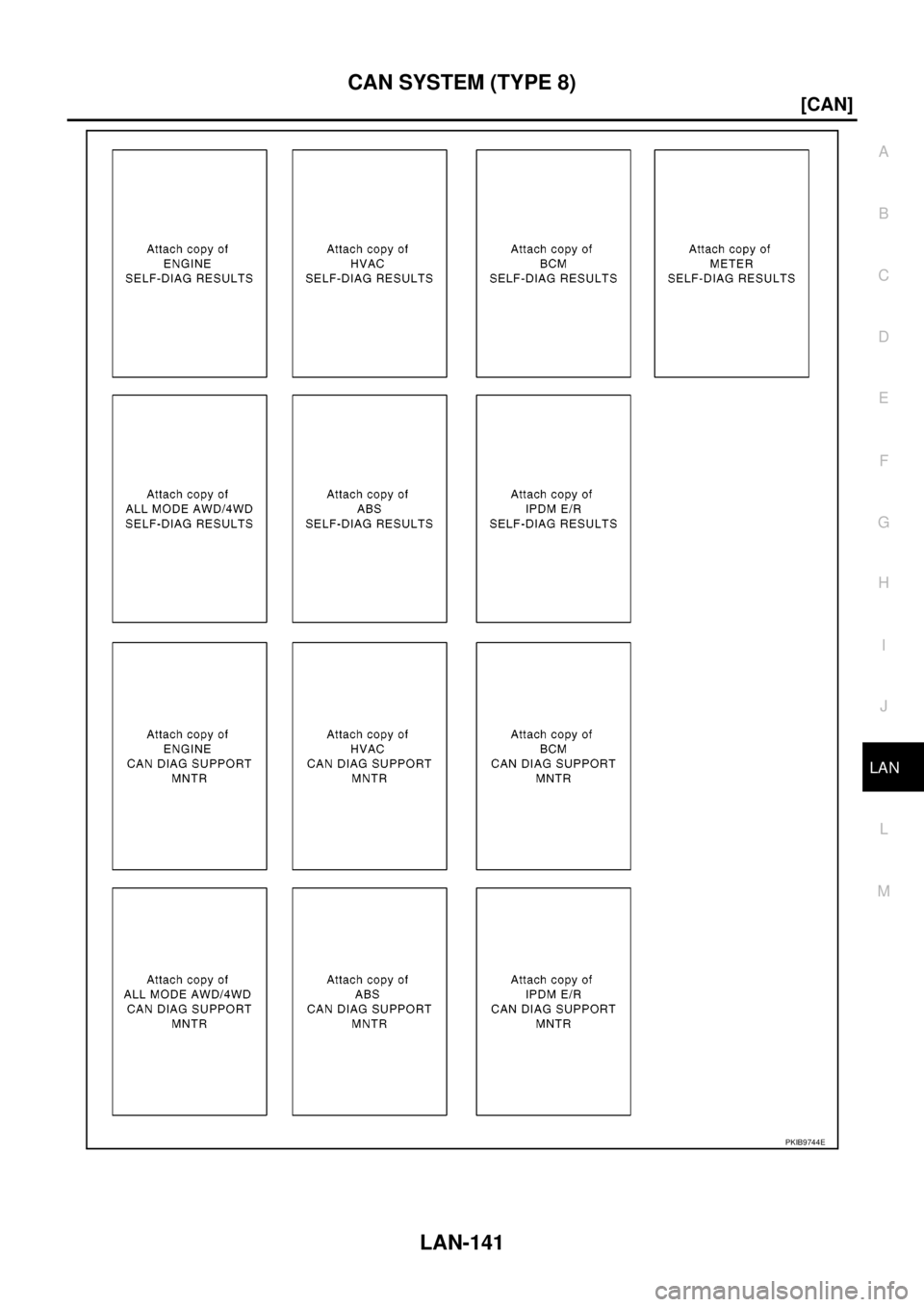

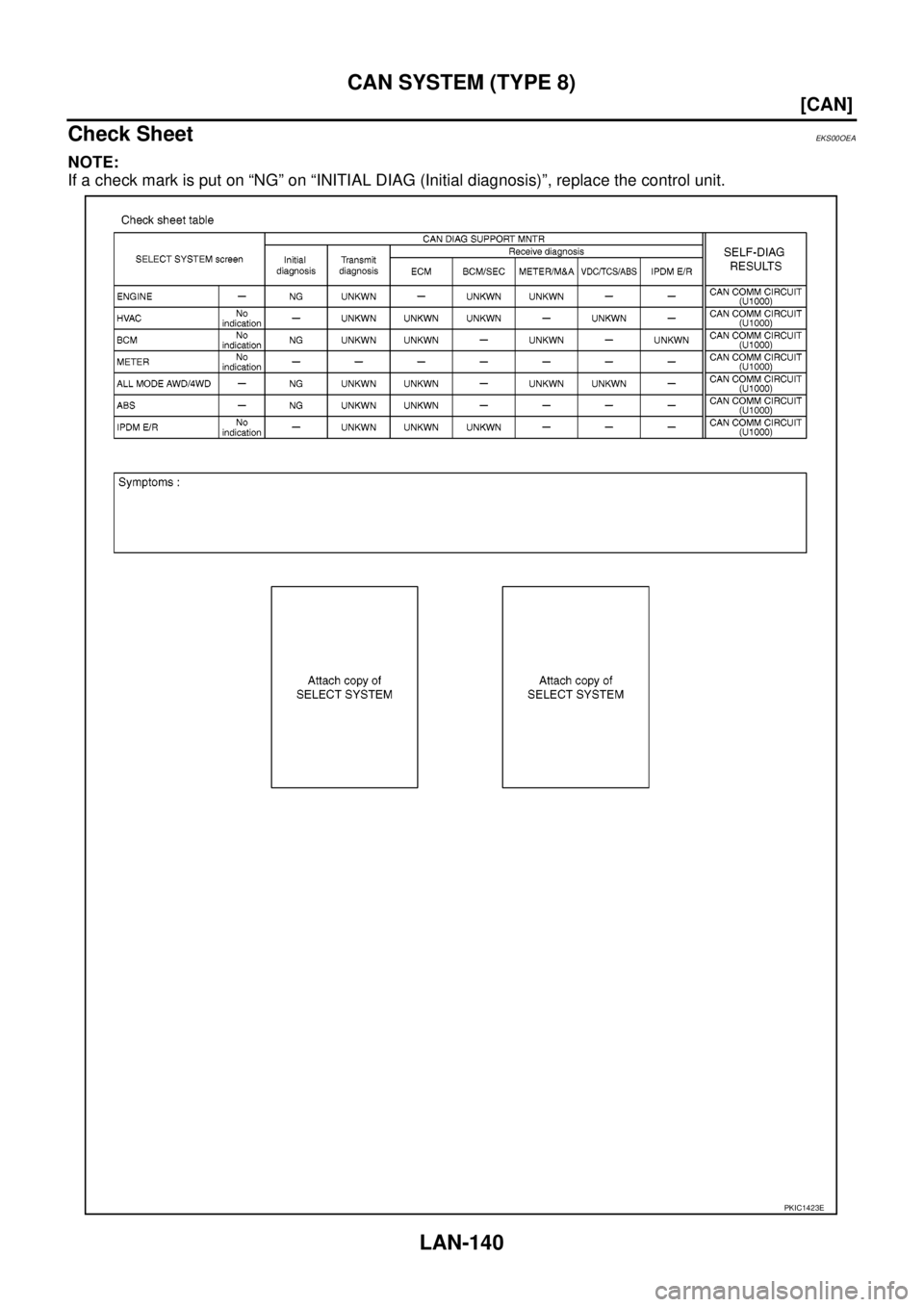

NISSAN NAVARA 2005 Repair Workshop Manual LAN-140 [CAN] CAN SYSTEM (TYPE 8) Check Sheet EKS00OEA NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit. PKIC1423E

Page 1918 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 8) LAN-141 [CAN] C D E F G H I J L MA B LAN PKIB9744E

Page 1919 of 3171

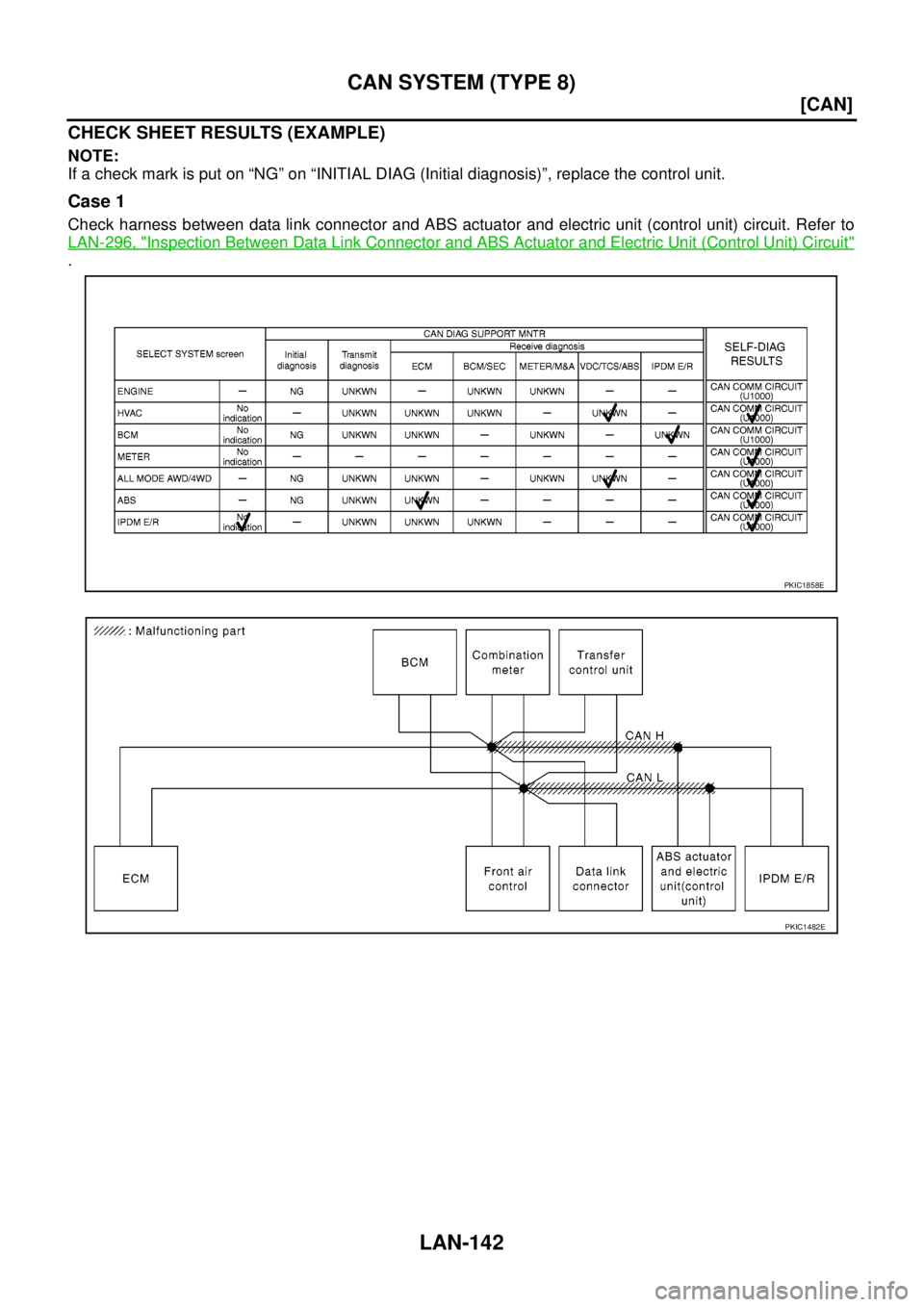

NISSAN NAVARA 2005 Repair Workshop Manual LAN-142 [CAN] CAN SYSTEM (TYPE 8) CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit. Case 1 Check harness betwe

Page 1920 of 3171

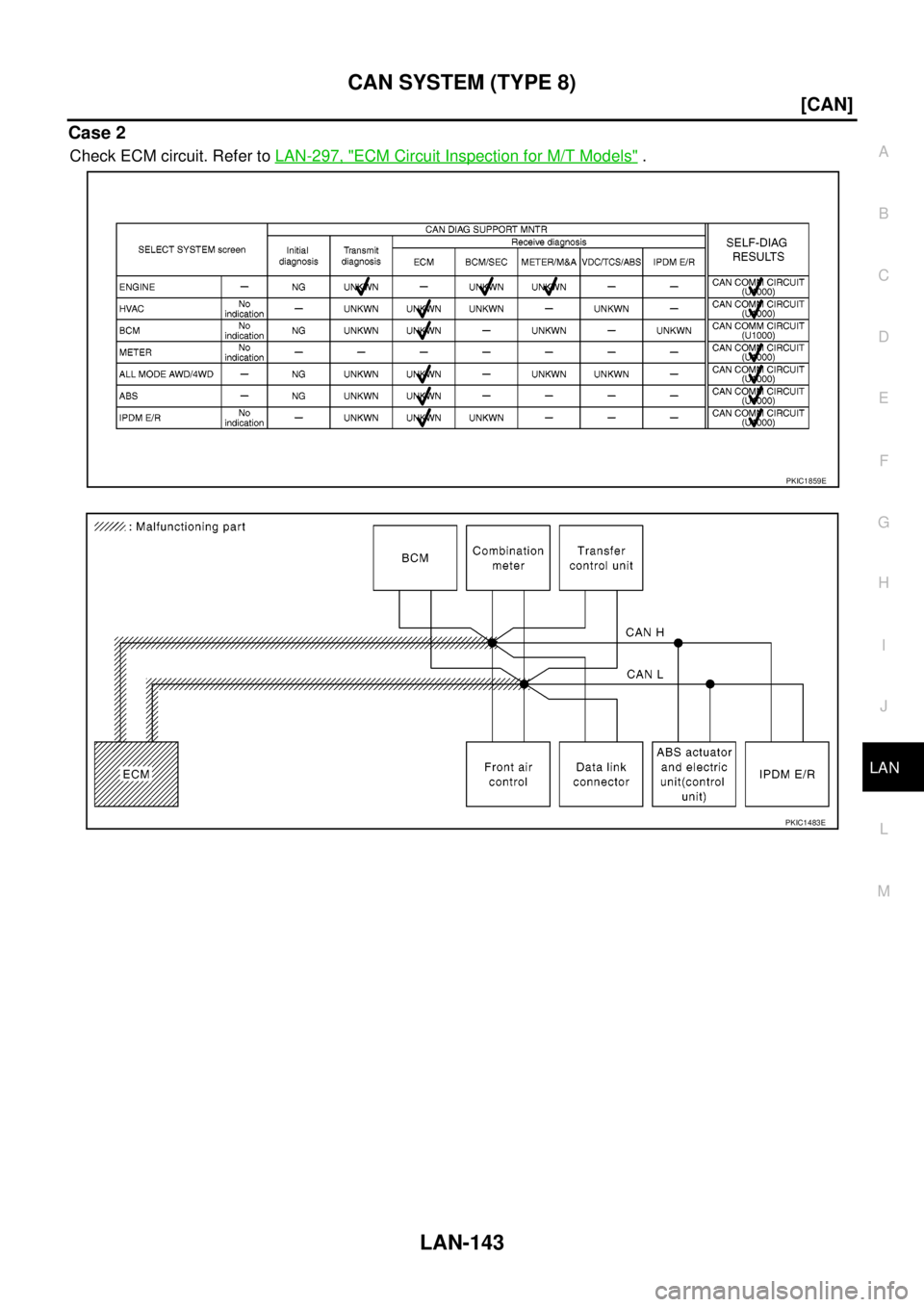

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 8) LAN-143 [CAN] C D E F G H I J L MA B LAN Case 2 Check ECM circuit. Refer toLAN-297, "ECM Circuit Inspection for M/T Models". PKIC1859E PKIC1483E
