CAN SYSTEM (TYPE 4)
PKIC1593E

CAN SYSTEM (TYPE 4)
LAN-85
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1

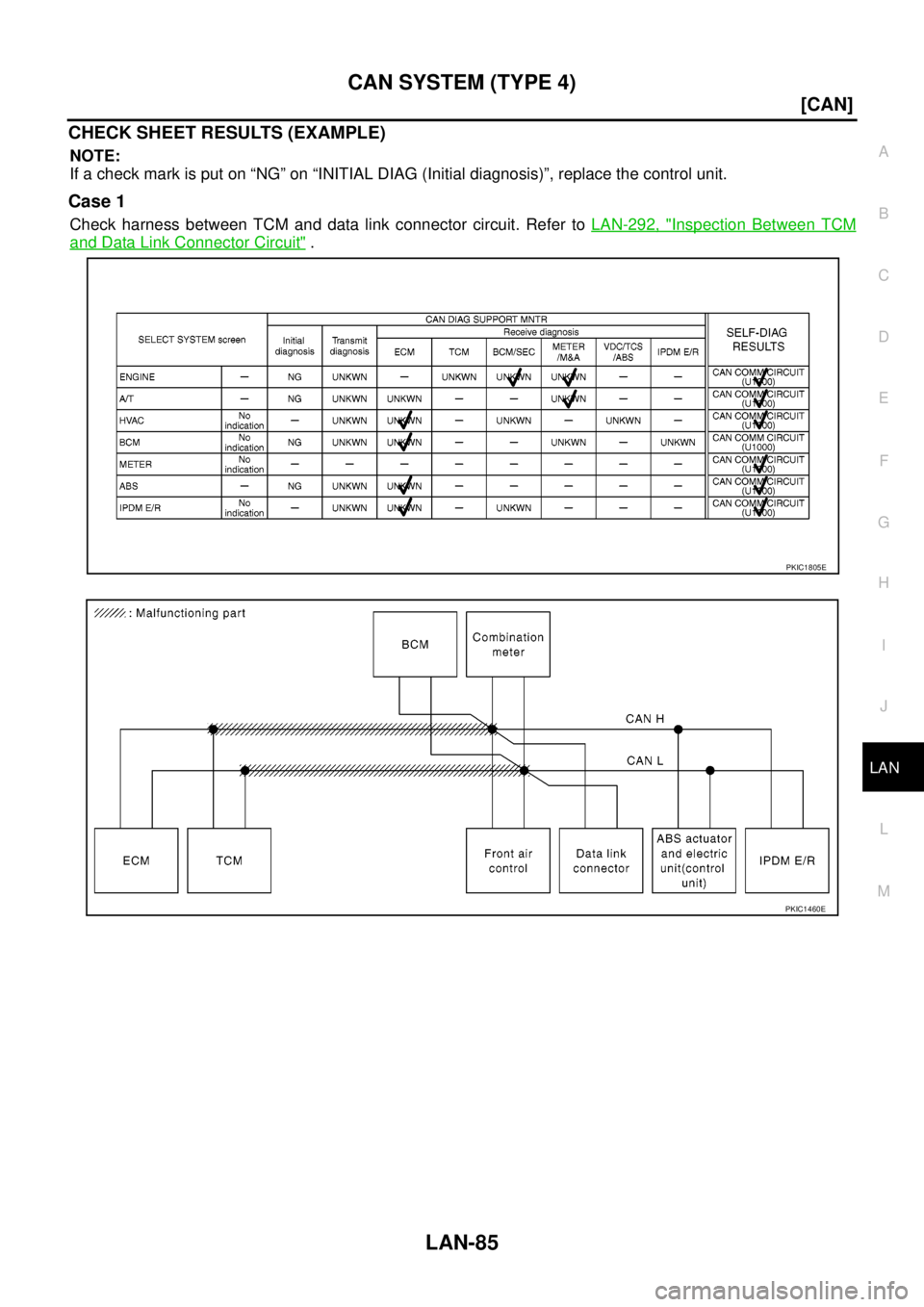

Check harness between TCM and data link connector circuit. Refer toLAN-292, "Inspection Between TCM
and Data Link Connector Circuit".
PKIC1805E
PKIC1460E

LAN-86
[CAN]
CAN SYSTEM (TYPE 4)
Case 2

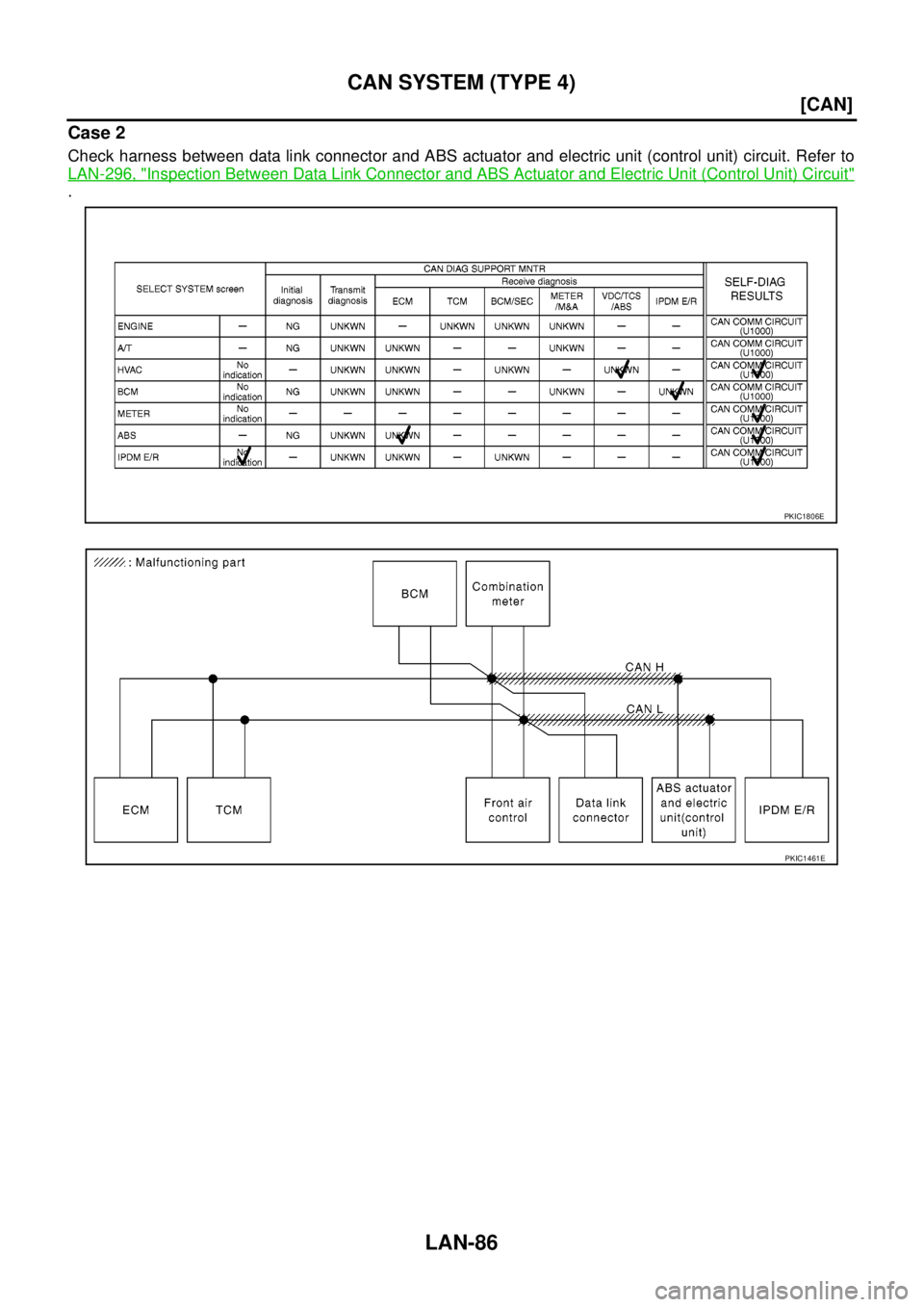

Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to
LAN-296, "
Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"
.
PKIC1806E
PKIC1461E

CAN SYSTEM (TYPE 4)
LAN-87
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 3

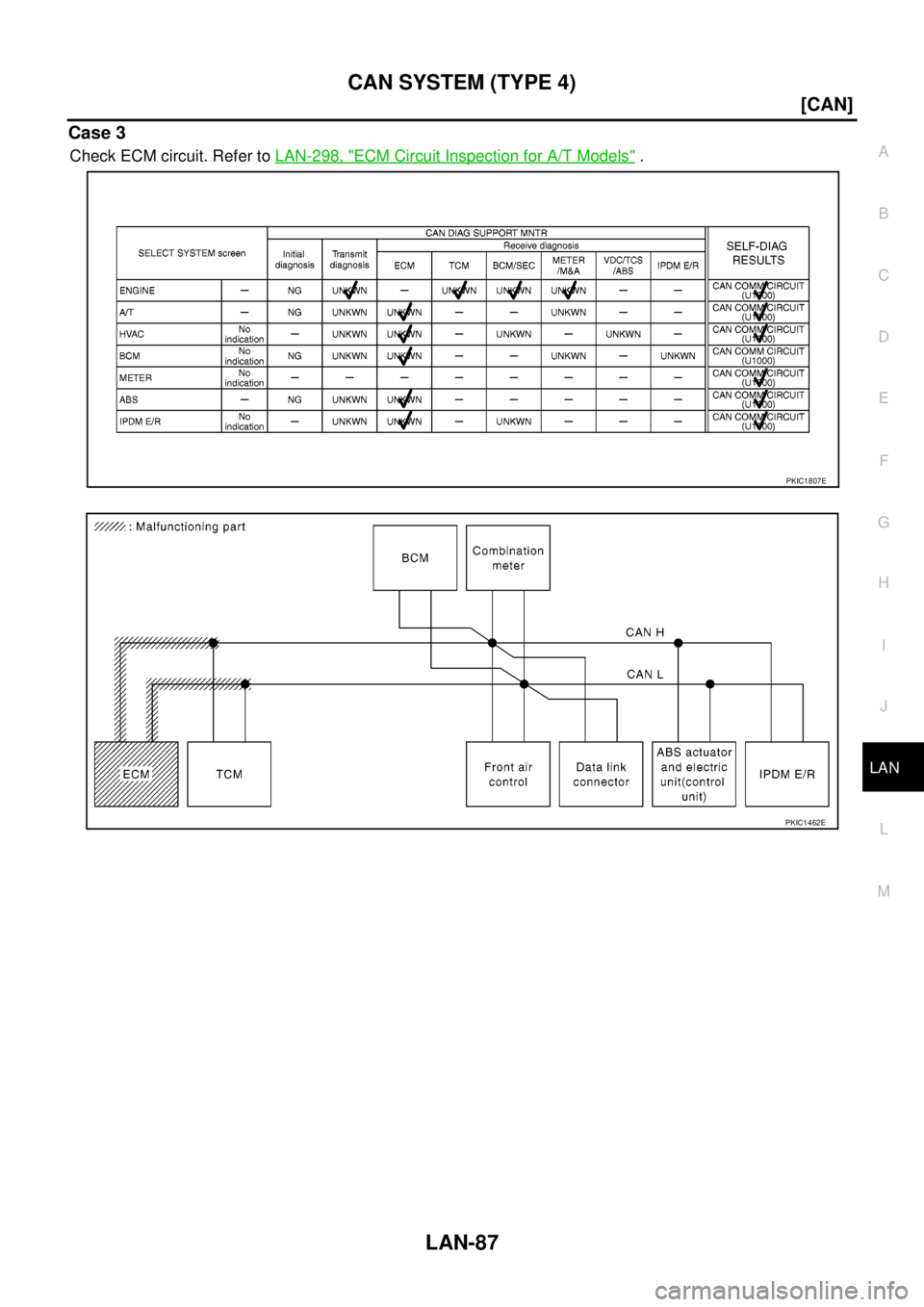

Check ECM circuit. Refer toLAN-298, "ECM Circuit Inspection for A/T Models".
PKIC1807E
PKIC1462E

LAN-88
[CAN]
CAN SYSTEM (TYPE 4)
Case 4

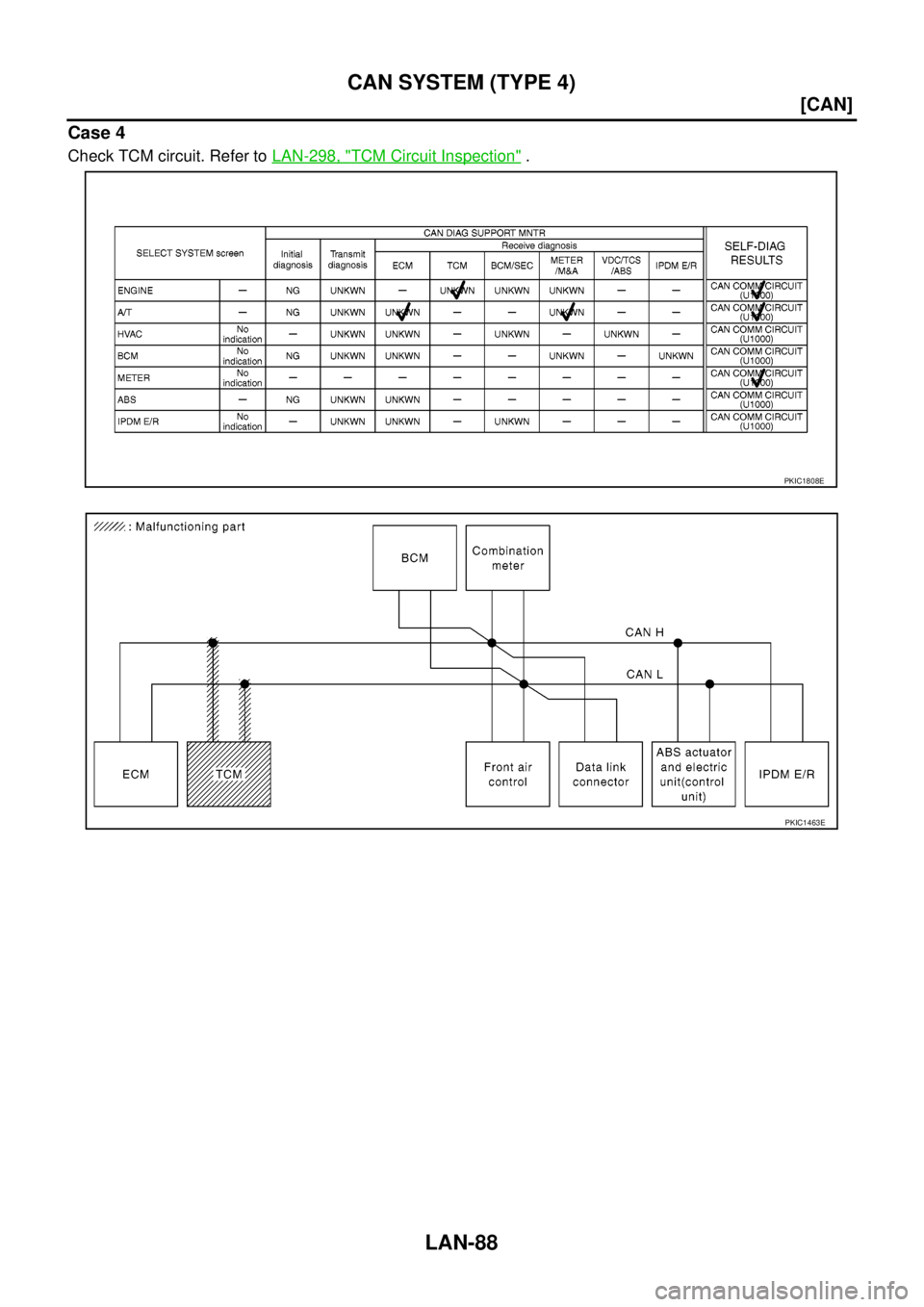

Check TCM circuit. Refer toLAN-298, "TCM Circuit Inspection".
PKIC1808E
PKIC1463E

CAN SYSTEM (TYPE 4)
LAN-89
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 5

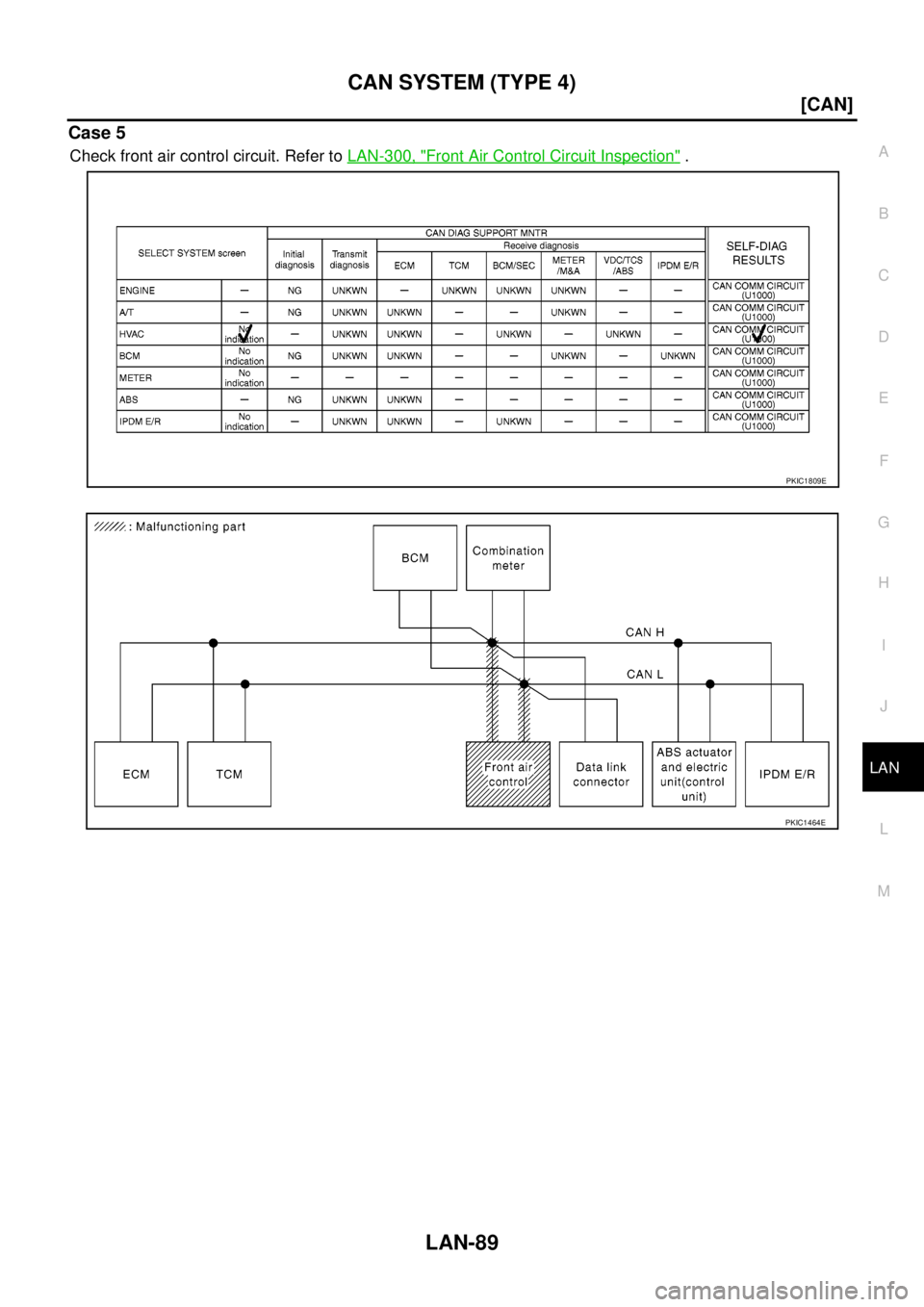

Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection".
PKIC1809E
PKIC1464E

LAN-90
[CAN]
CAN SYSTEM (TYPE 4)
Case 6

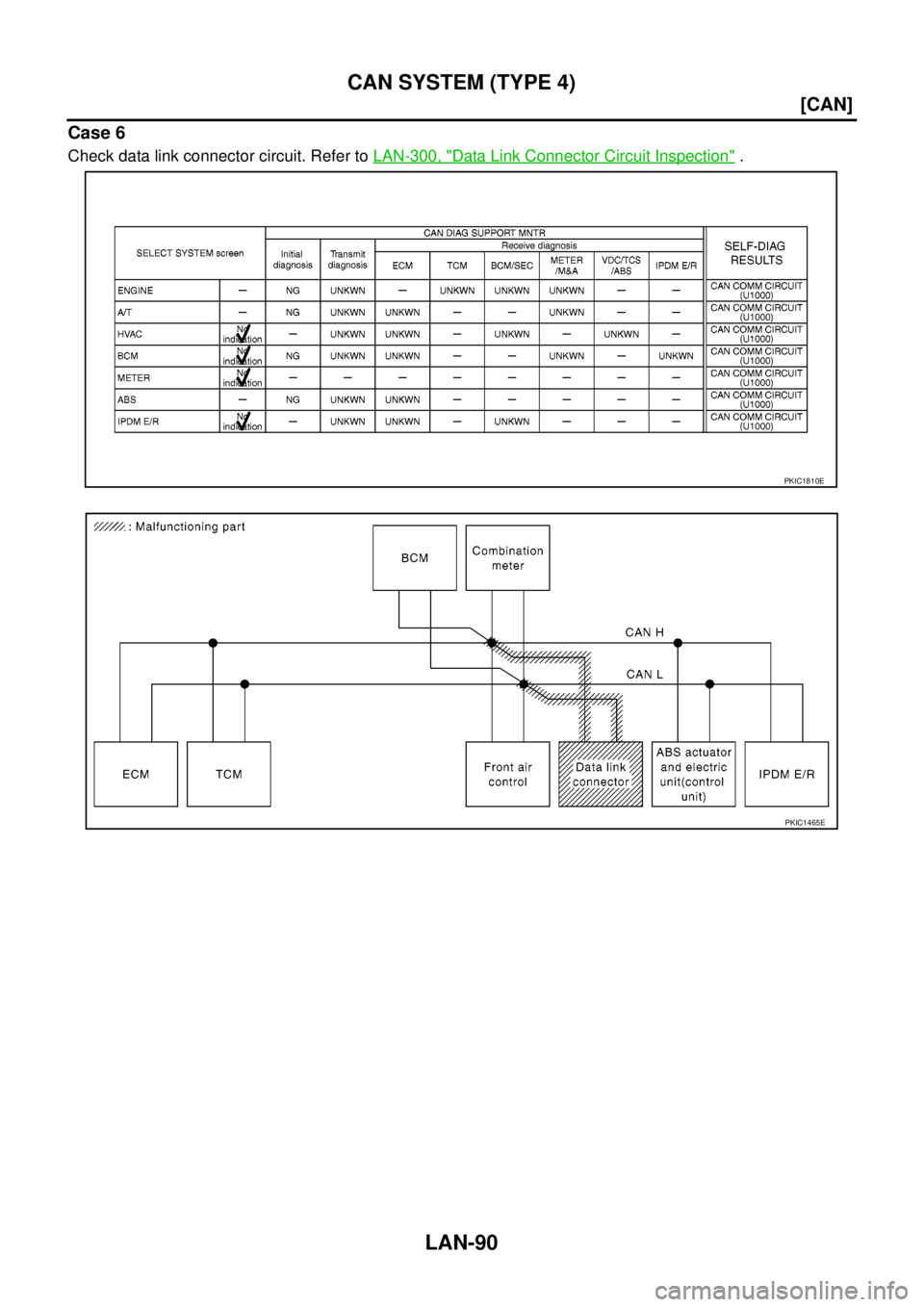

Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection".
PKIC1810E
PKIC1465E

CAN SYSTEM (TYPE 4)
LAN-91
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 7

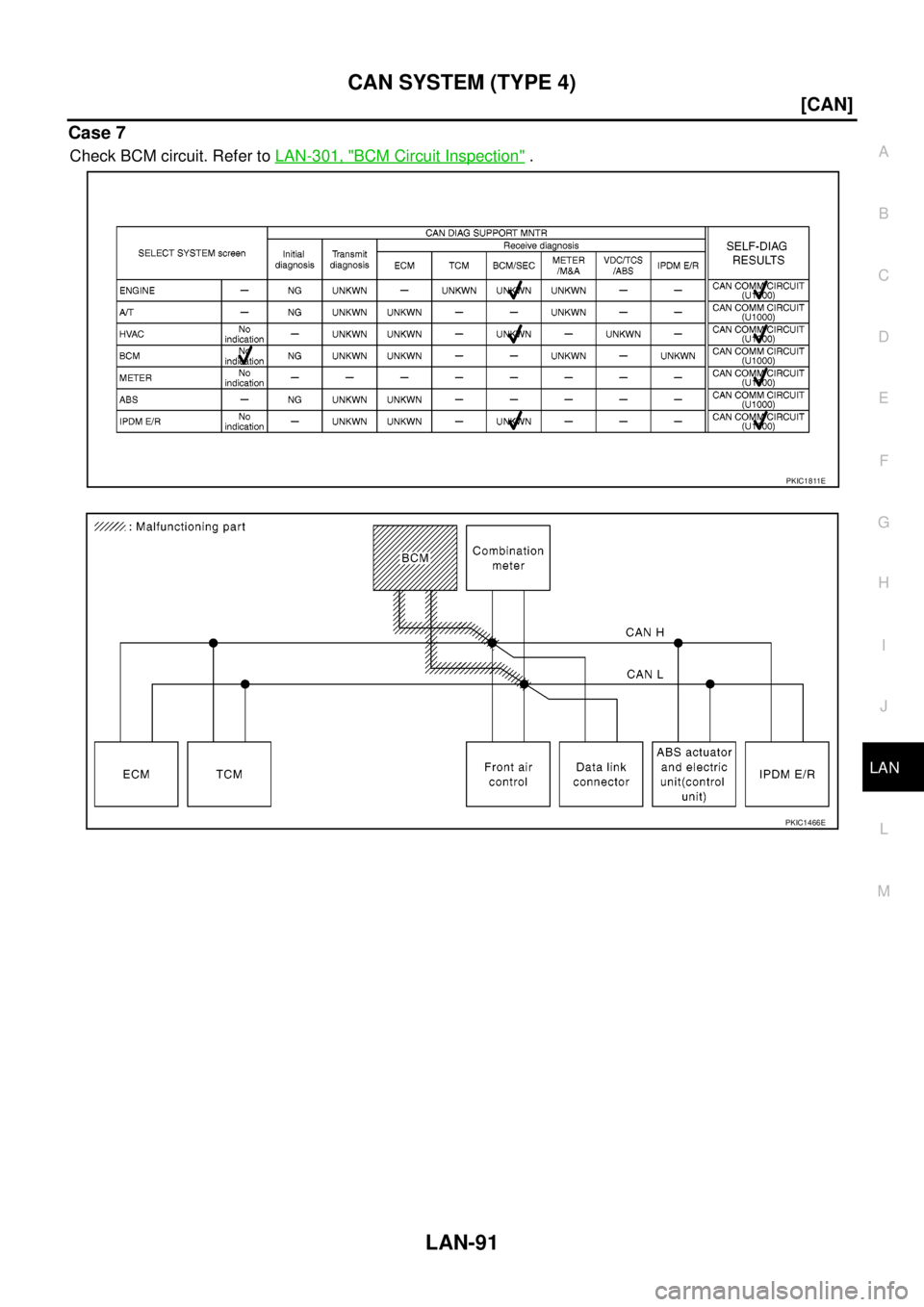

Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection".
PKIC1811E
PKIC1466E

LAN-92
[CAN]
CAN SYSTEM (TYPE 4)
Case 8

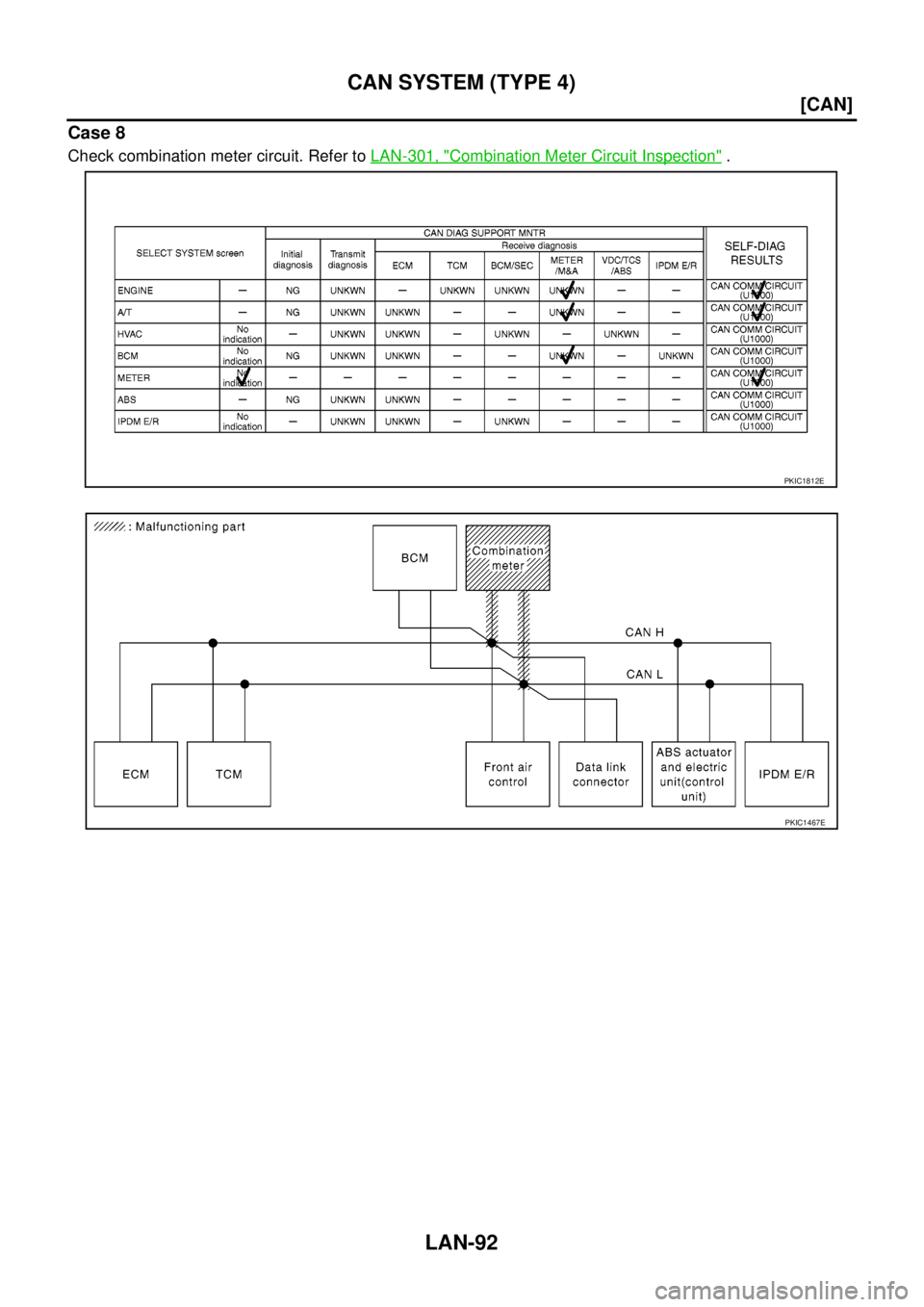

Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection".
PKIC1812E
PKIC1467E

CAN SYSTEM (TYPE 4)
LAN-93
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 9

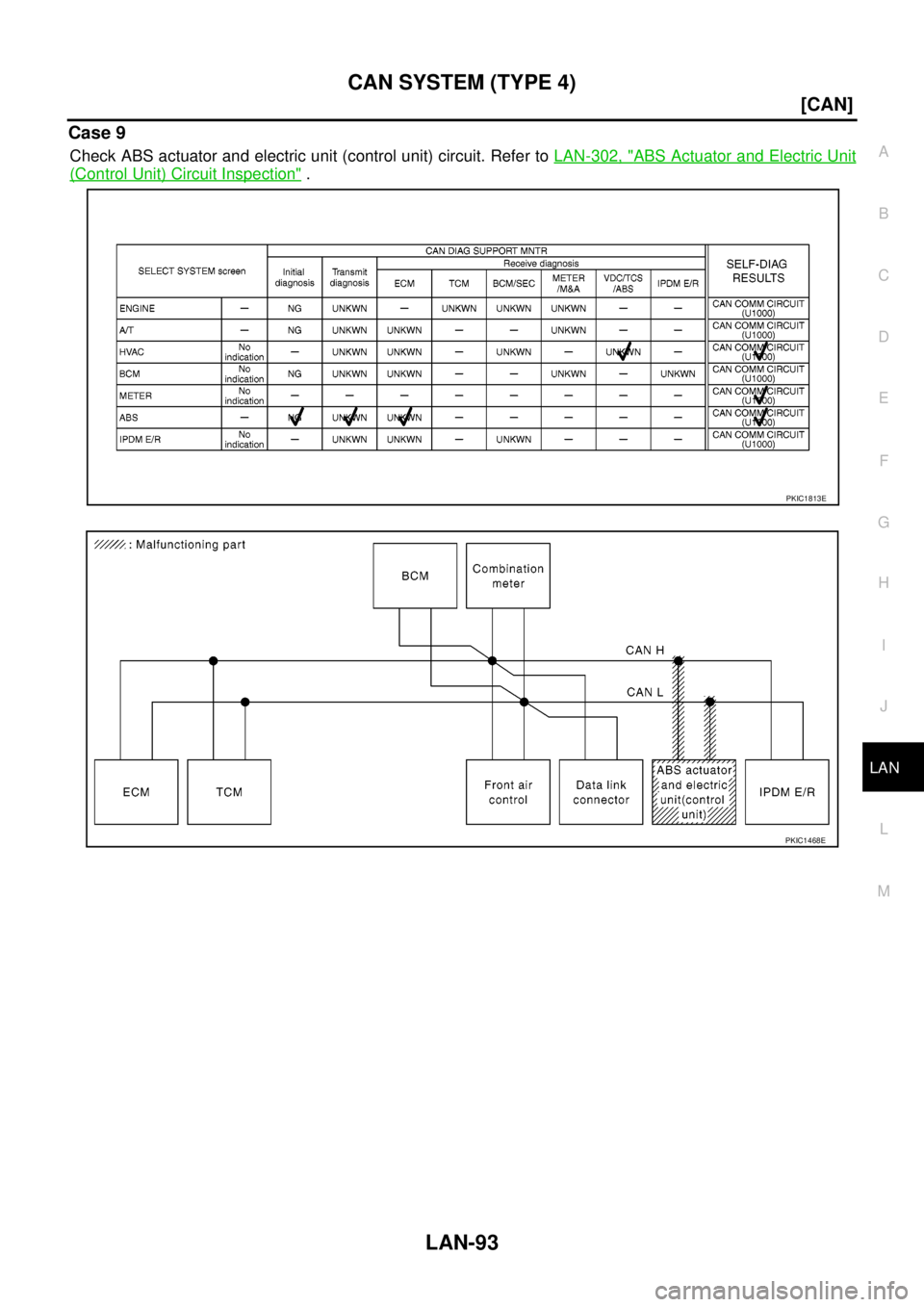

Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection".
PKIC1813E
PKIC1468E
