LAN-124
[CAN]
CAN SYSTEM (TYPE 6)
Case 11
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
Case 12
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
PKIC1843E
PKIC1844E
Page 1902 of 3171
CAN SYSTEM (TYPE 7)
LAN-125
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CAN SYSTEM (TYPE 7)PFP:23710
Component Parts and Harness Connector LocationEKS00OEB
Refer toLAN-23, "Component Parts and Harness Connector Location".
SchematicEKS00OEC
Refer toLAN-25, "Schematic".
Wiring Diagram — CAN —EKS00OED
Refer toLAN-26, "Wiring Diagram—CAN—".
Page 1903 of 3171
LAN-126
[CAN]
CAN SYSTEM (TYPE 7)

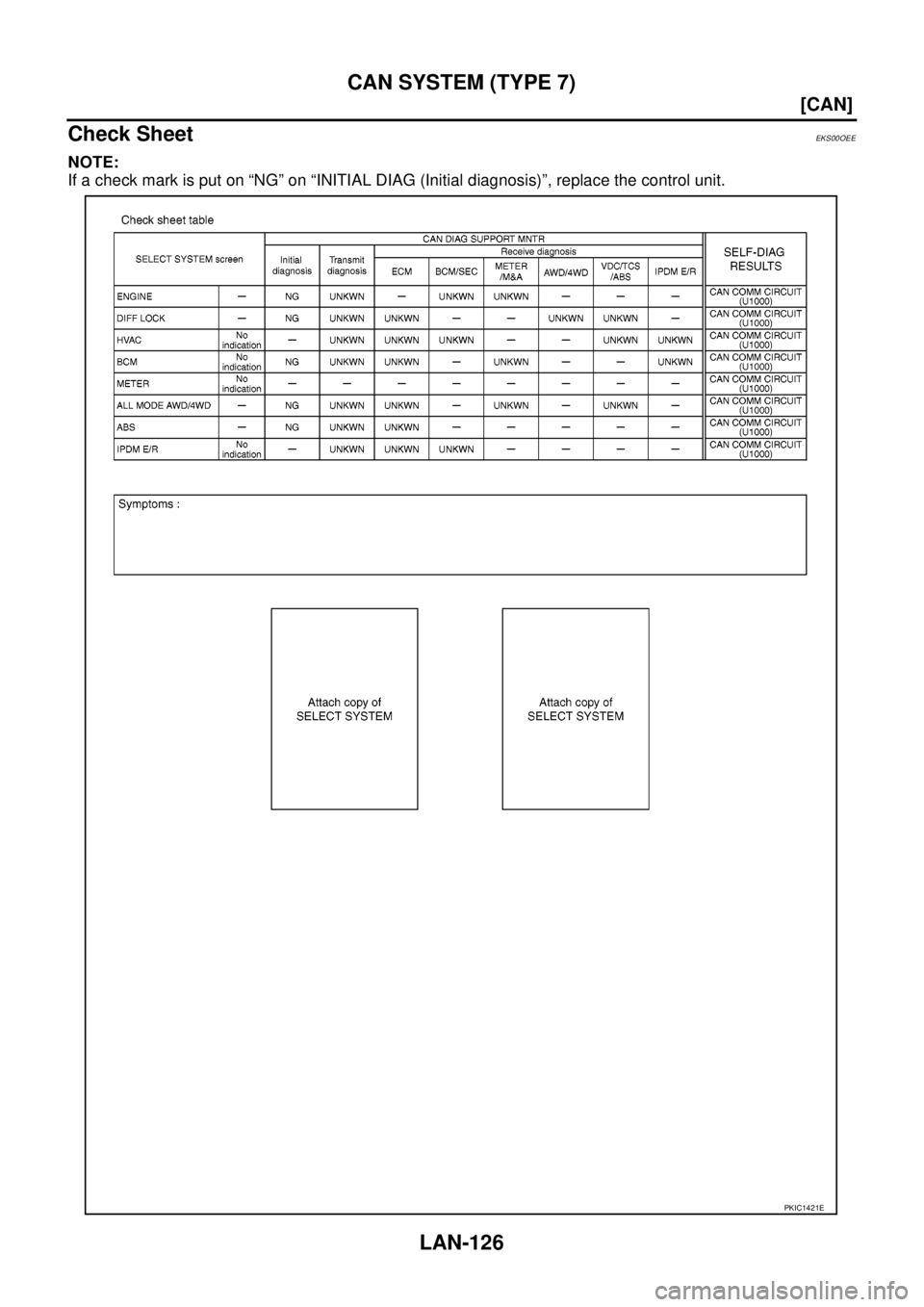

Check Sheet
EKS00OEE
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC1421E
Page 1904 of 3171
CAN SYSTEM (TYPE 7)
LAN-127
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

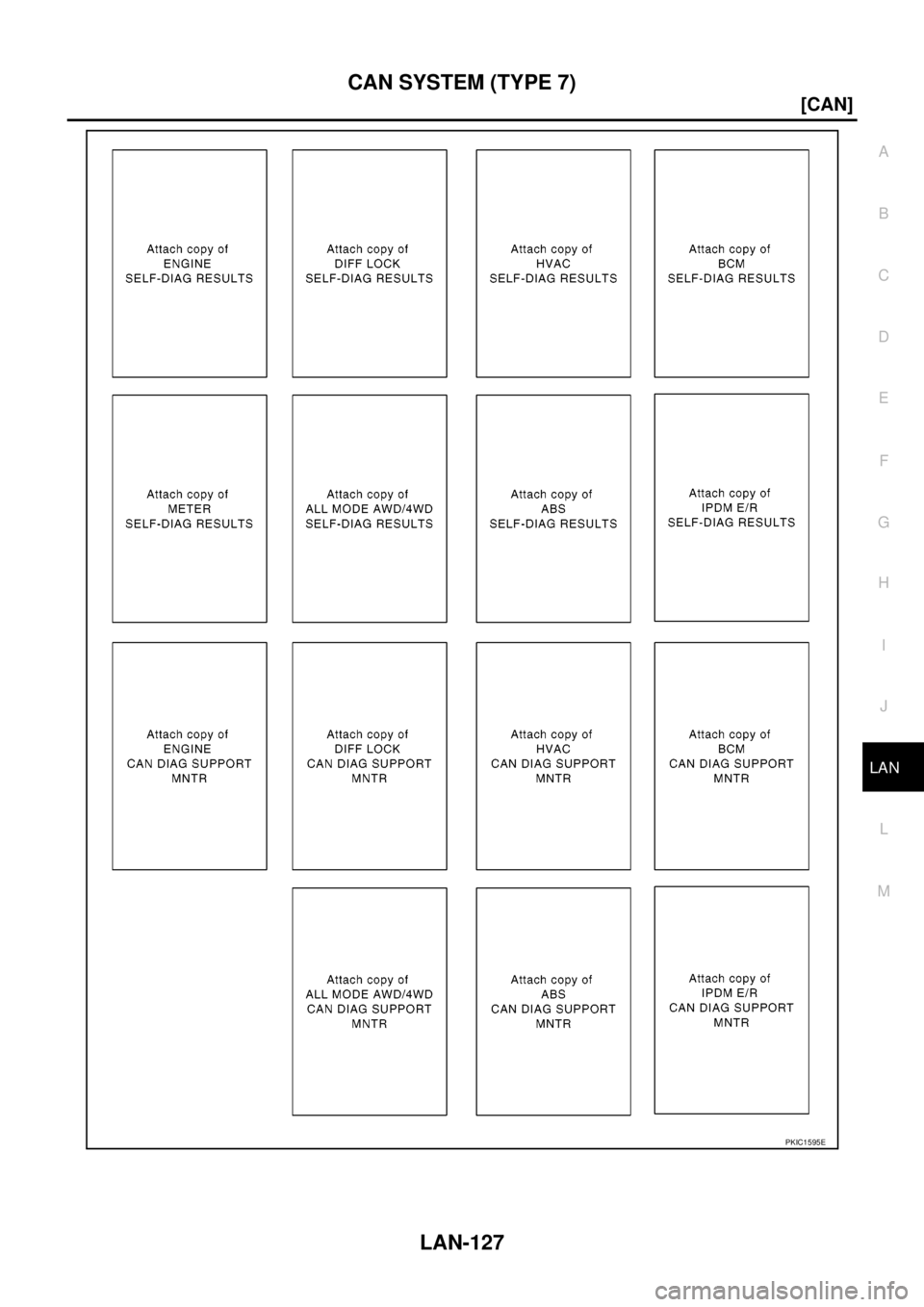

PKIC1595E
Page 1905 of 3171
LAN-128
[CAN]
CAN SYSTEM (TYPE 7)
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to
LAN-296, "
Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"
.
PKIC1845E
PKIC1491E
Page 1906 of 3171
CAN SYSTEM (TYPE 7)
LAN-129
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 2

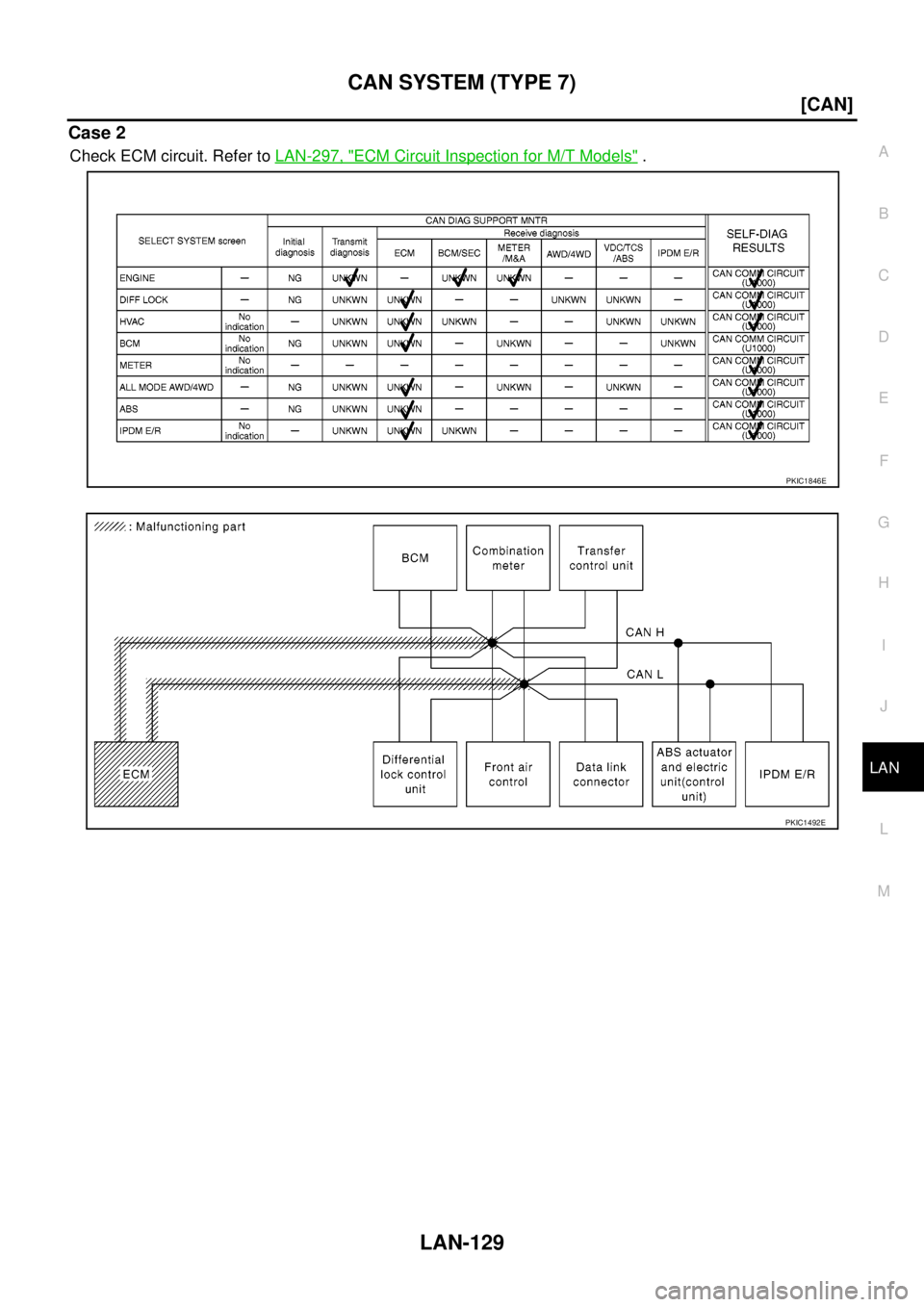

Check ECM circuit. Refer toLAN-297, "ECM Circuit Inspection for M/T Models".
PKIC1846E
PKIC1492E
Page 1907 of 3171
LAN-130
[CAN]
CAN SYSTEM (TYPE 7)

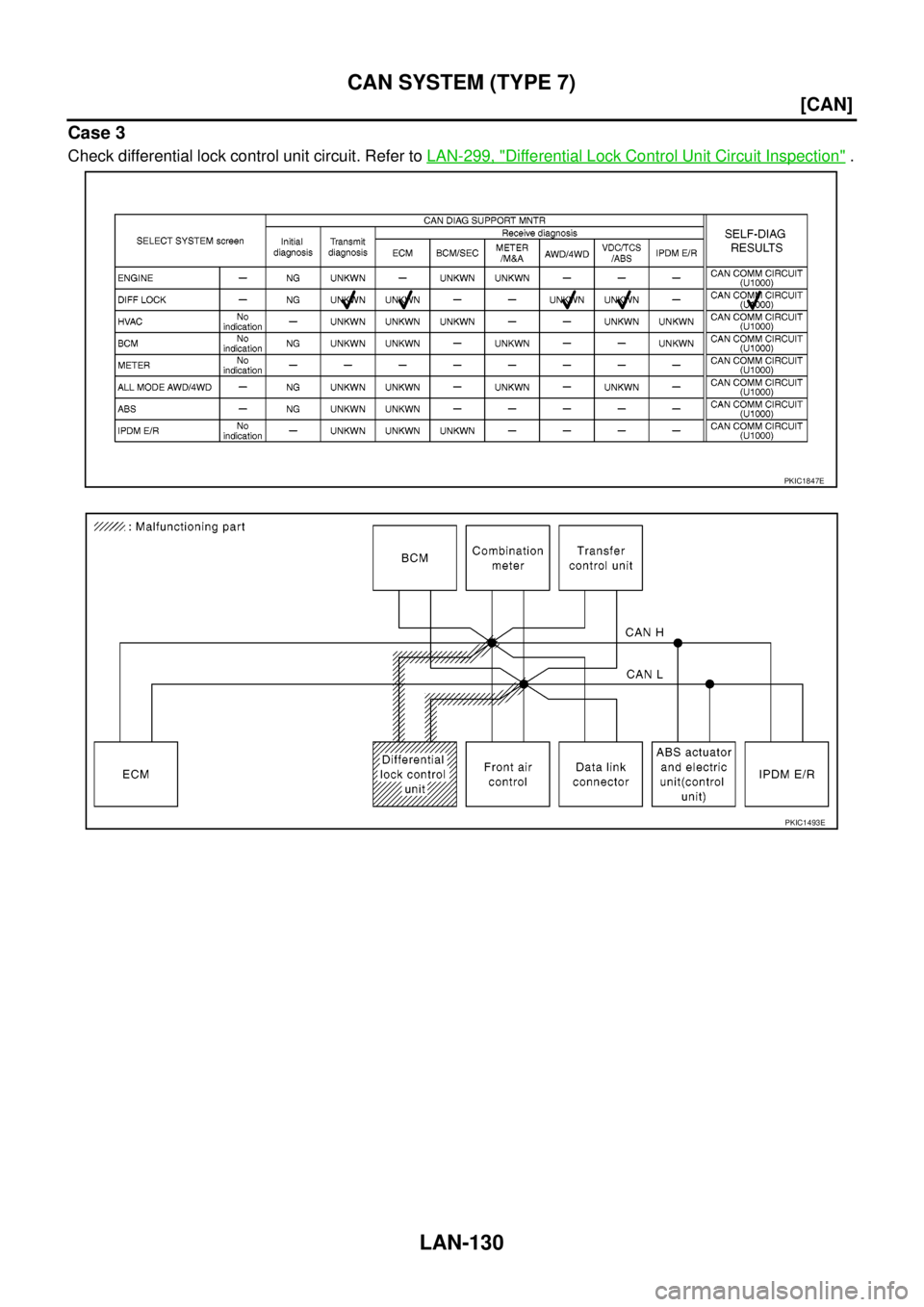

Case 3
Check differential lock control unit circuit. Refer toLAN-299, "Differential Lock Control Unit Circuit Inspection".
PKIC1847E
PKIC1493E
Page 1908 of 3171
CAN SYSTEM (TYPE 7)
LAN-131
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 4
Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection".
PKIC1848E
PKIC1494E
Page 1909 of 3171
LAN-132
[CAN]
CAN SYSTEM (TYPE 7)
Case 5

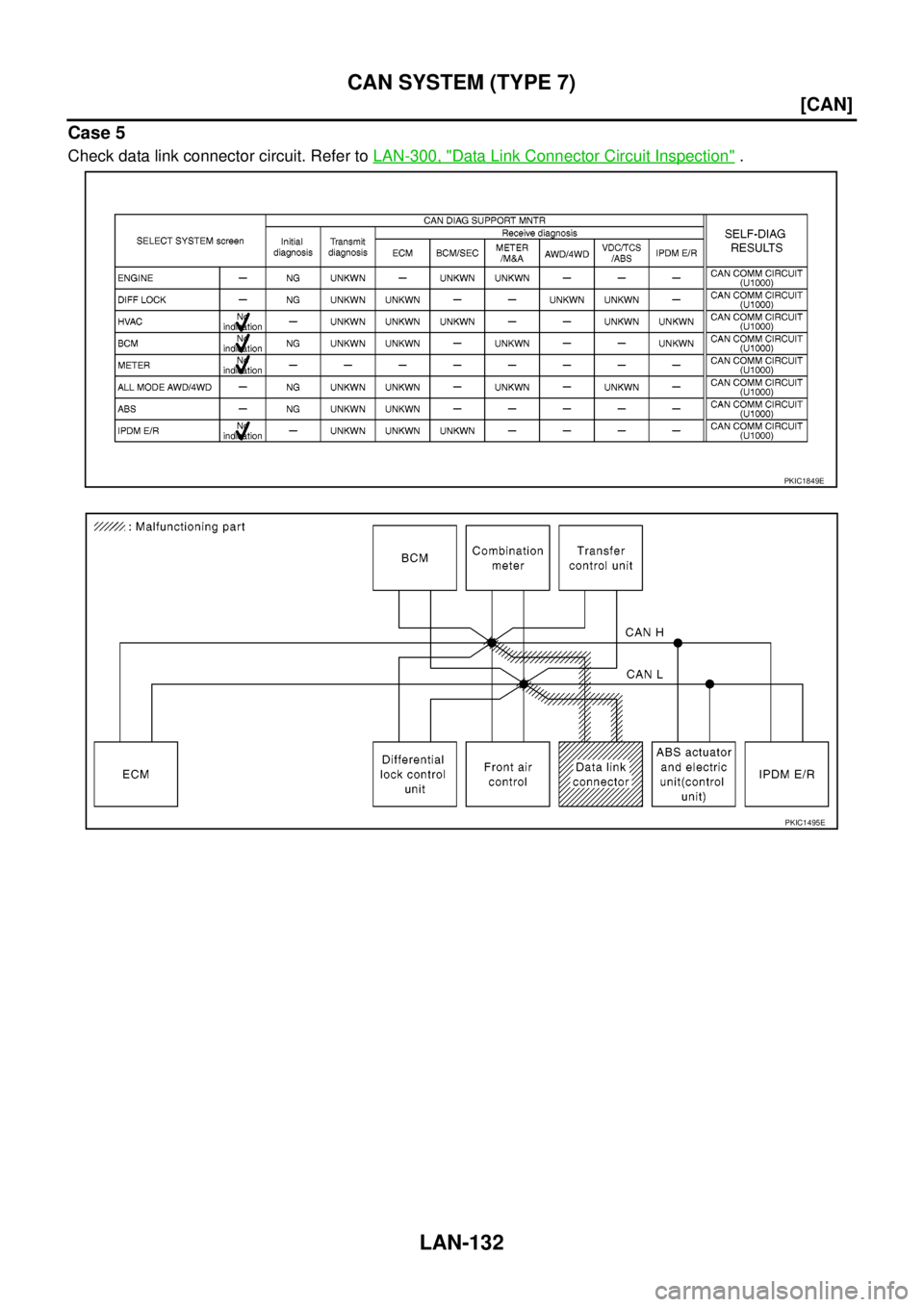

Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection".
PKIC1849E
PKIC1495E
Page 1910 of 3171
CAN SYSTEM (TYPE 7)
LAN-133
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 6

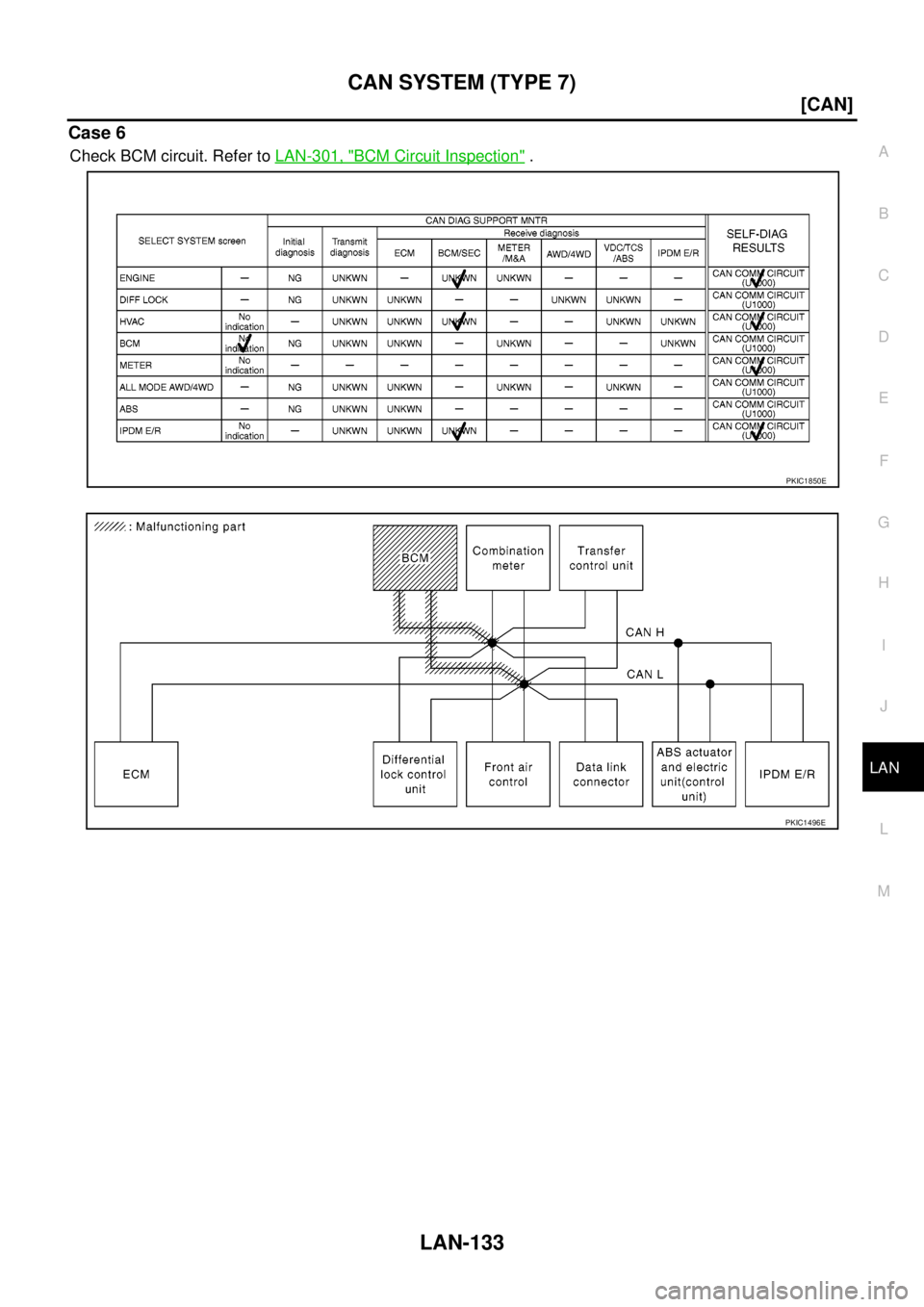

Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection".
PKIC1850E
PKIC1496E
