Page 1851 of 3171

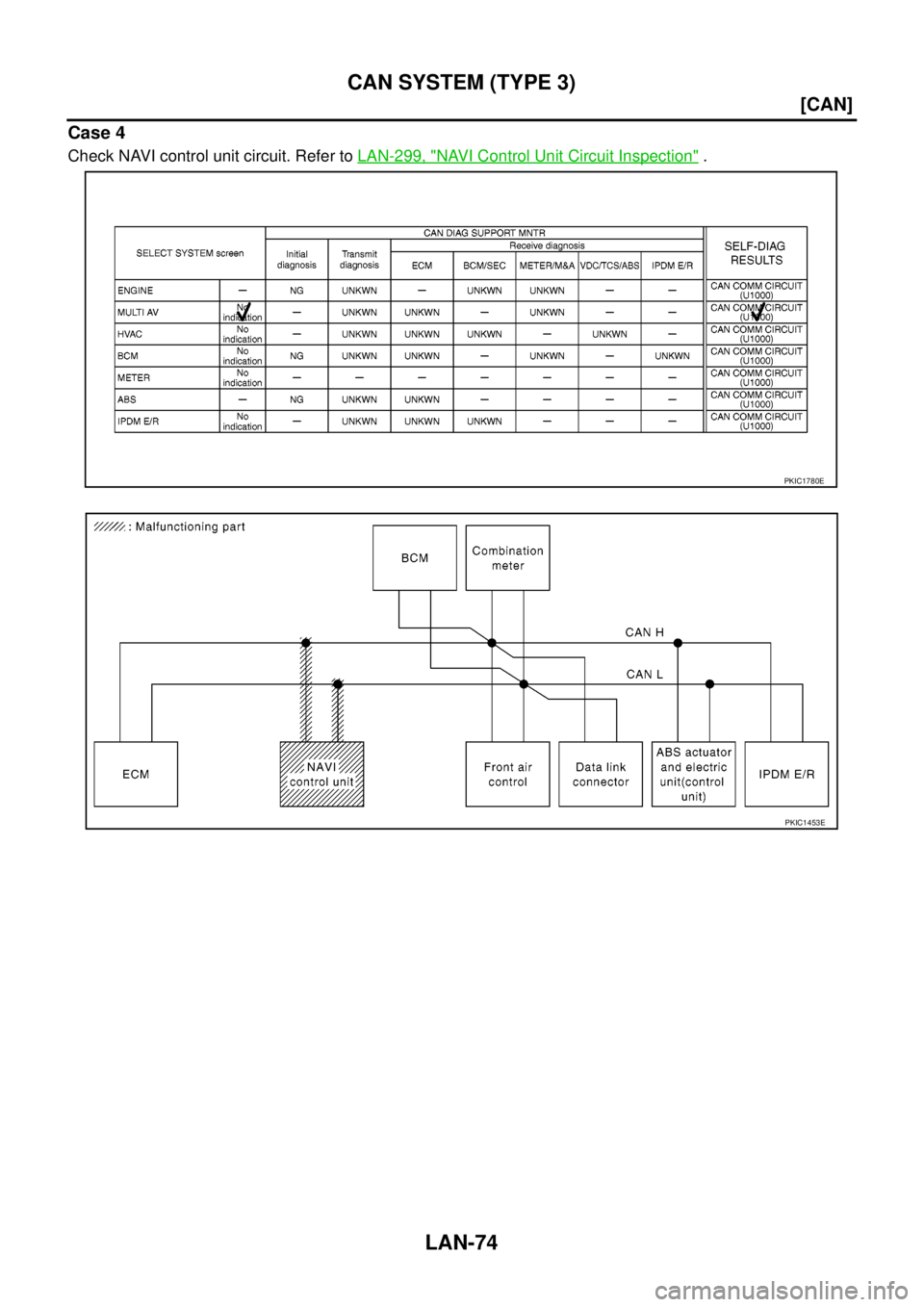

LAN-74
[CAN]
CAN SYSTEM (TYPE 3)
Case 4
Check NAVI control unit circuit. Refer toLAN-299, "NAVI Control Unit Circuit Inspection".
PKIC1780E
PKIC1453E
Page 1852 of 3171
CAN SYSTEM (TYPE 3)
LAN-75
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

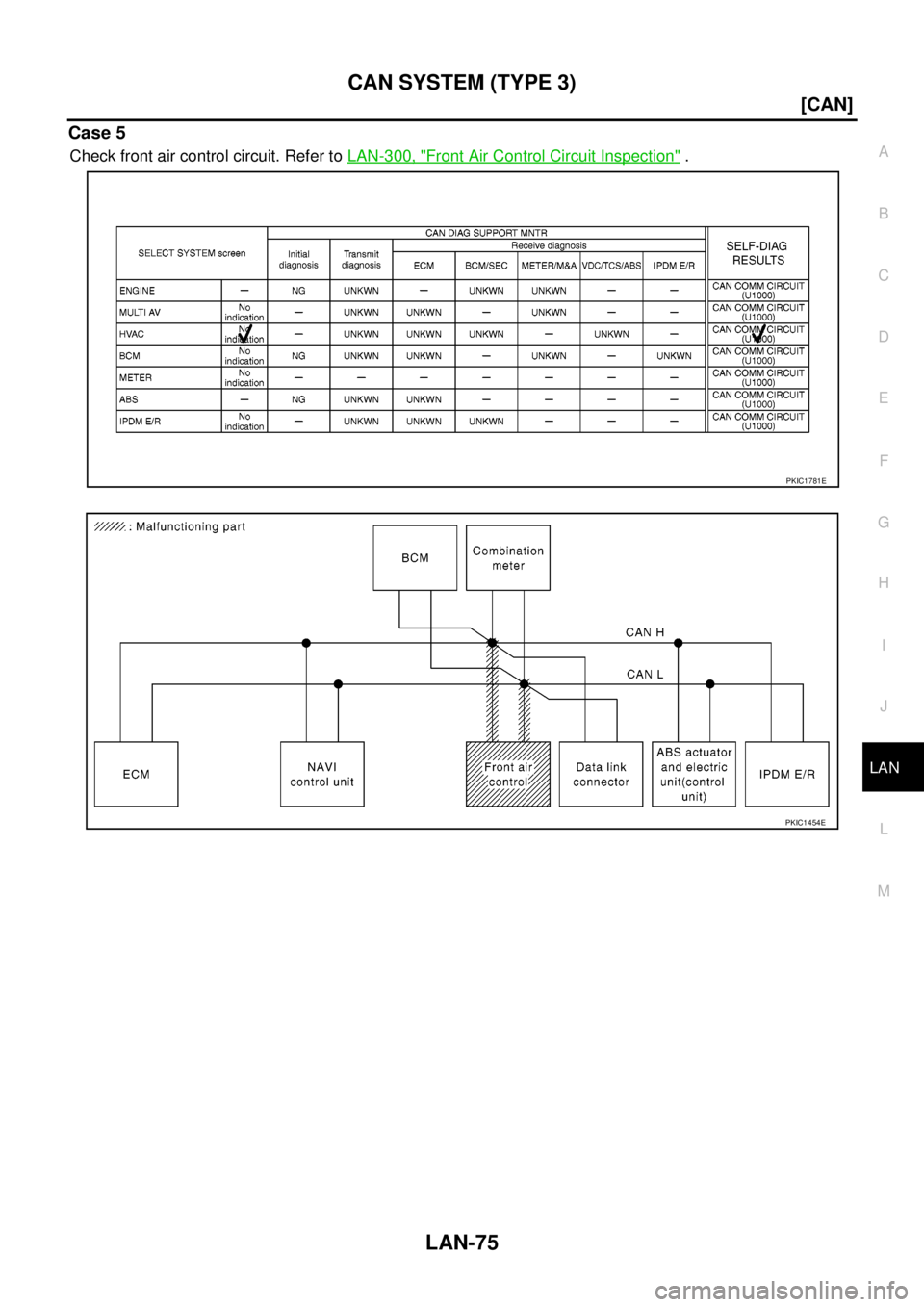

Case 5
Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection".
PKIC1781E
PKIC1454E
Page 1853 of 3171

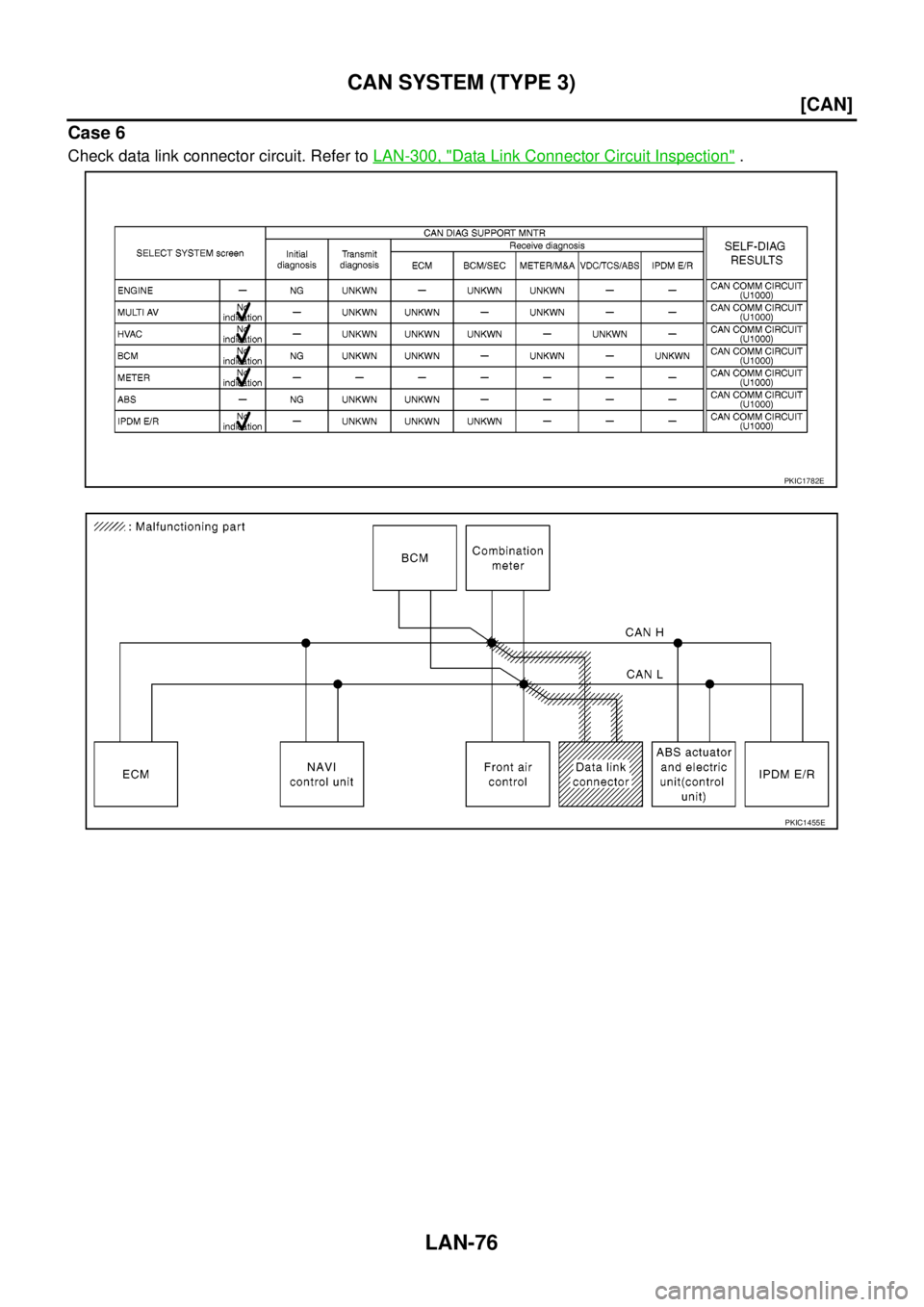

LAN-76
[CAN]
CAN SYSTEM (TYPE 3)
Case 6
Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection".
PKIC1782E
PKIC1455E
Page 1854 of 3171
CAN SYSTEM (TYPE 3)
LAN-77
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

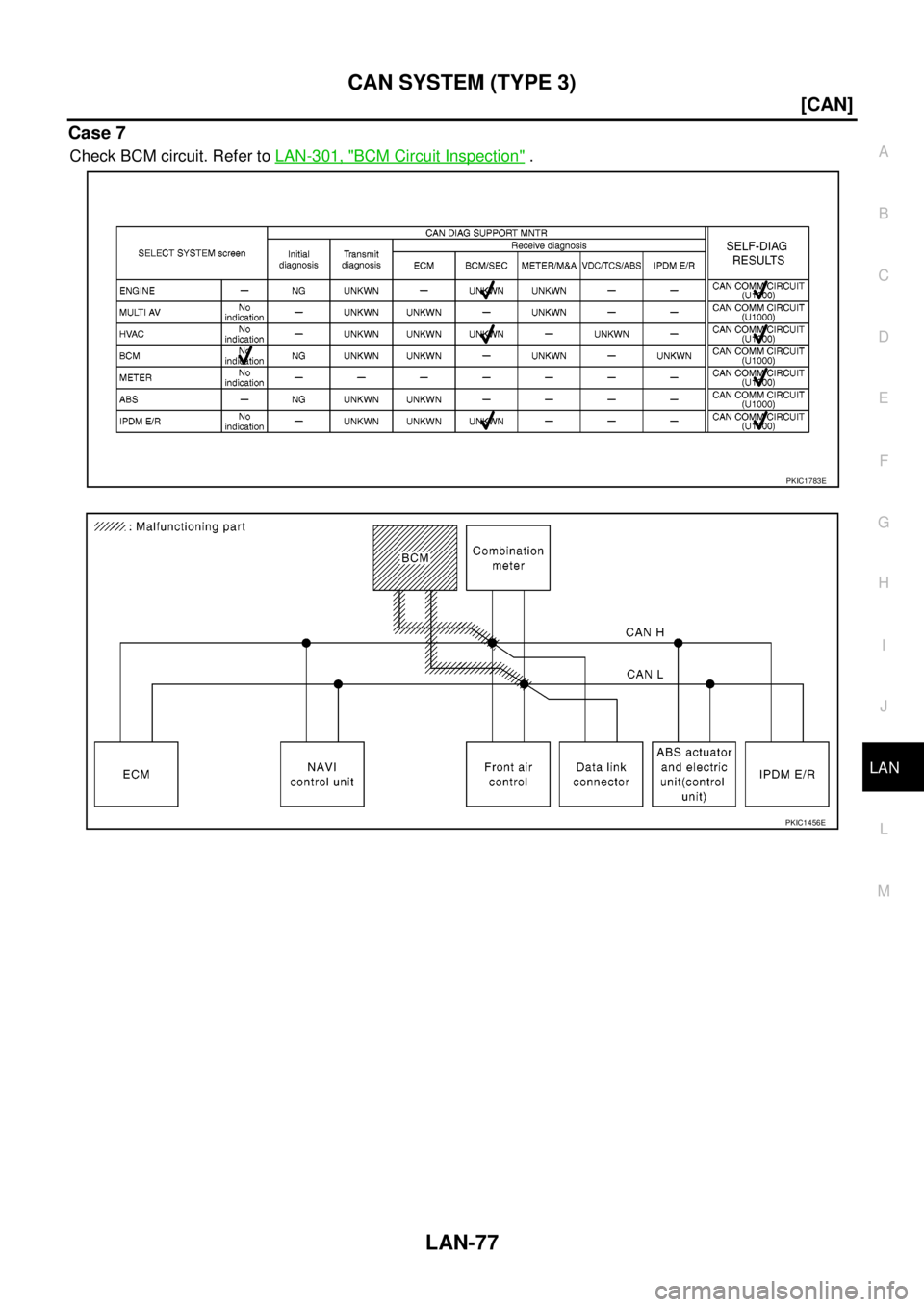

Case 7
Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection".
PKIC1783E
PKIC1456E
Page 1855 of 3171
LAN-78
[CAN]
CAN SYSTEM (TYPE 3)

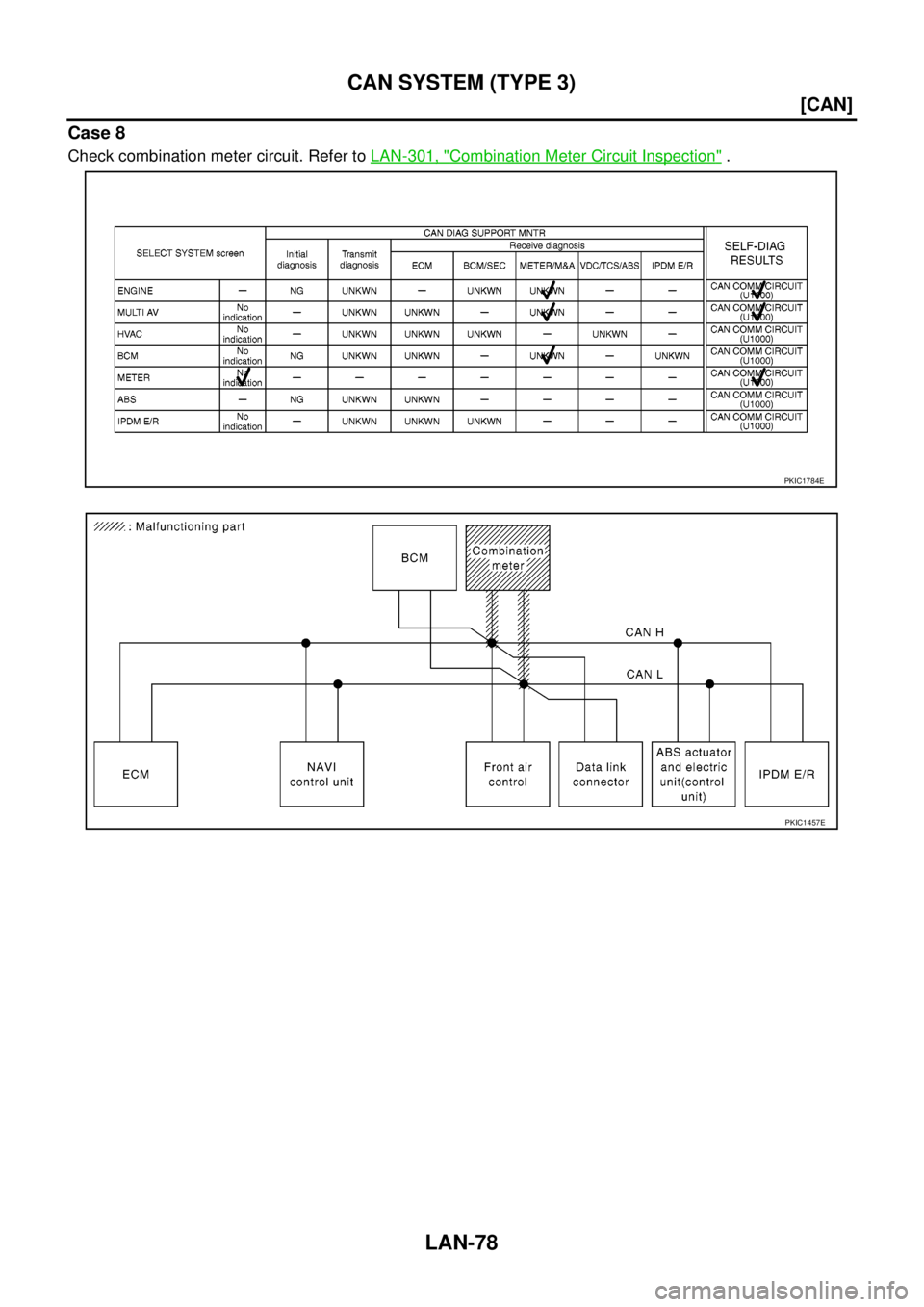

Case 8
Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection".
PKIC1784E
PKIC1457E
Page 1856 of 3171

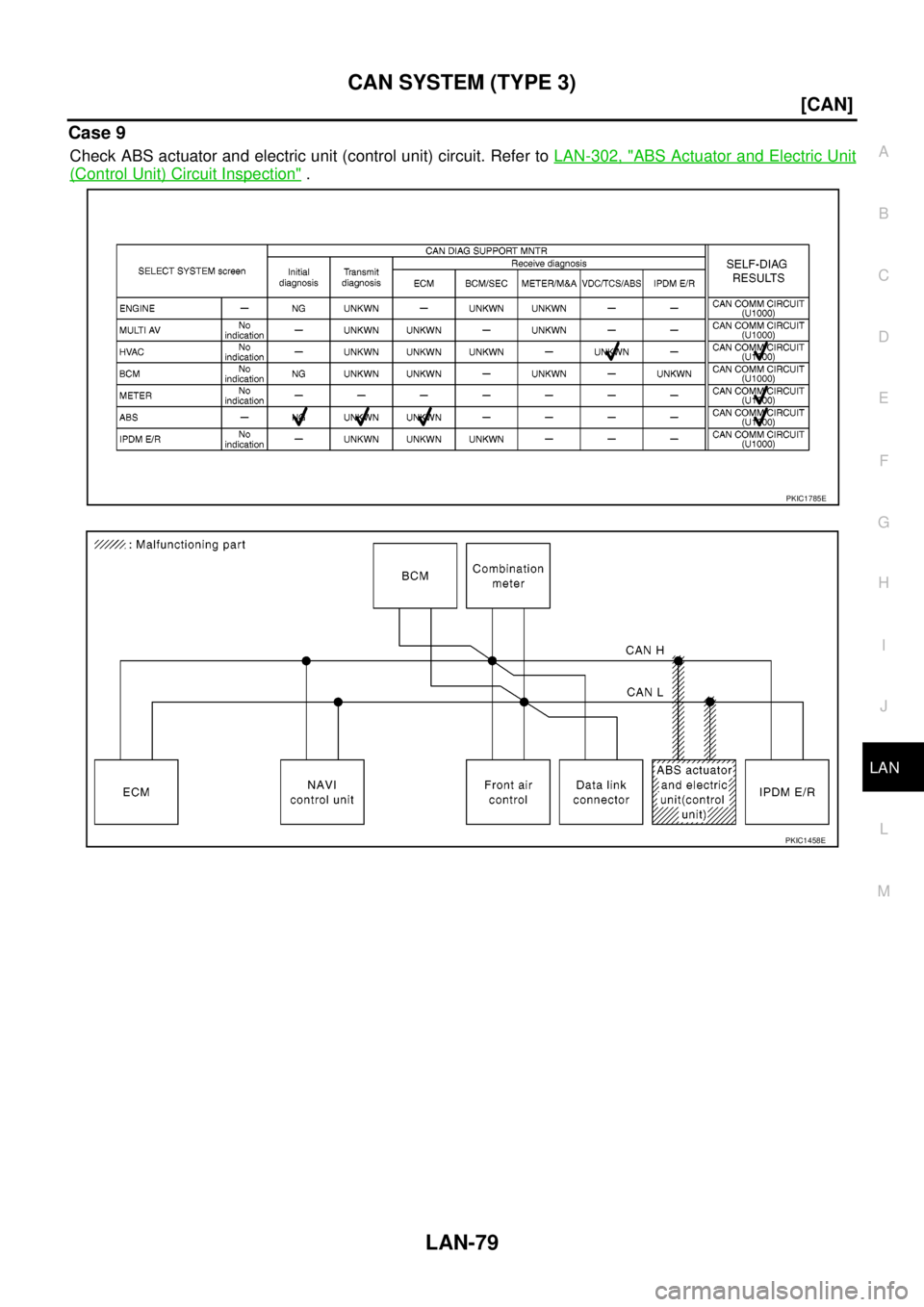

CAN SYSTEM (TYPE 3)
LAN-79
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 9
Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection".
PKIC1785E
PKIC1458E
Page 1857 of 3171

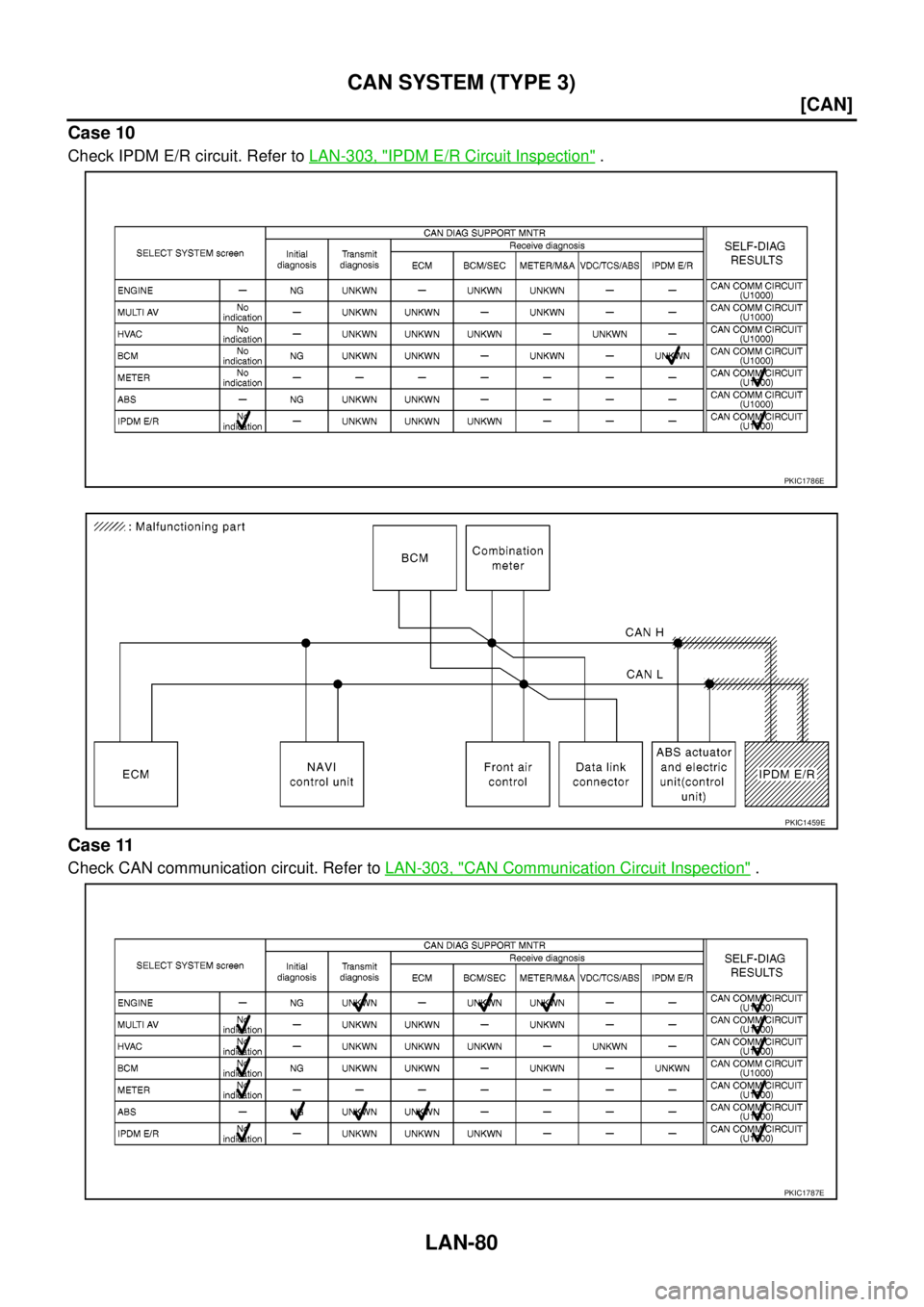

LAN-80
[CAN]
CAN SYSTEM (TYPE 3)
Case 10
Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection".
Case 11
Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit Inspection".
PKIC1786E
PKIC1459E
PKIC1787E
Page 1858 of 3171
CAN SYSTEM (TYPE 3)
LAN-81
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

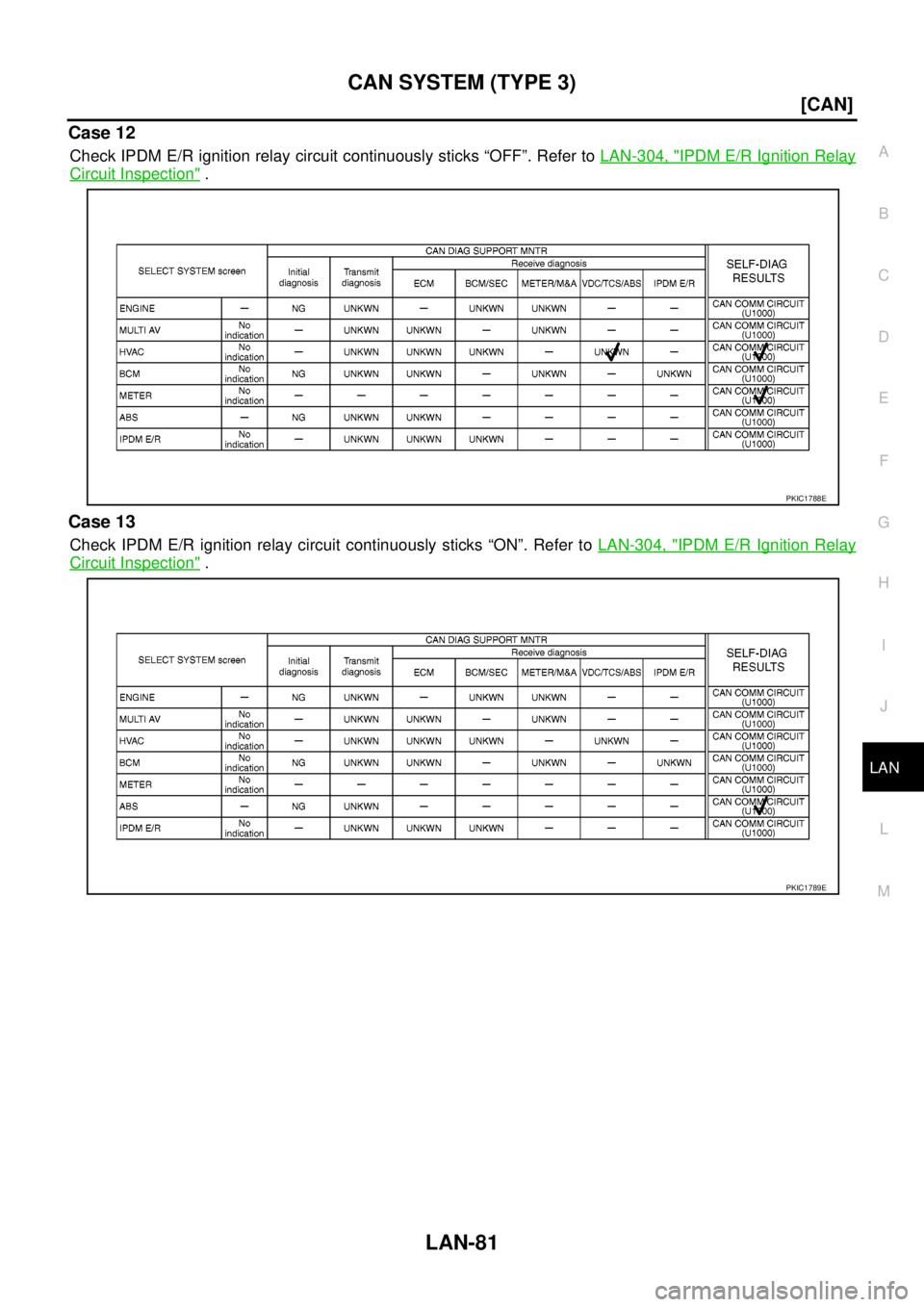

Case 12
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
Case 13
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
PKIC1788E
PKIC1789E
Page 1859 of 3171
LAN-82
[CAN]
CAN SYSTEM (TYPE 4)
CAN SYSTEM (TYPE 4)
PFP:23710
Component Parts and Harness Connector LocationEKS00OJZ
Refer toLAN-23, "Component Parts and Harness Connector Location".
SchematicEKS00OK0
Refer toLAN-25, "Schematic".
Wiring Diagram — CAN —EKS00OK1
Refer toLAN-26, "Wiring Diagram—CAN—".
Page 1860 of 3171
CAN SYSTEM (TYPE 4)
LAN-83
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

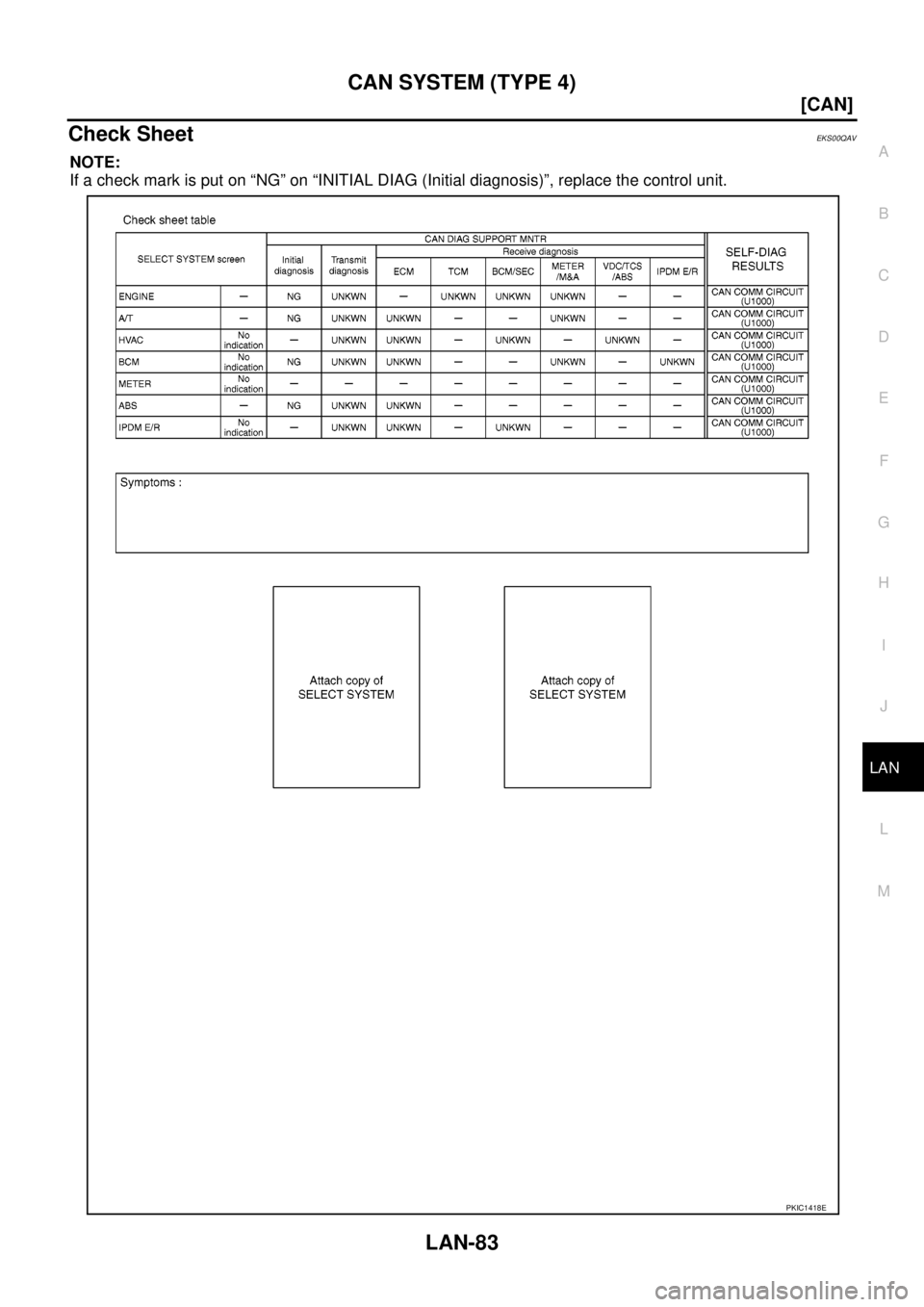

Check SheetEKS00QAV
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC1418E
