Page 1951 of 3171
LAN-174
[CAN]
CAN SYSTEM (TYPE 10)

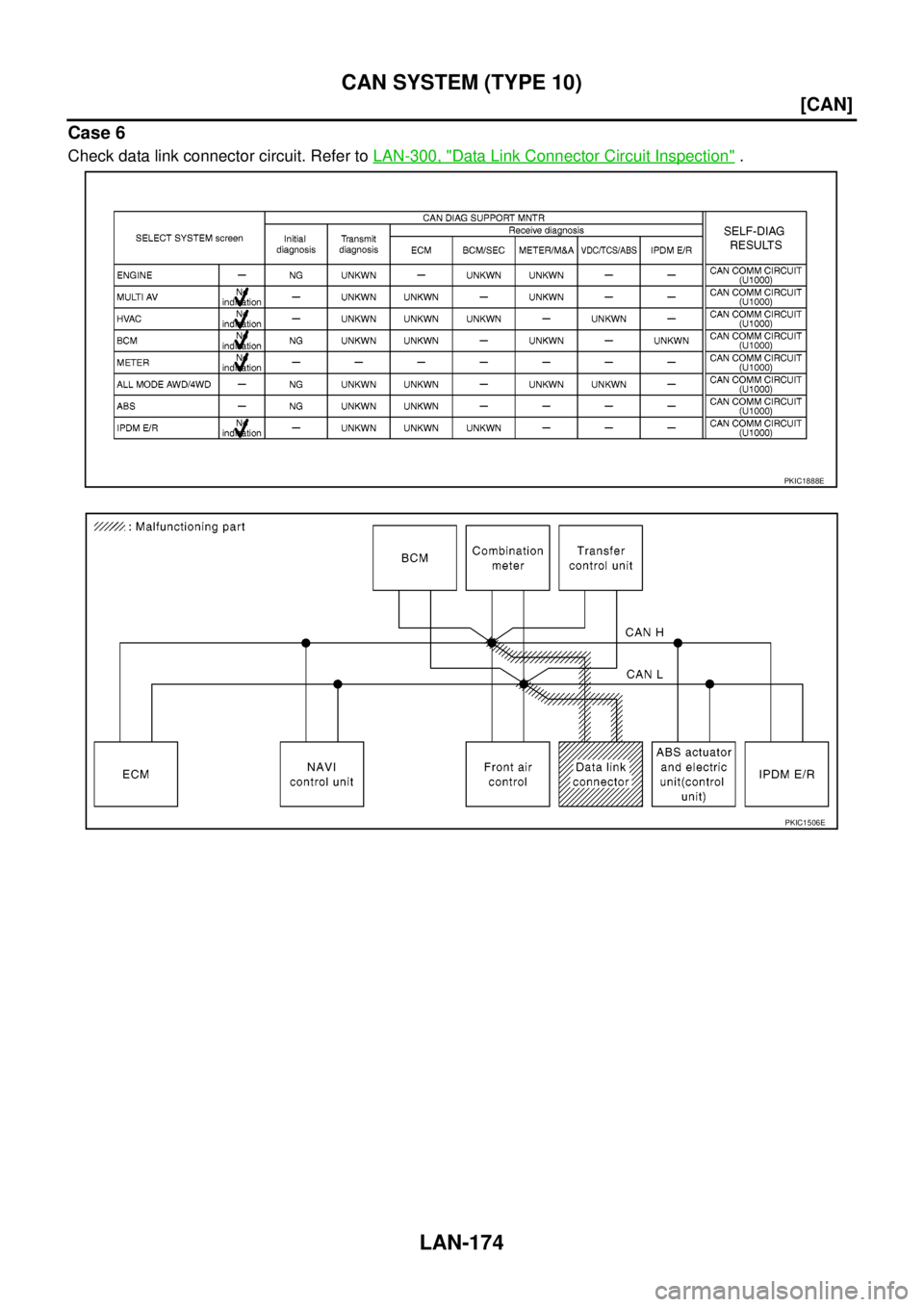

Case 6
Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection".
PKIC1888E
PKIC1506E
Page 1952 of 3171
CAN SYSTEM (TYPE 10)
LAN-175
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

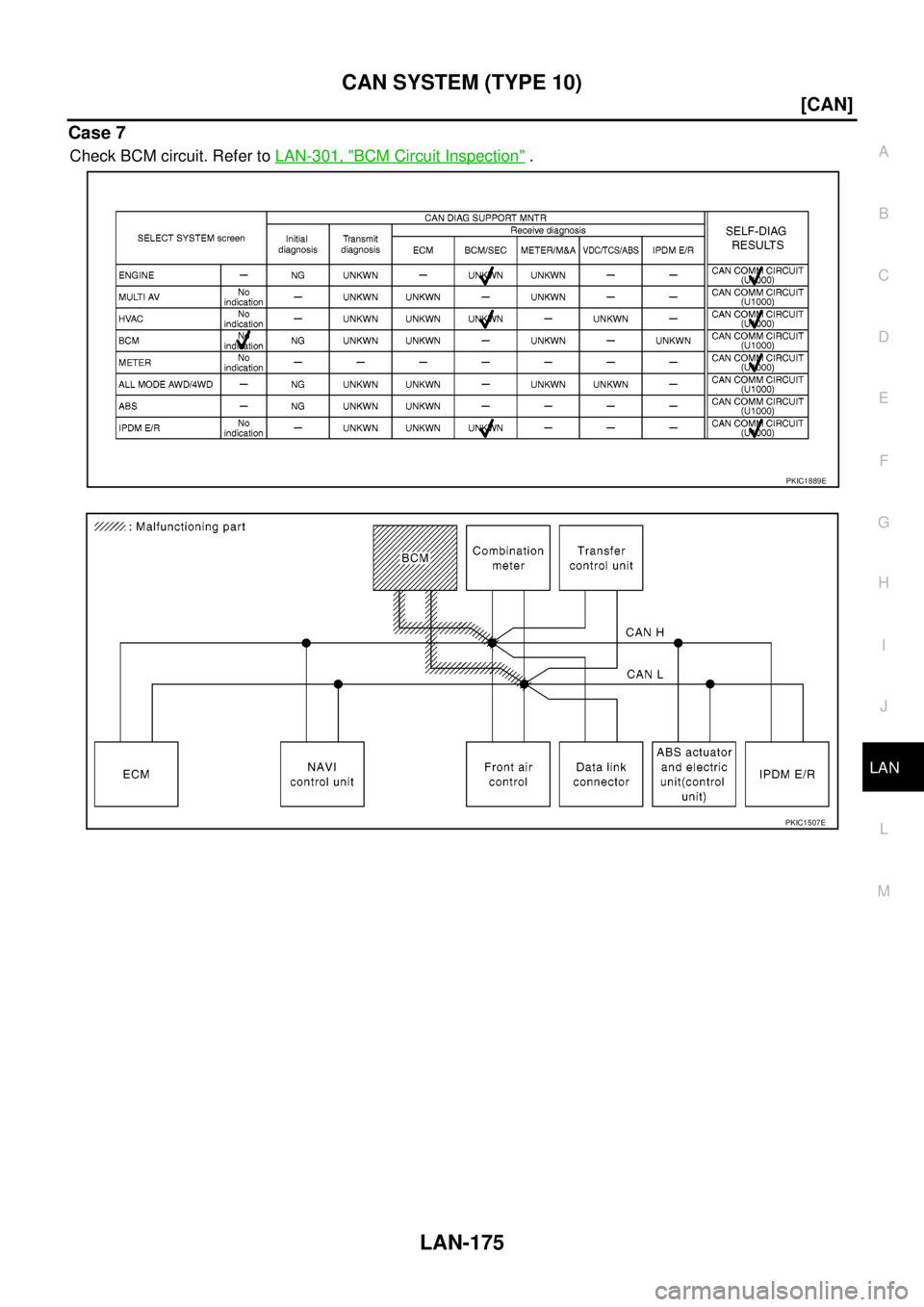

Case 7
Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection".
PKIC1889E
PKIC1507E
Page 1953 of 3171
LAN-176
[CAN]
CAN SYSTEM (TYPE 10)

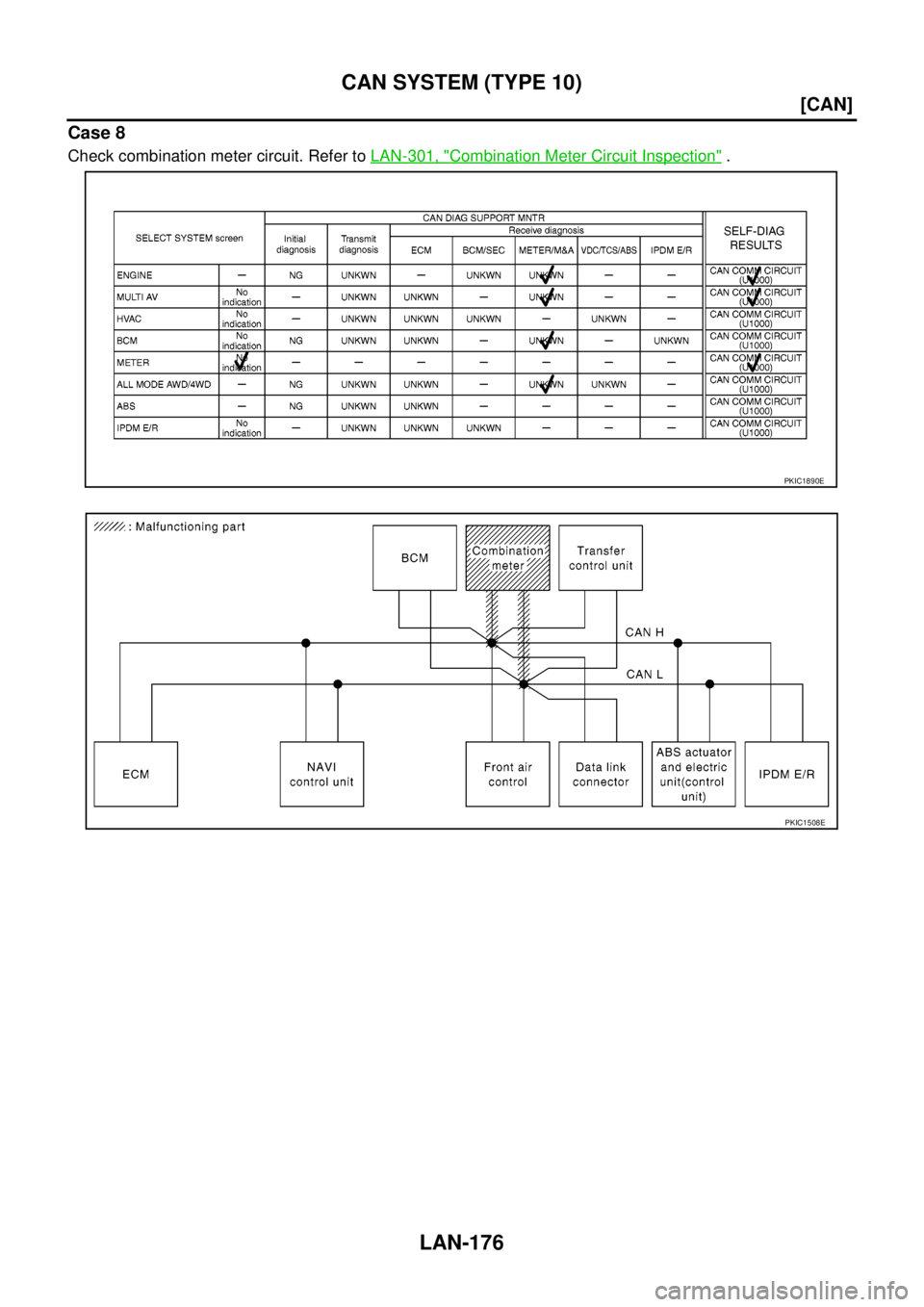

Case 8
Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection".
PKIC1890E
PKIC1508E
Page 1954 of 3171
CAN SYSTEM (TYPE 10)
LAN-177
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 9
Check transfer control unit circuit. Refer toLAN-302, "Transfer Control Unit Circuit Inspection".
PKIC1891E
PKIC1509E
Page 1955 of 3171
LAN-178
[CAN]
CAN SYSTEM (TYPE 10)

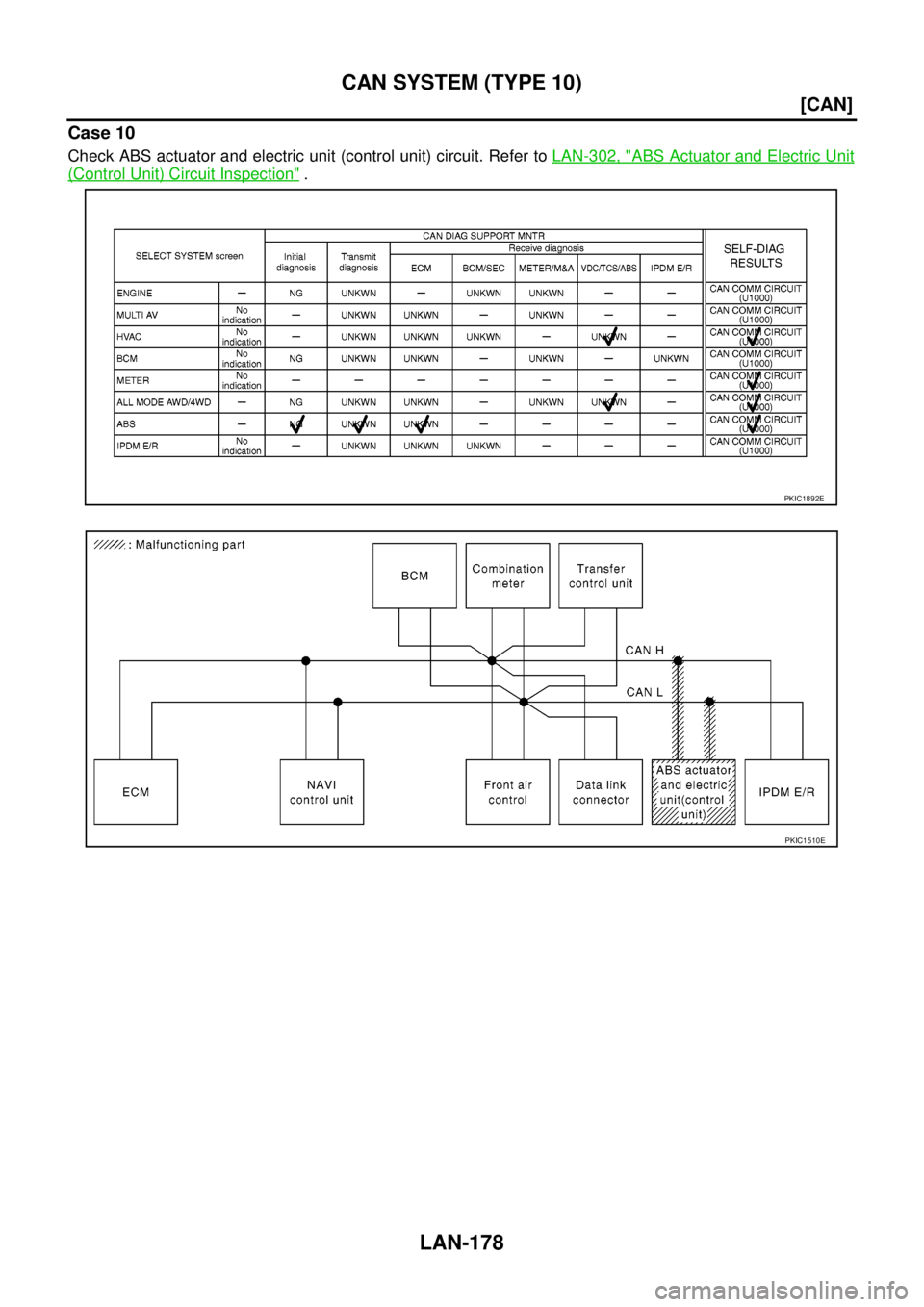

Case 10
Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection".
PKIC1892E
PKIC1510E
Page 1956 of 3171
CAN SYSTEM (TYPE 10)
LAN-179
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

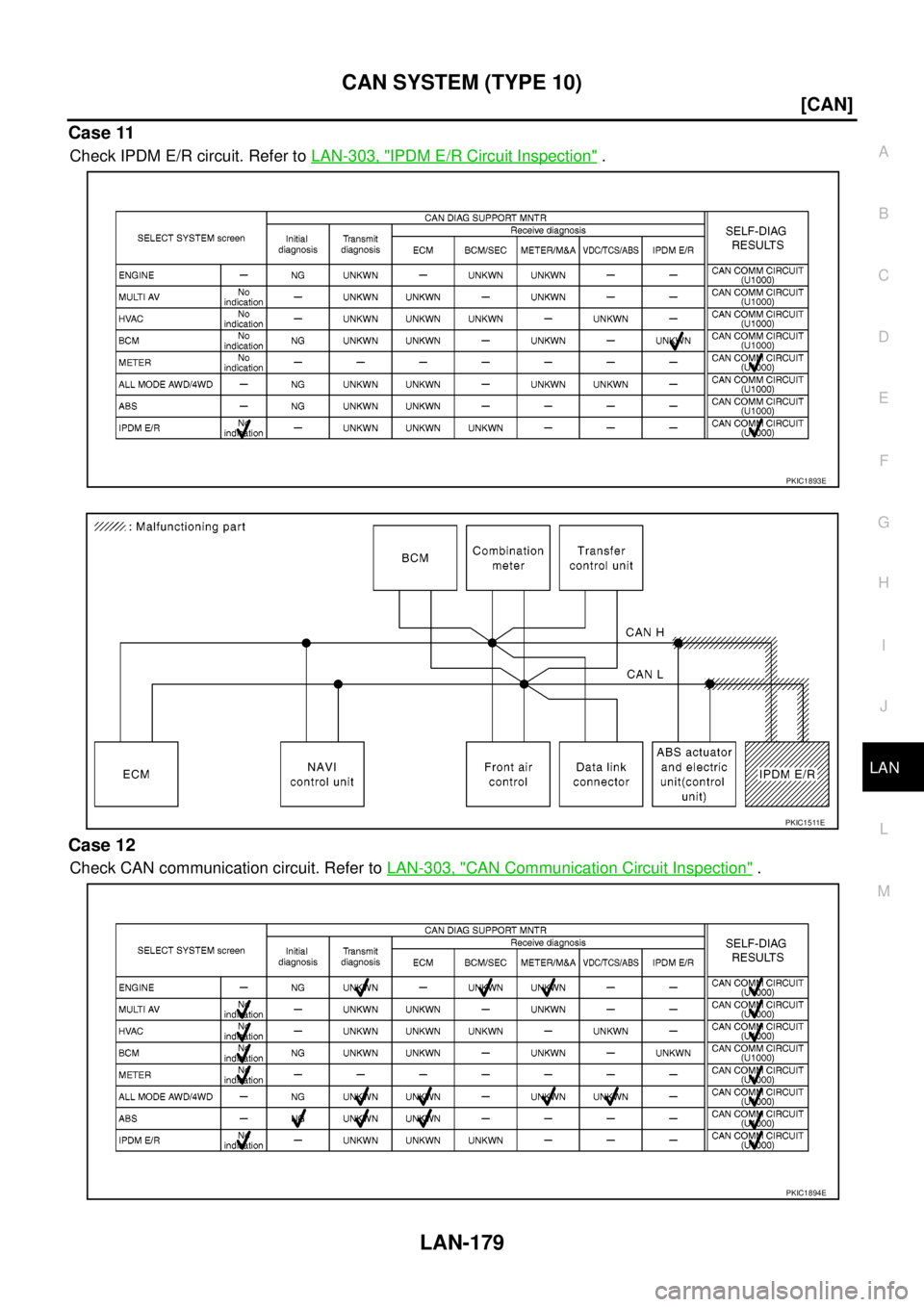

Case 11
Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection".
Case 12
Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit Inspection".
PKIC1893E
PKIC1511E
PKIC1894E
Page 1957 of 3171
LAN-180
[CAN]
CAN SYSTEM (TYPE 10)

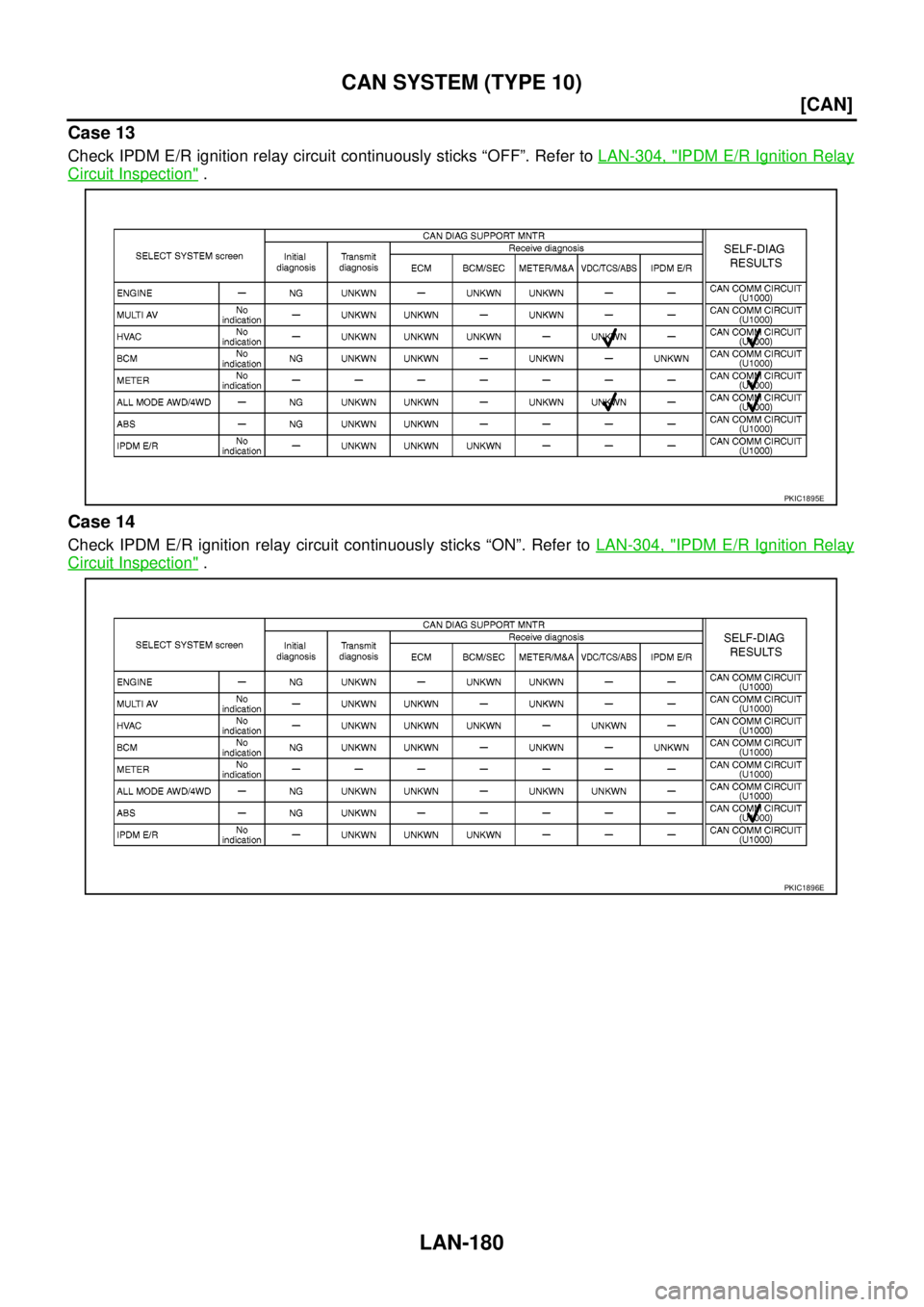

Case 13
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
Case 14
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
PKIC1895E
PKIC1896E
Page 1958 of 3171
CAN SYSTEM (TYPE 11)
LAN-181
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CAN SYSTEM (TYPE 11)PFP:23710
Component Parts and Harness Connector LocationEKS00OF3
Refer toLAN-23, "Component Parts and Harness Connector Location".
SchematicEKS00OF4
Refer toLAN-25, "Schematic".
Wiring Diagram — CAN —EKS00OF5
Refer toLAN-26, "Wiring Diagram—CAN—".
Page 1959 of 3171
LAN-182
[CAN]
CAN SYSTEM (TYPE 11)

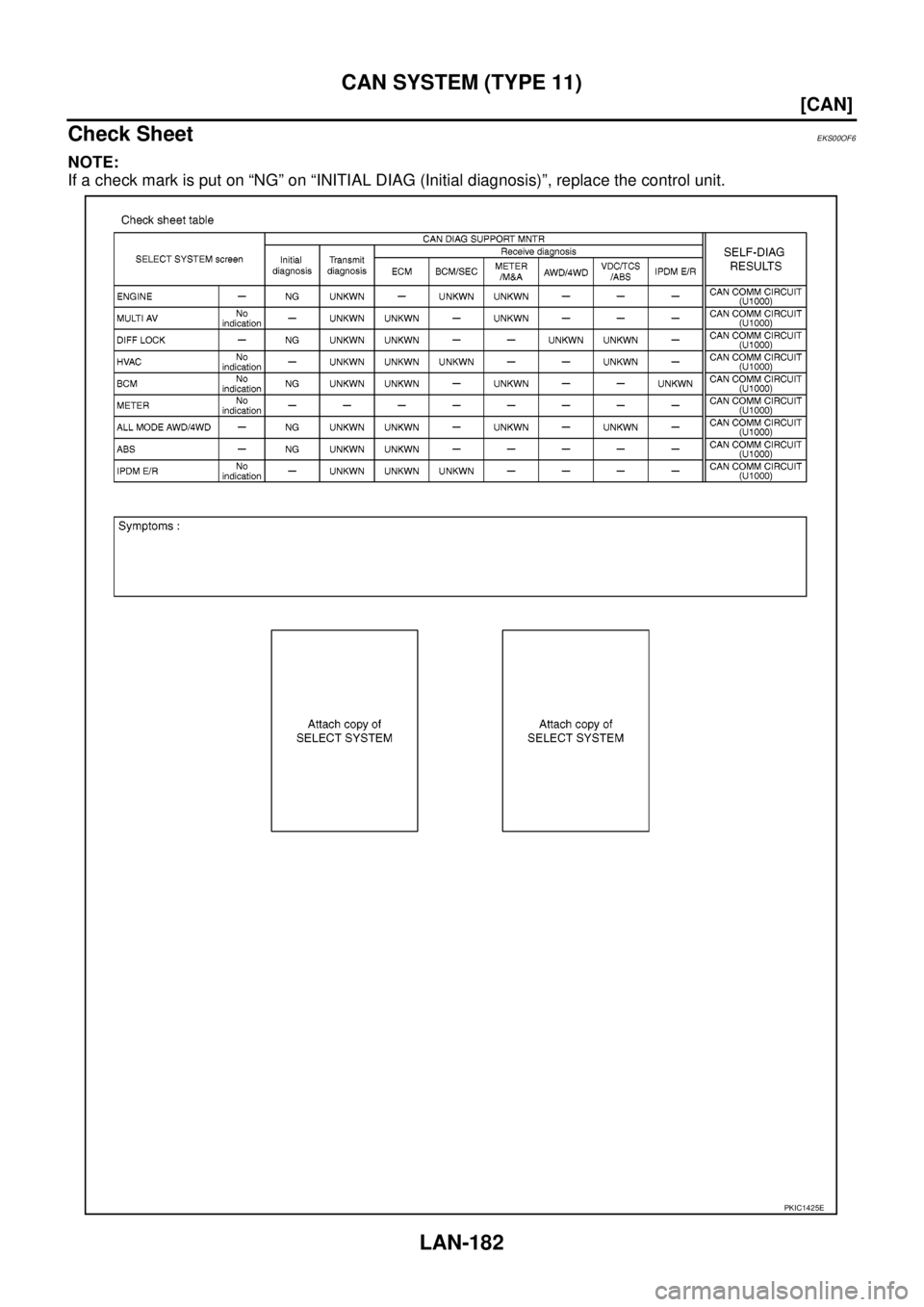

Check Sheet
EKS00OF6
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC1425E
Page 1960 of 3171
CAN SYSTEM (TYPE 11)
LAN-183
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

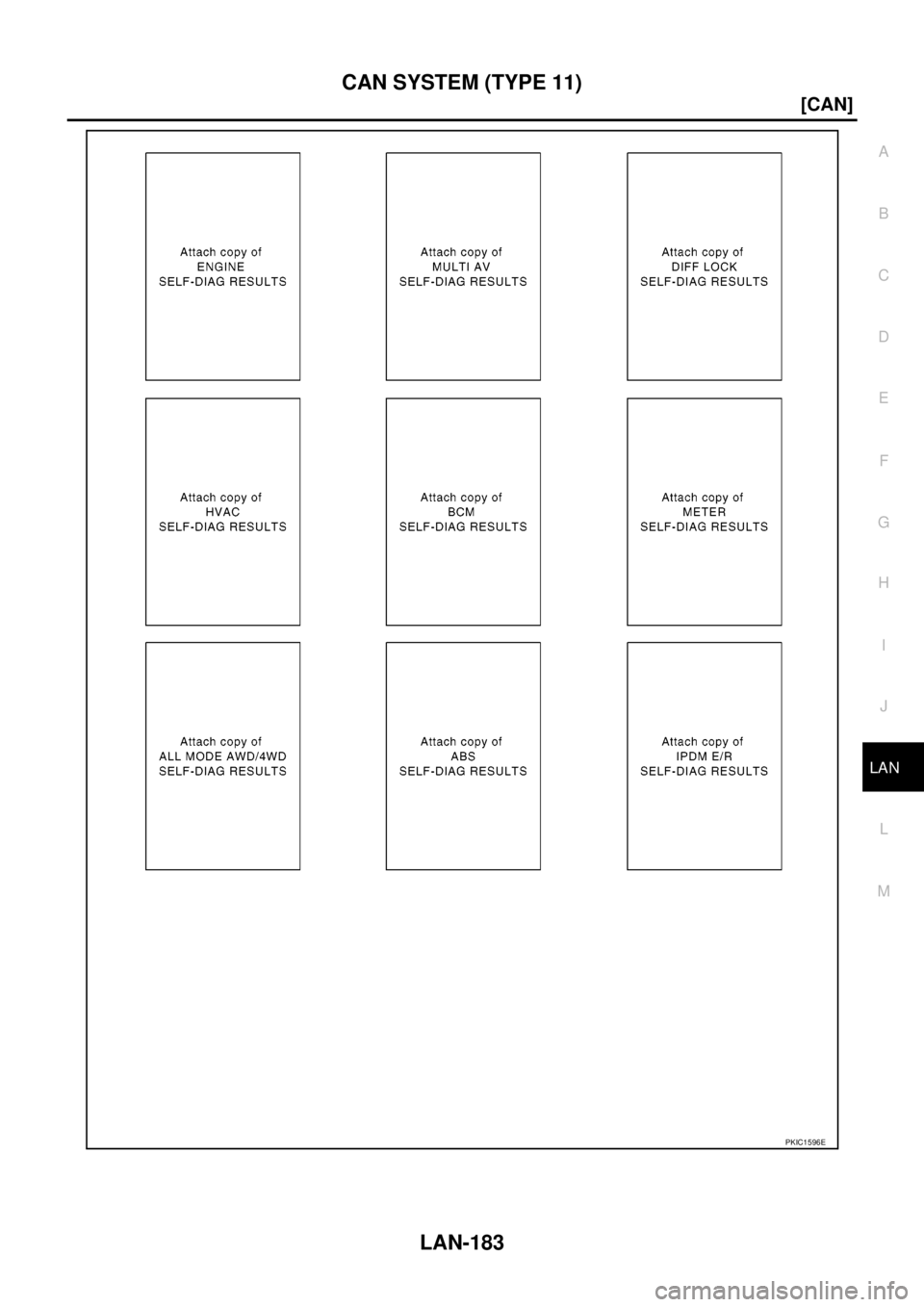

PKIC1596E
