LAN-164
[CAN]
CAN SYSTEM (TYPE 9)

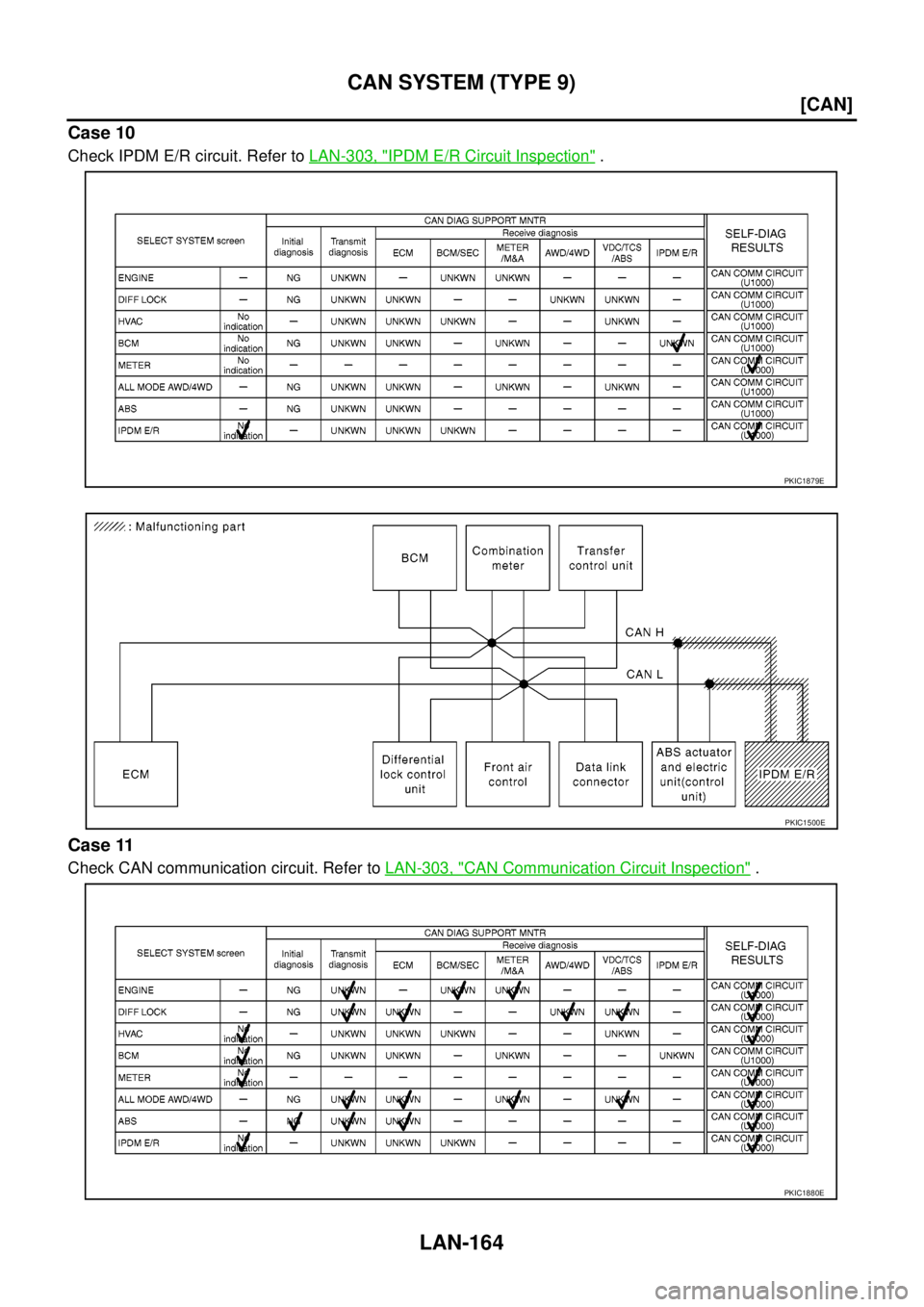

Case 10
Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection".
Case 11
Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit Inspection".
PKIC1879E
PKIC1500E
PKIC1880E
Page 1942 of 3171
CAN SYSTEM (TYPE 9)
LAN-165
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

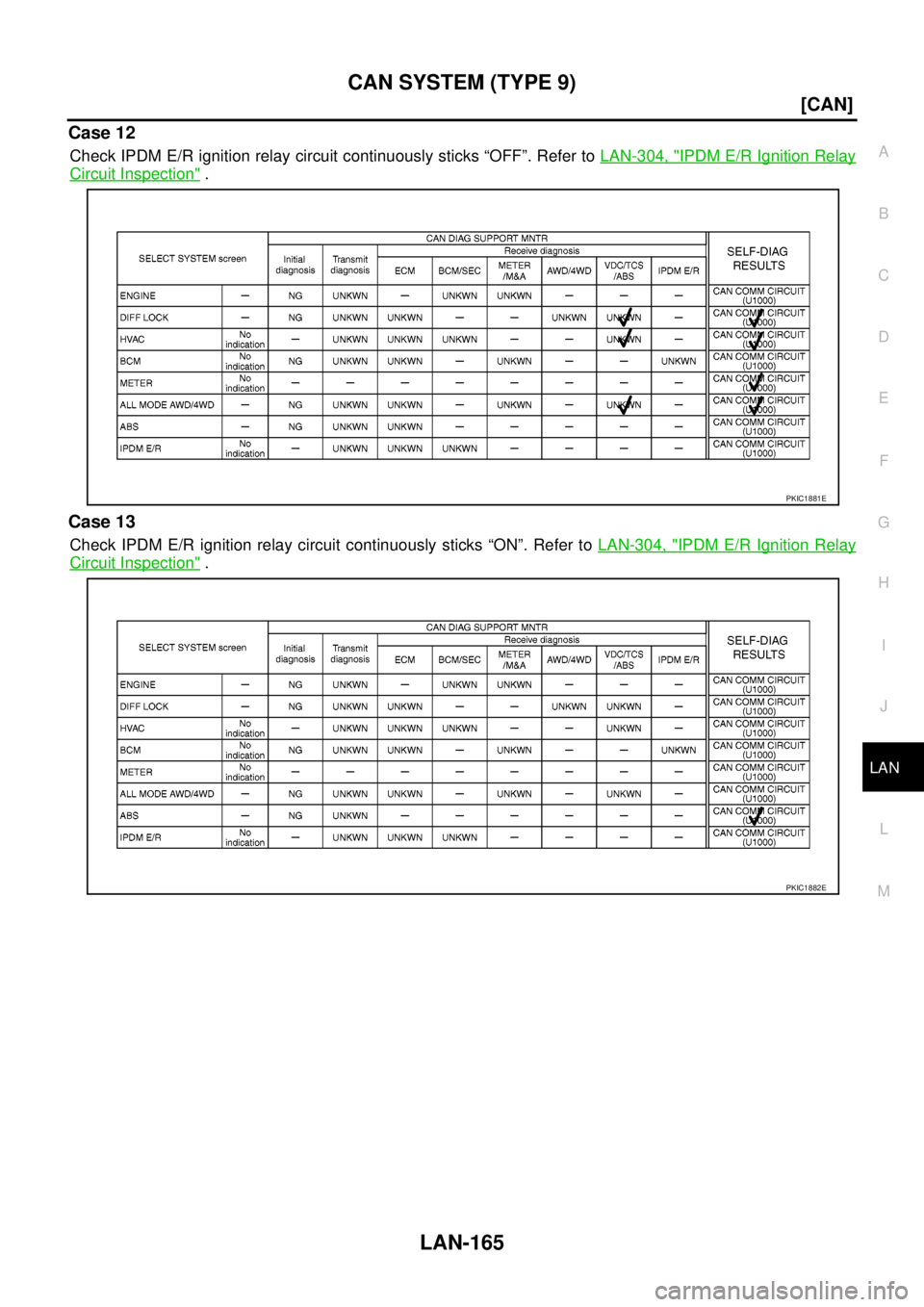

Case 12
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
Case 13
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
PKIC1881E
PKIC1882E
Page 1943 of 3171
LAN-166
[CAN]
CAN SYSTEM (TYPE 10)
CAN SYSTEM (TYPE 10)
PFP:23710
Component Parts and Harness Connector LocationEKS00OB1
Refer toLAN-23, "Component Parts and Harness Connector Location".
SchematicEKS00OB2
Refer toLAN-25, "Schematic".
Wiring Diagram — CAN —EKS00OB3
Refer toLAN-26, "Wiring Diagram—CAN—".
Page 1944 of 3171
CAN SYSTEM (TYPE 10)
LAN-167
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

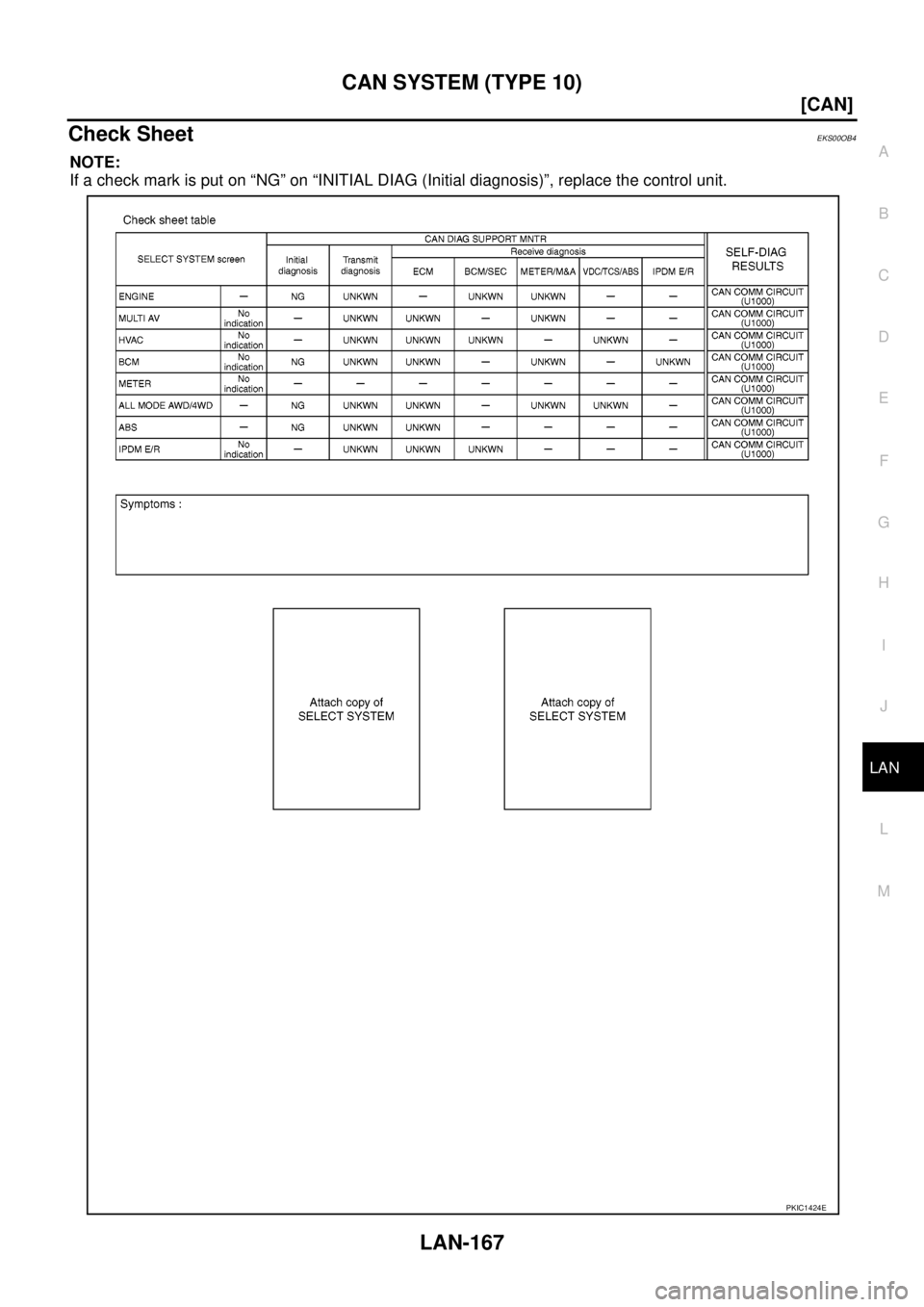

Check SheetEKS00OB4
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC1424E
Page 1945 of 3171
LAN-168
[CAN]
CAN SYSTEM (TYPE 10)

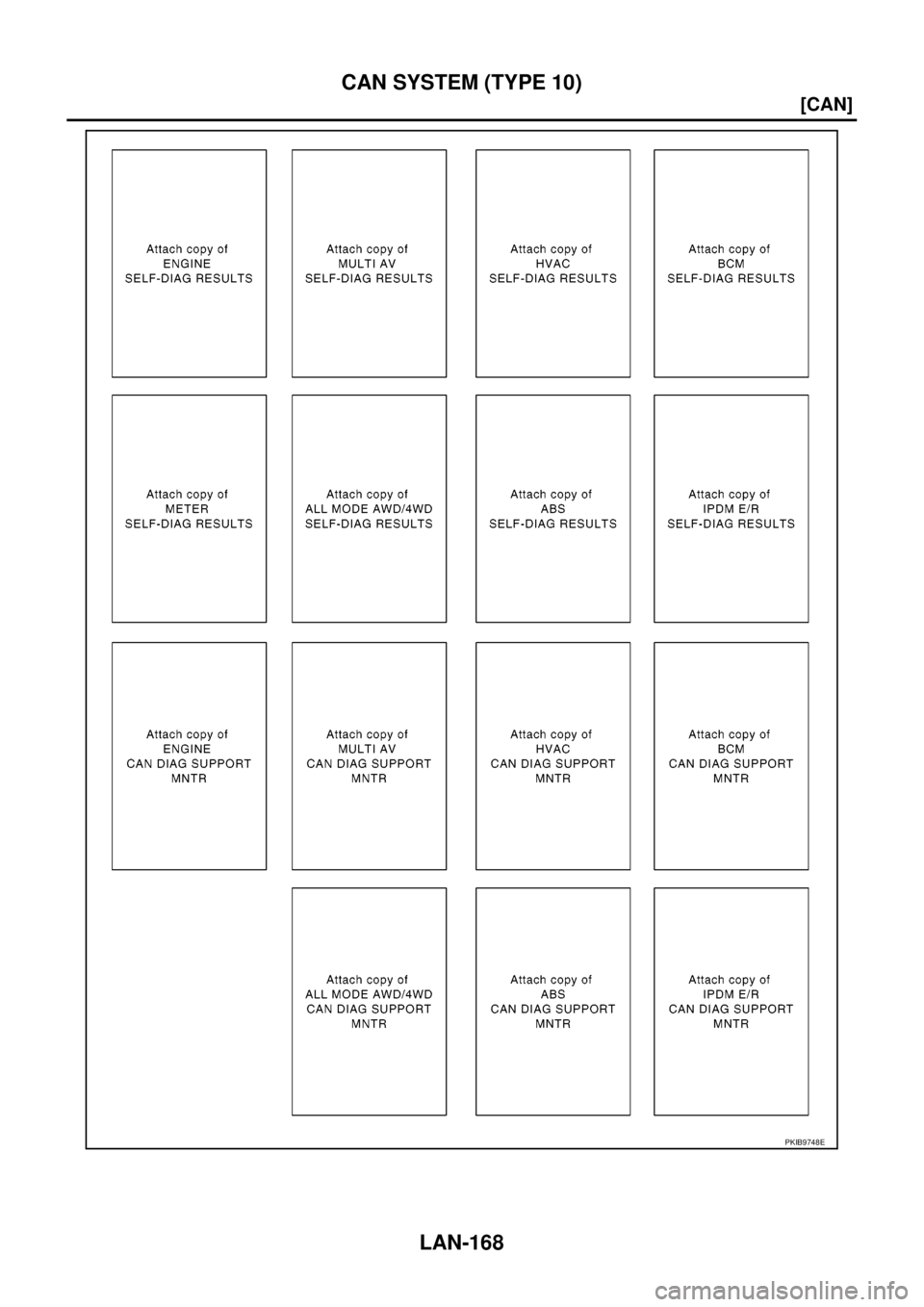

PKIB9748E
Page 1946 of 3171
CAN SYSTEM (TYPE 10)
LAN-169
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

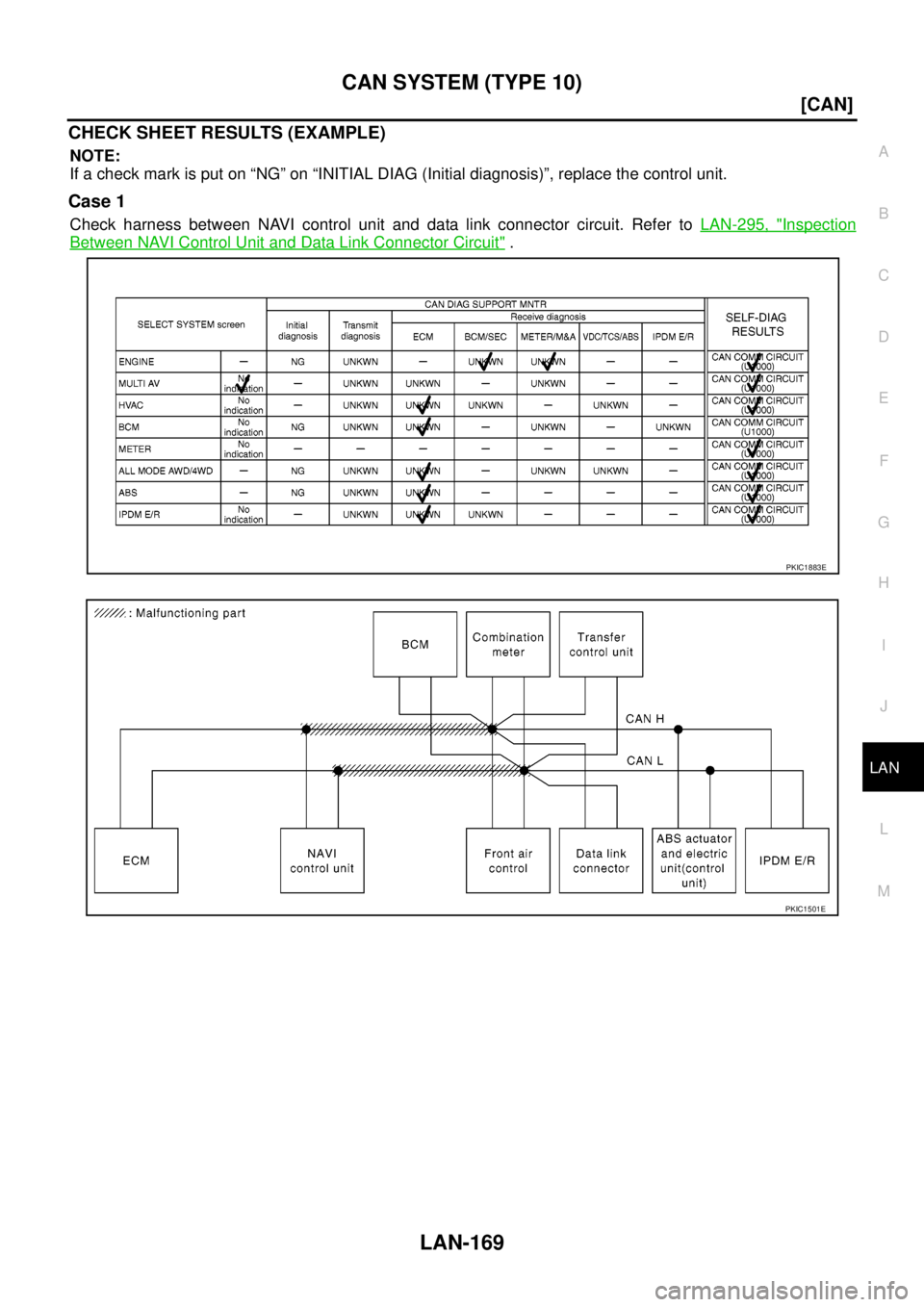

Case 1
Check harness between NAVI control unit and data link connector circuit. Refer toLAN-295, "Inspection
Between NAVI Control Unit and Data Link Connector Circuit".
PKIC1883E
PKIC1501E
Page 1947 of 3171
LAN-170
[CAN]
CAN SYSTEM (TYPE 10)

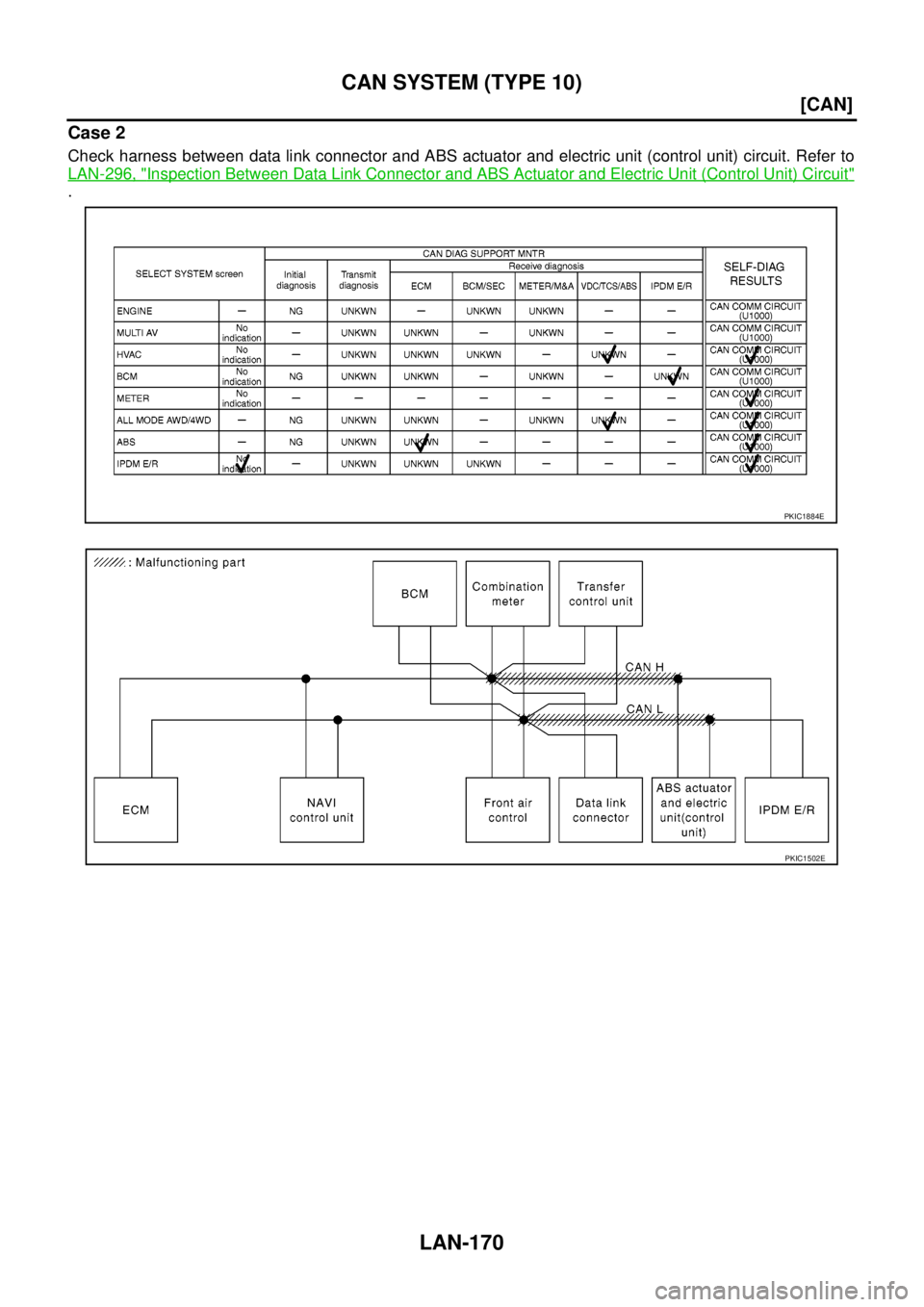

Case 2
Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to
LAN-296, "
Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"
.
PKIC1884E
PKIC1502E
Page 1948 of 3171
CAN SYSTEM (TYPE 10)
LAN-171
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

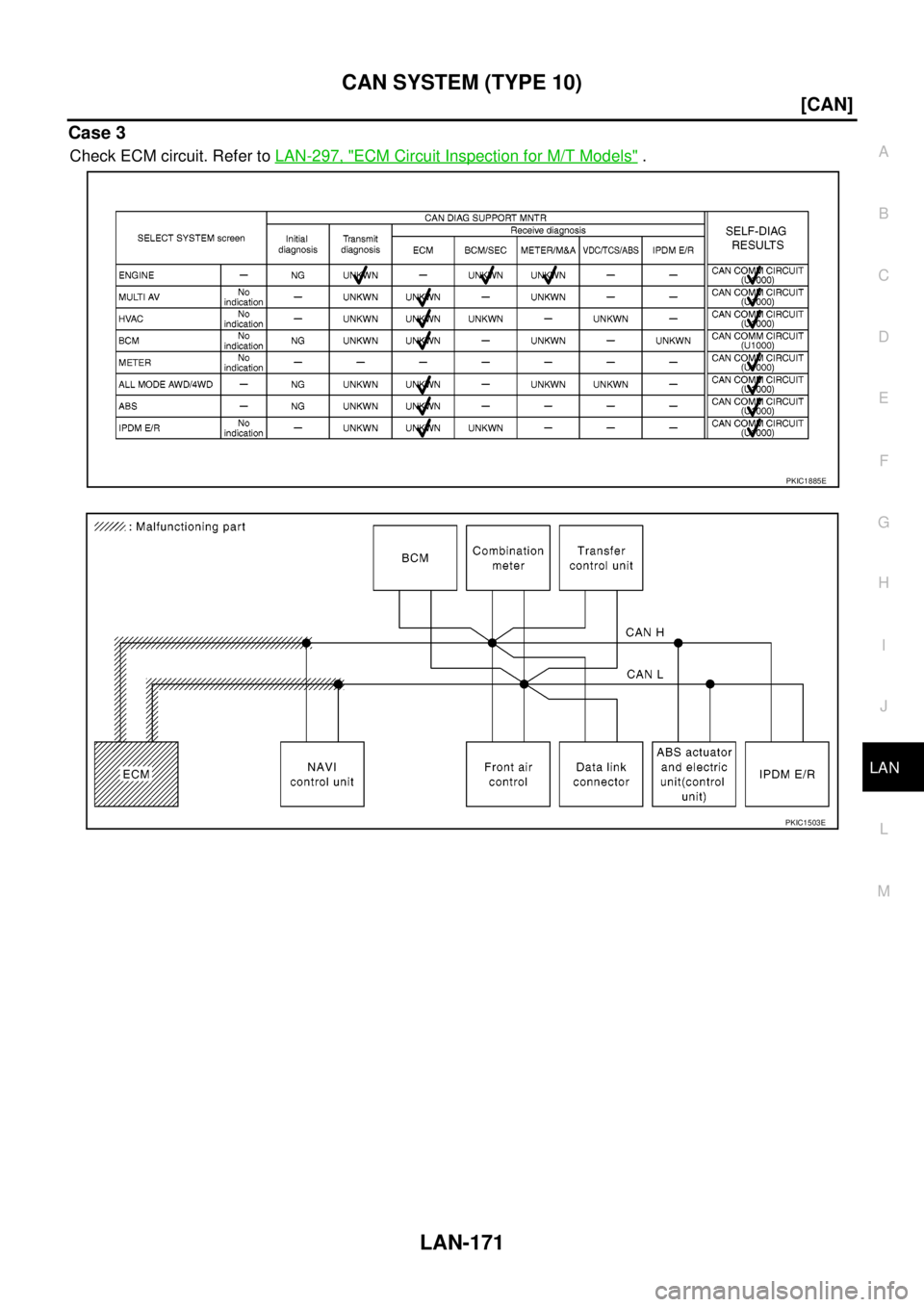

Case 3
Check ECM circuit. Refer toLAN-297, "ECM Circuit Inspection for M/T Models".
PKIC1885E
PKIC1503E
Page 1949 of 3171
LAN-172
[CAN]
CAN SYSTEM (TYPE 10)

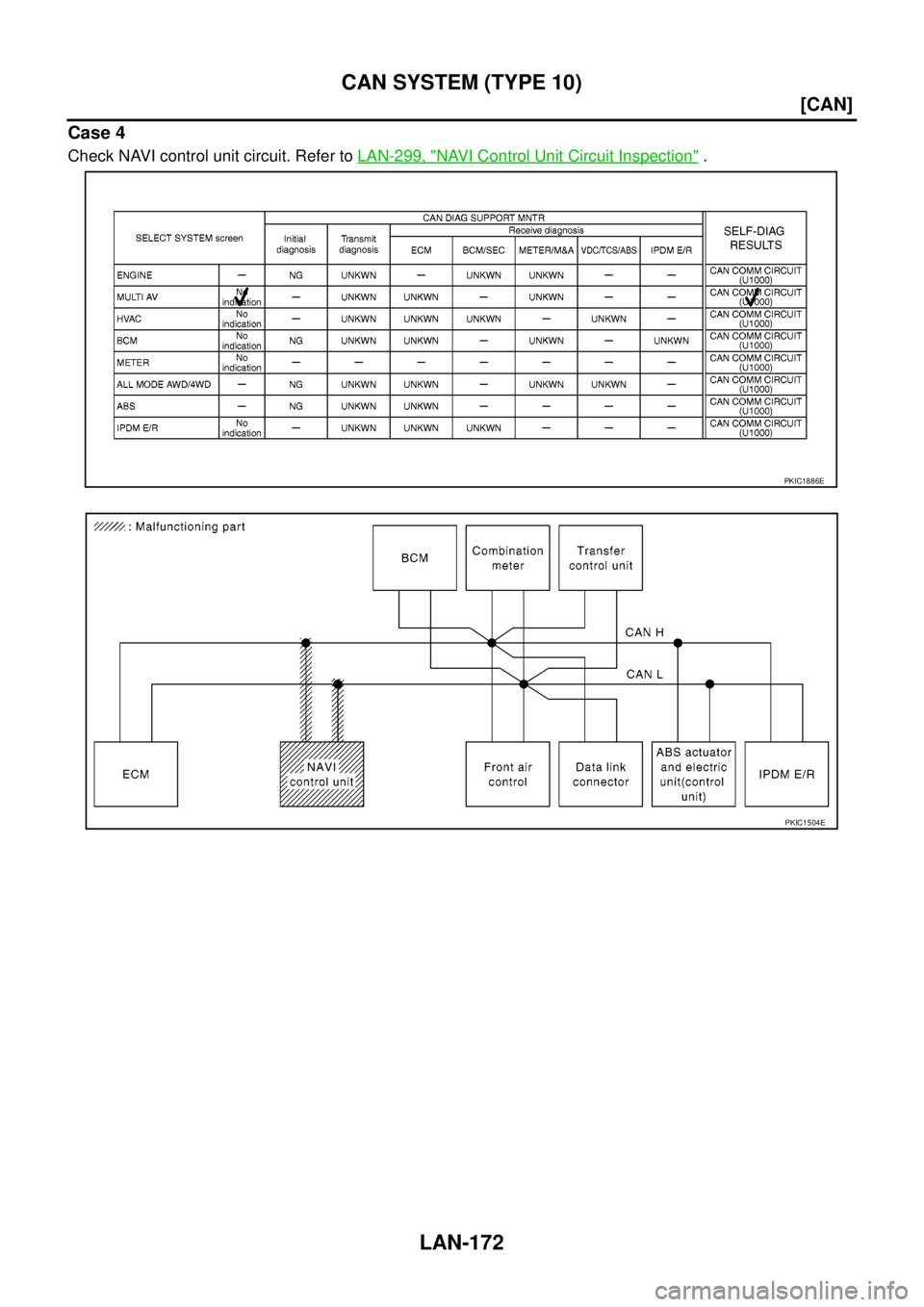

Case 4
Check NAVI control unit circuit. Refer toLAN-299, "NAVI Control Unit Circuit Inspection".
PKIC1886E
PKIC1504E
Page 1950 of 3171
CAN SYSTEM (TYPE 10)
LAN-173
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

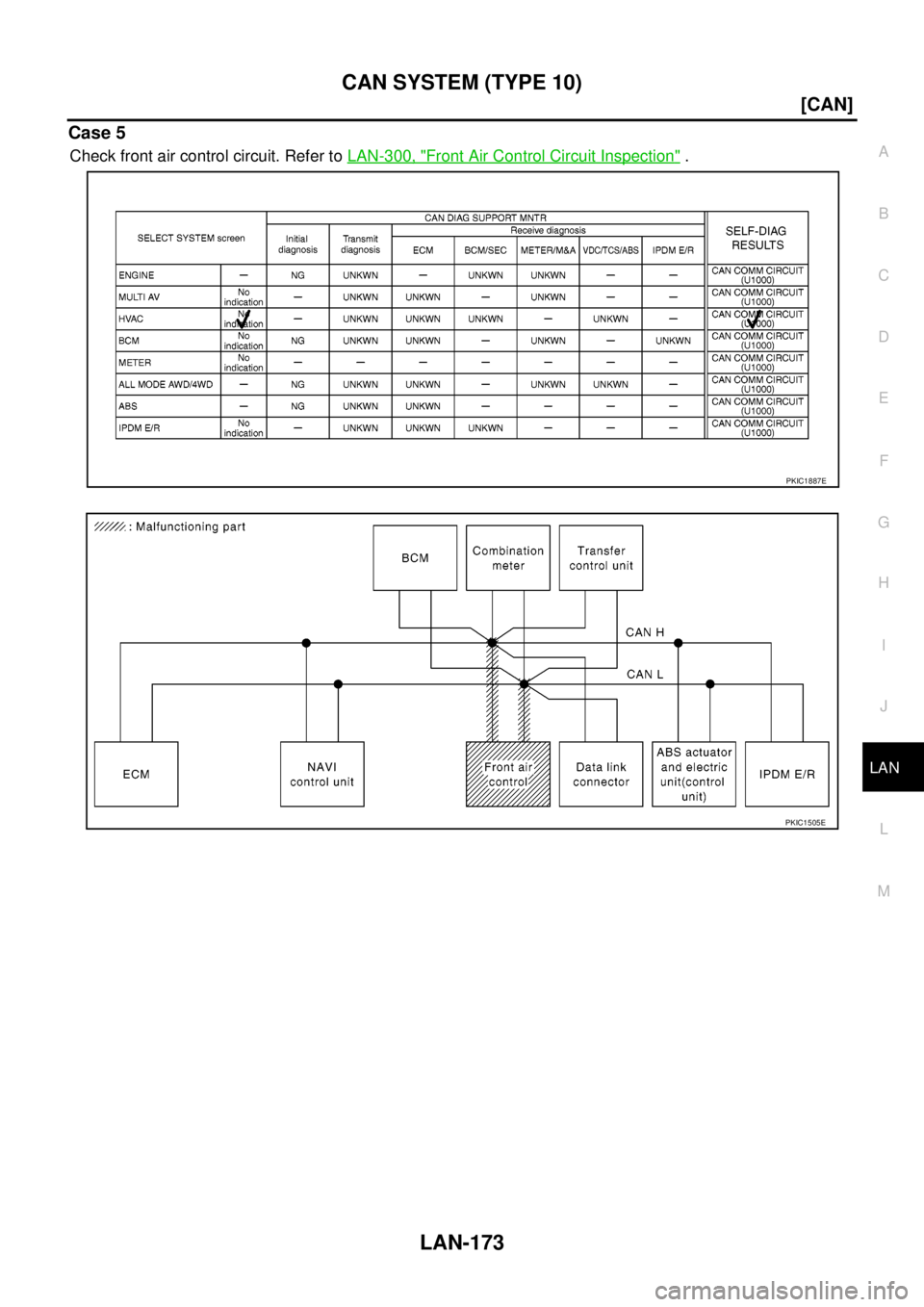

Case 5
Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection".
PKIC1887E
PKIC1505E
