NISSAN NAVARA 2005 Repair Workshop Manual
Manufacturer: NISSAN, Model Year: 2005, Model line: NAVARA, Model: NISSAN NAVARA 2005Pages: 3171, PDF Size: 49.59 MB
Page 3021 of 3171

TF-54
TROUBLE DIAGNOSIS FOR SYSTEM

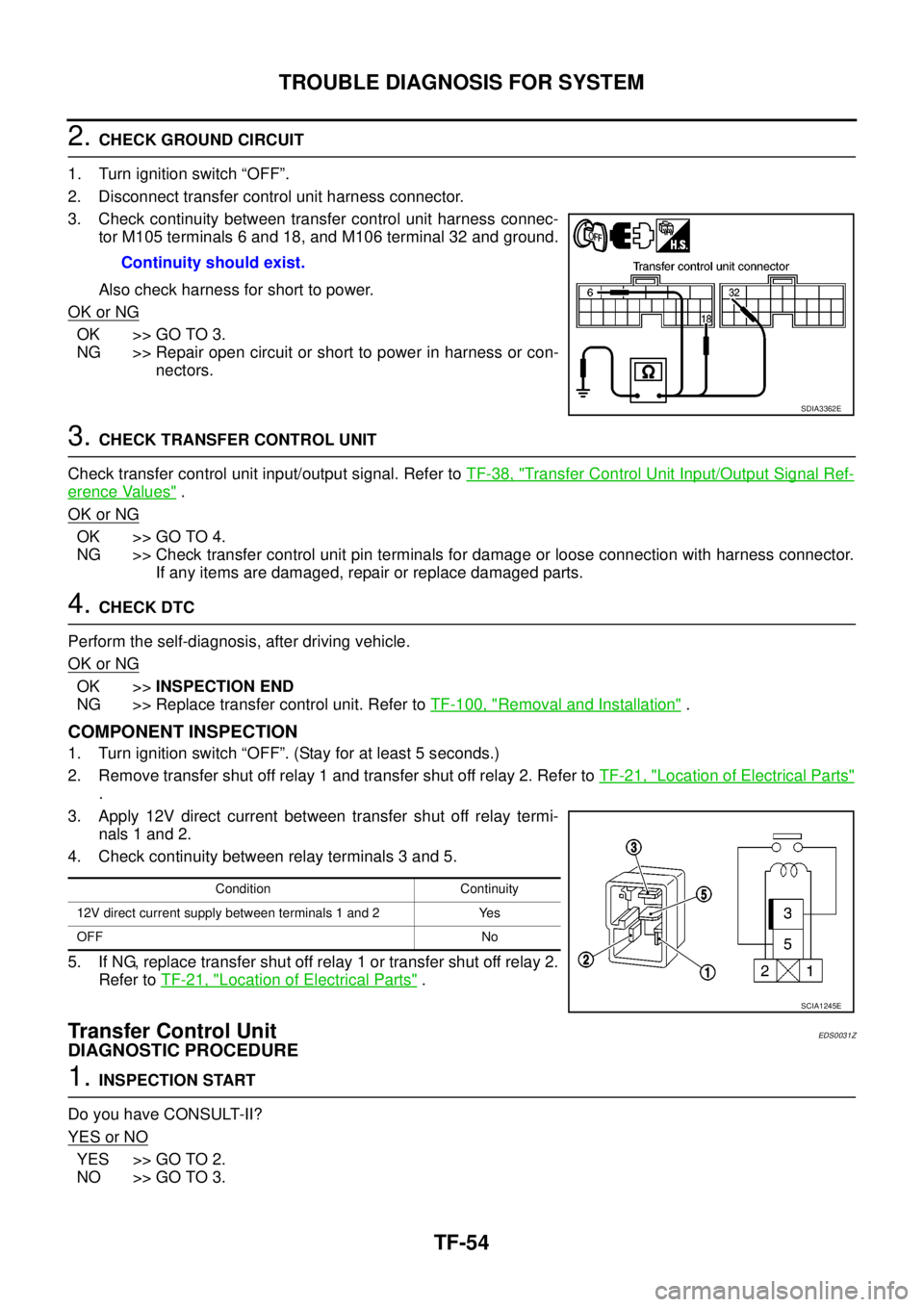

2.CHECK GROUND CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect transfer control unit harness connector.
3. Check continuity between transfer control unit harness connec-
tor M105 terminals 6 and 18, and M106 terminal 32 and ground.
Also check harness for short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to power in harness or con-
nectors.
3.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer toTF-38, "
Transfer Control Unit Input/Output Signal Ref-
erence Values".
OK or NG
OK >> GO TO 4.
NG >> Check transfer control unit pin terminals for damage or loose connection with harness connector.
If any items are damaged, repair or replace damaged parts.
4.CHECK DTC
Perform the self-diagnosis, after driving vehicle.
OK or NG
OK >>INSPECTION END
NG >> Replace transfer control unit. Refer toTF-100, "
Removal and Installation".
COMPONENT INSPECTION
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Remove transfer shut off relay 1 and transfer shut off relay 2. Refer toTF-21, "
Location of Electrical Parts"
.
3. Apply 12V direct current between transfer shut off relay termi-
nals 1 and 2.
4. Check continuity between relay terminals 3 and 5.
5. If NG, replace transfer shut off relay 1 or transfer shut off relay 2.
Refer toTF-21, "
Location of Electrical Parts".
Transfer Control UnitEDS0031Z
DIAGNOSTIC PROCEDURE
1.INSPECTION START
Do you have CONSULT-II?
YESorNO
YES >> GO TO 2.
NO >> GO TO 3.Continuity should exist.
SDIA3362E
Condition Continuity
12V direct current supply between terminals 1 and 2 Yes
OFF No
SCIA1245E
Page 3022 of 3171

TROUBLE DIAGNOSIS FOR SYSTEM
TF-55
C
E
F
G
H
I
J
K
L
MA
B
TF
2.PERFORM SELF-DIAGNOSIS (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “ALL MODE AWD/4WD” with CONSULT-II.
3. Touch “ERASE”.
4. Turn ignition switch “OFF” and wait at least 10 seconds.
5. Perform the self-diagnosis again.
Is the
“CONTROL UNIT 1 [P1802]”,“CONTROL UNIT 2 [P1803]”,“CONTROL UNIT 3 [P1804]”or“CONTROL
UNIT 4 [P1809]”displayed?
YES >> Replace transfer control unit. Refer toTF-100, "Removal and Installation".
NO >>INSPECTION END
3.PERFORM SELF-DIAGNOSIS (WITHOUT CONSULT-II)
Without CONSULT-II
1. Perform the self-diagnosis and then erase self-diagnostic results. Refer toTF-49, "
SELF-DIAGNOSTIC
PROCEDURE (WITHOUT CONSULT-II)"andTF-51, "ERASE SELF-DIAGNOSIS".
2. Perform the self-diagnosis again.
Do the self-diagnostic results indicate AD converter?
YES >> Replace transfer control unit. Refer toTF-100, "Removal and Installation".
NO >>INSPECTION END
Output Shaft Revolution Signal (TCM)EDS00320
DIAGNOSTIC PROCEDURE
1.CHECK DTC WITH TCM
Perform self-diagnosis with TCM. Refer toAT-80, "
SELF-DIAGNOSTIC RESULT MODE".
Is any malfunction detected by self-diagnosis?
YES >> Check the malfunctioning system.
NO >> GO TO 2.
2.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer toTF-38, "
Transfer Control Unit Input/Output Signal Ref-
erence Values".
OK or NG
OK >> GO TO 3.
NG >> Check transfer control unit pin terminals for damage or loose connection with harness connector.
If any items are damaged, repair or replace damaged parts.
3.CHECK DTC
Perform the self-diagnosis, after driving a vehicle for a while.
OK or NG
OK >>INSPECTION END
NG >> Perform self-diagnosis with TCM again. Refer toAT-80, "
SELF-DIAGNOSTIC RESULT MODE".
Vehicle Speed Sensor (ABS)EDS00321
DIAGNOSTIC PROCEDURE
1.CHECK DTC WITH ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
Perform self-diagnosis with ABS actuator and electric unit (control unit). Refer toBRC-18, "
Self-Diagnosis".
Is any malfunction detected by self-diagnosis?
YES >> Check the malfunctioning system.
NO >> GO TO 2.
Page 3023 of 3171

TF-56
TROUBLE DIAGNOSIS FOR SYSTEM
2.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer toTF-38, "
Transfer Control Unit Input/Output Signal Ref-
erence Values".
OK or NG
OK >> GO TO 3.
NG >> Check transfer control unit pin terminals for damage or loose connection with harness connector.
If any items are damaged, repair or replace damaged parts.
3.CHECK DTC
Perform the self-diagnosis, after driving a vehicle for a while.
OK or NG
OK >>INSPECTION END
NG >> Perform self-diagnosis with ABS actuator and electric unit (control unit) again. Refer toBRC-18,
"Self-Diagnosis".
4LO SwitchEDS00322
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Data are reference value.
TRANSFER CONTROL UNIT TERMINALS AND REFERENCE VALUE
Data are reference value and are measured between each terminal and ground.
CAUTION:
When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.Monitored item Content Condition Display value
4L POSI SW [ON/OFF] Condition of 4LO switch
lVehicle stopped
lEngine running
lFor A/T models, A/T
selector lever “N” posi-
tion with brake pedal
depressed.
lFor M/T models, M/T
shift lever neutral posi-
tion with clutch and
brake pedal depressed.4WD shift switch: 4LO ON
Except the above OFF
Te r m i n a lWire
colorItem Condition Data (Approx.)
24 Y 4LO switch
lVehicle stopped
lEngine running
lFor A/T models,
A/T selector
lever “N” position
with brake pedal
depressed.
lFor M/T models,
M/T shift lever
neutral position
with clutch and
brake pedal
depressed.4WD shift switch: 4LO 0V
Except the above Battery voltage
Page 3024 of 3171

TROUBLE DIAGNOSIS FOR SYSTEM
TF-57
C
E
F
G
H
I
J
K
L
MA
B
TF

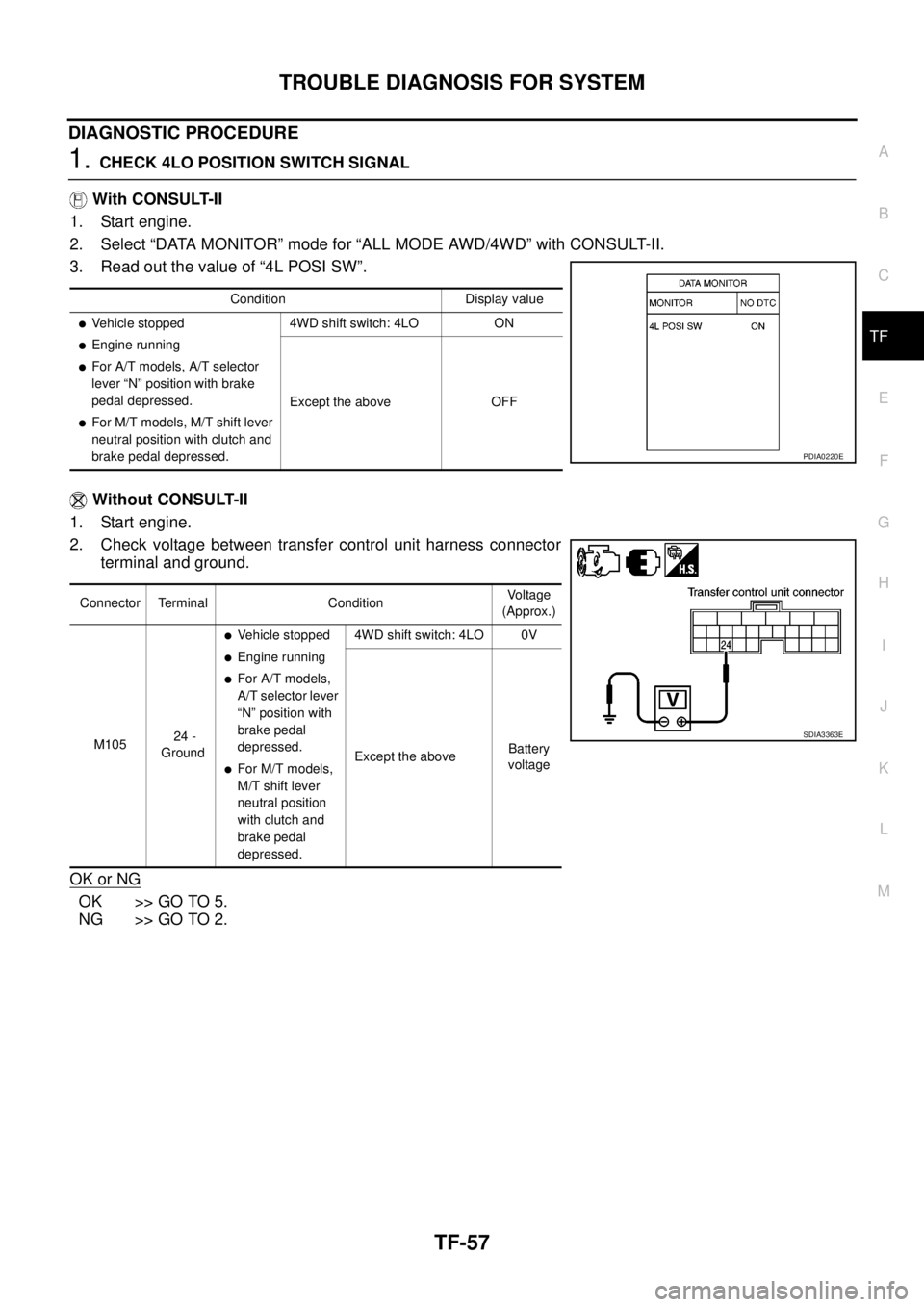

DIAGNOSTIC PROCEDURE
1.CHECK 4LO POSITION SWITCH SIGNAL
With CONSULT-II
1. Start engine.
2. Select “DATA MONITOR” mode for “ALL MODE AWD/4WD” with CONSULT-II.
3. Read out the value of “4L POSI SW”.
Without CONSULT-II
1. Start engine.
2. Check voltage between transfer control unit harness connector
terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
Condition Display value
lVehicle stopped
lEngine running
lFor A/T models, A/T selector
lever “N” position with brake
pedal depressed.
lFor M/T models, M/T shift lever
neutral position with clutch and
brake pedal depressed.4WD shift switch: 4LO ON
Except the above OFF
PDIA0220E
Connector Terminal ConditionVo l ta g e
(Approx.)
M10524 -
Ground
lVehicle stopped
lEngine running
lFor A/T models,
A/T selector lever
“N” position with
brake pedal
depressed.
lFor M/T models,
M/T shift lever
neutral position
with clutch and
brake pedal
depressed.4WD shift switch: 4LO 0V
Except the aboveBattery
voltage
SDIA3363E
Page 3025 of 3171

TF-58
TROUBLE DIAGNOSIS FOR SYSTEM

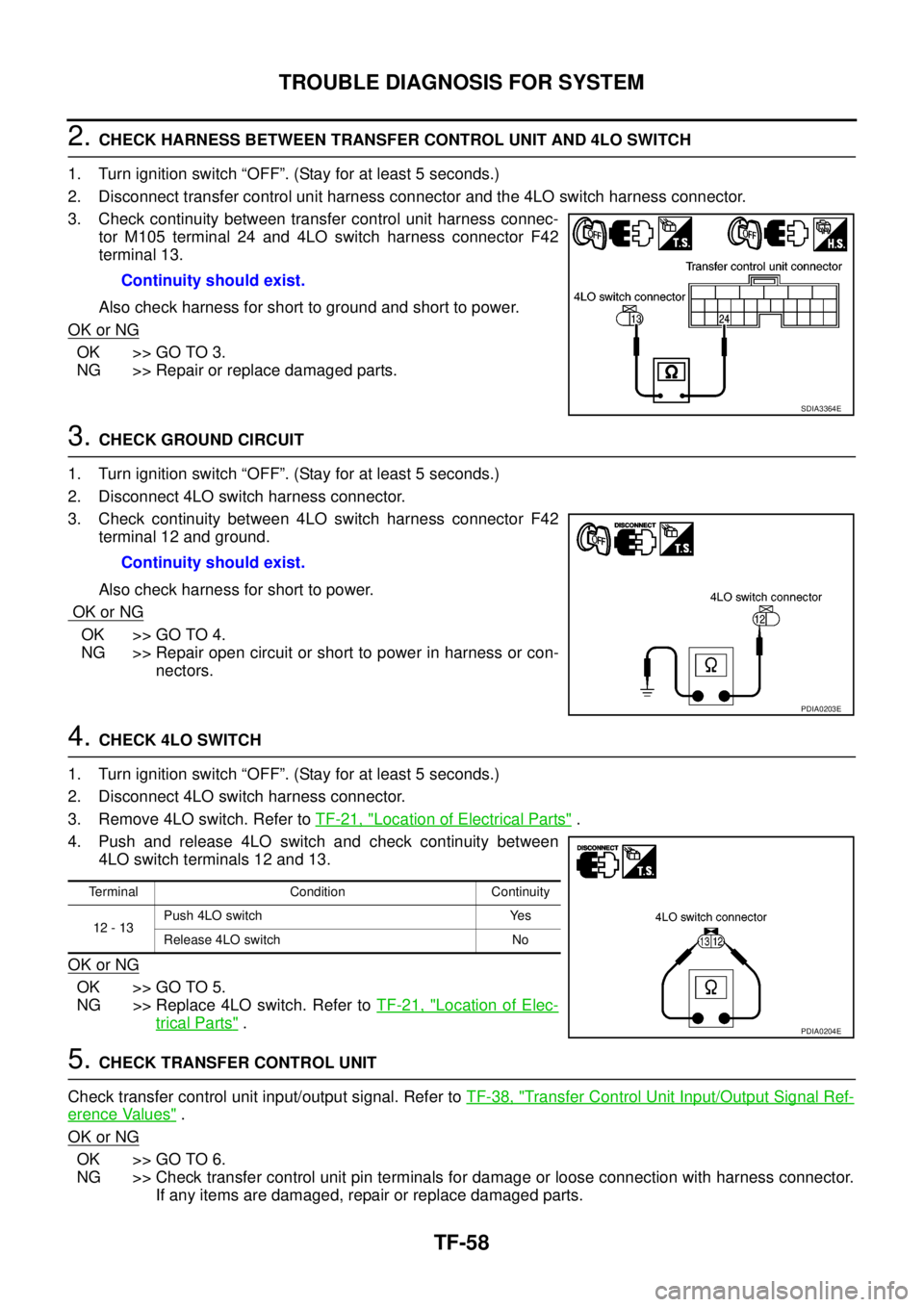

2.CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND 4LO SWITCH
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector and the 4LO switch harness connector.
3. Check continuity between transfer control unit harness connec-
tor M105 terminal 24 and 4LO switch harness connector F42
terminal 13.
Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3.CHECK GROUND CIRCUIT
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect 4LO switch harness connector.
3. Check continuity between 4LO switch harness connector F42
terminal 12 and ground.
Also check harness for short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to power in harness or con-
nectors.
4.CHECK 4LO SWITCH
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect 4LO switch harness connector.
3. Remove 4LO switch. Refer toTF-21, "
Location of Electrical Parts".
4. Push and release 4LO switch and check continuity between
4LO switch terminals 12 and 13.
OK or NG
OK >> GO TO 5.
NG >> Replace 4LO switch. Refer toTF-21, "
Location of Elec-
trical Parts".
5.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer toTF-38, "
Transfer Control Unit Input/Output Signal Ref-
erence Values".
OK or NG
OK >> GO TO 6.
NG >> Check transfer control unit pin terminals for damage or loose connection with harness connector.
If any items are damaged, repair or replace damaged parts. Continuity should exist.
SDIA3364E
Continuity should exist.
PDIA0203E
Terminal Condition Continuity
12 - 13Push 4LO switch Yes
Release 4LO switch No
PDIA0204E
Page 3026 of 3171

TROUBLE DIAGNOSIS FOR SYSTEM
TF-59
C
E
F
G
H
I
J
K
L
MA
B
TF

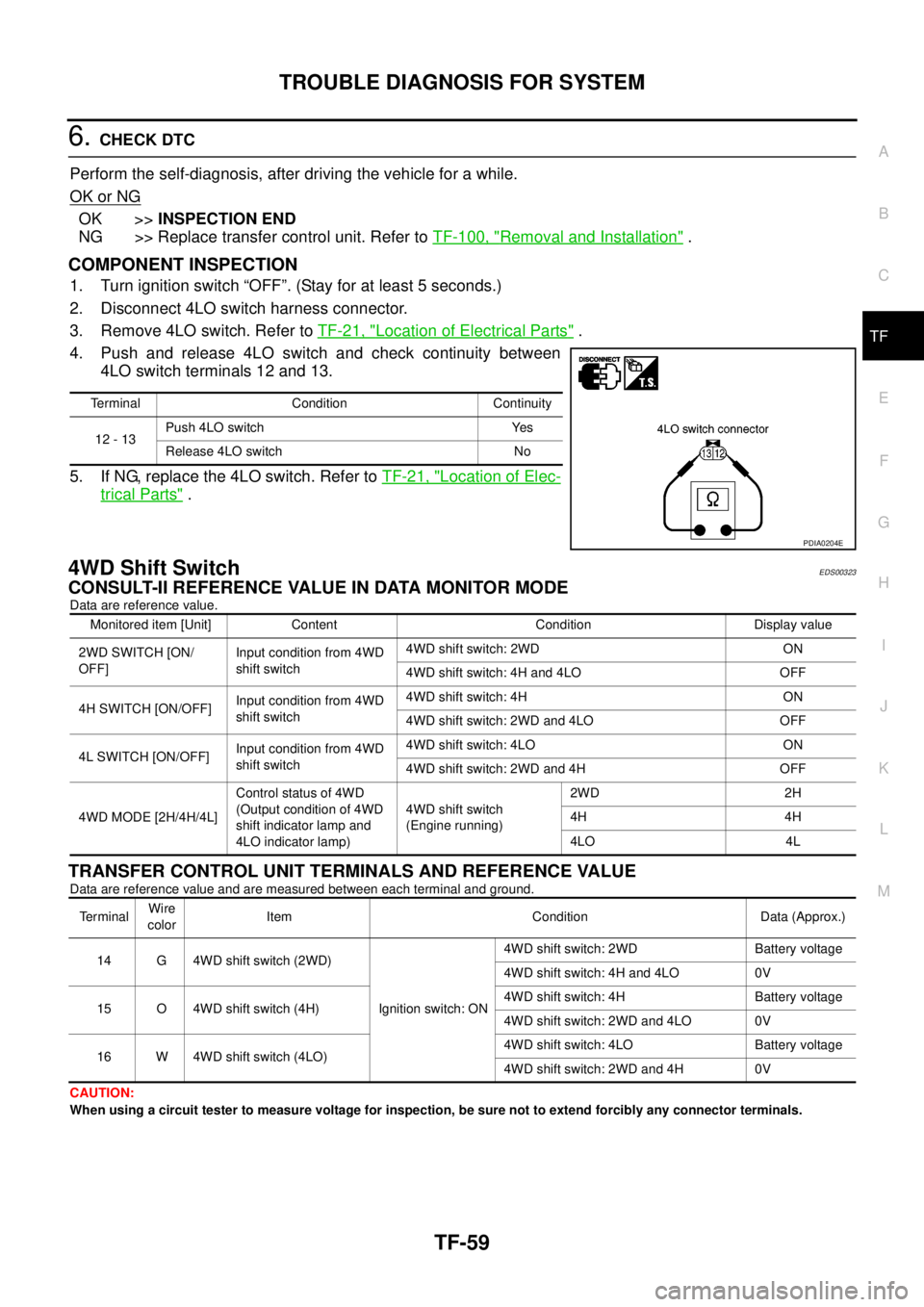

6.CHECK DTC
Perform the self-diagnosis, after driving the vehicle for a while.
OK or NG
OK >>INSPECTION END
NG >> Replace transfer control unit. Refer toTF-100, "
Removal and Installation".
COMPONENT INSPECTION
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect 4LO switch harness connector.
3. Remove 4LO switch. Refer toTF-21, "
Location of Electrical Parts".
4. Push and release 4LO switch and check continuity between
4LO switch terminals 12 and 13.
5. If NG, replace the 4LO switch. Refer toTF-21, "
Location of Elec-
trical Parts".
4WD Shift SwitchEDS00323
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Data are reference value.
TRANSFER CONTROL UNIT TERMINALS AND REFERENCE VALUE
Data are reference value and are measured between each terminal and ground.
CAUTION:
When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.Terminal Condition Continuity
12 - 13Push 4LO switch Yes
Release 4LO switch No
PDIA0204E
Monitored item [Unit] Content Condition Display value
2WDSWITCH[ON/
OFF]Input condition from 4WD
shift switch4WD shift switch: 2WD ON
4WD shift switch: 4H and 4LO OFF
4H SWITCH [ON/OFF]Input condition from 4WD
shift switch4WD shift switch: 4H ON
4WD shift switch: 2WD and 4LO OFF
4L SWITCH [ON/OFF]Input condition from 4WD
shift switch4WD shift switch: 4LO ON
4WD shift switch: 2WD and 4H OFF
4WD MODE [2H/4H/4L]Control status of 4WD
(Output condition of 4WD
shift indicator lamp and
4LO indicator lamp)4WD shift switch
(Engine running)2WD 2H
4H 4H
4LO 4L
TerminalWire
colorItem Condition Data (Approx.)
14 G 4WD shift switch (2WD)
Ignition switch: ON4WD shift switch: 2WD Battery voltage
4WD shift switch: 4H and 4LO 0V
15 O 4WD shift switch (4H)4WD shift switch: 4H Battery voltage
4WD shift switch: 2WD and 4LO 0V
16 W 4WD shift switch (4LO)4WD shift switch: 4LO Battery voltage
4WD shift switch: 2WD and 4H 0V
Page 3027 of 3171

TF-60
TROUBLE DIAGNOSIS FOR SYSTEM

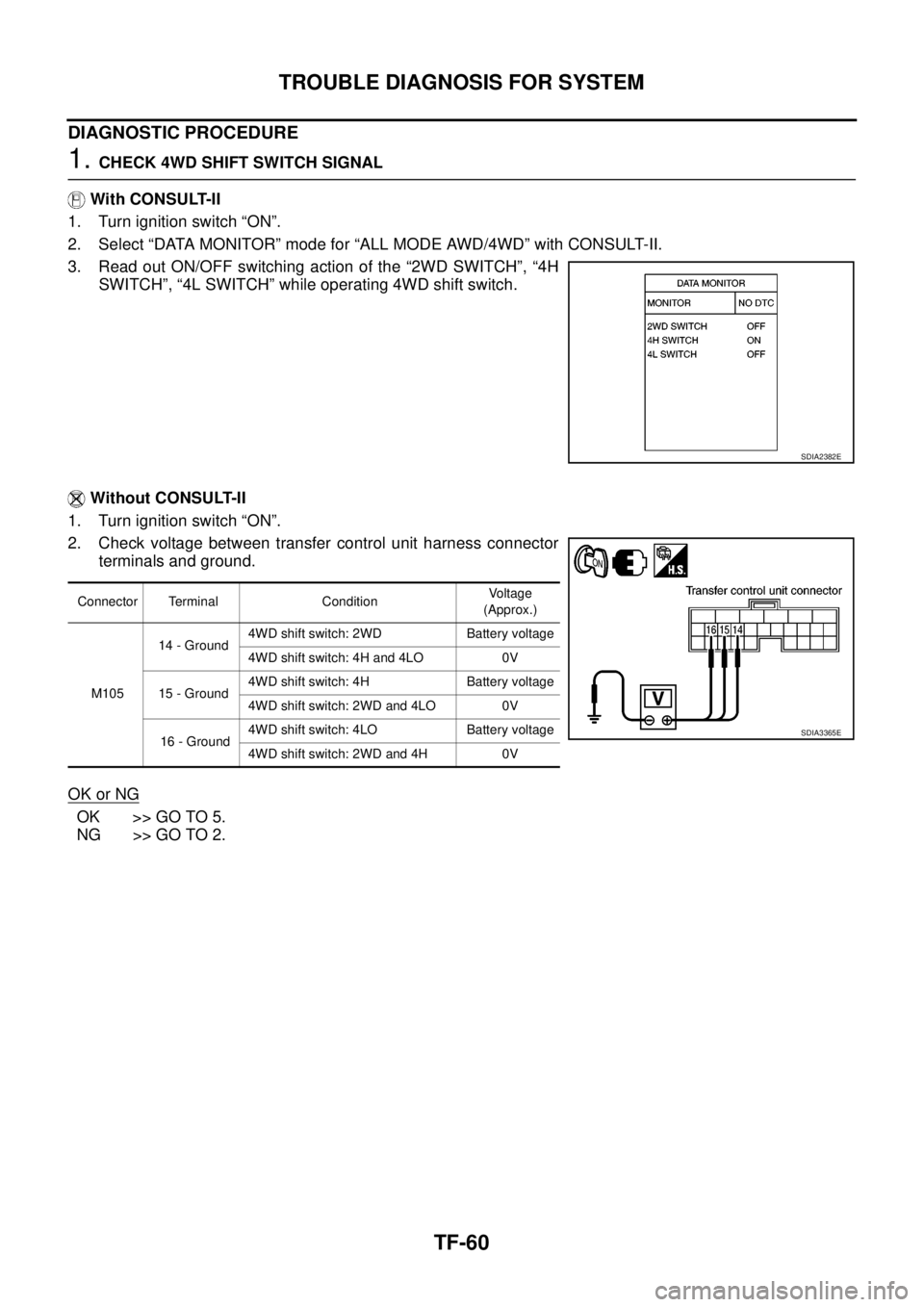

DIAGNOSTIC PROCEDURE
1.CHECK 4WD SHIFT SWITCH SIGNAL
With CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode for “ALL MODE AWD/4WD” with CONSULT-II.
3. Read out ON/OFF switching action of the “2WD SWITCH”, “4H
SWITCH”, “4L SWITCH” while operating 4WD shift switch.
Without CONSULT-II
1. Turn ignition switch “ON”.
2. Check voltage between transfer control unit harness connector
terminals and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
SDIA2382E
Connector Terminal ConditionVoltage
(Approx.)
M10514 - Ground4WD shift switch: 2WD Battery voltage
4WD shift switch: 4H and 4LO 0V
15 - Ground4WD shift switch: 4H Battery voltage
4WD shift switch: 2WD and 4LO 0V
16 - Ground4WD shift switch: 4LO Battery voltage
4WD shift switch: 2WD and 4H 0V
SDIA3365E
Page 3028 of 3171

TROUBLE DIAGNOSIS FOR SYSTEM
TF-61
C
E
F
G
H
I
J
K
L
MA
B
TF
2.CHECK 4WD SHIFT SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect 4WD shift switch harness connector.
3. Check voltage between 4WD shift switch harness connector ter-
minal 1 and ground.
4. Turn ignition switch “ON”. (Do not start engine.)
5. Check voltage between 4WD shift switch harness connector ter-
minal 1 and ground.
OK or NG
OK >> GO TO 3.
NG >> 1. Check harness for short or open between 4WD shift
switch harness connector M51 terminal 1 and transfer
shut off relay 2 harness connector E85 terminal 5 and
10A fuse (No. 64 located in the fuse and relay box). If any items are damaged, repair or replace
damaged parts.
2. Perform trouble diagnosis for power supply circuit. Refer toTF-52, "
Power Supply Circuit For
Transfer Control Unit".
3.CHECK HARNESS BETWEEN 4WD SHIFT SWITCH AND TRANSFER CONTROL UNIT
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector and the 4WD shift switch harness connector.
3. Check continuity between the following terminals.
–Transfer control unit harness connector M105 terminal 14 and
4WD shift switch harness connector M51 terminal 3.
–Transfer control unit harness connector M105 terminal 15 and
4WD shift switch harness connector M51 terminal 5.
–Transfer control unit harness connector M105 terminal 16 and
4WD shift switch harness connector M51 terminal 6.
Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
Connector Terminal Voltage (Approx.)
M51 1 - Ground 0V
SDIA2803E
Connector Terminal Voltage (Approx.)
M51 1 - Ground Battery voltage
SDIA2802E
Continuity should exist.
SDIA3366E
Page 3029 of 3171

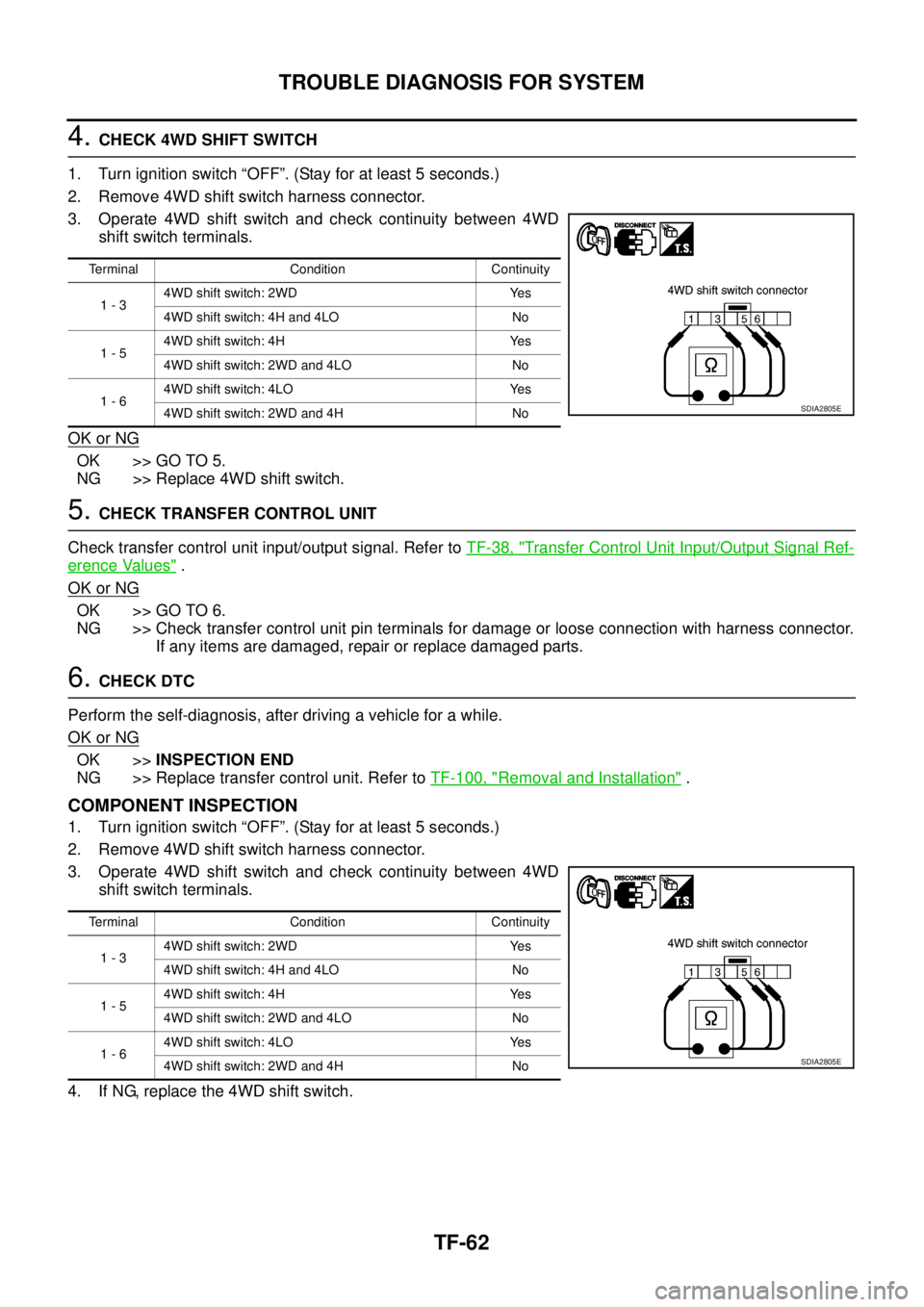

TF-62
TROUBLE DIAGNOSIS FOR SYSTEM
4.CHECK 4WD SHIFT SWITCH
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Remove 4WD shift switch harness connector.
3. Operate 4WD shift switch and check continuity between 4WD
shift switch terminals.
OK or NG
OK >> GO TO 5.
NG >> Replace 4WD shift switch.
5.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer toTF-38, "
Transfer Control Unit Input/Output Signal Ref-
erence Values".
OK or NG
OK >> GO TO 6.
NG >> Check transfer control unit pin terminals for damage or loose connection with harness connector.
If any items are damaged, repair or replace damaged parts.
6.CHECK DTC
Perform the self-diagnosis, after driving a vehicle for a while.
OK or NG
OK >>INSPECTION END
NG >> Replace transfer control unit. Refer toTF-100, "
Removal and Installation".
COMPONENT INSPECTION
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Remove 4WD shift switch harness connector.
3. Operate 4WD shift switch and check continuity between 4WD
shift switch terminals.
4. If NG, replace the 4WD shift switch.
Terminal Condition Continuity
1-34WD shift switch: 2WD Yes
4WD shift switch: 4H and 4LO No
1-54WD shift switch: 4H Yes
4WD shift switch: 2WD and 4LO No
1-64WD shift switch: 4LO Yes
4WD shift switch: 2WD and 4H No
SDIA2805E
Terminal Condition Continuity
1-34WD shift switch: 2WD Yes
4WD shift switch: 4H and 4LO No
1-54WD shift switch: 4H Yes
4WD shift switch: 2WD and 4LO No
1-64WD shift switch: 4LO Yes
4WD shift switch: 2WD and 4H No
SDIA2805E
Page 3030 of 3171

TROUBLE DIAGNOSIS FOR SYSTEM
TF-63
C
E
F
G
H
I
J
K
L
MA
B
TF
Wait Detection SwitchEDS00324
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Data are reference value.
TRANSFER CONTROL UNIT TERMINALS AND REFERENCE VALUE
Data are reference value and are measured between each terminal and ground.
CAUTION:
When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.Monitored item Content Condition Display value
WAIT DETCT SW [ON/
OFF]Condition of wait detection
switch
lVehicle stopped
lEngine running
lFor A/T models, A/T
selector lever “N” posi-
tion with brake pedal
depressed.
lFor M/T models, M/T
shift lever neutral posi-
tion with clutch and
brake pedal depressed.4WD shift switch:
4H and 4LOON
4WD shift switch: 2WD OFF
TerminalWire
colorItem Condition Data (Approx.)
17 O Wait detection switch
lVehicle stopped
lEngine running
lFor A/T models,
A/T selector
lever “N” position
with brake pedal
depressed.
lFor M/T models,
M/T shift lever
neutral position
with clutch and
brake pedal
depressed.4WD shift switch: 4H and 4LO 0V
4WD shift switch: 2WD Battery voltage
