Page 501 of 3171

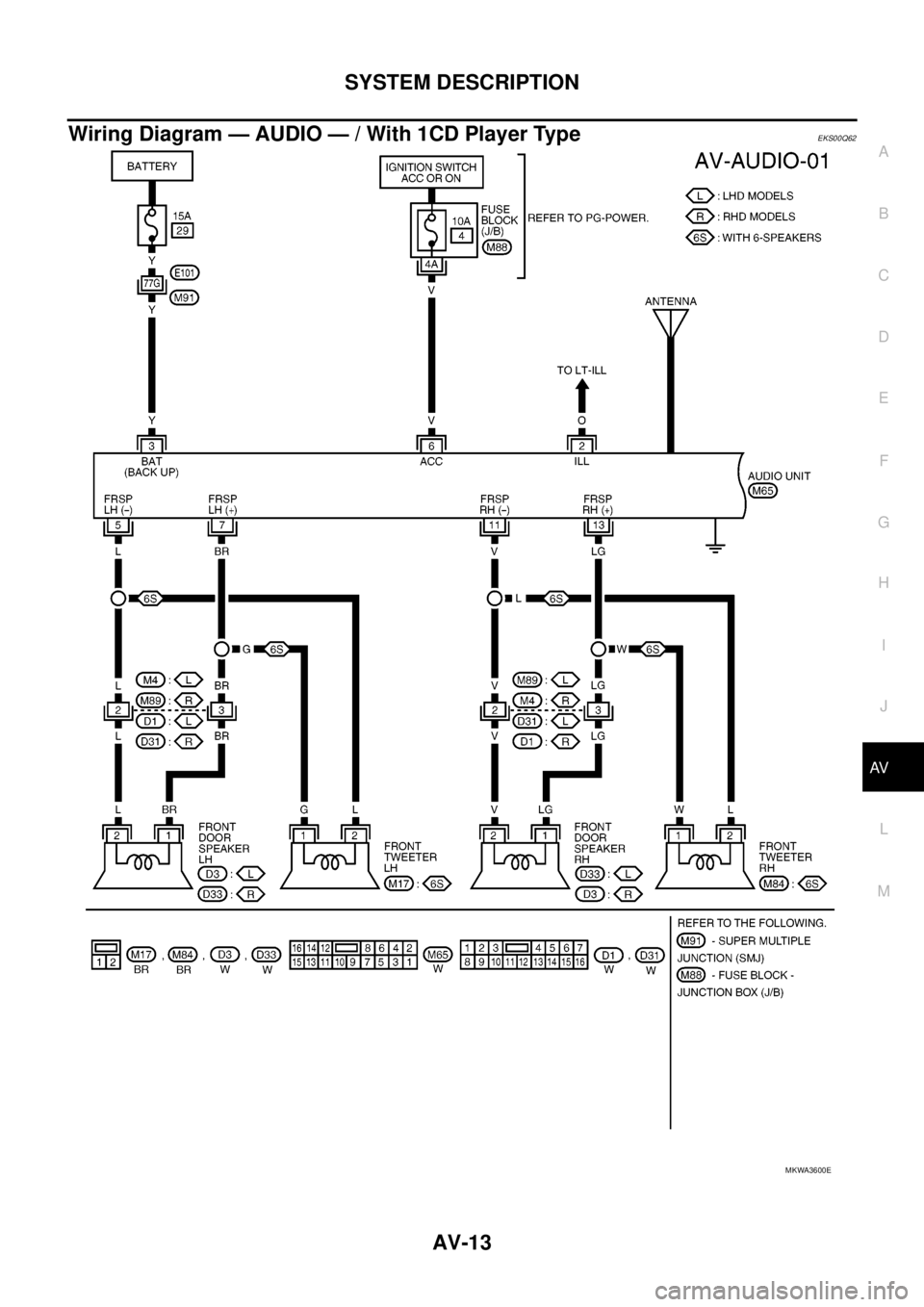

NISSAN NAVARA 2005 Repair Workshop Manual SYSTEM DESCRIPTION AV-13 C D E F G H I J L MA B AV Wiring Diagram — AUDIO — / With 1CD Player TypeEKS00Q62 MKWA3600E

Page 502 of 3171

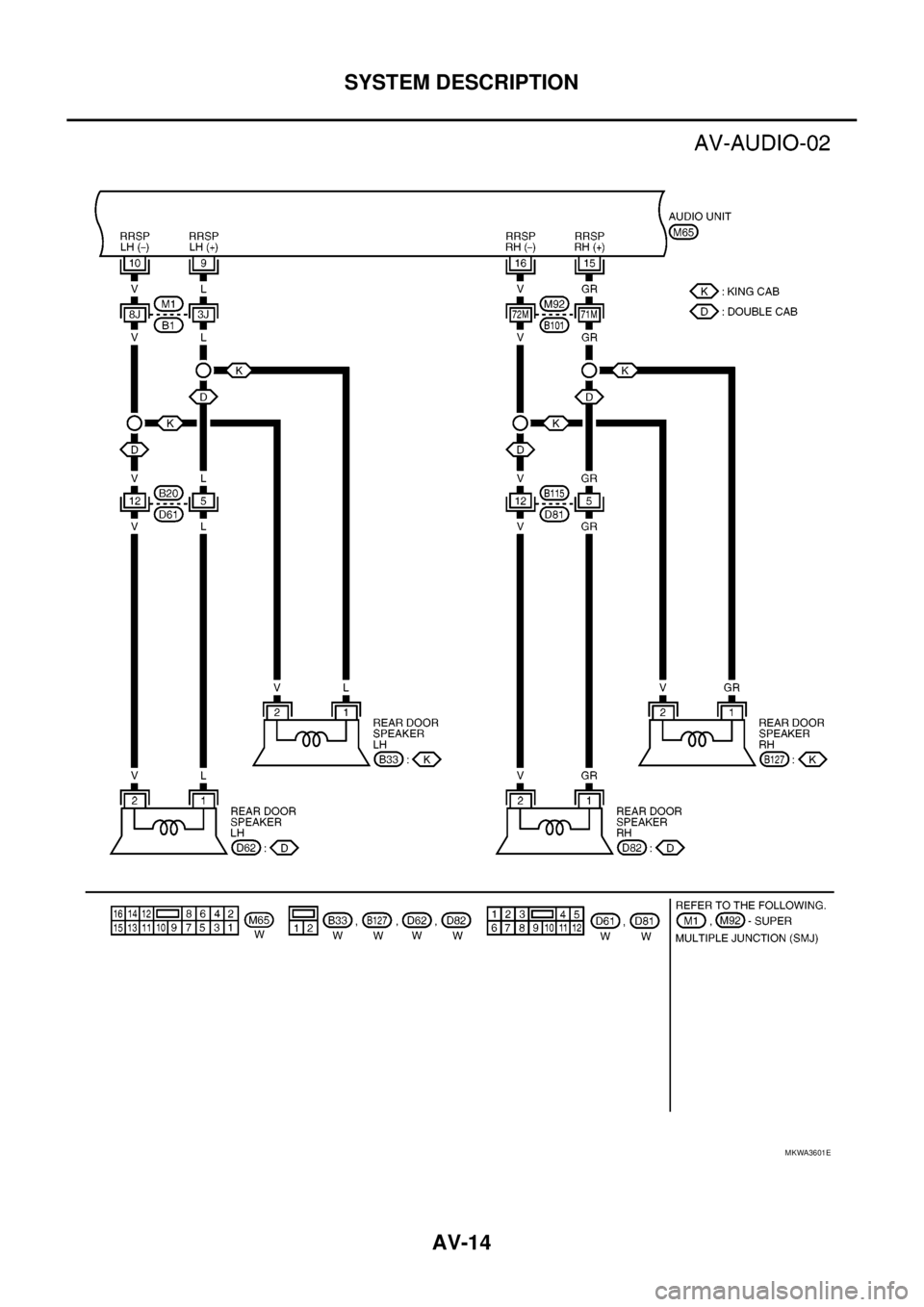

NISSAN NAVARA 2005 Repair Workshop Manual AV-14 SYSTEM DESCRIPTION MKWA3601E

Page 503 of 3171

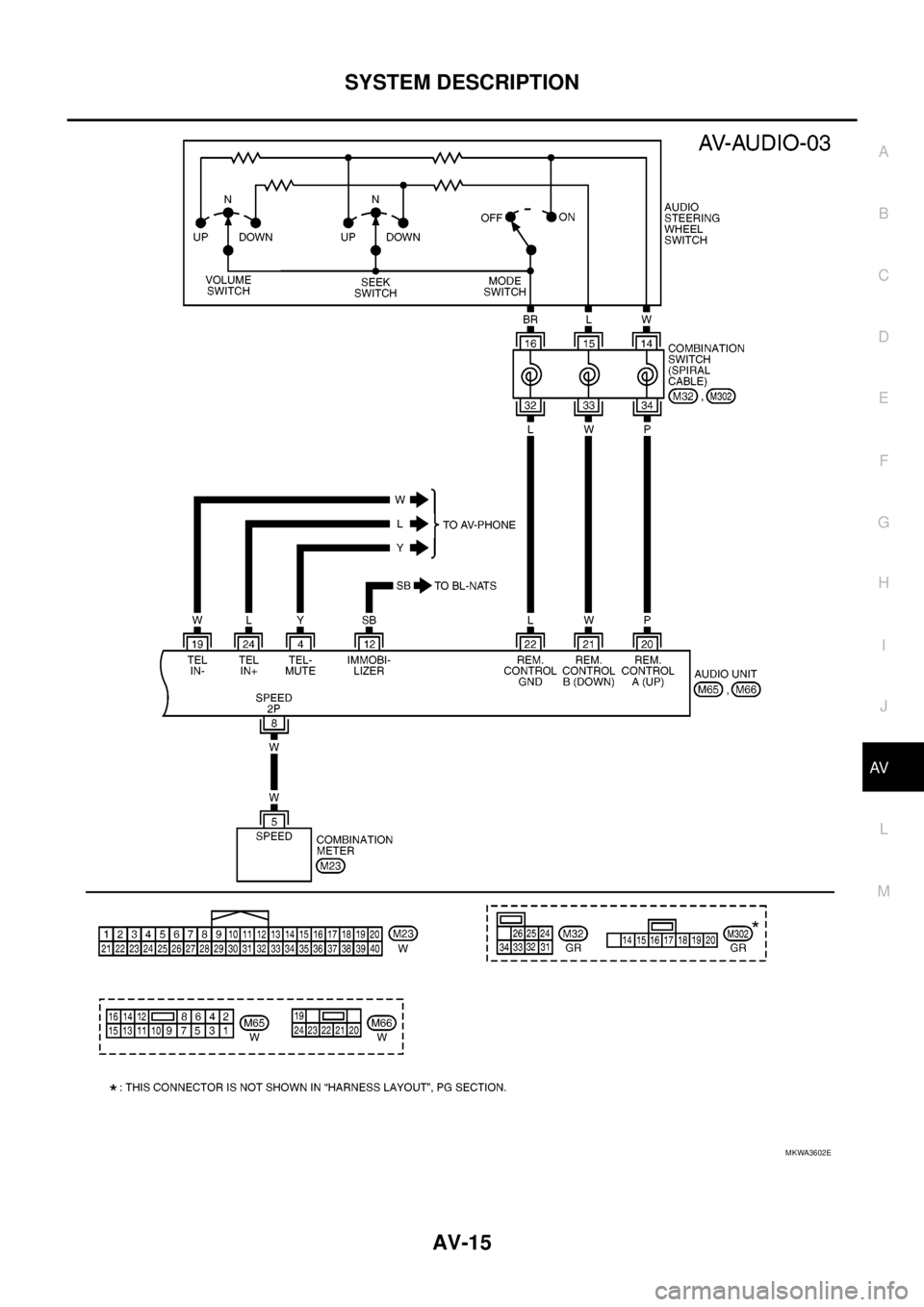

NISSAN NAVARA 2005 Repair Workshop Manual SYSTEM DESCRIPTION AV-15 C D E F G H I J L MA B AV MKWA3602E

Page 504 of 3171

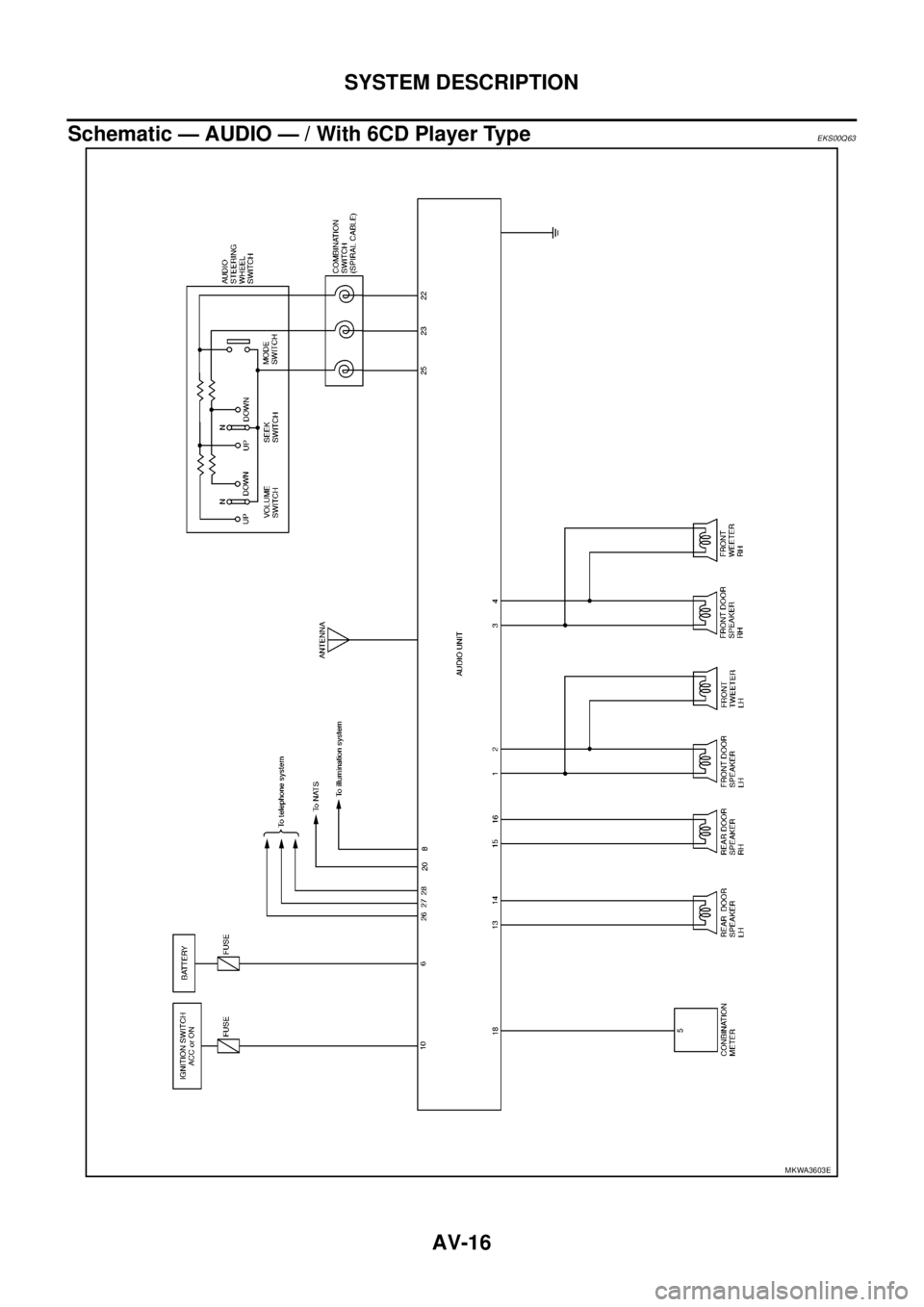

NISSAN NAVARA 2005 Repair Workshop Manual AV-16 SYSTEM DESCRIPTION Schematic — AUDIO — / With 6CD Player Type EKS00Q63 MKWA3603E

Page 505 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual SYSTEM DESCRIPTION AV-17 C D E F G H I J L MA B AV Wiring Diagram — AUDIO — / With 6CD Player TypeEKS00Q64 MKWA3604E

Page 506 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AV-18 SYSTEM DESCRIPTION MKWA3605E

Page 507 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual SYSTEM DESCRIPTION AV-19 C D E F G H I J L MA B AV MKWA3606E

Page 508 of 3171

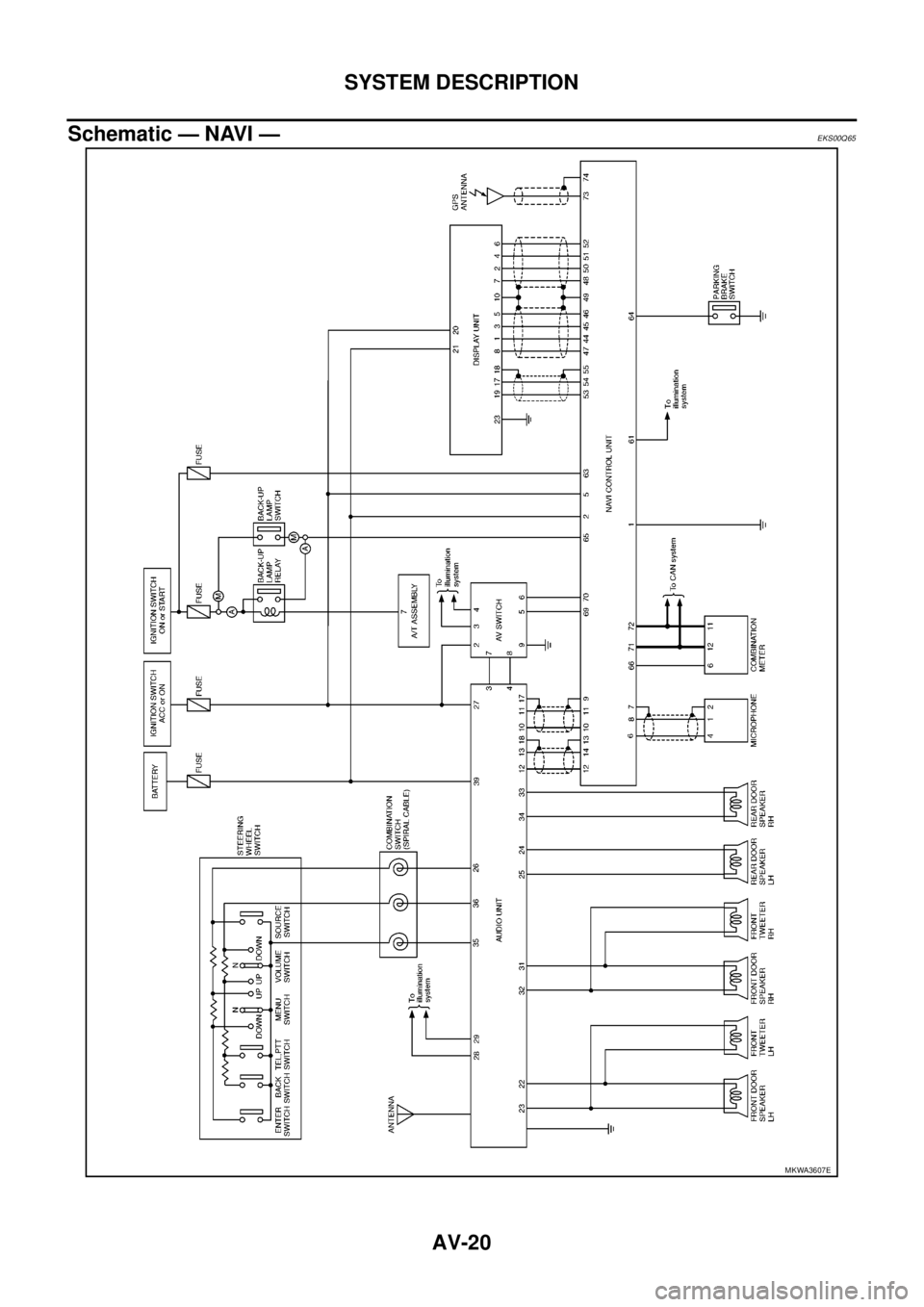

NISSAN NAVARA 2005 Repair Workshop Manual AV-20 SYSTEM DESCRIPTION Schematic — NAVI — EKS00Q65 MKWA3607E

Page 509 of 3171

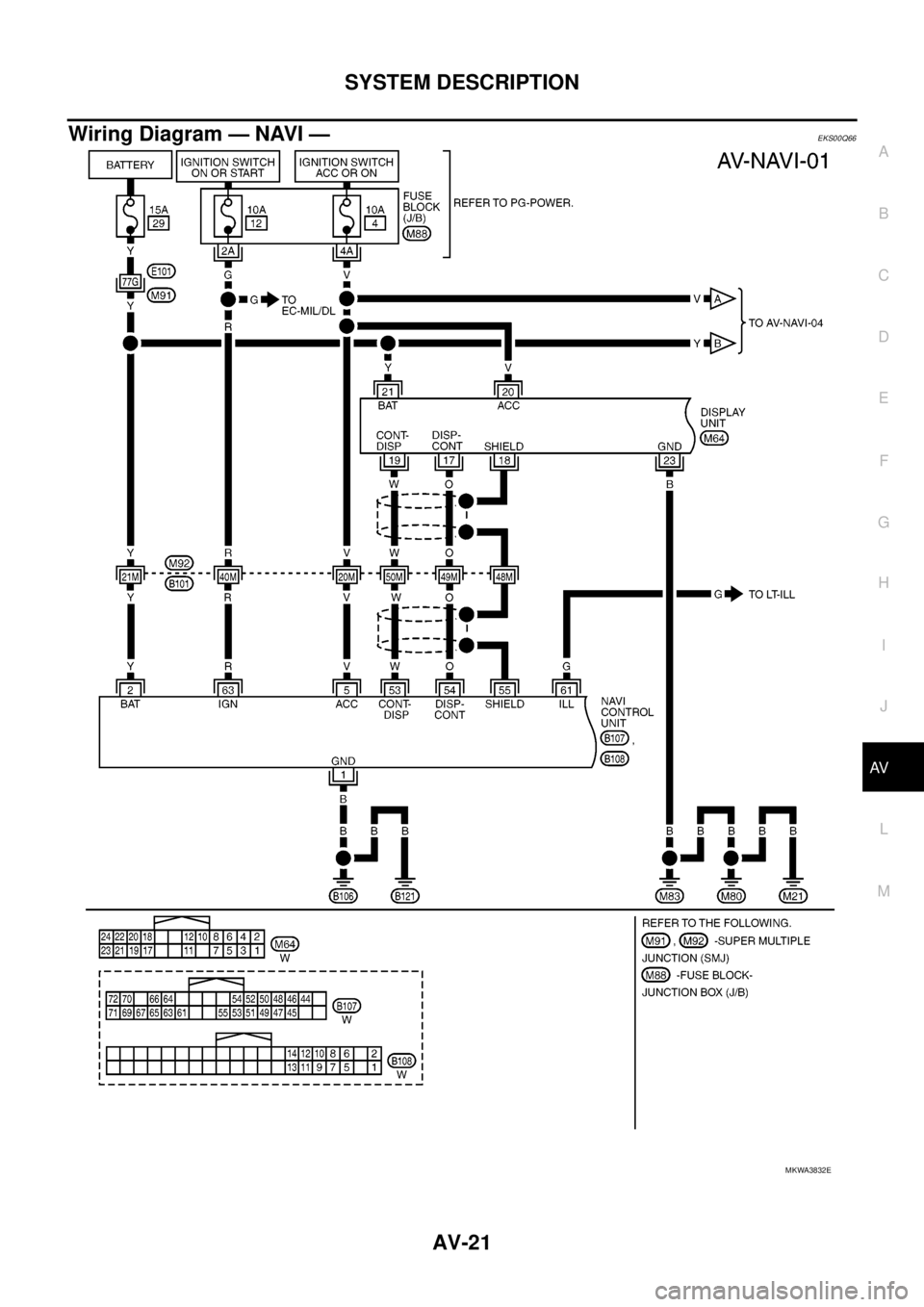

NISSAN NAVARA 2005 Repair Workshop Manual SYSTEM DESCRIPTION AV-21 C D E F G H I J L MA B AV Wiring Diagram — NAVI —EKS00Q66 MKWA3832E

Page 510 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AV-22 SYSTEM DESCRIPTION MKWA3608E
