NISSAN NOTE 2016 Service Repair Manual

EC-14
< SYSTEM DESCRIPTION >[HR16DE]
COMPONENT PARTS
SYSTEM DESCRIPTION
COMPONENT PARTS
ENGINE CONTROL SYSTEM
ENGINE CONTROL SYSTEM : Component Parts LocationINFOID:0000000012431269
1. Battery current sensor
2. ECM3. IPDM E/R
Refer to PCS-4, "
Component Parts
Location"
4. Mass air flow sensor (with intake air temperature sensor) 5. Electric throttle control actuator
(with built in throttle position sensor
and throttle control motor) 6. EVAP canister purge volume control
solenoid valve
7. Cooling fan motor 8. Refrigerant pressure sensor
Refer to HA-12, "
Component Parts
Location"
ALBIA1071ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

COMPONENT PARTSEC-15
< SYSTEM DESCRIPTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1. Ignition coil No.4
(with power transistor) 2. Ignition coil No.3
(with power transistor) 3. Ignition coil No.2
(with power transistor)
4. Ignition coil No.1 (with power transistor) 5. PCV valve
6. Intake valve timing control solenoid
valve
7. Engine oil pressure sensor 8. Engine oil temperature sensor 9. Knock sensor
10. Engine coolant temperature sensor 11. Camshaft position sensor 12. Exhaust valve timing control position
sensor
13. Exhaust valve timing control sole- noid valve 14. Fuel injector No.1 (Front)
15. Fuel injector No.1 (Rear)
16. Fuel injector No.2 (Front) 17. Fuel injector No.2 (Rear)18. Fuel injector No.3 (Front)
19. Fuel injector No.3 (Rear) 20. Fuel injector No.4 (Front)21. Fuel injector No.4 (Rear)
22. Crankshaft position sensor
A. Engine front right side B. Left view of the engineC. Engine rear right side
JSBIA0592ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

EC-16
< SYSTEM DESCRIPTION >[HR16DE]
COMPONENT PARTS
1. A/F sensor 1
2. Heated oxygen sensor 2
JSBIA0565ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

COMPONENT PARTSEC-17
< SYSTEM DESCRIPTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

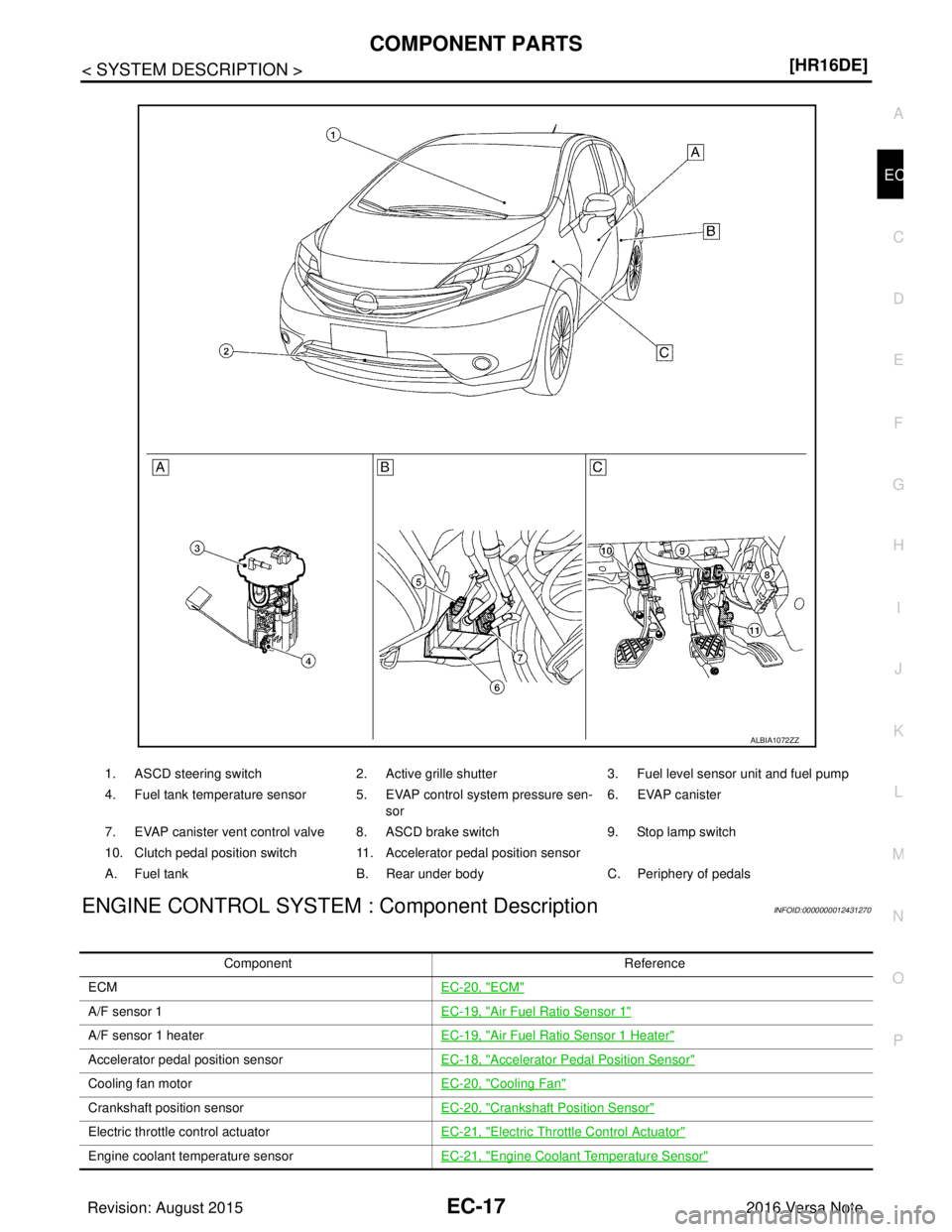

ENGINE CONTROL SYSTEM : Component DescriptionINFOID:0000000012431270
1. ASCD steering switch
2. Active grille shutter3. Fuel level sensor unit and fuel pump
4. Fuel tank temperature sensor 5. EVAP control system pressure sen- sor6. EVAP canister
7. EVAP canister vent control valve 8. ASCD brake switch 9. Stop lamp switch
10. Clutch pedal position switch 11. Accelerator pedal position sensor
A. Fuel tank B. Rear under bodyC. Periphery of pedals
ALBIA1072ZZ
Component Reference
ECM EC-20, "
ECM"
A/F sensor 1EC-19, "Air Fuel Ratio Sensor 1"
A/F sensor 1 heaterEC-19, "Air Fuel Ratio Sensor 1 Heater"
Accelerator pedal position sensorEC-18, "Accelerator Pedal Position Sensor"
Cooling fan motor EC-20, "Cooling Fan"
Crankshaft position sensorEC-20, "Crankshaft Position Sensor"
Electric throttle control actuatorEC-21, "Electric Throttle Control Actuator"
Engine coolant temperature sensorEC-21, "Engine Coolant Temperature Sensor"
Revision: August 2015 2016 Versa Note

cardiagn.com

EC-18
< SYSTEM DESCRIPTION >[HR16DE]
COMPONENT PARTS

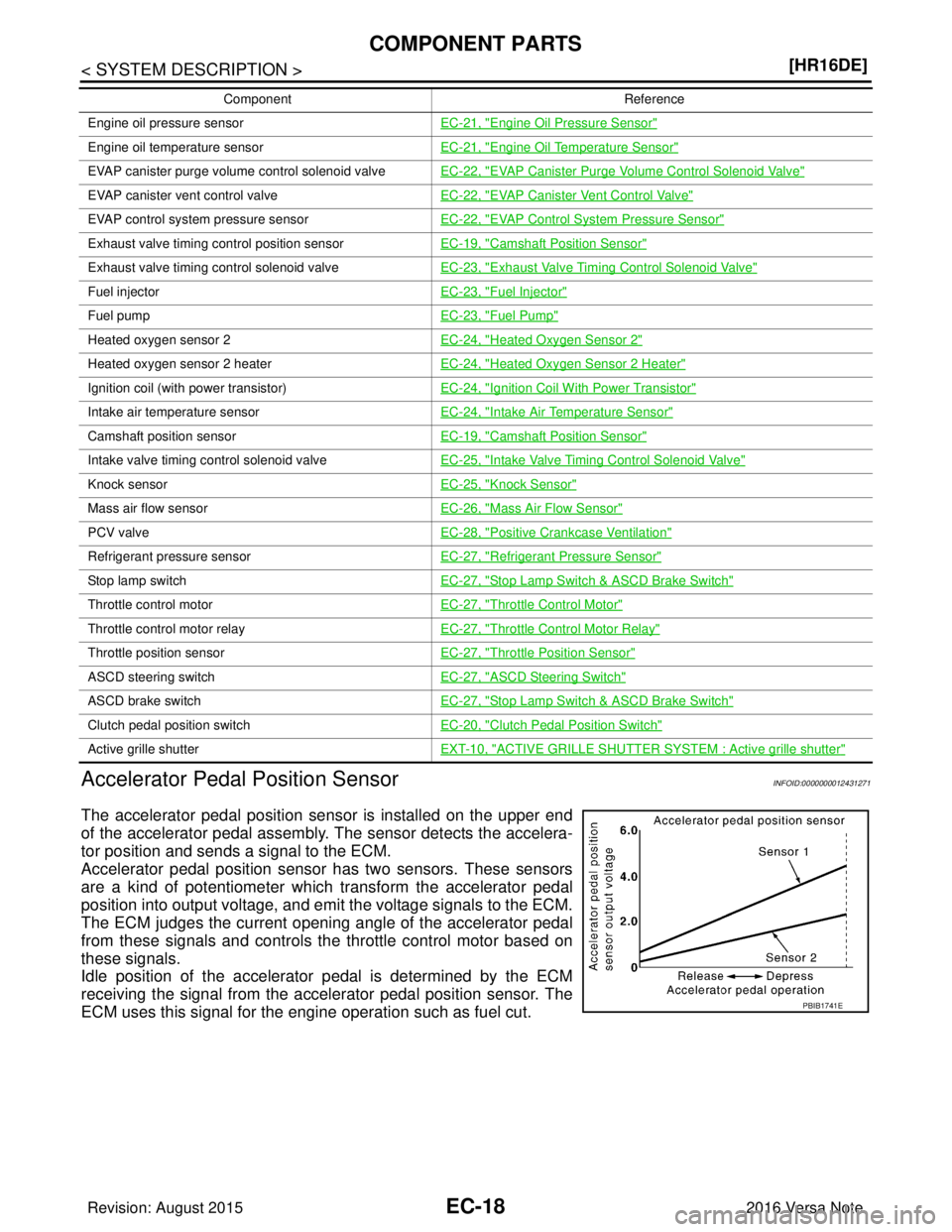

Accelerator Pedal Position Sensor
INFOID:0000000012431271
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometer which transform the accelerator pedal
position into output voltage, and emit the voltage signals to the ECM.
The ECM judges the current opening angle of the accelerator pedal
from these signals and controls the throttle control motor based on
these signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The
ECM uses this signal for the engine operation such as fuel cut.
Engine oil pressure sensor EC-21, "Engine Oil Pressure Sensor"
Engine oil temperature sensorEC-21, "Engine Oil Temperature Sensor"
EVAP canister purge volume control solenoid valveEC-22, "EVAP Canister Purge Volume Control Solenoid Valve"
EVAP canister vent control valveEC-22, "EVAP Canister Vent Control Valve"
EVAP control system pressure sensorEC-22, "EVAP Control System Pressure Sensor"
Exhaust valve timing control position sensor EC-19, "Camshaft Position Sensor"
Exhaust valve timing control solenoid valveEC-23, "Exhaust Valve Timing Control Solenoid Valve"
Fuel injectorEC-23, "Fuel Injector"
Fuel pumpEC-23, "Fuel Pump"
Heated oxygen sensor 2EC-24, "Heated Oxygen Sensor 2"
Heated oxygen sensor 2 heaterEC-24, "Heated Oxygen Sensor 2 Heater"
Ignition coil (with power transistor)EC-24, "Ignition Coil With Power Transistor"
Intake air temperature sensorEC-24, "Intake Air Temperature Sensor"
Camshaft position sensorEC-19, "Camshaft Position Sensor"
Intake valve timing control solenoid valveEC-25, "Intake Valve Timing Control Solenoid Valve"
Knock sensorEC-25, "Knock Sensor"
Mass air flow sensorEC-26, "Mass Air Flow Sensor"
PCV valveEC-28, "Positive Crankcase Ventilation"
Refrigerant pressure sensorEC-27, "Refrigerant Pressure Sensor"
Stop lamp switchEC-27, "Stop Lamp Switch & ASCD Brake Switch"
Throttle control motorEC-27, "Throttle Control Motor"
Throttle control motor relay EC-27, "Throttle Control Motor Relay"
Throttle position sensor EC-27, "Throttle Position Sensor"
ASCD steering switchEC-27, "ASCD Steering Switch"
ASCD brake switchEC-27, "Stop Lamp Switch & ASCD Brake Switch"
Clutch pedal position switchEC-20, "Clutch Pedal Position Switch"
Active grille shutterEXT-10, "ACTIVE GRILLE SHUTTER SYSTEM : Active grille shutter"
Component Reference
PBIB1741E
Revision: August 2015 2016 Versa Note

cardiagn.com

COMPONENT PARTSEC-19
< SYSTEM DESCRIPTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

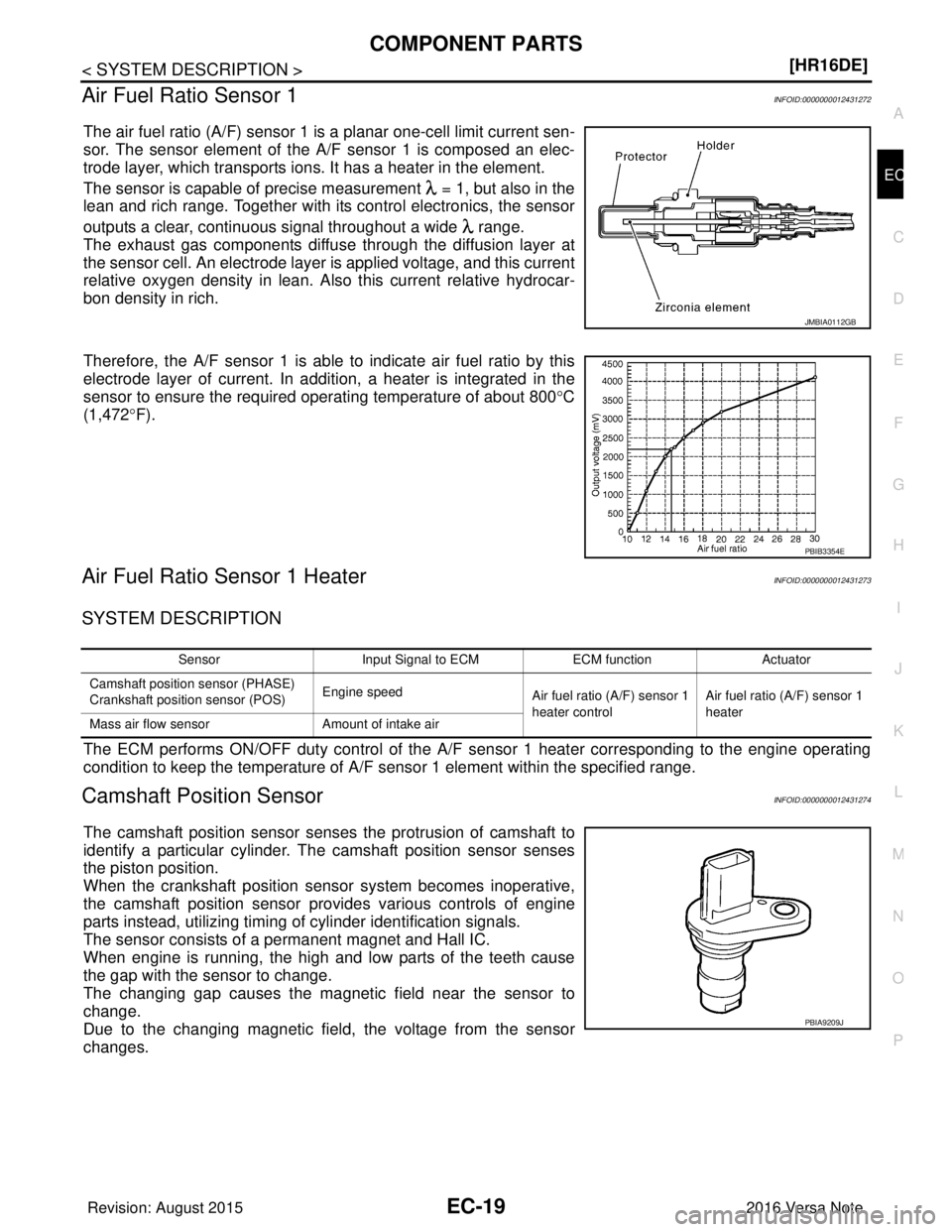

Air Fuel Ratio Sensor 1INFOID:0000000012431272
The air fuel ratio (A/F) sensor 1 is a planar one-cell limit current sen-
sor. The sensor element of the A/F sensor 1 is composed an elec-
trode layer, which transports ions. It has a heater in the element.
The sensor is capable of precise m
easurement = 1, but also in the
lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide range.
The exhaust gas components diffuse through the diffusion layer at
the sensor cell. An electrode layer is applied voltage, and this current
relative oxygen density in lean. Also this current relative hydrocar-
bon density in rich.
Therefore, the A/F sensor 1 is able to indicate air fuel ratio by this
electrode layer of current. In addition, a heater is integrated in the
sensor to ensure the required operating temperature of about 800 °C
(1,472 °F).
Air Fuel Ratio Sensor 1 HeaterINFOID:0000000012431273
SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the A/F sensor 1 heater corresponding to the engine operating
condition to keep the temperature of A/F s ensor 1 element within the specified range.
Camshaft Position SensorINFOID:0000000012431274
The camshaft position sensor senses the protrusion of camshaft to
identify a particular cylinder. The camshaft position sensor senses
the piston position.
When the crankshaft position sensor system becomes inoperative,
the camshaft position sensor provides various controls of engine
parts instead, utilizing timing of cylinder identification signals.
The sensor consists of a permanent magnet and Hall IC.
When engine is running, the high and low parts of the teeth cause
the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic fiel d, the voltage from the sensor
changes.
JMBIA0112GB
PBIB3354E
Sensor Input Signal to ECM ECM functionActuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS) Engine speed
Air fuel ratio (A/F) sensor 1
heater controlAir fuel ratio (A/F) sensor 1
heater
Mass air flow sensor Amount of intake air
PBIA9209J
Revision: August 2015 2016 Versa Note

cardiagn.com

EC-20
< SYSTEM DESCRIPTION >[HR16DE]
COMPONENT PARTS

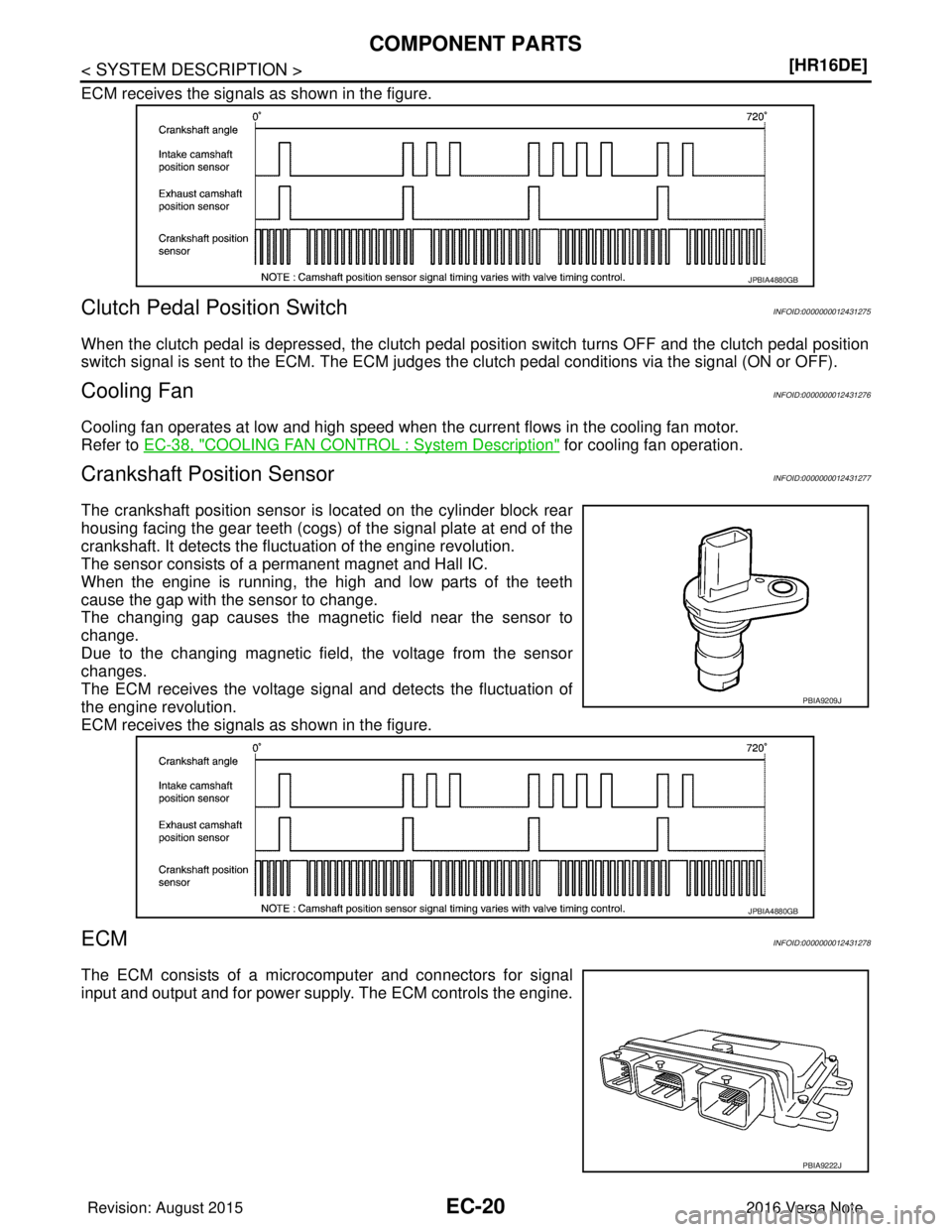

ECM receives the signals as shown in the figure.
Clutch Pedal Position SwitchINFOID:0000000012431275
When the clutch pedal is depressed, the clutch pedal pos
ition switch turns OFF and the clutch pedal position
switch signal is sent to the ECM. The ECM judges t he clutch pedal conditions via the signal (ON or OFF).
Cooling FanINFOID:0000000012431276
Cooling fan operates at low and high speed when the current flows in the cooling fan motor.
Refer to EC-38, "
COOLING FAN CONTROL : System Description" for cooling fan operation.
Crankshaft Position SensorINFOID:0000000012431277
The crankshaft position sensor is located on the cylinder block rear
housing facing the gear teeth (cogs) of the signal plate at end of the
crankshaft. It detects the fluctuation of the engine revolution.
The sensor consists of a permanent magnet and Hall IC.
When the engine is running, the high and low parts of the teeth
cause the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor
changes.
The ECM receives the voltage signal and detects the fluctuation of
the engine revolution.
ECM receives the signals as shown in the figure.
ECMINFOID:0000000012431278
The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The ECM controls the engine.
JPBIA4880GB
PBIA9209J
JPBIA4880GB
PBIA9222J
Revision: August 2015 2016 Versa Note

cardiagn.com

COMPONENT PARTSEC-21
< SYSTEM DESCRIPTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Electric Throttle Control ActuatorINFOID:0000000012431279
Electric throttle control actuator consists of throttle control mo
tor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-
back to the ECM to control the throttle valve in response to driving conditions via the throttle control motor.

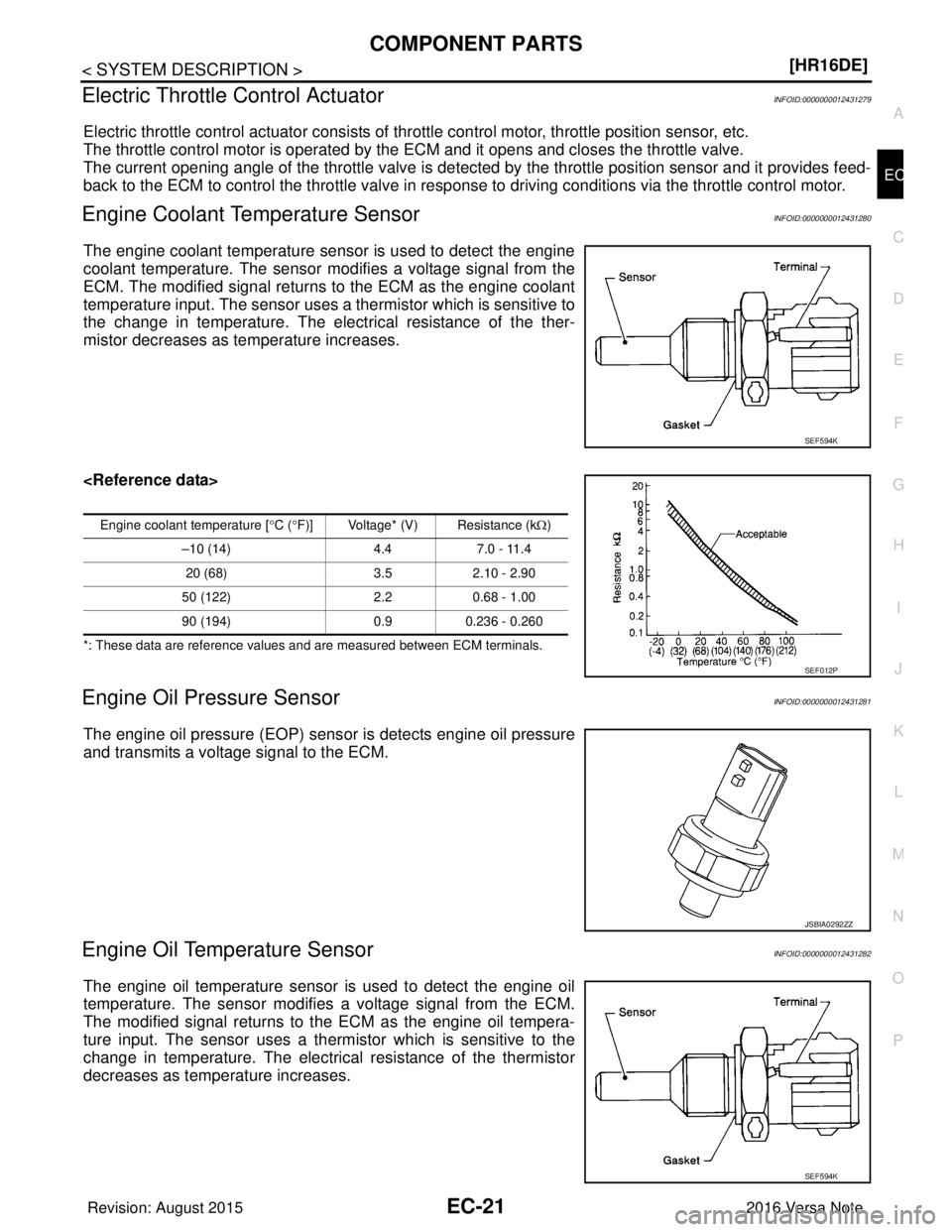

Engine Coolant Temperature SensorINFOID:0000000012431280
The engine coolant temperature sensor is used to detect the engine
coolant temperature. The sensor modifies a voltage signal from the
ECM. The modified signal returns to the ECM as the engine coolant
temperature input. The sensor uses a thermistor which is sensitive to
the change in temperature. The electrical resistance of the ther-
mistor decreases as temperature increases.

*: These data are reference values and are measured between ECM terminals.
Engine Oil Pressure SensorINFOID:0000000012431281
The engine oil pressure (EOP) sensor is detects engine oil pressure
and transmits a voltage signal to the ECM.

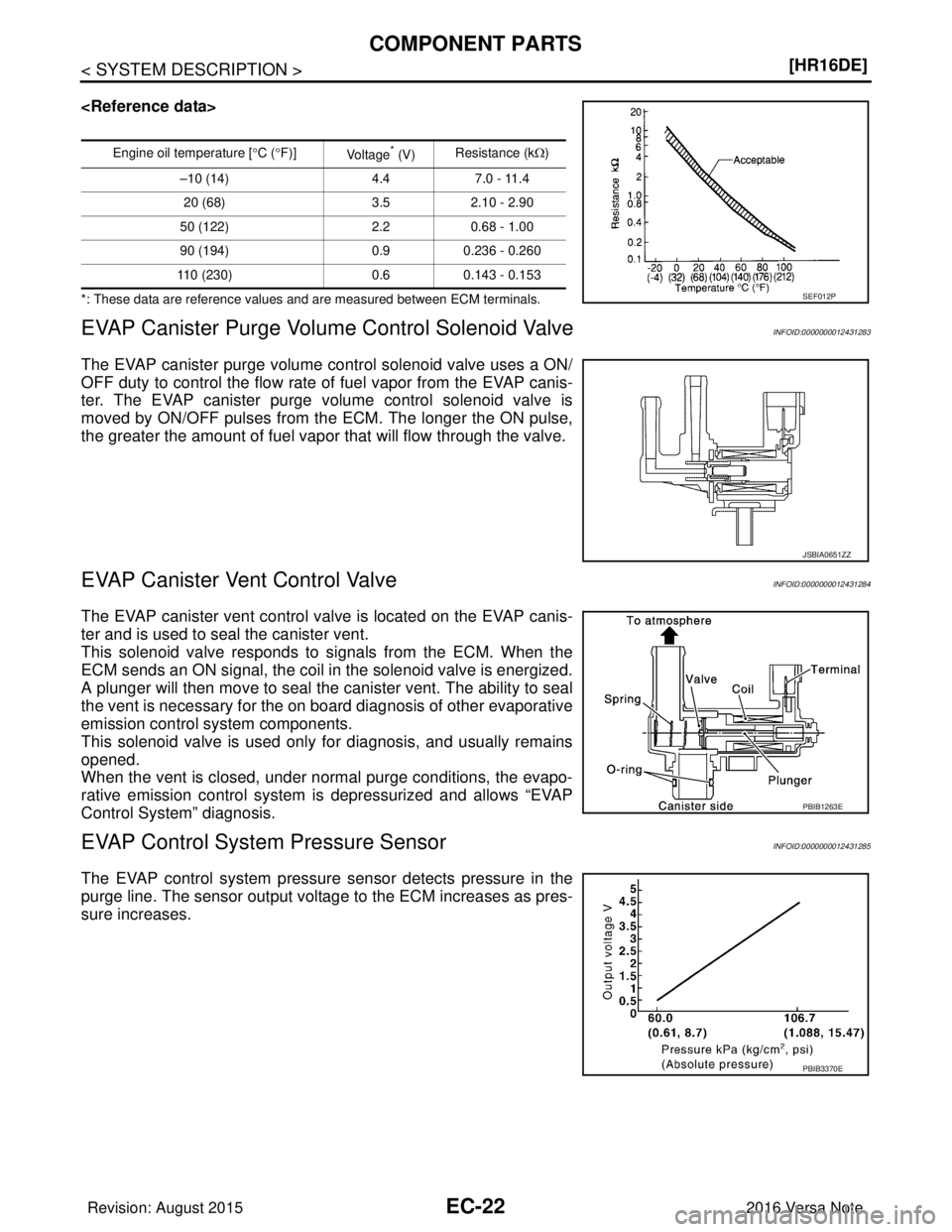

Engine Oil Temperature SensorINFOID:0000000012431282
The engine oil temperature sensor is used to detect the engine oil
temperature. The sensor modifies a voltage signal from the ECM.
The modified signal returns to the ECM as the engine oil tempera-
ture input. The sensor uses a thermistor which is sensitive to the
change in temperature. The electrical resistance of the thermistor
decreases as temperature increases.
SEF594K
Engine coolant temperature [ °C ( °F)] Voltage* (V) Resistance (k Ω)
–10 (14) 4.47.0 - 11.4
20 (68) 3.52.10 - 2.90
50 (122) 2.20.68 - 1.00
90 (194) 0.90.236 - 0.260
SEF012P
JSBIA0292ZZ
SEF594K
Revision: August 2015 2016 Versa Note

cardiagn.com

EC-22
< SYSTEM DESCRIPTION >[HR16DE]
COMPONENT PARTS

*: These data are reference values and are measured between ECM terminals.
EVAP Canister Purge Volume Control Solenoid ValveINFOID:0000000012431283
The EVAP canister purge volume control solenoid valve uses a ON/
OFF duty to control the flow rate of fuel vapor from the EVAP canis-
ter. The EVAP canister purge volume control solenoid valve is
moved by ON/OFF pulses from the ECM. The longer the ON pulse,
the greater the amount of fuel vapor that will flow through the valve.
EVAP Canister Vent Control ValveINFOID:0000000012431284
The EVAP canister vent control
valve is located on the EVAP canis-
ter and is used to seal the canister vent.
This solenoid valve responds to signals from the ECM. When the
ECM sends an ON signal, the coil in the solenoid valve is energized.
A plunger will then move to seal the canister vent. The ability to seal
the vent is necessary for the on board diagnosis of other evaporative
emission control system components.
This solenoid valve is used only for diagnosis, and usually remains
opened.
When the vent is closed, under normal purge conditions, the evapo-
rative emission control system is depressurized and allows “EVAP
Control System” diagnosis.
EVAP Control System Pressure SensorINFOID:0000000012431285
The EVAP control system pressure s ensor detects pressure in the
purge line. The sensor output voltage to the ECM increases as pres-
sure increases.
Engine oil temperature [ °C ( °F)]
Vo l ta g e* (V)Resistance (k
Ω)
–10 (14) 4.4 7.0 - 11.4 20 (68) 3.52.10 - 2.90
50 (122) 2.20.68 - 1.00
90 (194) 0.90.236 - 0.260
110 (230) 0.60.143 - 0.153
SEF012P
JSBIA0651ZZ
PBIB1263E
PBIB3370E
Revision: August 2015 2016 Versa Note

cardiagn.com

COMPONENT PARTSEC-23
< SYSTEM DESCRIPTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

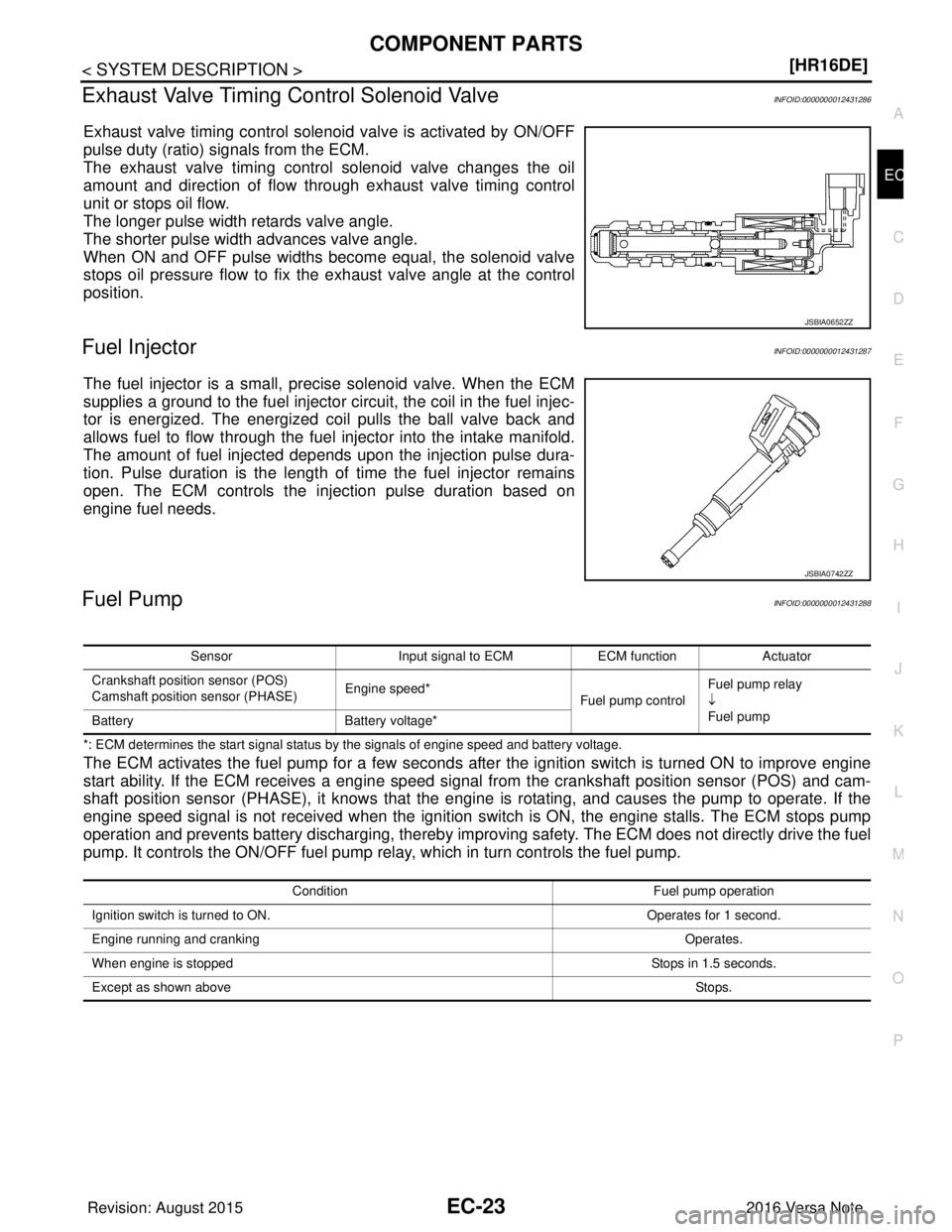

Exhaust Valve Timing Control Solenoid ValveINFOID:0000000012431286
Exhaust valve timing control solenoi
d valve is activated by ON/OFF
pulse duty (ratio) signals from the ECM.
The exhaust valve timing control solenoid valve changes the oil
amount and direction of flow through exhaust valve timing control
unit or stops oil flow.
The longer pulse width retards valve angle.
The shorter pulse width advances valve angle.
When ON and OFF pulse widths become equal, the solenoid valve
stops oil pressure flow to fix the exhaust valve angle at the control
position.
Fuel InjectorINFOID:0000000012431287
The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the fuel injector circuit, the coil in the fuel injec-
tor is energized. The energized coil pulls the ball valve back and
allows fuel to flow through the fuel injector into the intake manifold.
The amount of fuel injected depends upon the injection pulse dura-
tion. Pulse duration is the length of time the fuel injector remains
open. The ECM controls the injection pulse duration based on
engine fuel needs.
Fuel PumpINFOID:0000000012431288
*: ECM determines the start signal status by the signals of engine speed and battery voltage.
The ECM activates the fuel pump for a few seconds after the ignition switch is turned ON to improve engine
start ability. If the ECM receives a engine speed signal from the crankshaft position sensor (POS) and cam-
shaft position sensor (PHASE), it knows that the engi ne is rotating, and causes the pump to operate. If the
engine speed signal is not received when the ignition s witch is ON, the engine stalls. The ECM stops pump
operation and prevents battery discharging, thereby improving safety. The EC M does not directly drive the fuel
pump. It controls the ON/OFF fuel pump rela y, which in turn controls the fuel pump.
JSBIA0652ZZ
JSBIA0742ZZ
SensorInput signal to ECMECM functionActuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed*
Fuel pump controlFuel pump relay
↓
Fuel pump
Battery Battery voltage*
Condition Fuel pump operation
Ignition switch is turned to ON. Operates for 1 second.
Engine running and cranking Operates.
When engine is stopped Stops in 1.5 seconds.
Except as shown above Sto ps .
Revision: August 20152016 Versa Note

cardiagn.com
