Special Service ToolsINFOID:0000000012433113
The actual shape of the tools may differ from those illustrated here.
Commercial Service ToolINFOID:0000000012433114
Tool number
(TechMate No.)
Tool nameDescription
—
(—) Model GR8-1200 NI
Multitasking battery and electrical diag-
nostic station Tests batteries, starting and charging
systems and charges batteries.
For operating instructions, refer to diag-
nostic station instruction manual.
—
(—) Model EXP-800 NI
Battery and electrical diagnostic analyzer Tests batteries and charging systems.
For operating instructions, refer to diag-
nostic analyzer instruction manual.
AWIIA1239ZZ
JSMIA0806ZZ
Tool name
Description
Power tool Loosening nuts, screws and bolts
PIIB1407E
Revision: August 2015 2016 Versa Note

cardiagn.com

PG
ELECTRICAL UNITS LOCATIONPG-5
< SYSTEM DESCRIPTION >
C
DE
F
G H
I
J
K L
B A
O P
N
SYSTEM DESCRIPTION
ELECTRICAL UNITS LOCATION
Electrical Units LocationINFOID:0000000012433115
ENGINE COMPARTMENT
AAMIA2764GB
Revision: August 2015
2016 Versa Note

cardiagn.com

PG-6
< SYSTEM DESCRIPTION >
ELECTRICAL UNITS LOCATION
PASSENGER COMPARTMENT
AAMIA2765GB
Revision: August 20152016 Versa Note

cardiagn.com

PG
ELECTRICAL UNITS LOCATIONPG-7
< SYSTEM DESCRIPTION >
C
DE
F
G H
I
J
K L
B A
O P
N
AAMIA1786GB
Revision: August 2015
2016 Versa Note

cardiagn.com

PG-8
< SYSTEM DESCRIPTION >
ELECTRICAL UNITS LOCATION
LUGGAGE COMPARTMENT
AAMIA2766GB
Revision: August 20152016 Versa Note

cardiagn.com

PG
COMPONENT PARTSPG-9
< SYSTEM DESCRIPTION >
C
DE
F
G H
I
J
K L
B A
O P
N
COMPONENT PARTS
Circuit Breaker (Built Into BCM)INFOID:0000000012433116
For example, when current is 30A, the circuit is broken within 8 to 20
seconds.
This circuit breaker is used for the following systems:
• Power windows
Harness ConnectorINFOID:0000000012433117
HARNESS CONNECTOR (TAB-LOCKING TYPE)
• The tab-locking type connectors help prevent accidental looseness or disconnection.
• The tab-locking type connectors are disconnected by pushi
ng or lifting the locking tab(s). Refer to the figure
below.
Refer to the next page for description of the slide-locking type connector.
CAUTION:
Do not pull the harness or wires when disconnecting the connector.
SBF284E
Revision: August 2015 2016 Versa Note

cardiagn.com

PG-10
< SYSTEM DESCRIPTION >
COMPONENT PARTS
[Example]
HARNESS CONNECTOR (SLIDE-LOCKING TYPE)
• A new style slide-locking type connector is used on certain systems and components, especially those
related to OBD.
• The slide-locking type connectors help prevent incomplete locking and accidental looseness or disconnec-
tion.
• The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the figure
below.
CAUTION:
• Do not pull the harness or wires when disconnecting the connector.
• Be careful not to damage the connector su pport bracket when disconnecting the connector.
SEL769DA
Revision: August 2015 2016 Versa Note

cardiagn.com

PG
COMPONENT PARTSPG-11
< SYSTEM DESCRIPTION >
C
DE
F
G H
I
J
K L
B A
O P
N
[Example]
HARNESS CONNECTOR (LEVER LOCKING TYPE)
• Lever locking type harness connectors are used on certain control units and control modules such as ECM,
ABS actuator and electric unit (control unit), etc.
• Lever locking type harness connectors are also us ed on super multiple junction (SMJ) connectors.
• Always confirm the lever is fully locked in place by mo ving the lever as far as it will go to ensure full connec-
tion.
CAUTION:
SEL769V
Revision: August 2015 2016 Versa Note

cardiagn.com

PG-12
< SYSTEM DESCRIPTION >
COMPONENT PARTS
• Always confirm the lever is fully released (loosened) before attempting to disconnect or connect
these connectors to avoid damage to the connector housing or terminals.
HARNESS CONNECTOR (DIRECT-CONNECT SRS COMPONENT TYPE)
• SRS direct-connect type harness connectors are used on certain SRS components such as air bag modules
and seat belt pre-tensioners.
• Always pull up to release black locking tab prior to removing connector from SRS components.
• Always push down to lock black locking tab after inst alling connector to SRS components. When locked, the
black locking tab is level with the connector housing.
CAUTION:
• Do not pull the harness or wi res when removing connectors
from SRS components.
Standardized RelayINFOID:0000000012433118
NORMAL OPEN, NORMAL CLOS ED AND MIXED TYPE RELAYS
1. Control unit with single lever 2. Control unit with dual lever 3. SMJ connector
A. Fasten A. LeverA. Lever
B. Loosen B. FastenB. Fasten
C. Lever C. LoosenC. Loosen
LKIA0670E

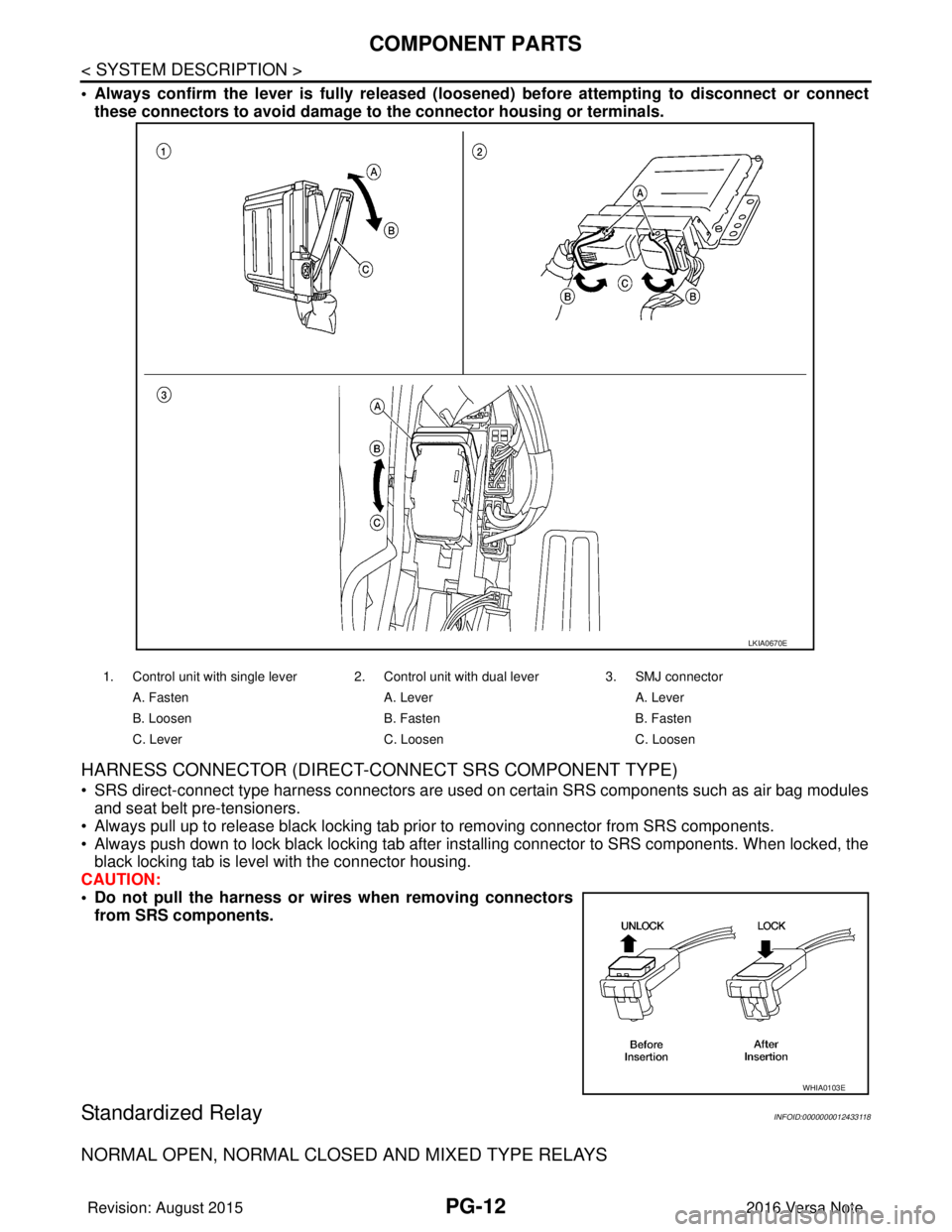

WHIA0103E
Revision: August 2015 2016 Versa Note

cardiagn.com

PG
COMPONENT PARTSPG-13
< SYSTEM DESCRIPTION >
C
DE
F
G H
I
J
K L
B A
O P
N
Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.
TYPE OF STANDARDIZED RELAYS

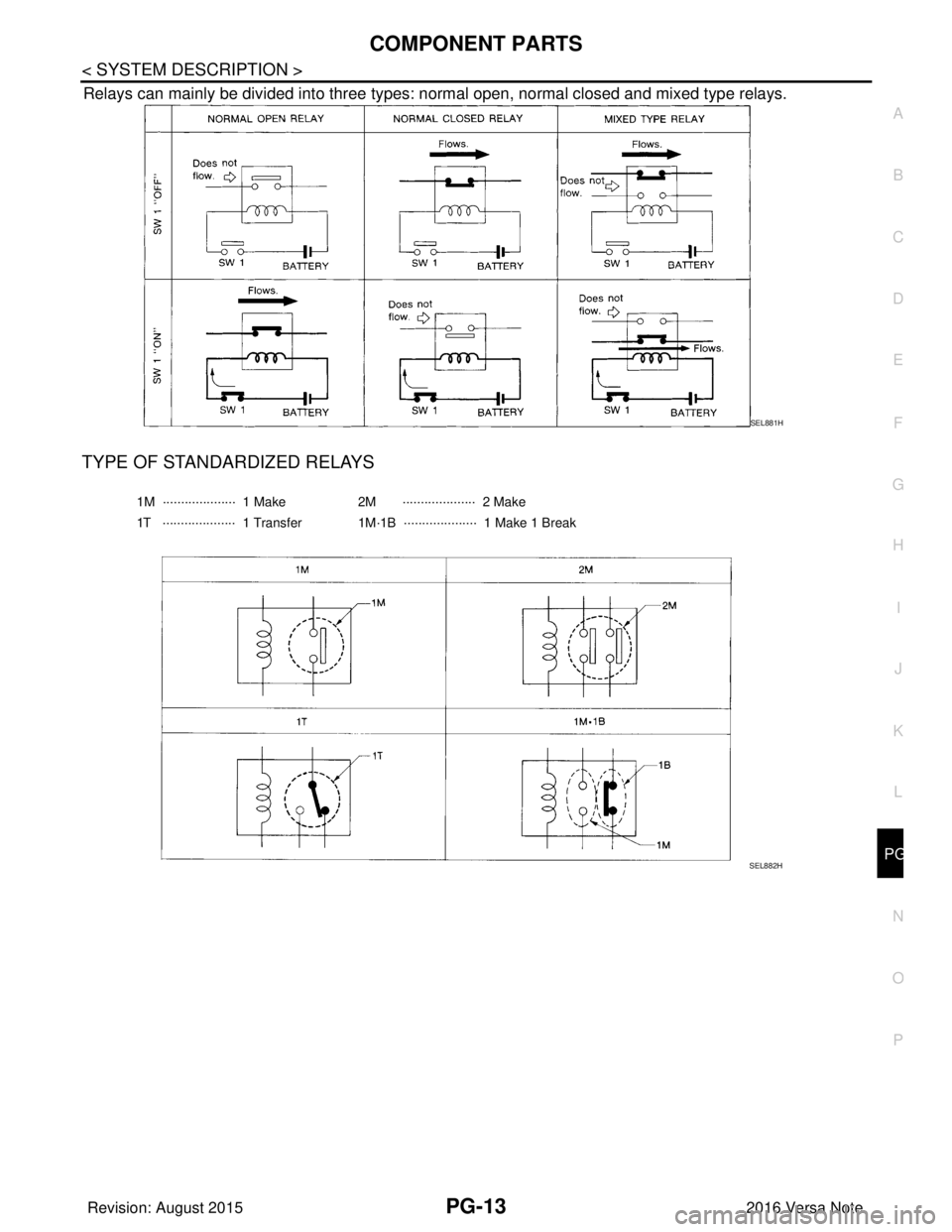

SEL881H
1M ···················· 1 Make
2M ···················· 2 Make
1T ···················· 1 Transfer 1M·1B ···················· 1 Make 1 Break
SEL882H
Revision: August 2015 2016 Versa Note
