Page 2611 of 3641

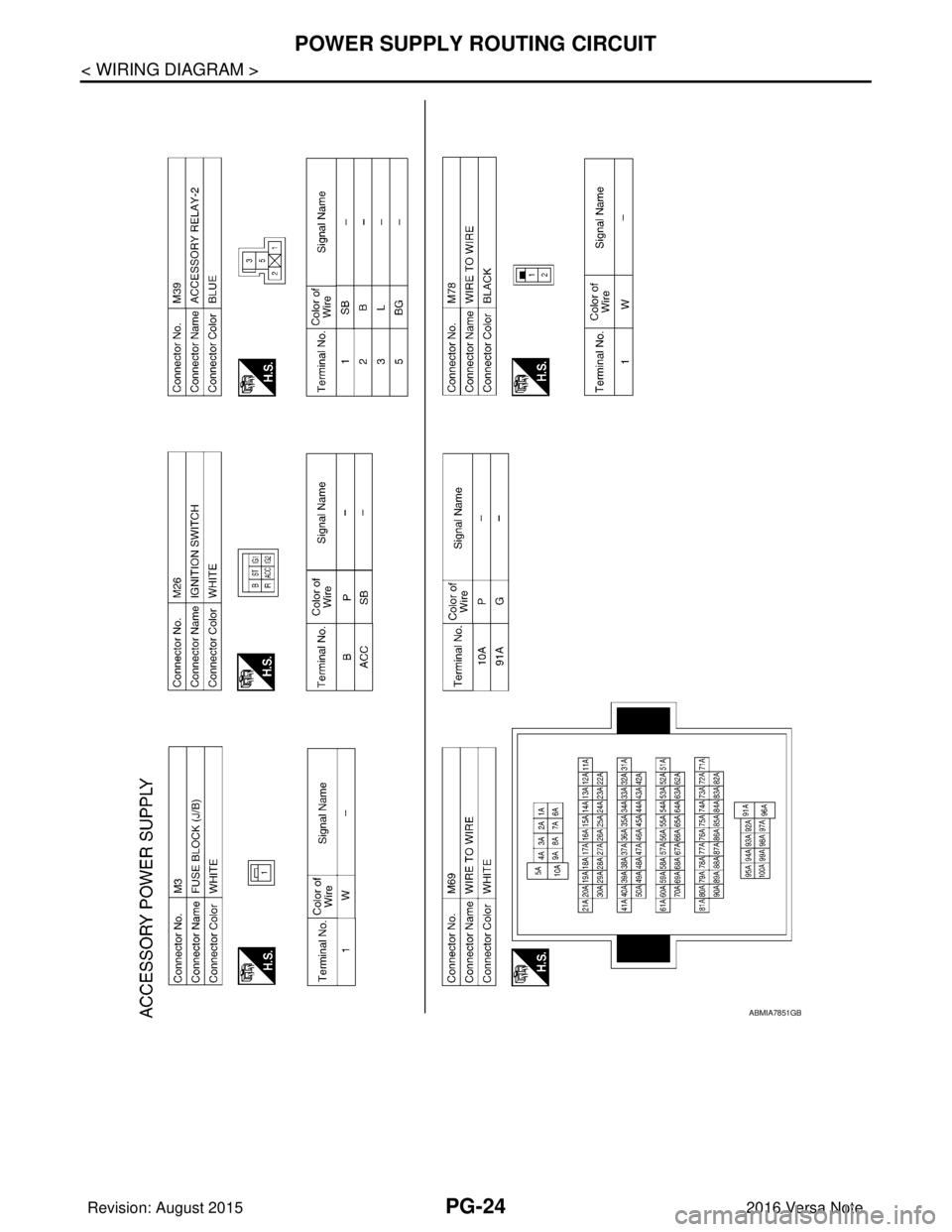

NISSAN NOTE 2016 Service Repair Manual PG-24 < WIRING DIAGRAM > POWER SUPPLY ROUTING CIRCUIT ABMIA7851GB Revision: August 20152016 Versa Note cardiagn.com

Page 2612 of 3641

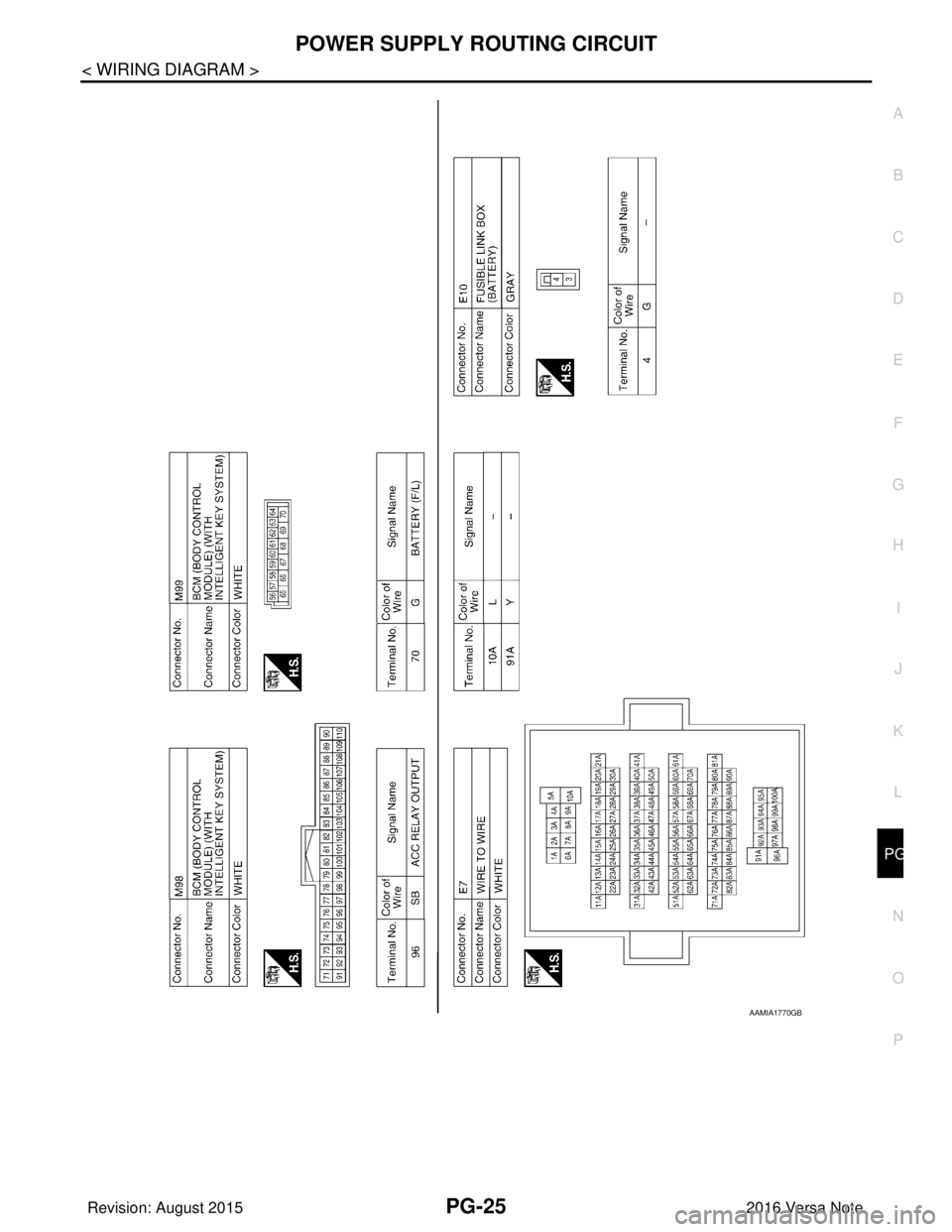

NISSAN NOTE 2016 Service Repair Manual PG POWER SUPPLY ROUTING CIRCUITPG-25 < WIRING DIAGRAM > C DE F G H I J K L B A O P N AAMIA1770GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 2613 of 3641

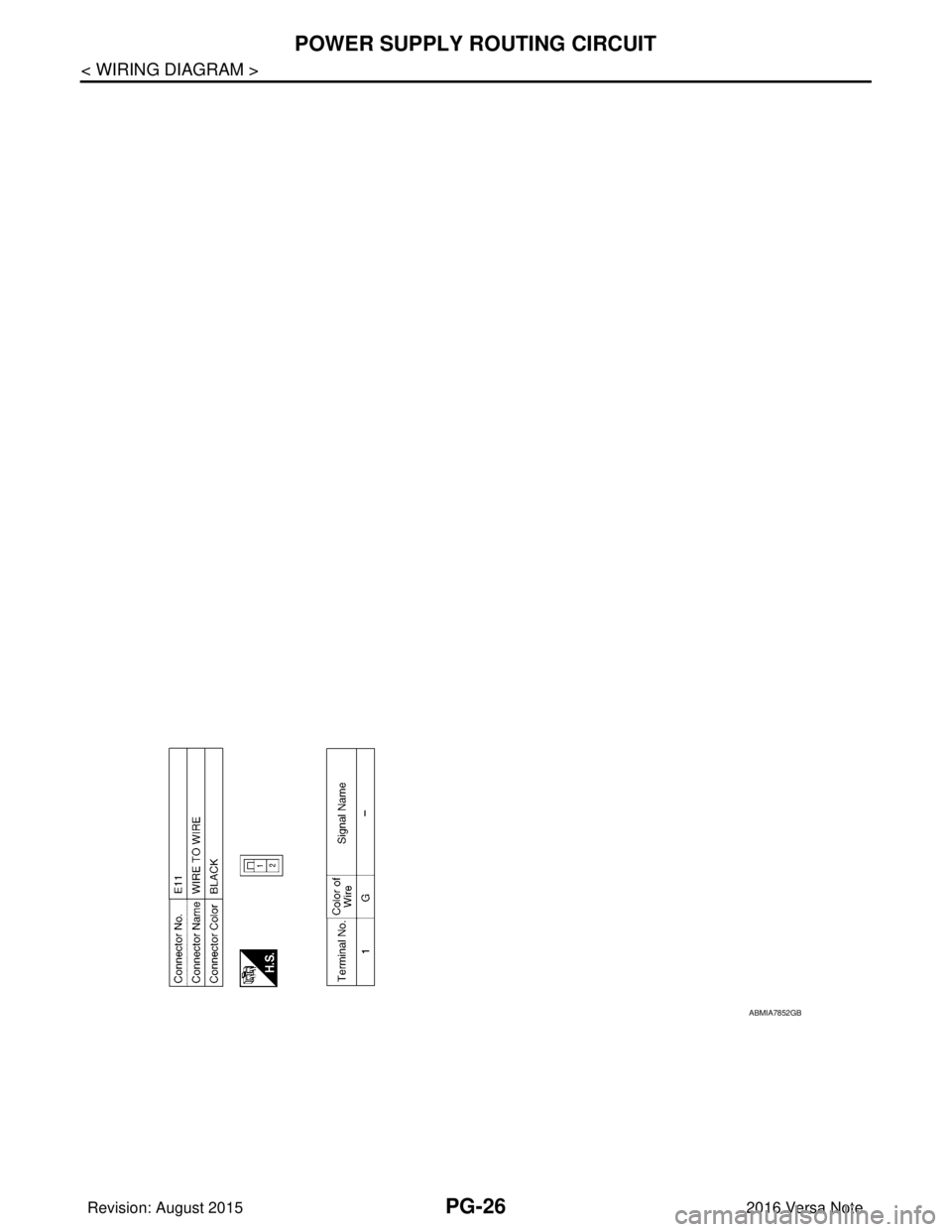

NISSAN NOTE 2016 Service Repair Manual PG-26 < WIRING DIAGRAM > POWER SUPPLY ROUTING CIRCUIT ABMIA7852GB Revision: August 20152016 Versa Note cardiagn.com

Page 2614 of 3641

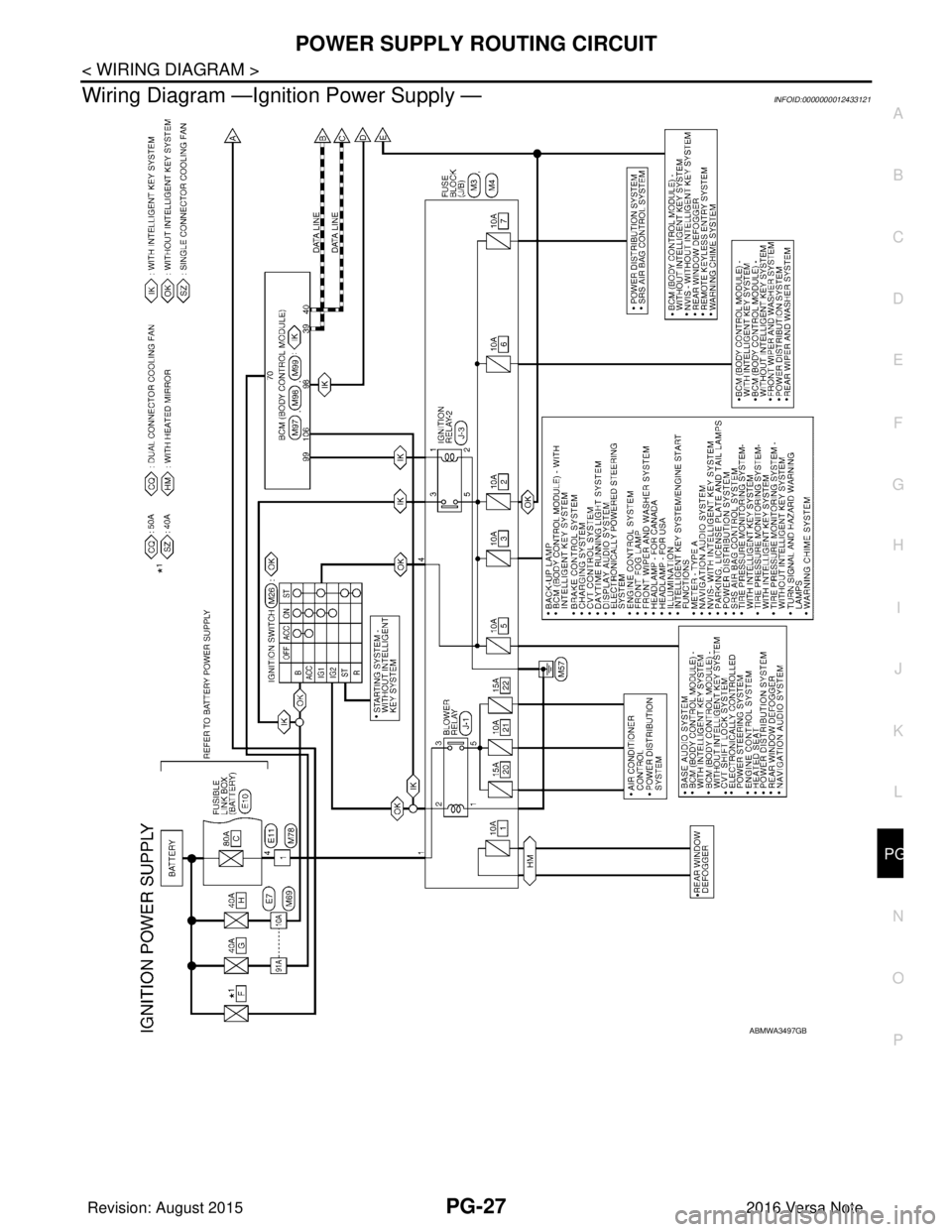

NISSAN NOTE 2016 Service Repair Manual PG POWER SUPPLY ROUTING CIRCUITPG-27 < WIRING DIAGRAM > C DE F G H I J K L B A O P N Wiring Diagram —Ignition Power Supply —INFOID:0000000012433121 ABMWA3497GB Revision: August 2015 2016 Versa Not

Page 2615 of 3641

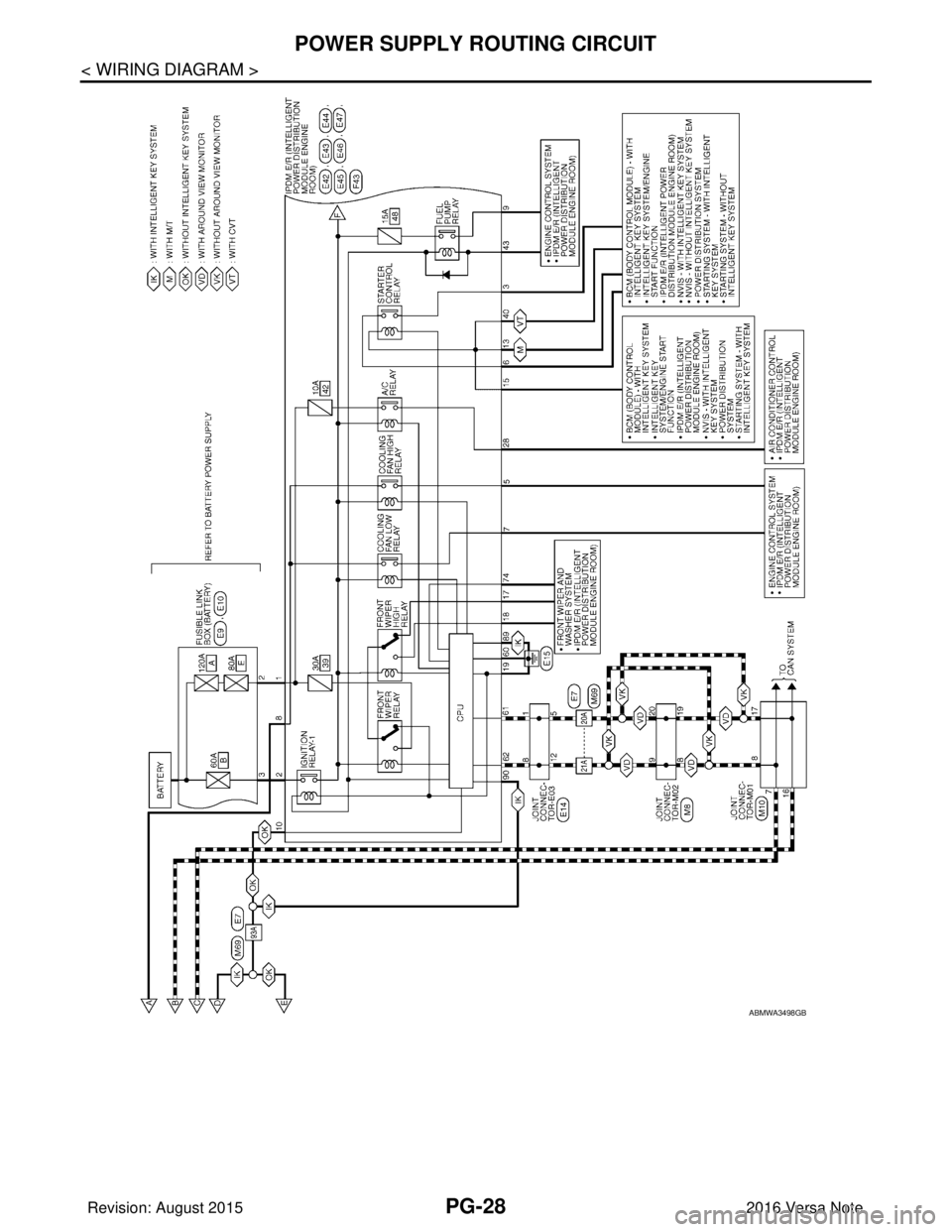

NISSAN NOTE 2016 Service Repair Manual PG-28 < WIRING DIAGRAM > POWER SUPPLY ROUTING CIRCUIT ABMWA3498GB Revision: August 20152016 Versa Note cardiagn.com

Page 2616 of 3641

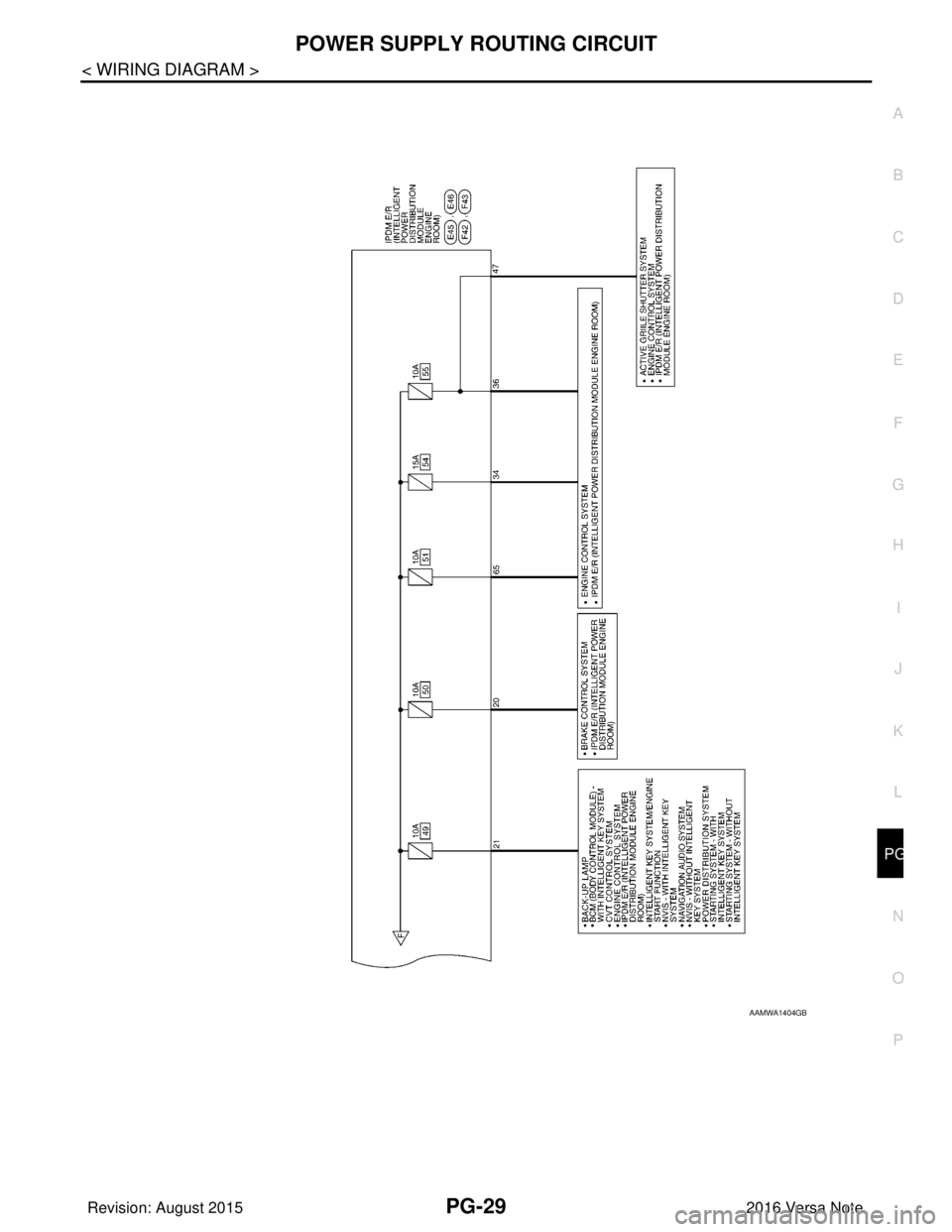

NISSAN NOTE 2016 Service Repair Manual PG POWER SUPPLY ROUTING CIRCUITPG-29 < WIRING DIAGRAM > C DE F G H I J K L B A O P N AAMWA1404GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 2617 of 3641

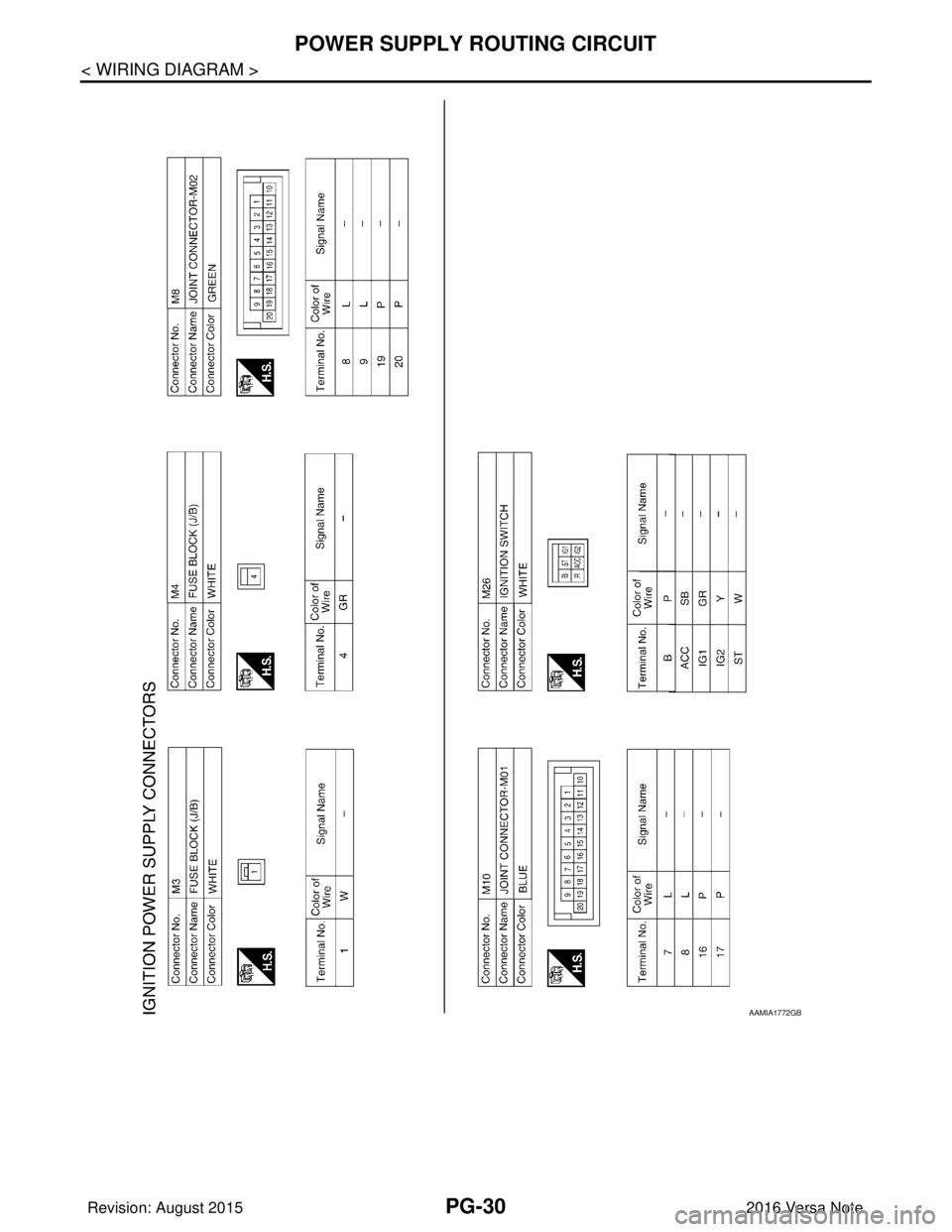

NISSAN NOTE 2016 Service Repair Manual PG-30 < WIRING DIAGRAM > POWER SUPPLY ROUTING CIRCUIT AAMIA1772GB Revision: August 20152016 Versa Note cardiagn.com

Page 2618 of 3641

NISSAN NOTE 2016 Service Repair Manual PG POWER SUPPLY ROUTING CIRCUITPG-31 < WIRING DIAGRAM > C DE F G H I J K L B A O P N ABMIA7854GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 2619 of 3641

NISSAN NOTE 2016 Service Repair Manual PG-32 < WIRING DIAGRAM > POWER SUPPLY ROUTING CIRCUIT AAMIA2762GB Revision: August 20152016 Versa Note cardiagn.com

Page 2620 of 3641

NISSAN NOTE 2016 Service Repair Manual PG POWER SUPPLY ROUTING CIRCUITPG-33 < WIRING DIAGRAM > C DE F G H I J K L B A O P N ABMIA7855GB Revision: August 2015 2016 Versa Note cardiagn.com
