NISSAN NOTE 2016 Service Repair Manual

PG-34
< WIRING DIAGRAM >
POWER SUPPLY ROUTING CIRCUIT
ABMIA7856GB
Revision: August 20152016 Versa Note

cardiagn.com

PG
GROUNDPG-35
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K L
B A
O P
N
GROUND
Ground DistributionINFOID:0000000012433122

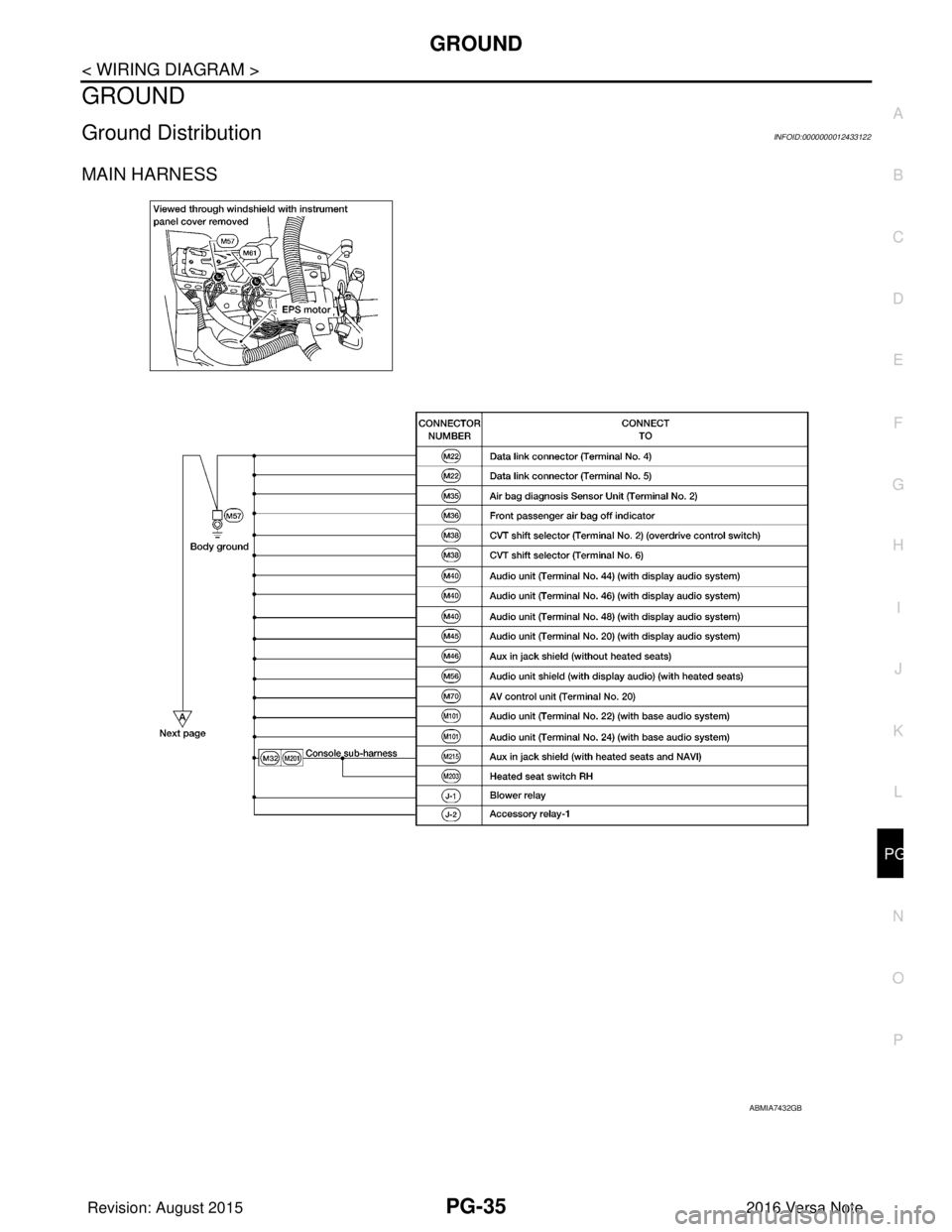

MAIN HARNESS
ABMIA7432GB
Revision: August 2015
2016 Versa Note

cardiagn.com

PG-36
< WIRING DIAGRAM >

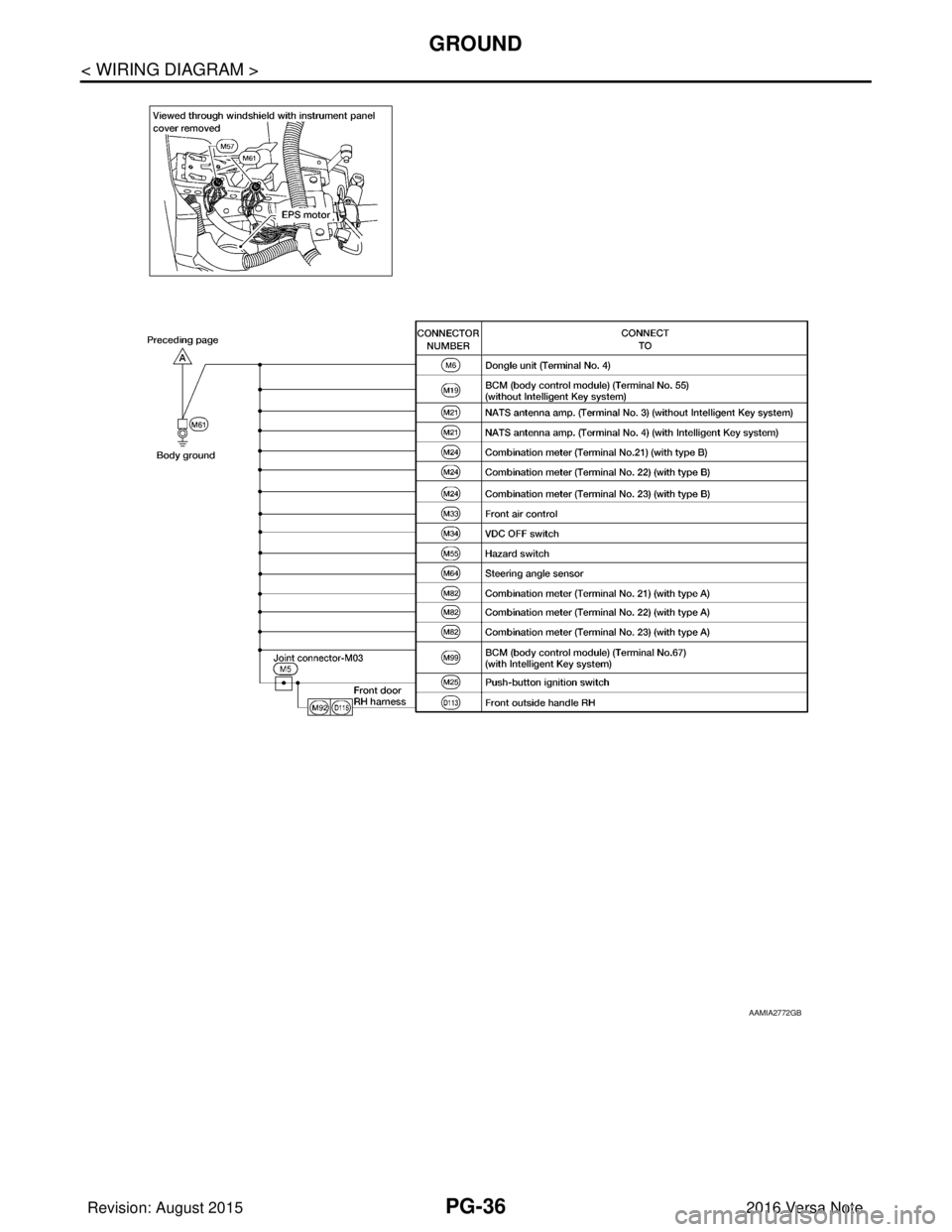

GROUND
AAMIA2772GB
Revision: August 20152016 Versa Note

cardiagn.com

PG
GROUNDPG-37
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K L
B A
O P
N
AAMIA2773GB
Revision: August 2015
2016 Versa Note

cardiagn.com

PG-38
< WIRING DIAGRAM >
GROUND

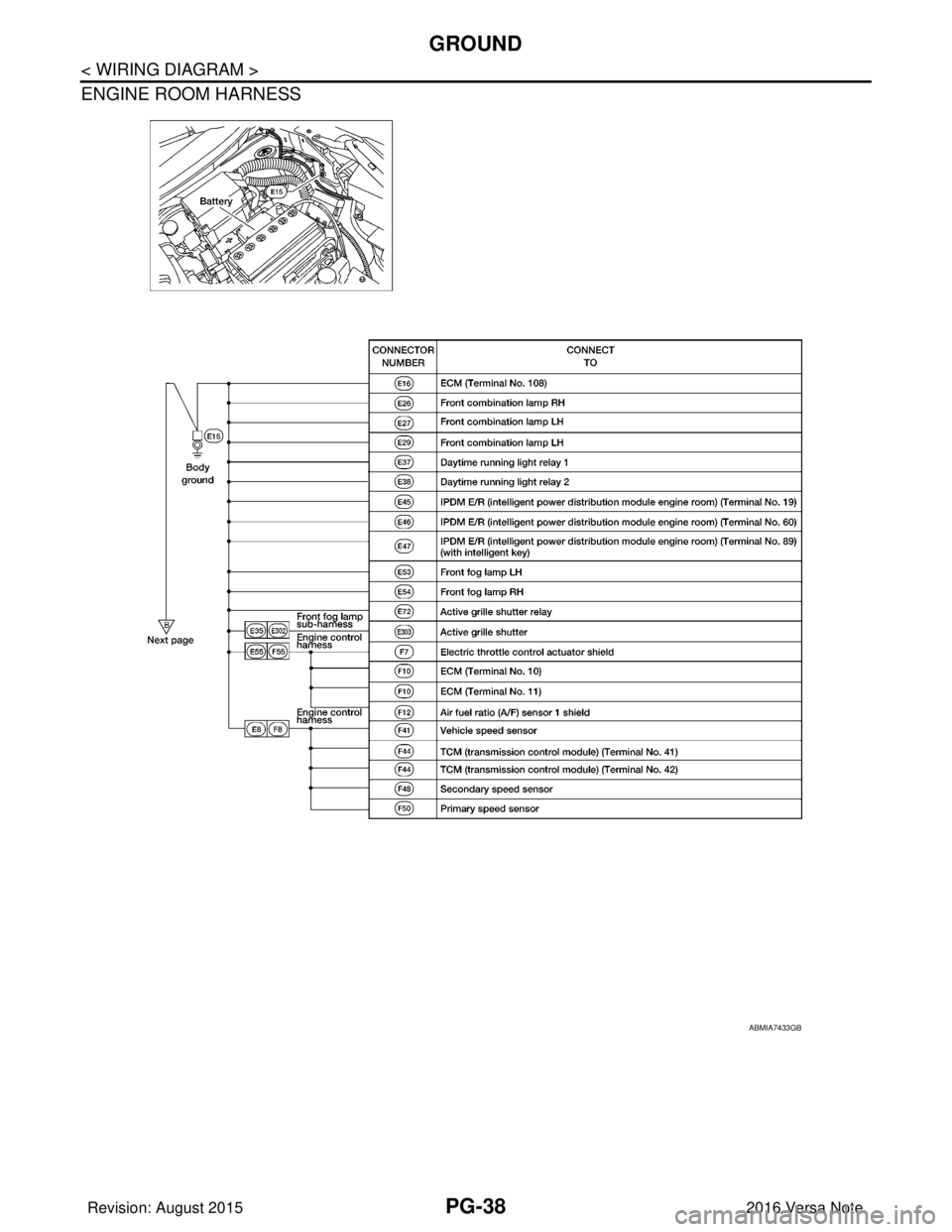

ENGINE ROOM HARNESS
ABMIA7433GB
Revision: August 20152016 Versa Note

cardiagn.com

PG

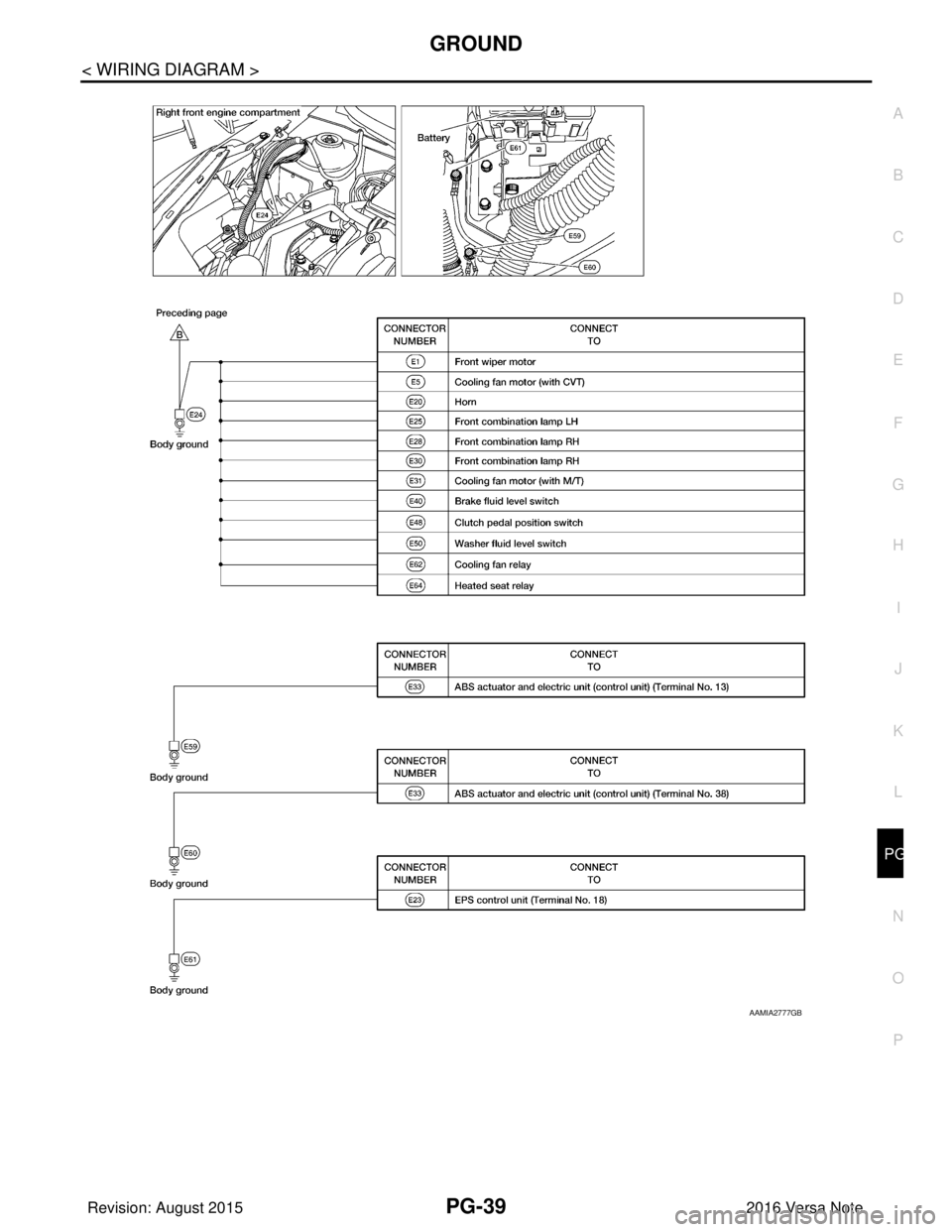

GROUNDPG-39
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K L
B A
O P
N
AAMIA2777GB
Revision: August 2015
2016 Versa Note

cardiagn.com

PG-40
< WIRING DIAGRAM >
GROUND

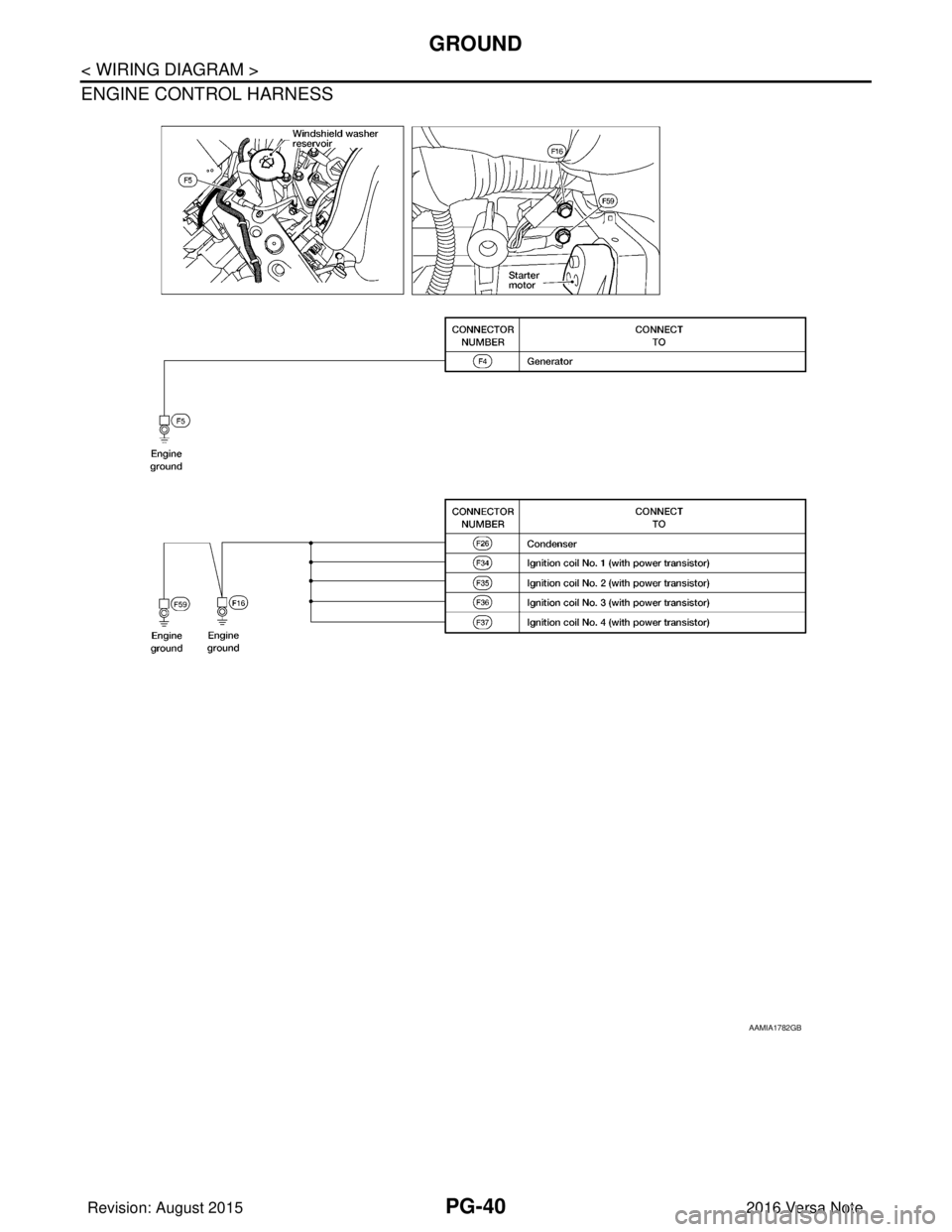

ENGINE CONTROL HARNESS
AAMIA1782GB
Revision: August 20152016 Versa Note

cardiagn.com

PG
GROUNDPG-41
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K L
B A
O P
N

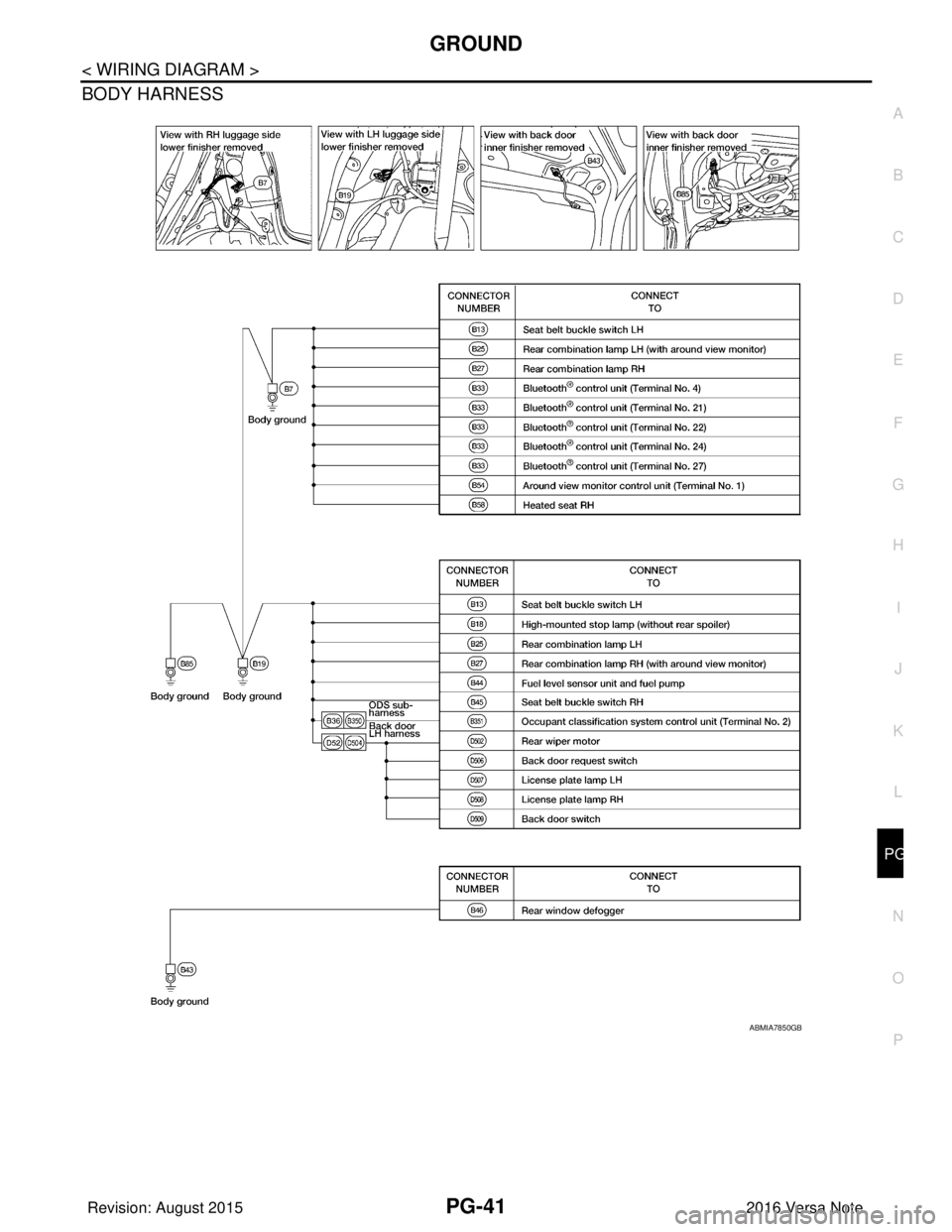

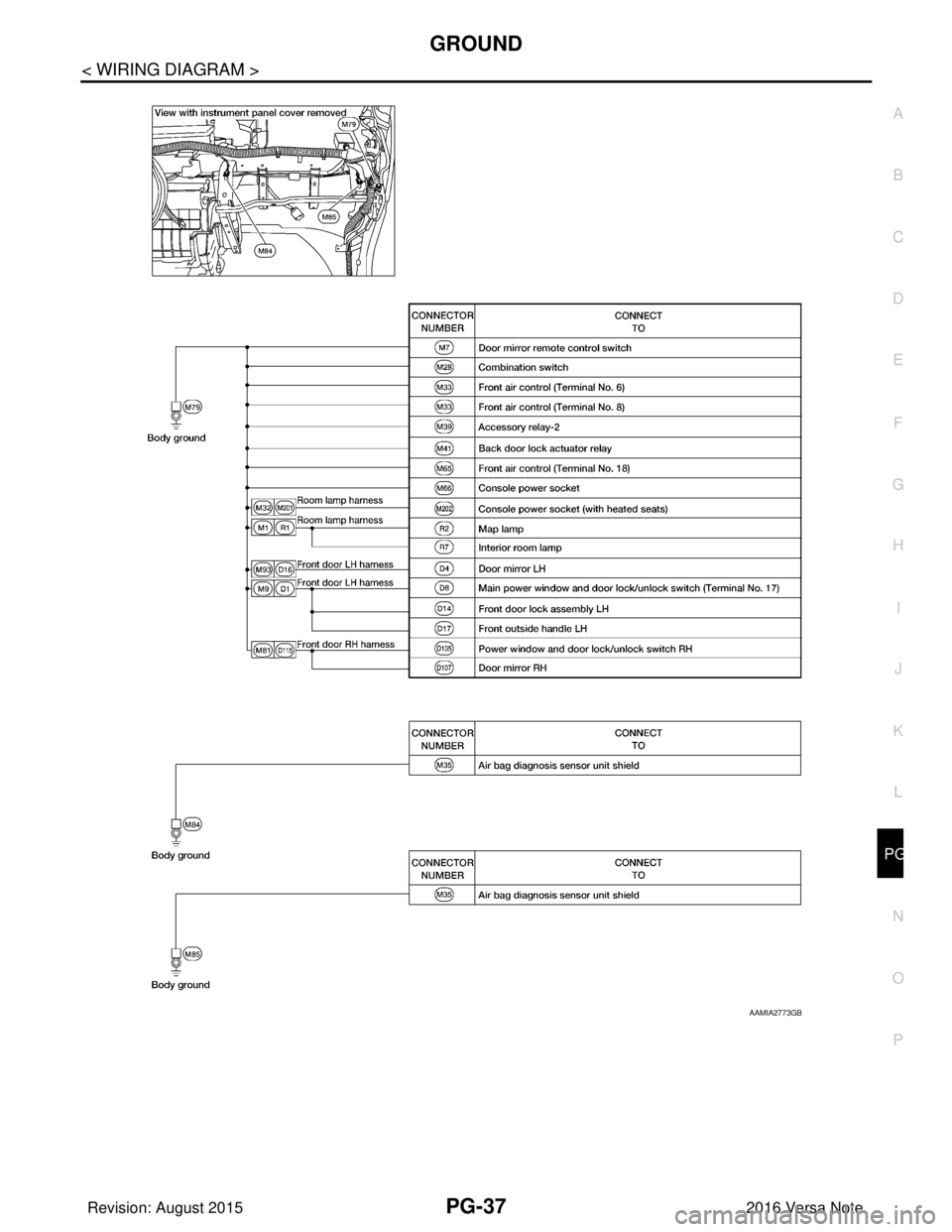

BODY HARNESS
ABMIA7850GB
Revision: August 2015
2016 Versa Note

cardiagn.com

PG-42
< WIRING DIAGRAM >
HARNESS
HARNESS
Harness LayoutINFOID:0000000012433123

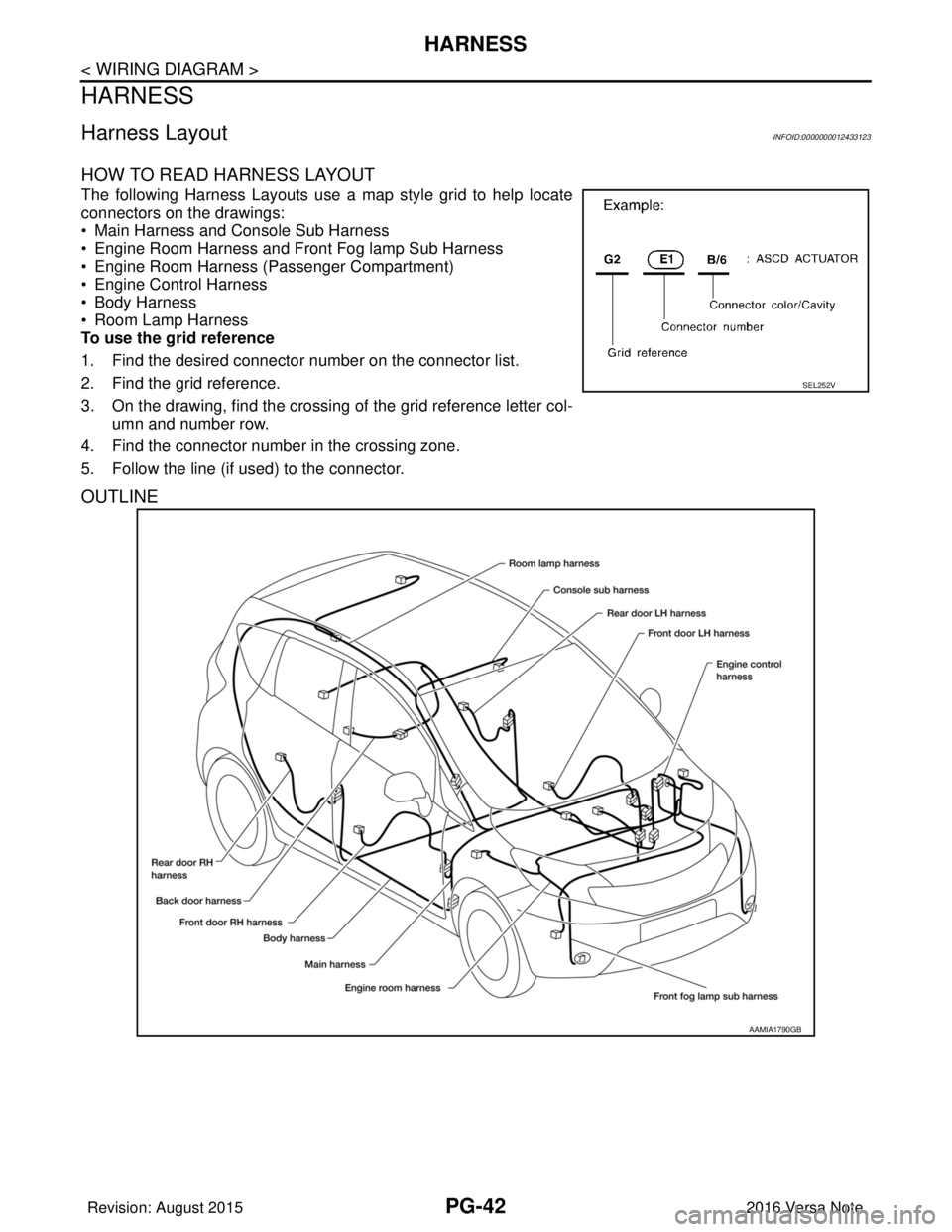

HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate
connectors on the drawings:
• Main Harness and Console Sub Harness
• Engine Room Harness and Front Fog lamp Sub Harness
• Engine Room Harness (Passenger Compartment)
• Engine Control Harness
• Body Harness
• Room Lamp Harness
To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter col-umn and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.
OUTLINE
SEL252V
AAMIA1790GB
Revision: August 2015 2016 Versa Note

cardiagn.com

PG
HARNESSPG-43
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K L
B A
O P
N

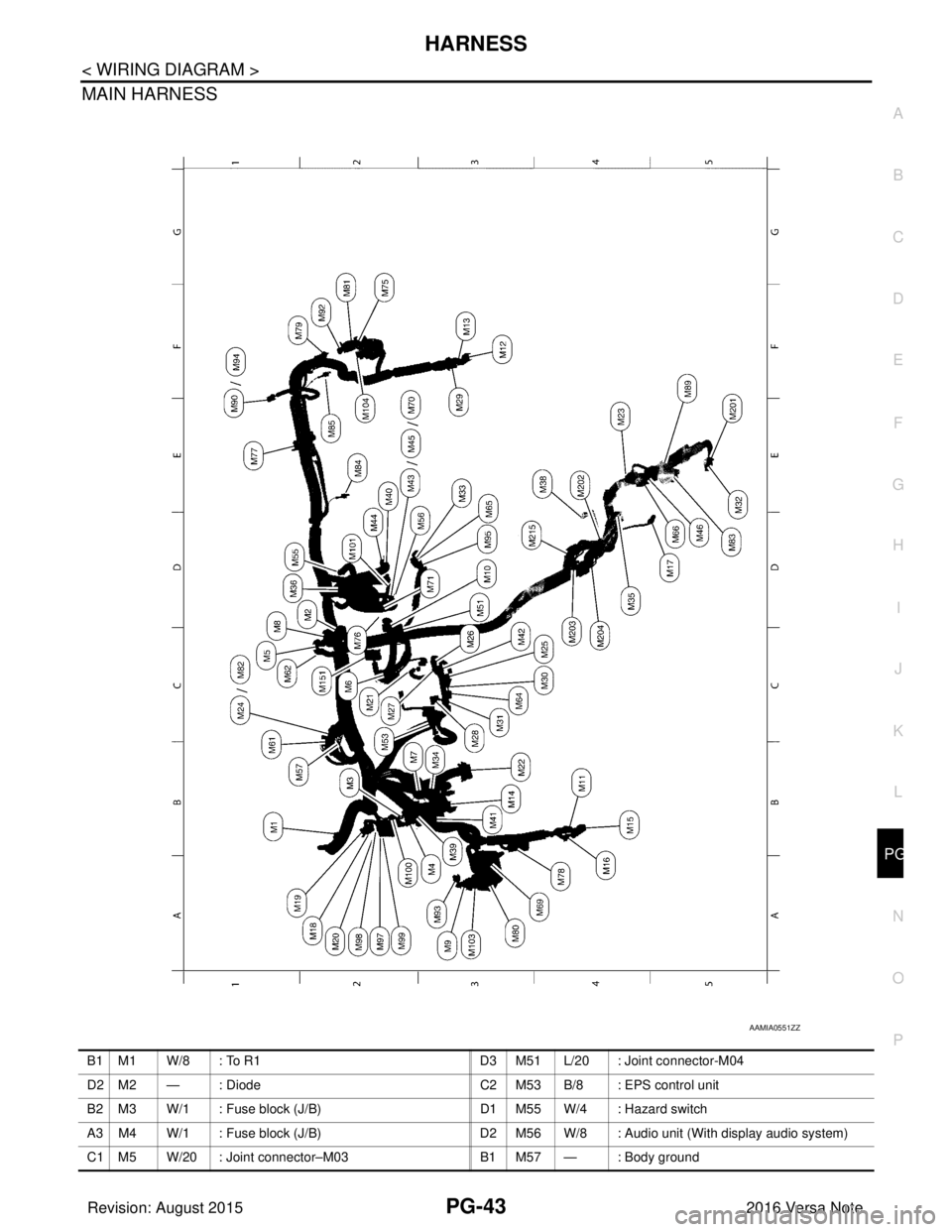

MAIN HARNESS
AAMIA0551ZZ
B1 M1 W/8 : To R1
D3 M51 L/20 : Joint connector-M04
D2 M2 — : Diode C2 M53 B/8 : EPS control unit
B2 M3 W/1 : Fuse block (J/B) D1 M55 W/4 : Hazard switch
A3 M4 W/1 : Fuse block (J/B) D2 M56 W/8 : Audio unit (With display audio system)
C1 M5 W/20 : Joint connector–M03 B1 M57 — : Body ground
