NISSAN NOTE 2016 Service Repair Manual

PG-74
< SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
BatteryINFOID:0000000012433139
*: Always check with the Parts Department for the latest parts information.Ty p e
T4
5 hour rate minimum [V – Ah]12 – 36
Cold cranking current A (For reference value) A470
Revision: August 2015 2016 Versa Note

cardiagn.com

PWC-1
BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY
C
DE
F
G H
I
J
L
M
SECTION PWC
A
B
PWC
N
O P
CONTENTS
POWER WINDOW CONTROL SYSTEM
PRECAUTION ....... ........................................4
PRECAUTIONS .............................................. .....4
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
4
Precaution for Work ..................................................4
PREPARATION ............................................5
PREPARATION .............................................. .....5
Special Service Tool ........................................... ......5
SYSTEM DESCRIPTION ..............................6
COMPONENT PARTS ................................... .....6
Component Parts Location .................................. ......6
Main Power Window And Door Lock/Unlock
Switch ........................................................................
7
Power Window Switch ...............................................7
Power Window Motor ................................................7
SYSTEM ..............................................................8

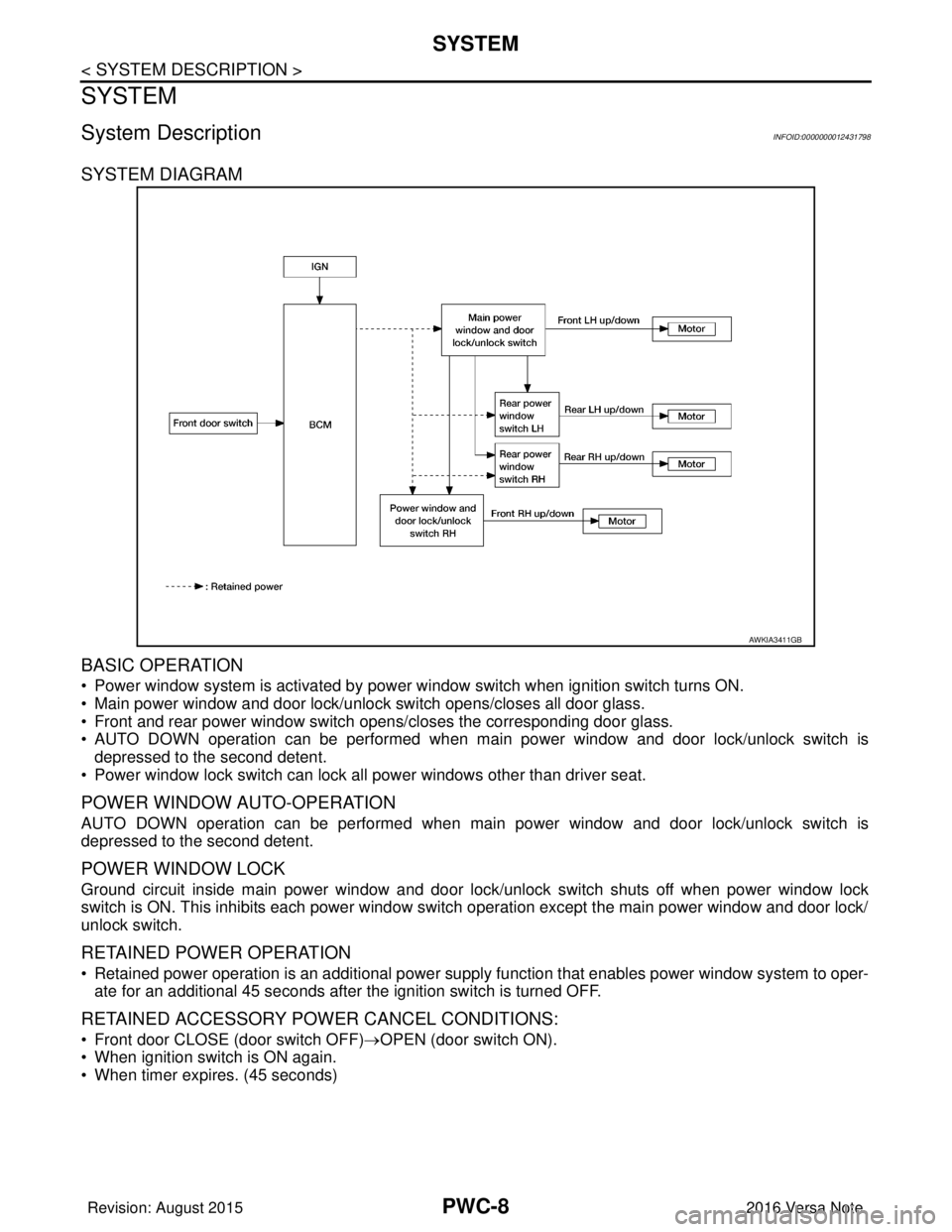

System Description ............................................. ......8
DIAGNOSIS SYSTEM (BCM) (WITH INTELLI-
GENT KEY SYSTEM) ..........................................
9
COMMON ITEM ..................................................... ......9
COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) .......................................................
9
RETAINED PWR .......................................................10
RETAINED PWR : CONSULT Function (BCM -
RETAINED PWR) ...................................................
10
DIAGNOSIS SYSTEM (BCM) (WITHOUT IN-
TELLIGENT KEY SYSTEM) ...............................
11
COMMON ITEM ..................................................... ....11
COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) .....................................................
11
RETAINED PWR .................................................... ....12
RETAINED PWR : CONSULT Function (BCM -
RETAINED PWR) ....................................................
12
ECU DIAGNOSIS INFORMATION ..............13
BCM ...................................................................13
List of ECU Reference ......................................... ....13
POWER WINDOW MAIN SWITCH ...................14
Reference Value ......................................................14
Fail Safe ..................................................................15
WIRING DIAGRAM ......................................16
POWER WINDOW SYSTEM .............................16
Wiring Diagram .................................................... ....16
BASIC INSPECTION ...................................23
DIAGNOSIS AND REPAIR WORK FLOW .......23
Work Flow ............................................................ ....23
DTC/CIRCUIT DIAGNOSIS .........................25
POWER SUPPLY AND GROUND CIRCUIT . ...25
BCM (BODY CONTROL SYSTEM) (WITH INTEL-
LIGENT KEY SYSTEM) ........
.....................................
25
BCM (BODY CONTROL SYSTEM) (WITH INTEL-
LIGENT KEY SYSTEM) : Diagnosis Procedure .. ....
25
BCM (BODY CONTROL SYSTEM) (WITHOUT IN-
TELLIGENT KEY SYSTEM) .................................. ....
25
BCM (BODY CONTROL SYSTEM) (WITHOUT
INTELLIGENT KEY SYSTEM) : Diagnosis Proce-
dure ..................................................................... ....
25
POWER WINDOW MAIN SWITCH ........................ ....26
POWER WINDOW MAIN SWITCH : Diagnosis
Procedure ................................................................
26
FRONT POWER WINDOW SWITCH (PASSEN-
GER SIDE) .................................................................
27
Revision: August 2015 2016 Versa Note

cardiagn.com

PWC-2
FRONT POWER WINDOW SWITCH (PASSEN-
GER SIDE) : Diagnosis Procedure .........................
27
REAR POWER WINDOW SWITCH ....................... ...28
REAR POWER WINDOW SWITCH : Diagnosis
Procedure ...............................................................
28
FRONT POWER WINDOW SWITCH (PAS-
SENGER SIDE) ..................................................
30
Component Function Check ................................ ...30
Diagnosis Procedure ..............................................30
Component Inspection ............................................31
REAR POWER WINDOW SWITCH ...................32
Component Function Check ................................ ...32
Diagnosis Procedure ..............................................32
Component Inspection ............................................33
POWER WINDOW MOTOR ...............................34
DRIVER SIDE ......................................................... ...34
DRIVER SIDE : Component Function Check .........34
DRIVER SIDE : Diagnosis Procedure ....................34
PASSENGER SIDE ................................................ ...35
PASSENGER SIDE : Component Function Check
...
35
PASSENGER SIDE : Diagnosis Procedure ........ ...35
REAR LH ................................................................ ...36
REAR LH : Component Function Check ................36
REAR LH : Diagnosis Procedure ............................36
REAR RH ............................................................... ...37
REAR RH : Component Function Check ................37
REAR RH : Diagnosis Procedure ...........................37
DOOR SWITCH .................................................39
WITH INTELLIGENT KEY SYSTEM ...................... ...39
WITH INTELLIGENT KEY SYSTEM :
Component Function Check .................................
39
WITH INTELLIGENT KEY SYSTEM : Diagnosis
Procedure ............................................................ ...
39
WITH INTELLIGENT KEY SYSTEM : Component
Inspection ...............................................................
40
WITHOUT INTELLIGENT KEY SYSTEM .................40
WITHOUT INTELLIGENT KEY SYSTEM : De-
scription ............................................................... ...
40
WITHOUT INTELLIGENT KEY SYSTEM :
Component Function Check .................................
40
WITHOUT INTELLIGENT KEY SYSTEM : Diag-
nosis Procedure ......................................................
41
WITHOUT INTELLIGENT KEY SYSTEM : Com-
ponent Inspection ...................................................
42
SYMPTOM DIAGNOSIS .............................43
POWER WINDOW CONTROL SYSTEM
SYMPTOMS .................................................... ...
43
Symptom Table ................................................... ...43
NONE OF THE POWER WINDOWS CAN BE
OPERATED USING ANY SWITCH ...................
44
Diagnosis Procedure ............................................ ...44
DRIVER SIDE POWER WINDOW DOES NOT
OPERATE ..........................................................
45
Diagnosis Procedure ............................................ ...45
FRONT PASSENGER SIDE POWER WIN-
DOW DOES NOT OPERATE ............................
46
WHEN BOTH POWER WINDOW MAIN SWITCH
AND FRONT POWER WINDOW SWITCH ARE
OPERATED ............................................................ ...
46
WHEN BOTH POWER WINDOW MAIN SWITCH
AND FRONT POWER WINDOW SWITCH ARE
OPERATED : Diagnosis Procedure ........................
46
WHEN FRONT POWER WINDOW SWITCH (PAS-
SENGER SIDE) IS OPERATED ............................. ...
46
WHEN FRONT POWER WINDOW SWITCH
(PASSENGER SIDE) IS OPERATED : Diagnosis
Procedure ...............................................................
46
WHEN POWER WINDOW MAIN SWITCH IS OP-
ERATED ................................................................. ...
46
WHEN POWER WINDOW MAIN SWITCH IS OP-
ERATED : Diagnosis Procedure .............................
47
REAR LH SIDE POWER WINDOW DOES
NOT OPERATE .................................................
48
WHEN BOTH POWER WINDOW MAIN SWITCH
AND REAR POWER WINDOW SWITCH LH ARE
OPERATED ............................................................ ...
48
WHEN BOTH POWER WINDOW MAIN SWITCH
AND REAR POWER WINDOW SWITCH LH ARE
OPERATED : Diagnosis Procedure ........................
48
WHEN REAR POWER WINDOW SWITCH LH IS
OPERATED ............................................................ ...
48
WHEN REAR POWER WINDOW SWITCH LH IS
OPERATED : Diagnosis Procedure ..................... ...
48
WHEN POWER WINDOW MAIN SWITCH IS OP-
ERATED ................................................................. ...
48
WHEN POWER WINDOW MAIN SWITCH IS OP-
ERATED : Diagnosis Procedure .............................
49
REAR RH SIDE POWER WINDOW DOES
NOT OPERATE .................................................
50
WHEN BOTH POWER WINDOW MAIN SWITCH
AND REAR POWER WINDOW SWITCH RH ARE
OPERATED ............................................................ ...
50
WHEN BOTH POWER WINDOW MAIN SWITCH
AND REAR POWER WINDOW SWITCH RH ARE
OPERATED : Diagnosis Procedure ........................
50
WHEN REAR POWER WINDOW SWITCH RH IS
OPERATED ............................................................ ...
50
Revision: August 2015 2016 Versa Note

cardiagn.com

PWC-3
C
DE
F
G H
I
J
L
M A
B
PWC
N
O P
WHEN REAR POWER WINDOW SWITCH RH IS
OPERATED : Diagnosis Procedure ....................
....
50
WHEN POWER WINDOW MAIN SWITCH IS OP-
ERATED ................................................................ ....
50
WHEN POWER WINDOW MAIN SWITCH IS OP-
ERATED : Diagnosis Procedure .............................
51
AUTO OPERATION DOES NOT OPERATE
BUT MANUAL OPERATE NORMALLY
(DRIVER SIDE) ...................................................
52
Diagnosis Procedure ...............................................52
POWER WINDOW RETAINED POWER OP-
ERATION DOES NOT OPERATE PROPERLY
....
53
Diagnosis Procedure ........................................... ....53
POWER WINDOW LOCK SWITCH DOES
NOT FUNCTION ................................................
54
Diagnosis Procedure ........................................... ....54
REMOVAL AND INSTALLATION ...............55
MAIN POWER WINDOW AND DOOR LOCK/
UNLOCK SWITCH ............................................
55
Removal and Installation ..................................... ....55
POWER WINDOW AND DOOR LOCK/UN-
LOCK SWITCH RH ...........................................
56
Removal and Installation .........................................56
REAR POWER WINDOW SWITCH ..................57
Removal and Installation .........................................57
Revision: August 2015 2016 Versa Note

cardiagn.com

PWC-4
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000012431791
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three minutes before performing any service.
Precaution for WorkINFOID:0000000012431792
• When removing or disassembling each component, be careful not to damage or deform it. If a component may be subject to interference, be sure to protect it with a shop cloth.
• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component with a shop cloth or vinyl tape to protect it.
• Protect the removed parts with a shop cloth and prevent them from being dropped.
• Replace a deformed or damaged clip.
• If a part is specified as a non-reusable part, always replace it with a new one.
• Be sure to tighten bolts and nuts securely to the specified torque.
• After installation is complete, be sure to check that each part works properly.
• Follow the steps below to clean components:
- Water soluble dirt:
• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.
• Then rub with a soft, dry cloth.
- Oily dirt:
• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty area.
• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.
• Then rub with a soft, dry cloth.
- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.
- For genuine leather seats, use a genuine leather seat cleaner.
Revision: August 2015 2016 Versa Note

cardiagn.com

PREPARATIONPWC-5
< PREPARATION >
C
DE
F
G H
I
J
L
M A
B
PWC
N
O P
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000012431793
The actual shape of the tools may di ffer from those illustrated here.
Tool number
(TechMate No.)
Tool name Description
—
(J-46534)
Trim Tool Set Removing trim components
AWJIA0483ZZ
Revision: August 2015
2016 Versa Note

cardiagn.com

PWC-6
< SYSTEM DESCRIPTION >
COMPONENT PARTS
SYSTEM DESCRIPTION
COMPONENT PARTS
Component Parts LocationINFOID:0000000012431794
A. View with LH front door finisher removed B. View with LH rear door finisher removed
No. Component parts Function
1. BCM • Supplies power supply to power window switch.
• Controls retained power.
• Refer to
BCS-6, "
BODY CONTROL SYSTEM : Co mponent Parts Location"
for detailed installation location.
2. Main power window and door lock/unlock
switch Refer to PWC-7, "
Main Power Window And Door Lock/Unlock Switch".
AWKIA3163ZZ
Revision: August 2015
2016 Versa Note

cardiagn.com

COMPONENT PARTSPWC-7
< SYSTEM DESCRIPTION >
C
DE
F
G H
I
J
L
M A
B
PWC
N
O P
Main Power Window And Door Lock/Unlock SwitchINFOID:0000000012431795
• Main power window and door lock/unlock switch controls all power windows.
• Main power window and door lock/unlock switch integrates UP/ DOWN switch, power window lock switch, and door lock/unlock
switch.
• Main power window and door lock/unlock switch controls the power window lock function.
Power Window SwitchINFOID:0000000012431796
• Each power window switch transmits UP/DOWN signal to eachmotor.
• Each power window switch transmits UP/DOWN signal from main power window and door lock/unlock switch to each motor.
Power Window MotorINFOID:0000000012431797
• Starts operation according to signals from main power window anddoor lock/unlock switch.
• Transmits front power window motor LH rotation as a pulse signal to main power window and door lock/unlock switch.
• Excepting power window motor for driver door, starts operation
according to signals from main power window and door lock/unlock
switch or each power window switches.
3. Front door switch LH • Inputs door open/close condition to BCM.
• Refer to DLK-19, "INTELLIGENT KEY SYSTEM : Door Switch" for detailed
installation location.
4. Rear power window switch LH Refer to PWC-7, "
Power Window Switch".
5. Front power window motor LH Refer to PWC-7, "
Power Window Motor".
6. Rear power window motor LH Refer to PWC-7, "
Power Window Motor".
No.
Component parts Function
ALKIA3203ZZ
ALKIA3204ZZ
JMKIA6528ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

PWC-8
< SYSTEM DESCRIPTION >
SYSTEM
SYSTEM
System DescriptionINFOID:0000000012431798
SYSTEM DIAGRAM
BASIC OPERATION
• Power window system is activated by power window switch when ignition switch turns ON.
• Main power window and door lock/unlock switch opens/closes all door glass.
• Front and rear power window switch opens/closes the corresponding door glass.
• AUTO DOWN operation can be performed when main power window and door lock/u\
nlock switch isdepressed to the second detent.
• Power window lock switch can lock all power windows other than driver seat.
POWER WINDOW AUTO-OPERATION
AUTO DOWN operation can be performed when main power window and door lock/unlock switch is
depressed to the second detent.
POWER WINDOW LOCK
Ground circuit inside main power window and door lock/unlock switch shuts off when power window lock
switch is ON. This inhibits each power window switch operation except the main power window and door lock/
unlock switch.
RETAINED POWER OPERATION
• Retained power operation is an additional power supply function that enables power window system to oper-
ate for an additional 45 seconds after the ignition switch is turned OFF.
RETAINED ACCESSORY POWER CANCEL CONDITIONS:
• Front door CLOSE (door switch OFF) →OPEN (door switch ON).
• When ignition switch is ON again.
• When timer expires. (45 seconds)
AWKIA3411GB
Revision: August 2015 2016 Versa Note

cardiagn.com

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)
PWC-9
< SYSTEM DESCRIPTION >
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
DIAGNOSIS SYSTEM (BCM) (WIT H INTELLIGENT KEY SYSTEM)
COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)INFOID:0000000012542484
APPLICATION ITEM
CONSULT performs the following functions via CAN communication with BCM.
SYSTEM APPLICATION
BCM can perform the following functions.
Direct Diagnostic Mode Description
ECU Identification The BCM part number is displayed.
Self Diagnostic Result The BCM self diagnostic results are displayed.
Data Monitor The BCM input/output data is displayed in real time.
Active Test The BCM activates outputs to test components.
Work support The settings for BCM functions can be changed.
Configuration • The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication is displayed.
System Sub System Direct Diagnostic Mode
ECU Identification
Self Diagnostic Result
Data Monitor
Active Test
Work support
Configuration
CAN DIAG SUPPORT MNTR
Door lock
DOOR LOCK ×××
Rear window defogger REAR DEFOGGER ××
Warning chime BUZZER ××
Interior room lamp timer INT LAMP ×××
Exterior lamp HEAD LAMP ×××
Wiper and washer WIPER ×××
Turn signal and hazard warning lamps FLASHER ×××
Air conditioner AIR CONDITIONER ×
Intelligent Key system INTELLIGENT KEY ××××
Combination switch COMB SW ×
BCM BCM× × ×××
Immobilizer IMMU ××××
Interior room lamp battery saver BATTERY SAVER ×××
Vehicle security system THEFT ALM ××
RAP system RETAINED PWR ×
Signal buffer system SIGNAL BUFFER ×
TPMS AIR PRESSURE MONITOR ××××
Panic alarm system PANIC ALARM ×
Revision: August 2015 2016 Versa Note

cardiagn.com
