NISSAN NOTE 2016 Service Repair Manual
Page 2881 of 3641

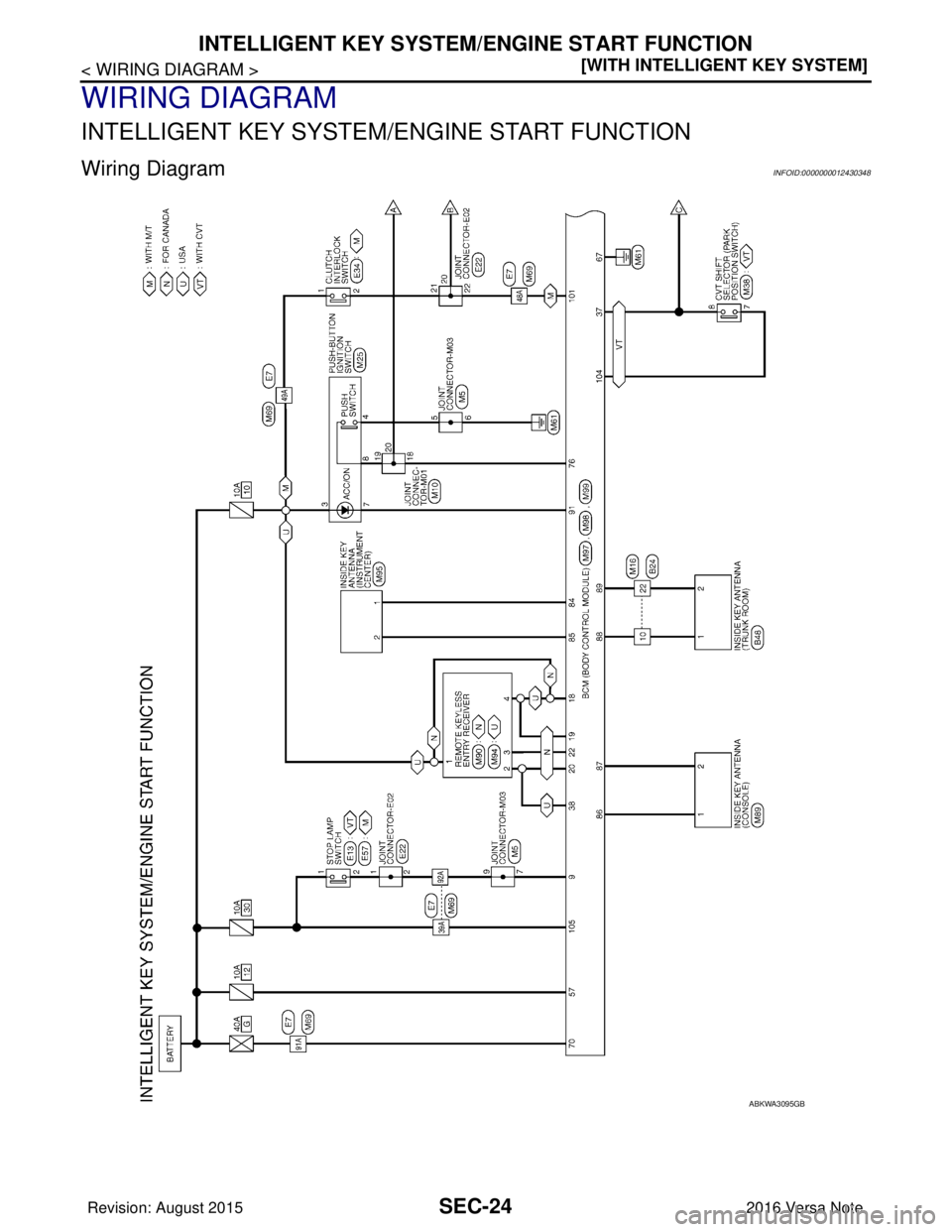

![NISSAN NOTE 2016 Service Repair Manual SEC-24
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
WIRING DIAGRAM
INTELLIGENT KEY SYSTEM
/ENGINE START FUNCTION
Wiring DiagramINFOID:0000000012430348
A](/img/5/57363/w960_57363-2880.png "NISSAN NOTE 2016 Service Repair Manual SEC-24
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
WIRING DIAGRAM
INTELLIGENT KEY SYSTEM
/ENGINE START FUNCTION
Wiring DiagramINFOID:0000000012430348
A")
Page 2882 of 3641

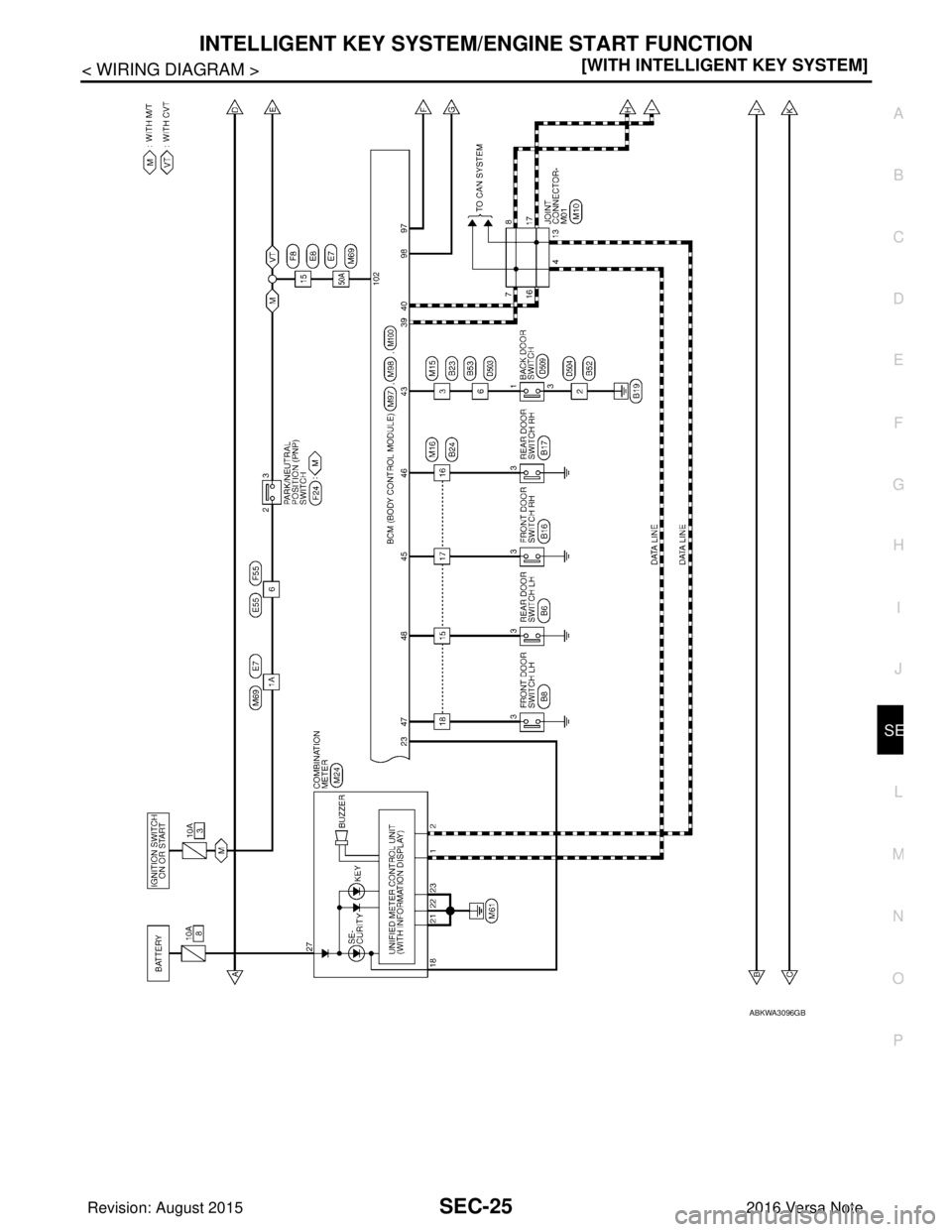

![NISSAN NOTE 2016 Service Repair Manual INTELLIGENT KEY SYSTEM/ENGINE START FUNCTIONSEC-25
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
ABKWA3096GB
Revision: August 2015 2016 Versa Note
cardiagn.com](/img/5/57363/w960_57363-2881.png "NISSAN NOTE 2016 Service Repair Manual INTELLIGENT KEY SYSTEM/ENGINE START FUNCTIONSEC-25
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
ABKWA3096GB
Revision: August 2015 2016 Versa Note
cardiagn.com")
Page 2883 of 3641

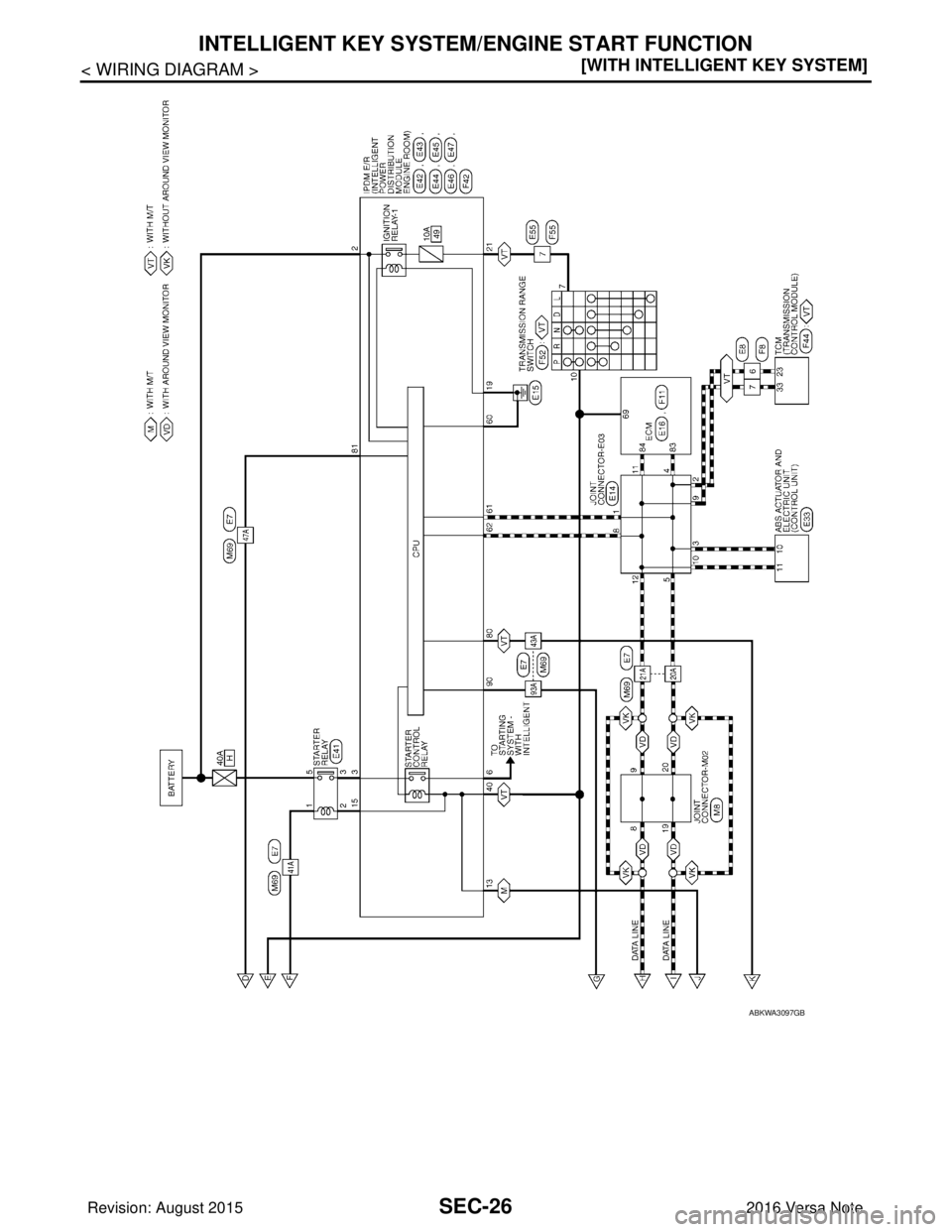

![NISSAN NOTE 2016 Service Repair Manual SEC-26
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
ABKWA3097GB
Revision: August 2015
2016 Versa Note
cardiagn.com](/img/5/57363/w960_57363-2882.png "NISSAN NOTE 2016 Service Repair Manual SEC-26
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
ABKWA3097GB
Revision: August 2015
2016 Versa Note
cardiagn.com")
Page 2884 of 3641

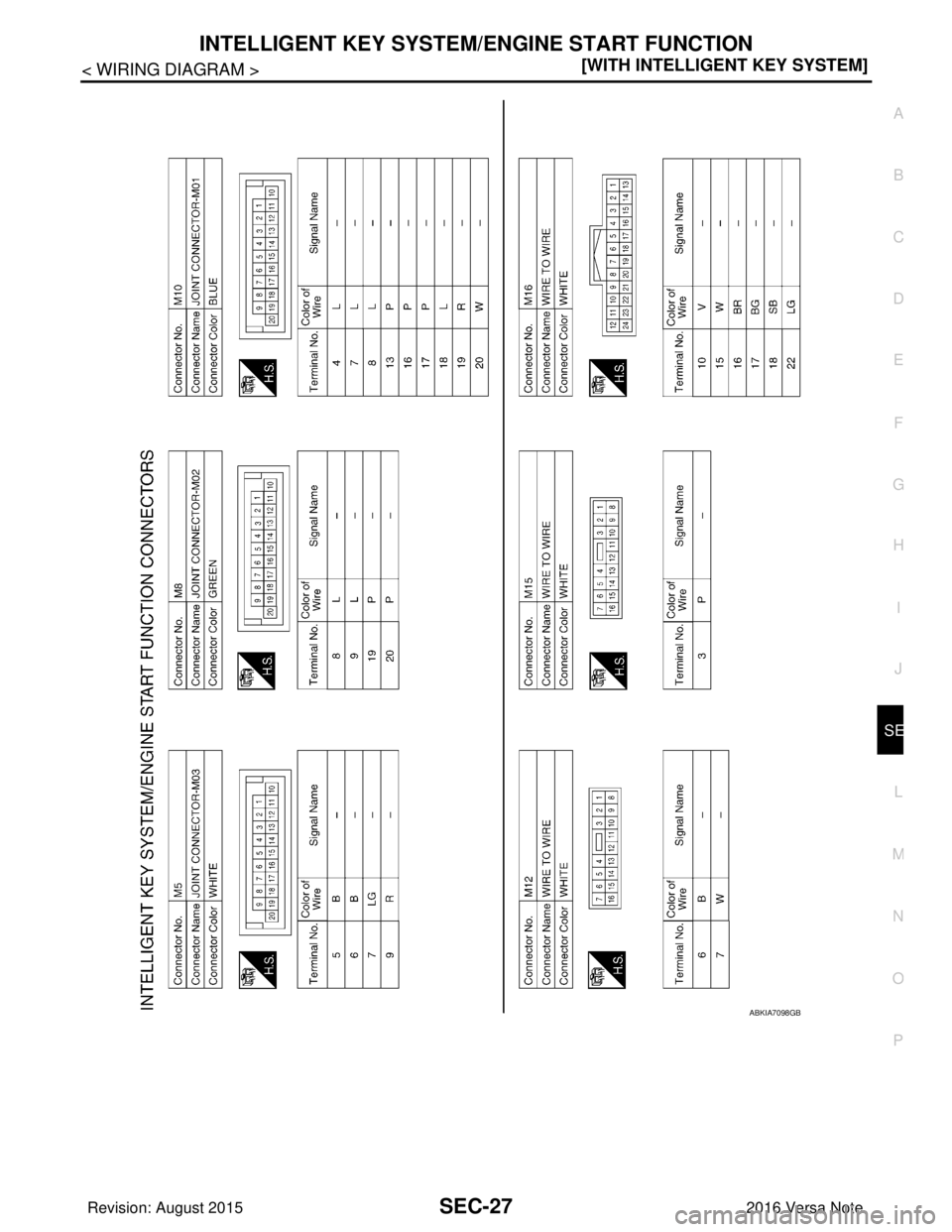

![NISSAN NOTE 2016 Service Repair Manual INTELLIGENT KEY SYSTEM/ENGINE START FUNCTIONSEC-27
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
ABKIA7098GB
Revision: August 2015 2016 Versa Note
cardiagn.com](/img/5/57363/w960_57363-2883.png "NISSAN NOTE 2016 Service Repair Manual INTELLIGENT KEY SYSTEM/ENGINE START FUNCTIONSEC-27
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
ABKIA7098GB
Revision: August 2015 2016 Versa Note
cardiagn.com")
Page 2885 of 3641
![NISSAN NOTE 2016 Service Repair Manual SEC-28
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
ABKIA7099GB
Revision: August 2015
2016 Versa Note
cardiagn.com](/img/5/57363/w960_57363-2884.png "NISSAN NOTE 2016 Service Repair Manual SEC-28
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
ABKIA7099GB
Revision: August 2015
2016 Versa Note
cardiagn.com")
Page 2886 of 3641

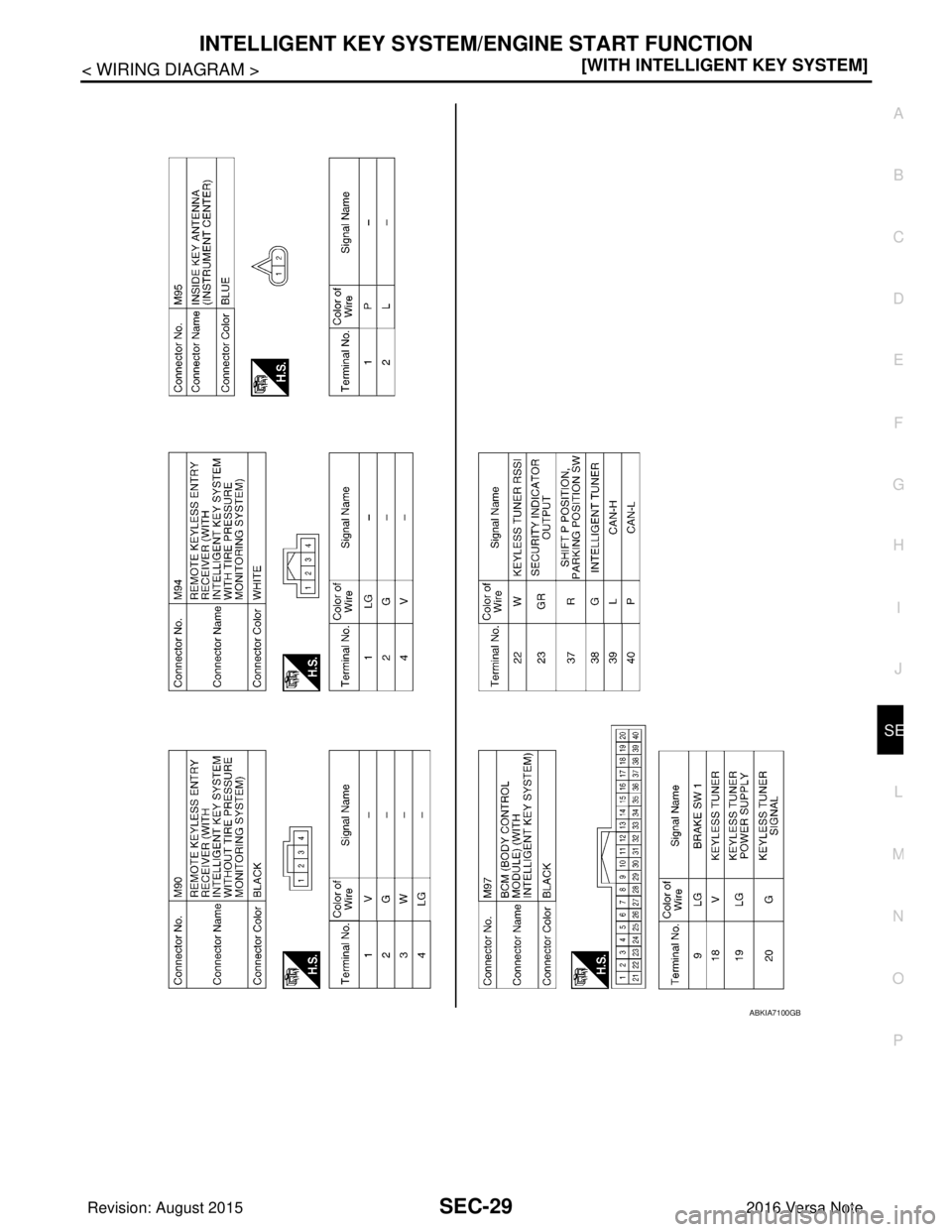

![NISSAN NOTE 2016 Service Repair Manual INTELLIGENT KEY SYSTEM/ENGINE START FUNCTIONSEC-29
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
ABKIA7100GB
Revision: August 2015 2016 Versa Note
cardiagn.com](/img/5/57363/w960_57363-2885.png "NISSAN NOTE 2016 Service Repair Manual INTELLIGENT KEY SYSTEM/ENGINE START FUNCTIONSEC-29
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
ABKIA7100GB
Revision: August 2015 2016 Versa Note
cardiagn.com")
Page 2887 of 3641

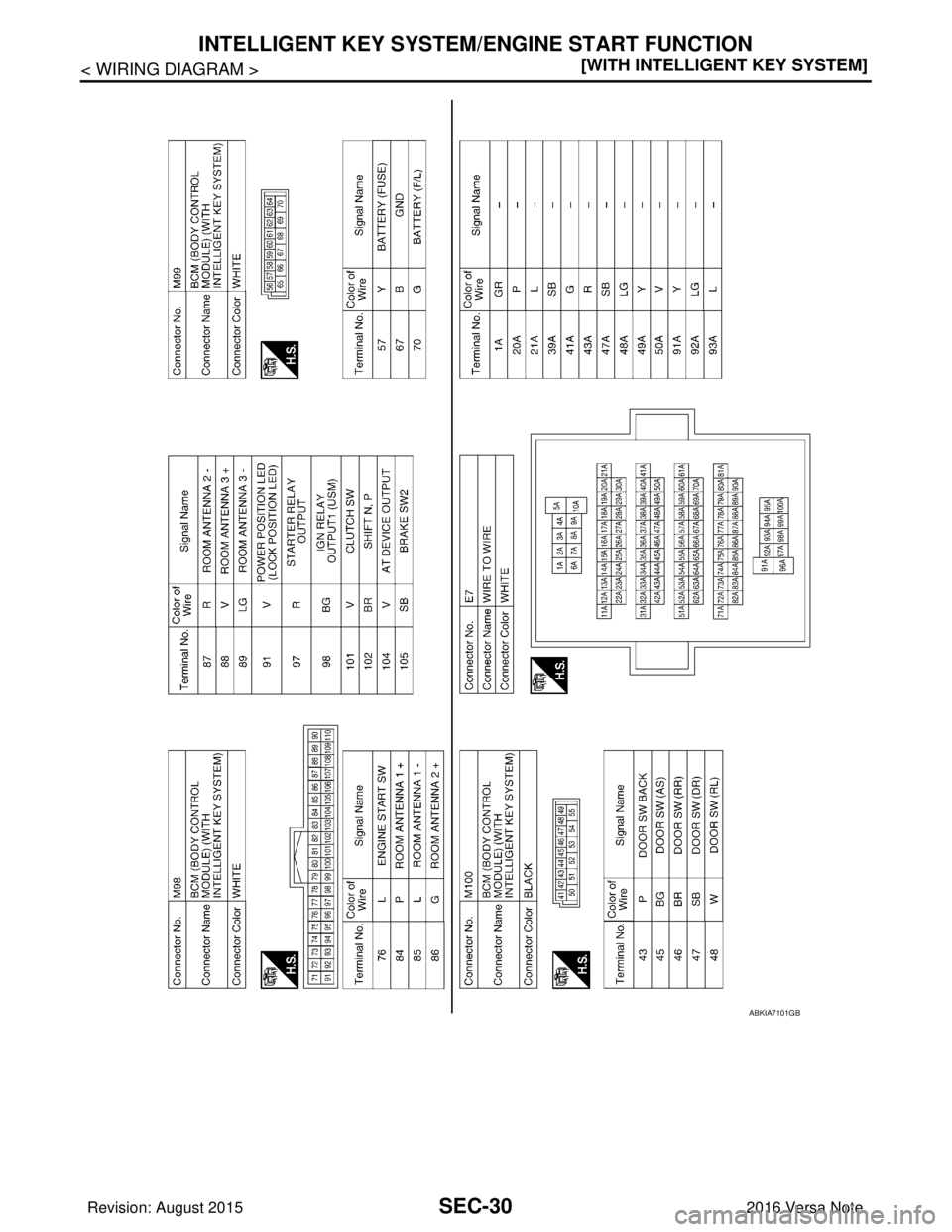

![NISSAN NOTE 2016 Service Repair Manual SEC-30
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
ABKIA7101GB
Revision: August 2015
2016 Versa Note
cardiagn.com](/img/5/57363/w960_57363-2886.png "NISSAN NOTE 2016 Service Repair Manual SEC-30
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
ABKIA7101GB
Revision: August 2015
2016 Versa Note
cardiagn.com")
Page 2888 of 3641

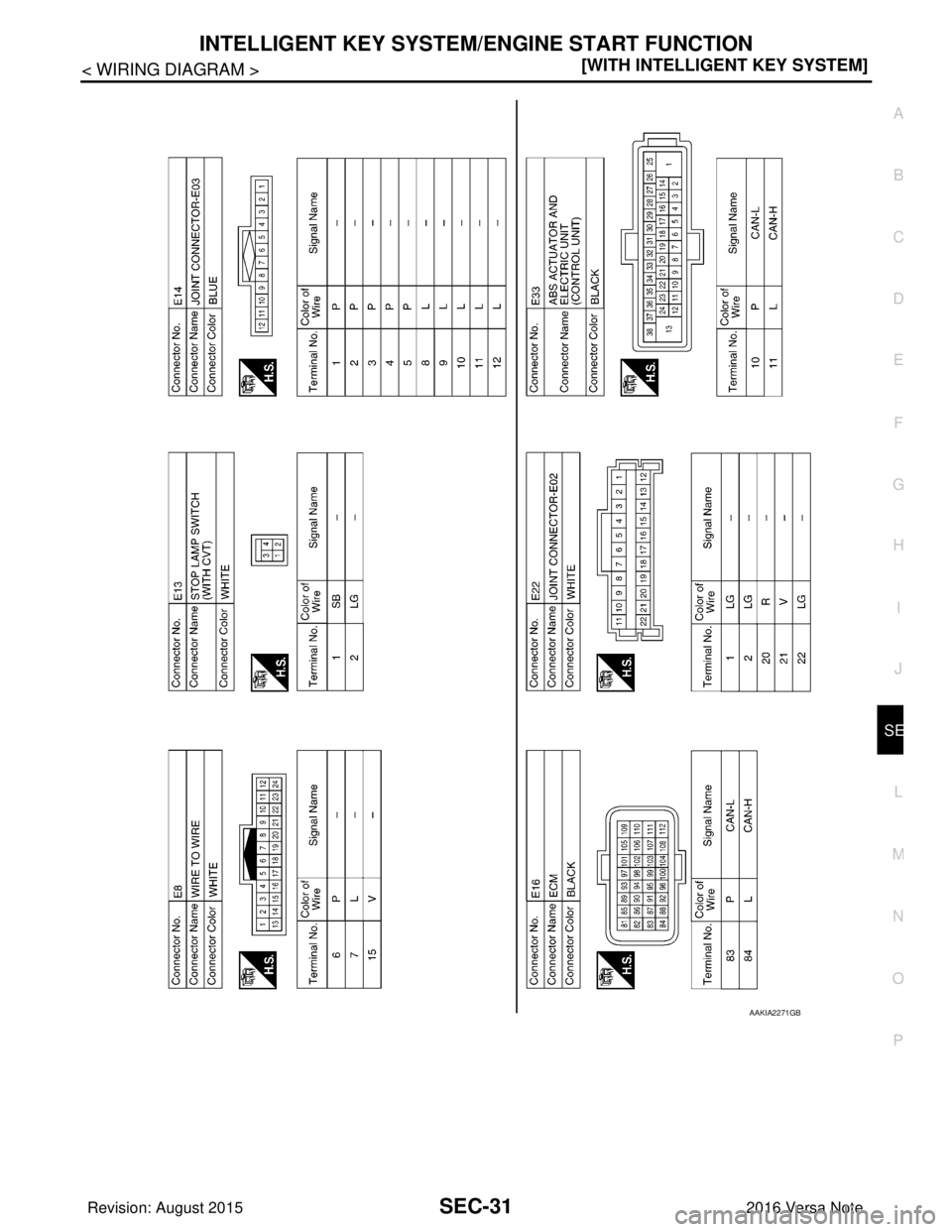

![NISSAN NOTE 2016 Service Repair Manual INTELLIGENT KEY SYSTEM/ENGINE START FUNCTIONSEC-31
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
AAKIA2271GB
Revision: August 2015 2016 Versa Note
cardiagn.com](/img/5/57363/w960_57363-2887.png "NISSAN NOTE 2016 Service Repair Manual INTELLIGENT KEY SYSTEM/ENGINE START FUNCTIONSEC-31
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
AAKIA2271GB
Revision: August 2015 2016 Versa Note
cardiagn.com")
Page 2889 of 3641

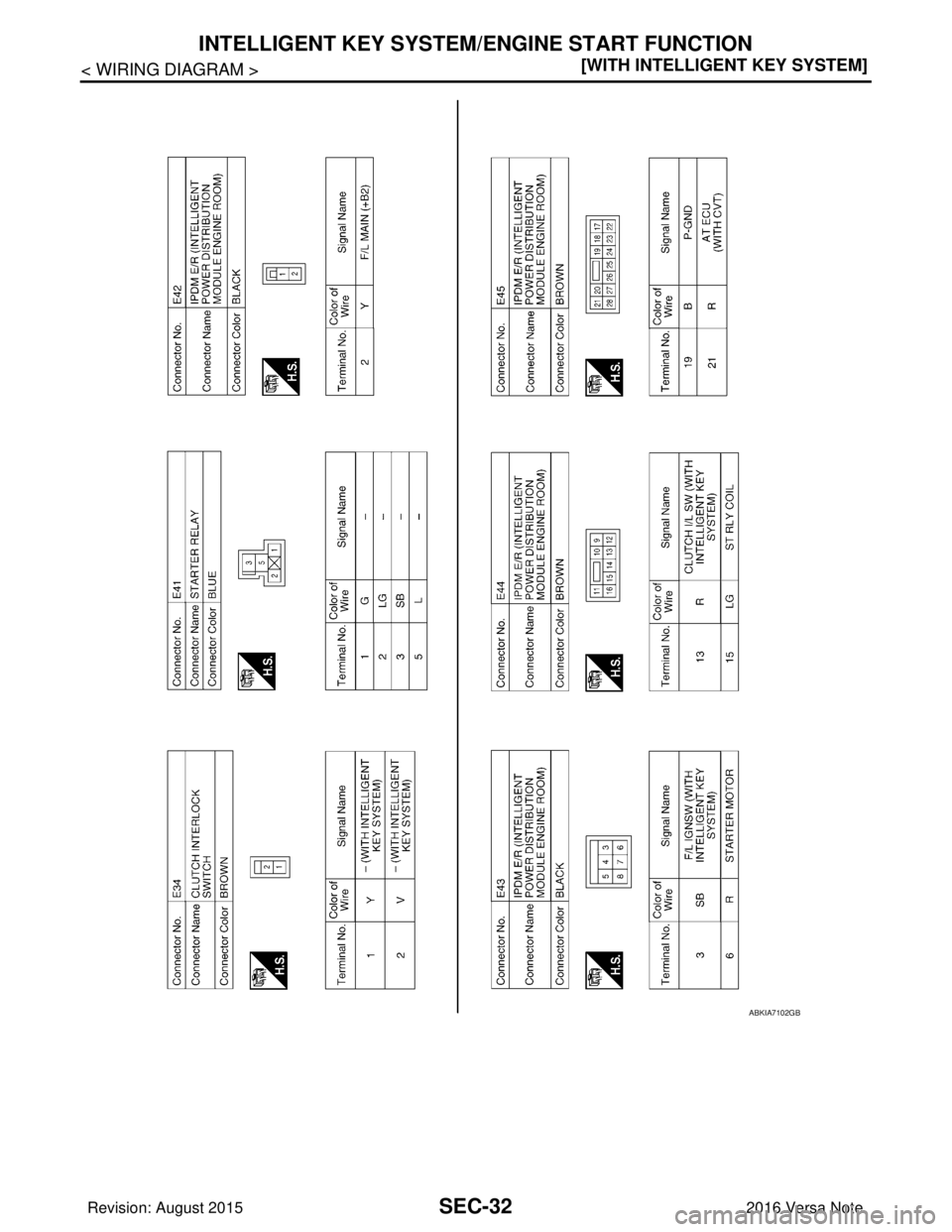

![NISSAN NOTE 2016 Service Repair Manual SEC-32
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
ABKIA7102GB
Revision: August 2015
2016 Versa Note
cardiagn.com](/img/5/57363/w960_57363-2888.png "NISSAN NOTE 2016 Service Repair Manual SEC-32
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
ABKIA7102GB
Revision: August 2015
2016 Versa Note
cardiagn.com")
Page 2890 of 3641

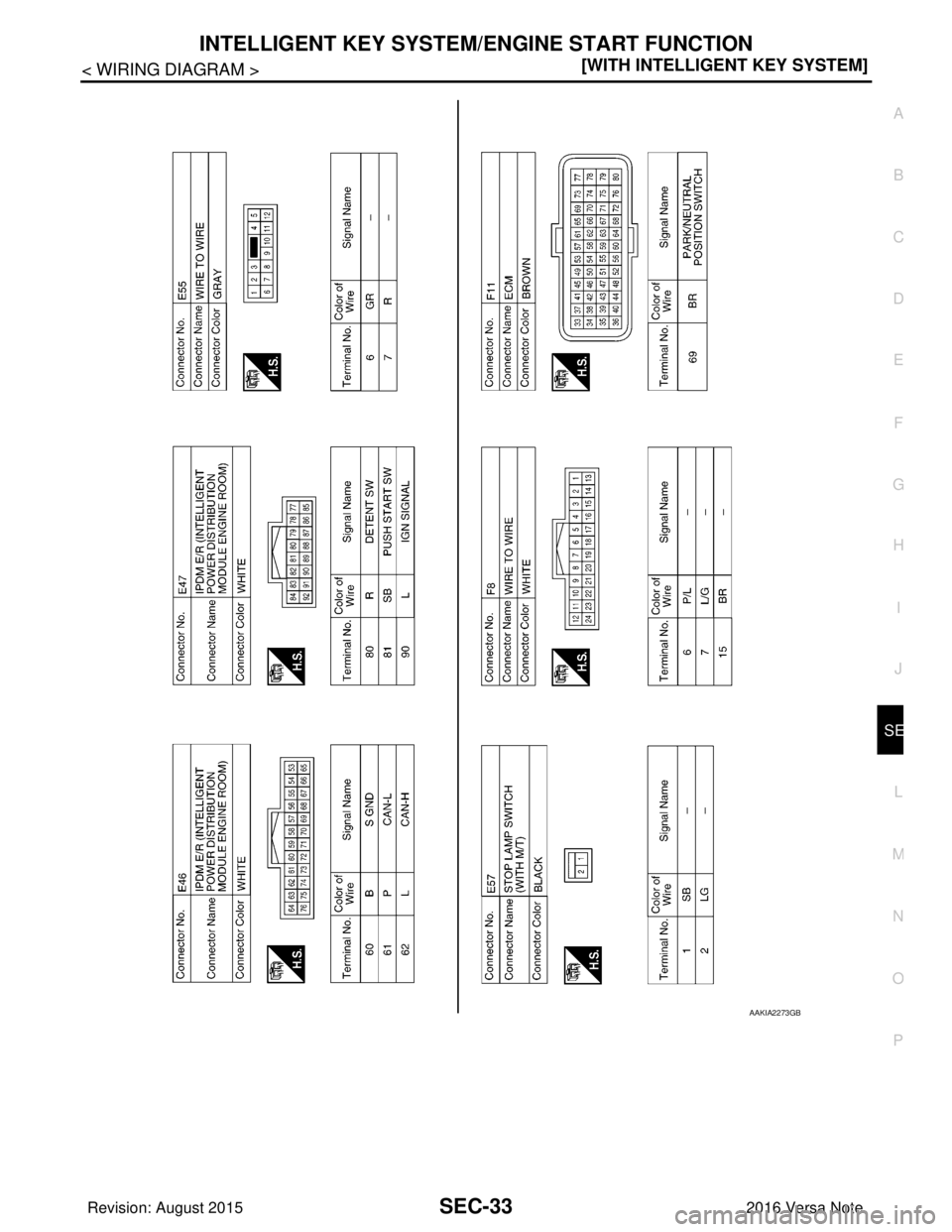

![NISSAN NOTE 2016 Service Repair Manual INTELLIGENT KEY SYSTEM/ENGINE START FUNCTIONSEC-33
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
AAKIA2273GB
Revision: August 2015 2016 Versa Note
cardiagn.com](/img/5/57363/w960_57363-2889.png "NISSAN NOTE 2016 Service Repair Manual INTELLIGENT KEY SYSTEM/ENGINE START FUNCTIONSEC-33
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
AAKIA2273GB
Revision: August 2015 2016 Versa Note
cardiagn.com")
