NISSAN NOTE 2016 Service Repair Manual
Manufacturer: NISSAN, Model Year: 2016, Model line: NOTE, Model: NISSAN NOTE 2016Pages: 3641, PDF Size: 28.72 MB
Page 2911 of 3641
![NISSAN NOTE 2016 Service Repair Manual SEC-54
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
B2192 ID DISCORD, IMMU-ECM
B2192 ID DISCORD, IMMU-ECM
DTC LogicINFOID:0000000012430362
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PE](/img/5/57363/w960_57363-2910.png "NISSAN NOTE 2016 Service Repair Manual SEC-54
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
B2192 ID DISCORD, IMMU-ECM
B2192 ID DISCORD, IMMU-ECM
DTC LogicINFOID:0000000012430362
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PE")
SEC-54
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
B2192 ID DISCORD, IMMU-ECM
B2192 ID DISCORD, IMMU-ECM
DTC LogicINFOID:0000000012430362
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Check DTC in “Self Diagnostic Result” of “BCM” using CONSULT.
Is DTC detected?
YES >> Go to SEC-54, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000012430363
1.PERFORM INITIALIZATION
Perform initialization of BCM and registration of all In telligent Keys using CONSULT. Refer to the CONSULT
Immobilizer mode and follow t he on-screen instructions.
Can the system be initialized and can the engine be started with registered Intelligent Key?
YES >> Inspection End.
NO >> GO TO 2.
2.CHECK SELF-DIAGNOSIS RESULT
1. Select “Self Diagnostic Result” of “BCM” using CONSULT.
2. Erase DTC.
3. Perform DTC CONFIRMATION PROCEDURE for DTC B2192. Refer to SEC-54, "
DTC Logic".
Is DTC detected?
YES >> GO TO 3.
NO >> Inspection End.
3.REPLACE BCM
1. Replace BCM. Refer to BCS-74, "
Removal and Installation".
2. Perform initialization of BCM and registration of all Intelligent Keys using CONSULT. Refer to the CON-
SULT Immobilizer mode and follow the on-screen instructions.
Can the system be initialized and can the engine be started with registered Intelligent Key?
YES >> Inspection End.
NO >> GO TO 4.
4.REPLACE ECM
1. Replace ECM. Refer to EC-477, "
Removal and Installation".
2. Perform “ADDITIONAL SERVICE WHEN REPLACING ECM”. Refer to EC-125, "
Work Procedure".
>> Inspection End.
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
B2192 ID DISCORD BCM-ECM The ID verification results between
BCM and ECM are NG.•BCM
•ECM
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 2912 of 3641
![NISSAN NOTE 2016 Service Repair Manual B2193 CHAIN OF ECM-IMMUSEC-55
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
B2193 CHAIN OF ECM-IMMU
DTC LogicINFOID:0000000012430364
DTC DETECTION LOGIC
NOT](/img/5/57363/w960_57363-2911.png "NISSAN NOTE 2016 Service Repair Manual B2193 CHAIN OF ECM-IMMUSEC-55
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
B2193 CHAIN OF ECM-IMMU
DTC LogicINFOID:0000000012430364
DTC DETECTION LOGIC
NOT")
B2193 CHAIN OF ECM-IMMUSEC-55
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
B2193 CHAIN OF ECM-IMMU
DTC LogicINFOID:0000000012430364
DTC DETECTION LOGIC
NOTE:
• If DTC B2193 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to BCS-63, "
DTC Logic".
• If DTC B2193 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to BCS-64, "
DTC Logic".
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Check DTC in “Self Diagnostic Result” of “BCM” using CONSULT.
Is DTC detected?
YES >> Go to SEC-55, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000012430365
1.REPLACE BCM
1. Replace BCM. Refer to BCS-74, "
Removal and Installation".
2. Perform initialization of BCM and registration of al l Intelligent Keys using CONSULT. Refer to the CON-
SULT Immobilizer mode and follow the on-screen instructions.
Does the engine start?
YES >> Inspection End.
NO >> GO TO 2.
2.REPLACE ECM
1. Replace ECM. Refer to EC-477, "
Removal and Installation".
2. Perform “ADDITIONAL SERVICE WHEN REPLACING ECM”. Refer to EC-125, "
Work Procedure".
>> Inspection End.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
B2193 CHAIN OF BCM-ECM Inactive communication between BCM
and ECM. • Harness or connectors
(The CAN communication line is open or
shorted.)
•BCM
•ECM
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2913 of 3641
![NISSAN NOTE 2016 Service Repair Manual SEC-56
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
B2195 ANTI-SCANNING
B2195 ANTI-SCANNING
DTC LogicINFOID:0000000012430366
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONF](/img/5/57363/w960_57363-2912.png "NISSAN NOTE 2016 Service Repair Manual SEC-56
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
B2195 ANTI-SCANNING
B2195 ANTI-SCANNING
DTC LogicINFOID:0000000012430366
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONF")
SEC-56
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
B2195 ANTI-SCANNING
B2195 ANTI-SCANNING
DTC LogicINFOID:0000000012430366
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Check DTC in “Self Diagnostic Result” of “BCM” using CONSULT.
Is DTC detected?
YES >> Refer to SEC-56, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000012430367
1.CHECK SELF DIAGNOSTIC RESULT 1
1. Select “Self Diagnostic Result” of “BCM” using CONSULT.
2. Erase DTC.
3. Perform DTC CONFIRMATION PROCEDURE for DTC B2195. Refer to SEC-56, "
DTC Logic".
Is DTC detected?
YES >> GO TO 2.
NO >> Inspection End.
2.CHECK EQUIPMENT OF THE VEHICLE
Check that unspecified accessory part re lated to engine start is not installed.
Is unspecified accessory part related to engine start installed?
YES >> GO TO 3.
NO >> GO TO 4.
3.CHECK SELF DIAGNOSTIC RESULT 2
1. Obtain the customers approval to remove unspecified accessory part related to engine start, and then remove it.
2. Select “Self Diagnostic Result” of “BCM” using CONSULT.
3. Erase DTC.
4. Perform DTC CONFIRMATION PROCEDURE for DTC B2195. Refer to SEC-56, "
DTC Logic".
Is DTC detected?
YES >> GO TO 4.
NO >> Inspection End.
4.REPLACE BCM
1. Replace BCM. Refer to BCS-74, "
Removal and Installation".
2. Perform initialization of BCM and registration of all Intelligent Keys using CONSULT. Refer to the CON-
SULT Immobilizer mode and follow the on-screen instructions.
>> Inspection End.
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
B2195 ANTI-SCANNING ID verification between BCM and ECM that is
out of the specified specification is detected. ID verification request out of the
specified specification
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 2914 of 3641
![NISSAN NOTE 2016 Service Repair Manual B2196 DONGLE UNITSEC-57
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
B2196 DONGLE UNIT
DescriptionINFOID:0000000012430368
BCM performs ID verification betw](/img/5/57363/w960_57363-2913.png "NISSAN NOTE 2016 Service Repair Manual B2196 DONGLE UNITSEC-57
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
B2196 DONGLE UNIT
DescriptionINFOID:0000000012430368
BCM performs ID verification betw")
B2196 DONGLE UNITSEC-57
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
B2196 DONGLE UNIT
DescriptionINFOID:0000000012430368
BCM performs ID verification between BCM and dongle unit.
When verification result is OK, BCM permits cranking.
DTC LogicINFOID:0000000012430369
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Turn ignition switch OFF.
3. Turn ignition switch ON.
4. Check DTC in “Self Diagnostic Result” of “BCM” using CONSULT.
Is the DTC detected?
YES >> Refer to SEC-57, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000012430370
Regarding Wiring Diagram information, refer to SEC-37, "Wiring Diagram".
1.PERFORM INITIALIZATION
1. Perform initialization of BCM and registration of all mechanical keys using CONSULT. For initialization and registration procedures, refe r to CONSULT Immobilizer mode and follow the on-
screen instructions.
2. Start the engine.
Dose the engine start?
YES >> Inspection End.
NO >> GO TO 2.
2.CHECK DONGLE UNIT CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and dongle unit connector.
3. Check continuity between BCM harness connector and dongle unit harness connector.
4. Check continuity between BCM harness connector and ground.
Is the inspection result normal?
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
B2196 DONGLE NG The ID verification results between BCM
and dongle unit is invalid. • Harness or connectors
(Dongle unit circuit is open or shorted.)
• Dongle unit
BCM Dongle unit
Continuity
Connector TerminalConnector Terminal
M97 24M6 1Yes
BCM GroundContinuity
Connector Terminal
M97 24 No
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2915 of 3641
![NISSAN NOTE 2016 Service Repair Manual SEC-58
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
B2196 DONGLE UNIT
YES >> GO TO 3.
NO >> Repair or replace harness.
3.CHECK DONGLE UNIT GROUND CIRCUIT
Check continuity between dongle unit](/img/5/57363/w960_57363-2914.png "NISSAN NOTE 2016 Service Repair Manual SEC-58
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
B2196 DONGLE UNIT
YES >> GO TO 3.
NO >> Repair or replace harness.
3.CHECK DONGLE UNIT GROUND CIRCUIT
Check continuity between dongle unit")
SEC-58
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
B2196 DONGLE UNIT
YES >> GO TO 3.
NO >> Repair or replace harness.
3.CHECK DONGLE UNIT GROUND CIRCUIT
Check continuity between dongle unit harness connector and ground.
Is the inspection result normal?
YES >> Replace dongle unit.
NO >> Repair or replace harness.
Dongle unit
GroundContinuity
Connector Terminal
M6 4 Yes
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2916 of 3641
![NISSAN NOTE 2016 Service Repair Manual B2198 NATS ANTENNA AMP.SEC-59
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
B2198 NATS ANTENNA AMP.
DTC LogicINFOID:0000000012430371
DTC DETECTION LOGIC
DTC](/img/5/57363/w960_57363-2915.png "NISSAN NOTE 2016 Service Repair Manual B2198 NATS ANTENNA AMP.SEC-59
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
B2198 NATS ANTENNA AMP.
DTC LogicINFOID:0000000012430371
DTC DETECTION LOGIC
DTC")
B2198 NATS ANTENNA AMP.SEC-59
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
B2198 NATS ANTENNA AMP.
DTC LogicINFOID:0000000012430371
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Make the conditions that BCM enters in the low power consumption mode (BCM sleep condition).
Refer to BCS-13, "
POWER CONSUMPTION CONTROL SY STEM : System Description".
2. Turn ignition switch ON.
3. Check DTC in “Self Diagnostic Result” of “BCM” using CONSULT.
Is DTC detected?
YES >> Go to SEC-59, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000012430372
Regarding Wiring Diagram information, refer to SEC-37, "Wiring Diagram".
1.CHECK FUSE
1. Turn power switch OFF.
2. Check that the following fuse in IPDM E/R is not blown.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace the blown fuse after repairing the cause of blowing.
2.CHECK NATS ANTENNA AMP. POWER SUPPLY
1. Disconnect NATS antenna amp. connector.
2. Check voltage between NATS antenna amp. harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 3.
3.CHECK NATS ANTENNA AMP. POWER SUPPLY CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check continuity between IPDM E/R har ness connector and NATS antenna amp. connector.
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
B2198 NATS ANTENNA AMP Inactive communication between NATS
antenna amp. and BCM is detected when
BCM enters in the low power consumption
mode. (BCM sleep condition) • Harness or connectors
(NATS antenna amp. circuit is open or
shorted.)
• NATS antenna amp.
•BCM
Signal name Fuse No.
Battery power supply 53 (20 A)
(+)
(–)Voltage (V)
(Approx.)
NATS antenna amp.
Connector Terminal
M21 1GroundBattery voltage
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2917 of 3641

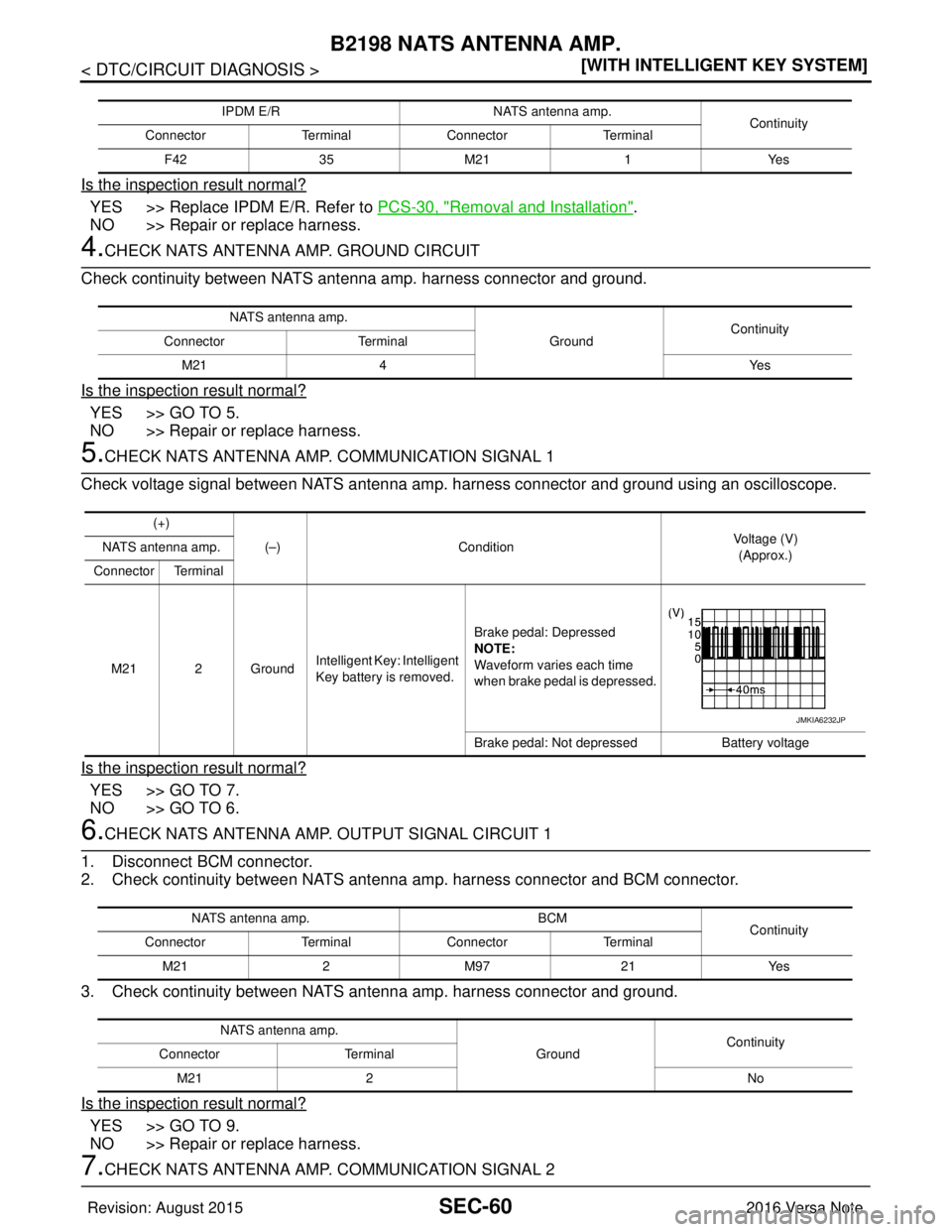

![NISSAN NOTE 2016 Service Repair Manual SEC-60
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
B2198 NATS ANTENNA AMP.
Is the inspection result normal?
YES >> Replace IPDM E/R. Refer to
PCS-30, "Removal and Installation".
NO >> Repa](/img/5/57363/w960_57363-2916.png "NISSAN NOTE 2016 Service Repair Manual SEC-60
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
B2198 NATS ANTENNA AMP.
Is the inspection result normal?
YES >> Replace IPDM E/R. Refer to
PCS-30, \"Removal and Installation\".
NO >> Repa")
SEC-60
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
B2198 NATS ANTENNA AMP.
Is the inspection result normal?
YES >> Replace IPDM E/R. Refer to
PCS-30, "Removal and Installation".
NO >> Repair or replace harness.
4.CHECK NATS ANTENNA AMP. GROUND CIRCUIT
Check continuity between NATS antenna amp. harness connector and ground.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace harness.
5.CHECK NATS ANTENNA AMP. COMMUNICATION SIGNAL 1
Check voltage signal between NATS antenna amp. harness connector and ground using an oscilloscope.
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 6.
6.CHECK NATS ANTENNA AMP. OUTPUT SIGNAL CIRCUIT 1
1. Disconnect BCM connector.
2. Check continuity between NATS antenna amp. harness connector and BCM connector.
3. Check continuity between NATS antenna amp. harness connector and ground.
Is the inspection result normal?
YES >> GO TO 9.
NO >> Repair or replace harness.
7.CHECK NATS ANTENNA AMP. COMMUNICATION SIGNAL 2
IPDM E/R NATS antenna amp.
Continuity
Connector TerminalConnector Terminal
F42 35M21 1Yes
NATS antenna amp.
GroundContinuity
Connector Terminal
M21 4 Yes
(+)
(–) Condition Voltage (V)
(Approx.)
NATS antenna amp.
Connector Terminal
M21 2 Ground Intelligent Key: Intelligent
Key battery is removed.Brake pedal: Depressed
NOTE:
Waveform varies each time
when brake pedal is depressed.
Brake pedal: Not depressed
Battery voltage
JMKIA6232JP
NATS antenna amp. BCM
Continuity
Connector TerminalConnector Terminal
M21 2M97 21Yes
NATS antenna amp. GroundContinuity
Connector Terminal
M21 2 No
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2918 of 3641

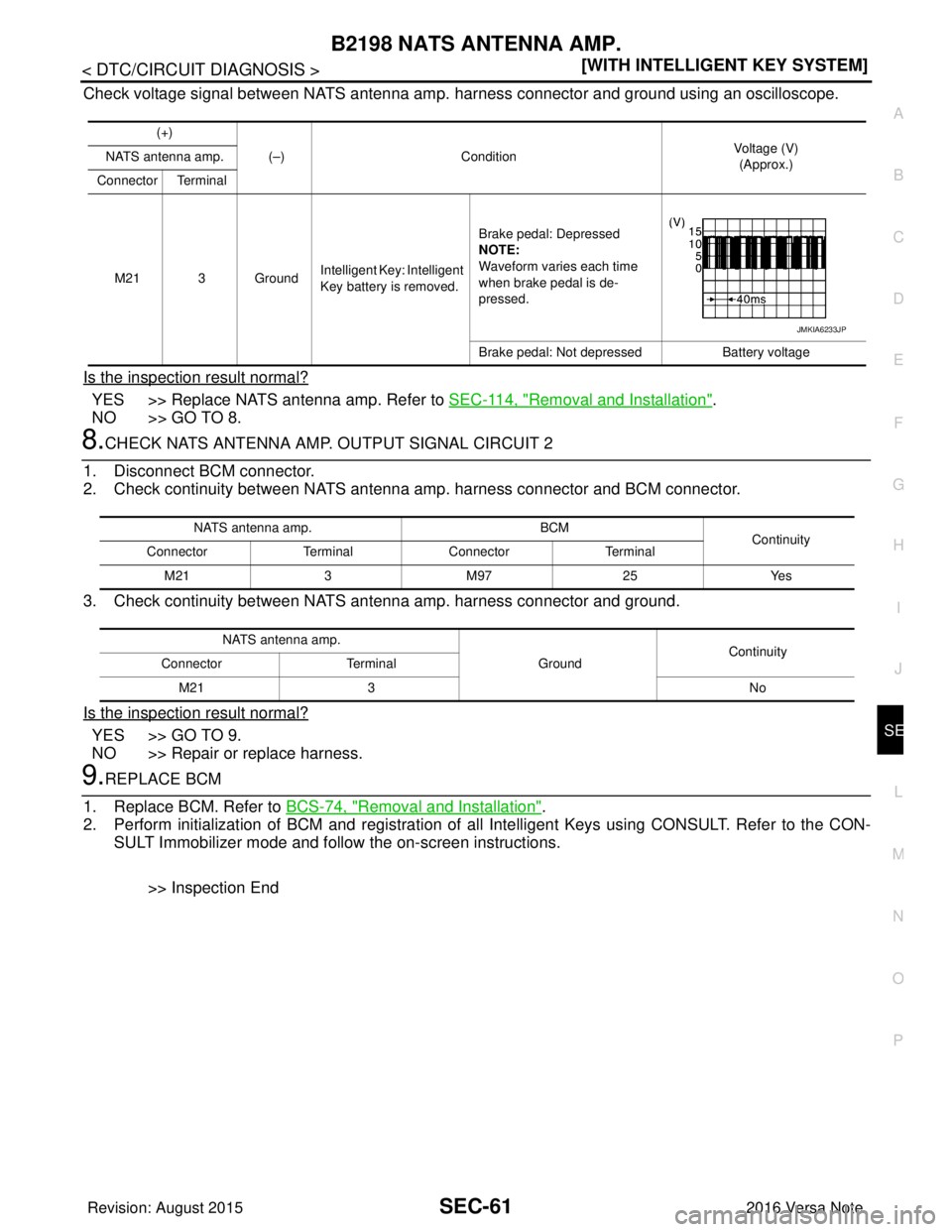

![NISSAN NOTE 2016 Service Repair Manual B2198 NATS ANTENNA AMP.SEC-61
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
Check voltage signal between NATS antenna amp. harness connector and ground usin](/img/5/57363/w960_57363-2917.png "NISSAN NOTE 2016 Service Repair Manual B2198 NATS ANTENNA AMP.SEC-61
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
Check voltage signal between NATS antenna amp. harness connector and ground usin")
B2198 NATS ANTENNA AMP.SEC-61
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
Check voltage signal between NATS antenna amp. harness connector and ground using an oscilloscope.
Is the inspection result normal?
YES >> Replace NATS antenna amp. Refer to SEC-114, "Removal and Installation".
NO >> GO TO 8.
8.CHECK NATS ANTENNA AMP. OUTPUT SIGNAL CIRCUIT 2
1. Disconnect BCM connector.
2. Check continuity between NATS antenna amp. harness connector and BCM connector.
3. Check continuity between NATS antenna amp. harness connector and ground.
Is the inspection result normal?
YES >> GO TO 9.
NO >> Repair or replace harness.
9.REPLACE BCM
1. Replace BCM. Refer to BCS-74, "
Removal and Installation".
2. Perform initialization of BCM and registration of al l Intelligent Keys using CONSULT. Refer to the CON-
SULT Immobilizer mode and follow the on-screen instructions.
>> Inspection End
(+) (–) Condition Voltage (V)
(Approx.)
NATS antenna amp.
Connector Terminal
M21 3 Ground Intelligent Key: Intelligent
Key battery is removed.Brake pedal: Depressed
NOTE:
Waveform varies each time
when brake pedal is de-
pressed.
Brake pedal: Not depressed
Battery voltage
JMKIA6233JP
NATS antenna amp. BCM
Continuity
Connector TerminalConnector Terminal
M21 3M97 25Yes
NATS antenna amp. GroundContinuity
Connector Terminal
M21 3 No
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2919 of 3641
![NISSAN NOTE 2016 Service Repair Manual SEC-62
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
B2555 STOP LAMP
B2555 STOP LAMP
DTC LogicINFOID:0000000012430373
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION](/img/5/57363/w960_57363-2918.png "NISSAN NOTE 2016 Service Repair Manual SEC-62
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
B2555 STOP LAMP
B2555 STOP LAMP
DTC LogicINFOID:0000000012430373
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION")
SEC-62
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
B2555 STOP LAMP
B2555 STOP LAMP
DTC LogicINFOID:0000000012430373
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Depress brake pedal and wait 1 second or more.
2. Check DTC in “Self Diagnostic Result” of “BCM” using CONSULT.
Is DTC detected?
YES >> Go to SEC-62, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000012430374
Regarding Wiring Diagram information, refer to SEC-37, "Wiring Diagram".
1.CHECK STOP LAMP SWITCH INPUT SIGNAL 1
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM harness connector and ground.
Is the inspection normal?
YES >> GO TO 2.
NO-1 >> Check 10 A fuse [No. 30, located in the fuse block (J/B)].
NO-2 >> Check harness for open or short between BCM and fuse.
2.CHECK STOP LAMP SWIT CH POWER SUPPLY CIRCUIT
1. Disconnect stop lamp switch connector.
2. Check voltage between stop lamp switch harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Check harness for open or short between stop lamp switch and fuse.
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
B2555 STOP LAMP CIRCUIT BCM makes a comparison between the
upper voltage and lower voltage of stop
lamp switch. It judges from their values to
detect the malfunctioning circuit. • Harness or connectors
(Stop lamp switch circuit is open or
shorted.)
• Stop lamp switch
•Fuse
•BCM
(+)
(–)Voltage (V)
(Approx.)
BCM
Connector Terminal
M98 105GroundBattery voltage
(+)
(–)Voltage (V)
(Approx.)
Stop lamp switch
Connector Terminal
E13 (CVT) 1GroundBattery voltage
E57 (MT)
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2920 of 3641
![NISSAN NOTE 2016 Service Repair Manual B2555 STOP LAMPSEC-63
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
3.CHECK STOP LAMP SWITCH INPUT SIGNAL 2
1. Connect stop lamp switch connector.
2. Check](/img/5/57363/w960_57363-2919.png "NISSAN NOTE 2016 Service Repair Manual B2555 STOP LAMPSEC-63
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
3.CHECK STOP LAMP SWITCH INPUT SIGNAL 2
1. Connect stop lamp switch connector.
2. Check")
B2555 STOP LAMPSEC-63
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
3.CHECK STOP LAMP SWITCH INPUT SIGNAL 2
1. Connect stop lamp switch connector.
2. Check voltage between BCM harness connector and ground.
Is the inspecting result normal?
YES >> GO TO 4.
NO >> GO TO 5.
4.REPLACE BCM
1. Replace BCM. Refer to BCS-74, "
Removal and Installation".
2. Perform initialization of BCM and registration of al l Intelligent Keys using CONSULT. Refer to the CON-
SULT Immobilizer mode and follow the on-screen instructions.
>> Inspection End.
5.CHECK STOP LAMP SWITCH CIRCUIT
1. Disconnect stop lamp switch connector.
2. Check continuity between stop lamp switch harness connector and BCM harness connector.
3. Check continuity between stop lamp switch harness connector and ground.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair or replace harness.
6.CHECK STOP LAMP SWITCH
Refer to SEC-63, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 7.
NO >> Replace stop lamp switch. Refer to BR-20, "
Exploded View".
7.CHECK INTERMITTENT INCIDENT
Refer to GI-42, "
Intermittent Incident".
>> Inspection End.
Component InspectionINFOID:0000000012430375
1.CHECK STOP LAMP SWITCH
1. Turn ignition switch OFF.
(+)
(–)Condition Voltage (V)
(Approx.)
BCM
Connector Terminal
M97 9Ground Brake pedal Depressed Battery voltage
Not depressed 0
St op la mp sw i tc h BC M
Continuity
Connector TerminalConnector Terminal
E13 (CVT) 2M979 Y es
E57 (MT)
St op la mp sw i tc h GroundContinuity
Connector Terminal
E13 (CVT) 2N o
E57 (MT)
Revision: August 2015 2016 Versa Note
cardiagn.com
