DIAGNOSIS SYSTEM (AUDIO UNIT)
1. Press the RPT/DRM button to enter speaker channel check, and
the front left tweeter (front tweeter LH) is displayed.
2. With each additional press of the RPT/DRM button, the following information is available:
- FR RIGHT TWEETER (front tweeter RH)
- FR RIGHT (front door speaker RH)
- RR RIGHT (rear speaker RH)
- RR LEFT (rear speaker LH)
- FR LEFT (front door speaker LH)
3. Hold the RPT/DRM button down to return to all display segments screen.
Communication Diagnosis
1. Press the DISP button, and the M-CAN message transmission error history screen is displayed.
2. Press the DISP button again, and the TEL $$ nn (CMF message reception error history from M-CAN TEL)
screen is displayed.
3. Press the DISP button again, and the TROUBLE DE L. (deletion of M-CAN message communication his-
tory) screen is displayed. To retain the M-CAN message communication history and return to the commu-
nication diagnosis mode screen, press the DISP button.
4. To proceed to the M-CAN message communication history deletion screen, press the SEEK/TRACK button. The REC DEL-NO? (selection of M-CAN mess age communication history deletion) screen is dis-
played. To cancel M-CAN message communication hi story deletion, wait 6 seconds and you will be
returned to the TROUBLE DEL. (deletion of M-CAN message communication history) screen. To proceed
with M-CAN message communication history del etion, press the SEEK/TRACK button again.
5. The REC DEL-YES?@ (selection of M-CAN message communication history deletion) screen is dis-
played. To cancel M-CAN message communication hi story deletion, press the SEEK/TRACK button
and you will be returned to the REC DEL-NO? (selec tion of M-CAN message communication history dele-
tion) screen. To proceed with M-CAN message communication history deletion, wait 6 seconds and the
communication history deletion will be executed. Af ter the communication history deletion has been exe-
cuted, you will be returned to the TROUBLE DEL. (deletion of M-CAN message communication history)
screen. To return to the communication di agnosis mode screen, press the DISP button.
ALNIA1384GB
ALNIA1386GB
Revision: August 2015 2016 Versa Note

cardiagn.com

AV
DIAGNOSIS SYSTEM (BLUETOOTH® CONTROL UNIT)AV-17
< SYSTEM DESCRIPTION > [BASE AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P
DIAGNOSIS SYSTEM (BLU ETOOTH® CONTROL UNIT)
Diagnosis DescriptionINFOID:0000000012432873
The Bluetooth® control unit has two diagnostic checks. The fi rst diagnostic check is performed automatically
every ignition cycle during control unit initialization. The second diagnostic check is performed by the techni-
cian using the steering wheel audio control switches prior to trouble diagnosis.
BLUETOOTH® CONTROL UNIT INITIALIZATION CHECKS
• Internal control unit failure
• Bluetooth
® antenna connection open or shorted
• Steering wheel audio control switches [ (PHONE/SEND), (PHONE/END)] stuck closed
• Vehicle speed pulse count
• Microphone connection test (with playback to operator)
• Bluetooth
® inquiry check
OPERATION PROCEDURE
1. Turn ignition switch to ACC or ON.
2. Wait for the Bluetooth
® system to complete initialization. This may take up to 20 seconds.
3. Press and hold the steering wheel audio control switch (PHONE/SEND) button for at least 5 seconds. The Bluetooth
®
system will begin to play a verbal prompt.
4. While the prompt is playing, press and hold the steering wheel audio control switch (PHONE/END) button until you hear the
“Diagnostics mode” prompt. The Bluetooth
® system will sound a
5-second beep.
5. While the beep is sounding, press and hold the steering wheel
audio control switch (PHONE/END) button again until you
hear prompts.
6. The Bluetooth
® system has now entered into the diagnostic
mode. Results of the diagnostic checks will be verbalized to the
technician. Refer to AV-17, "
Work Flow".
7. After the failure records are reported, an interactive microphone test will be performed. Follow the voice prompt. If the micro-
phone test fails, refer to AV-17, "
Work Flow".
Work FlowINFOID:0000000012432874
AWNIA3082ZZ
AWNIA3083ZZ
Failure Message Action
“Internal failure” Replace Bluetooth
® control unit. Refer to AV- 5 6 , "Removal and Installation".
“Bluetooth
® antenna open” 1. Inspect harness connection.
2. Replace Bluetooth
® antenna. Refer to AV- 5 7 , "Removal and Installation".
“Bluetooth® antenna shorted”
“Phone/Send for Hands Free System is stuck” Check steering switches. Refer to AV- 4 6 , "
Diagnosis Procedure".
“Phone/End for the Hands Free System is stuck”
“Microphone test” (fai led interactive test) 1. Inspect harness between Bluetooth
® control unit and microphone.
2. Replace microphone. Refer to AV-59, "
Removal and Installation" .
Revision: August 2015 2016 Versa Note

cardiagn.com

AV-18
< ECU DIAGNOSIS INFORMATION >[BASE AUDIO]
AUDIO UNIT
ECU DIAGNOSIS INFORMATION
AUDIO UNIT
Reference ValueINFOID:0000000012432875
TERMINAL LAYOUT
PHYSICAL VALUES
AWNIA3649ZZ
Te r m i n a l
(Wire color) Description
Condition
Reference value
(Approx.)
+ – Signal nameInput/
Output Ignition
switch Operation
2
(GR) 3
(P) Sound signal front speaker
LH
Output ON Sound output.
4
(W) 5
(R) Sound signal rear speaker
LH
Output ON Sound output.
6
(BR) 15
(GR) Steering switch signal A Input ON Press SOURCE switch
0V
Press switch 1.0V
Press switch 2.0V
Press switch 3.0V
Except above 5.0V
7
(W) Ground ACC power supply
Input ACC—Battery voltage
9
(R) 8
(B) Illumination control signal Input ON Headlamps ON.
Battery voltage
SKIA0177E
SKIA0177E
Revision: August 2015 2016 Versa Note

cardiagn.com

AV
AUDIO UNITAV-19
< ECU DIAGNOSIS INFORMATION > [BASE AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P11
(BG) 12
(V) Sound signal front speaker
RH
Output ON Sound output.
13
(L) 14
(Y) Sound signal rear speaker
RH
Output ON Sound output.
16
(V) 15
(GR) Steering switch signal B Input ON Press switch
0V
Press switch 1.0V
Press switch 2.0V
Except above 5.0V
18
(LG) Ground Vehicle speed signal Input ON When vehicle speed is ap-
prox. 40 km/h (25 MPH).
19
(Y) Ground Battery power supply Input OFF
—Battery voltage
22
(B) Ground EQ2 Ground
— ON— 0 V
24
(B) Ground EQ4 Ground
— ON— 0 V
27
(SB) — AV communication (H)
Input/
Output ——
—
28
(LG) — AV communication (L) Input/
Output ——
—
29
(P) Ground TEL ON
Output ON— —
30
(Shield) — TEL voice signal shield — —
——
32
(G) 31
(R) TEL voice signal
Input ONDuring voice guide output
with switch pressed.
Te r m i n a l
(Wire color) Description
Condition
Reference value
(Approx.)
+ – Signal nameInput/
Output Ignition
switch Operation
SKIA0177E
SKIA0177E
JSNIA0012GB
SKIB3609E
Revision: August 2015
2016 Versa Note

cardiagn.com

AV-20
< ECU DIAGNOSIS INFORMATION >[BASE AUDIO]
AUDIO UNIT
37
(B) Ground Antenna amp. ON signal Output ON
Audio unit ON, AM or FM
selected.Battery voltage
38
(B) Ground AM/FM antenna signal Input ON Audio unit ON, AM or FM
selected.5.0 V
39
(Shield) —AM/FM antenna signal
shield
—— —
—
Te r m i n a l
(Wire color) Description
Condition
Reference value
(Approx.)
+ – Signal nameInput/
Output Ignition
switch Operation
Revision: August 2015
2016 Versa Note

cardiagn.com

AV
BLUETOOTH® CONTROL UNITAV-21
< ECU DIAGNOSIS INFORMATION > [BASE AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P
BLUETOOTH® CONTROL UNIT
Reference ValueINFOID:0000000012432876
TERMINAL LAYOUT
PHYSICAL VALUES
AWNIA3057ZZ
Te r m i n a l
(wire color) Description
Condition
Reference value
(Approx.)
+ – Signal nameInput/
output Ignition
switch Operation
1
(G) Ground Battery power
Input OFF–Battery voltage
2
(L) Ground ACC power
Input ACC–Battery voltage
3
(BG) Ground IGN power
Input ON–Battery voltage
4
(B) Ground Ground
– ON– 0V
7
(P) 8
(Shield) MIC in signal
InputACC
or
ON While speaking into micro-
phone
9
(W) 10
(B) Audio out
OutputACC
or
ON Bluetooth
® control unit
sends audio signal
11
(SB) Ground Tel ON signal
OutputONWhile using hands free
phone system
0V
Except above 5.0V
12
(R) 14
(G) LAD IN 1
Input ONPress SOURCE switch
0V
Press switch 1.0V
Press switch 2.0V
Press switch 3.0V
Except above 5.0V
SKIB3609E
SKIB3609E
Revision: August 2015 2016 Versa Note

cardiagn.com

AV-22
< ECU DIAGNOSIS INFORMATION >[BASE AUDIO]
BLUETOOTH® CONTROL UNIT
13
(P) 14
(G) LAD IN 2
Input ONPress switch
0V
Press switch 1.0V
Press switch 2.0V
Except above 5.0V
17
(BR) 19
(GR) LAD OUT 1
Output ONPress SOURCE switch
0V
Press switch 1.0V
Press switch 2.0V
Press switch 3.0V
Except above 5.0V
18
(V) 19
(GR) LAD OUT 2
Output ONPress switch
0V
Press switch 1.0V
Press switch 2.0V
Except above 5.0V
21
(B) Ground CONT2 Ground
– ON– 0V
22
(B) Ground CONT3 Ground
– ON– 0V
24
(B) Ground CONT5 Ground
– ON– 0V
27
(B) Ground CONT6 Ground
– ON– 0V
28
(Y) Ground Vehicle speed signal (2-
pulse)
Input ONWhen vehicle speed is ap-
prox. 40 km/h (25 MPH)
29
(L) Ground Microphone power
Output ON–5V
33
(SB) – AV communication (H) – –
–—
34
(LG) – AV communication (L) – –
–—
37
(LG) –
AV communication jumper
(H) –– –
—
38
(LG) –AV communication jumper
(H) –– –
—
39
(SB) –AV communication jumper
(L)
–– –
—
40
(SB) –
AV communication jumper
(L) –– –
—
Te r m i n a l
(wire color) Description
Condition
Reference value
(Approx.)
+ – Signal nameInput/
output Ignition
switch Operation
PKIA1935E
Revision: August 2015
2016 Versa Note

cardiagn.com

AV
BLUETOOTH® CONTROL UNITAV-23
< ECU DIAGNOSIS INFORMATION > [BASE AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P
41
(B) –
Bluetooth® antenna –– – —
42
(Shield) –
Bluetooth
® antenna shield –– – —
Te r m i n a l
(wire color) Description
Condition
Reference value
(Approx.)
+ – Signal nameInput/
output Ignition
switch Operation
Revision: August 2015
2016 Versa Note

cardiagn.com

AV-24
< WIRING DIAGRAM >[BASE AUDIO]
BASE AUDIO
WIRING DIAGRAM
BASE AUDIO

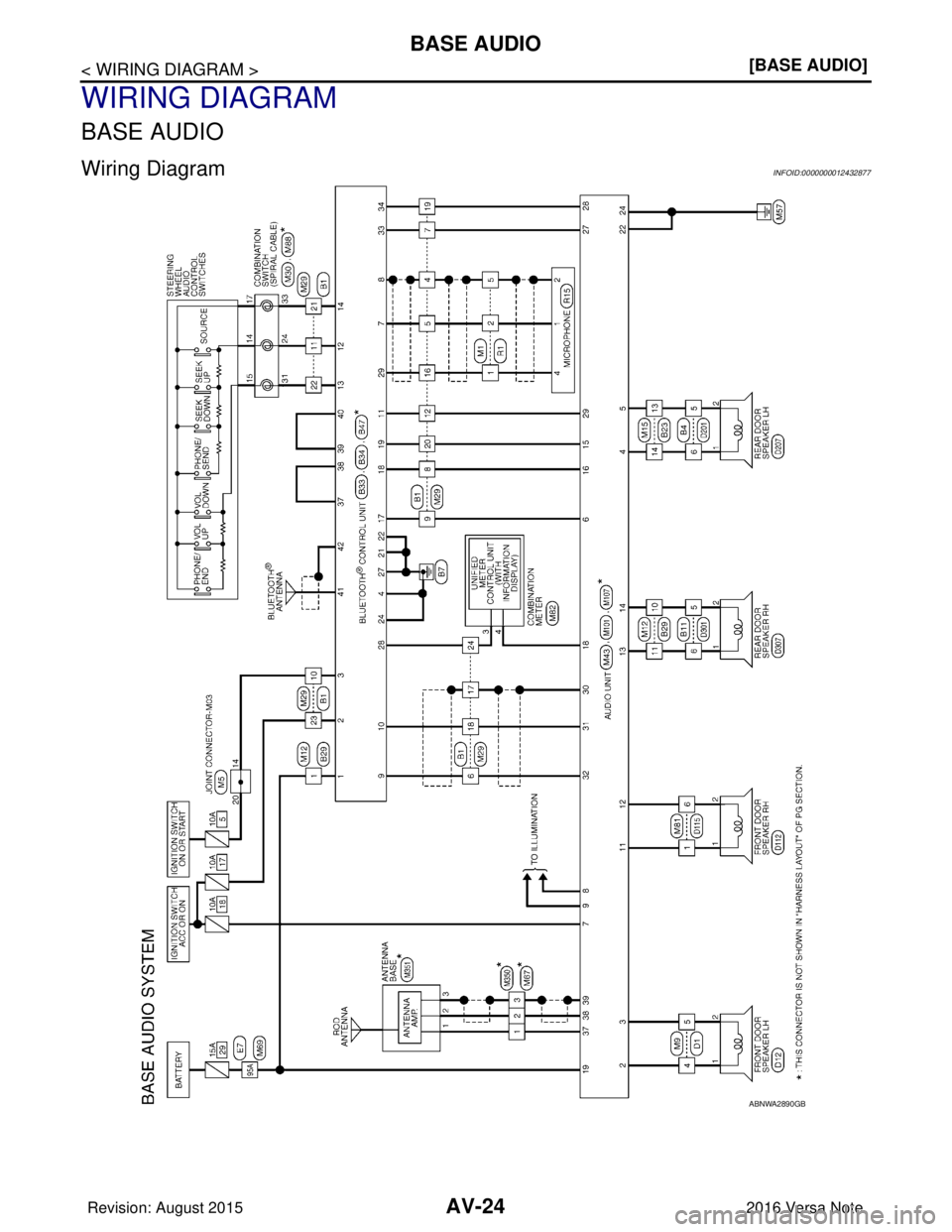

Wiring DiagramINFOID:0000000012432877
ABNWA2890GB
Revision: August 2015
2016 Versa Note

cardiagn.com

AV
BASE AUDIOAV-25
< WIRING DIAGRAM > [BASE AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P

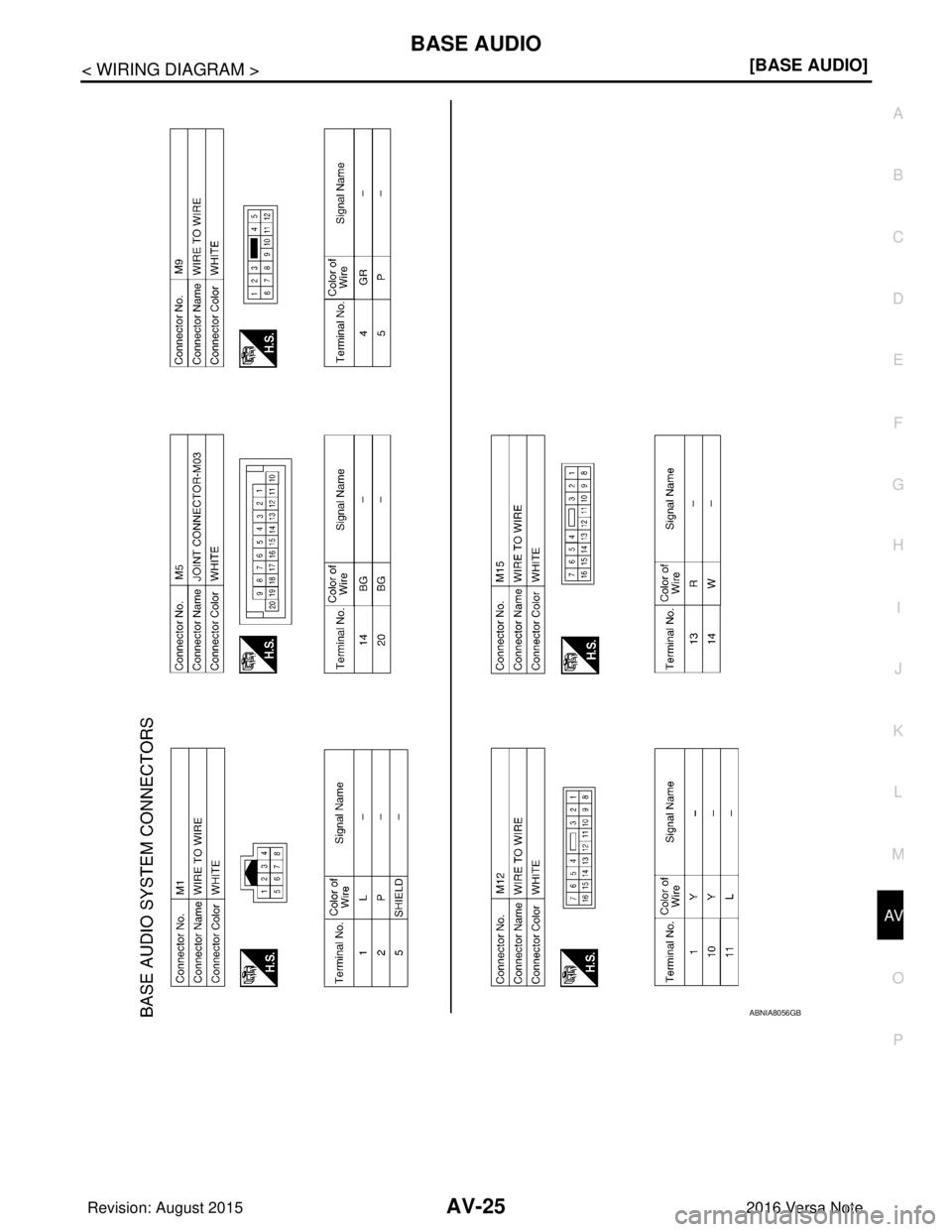

ABNIA8056GB
